OPERATION MANUAL / SPARE PARTS LIST
MANUAL SEALLESS
STEEL STRAPPING TOOL
MODEL A335
13.2780.01
INDEX PAGE
1 SAFETY INSTRUCTIONS 2
2 WARRANTY CONDITIONS AND LIABILITY 3
3 APPROPRIATE USE 3
4 TECNICAL DATA 3
5 CHART OF TYPES A335 4
6 OPERATION 4
7 SPARE PARTS LIST 13.2780.01 8
8 SEAL CONTROL 10
9 SEAL ADJUSTMENT 11
10 CLEANING 11
11 ACCESSORIES 12
13278001.en/MAS/© 03.03
2
A335T1.en.fm
1 SAFETY INSTRUCTIONS
Read these instructions carefully. Failure to follow these instructions can result in severe personal injury.
Eye injury hazard
Failure to wear safety glasses with side shields can result in
severe eye injury or blindness. Always wear safety g lasses with
side shields which conform to ANSI Standard Z87.1.
Operation
Tool must not be used by persons not properly trained in their use.
Before tensioning strap, read and understand the tool operating
instructions. Failure to follow the operating instructions or improper
load positioning could result in strap breakage.
Become familiar with your tool and keep fingers away from a reas
that can pinch or cut.
Joints
You are fully responsible to review the joints made by your tool.
Become familiar with the seal control and seal adjustment
described in this operation manual. Misformed joints may not
secure the load and could cause serious injury. Never handle or
ship any load with improperly formed joints.
Dispensing strap
Only dispense strap from a dispenser specifically designed for
strap.
Tuck strap end back into dispenser when not in use.
Protective gloves
When handling strap, always wear protective gloves.
Strap warnings
Never use strap as a means of pulling or lifting loads. Failure to
follow these warnings can result in severe personal injury.
Strap breakage hazard
Improper operation of the tool, excessive tensioning, using strap
not recommended for this tool or sharp corners on the load can
result in a sudden loss of strap tension or in strap breakage during
tensioning, which could result in the following:
• A sudden loss of balance causing you to fall.
• Both tool and strap flying violently towards your face.
Note as follows:
• If the load corners are sharp, use edge protectors.
• Place the strap correctly around a properly positioned
load.
• Positioning yourself in-line with the strap, during
tensioning and sealing, can result in severe personal
injury from flying strap or tool. When tensioning or sealing,
position yourself to one side of the strap and keep all
bystanders away.
• Use the correct strap quality, strap width, strap gauge and
strap tensile strength recommended in this manual for
your tool. Using strap not recommended for this tool can
result in strap breakage during tensioning.
Cutting tensioned strap
When cutting strapping, use the proper strapping cutter and keep
other personnel and yourself at a safe distance from the strap.
Always stand to side of the strap, away from the direction the
loosened strap end will fly. Use only cutters designed for strap and
never hammers, pliers, hacksaws, axes, etc.
Fall hazard
Keep your working area tidy. Untidiness of your working area may
cause a risk of injury. Maintaining improper footing and/or balance
when operating the tool can cause you to fall. Before tensioning
and especially in elevated areas, always establish good balance.
Both feet should be securely placed on a flat, solid surface,
especially when working in elevated areas. Do not use the tool
when you are in an awkward position.
Pay attention to the rules and regulations for preventions of
accident which are valid for the work place.
T ool hazards
A well maintained tool is a safe tool!
Check tool regularly for broken or worn parts. Do not operate a
tool with broken or worn parts.
Never modify any tool. Modification can result in severe bodily
injury.
3
A335T1.en.fm
2 WARRANTY CONDITIONS AND LIABILITY
FROMM Holding AG warrants all its strapping tools and machine heads during a period of 90 days from the
date of
sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials.
Damage claims as a result of production shutdowns and claims for damage to persons and to property resulting
from warranty deficiencies cannot be asserted by the customer.
The warranty excludes:
• wearing parts
• deficiencies resulting from improper installing, incorrect handling and maintaining the tool
• deficiencies resulting from using the tool without or with defective security- and safety devices
• disregard of directions in the operation manual
• arbitrary modifications of the tool
• deficient control of wearing parts
• deficient repair works of the tool
• Use of consumable products not recommended by FROMM Holding AG
We reserve the right to modify the product at any time in order to improve its quality.
3 APPROPRIATE USE
The tool model A335 has been designed to strap packages with steel strapping exclusively.
The warranty / liability excludes:
•non appropriate use of the tool,
•disregard of directions in the operation manual,
•disregard of control- and maintenance ins truc ti ons .
4 TECNICAL DATA
Dimensions without suspension bracket
Tool Package
Length: 387 mm / 15.2" 410 mm / 16.1"
Width: 162 mm / 6.4" 360 mm / 14.2"
Height: 308 mm / 12.1" 170 mm / 6.7"
Weight: 3.9 kg / 8.6 lbs 1.2 kg / 2.7 lbs
Joint strength
Approx. 80% of the strap’s tensile strength.
Steel strapping
Width: 12.7 - 19mm / 1/2"-3/4" (see chart of types)
Thickness: 0.50 - 0.58 mm / 0.020"- 0.023"
Quality: Fundamentally the A335 allows the use of all current steel straps with tensile
strengths ranging from 850 to 1100 N/mm
2
/ 123 000 - 160 000 psi.
Straps with a low breaking elongation are unsuitable.
4
A335T1.en.fm
5 CHART OF TYPES A335
6 OPERATION
Feeding the strapping around the package
The strapping is fed around the package in the direction as shown in the illustration. The strapping end is
held tightly with the left hand and pulled firmly
towards the operator with the right hand.
Loading the strapping
The rocker is raised with the right hand. The left hand
inserts the two straps lying precisely upon another
into the tool until they hit the strap stops.
The lower strap end must slig htly protr ude the en d of
the base plate.
Be certain that the strapping is held by the strap guide.
Item No. Model Strap width Strap thickness
13.2770 A335/12.7/0.50 - 0.58 12.7 mm / 1/2" 0.50 - 0.58 mm / 0.020 - 0.023"
13.2780 A335/13/0.50 - 0.58 13.0 mm 0.50 - 0.58 mm / 0.020 - 0.023"
13.2790 A335/16/0.50 - 0.58 16.0 mm / 5/8" 0.50 - 0.58 mm / 0.020 - 0.023"
13.2810 A335/19/0.50 - 0.58 19.0 mm/ 3/4" 0.50 - 0.58 mm / 0.020 - 0.023"
When handling strap, always wear protective
gloves and safety glasses with side shields
which conform to ANSI St a nda r d Z87.1.
5
A335T1.en.fm

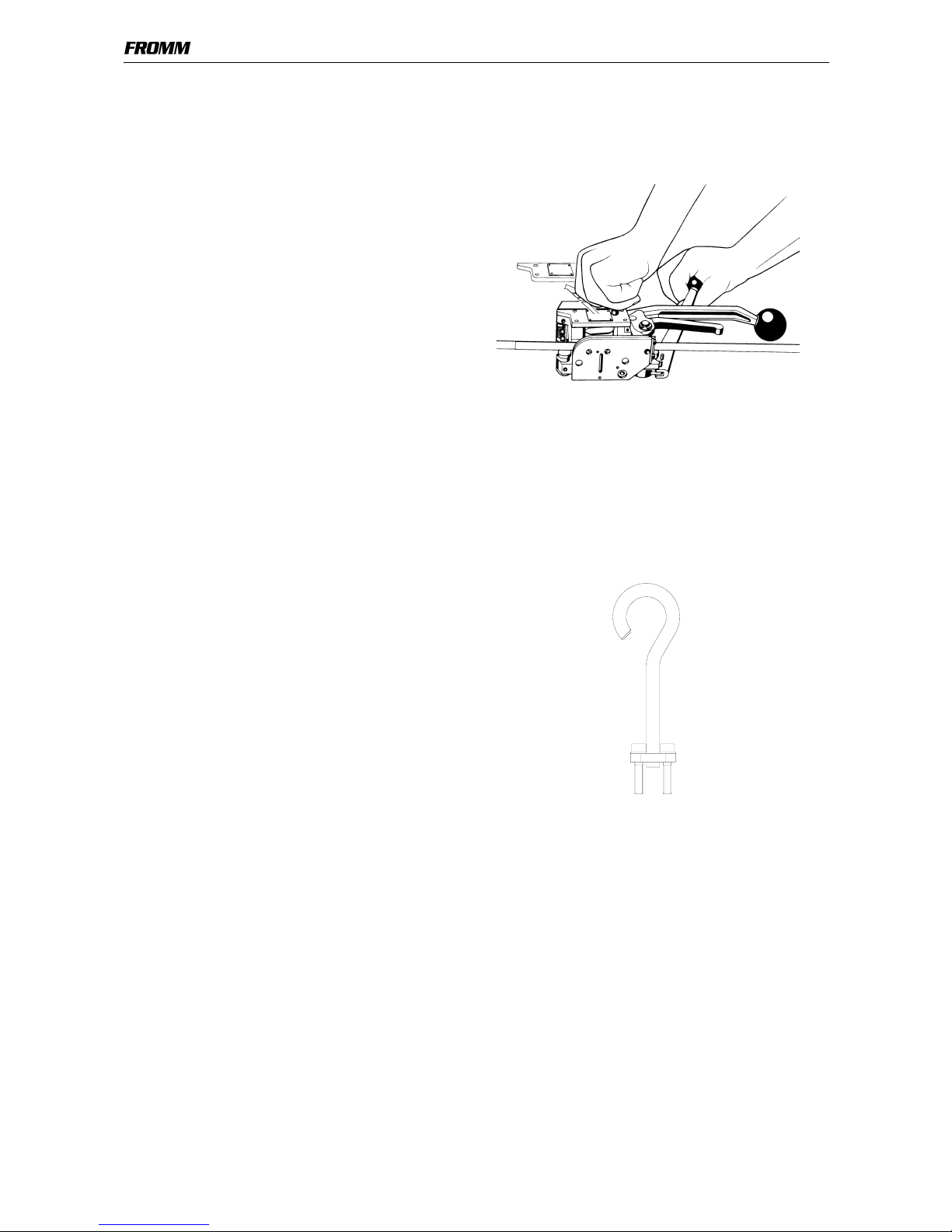

Tensioning the strapping
The tool is held tightly with the left han d b eing pl ac ed
on the sealing lever. The tensioning handle is now
moved forward and backward with the right hand until
the desired tension is attained.
Sealing the strapping
The sealing lever is moved forward using the left hand
until it hits the stop. The lever is then moved back to
its initial position. When sealing, the right hand absorbs the sealing force by holding the tensioning handle.
Releasing the tool
Hold the cut off strap end wit h the left hand, lift the
rocker with the right hand and push the too l from t he
applied strap to the right.

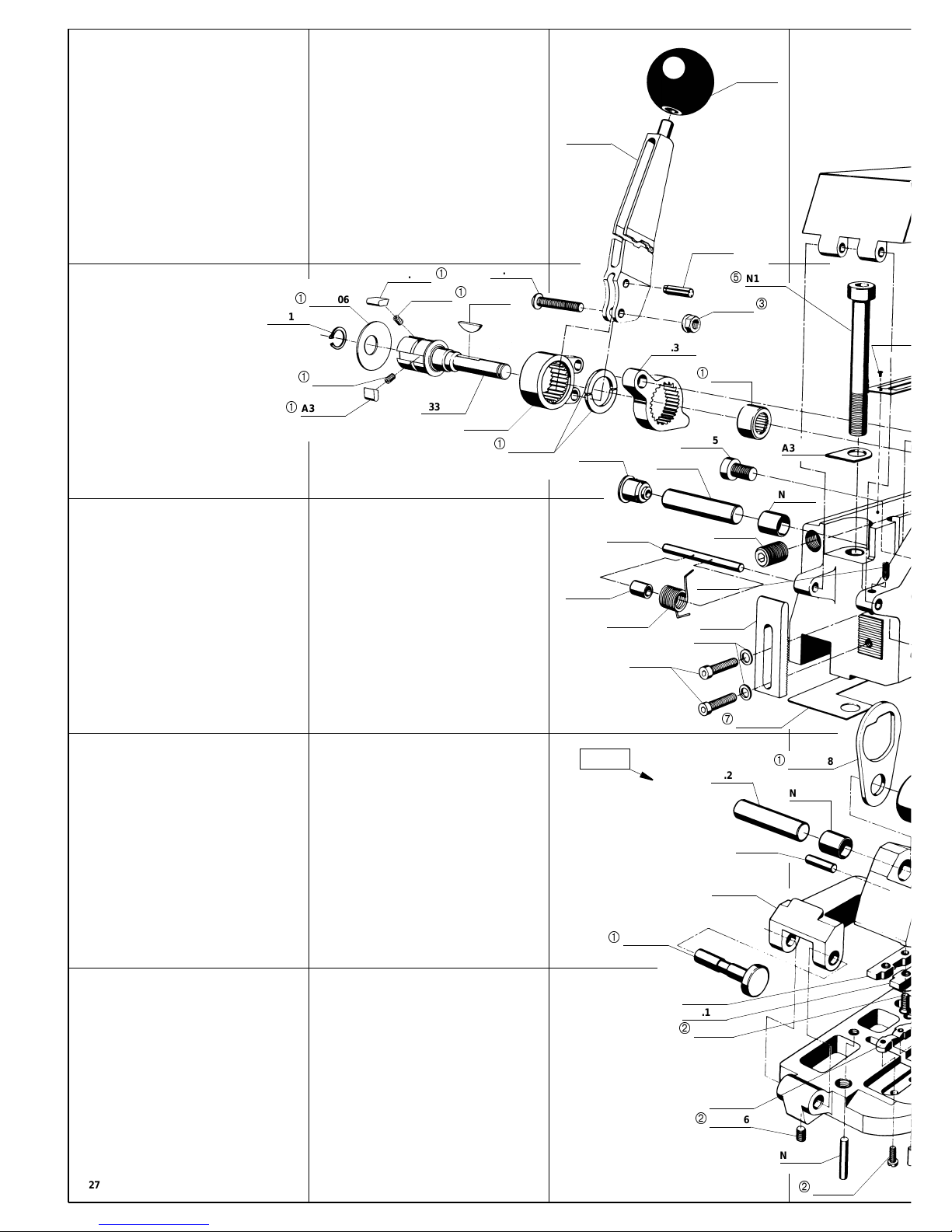

2 31A
B
C
D
E
N1.1182
N4.1116
A33.3151
N2.2603
N1.5907
N1.1210
N2.3205
N2.5154
A33.3110
N2.1108
N2.5606
N2.5154
A33.3137
A33.3144
A33.3131
A33.3124
A33.3130
N3.2315
N1.1165
N3.3131
N1.3120
N1.3203
N2.2148
N2.2230
A33.1179
A33.1158
A33.1161
N1.6103
N2.5807
N1.1168
A33.1173
A33.1168
N3.3131
N2.2148
N2.2143
A33.1187
A33.2163
A33.1138
A33.1137
N1.1806
A33.2121
N1.3106
N2.2149
N1.1304
13278001.z
A33.1192
A33.1176
N2.4902
4 5 6 7
N4.1116
A33.1174
N1.1184
ESSO Beacon 2
Loctite 222
Loctite 243
Loctite 638
42 Nm
85 Nm
Compensation
N41.9128
N2.2441
A33.1155
A33.1181
N2.5170
N1.1202
A33.1163
A33.1177
N2.4906
N1.5131
N1.3116
A33.3129
N2.2150
N2.1117
N1.6135
N3.2316
A33.3134
A33.3143
N3.3131
N2.2165
A33.1190
N1.1808
N2.5171
N1.1181
A33.2159
N2.2401
N2.2136
N1.1806
A33.2177
A33.1120
A33.1167
N1.1110
A33.1170
N3.3131
N1.1104
N1.1304
N2.2147
A33.1186
A33.2174
A33.3138
N2.4902
N41.9132
[ ] = Group * = Wearing parts
8
13278001.een.fm
7 SPARE PARTS LIST 13.2780.01
13.2780.01 A335/13/0.50-0.58 A335.0008.01 29.11.99
Item-No. in group Pcs. Description Dimension Field
A33.1120
*
1 SHEAR BLADE D5
A33.1137
*
1 DIE HALF E3
A33.1138
*
1 DIE HALF E3
A33.1155 1 SEALING HANDLE A4
A33.1158 1 STOP C3
A33.1161 1 BUSH C3
A33.1163 1 SOCKET SET SCREW C5
A33.1167 A33.1192 1 ROLLER D4
A33.1168 A33.1192 1 LINK D4
A33.1170 1 EJECTOR A5
[A33.1173] 1 SHIM C3
A33.1174 1 COVER C6
A33.1176 1 WASHER B4
A33.1177 1 WASHER B5
A33.1179 1 TRUNNION B3
A33.1181 1 SEALING CAM B5
[A33.1186] 1 HOUSING C5
[A33.1187] A33.1192 1 DIE AND CUTTER SUPPORT D3
A33.1190 1 COVER C6
[A33.1192] 1 DIE AND CUTTER SUPPORT D3
A33.2121
*
1 PUNCH E3
A33.2159 1 STRAP STOP D5
A33.2163 1 LIMIT BOLT D3
A33.2174 1 BASE PLATE E5
A33.2177
*
1 GRIPPER HSS E5
A33.3110 3 TENSIONING PAWL B2
A33.3124 2 RING HALF B2
A33.3129 1 ROCKER B6
A33.3130 1 LOCKING RING B3
A33.3131 1 DRIVER B2
A33.3134 1 STRAP GUIDE C5
A33.3137
*
3 CATCH PAWL B 2
A33.3138 1 SPACER RING C5
A33.3143
*
1 TENSIONING WHEEL C5
[A33.3144] 1 TENSION SHAFT B2
A33.3151 1 TENSION HANDLE A3
N1.1104 1 SCREW M8 X 20 E4
N1.1110 1 SCREW M5 X 8 D5
N1.1165 A33.1186 1 SCREW M8 X 10 B3
N1.1168 2 SCREW M5 X 16 C3
N1.1181 2 SCREW M5 X 12 D5
N1.1182 1 SCREW M10 X 1 X 80 B3
N1.1184 1 SCREW M12 X 1,25 X 80 B5
N1.1202 1 SCREW M5 X 10 B4
N1.1210 1 SCREW M6 X 25 B2
N1.1304 2 SCREW M3 X 8 E4
N1.1806 4 SCREW M4 X 10 D4+
N1.1808 4 SCREW M4 X 10 D6
N1.3106 1 SOCKET SET SCREW M5 X 6 E3
N1.3116 1 SOCKET SET SCREW M5 X 25 B6
N1.3120 1 SOCKET SET SCREW M12 X 12 C3
[ ] = Group * = Wearing parts
9
13278001.een.fm
N1.3203 1 SOCKET SET SCREW M4 X 8 C3
N1.5131 1 HEXAGON NUT M5 B6
N1.5907 1 HEXACON NUT M6 B3
N1.6103 2 WASHER 5.3 X 9.5 X 1 C3
N1.6135 1 WASHER 15.2 X 24 X 1 C6
N2.1108 1 SECURITY RING E20 B1
N2.1117 1 SECURITY RING E14 C6
N2.2136 A33.1192 2 P ARALLEL PIN 4 H6 X 10 E5
N2.2143 A33.1192 1 PARALLEL PIN 5 H6 X 16 D3
N2.2147 1 PARALLEL PIN 3 M6 X 10 E4
N2.2148 A33.1192 1 PARALLEL PIN 14 H6 X 48 D3
N2.2148 1 PARALLEL PIN 14 H6 X 48 B3
N2.2149 2 PARALLEL PIN 4 H6 X 22 E4
N2.2150 1 PARALLEL PIN 10 H6 X 65 B6
N2.2165 1 PARALLEL PIN 4M6 X 34 C5
N2.2230 1 PARALLEL PIN 5 H8 X 60 C3
N2.2401 1 DOWEL PIN 3 X 10 E5
N2.2441 2 DOWEL PIN 6 X 20 MM B5
N2.2603 1 GROOVED PIN 6 X 16 A3
N2.3205 1 WOODRUFF KEY 5 X 7,5 X 18,57 B2
N2.4902 2 HAMMER HEAD BOLT 1,85 X 4,76 B4
N2.4906 1 HAMMER HEAD BOLT 5,31 X 12,7 B5
N2.5154 6 PRESSURE SPRING 0.45 X 3.9 X 7 B2
N2.5170 1 PRESSURE SPRING 2 X 9.8 X 96 B5
N2.5171 1 PRESSURE SPRING 1 X 8 X 26 C5
N2.5606 1 CUP SPRING 40X20.4X1 B2
N2.5807 1 TORSION SPRING C3
N3.2315 1 NEEDLE BEARING B 3
N3.2316 1 NEEDLE BUSH C6
N3.3131 A33.1192 2 SLIDE-BEARING D4+
N3.3131 2 SLIDE-BEARING C5+
N41.9128 1 ADHESIVE LABEL A5
N41.9132 1 LABEL A335 B4
N4.1116 2 GRIP BALL A3+
13.2780.01 A335/13/0.50-0.58 A335.0008.01 29.11.99
Item-No. in group Pcs. Description Dimension Field
10
A335T2.en.fm
8 SEAL CONTROL
A regular control of th e seal is necessar y. The seal can be chec ked visually and the per son controlling ca n
easily judge the quality of the seal. When checking the seal the following illustrations must be compared.
Correct seal
A correct seal must be conform to the illustration. This means that the depth with which the upper strap hooks
into the lower one must b e 1-1 ,5 mm in mi n. and 2 mm in ma x.. T he upp er str ap mus t be sh eared clea n and
the cutter must not leave scratch marks on the lower strap.
Incorrect seal (the sealing mechanism is adjusted too high)
This stamped seal i s not deep enough an d the upper strap is not sheared .The tens ile stren gth of this seal is
insufficient and the strapping must be taken away from the package. The tool must be readjusted immediately
(see SEAL ADJUSTMENT).
Incorrect seal (the sealing mechanism is adjusted too low)
This stamped seal is too deep and the l ower strap i s scr atched by the cutte r. Al though th e tensi le st rength of
this seal is sufficient the strapping must be taken away from the package because of the scratched lower strap.
The tool must be readjusted immediately (see SEAL ADJUSTMENT).
11
A335T2.en.fm
9 SEAL ADJUSTMENT
The sealing and cutting depth of the sealing mechanism and the cutter can be adjusted with the use of the
hexagon key N4.1408 which is supplied with the tool as follows:
• Place tool as shown above.
• Loosen both screws N1.116 8 and open them
by approx. 3 revolutions.
• If sealing depth is not sufficient reset stop in the
direction of the base plate.
• If sealing depth is excessive reset sto p in the
direction of the body cover.
• Retighten screws N1.1168.
Assembly Instructions
After every di sa ss em bly it is essential to ret i gh te n
screws N1.1182 and N1.1184 with the
recommended torque when reassembling. The
use of a torque key is necessary.
10 CLEANING
In case of heavy dirt and when painted straps are used the punch, dies, gripper and feed-wheel must be
cleaned regularly.
Normally it is sufficient to blow out the parts with the help of an air gun.
N1.1182=42 Nm
N1.1184=85 Nm
12
A335T2.en.fm
11 ACCESSORIES
Using tool with horizontal handle
Upon request the tool can be supplied with a bolt
A33.4101 and a grip ball N4.1116. When using tool
for horizontal applications, the operator holds the tool
on the grip ball during tensioning.
Install the handle as follows:
Remove side cover A33.1160 and break the marked
position.
Reassemble side cover and screw bolt with mounted
ball into the body.
Suspension
It is possible to suspend the tool for strapping in
vertical position.
Order the suitable suspension separately under item
no. A33.0113.
Loading...
