Page 1

POOL FROG

Twin

Instruction Manual

Mineral Pool-Care Cycler

for Pools up to 25,000 Gallons

Cleaner

because it kills bacteria two ways

Clearer

because it helps keep pH in range

Softer

because it reduces chlorine use up to 50%*

Easier

with pre-lled pacs for no mess,

no guess and no stress

POOL FROG Twin comes with the

POOL FROG Mineral Reservoir

Patented Mineral Disinfectant

Customer Service 800-222-0169

frogproducts.com

WARNING

Ver la versión en español de este manual en frogproducts.com/product/pool-frog-twin

To minimize the risk of serious injury, death or damage, before installing or first using this equipment, read Instruction Manual and all safety labels and follow all safety instructions and precautions. Save manual for future reference.

Page 2

TABLE OF CONTENTS

POOL FROG Twin Introduction 3

Notes and Safety Information 4

Safety Labels on Cyclers 5

Installation Tips to Ensure Proper Performance 6

Base Flex-Hose Installation 7

Hard-Plumbed Installation 8

Step 1: Preparing the Pool 9-10

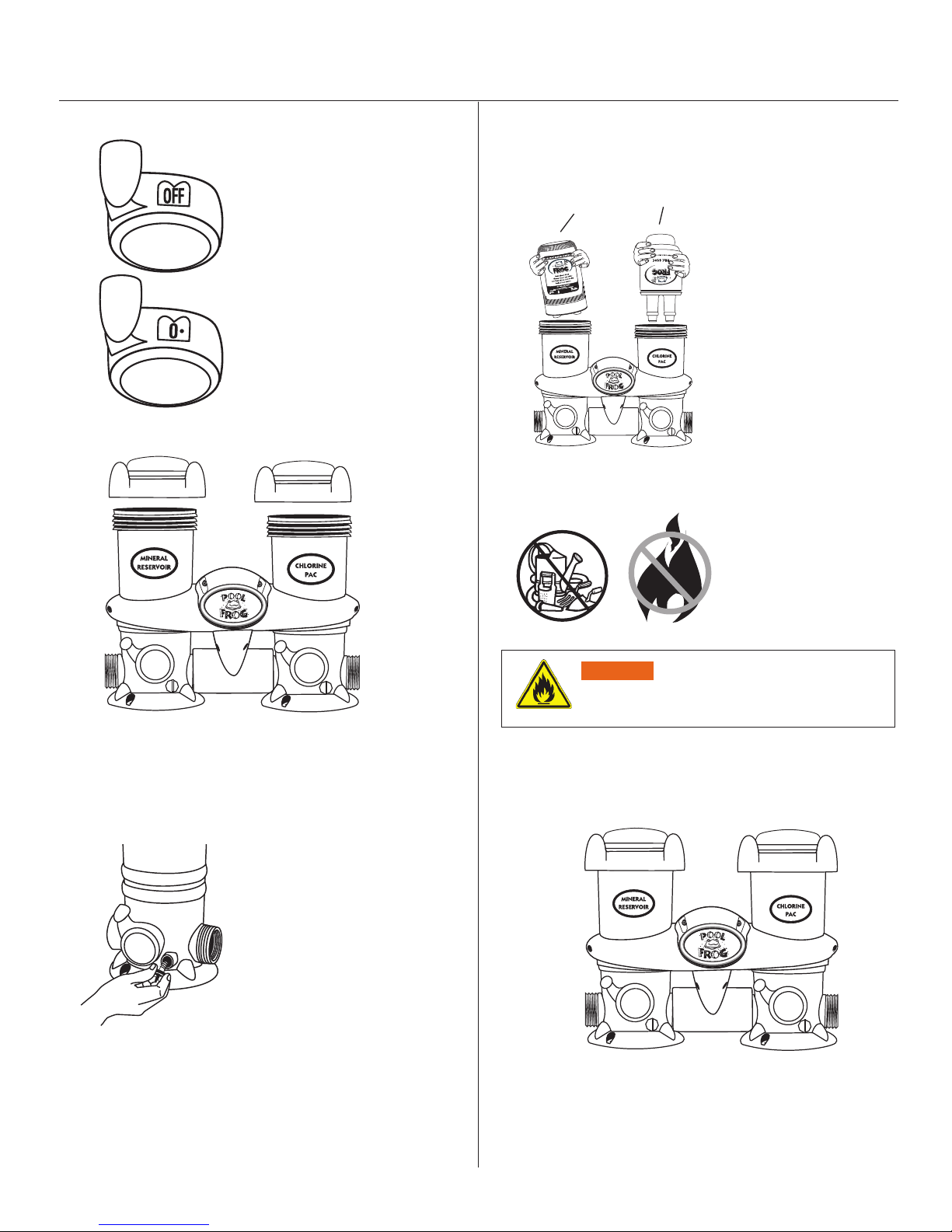

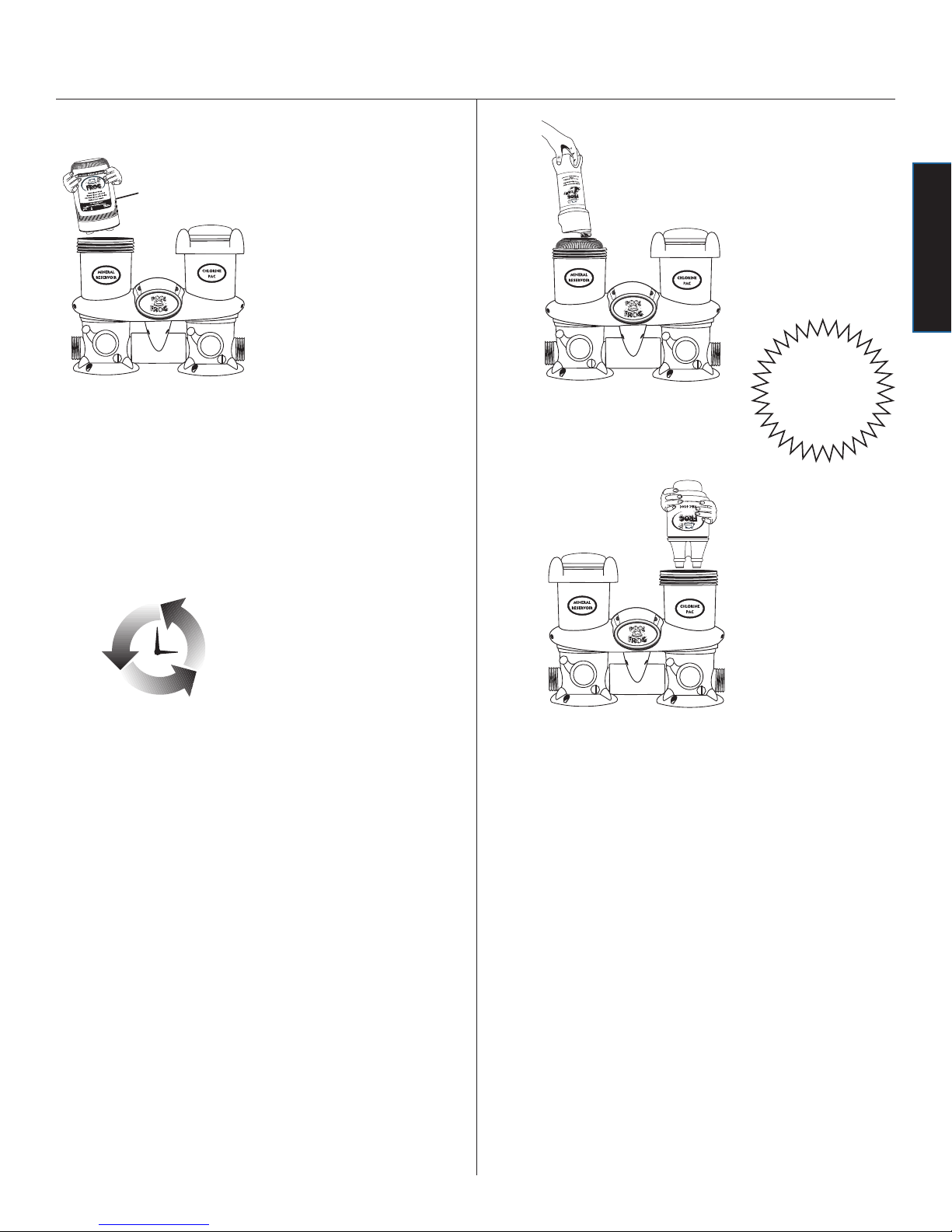

Step 2: Putting the System to Work 11

Step 3: Setting the Control Dial 12

Step 4: Routine Pool Care 13

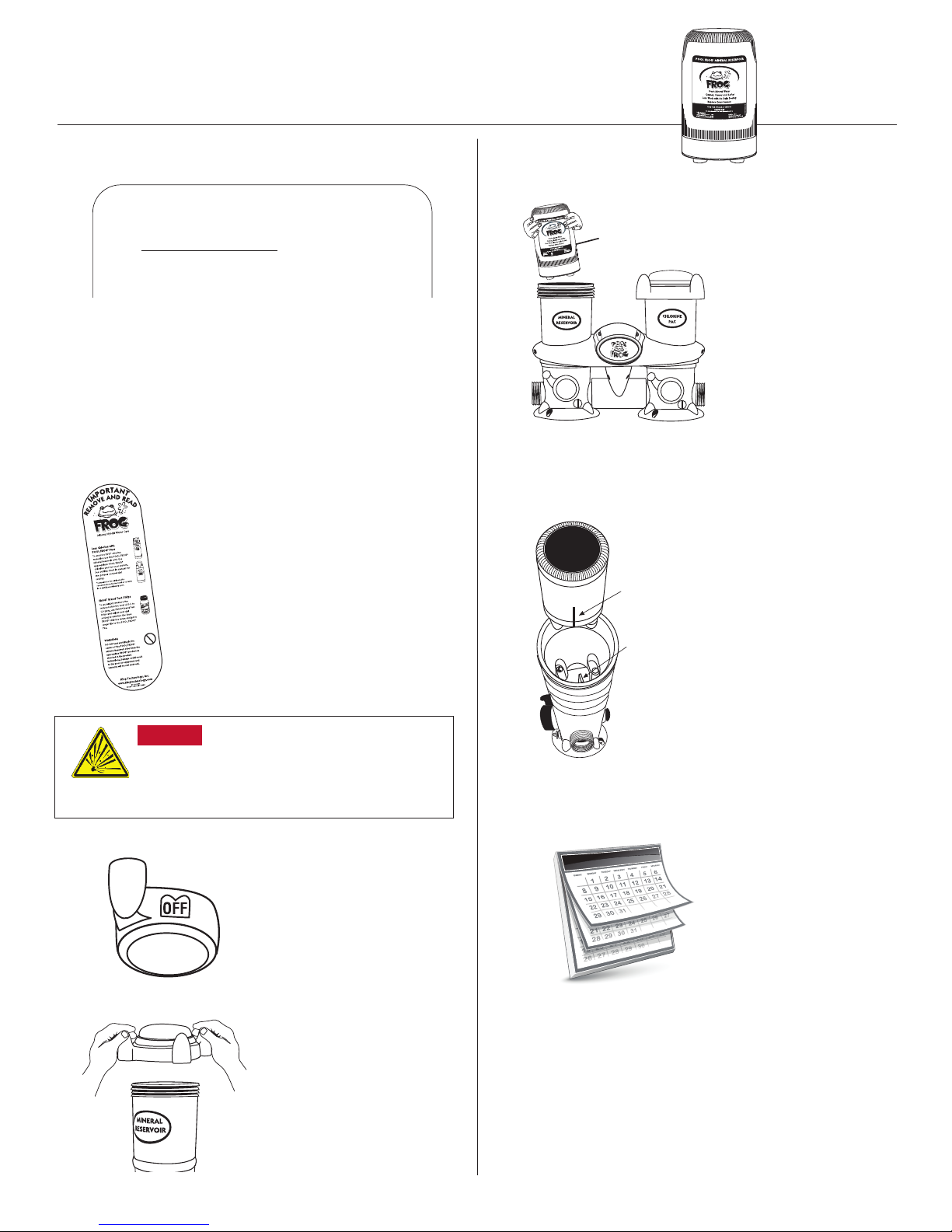

Replacing POOL FROG Mineral Reservoir 14

Using FROG BAM

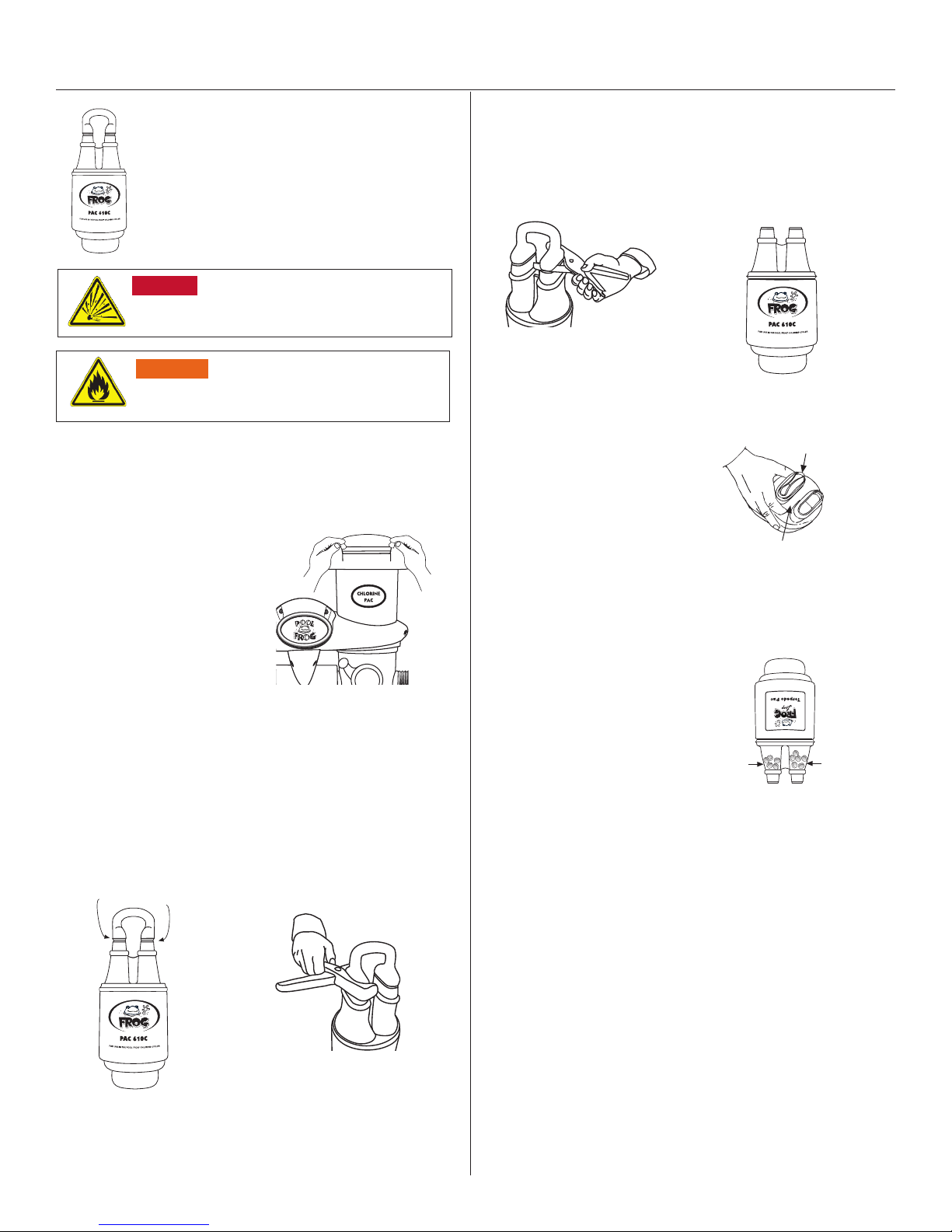

Using POOL FROG Pac

16-17

Winterizing 18

Troubleshooting 19

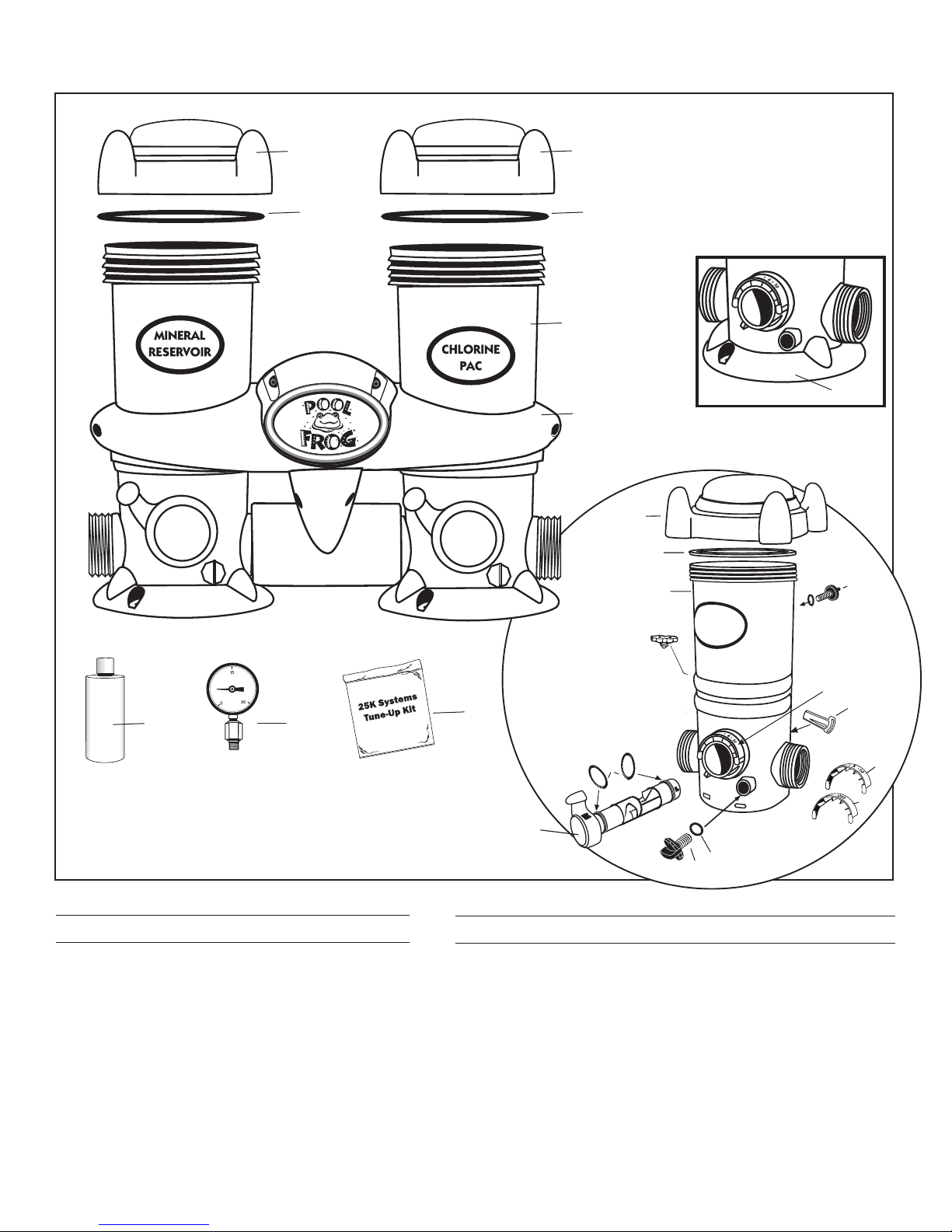

Parts List 20

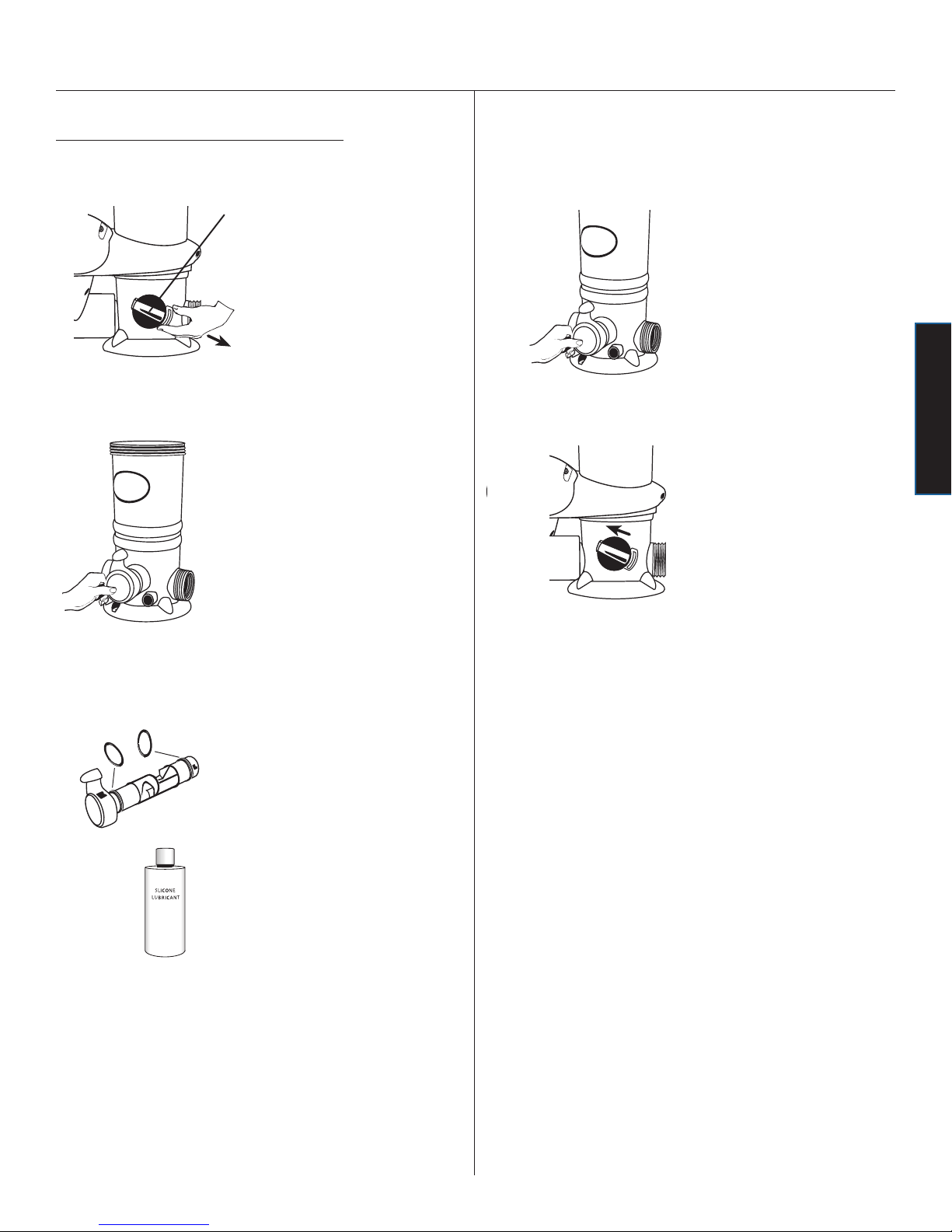

Maintenance - Replacing Control Dial O-Rings 21

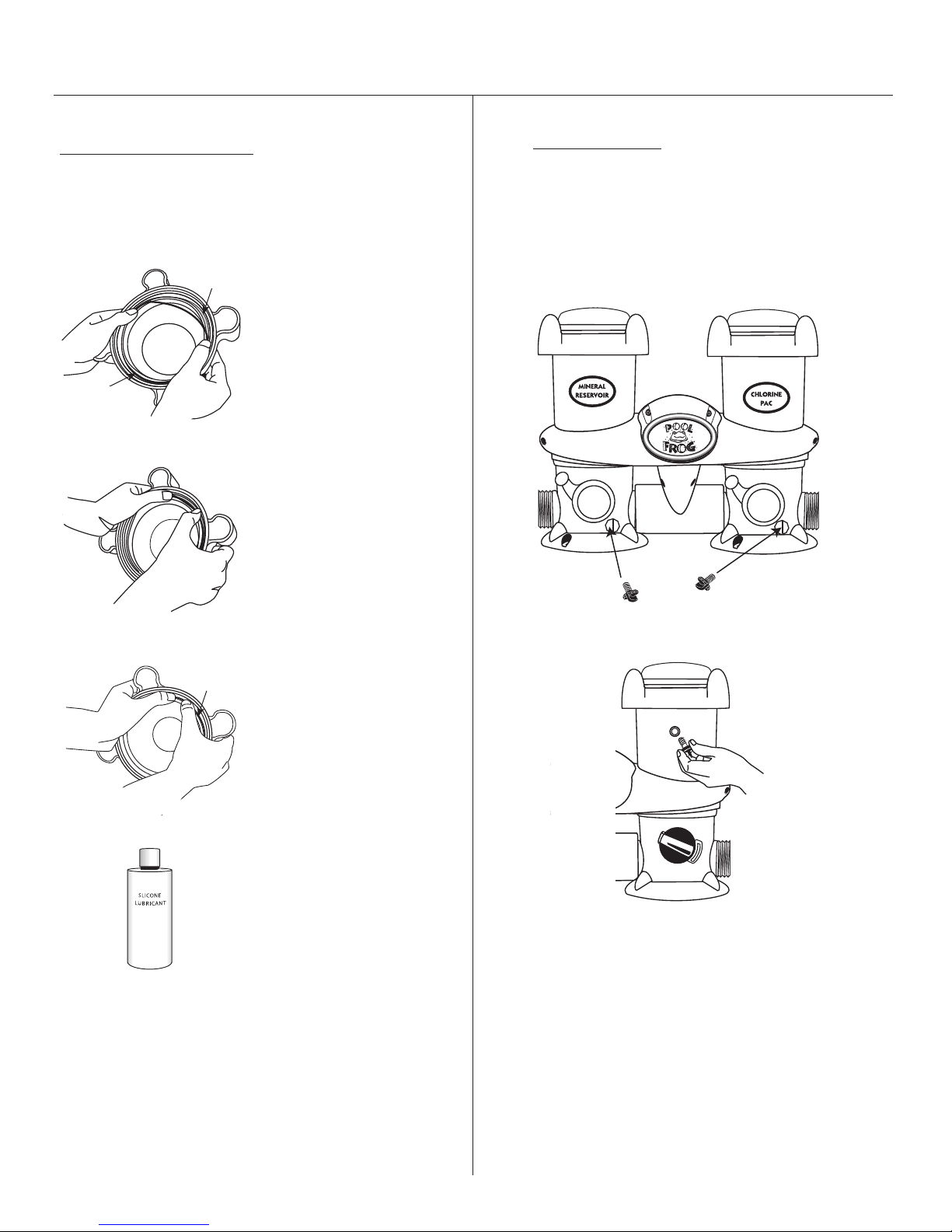

Maintenance - Replacing Cap O-Rings and Knobs 22

Warranty 23

For information on King Technology’s entire product line, visit our website at frogproducts.com

Page 3

Welcome to easier pool care courtesy of the POOL FROG Twin. With the POOL FROG Twin, your pool water will look and feel better without a lot of work or a lot of chlorine. This system† controls bacteria using a combination of minerals and reduced chlorine levels-up to 50%* less.

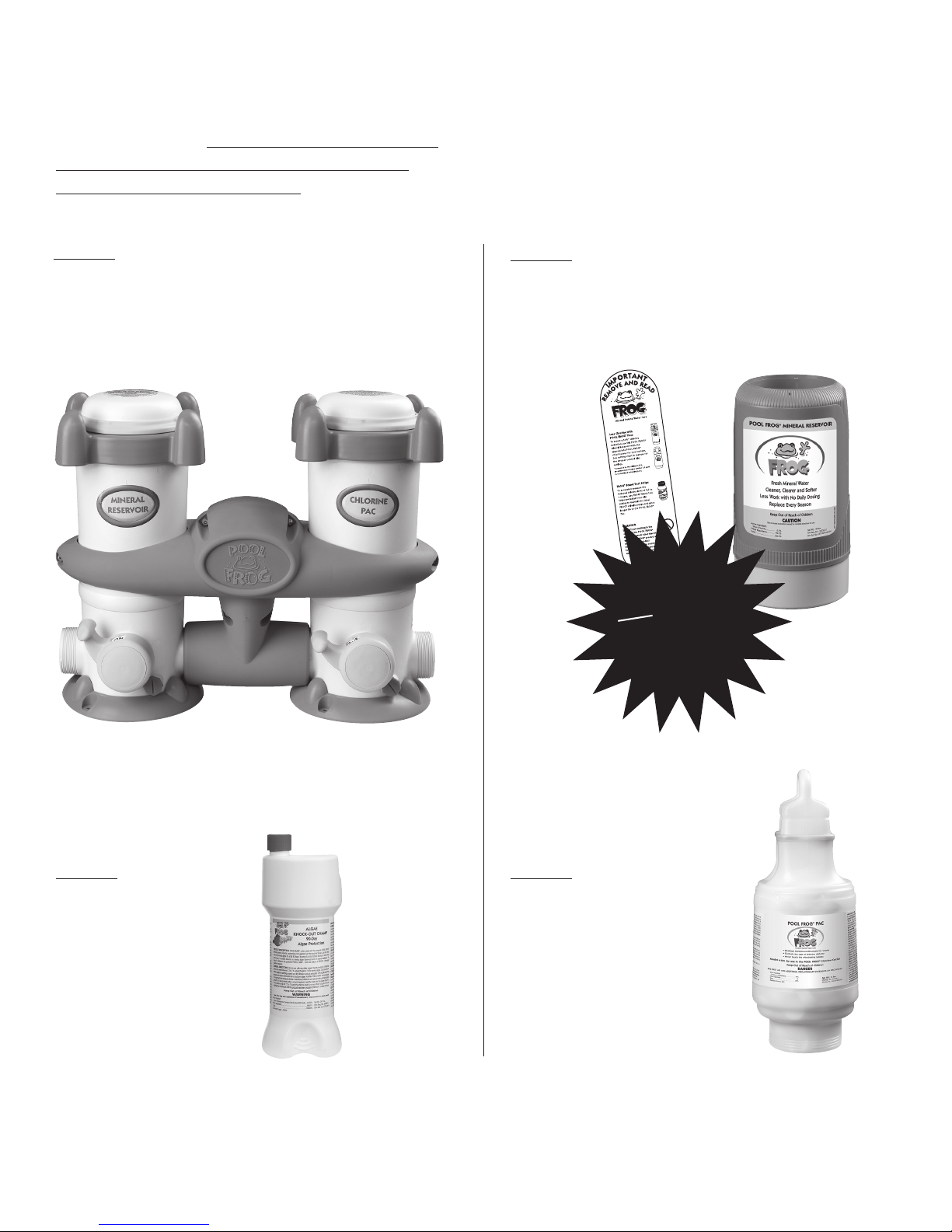

There are 4 parts to the POOL FROG Twin System:

1. POOL FROG

Twin Cyclers

2. POOL FROG Mineral Reservoir

3. FROG BAM Algae Preventative

4. POOL FROG Pac

Part 1

POOL FROG

The water treatment center that controls the ow of water to each part of the POOL FROG Twin System.

Twin Cyclers

Part 2

POOL FROG

Holds the minerals and ts inside the POOL FROG Twin Mineral Cycler. Product # 01-12-6112

Mineral Reservoir

THE POOL FROG

MINERAL RESERVOIR

MUST BE REPLACED

EVERY SIX MONTHS OR AFTER ONE POOL

SEASON WHICHEVER

IS SHORTER.

POOL FROG Twin

Mineral Cycler

For any pool up to

25,000 gallons

Product # 01-01-6150

Part 3

FROG BAM

Use with the POOL FROG Twin Mineral Cycler for an Algae-Protection Guarantee. One bottle is good for 15,000 gallons

POOL FROG Twin

Chlorine Cycler

Part 4

POOL FROG Pac

Pre-lled with chlorine tablets and ts inside the POOL FROG Twin Chlorine Cycler. Product # 01-03-6153

Product # 01-10-5060

POOL FROG Mineral Reservoir comes inside POOL FROG Twin Mineral Cycler and is also sold separately.

POOL FROG Pac and FROG BAM also sold separately.

†

POOL FROG Mineral System consists of the FROG minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. The POOL FROG Mineral

Reservoir must be used in conjunction with the POOL FROG Pac (EPA Reg. No.: 53735-2), an EPA registered chlorine pool product or a chlorine delivery device.

*Compared to the minimum EPA recommended chlorine level of 1.0 ppm for a stabilized swimming pool.

Page 4

Notes and Safety Information

General Notes

These instructions contain information for the safe and proper

operation of these Cyclers. Observe the following principles:

• Ensure that everyone using these Cyclers follows the instructions and safety precautions.

• Keep the instructions nearby and available for reference

throughout the service life of these Cyclers.

These instructions do not provide for every possible contingency

that might be encountered in connection with installation, opera-

tion or maintenance of this equipment. Should further informa-

tion be desired or should particular issues arise which are not

covered sufciently in this manual, contact King Technology at

800-222-0169.

Explanation of the signal words

Signal words, which depict the probability and severity of harm, are used in these instructions. They are dened as follows:

Signal Word

DANGER

WARNING

Meaning

Indicates an imminently hazardous situation which, if not avoided, will result in death, serious injury or major property damage.

Indicates a hazardous situation which, if not avoided, could result in serious injury, death, or major property damage.

NOTICE

Indicates special instructions that are important but not related to physical injury hazards.

Explanation of the safety pictographs

The following pictographs illustrate the type of hazard.

Pictograph Type of Danger

Safety Alert/General Hazard

Explosion Risk

Hazardous Pressure

Flammable Fire Hazard

Identication of warnings

Warnings are intended to help you recognize risks and avoid

death, injury or property damage. This is how warnings are identied:

Signal Word

Pictographs

Description of danger.

Consequences if ignored.

a The arrow signals a safety precaution to be taken to

eliminate or reduce the risk.

Page 5

Safety Label on POOL FROG Twin Cyclers

Review this label before installing or operating this Cyclers. Contact King Technology at 800-222-0169 if this label is missing from your POOL

FROG Twin Cyclers.

Fire, explosion and high pressure hazards

To minimize the risk of serious injury, death or property damage while using the POOL FROG Twin Cyclers:

a Read, understand and follow all instructions and safety precautions in the manual, and on these POOL FROG Twin Cyclers and on any label for chemicals used with these Cyclers including POOL FROG Pacs, POOL FROG Mineral Reservoir and FROG BAM Algae Preventative.

DANGER

a Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

a Never mix Trichlor chlorine tablets with Calcium Hypochlorite, or with any other form of concentrated chlorine or other chemicals.

a Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer.

These products should be added directly into the pool if required.

Do not contaminate the POOL FROG Twin Cyclers, POOL FROG Mineral Reservoir, POOL FROG Pac or FROG BAM with dirt,

organic matter, pool chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the POOL FROG Twin Cyclers, POOL FROG Mineral Reservoir, POOL FROG Pac or FROG BAM, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re or explosion.

WARNING

a Use only POOL FROG Pacs, POOL FROG Mineral Reservoir, and FROG BAM in the POOL FROG Twin Cyclers. Never use bulk chemicals.

a To prevent the build up of gas pressure in the POOL FROG Twin Cyclers, be sure the pool return line valves are open –

except when opening or servicing the unit.

a Do not inhale fumes from the POOL FROG Twin Cyclers or POOL FROG Pac.

a Avoid sparks, smoking, or any open ame near POOL FROG Twin Cyclers or chemicals.

a Do not exceed maximum operating pressure of 50 psi or maximum temperature of 104º F.

a Do not remove the cap while under pressure. Always turn off pump and bleed off pressure before opening POOL FROG Twin Cyclers.

a Do not install automatic or fast shut off valves downstream of POOL FROG Twin Cyclers.

a Always install the POOL FROG Twin Cyclers AFTER a heater (if applicable) on the return line.

a Always install any additional sanitizing equipment AFTER and NEVER BEFORE the POOL FROG Twin Cyclers are installed on the return line.

a Do not permit children to use or climb on this product. This product must be positioned to prevent children from using it as a means of access to the pool.

a Always stand clear of the POOL FROG Twin Cyclers during pump start-up.

a Replace POOL FROG Twin Cyclers if you see signs of cracks, damage or degradation to the Cycler bodies or caps.

NOTICE

a Prior to pressurizing, check with your dealer to ensure your plumbing connections meet building codes.

a Failure to properly winterize your POOL FROG Twin Cyclers could result in freeze damage. (See page 18 for winterizing details.)

Page 6

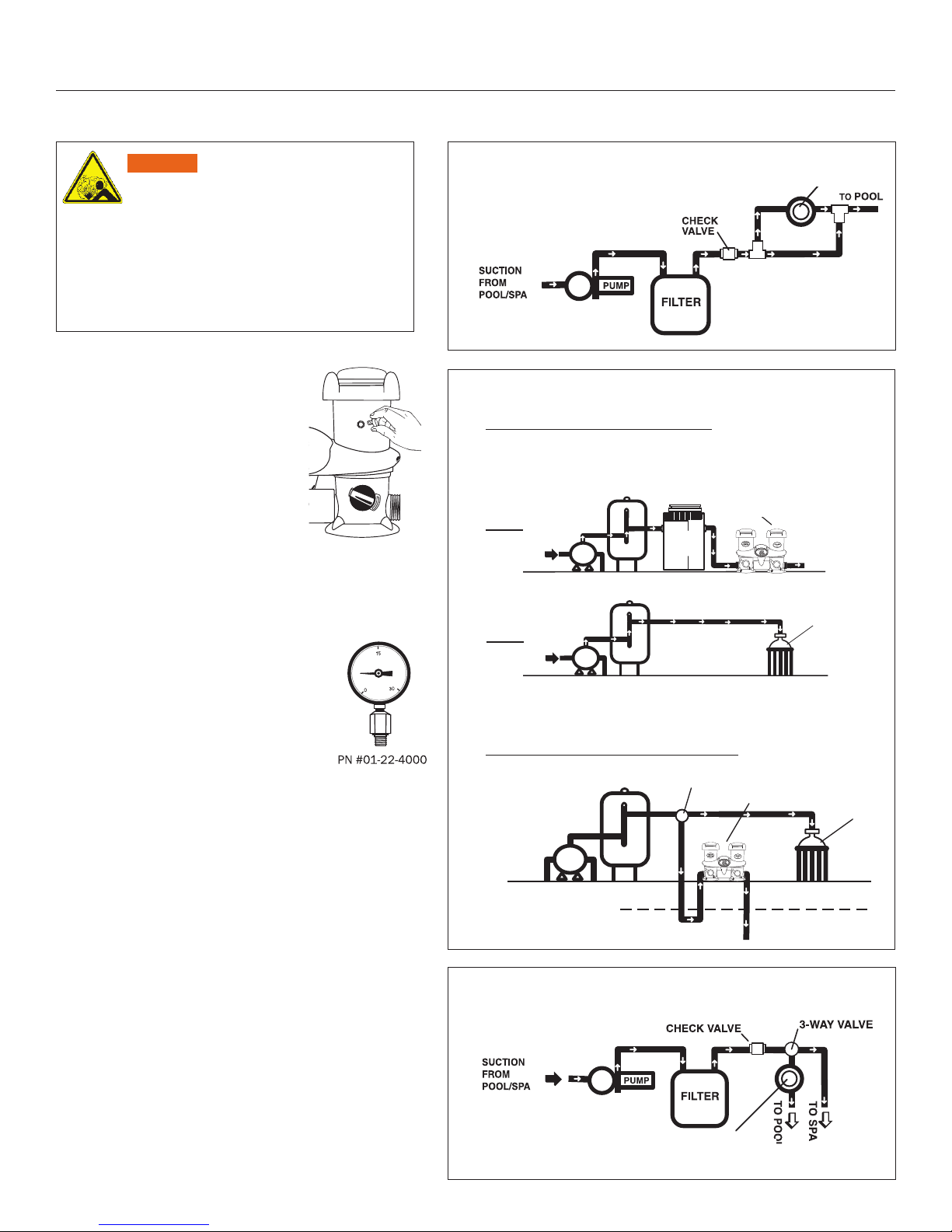

Installation Tips to Ensure Proper Performance

Before installing, read all directions carefully and contact your dealer for installation support.

WARNING

• Do not exceed maximum operating pressure of 50 psi.

• Do not install automatic or fast shut off valves downstream of feeder.

• Always install the POOL FROG Twin Cyclers AFTER the heater (if applicable) on the return line.

• Always install any additional sanitizing equipment AFTER and NEVER BEFORE the POOL FROG Twin Cyclers are installed on the return line.

1) If using a multi-speed pump, run pump for at least 6 hours per day at high speed (at least 40 gpm).

If the pump will run on low speed 24 hours per day or less than 6 hours per day on high speed, you must bleed the air while the pump is on by unscrewing both Cycler back knobs until water appears from both Cyclers. Then screw the knob back in. Repeat this process each time the cap is removed for any reason.

2) Install system with 4-8 psi back pressure.

Lower back pressures could result in under chlorination. Change the eyeball ttings in the return jets to a smaller size to increase back pressure. Contact King Technology at 800-222-0169 for a specially designed Cycler pressure gauge to determine back pressure at pool start-up.

3) Special installation Requirements:

IMPORTANT: Over chlorination or damage to the

POOL FROG Twin Cyclers or other equipment could result if special installations A, B or C are not used in these situations.

A. With High Flow Rate (greater than 80 gpm) Install T-ttings exactly as shown.

POOL FROG TWIN CYCLERS

B. With In-Floor Cleaner - TWO OPTIONS

OPTION 1- A Two-Line Installation

The best option is to have two lines. One line with pump, lter, heater and

POOL FROG Twin and a second line with a separate pump for the in-oor cleaning system (lter optional).

✙

FILTER

✙

HEATER

Line 1

Flow

PUMP

Line 2

Flow

PUMP

FILTER

OPTION 2 - A 3-Way Valve Installation

3-way manual valve or 3-way motor valve plus controls

PUMP

FILTER

POOL FROG TWIN CYCLERS

✙

POOL FROG TWIN CYCLERS

POOL WATER LEVEL

POOL RETURN

IN-FLOOR CLEANER VALVE

• If water ow is higher than 80 gallons per minute (gpm), see diagram A.

• If an in-oor cleaner is included with pool, see diagram B, with two options. Preferred installation is Option 1 with two separate lines.

• If set-up is a pool and spa combination with common equipment, see diagram C.

Questions? Call Customer Service at 800-222-0169 Monday thru Friday, 8 am to 5 pm central standard time.

C. Pool and Spillover Spa Combination

POOL FROG TWIN CYCLERS

Page 7

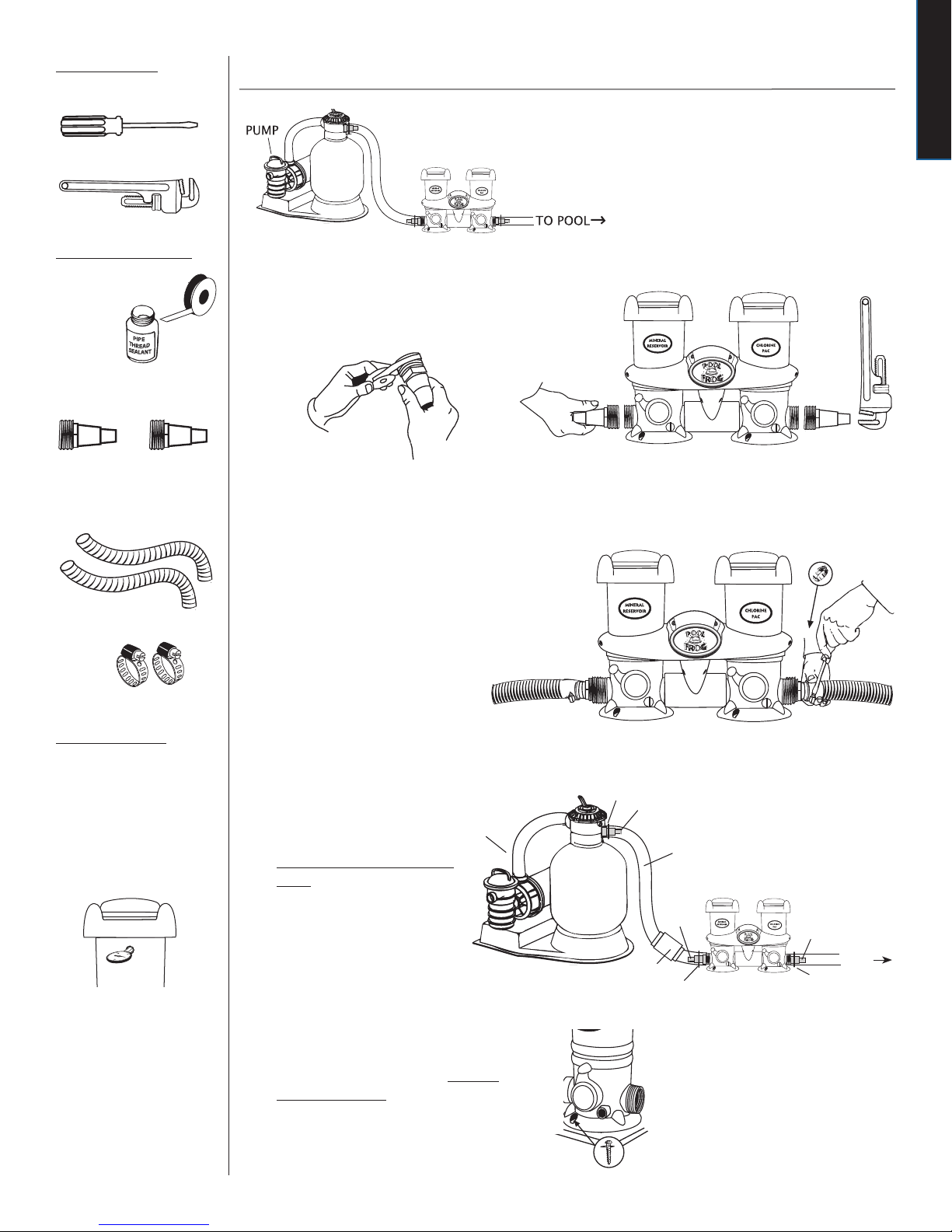

TOOLS NEEDED

Screwdriver

Install

Base Flex-Hose Installation

Pipe Wrench

MATERIALS NEEDED

Pipe Thread Tap e or Sealant

Two hose adapters 1½” x 1½” x 1¼”

Two Sections of 1½” or 1¼” Flex Hose

Two Hose Clamps

FILTER

Apply pipe thread tape or

1. 2.

sealant to the threaded end of both hose adapters.

Attach the lter section of ex hose to one

hose adapter and the return section of ex hose to the other hose adapter with clamps and tighten with screwdriver. Bi-ow valve design allows water ow in either direction.

The POOL FROG Twin Cyclers should always be installed between the lter and pool (or between heater and pool if applicable). Never install POOL FROG Twin

Cyclers before the heater or damage to the heater could occur.

Screw adapters into each end of the POOL FROG Twin Cyclers. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench. DO NOT OVER TIGHTEN.

RECOMMENDED

4-8 psi Back Pressure

To avoid over or under chlorination, replace eye ball ttings in the return jets to a smaller or larger size to adjust back pressure. For best results use King Technology’s pressure gauge, order part number 01-22-4000.

To prevent damage to

heaters or lters, see your dealer about installing a

corrosion resistant check valve which will reduce the

back ow of chlorine gas when the Cyclers are turned off.

For better stability, POOL FROG

Twin Cyclers may be mounted on a treated wood base using Phillips pan head screws, one in front and one in back of each Cycler. If you have questions about stability, please contact your dealer or King Technology.

FILTER & PUMP

HOSE CLAMP

CHECK VALVE

1 1/2” X 1 1/2” X 1 1/4” HOSE ADAPTER

1 1/2” OR 1 1/4” FLEX HOSE

HOSE ADAPTER

HOSE CLAMP

HOSE ADAPTER

HOSE CLAMP

TO POOL

Page 8

TOOLS NEEDED

Pipe Wrench

Hacksaw

Tape Measure

MATERIALS NEEDED

Pipe Thread Tape or Sealant, Primer and PVC Cement

1½” Male Adapter (slip x MPT)

2” Female Adapter (slip x FPT)

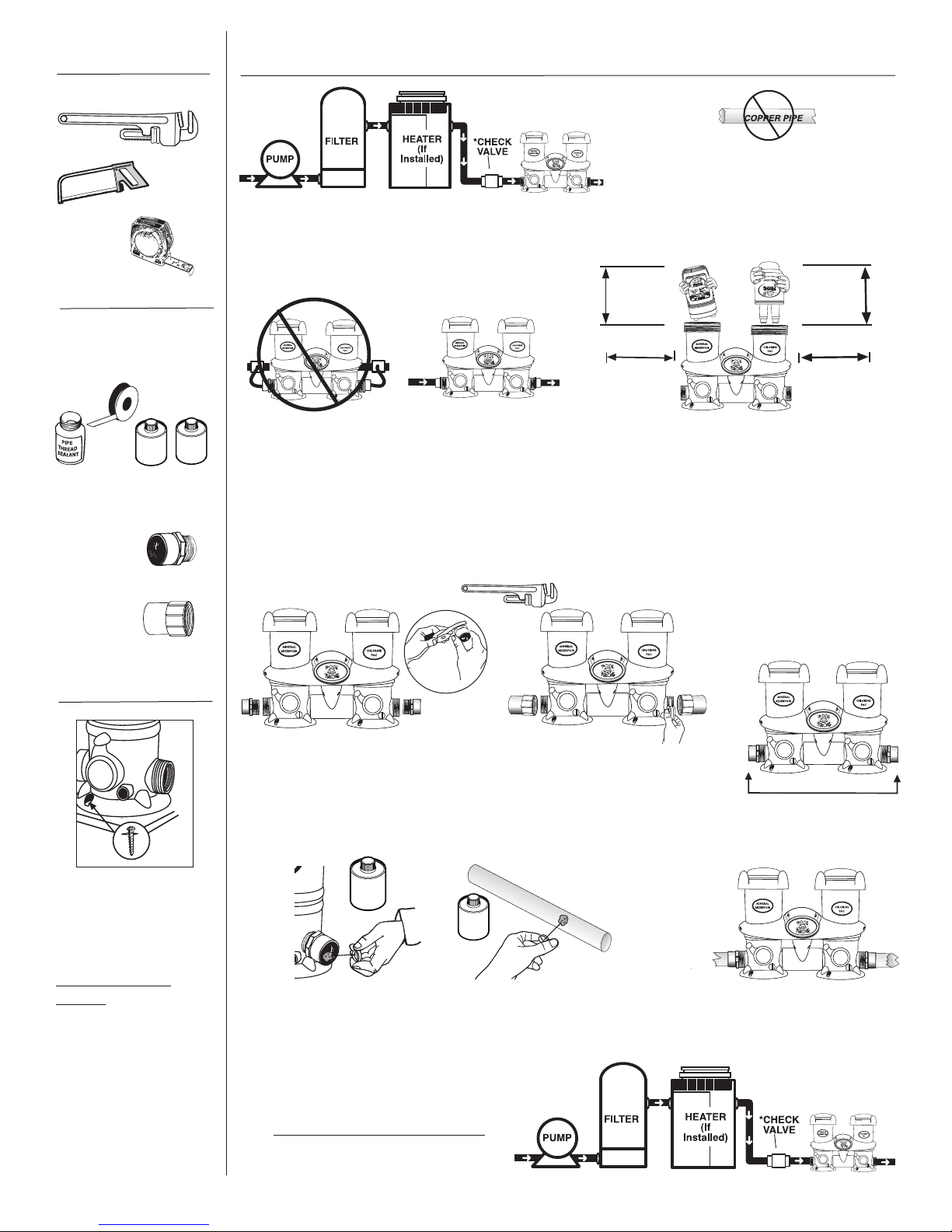

Hard-Plumbed Installation

The POOL FROG Twin Cyclers should always be installed between the lter and pool (or between heater and pool if applicable). Never install POOL FROG Twin Cyclers before the heater or damage to the heater could occur.

Minerals Chlorine

Do NOT install POOL FROG Twin Cyclers off-line.

Screw adapters into each end of POOL FROG Twin Cyclers following directions for a male adapter or a female adapter. Hand tighten. Finish tightening by turning 1 to 2 revolutions with a pipe wrench.

DO NOT OVER TIGHTEN.

Install with water owing through the minerals rst and then the chlorine.

Do NOT install in copper pipe if using POOL FROG Pac as chemical corrosion may lead to pipe failure.

Minimum 12” above opening

Minimum 12” to side

D AN R B

Minimum 12” above opening

Minimum 12” to side

Allow a minimum of 12” above and on each side of POOL FROG Twin Cyclers to ensure room for easy replacement of POOL FROG Mineral Reservoir and POOL FROG Pac.

Measure the

distance between the outside adapters and cut out a section of pipe 3” less than that dimension.

SECURE TWIN

For better stability, POOL FROG Twin Cyclers may be mounted on a treated wood base using

Phillips pan head screws. One in front

and two in back of each Cycler. If you have questions about stability, please contact your dealer or King Technology.

If using male adapters,

1a.

apply pipe thread tape or sealant to the threaded end of each adapter.

1b.

If using female adapters, apply pipe thread tape or sealant to the threaded end of each feeder port.

Following Primer directions, brush Primer on the inside of the adapters and to ends of pipe. Repeat this process with PVC cement following manufacturer’s directions on that product.

To prevent damage to heaters or lters,

see your dealer about installing a corrosion resistant check valve which will reduce the back ow of chlorine gas when the Cyclers are turned off.

Insert PVC pipe into adapters with a twisting action. Hold in place 5 to 10 seconds to bond.

Page 9

Step 1: Preparing the Pool

Make sure the pool has adequate circulation. The total volume of pool water must completely circulate through the pump and lter at least 1 to 2 times per day. This usually requires 8 to 12 hours of circulation. Check with your dealer for the proper circulation time for your pool.

Check the pool’s lter gauge often and periodically clean lter per the manufacturer’s directions. A dirty lter will slow the ow of water which could hamper proper circulation.

WARNING

Do not exceed maximum operating pressure of 50 psi.

Check for metals in the pool such

Metal

Out

Before beginning with any pool care program, you must rst balance your pool water. Take a water sample to your local pool professional (or use a complete test kit) to test for the important Water Balance Guidelines.

IMPORTANT: Always follow printed instructions on the balancing chemical packages. Add balancing chemicals in small increments one at a time with circulation running. For best results, wait 8-12 hours before testing again and adding any additional balancing chemicals.

as iron or copper. Before attempting water balance, these should be removed. See your dealer for a metal out or sequesterant and follow the label directions carefully.

Operate

Check the Water Hardness of your ll water before

adding to the pool. If calcium content is higher than 400 ppm, nd a soft water source to ll your pool instead; otherwise water balance will be very difcult.

Water Balance Guidelines

pH: 7.2 – 7.8 Total Alkalinity: 80 – 120 ppm Calcium Hardness: 200 – 400 Total Dissolved Solids: <1500 Stabilizer: 20 – 80 ppm Free Chlorine: 0.5 – 1.0 ppm

Page 10

Continue... Step 1: Preparing the Pool

SmartChlor Out Indicator

Active Chlorine

If lighter color,

check Smart

Chlor catridge

If darker color, OK

If lighter color,

turn cartridge

setting up 1 number

If darker color, turn cartridge setting down 1 number

6.2 6.8 7.2 7.8 8.4

LOW BAJO

VERY LOW MUY BAJO

HIGH

ALTO

SmartChlor Out Indicator

Active Chlorine

If lighter color,

check Smart

Chlor catridge

If darker color, OK

If lighter color,

turn cartridge

setting up 1 number

If darker color, turn cartridge setting down 1 number

IDEAL

For best results in achieving water balance, follow steps 5a through 5e in order.

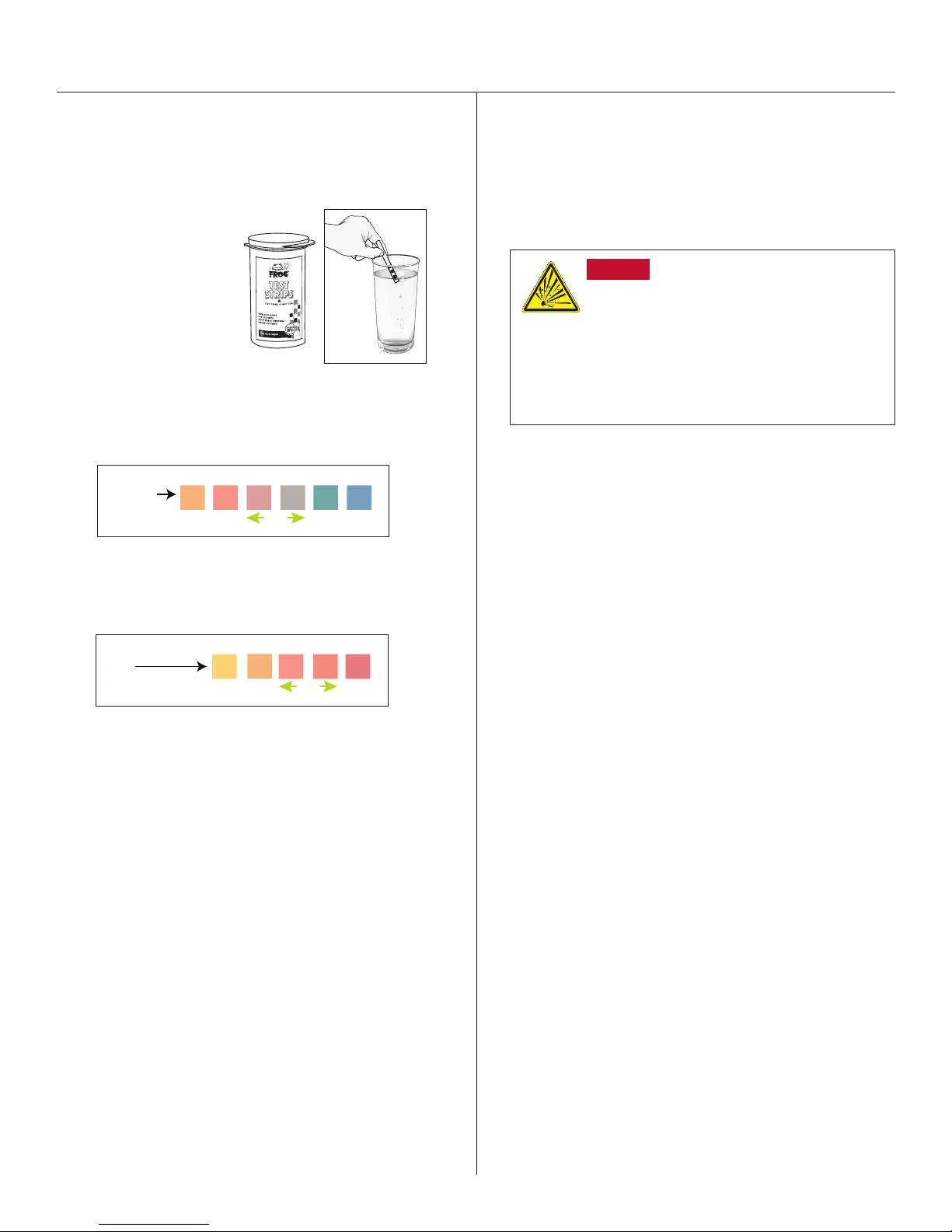

5a. Take a water sample

from the pool and dip a FROG Test Strip into it.

5b. Look at the Total Alkalinity reading rst. Adjustments

should be made to bring the Total Alkalinity in the range of 80 – 120 ppm prior to making any adjustments to pH even if it throws pH off further.

Total Alkalinity (ppm)

Alcalinidad Total (mg/L)

0 40 80 120 180 240

LOW

VERY LOW

MUY BAJO

IDEAL

BAJO

HIGH ALTO

VERY HIGH MUY ALTO

5c. After Total Alkalinity is in range, test for pH. It should be

between 7.2 and 7.8. If higher or lower, add a pH adjuster.

Initially shock the pool with a chlorine shock only to

rid the water of contaminants and establish a chlorine residual. Always follow the manufacturer’s directions carefully. See the DANGER box below for important guidance on shocking.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

6.2 6.8 7.2 7.8 8.4

LOW

VERY LOW MUY BAJO

IDEAL

BAJO

HIGH ALTO

5d. Then test your Water Hardness again. If lower than 200

ppm, add Calcium Increaser. Always maintain 200-400 ppm.

5e. Lastly test for stabilizer or conditioner levels. Add

conditioner if the level is below 20 ppm. This will prevent chlorine burn off. If stabilizer level is above 80 ppm, partially drain water and re-ll.

Page 11

Step 2: Putting the System to Work

POOL FROG Twin

Mineral Cycler

POOL FROG Mineral Reservoir

POOL FROG Twin

Chlorine Cycler

Install a POOL FROG Mineral Reservoir into the POOL FROG Twin Mineral Cycler. (See page 14 for directions.)

IMPORTANT:

Replace the POOL FROG Mineral Reservoir every 6 months or after one pool season, whichever is shorter. After that time, you will hear the spent media inside, however it is no longer effective and must be replaced.

Replace cap and run POOL FROG Twin Mineral Cycler, with POOL FROG Mineral Reservoir inserted, for 10 minutes on Setting ON.

FROG BAM

POOL FROG Twin

Mineral Cycler

POOL FROG Twin

Mineral Cycler

POOL FROG Twin

Chlorine Cycler

POOL FROG Twin

Chlorine Cycler

Insert FROG BAM into the open center of the POOL FROG Mineral Reservoir in the POOL FROG Twin Mineral Cycler. (See page 15

for directions.)

Use FROG BAM

for a 90-day

Algae Protection

Guarantee!

POOL FROG Pac

When chlorine reading is down to

1.0 ppm (which may take a few days) insert a POOL FROG Pac into the open center of the POOL FROG Twin Chlorine Cycler. (See page 16

-17 for directions.)

Operate

Page 12

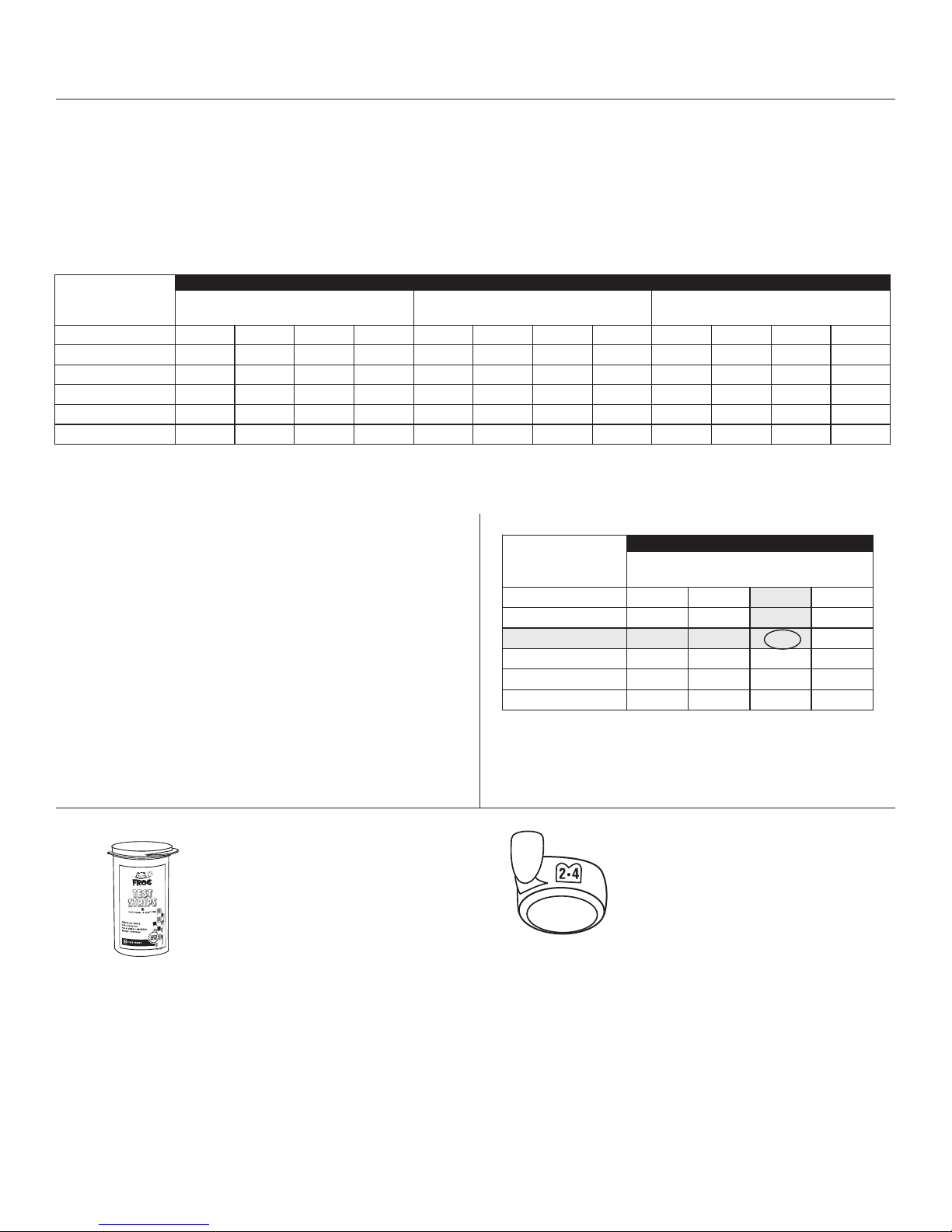

Step 3: Setting the Cycler Control Dials

These Cyclers are designed to work effectively with a variety of pool equipment as long as the following basic procedures are followed.

1a. Set POOL FROG Twin Mineral Cycler control dial to Setting 10. No further adjustments are needed.

1b. Set POOL FROG Twin Chlorine Cycler control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING

POINT ONLY and may need to be adjusted to t your individual pool needs. See #2 below for adjusting directions. IMPORTANT: If using a multi- speed pump, pump-run times of at least 6 hours per day at high speed are recommended for proper performance.

If running the pump at low speed only or on high speed less than 6 hours, please follow the 24 hour low-speed directions below.

POOL SIZE

Gallons Diameter

7,000 (18’) 4.0

9,.000 (21’) 4.5

12,000 (24’) 5.0

15,000 NR

20,000 NR

25,000 NR

1/2 hp 3/4 hp 1 hp 1 1/2 hp

8 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

3.5 3.0 2.5 2.0 1.5 0.5 2.5^ 1.0 0.5 0.5 1.5^

4.0 3.5 3.0 2.5 2.0 1.5 3.0^ 1.5 1.0 0.5 2.0^

4.5 4.0 3.5 3.0 2.5 2.0 1.5 2.0 1.5 1.0 2.5^

5.0 4.5 4.0 3.5 3.0 2.5 2.0 2.5 2.0 1.5 1.0

NR 5.0 4.5 4.0 3.5 3.0 2.5 3.0 2.5 2.0 1.5

NR 5.5 5.0 4.5 4.0 3.5 3.0 3.5 3.0 2.5 2.0

12 HOUR PUMP RUN TIME

PUMP SIZE

1/2 hp 3/4 hp 1 hp 1 1/2 hp

24 HOUR PUMP RUN TIME

PUMP SIZE

^ – Bypass installation recommended. See “Installation Tips” on page 6. RECOMMENDED FLOW RATE: 20-60 gpm NR – This pump size is not recommended for this size pool.

24 HOUR, LOW SPEED,PUMP-RUN TIME

In order to ensure proper performance when running the pump on low speed for 24 hours per day or high speed less than 6 hours per day, bleed the air while the pump is on by unscrewing BOTH Cycler back knobs until water appears from both Cyclers. Then screw the knobs back in. Repeat this process each time the caps are removed for any reason. Set the control dial on the POOL FROG Twin Chlorine Cycler to 6 and follow the adjustment directions in Step 2 to determine the correct setting for your pool.

EXAMPLE

POOL SIZE

Gallons Diameter

7,000 (18’)

9,000 (21’)

12,000 (24’)

15,000

20,000

25,000

Find your starting dial setting by matching up the parameters of your pool on the above chart. An above ground pool with approximately

12.000 gallons with a 1 horse pump running 12 hours a day would require a starting setting of 2.0.

1/2 hp 3/4 hp 1 hp 1 1/2 hp

2.0 1.5 0.5 2.5^

2.5 2.0 1.5 3.0^

3.0 2.5 2.0 1.5

3.5 3.0 2.5 2.0

4.0 3.5 3.0 2.5

4.5 4.0 3.5 3.0

12 Hour Pump Run Time

Pump Size

For the rst week test the pool water daily for free chlorine with FROG Test

Strips to ensure correct dial setting. Continue to test weekly throughout the season.

IMPORTANT: Control dial settings in excess of these recommendations could result in excess trichlor levels being discharged into the pool. This can result in bleaching or discoloration of areas around the pool inlet or in some cases bleaching or discoloration of the entire pool liner or paint. In addition, excess trichlor in the pool can create health hazards to bathers.

After each testing, adjust the dial up by 1/2 increment if the free chlorine reading has dropped below 0.5 ppm or adjust down by 1/2 increment if the reading has risen above 1.0 ppm. Continue this process each day until the free chlorine reading stabilizes to at least 0.5 ppm.

Remember to adjust dial by 1/2 increments only in order to prevent over chlorination which may bleach pool surfaces.

Page 13

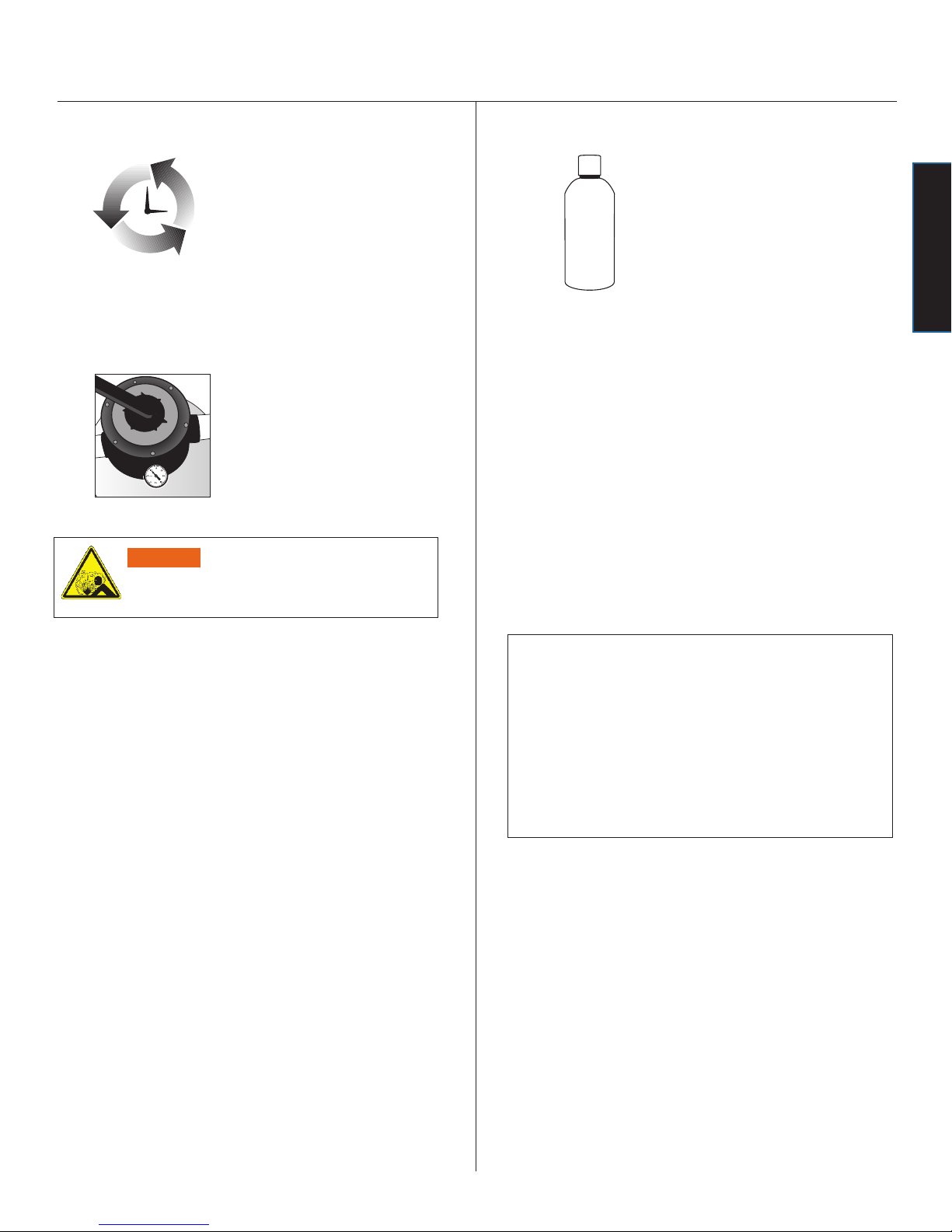

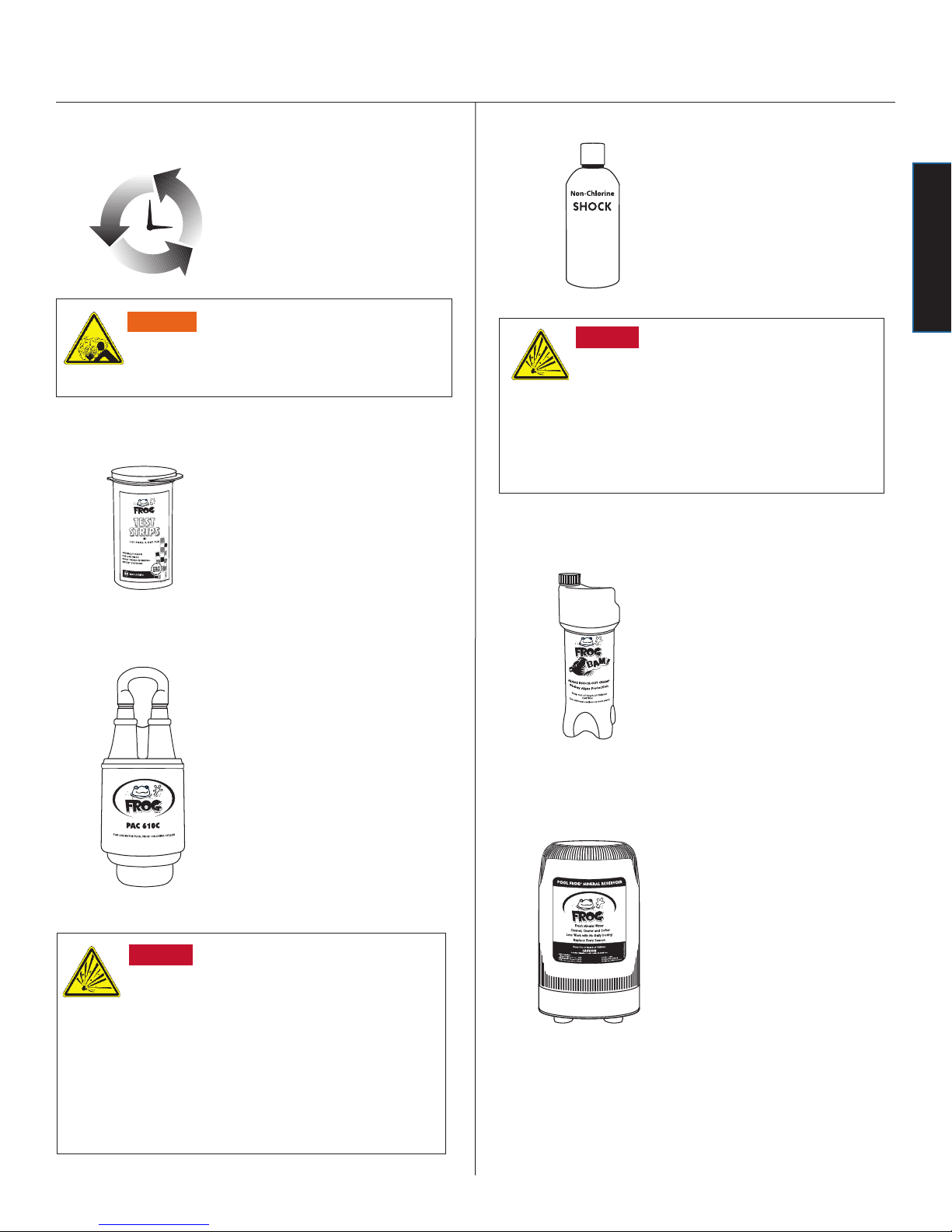

Step 4: Routine Pool Care

Run ltration system enough hours to circulate all water 1 to 2 times per day. More than that could result in over chlorination.

WARNING

To prevent the build up of gas pressure in the POOL FROG Twin Cyclers, be sure the pool return line valves are open – except when opening or servicing the unit.

Regularly test water with FROG Test Strips to maintain pH and Total Alkalinity.

NOTE: Water balance is affected by bather load, chemical usage, evaporation and the makeup of source water, so maintaining water balance regularly is important.

Shock the pool every other week or as needed. We recommend a nonchlorine shock as reducing chlorine use is the goal of FROG products. However, using a chlorine shock is OK too.

DANGER

• Never add any other types of chlorine, pH adjusters, shock treatments or algaecides through the skimmer. These products should be added directly into the pool if required.

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

Before closing the pool for winter, use FROG BAM following the directions on page 15.

Operate

Maintain 0.5 to 1.0 ppm free chlorine level at all times.

Note: These lower chlorine levels are

only acceptable when using FROG minerals.

DANGER

Do not contaminate the POOL FROG Twin Cyclers, POOL FROG Mineral Reservoir, POOL FROG Pac or FROG BAM with dirt, organic matter, pool chemicals (such as calcium hypochlorite or pool shocks), fertilizers or other household chemicals. Contact between any of these substances and the POOL FROG Twin Cyclers, POOL FROG Mineral Reservoir, POOL FROG Pac or FROG BAM, will result in a chemical reaction with the generation of heat, liberation of hazardous gasses and re or explosion.

Remember to replace POOL FROG Mineral Reservoir and all other POOL FROG replacements as directed.

Page 14

Replacing a POOL FROG Mineral Reservoir

6100 (01-12-6112)

Must be replaced every 6 months or after one pool season.

Serial No.

Product Description: The patented mineral formula in the POOL FROG Mineral Reservoir also neutralizes acids, which helps keep the pH in an acceptable range with less monitoring. The controlled release of minerals provides an optimum level of protection in your pool. The FROG Mineral System source of chlorine such as the POOL FROG Bac Pac (EPA Reg. No. 53735-2) or a chlorine delivery device. Using the POOL

POOL FROG® MINERAL RESERVOIR

The Complete Low-Chlorine Alternative

www.FrogProducts.com • 800-222-0169

The POOL FROG Mineral Reservoir is the heart of an advanced pool care system that destroys bacteria.

reduces chlorine use up to 50%*. Simply use with at least 0.5 ppm of an EPA registered

Series

FOR POOLS UP TO 25,000 GALLONS

Check the top of the box and back label of product to make sure you have the correct POOL FROG Mineral Reservoir to t your POOL FROG Twin Mineral Cycler.

IMPORTANT: The POOL FROG Mineral Reservoir must be replaced every 6 months or after one pool season, whichever is shorter.

IMPORTANT: Remove and read the information card.

Please note: Complete instructions for inserting a POOL FROG Mineral Reservoir, FROG BAM and POOL FROG Pac are included inside the POOL FROG Mineral Reservoir box.

POOL FROG Twin

Mineral Cycler

POOL FROG MINERAL RESERVOIR

POOL FROG Twin

Chlorine Cycler

SLOT IN POOL FROG MINERAL RESERVOIR

FIN INSIDE OF POOL FROG TWIN MINERAL CYCLER

Remove the POOL FROG Mineral Reservoir from the POOL FROG Twin Mineral Cycler and discard if it has been used for one pool season or 6 months whichever is shorter.

Find slot on side of POOL FROG Mineral Reservoir and line up with n inside the POOL FROG Twin Mineral Cycler. Lower POOL FROG Mineral Reservoir into POOL FROG Twin Mineral Cycler until secure.

DANGER

• Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

Turn off pump and turn control dial to OFF on POOL FROG Twin Mineral Cycler. This reduces the ow of water into the unit when the cap is open.

Open POOL FROG Twin Mineral Cycler cap.

Mark your calendar ahead for the six month replacement of the POOL FROG Mineral Reservoir. Once wetted,

the time-released mineral coating of this product is effective up to 6 consecutive months or one pool season whichever is shorter. After that time, you will hear the spent media inside, however it is no longer effective and must be replaced.

Page 15

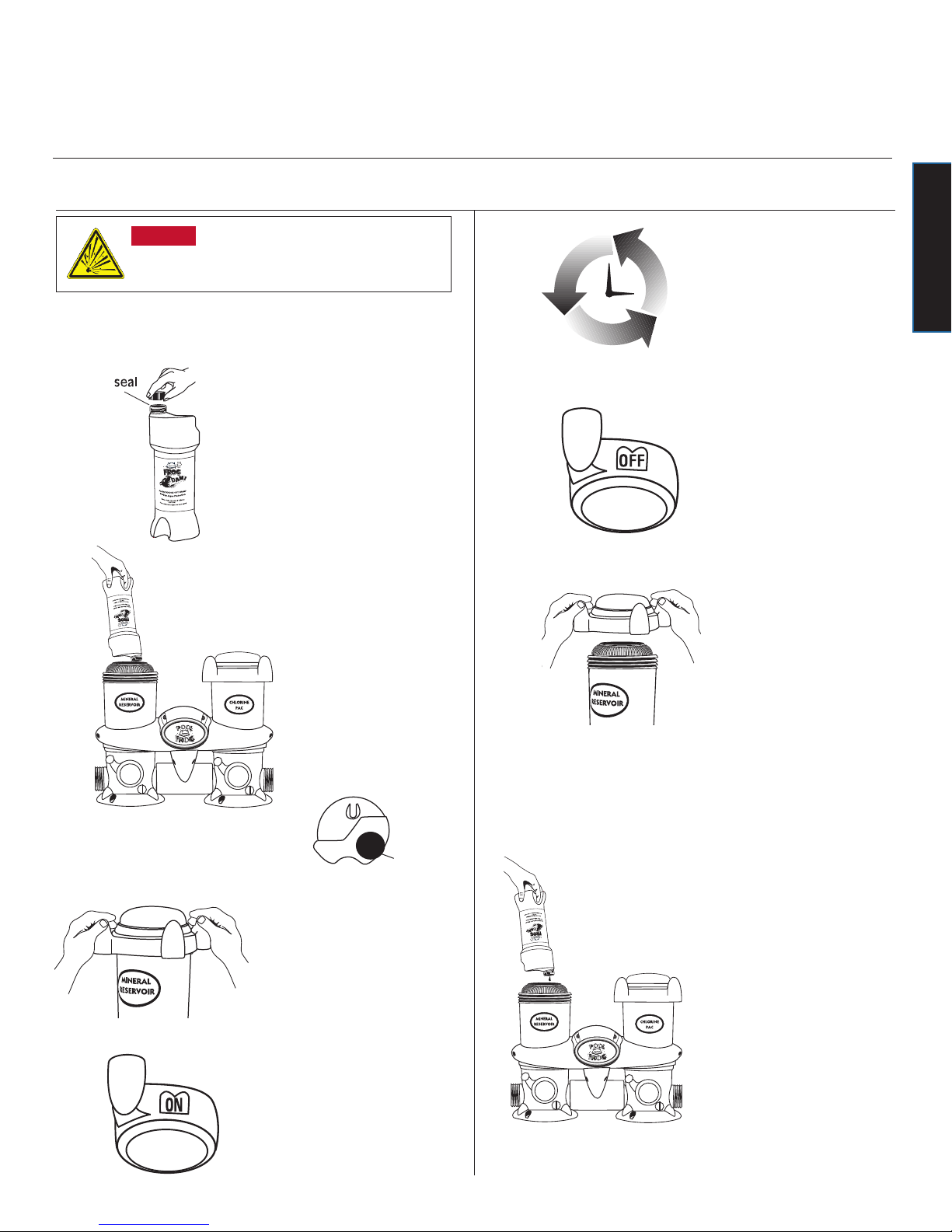

Using FROG BAM for an Algae-Protection Guarantee

If you are not using FROG BAM, refer to page 16 for Using the POOL FROG Pac. See FROG BAM product labeling for complete directions for use (EPA Reg. No. 53735-9).

NOTE: If using directly after a shock treatment, test the water rst to ensure the pH is in the proper range of 7.2-7.8 and the chlorine level is

no more than 4.0 ppm. Avoid using other chemicals until this product has been circulated (ltered) for at least 24 hours.

For a preventive dose add:

•One FROG BAM for pools up to 15,000 gallons.

•Two FROG BAM for pools between 15,000 and 30,000 gallons.

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

Important: If storing FROG BAM prior to use, always keep

in a cool, dry place away from children and pets.

Remove cap from FROG BAM without removing seal.

Turn off pump. Turn control dial on POOL FROG Twin Mineral Cycler to Off and POOL FROG Twin Chlorine Cycler to 0. Open POOL FROG Twin Mineral Cycler cap.

Turn pump on for 90 minutes allowing FROG BAM to circulate through pool.

To remove expended FROG BAM bottle, turn pump off and turn control dial to OFF on the POOL FROG Twin Mineral Cycler.

Operate

FROG BAM

POOL FROG Twin

Mineral Cycler

POOL FROG Twin

Chlorine Cycler

Replace cap by hand only.

DO NOT OVER TIGHTEN.

Turn off pump and turn control dial to ON on the POOL FROG Twin Mineral Cycler.

Insert upside down into the open center of the POOL FROG Mineral Reservoir pushing down rmly on FROG BAM bottle allowing key in POOL FROG Twin Mineral Cycler to puncture seal.

Looking down at top of bottle

seal

Lift FROG BAM up and allow any water in the container to drain through the POOL FROG Twin Mineral Cycler before discarding in trash or offering for recycling. Do not reuse or rell this container. .

FROG BAM

POOL FROG Twin

Mineral Cycler

POOL FROG Twin

Chlorine Cycler

Remove POOL FROG Twin Mineral Cycler cap.

NOTE: If water shows more than a hint of blue inside POOL FROG Twin Mineral Cycler, replace the cap, turn dial to ON and run the pump for one minute.

8a. If pool size requires additional FROG BAM, repeat steps 1-8.

8b. When water is clear in the POOL FROG Twin Mineral Cycler, insert a POOL FROG Pac into the POOL FROG Twin Chlorine Cycler according to the instructions on page 16.

Page 16

Using POOL FROG Pac

POOL FROG Pac is required to assure up to 50% reduction in chlorine use*. POOL FROG Pac sold separately. (EPA Reg. No. 53735-2)

DANGER

Never use fast dissolving chlorine tablets, liquid bleach, or calcium hypochlorite in the POOL FROG Twin Cyclers.

WARNING

Avoid sparks, smoking, or any open ame near POOL FROG Twin Cyclers or chemicals.

IMPORTANT: Read the label on the POOL FROG Pac carefully

before using.

Turn off pump. Turn control dial on POOL FROG Twin Chlorine Cycler to 0. Remove cap from the POOL FROG Twin Chlorine Cycler and stand back to let any chlorine fumes dissipate.

Cut handle from POOL FROG Pac using a PVC cutting tool (KEEP OUT OF REACH OF CHILDREN).

C. Squeeze the handles together. Repeat for other side

E. If openings are pinched together, open with ngers or re-cut closer to the colored screens inside POOL FROG Pac. Leave at least 1/4” of plastic to t into POOL FROG Twin Chlorine Cycler base.

Invert POOL FROG Pac and shake slightly until chlorine tablets fall into tower areas.

D. Make sure the blade comes straight across on the indent line for a clean cut.

Finished cut ends

Avoid a pinched opening.

A correct oval opening.

POOL FROG Pac towers

A. Find the indent in the

plastic.

B. Place curved section of tool around the narrow end of one pac tower and line up blade on

Indent in plastic

indent.

PVC cutting tool available at local hardware stores.

Page 17

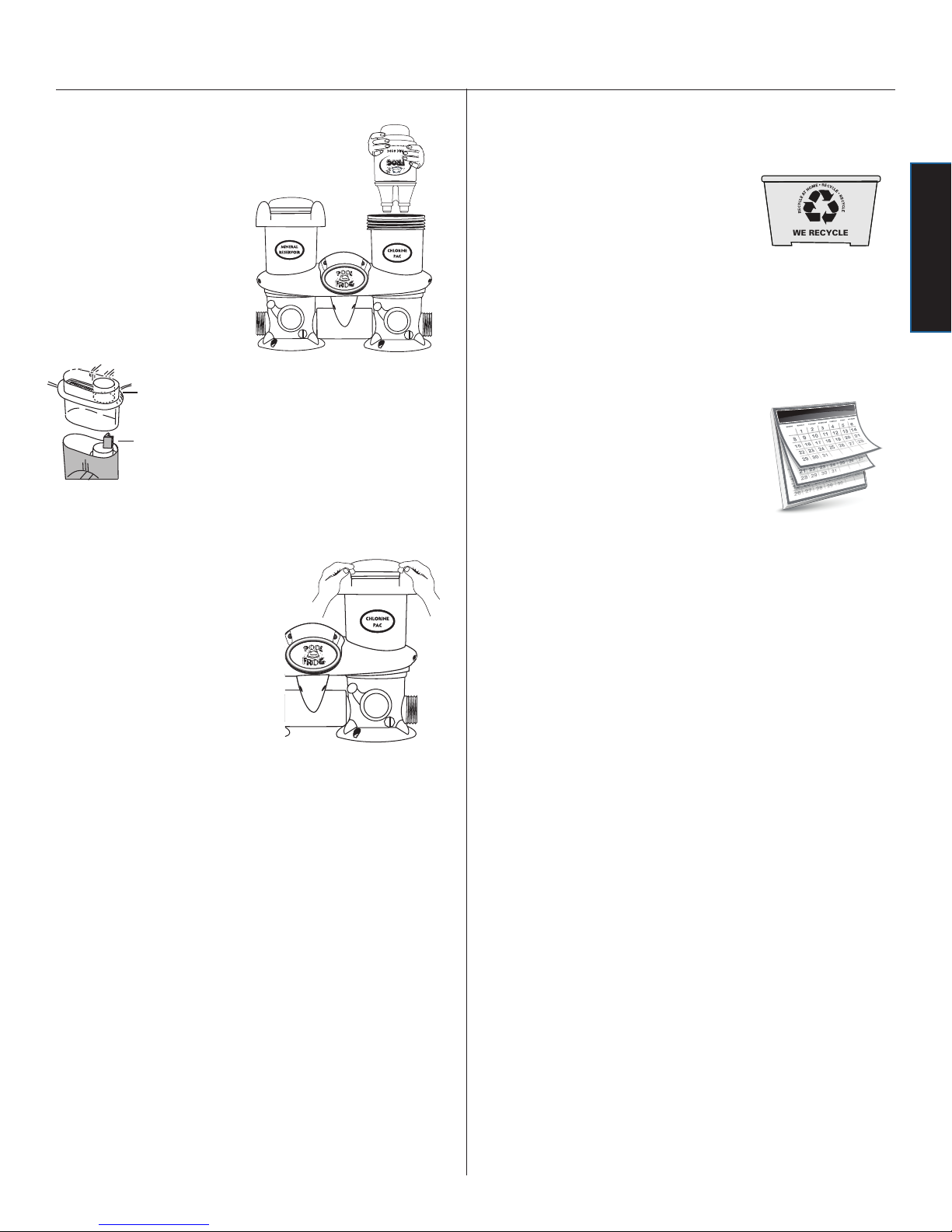

Continue... Using POOL FROG Pac

Insert POOL FROG Pac into POOL FROG Twin Chlorine Cycler, lining up the openings in the POOL FROG Pac with keys in the POOL FROG Twin Chlorine Cycler.

NOTE: Openings are a different shape than keys.

Opening in POOL FROG Pac

Key in POOL FROG Twin Chlorine Cycler

POOL FROG Twin

Mineral Cycler

POOL FROG Twin

Chlorine Cycler

The chlorine pac container is made of HDPE plastic. Non-rellable container. Do not reuse or rell this container. Offer for recycling if available. Rinse thoroughly before recycling or discarding in trash.

Mark your calendar ahead for the approximate replacement times for the POOL FROG Pac.

Operate

WE RECYCLE

Replace cap by hand only.

DO NOT OVERTIGHTEN.

Page 18

Winterizing

Turn pump off and turn dial to OFF on POOL FROG Twin Mineral Cycler and to setting 0 on POOL FROG Twin Chlorine Cycler.

POOL FROG Mineral Reservoir

POOL FROG Twin

Mineral Cycler

POOL FROG Pac

POOL FROG Twin

Chlorine Cycler

Remove the POOL FROG Mineral Reservoir and discard in trash. You will hear spent media inside, however it is no longer effective.

Remove the POOL FROG Pac. If it still contains chlorine, wrap in plastic bag and store in shed or cool, well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc.

If empty, rinse and recycle.

Remove both caps.

Unscrew knob from the front of BOTH POOL FROG Twin Cyclers. Allow all water to drain.

WARNING

Avoid sparks, smoking, or any open ame near POOL FROG Twin Cyclers or chemicals.

Replace both the caps and knobs loosely.

Page 19

Troubleshooting

For more in-depth troubleshooting, go to frogproducts.com or call King Technology at 800-222-0169.

Problem Remedy

What do I do if the water looks cloudy?

What do I do if the water turns color?

What do I do if algae forms in or on my pool?

1. Make sure your ltration system is working properly (i.e. clean lter, skimmer and pump basket).

2. Make sure circulation time is adequate – increase pump time if not.

1. Algae may be trying to form – shock the pool, increase circulation time if needed and clean the lter.

1. Use FROG BAM or an effective algaecide per the directions on the bottle and brush the sides of the pool often.

2. Clean the lter and shock the pool with chlorine daily until water clarity returns.

3. Make sure the pool is properly balanced (see page 9).

4. Shock the water to eliminate build up of any organic matter.

2. Metals in the ll water may have been oxidized. Have the pool tested. See pool dealer if a metal control product is required.

3. If you are in an area of the country that struggles with algae growth, see your dealer regarding a 90-day Algae Protection Guarantee using FROG BAM.

See product hang tag for guarantee details.

5. Make sure pool has a free chlorine reading of

0.5 to 1.0 ppm.

6. Check with your dealer for more information.

Troubleshoot

3. Check with your dealer for more information.

4. Check with your dealer for more information.

What do I do if I am under chlorinating with the POOL FROG Pac?

What do I do if I am over chlorinating with the POOL FROG Pac?

1. If you are unable to maintain

0.5 to 1.0 ppm, rst make sure there are chlorine tablets in the tower areas of the POOL FROG Pac and it is installed properly. If a correction was made, test the water in 24 hours.

2. If still low, turn the dial up one setting and test the water again in 24 hours. Continue raising the setting by one increment each day until the proper reading is achieved.

1. If the chlorine reading is over

3.0 ppm, remove the POOL FROG Pac from the POOL FROG Twin Chlorine Cycler and test the water daily until the reading is down to

1.0 ppm.

2. Reinsert the POOL FROG Pac, lower the dial one setting and test the water again in 24 hours. If the reading has risen, lower the dial one setting again. Continue this process until proper reading is achieved.

3. Shock the pool if the reading has been lower than 0.5 ppm for more than one day.

4. Make sure pump run time is at least 6 hours on high speed (40 gpm or higher) or if not, bleed the air from the back knobs each time cap is open.

5. Contact your dealer to have your back pressure tested. If under 4 psi, consider a smaller eye-ball tting in the return jet.

3. If over-chlorinating at the lowest possible setting, consider decreasing the circulation time. Depending on your pump size, you may be circulating the water more than is necessary.

4. Contact your dealer to have your back pressure tested. If over 8 psi consider a larger eyeball tting in the return jet.

6. Check for a suction side leak by looking for air bubbles in your pump basket or at the return jet. Your water level will be low and the skimmer will be taking in air. Contact dealer for help in correcting this situation.

7. Contact King Technology’s Customer Service Department at 800-222-0169.

Check to see if the pressure

relief valve is loose or missing and replace. It is a clear plastic piece approximately 1” long installed inside near the base. If loose or missing, it can provide another avenue for water to reach the chlorine.

6. Contact King Technology’s Customer Service Department at 800-222-0169.

Page 20

Parts List

6,7,8,9

3 3

6,7,8,10

1 or 2

Included with POOL FROG Twin Cyclers

REF. # DESCRIPTION QTY. INCLUDED

1 & 3 Cap w/O-Ring (for Mineral Cycler) 1 2 & 3 Cap w/O-Ring (for Chlorine Cycler) 1 4 Body 2 5 Pressure Relief Valve 2 6, 7, 8, 9 Mineral Control Dial with O-Rings, Locking Pin & 0-10 Number Plate 1 6, 7, 8, 10 Chlorine Control Dial with O-Rings Locking Pin & On/Off Plate 1 11 & 12 Knob with O-Ring 4 13 Silicone Lubricant 1 14 Mounting Base 2 15 Shroud 1

DETAIL OF EACH

7 Control Dial

Replacement parts for POOL FROG Twin Cyclers

REF. # PART NO. DESCRIPTION

1 & 3 01-22-1417 Cap w/O-Ring (for Mineral Cycler) 2 & 3 01-22-1410 Cap w/O-Ring (for Chlorine Cycler) 3 01-22-1926 Cap O-Ring 5 01-22-9486 Pressure Relief Valve 6, 7, 8, 9 or 10 01-22-1457 Control Dial with O-Rings Locking Pin and Number & On/Off Plates 6 01-22-1456 Control Dial O-Ring Set 11 & 12 01-22-9628 Knob with O-Ring 13 01-22-9970 Silicone Lubricant 14 01-22-1480 Mounting Base 16 01-22-4000 Pressure Gauge 17 01-22-1470 25k Tune-Up Kit

CYCLER

9 or 10

Page 21

Pull

POOL FROG Twin Maintenance

Replacing the Control Dial O-Rings

Center of locking pin

In the back of the POOL FROG Twin Cyclers depress center of locking pin with a nger and pull pin out of dial.

Carefully insert control dial back into housing.

Pull

Turn control dial back and forth as you pull it out of the housing.

Replace both O-rings. Apply silicone lubricant that came with your POOL FROG Twin Cyclers on O-rings.

Troubleshoot

Replace locking pin by pushing it through the slots on the dial until it locks into place.

Product # 01-22-9970

Page 22

continued... POOL FROG Twin Maintenance

Replacing the Cap O-Ring

Remove old O-ring.

Top half of groove

Bottom half of groove

Replacing Knobs

To replace, simply unscrew old knob and replace with the new one.

Front of Cyclers

Place new O-ring in bottom half of groove.

Place your thumbs on each side of the cap over the O-ring in the groove.

Product # 01-22-9970

O-ring in top of groove

Back of Cyclers

Roll your thumbs back and forth over the O-ring while pushing upward until the O-ring falls into the top of the groove.

Lubricate O-ring every couple of months with silicone lubricant that came with your POOL FROG Twin Cyclers. DO NOT USE petroleum based lubricants.

Page 23

POOL FROG Twin Two-Year Limited Warranty

King Technology, Inc. will warrant this unit with a complete replacement for the original purchaser, should it prove defective by reason of improper workmanship and/or material for a period of two (2) years from the date of original purchase/installation. This warranty covers body, cap and control dial excluding O-rings. King Technology holds the option of replacing any defective part without charge if it is determined to be all that is needed to correct any situation. Parts used for replacement, with the exception of O-rings, are warranted for the remainder of the original warranty.

1. To obtain warranty service, you must deliver product to King Technology or its nearest authorized dealer. Shipping expenses are the purchaser’s responsibility. The name of the nearest authorized dealer can be obtained at frogproducts.com/nd-a-dealer or by calling King Technology at 1-800-222-0169. Proof of purchase is required when requesting warranty service. Purchaser must present the sales receipt or other document which establishes proof of purchase. To extend your warranty to 10 years, go to frogproducts.com/reg.

2. This warranty does not cover defects caused by: modication, alteration, repair or service of the product contrary to the accompanying instructions; physical abuse to or misuse of the product or operation or installation in a manner contrary to the accompanying instructions. This warranty also excludes all costs arising from the installation, adjustment, removal or replacement of defective units or parts. This warranty also excludes any and all claims arising out of the chemicals used in the product or their characteristics.

3. Any express warranty not provided for herein, and any remedy for breach of warranty or breach of contract which, but for this provision, might arise by implication or operation of law, is hereby expressly excluded and disclaimed. The implied warranties of merchantability and of tness for any particular purpose are expressly limited to a term of two years. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

4. Under no circumstance shall King Technology be liable to purchaser or any other person for any damage or loss incurred because of any chemicals used in the product or their physical characteristics, or interruption of service of the product, or any special, incidental or consequential damages or losses, whether arising out of breach of warranty, breach of contract or otherwise. Some states do not allow the exclusion or limitation of incidental consequential damages, so the above limitation or exclusion may not apply to you.

5. Misuse or failure to use the proper POOL FROG Mineral Reservoir and POOL FROG Pac may cause damage to equipment or personal injury. All warranty null and void if this product is not used with the recommended POOL FROG Mineral Reservoir and POOL FROG Pac.

Don’t forget to register your warranty and sign up to receive emails on special offers and helpful water care tips. Visit frogproducts.com/reg

Made in U.S.A.

Patents: kingtechnology.com/IP

Page 24

MANUFACTURED BY

FROG POOL FROG

POOL FROG XL PRO

FROG BAM® SmartChlor FROG Serene™ FROG Jump Start FROG Filter Mate™ Fresh Mineral Water

Flippin’ FROG® INSTANT FROG® New Water

Flippin’ FROG XL® FROG @ease® Perform-Max

530 11TH AVE S, HOPKINS, MN 55343 | 800.222.0169 | frogproducts.com

20-48-0175

553121843R5N
