Page 1
CATALOGUE
Products
Page 2
5 Company & Products
Leading position in power supplies
Continuous further development of our high-quality products,
their innovative design, and our technical expertise have made
CEAG AG/FRIWO Group a reliable and experienced industry partner
worldwide. Highly qualified, flexible employees guarantee the
quick development cycles demanded by today’s market.
The market- and customer-oriented design of the individual product platforms, the flexible adjustment of production capacities
and the optimum organisation of the sales result in a successful
positioning on the global power supply market. Over 930 million
power supplies and chargers sold in 33 years are a clear evidence
of the Group’s high level of expertise and innovative ability.
CEAG AG/FRIWO Group
FRIWO is the wholly owned subsidiary of CEAG AG. Listed in
the Prime Standard, CEAG AG is the holding company of the
FRIWO Group, with its registered office in Bad Homburg and
headquarters in Ostbevern/Westphalia. As such, it is the world’s
leading provider – through the FRIWO brand – of charging
units for mobile phones. The major shareholder of CEAG AG is
DELTON AG with almost 77 percent of the share capital.
Asia, Shanghai Asia, Tokyo Asia, Seoul North America,
Colorado Springs
South America, São Paulo
■
■
All devices are tested for operational safety in our own accredited
testing centres and leave our factories as “zero-fault products“.
FRIWO power supply and charger platforms are approved in
Europe, USA, Canada, Japan and Australia without further
testing.
RoHS:
Restriction of the use of certain Hazardous Substances
FRIWO completely abandoned the use
of environmentally unfriendly substances;
in this transition, we have for example
implemented lead free soldering. Major
investments in comprehensive laboratory and analysis equipment here at FRIWO will help us to secure such high quality
standards.
WEEE:
Waste Electrical and Electronic Equipment
FRIWO products already bear today all the
markings that will be required by international laws for an integrated recycling
process tomorrow.
Page 3
6
Switchmode Technology
Switchmode Power Supply
Switchmode Technology
FRIWO offers an extensive range of standard devices with excellent features. At a corresponding volume, further variants for all
kinds of special requirements can be developed. In the process,
the application considerably determines the design:
■
■
■
■
Safety Regulations, Protection Classes, and Connection
Types
Power supply units can be found in a number of applications. For
this reason, the specific safety regulations of the devices being
powered, depending on the regulation of the testing authorities of the respective countries, such as the UL (Underwriter Laboratories), VDE (Association of German Electrical Engineers), etc.,
must be particularly observed.
The EMC conformity according to EN 61000-6-X, under consideration of system perturbations according to EN 61000-3-2 should
be observed for power supply units independent of the switching
concept.
When selecting the housing, the ambient conditions, for example in moist environments, must be considered. For general
applications, the type of protection according to EN 60529-IP20
(Operation in Dry Rooms – Protection Against the Penetration
of Solid Foreign Body) suffices. According to application, power
supply units are designed in accordance with the respective applicable regulations. Due to the safe galvanic separation, all devices
fulfil the low-voltage guideline and provide a safety extra-low
voltage (SELV).
Switchmode power supply units are particularly suited for feeding portable devices. Their low weight and extremely compact
form mean they can be just as advantageously combined with all
other types of applications.
An additional increase in attractiveness results from the widerange input so that the power supply units can be operated all
over the world using mains voltages from 100 to 240 V AC and
50 to 60 Hz. This makes worldwide use possible and means a
drastic reduction in the logistics expenses on the part of our
customers.
Such solutions can either be realised as desktop units with worldwide standardised IEC sockets (our DT series) or as plug-in power
supply units with exchangeable mains plug adapters (our MPP
series). Details regarding these products can be found on the
following pages.
First, here is some important technical information:
Primary Switched Power Supply Units
In such a power supply unit, the mains voltage is first rectified
and smoothed. After that, it is switched at high frequencies and
transferred via a converter transformer. The required low voltage
is then generated within another rectification and smoothing
step. A high-precision direct voltage with very low tolerances can
be provided by means of an additional stabilisation circuit.
Beyond these advantages of the compact design and wide-range
input, the high efficiency is of decisive importance: at an achievable 90 percent, the losses due to emission of heat are minimized. The requirements for very low stand-by power consumption
(stand-by power) can only be met using this technology.
In addition to output current and voltage, requirements
regarding control stabilisation and ripple of the output
voltage, EMC behaviour, efficiency, etc. influence the power
supply unit design.
Specific requirements regarding size and shape have an
effect on the component expense and thus the costs of
the unit.
Various circuit topologies can be used according to the
requirements.
Designs as plug-in power supply units, desktop devices, or
even as modules (= open frame) for all special applications
can also be realised.
Page 4
39

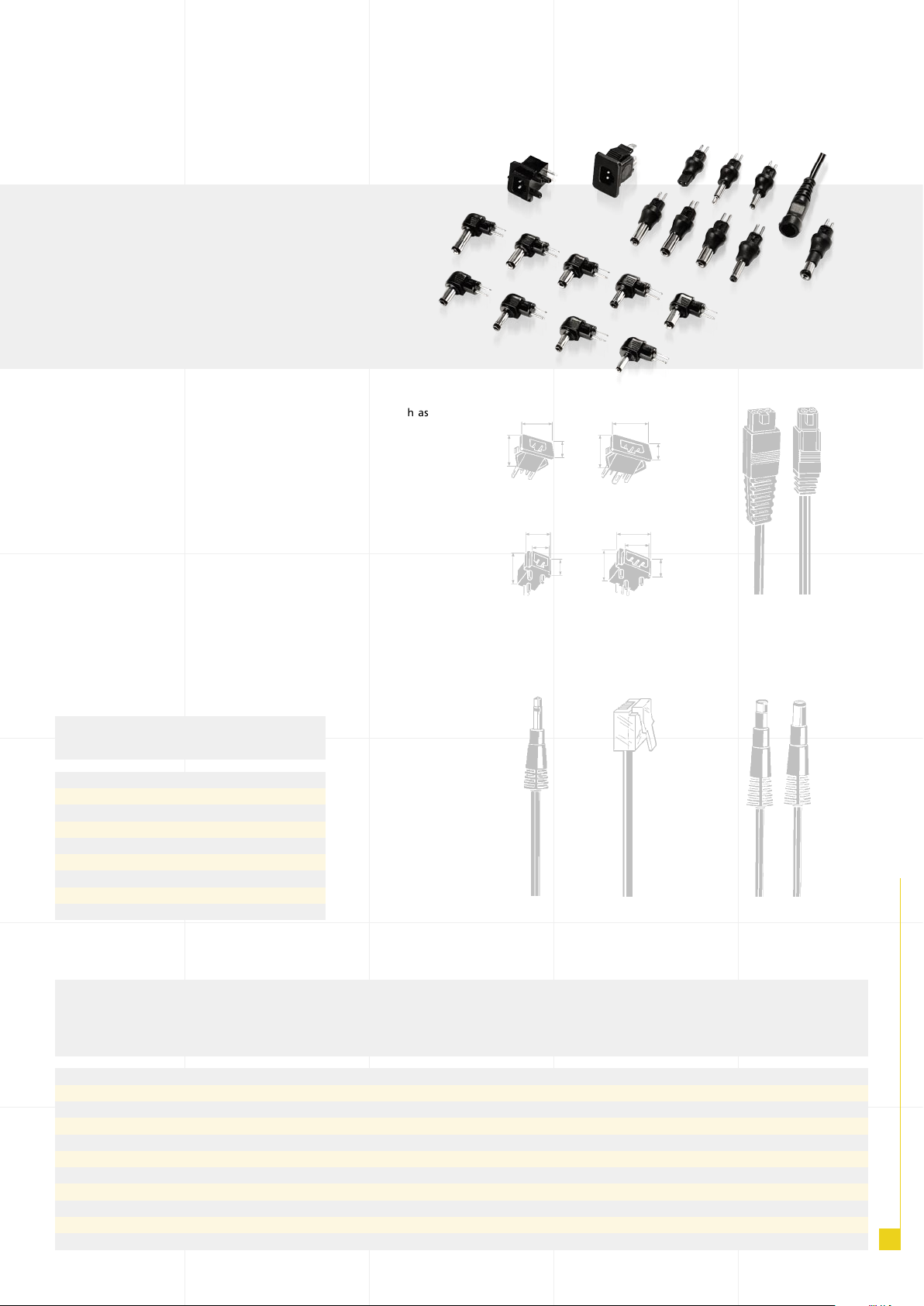

Secondary Adapter Plug System
Secondary Adapter Plug System
In addition to the standardized low voltage plug-in connections such as
coaxial (in accordance with DIN 45323) and jack connectors (in accordance
with DIN 45318), FRIWO also provides customized connecting cables. The
wire diameter which is generally used in our units ranges from 0.25 mm2 to
1.5 mm2. Both flat and round cables can be used.
FRIWO has its own plug system with self-cleaning fork contacts and the
corresponding sockets for snap-in or PCB installation. This plug connection
is available in 2- or 3-pin design. Beyond the safe contact due to the selfcleaning of the fork terminals, this system also provides the advantage of
extremely small dimensions.
The low-voltage plugs shown only represent a selection of the comprehensive range. Customized designs, special versions and types with
other dimensions can be obtained upon request.
Straight coaxial connectors
3.5
4.0
4.0
4.8
5.5
5.5
5.5
5.5
5.5
5.5
1807699
1822557
1811994
1822559
1807700
1807701
1807697
1807698
1807702
1822561
1807703
Straight jack connectors Angled coaxial connectors Angled jack connectors
o. Ø i. Ø
Length
mm
Order No. o. Ø
Lenght
mm
Order No. o. Ø i. Ø
Length
mm
Order No. o. Ø
Length
mm
Order No.
1.3
1.7
1.7
1.7
2.1
2.1
2.1
2.5
2.5
3.3
9.5
9.5
11.0
9.5
9.5
11.5
14.0
9.5
11.5
9.5
2.5
3.51314
1807704
1807705
3.5
4.0
4.0
4.8
5.5
5.5
5.5
5.5
5.5
5.5
1822478
1822558
1822482
1822560
1822479
1822480
1822476
1822477
1822481
1822562
1822483
1.3
1.7
1.7
1.7
2.1
2.1
2.1
2.5
2.5
3.3
9.5
9.5
11.0
9.5
9.5
11.5
14.0
9.5
11.5
9.5
1822484
1822485
2.5
3.51314
DIN 45323 DIN 45323
Texas Sockets Texas Plugs
Male Jacks Phone Connectors
(upon request)
Coaxial Plugs
Texas Sockets
Straight Plug Inserts
Angled Plug Inserts
11 mm
14 mm
10 mm
16.5 mm
10 mm
11 mm
12 mm
12 mm
8.2 mm
7.2 mm
12 mm
7 mm
14.5 mm
14 mm
Description Order No.
Connectors/Sockets
1807706
1822486
1323938
1321609
1327259
1363506
Texas connector
Straight Texas connector
Angled Texas connector
Texas sockets 2-pin
Snap-in type
PCB type
Texas sockets 3-pin
Snap-in type
PCB type
