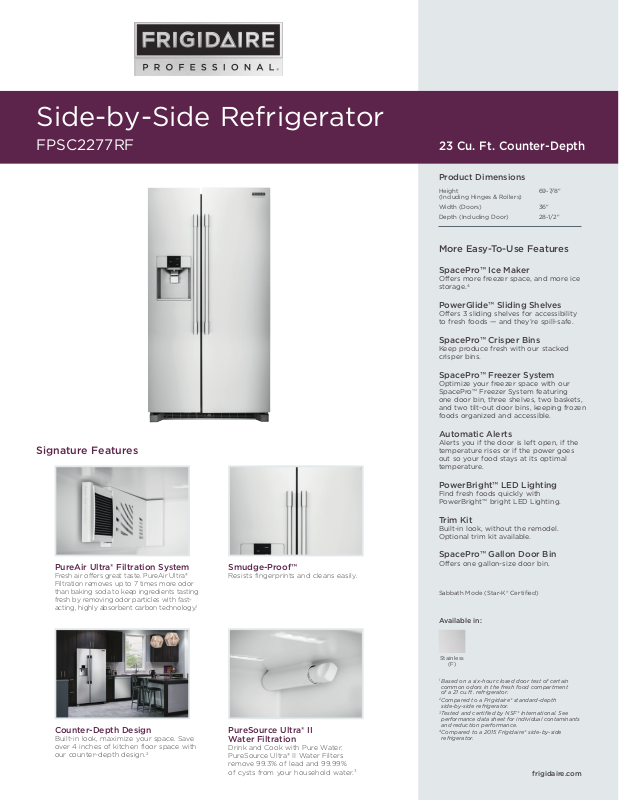

Page 1
Side-by-Side Refrigerator
FPSC2277RF
Signature Features
23 Cu. Ft. Counter-Depth
Product Dimensions
Height 69-7/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 28-1/2"
More Easy-To-Use Features
SpacePro™ Ice Maker
Offers more freezer space, and more ice
4
storage.
PowerGlide™ Sliding Shelves
Offers 3 sliding shelves for accessibility
to fresh foods — and they’re spill-safe.
SpacePro™ Crisper Bins
Keep produce fresh with our stacked
crisper bins.
SpacePro™ Freezer System
Optimize your freezer space with our
SpacePro™ Freezer System featuring
one door bin, three shelves, two baskets,
and two tilt-out door bins, keeping frozen
foods organized and accessible.
Automatic Alerts
Alerts you if the door is left open, if the
temperature rises or if the power goes
out so your food stays at its optimal
temperature.
PureAir Ultra® Filtration System
Fresh air offers great taste. PureAir Ultra®
Filtration removes up to 7 times more odor
than baking soda to keep ingredients tasting
fresh by removing odor particles with fastacting, highly absorbent carbon technology.
Counter-Depth Design
Built-in look, maximize your space. Save
over 4 inches of kitchen floor space with
our counter-depth design.
2
PowerBright™ LED Lighting
Find fresh foods quickly with
PowerBright™ bright LED Lighting.
Trim Kit
Built-in look, without the remodel.
Optional trim kit available.
SpacePro™ Gallon Door Bin
Smudge-Proof™
Resists fingerprints and cleans easily.
1
PureSource Ultra® II
Water Filtration
Drink and Cook with Pure Water.
PureSource Ultra® II Water Filters
remove 99.3% of lead and 99.99%
of cysts from your household water.
3
Offers one gallon-size door bin.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Based on a six-hour closed door test of certain
common odors in the fresh food compartment
of a 21 cu. ft. refrigerator.
2
Compared to a Frigidaire® standard-depth
side-by-side refrigerator.
3
Tested and certified by NSF® International. See
performance data sheet for individual contaminants
and reduction performance.
4
Compared to a 2015 Frigidaire® side-by-side
refrigerator.
frigidaire.com
Page 2
A
B
C
Top View
24"
Cabinet
25" Side Panels,
1
/2" min. width
25"
Countertop
Allow 1" min. clearance at rear
for proper air circulation and
water
/
electrical connections
Recessed
water line
Recessed
electrical outlet
Standard
Refrigerator Depth
vs. Counter Depth
23
7/8"
Counter Depth
28
3/4"
Standard Depth
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Control Buttons
Crushed Ice / Cube Ice / Water
Ice Option
Freeze Option
Display On / O Option
Control Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
SpacePro™ Upper Crisper /
SpacePro™ Lower Crisper
Humidity Controls
Dairy Compartment
SpacePro™ Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
SpacePro™ Automatic Ice Maker
Certifications
A.D.A. Compliant
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
2
Flat
Stainless Steel
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Pro-Select®
Flush, Single Paddle
11
Yes / Yes / Yes
PowerPlus® Ice
PowerPlus® Freeze
Yes
No / Yes
Yes / Yes / Yes
Yes
Yes
PowerBright™ LED
PureSource Ultra® II
PureAir Ultra®
3 PowerGlide™
1 Stacked
No / 1 Clear
1 Clear /
1 Clear
2
1 Clear
1 One-Gallon Clear
2 Silver / 1 Clear
1 Clear / 2
2 Glass
2 Wire
1 Wire
Yes
PowerBright™ LED
Yes
Yes
Yes
22.6
14.1
8.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15A
1.02
8.5
15
325 Lbs.
Side-by-Side Refrigerator
FPSC2277RF 23 Cu. Ft. Counter-Depth
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90°
1
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit
having 2-wire service with a separate ground wire.
Appliance must be grounded for safe operation.
69-7/8"
35-7/8" / 36"
28-1/2"
45"
“Built-In Look” Cutout Dimensions
Height (Incl. Hinges & Rollers)
Width
Depth
70-1/4"
36"
25"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FPSC2277R 03/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.

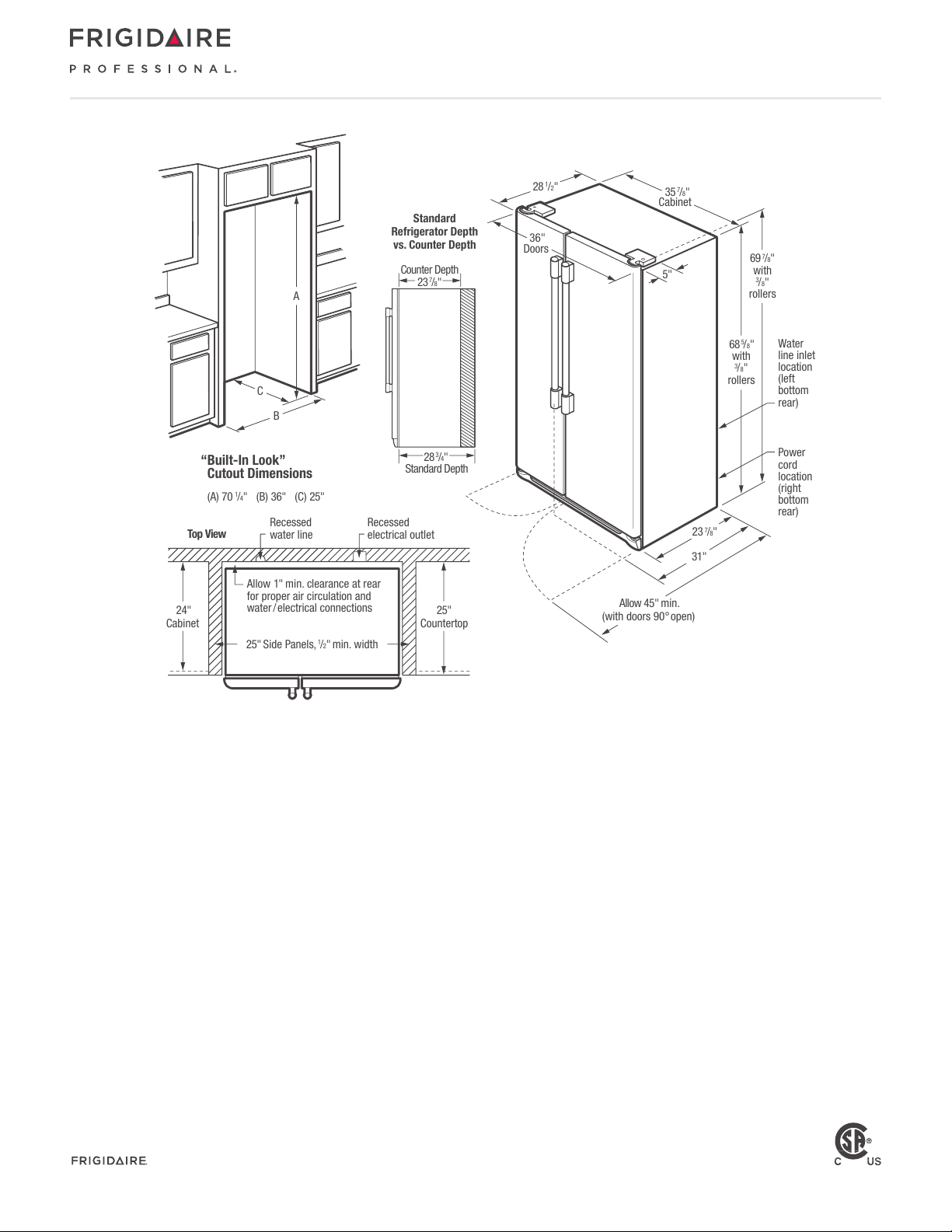

Page 3
Side-by-Side Refrigerator
“Built-In Look”
Cutout Dimensions
(A) 701/4" (B) 36" (C) 25"
B
C
A
Allow 45" min.
(with doors 90°
open)
68 5/8"
with
3
/8"
rollers
28 1/2"
237/8"
69
7/8"
with
3
/8"
rollers
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
35
7
/8"
Cabinet
36"
Doors
5"
31"
Top View
24"
Cabinet
25" Side Panels,
1
/2" min. width
25"
Countertop
Allow 1" min. clearance at rear
for proper air circulation and
water
/
electrical connections
Recessed
water line
Recessed
electrical outlet
Standard
Refrigerator Depth
vs. Counter Depth
23
7
/8"
Counter Depth
28
3/4"
Standard Depth
FPSC2277RF 23 Cu. Ft. Counter-Depth
Side-by-Side Refrigerator Specifications
•
Product Shipping Weight (approx.) – 325 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for
ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
