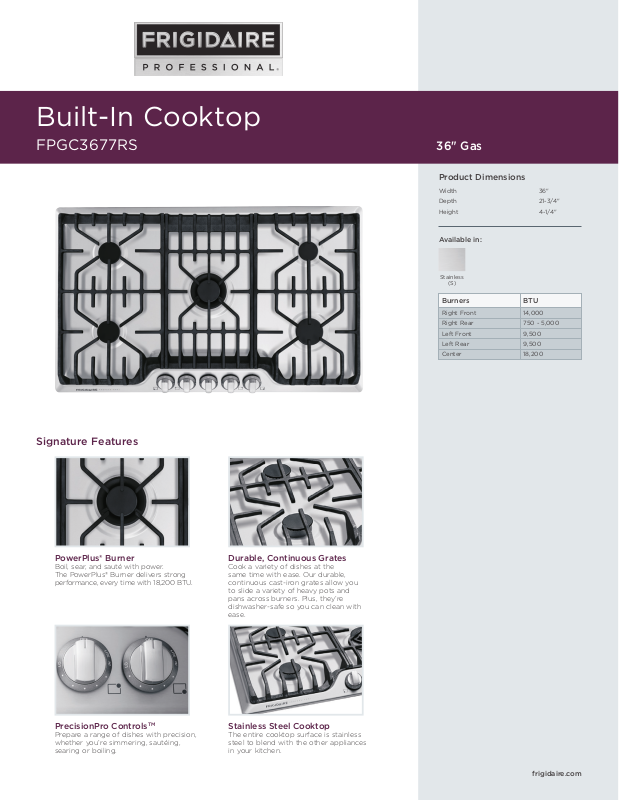

Frigidaire Professional FPGC3677RS Specifications
Built-In Cooktop
FPGC3677RS
36" Gas
Product Dimensions
Width 36"
Depth 21-3/4"
Height 4-1/4"
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center
BTU
14,000
750 - 5,000
9,500
9,500
18,200
Signature Features
PowerPlus® Burner
Boil, sear, and sauté with power.
The PowerPlus® Burner delivers strong
performance, every time with 18,200 BTU.
PrecisionPro Controls
Prepare a range of dishes with precision,
whether you’re simmering, sautéing,
searing or boiling.
TM
Durable, Continuous Grates
Cook a variety of dishes at the
same time with ease. Our durable,
continuous cast-iron grates allow you
to slide a variety of heavy pots and
pans across burners. Plus, they’re
dishwasher-safe so you can clean with
ease.
Stainless Steel Cooktop
The entire cooktop surface is stainless
steel to blend with the other appliances
in your kitchen.
frigidaire.com
Features
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Burner (BTU)
Control Location
Knob Color
Knob Type
PrecisionPro
Stainless Steel Recessed
Yes
Continuous Cast Iron
w/Black Matte Finish
14,000
750 to 5,000
9,500
9,500
18,200
Center Front
Stainless
Cast Metal
TM
Optional Accessories
Griddle
Included
Certifications
A.D.A. Compliant
1
Yes
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Amps @ 120 Volts
2
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
3
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Rear
Right Rear
Included
120V / 60 Hz / 15A
1.0
15
Yes
3
60 Lbs.
Built-In Cooktop
FPGC3677RS 36" Gas
A
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
36"
21-3/4"
4-1/4"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
B
C
33-7/8" / 34-1/4"
19-3/8" / 19-3/4"
8"
•
USA
10200 David Taylor Drive
•
CANADA
FPGC3677R 06/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
