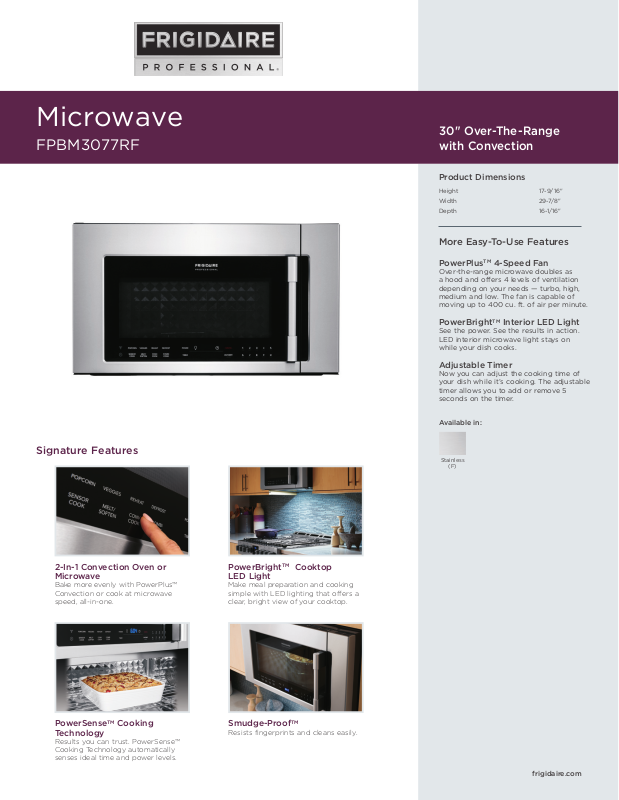

Microwave
FPBM3077RF
30" Over-The-Range
with Convection
Product Dimensions
Height 17-9/16"
Width 29-7/8"
Depth 16-1/16"
More Easy-To-Use Features
PowerPlusTM 4-Speed Fan
Over-the-range microwave doubles as
a hood and offers 4 levels of ventilation
depending on your needs — turbo, high,
medium and low. The fan is capable of
moving up to 400 cu. ft. of air per minute.
PowerBrightTM Interior LED Light
See the power. See the results in action.
LED interior microwave light stays on
while your dish cooks.
Adjustable Timer
Now you can adjust the cooking time of
your dish while it’s cooking. The adjustable
timer allows you to add or remove 5
seconds on the timer.
Signature Features
2-In-1 Convection Oven or
Microwave
Bake more evenly with PowerPlus™
Convection or cook at microwave
speed, all-in-one.
PowerBrightTM Cooktop
LED Light
Make meal preparation and cooking
simple with LED lighting that offers a
clear, bright view of your cooktop.
Available in:
Stainless
(F)
PowerSenseTM Cooking
Technology
Results you can trust. PowerSense™
Cooking Technology automatically
senses ideal time and power levels.
Smudge-Proof
Resists fingerprints and cleans easily.
TM
frigidaire.com
Page 2
B
A
C
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Capacity (Cu. Ft.)
PowerPlus
Watts (IEC-705 Test Procedure)
Interior LED Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock
Clock
Touch Pad Buttons
Power Levels
Accessory Metal Rack
TM
Convection
Pro-Select®
Smudge-Proof™
Stainless Steel
Stainless Steel
1.8
Yes
1,050
Yes
Stainless Steel
14-3/16"
Yes
Yes
Yes
31
High (1 – 9)
Yes (1)
Microwave Control Options
Popcorn Button
Sensor Cook Button
Sensor Reheat Button
Snack Button
Beverage
Melt & Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Multi-Stage Cooking Option
Keep Warm
Add 30 Seconds
Sensor Cooking Options
Sensor Reheat Options
Vegetable Cook Sensor
Delay Start
User Preferences
Adjustable Timer
Yes
Yes
Yes
4
5
5
9
3
Yes
Yes
6
5
Yes
Yes
Yes
Ventilation System
Ducted / Ductless
Installation Option
Exhaust Fan (CFM)
Cooktop LED Light
Auto-Start Heat Sensor
Dishwasher-Safe Vent Filter
(Ductless Installation)
Yes
4-Speed 170 / 400
2
Yes
Yes
Power Ratings
Frequency (MHz)
Watts @ 120 Volts
Amps @ 120 Volts
2,450
1,071
14.3
Optional Accessories
36" Stainless Steel Filler Panel Kit
PN # MWFILKTSS
Specifications
Oven Interior (HxWxD)
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
1
9-15/16" x 21-1/4" x 14-23/32"
Right Top Rear
120V / 60Hz / 15A
1.65
15
81 Lbs.
Microwave
FPBM3077RF 30" Over-The-Range with Convection
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
17-9/16"
29-7/8"
16-1/16"
Cutout Dimensions
Height (Min. from floor to top of unit)
Width (Min.)
Depth (Min.)
Depth (Max.)
66"
30"
12"
17"
•
USA
10200 David Taylor Drive
•
CANADA
FPBM3077R 06/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3

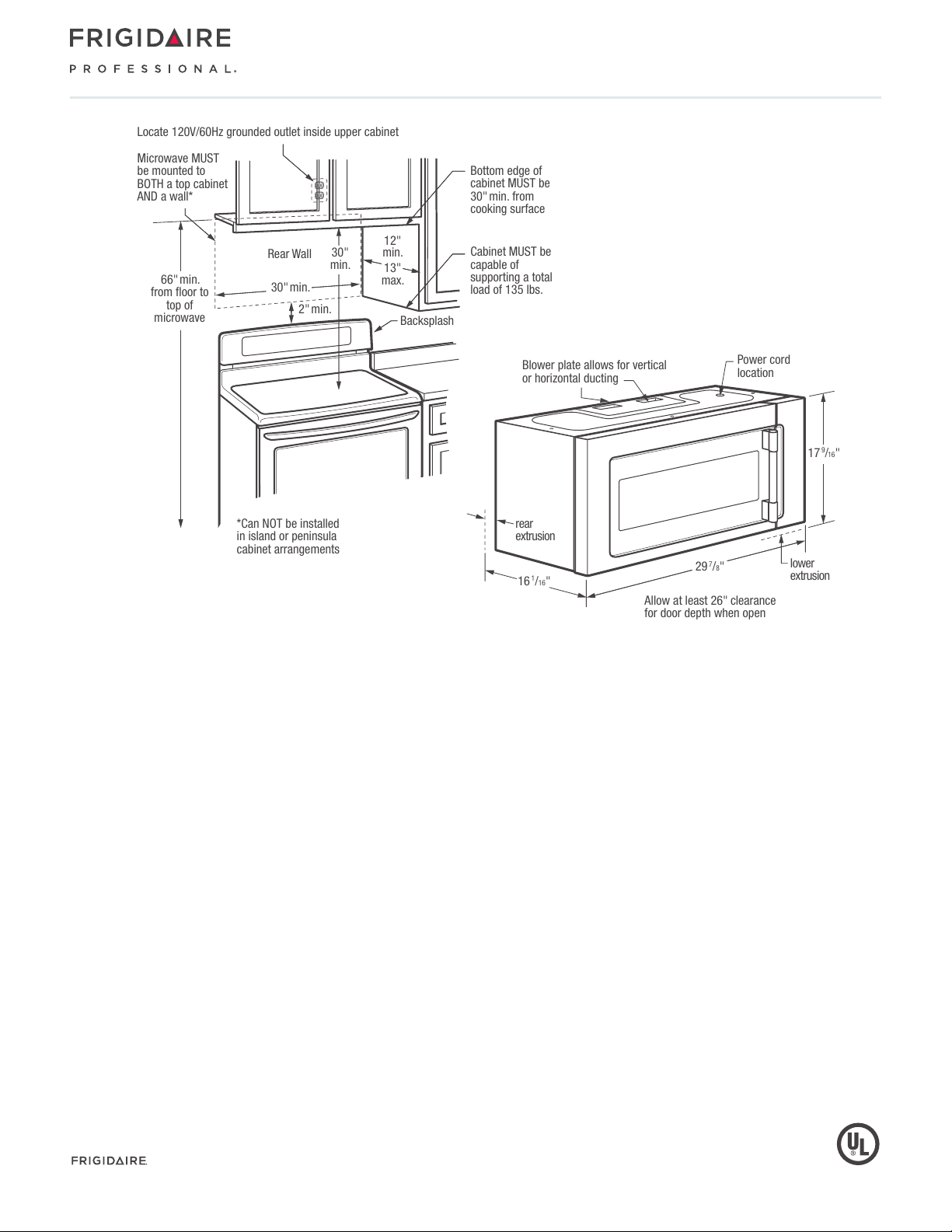

30" Over-the-Range Microwave Oven
with Bottom Controls (FPBM3077R)
Professional (1.8 Cu. Ft.) (new handle)
12"
min.
13"
max.
2" min.
Backsplash
Rear Wall
30" min.
66" min.
from floor to
top of
microwave
Bottom edge of
cabinet MUST be
30"
min. from
cooking surface
Cabinet MUST be
capable of
supporting a total
load of 135 lbs.
30"
min.
Microwave MUST
be mounted to
BOTH a top cabinet
AND a wall*
Locate 120V/60Hz grounded outlet inside upper cabinet
*Can NOT be installed
in island or peninsula
cabinet arrangements
29
7/8"
17
9/16"
16
1/16"
Power cord
location
Allow at least 26" clearance
for door depth when open
lower
extrusion
rear
extrusion
Blower plate allows for vertical
or horizontal ducting
Microwave
FPBM3077RF 30" Over-The-Range with Convection
Microwave Specifications
•
Product Shipping Weight (approx.) – 81 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.65 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 15 Amps
•
Always consult local and national electric codes.
•
Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for
power cord clearance when installing beneath smooth, flat cabinets.
•
Microwave’s exhaust ventilation system is preset to recirculate air
inside with no ducting system required. Exhausting air outside is
optional, using either vertical or horizontal ducting system. (Refer to
Ducted Option Specifications for outside ventilation.)
•
For safe and proper installation, microwave MUST be mounted to
BOTH a top cabinet AND a wall, and connected to at least one wall
stud. Can NOT be installed in island or peninsula cabinet arrangements.
•
Cabinet bottom MUST be level to insure proper installation.
•
Cabinet MUST be capable of supporting a total load of 135 lbs.
•
If the cabinet depth (including the cabinet doors) is more than 13"
then the unit must be spaced out from the wall using adequate
materials supporting 150 lbs. to allow proper top vent air exhaust.
•
Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•
Minimum distance of 30" required from cooking surface to bottom
edge of top cabinet.
•
Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Panel Kit to fill
in gap between unit and cabinets.
•
Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no less
than 6" diameter.
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 120 equivalent feet.
•
For horizontal installation, be sure to allow enough space between
wall studs to accommodate exhaust.
•
Refer to installation instructions on web for detailed duct
preparation and converting exhaust vent blower system for exterior
exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
36" Stainless Steel Filler Panel Kit – (PN # MWFILKTSS).
•
USA
10200 David Taylor Drive
•
CANADA
FPBM3077R 06/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
