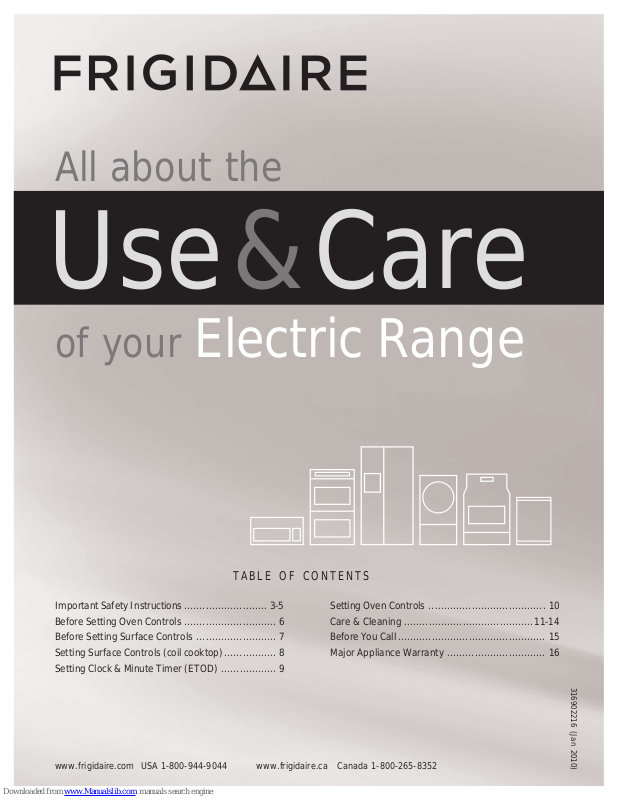

All about the
Use & Care
of your
Important Safety Instructions ........................... 3-5
Before Setting Oven Controls .............................. 6
Before Setting Surface Controls .......................... 7
Setting Surface Controls (coil cooktop)................. 8
Setting Clock & Minute Timer (ETOD) .................. 9
Electric Range
TABLE OF CONTENTS
Setting Oven Controls ...................................... 10
Care & Cleaning ..........................................11-14
Before Y ou Call................................................ 15
Major Appliance Warranty ................................ 16
316902216 (Jan 2010)
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
PRODUCT RECORD AND REGISTRATION
Contents
Product Registration...................................................... 2
Important Safety Instructions ............................ 3-5
Before Setting Oven Controls .................................. 6
Removing, replacing & arranging oven racks ................ 6
Operating oven light................................................... 6
Before Setting Surface Controls .............................. 7
Cookware material types ............................................ 7
Home Canning .......................................................... 7
Setting Surface Controls ......................................... 8
Operating surface elements........................................ 8
Setting Clock & Minute Timer (some models)..............9
Setting the clock........................................................ 9
Setting the minute timer............................................. 9
Setting Oven Controls ........................................... 10
Bake ...................................................................... 10
Broil ....................................................................... 10
Care & Cleaning ............................................... 11-14
Cleaning recommendation table ................................ 11
Surface elements and drip bowls .............................. 12
Cautions for aluminum use ....................................... 12
Replacing the oven light ........................................... 13
Removing & replacing oven door............................... 14
Before You Call
Solutions to common problems ................................. 15
Appliance Warranty .............................................. 16
Thank you for choosing Frigidare.
This Use & Care Guide is part of our commitment to customer
satisfaction and product quality throughout the service life of
your new appliance.We view your purchase as the beginning
of a relationship. T o ensure our ability to continue serving you,
please use this page to record important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly .
If you received a damaged range ...
immediately contact the dealer (or builder) that sold you the
range.
Save time and money.
Check the section titled “Before you call”. This section helps
step you through some common problems that might occur.
If you do need service, help is only a phone call away . Call
Frigidaire Customer Services at 1-800-944-9044.
Serial plate locations
Product Registration
Registering your product with Frigidaire enhances our ability
to serve you. Y ou can register online at
www.frigidaire.com or by dropping your Product
Registration Card in the mail.
Record model & serial numbers here
Purchase date
Model number
Serial number
Be sure to visit us online at
www.frigidaire.com
for a complete line of accessories.
©2010 Electrolux Home Products, Inc.
2
Serial plate locations:
open storage drawer (some models) or remove lower panel
(some models);
or lift cooktop (some models).
All rights reserved. Printed in the USA
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Do not attempt to install or operate your appliance until you
have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in death
or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
IMPORTANT
IMPORT ANT indicates installation, operation,
maintenance or valuable information that is not hazard
related.
Important Safety Instructions
• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
WARNING
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed
with range.
• See Installation Instructions.
To reduce the risk of tipping, the
range must be secured by properly
installed anti-tip bracket provided
with the range. To check if the
bracket is installed properly, visually
check that rear leveling leg is
inserted into and fully secured by the
anti-tip bracket by removing lower
front panel or storage drawer from
the range.
For models equipped with a warmer drawer or lower
oven, grasp the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti- tip bracket installation.
•Never modify or alter the construction of a range
by removing the leveling legs, panels, wire covers,
anti-tip brackets/screws, or any other part of the
range.
• Remove the oven door from any unused range if it
is to be stored or discarded.
WARNING
• Proper installation—Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition and local
electrical code requirements. Install only per
installation instructions provided in the literature package
for this range.
• User servicing—Do not repair or replace any part
of the appliance unless specifically recommended in
the manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
Save these instructions for future reference.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries
and also cause damage to the appliance. DO NOT
allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.
Never use your appliance for warming or heating
the room.
Do not use the oven, warmer drawer or lower
oven (if equipped) for storage.
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• Storage in or on appliance—flammable materials
should not be stored in an oven, warmer
drawer, near surface units or in the storage
drawer. This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range.
• DO NOT LEAVE CHILDREN ALONE —children
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer,
warmer drawer or lower double oven.
CAUTION
• Do not store items of interest to children in the
cabinets above a range or on the backguard of
the range. Children climbing on the range to reach
items could be seriously injured.
• Do not touch surface heating units or surface
cooking elements, areas near these units or
elements, or interior surface of the oven. Both
surface heating and oven heating elements may be hot
even though they are dark in color. Areas near surface
cooking units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or
other flammable materials touch these areas until they
have had sufficient time to cool. Among these areas
are the cook top, surfaces facing the cook top, the
oven vent openings and surfaces near these openings,
oven door and oven door window.
• Wear proper apparel—loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
• Do not use water or flour on grease fires—
smother the fire with a pan lid, or use baking soda,
a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat
or grease may catch fire if allowed to become too hot.
• Use dry potholders - moist or damp potholders on
hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers - buildup of
pressure may cause container to burst and result
in injury.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door , lower oven
door or warmer drawer (if equipped)—Stand to the
side of the range when opening the door of a hot oven.
Let hot air or steam escape before you remove or replace
food in the oven.
• Keep oven vent ducts unobstructed. The oven vent
is located under the left rear surface element if your
model is equipped with coil elements. The oven vent is
located below the backguard for models equipped with
ceramic-glass cook tops. Touching the surfaces in this
area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.
• Placement of interior oven racks. Always place oven
racks in desired location while oven is cool. If rack must
be moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
IMPORTANT
Do not attempt to operate the range during a
power failure. If the power fails, always turn off the
range. If the range is not turned off and the power
resumes, the range will begin to operate again. Once the
power resumes, reset the clock and oven function.
4
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler. Do not
cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Protective liners—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
CAUTION
Before manually cleaning any part of the range, be sure all
controls are turned OFF and the range is COOL. The range
may be hot and can cause burns.
• Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention
to the area around each surface element. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols—Always follow the
manufacturer’s recommended directions for use.
Be aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently—Grease should
not be allowed to accumulate on the hood or filter.
Follow the manufacturer’s instructions for cleaning hoods.
COIL COOK TOP MODELS
CAUTION
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating
unit. Place a pan of food on the unit before turning it on,
and turn the unit off before removing the pan.
• Use proper pan size—This appliance is equipped with
one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit heating element. The use of undersized
utensils will expose a portion of the heating element to
direct contact and may result in ignition of clothing.
Proper relationship of utensil to element will also improve
efficiency.
• Utensil handles should be turned inward and not
extend over adjacent surface elements—To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent
surface units.
• Never leave surface elements unattended at high
heat settings—Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Protective Liners—Do not use aluminum foil to line
surface unit drip bowls, or reflector pans. Only use
aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk
of electric shock, or fire.
• Make Sure Reflector Pans or Drip Bowls Are in
Place—Absence of these pans or bowls during cooking
may subject wiring or components underneath to
damage.
• Do not immerse or soak removable heating
elements—Heating elements should never be immersed
in water. Heating elements clean themselves during
normal operation.
• Glazed cooking utensils—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.
• When flaming foods under a ventilating hood, turn
the fan on.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such
substances.
5
BEFORE SETTING OVEN CONTROLS
Oven vent location
The oven vent is located under the left rear surface
element (See Fig. 1). When the oven is on, warm air
passes through the vent. This venting is necessary for
proper air circulation in the oven and good baking results.
Do not block the oven vent.
oven vent located
under left rear element
Fig. 1
Oven indicator light
The oven indicator light is located on the
panel just above the oven door.
The oven indicator light will glow when the oven is turned
on. A quick glance at this indicator light when finished using
the oven is a good way to be sure the oven is turned OFF.
Removing, replacing & arranging racks
To remove - pull the rack forward until it stops. Lift up
front of rack and slide out.
To replace - fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into
place.
Arranging - always arrange the oven racks when the oven
is cool (prior to operating the oven).
CAUTION
• Always use oven mitts when using the oven.
When using the appliance, oven racks and cooktop will
become very hot which can cause burns.
• Protective liners—Do not use aluminum foil to line
the oven bottom. Only use aluminum foil as
recommended in this manual. Improper installation of
these liners may result in risk of electric shock, or fire.
Types of oven racks
Your range may be equipped with one or more of the oven
rack styles shown.
flat handle
oven rack
flat
oven rack
offset
oven rack
The flat oven rack or flat handle oven rack (some
models) may be used for most cooking needs.
The offset oven rack (some models) is designed to place
the base of the rack about 1/2 of a rack position lower than
normal. This rack design provides several additional
possible locations between the standard positions.
Fig. 2
Recommended rack positions (See Fig.2)
Food type Position
Broiling meats See broil
Cookies, cakes, pies, biscuits & muffins 2 or 3
Frozen pies, angel food cake, yeast, bread
and casseroles 1 or 2
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
Operating oven light (some models)
The interior oven light will automatically turn ON when the
oven door is opened. Press the oven light switch located on
the upper left control panel to turn the interior oven light ON
and OFF whenever the oven door is closed.
6
BEFORE SETTING SURFACE CONTROLS
Surface indicator light
Your range is equipped with one
or more surface indicator lights
located on the panel just above
the oven door.
The surface indicator light will glow when one or more
surface elements are turned ON. A quick glance at this
indicator light when finished surface cooking on the cooktop
is an easy check to be sure all surface controls are turned
OFF.
Use proper cookware
The size and type of cookware
used will influence the setting
needed for best cooking results.
Be sure to follow the
recommendations for using
proper cookware as illustrated
in Figs. 1 & 2. Cookware should
have flat bottoms that make
good contact with the entire
surface heating element .
Check for flatness by rotating a
ruler across the bottom of the
cookware (See Fig. 1).
Fig. 1
Cookware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware resists
staining & pitting).
Copper - Excellent heat conductor but discolors easily (See
Aluminum).
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is reached.
Porcelain-enamel on metal - Heating characteristics will vary
depending on base material.
Glass - Slow heat conductor.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well as
follow their recommendations for home canning procedures.
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom (see
“Cookware material types” in the Before setting surface
controls section).
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does not
tilt cookware. Cookware is
well balanced.
• Cookware size matches the
amount of food to be
prepared and the size of
the surface element.
• Made of material that
conducts heat well.
• Easy to clean.
• Always match cookware
bottom to element
diameter.
• Curved and warped pan
bottoms.
• Cookware overhangs
element by more than
1/2” (1.27 cm).
• Cookware is smaller than
element.
• Cookware weight is not
balanced.
Fig. 2
• Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.
• Make sure the diameter of the canner does not
exceed 1 inch beyond the surface element markings
or burner. It is recommended to use smaller diameter
canners on electric coil and ceramic glass cooktops.
• Start with hot tap water to bring water to boil more quickly.
• Use the highest heat setting when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
IMPORTANT
NEVER place or straddle a cooking utensil over 2 different
surface cooking elements at the same time. This can cause
uneven heating results.
7
SETTING SURFACE CONTROLS
Operating surface elements
CAUTION
• Surface elements may appear to have cooled after
they have been turned off. The element surface
may still be hot and burns may occur if the element
or the area surrounding the element is touched before
it has cooled sufficiently.
• Do not place flammable items such as plastic salt
and pepper shakers, spoon holders or plastic
wrappings on top of the range when it is in use. These
items could melt or ignite. Potholders, towels or
wooden spoons could catch fire if placed too close to
the surface elements.
Fig. 1
• Protective liners—Do not use aluminum foil to line
surface drip bowls, or reflector pans. Improper
installation of these liners may result in risk of electric
shock, or fire. Only use aluminum foil as
recommended in this manual.
To operate surface elements:
1. Place correctly sized cooking utensil on surface
element.
2. Push in and turn the surface control knob (See Fig. 1).
in either direction to the desired setting. Start most
surface cooking on a higher setting and then turn to a
lower setting to finish. The surface control knobs do not
have to be set exactly on a particular spot. Use the
graphics provided as a guide and adjust the control
knob as needed (See Fig. 2). Each surface element
provides a constant amount of heat at each setting. For
more information see the Suggested surface
element settings table (See Fig. 3).
3. When cooking is complete, turn the surface element
OFF before removing the cookware.
NOTES
Fig. 2
Suggested surface element settings
The suggested settings table provided below are based
when cooking with medium-weight aluminum pans with
lids. Settings may vary when using other types of pans.
Suggested surface element settings table
Settings Type of cooking
High (Hi - 9) Start most foods, bring water to a
boil, pan broiling
Medium high (7 - 8) Continue a rapid boil, fry, deep fat fry
Medium (5 - 6) Maintain a slow boil, thicken sauces
and gravies or
steam vegetables
Medium Low (2 - 4) Keep foods cooking, poach, stew
Low (LO or SIM - 1) Keep warm, melt, simmer
• The surface indicator light will glow when one or
more surface elements are turned ON. A quick glance
at this indicator light when finished surface cooking is
an easy check to be sure all surface controls are turned
OFF.
• The size and type of utensil used, and the amount and
type of food being cooked will influence the surface
setting needed for best cooking results.
8
Fig. 3
IMPORTANT
Do not allow aluminum foil, or ANY material that can
melt to make contact with the surface elements.
SETTING CLOCK & MINUTE TIMER
NOTE
Not all models are equipped with a time of day clock or
minute timer.
If your model is not equipped with a clock display, the
time of day and the minute timer features shown on this
page will not be available.
To set time of day (some models)
When the range is first plugged in, or when the power supply
to the range has been interrupted, "12:00" will flash in the
display window indicating that the time of day needs to be set.
1. Press clock key pad.
2. Press in and hold or key pad until the correct
time appears in the display. The key pad will
increase time and key pad will decrease time.
To set minute timer (some models)
1. Press timer on-off key pad. "0:00" will appear in the
display window. The minute timer may be set for any
amount of time from 1 minute to 12 hours.
2. Press in and hold
the minute timer appears in the display.
The
decreases time. The minute timer will automatically
start when one of these key pads are released.
Once set, the display will flash “:” indicating the minute
timer is active.
3. When the minute timer reaches the end of the set time,
the control will display "0:00" and beep three times.
The minute timer will continue to beep until either the
clock or timer on-off key pad is pressed at which
time the display will return to the time of day.
To cancel the minute timer before the minute timer is
finished
key pad increases time and key pad
key pad until the desired time for
Press timer on-off once.
NOTES
• The minute timer will not start or stop the cooking
process. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or while using the oven or
cooktop features.
• Press timer on-off at any time to cancel the minute
timer and return to the time of day display.
9
SETTING OVEN CONTROLS
Bake
1. Arrange oven racks while the oven is still cool. See
“Arranging oven racks” in Before Setting Oven
Controls section.
2. Turn the oven temp control knob (See Fig. 1) to the
desired oven temperature (See Fig. 2).
3. Preheat the oven for 10 to 12 minutes before baking.
Preheating is not necessary when roasting, cooking
casseroles or broiling most foods.
4. When cooking is finished, turn the oven temp control
knob to OFF.
IMPORTANT
Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent overbrowning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended for
cakes, cookies and muffins.
NOTE
Always pull the oven rack out to the stop position before
turning or removing the food.
Broil
1. Arrange oven rack while oven is still cool. For rare
meats, position the broiler pan closer to the element
(upper oven rack positions - Fig. 3). For well-done
foods such as chicken, lobster tails or thick cuts of
meat, position the pan further from the element (lower
oven rack positions).
2. Turn the oven control knob to broil (See Figs 1 & 2).
Most foods can be broiled at the broil setting. Preheat
the oven if desired.
3. Place the insert on the broiler pan (if equipped), then
place the food on the insert. DO NOT use the broiler
pan without the insert or cover the insert with
aluminum foil (Fig. 4). The exposed fat could ignite.
4. Place the broiler pan on the oven rack. Leave the
oven door open at the broil stop position when
broiling (See Fig. 5).
5. Broil on one side until food is browned; turn and broil
on the second side. Season and serve.
6. When broiling is finished, turn the oven temp control
knob to OFF.
WARNING
Should an oven fire occur, close the oven door and turn
the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
Fig. 1
Fig. 2
Insert
Broil pan
Fig. 4
Fig. 3
Fig. 5
CAUTION
• The broiler pan and the insert (some models) allows
grease to drain and be kept away from the high heat of
the broiler. DO NOT use the pan without the insert. DO
NOT cover the insert with aluminum foil; the exposed
grease could ignite.
To insure proper results when broiling use ONLY Electrolux
Home Products, Inc. approved broil pan & insert.
10
Cleaning recommendation table
Surface type Recommendation
CARE & CLEANING
• Control knobs
• Painted body parts
• Painted decorative trim
• Aluminum, plastic or vinyl trim
pieces
• Control panel
• Decorative trim (some models)
• Oven interior & door liner
• Porcelain enamel broiler pan and
broiler pan insert (some models)
For general cleaning
built-up grease
60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any
of these materials; they can scratch. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the knob into place.
Before cleaning the control panel,
knobs from the panel. Clean using hot, soapy water and a dishcloth. Be sure to
squeeze excess water from the dishcloth before wiping the control panel;
especially when wiping around the controls area. Excess water in or around the
controls may cause damage to the appliance. When rinsing, use clean water and a
dishcloth and be sure to squeeze excess water from dishcloth before wiping the
control panel.
Gentle scouring with a soapy non-abrasive scouring pad will remove most spots.
Rinse with a 1:1 solution of clear water and ammonia.
spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean
water and a damp cloth, and then scrub with a soap-filled non-abrasive scouring pad.
Rinse and wipe dry with a clean cloth. Do not allow food spills with a high sugar or
acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the
surface; they may cause a dull spot even after cleaning.
The oven interior is porcelain coated and is safe to clean using oven cleaners
following manufacturer's instructions. After cleaning, remove any oven cleaner or the
porcelain may become damaged during future heating. Do not spray oven cleaner on
any electrical controls or switches. Do not spray or allow oven cleaner to build up on
the oven temperature sensing bulb. Do not spray cleaner on oven door trim, door
gasket, plastic drawer glides, handles or any exterior surfaces of the range.
, use hot, soapy water and a cloth.
, apply a liquid detergent directly onto the soil. Leave on soil for 30 to
turn all controls OFF and if needed remove any
For more difficult soils and
If necessary
, cover difficult
• Oven racks
• Oven door
• Surface elements and drip
bowls
Clean any soils from the oven frame, the door liner outside the oven door gasket and
the small area at the front center of the oven bottom. Clean with hot, soapy water.
Rinse using clean water and a cloth.
Remove oven racks from oven before cleaning. Clean by using a mild, abrasive
cleaner following manufacturer's instructions. Rinse with clean water and dry.
Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. Do not
immerse the door in water. Do not spray or allow water or the glass cleaner
to enter the door vents. Do not use oven cleaners, cleaning powders or any
harsh abrasive cleaning materials on the outside of the oven door.
Do not use spray oven cleaners on the cooktop. See “Surface elements and drip
bowls” in the Care & Cleaning section.
11
CARE & CLEANING
Surface elements and drip bowls
CAUTION
• Make sure drip bowls are in place - Absence of
these bowls during cooking may subject wiring or
components underneath to damage.
• Never immerse a surface element in water.
• Be sure the range is cool before removing surface
elements or drip bowls. Be careful not to bend terminal
ends when replacing surface elements after cleaning.
• Protective liners—Do not use aluminum foil to line
surface drip bowls, or reflector pans. Only use
aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk
of electric shock, or fire.
Surface elements may be unplugged and removed to make
cleaning the drip pans easier. The surface elements clean
themselves when they are turned on. Food spilled on a hot
element will burn off. Food spilled on a COOL element may
be cleaned with a damp cloth—any remaining soil will burn
off the next time the element is used.
To remove the surface elements and drip bowls
1. Lift the edge of the drip bowl across from the terminal
end. Lift the surface element and drip bowl
together just enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently
pull the terminal end out from terminal plug. DO NOT
remove hold down clip (if equipped) from the drip bowl.
Hold
down
clip
(if equipped)
Element
support
Cleaning drip bowls
Wash in hot, soapy water or in the dishwasher. Rinse and
dry while still warm. Hard to remove, burned on soil can be
removed by soaking the drip bowls for about 20 minutes in
a lightly diluted liquid cleanser or a solution of ammonia and
water (1/2 cup ammonia to 1 gallon of water). A nylon
scrubber may be used after soaking. DO NOT use abrasive
cleaners or steel wool, they will scratch the surface. Always
rinse with clean water and polish dry with a soft cloth.
To replace drip bowls and surface elements
1. Slide the terminal end on the element through the
opening in the drip bowl (See Fig. 1).
2. Align the element support to rest on the rim inside the
drip bowl. If your drip bowl is equipped with a hold
down clip, align the element support opposite the
terminal end with the slot in the hold down clip, and
snap into place.
3. After the element is positioned in the drip bowl, line up
the terminal end with the terminal plug as shown.
4. Hold the surface element and drip bowl together as
level as possible and firmly push the terminal end into
the terminal plug. Make sure element terminal is seated
properly into terminal plug. Make sure the surface
element is level to reduce the hazard of cookware
sliding off the element.
Caution for aluminum use on the cooktop
• Aluminum foil - Use of aluminum foil on a hot cooktop
can damage the cooktop. Do not use thin aluminum
cooking utensils or allow aluminum foil to touch the
surface elements under ANY circumstances.
Allow element
support to rest
on drip pan
inside rim.
Fig. 1
12
• Aluminum utensils - The melting point of aluminum
is much lower than that of other metals. Care must be
taken when aluminum pots or pans are used on the
cooktop. If aluminum pans are allowed to boil dry
when using the cooktop, the utensil may be damaged
or destroyed.
Terminal end
Terminal plug
CARE & CLEANING
Cleaning under cooktop (some models)
CAUTION
• When lowering the lift-up range cooktop, grasp the
sides with finger-tips only. Be careful not to pinch
fingers. DO NOT drop or bend the range cooktop when
raising or lowering. This could damage the cooktop
surface.
cooktop
support rods
Fig. 1
To raise the cooktop for cleaning (some models)
1. Grasp the sides and lift from the front (See Fig. 1). Lift-up
rods will support the top in a raised position. Only lift the
cook top far enough to allow the support rods to snap into
place.
2. Clean underneath using a clean cloth and hot, soapy
water.
3. To lower, hold the cooktop up and gently push back on
each rod to release the notched support. Hold the cooktop
while slowly sliding the lift rods down into the range
frame.
Replacing the oven light (some models)
CAUTION
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection
against possible broken glass.
The interior oven light bulb is located at the upper left rear
of the oven cavity.
To replace the oven light bulb
1. Turn electrical power off at
the main source or unplug
the range.
2. Replace bulb with a new 40
watt appliance bulb.
3. Turn power back on again at
the main source or plug the
appliance back in.
4. The clock will need to be
reset (some models). To
reset, see “Setting the clock”
in this Use & Care Guide.
oven
light
Cleaning under lower element (some models)
CAUTION
The oven bake and broil elements may appear to have
cooled after they have been turned OFF. The elements
may still be hot and burns may occur if these elements
are touched before they have cooled sufficiently.
For models that have a visible lower bake element
ONLY - This bake element was designed to be tilted up
using your hand from the front of the bake element for
cleaning purposes. Remove the bottom oven rack before
raising the element. Do not to raise the element more than
4 or 5 inches from the resting position.
13
CARE & CLEANING
Removing and replacing the lift-off oven door
CAUTION
The oven door is heavy. For safe, temporary storage, lay the
oven door flat with the inside of the door facing down.
To remove oven door
1. Open oven door completely (horizontal with floor-Fig.
1).
2. Remove 2 screws located on the inside of the oven door
liner (See A Fig. 2).
3. Insert the 2 screws into the door hinge holes located on
the side of the hinge arm, one into each hinge (See B
Fig. 2).
4. Close oven door until the door stops, (do not force the
door to close any further). The placement of these
screws should keep door open in about a 45 degree
position.
5. Grasp oven door firmly on both sides and slide door up
and off hinges at the same angle (See Fig. 3).
6. To clean oven door, follow the instructions provided
listed in the cleaning chart under “oven door”.
To replace oven door
1. Be sure the hinge arms remain at the 45 degree angle
position. Be sure the screws are still locking the hinge
arms from moving. If the screws fall out of the hinge
holes, the hinge(s) may snap back against the oven
frame and could pinch fingers or chip the porcelain
finish on the oven front frame.
2. Hold door at the sides near the top while resting the
lower front of door on your knee. Insert the door
channels at the bottom of door over the door hinges,
(See Fig. 3).
3. Allow the door to slide down into the door hinges
evenly at the same 45 degree angle. The hinge arms
should be inserted into the bottom corners as far as
they can go.
4. Open door completely (horizontal with floor) and
remove both screws from holes in door hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. If the door is not in alignment with the oven frame,
remove door and repeat the above steps.
Oven door hinge
locations
with oven door
fully open.
Fig. 1
Fig. 2
Fig. 3
Special door care instructions - Most oven doors
contain glass that can break. Read the following
recommendations:
• Do not close the oven door until all the oven racks are
fully in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later time.
14
Problem Solution
Poor baking results.
Appliance is not level.
Cannot move appliance easily. Appliance must be
accessible for service.
Surface element too hot or not hot enough.
Surface element does not heat.
• Many factors affect baking results. Make sure the proper oven rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipe's recommended
temperature or baking time.
• Be sure floor is level, strong & stable enough to adequately support range.
• If floor is sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of appliance until the rack is level.
• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square
& have sufficient room for appliance clearance.
• Cabinets not square or are built in too tightly. Contact builder or installer to make appliance
accessible.
• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over
carpet.
• Incorrect control setting. Be sure the correct control is ON for the element that you are
attempting to use.
• Lightweight or warped pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware materials
and weight of the material affect heating. Heavy & medium-weight pans heat evenly.
Because lightweight pans heat unevenly, foods may burn easily.
• Solutions to common problems BEFORE YOU CALL
Entire appliance does not operate.
Oven portion of appliance does not operate.
Oven light does not work.
Oven smokes excessively during broiling.
Flames inside oven or smoking from oven vent.
• Make sure cord/plug is plugged correctly into outlet.
• Service wiring is not complete. Contact your dealer, installing agent or authorized service
agent.
• Electrical power outage. Check house lights to be sure. Call your local electric company
for service.
• Be sure the oven controls are set properly for the desired cooking feature. See Setting
Oven Controls in this manual or read instructions “Entire appliance does not operate” in this
checklist.
• Be sure the light is secure in the socket. Also see “Replacing the oven light” in Care & Cleaning
section.
• Incorrect setting. Follow broil instructions in Setting Oven Controls.
• Make sure oven door is opened to broil stop position.
• Meat too close to the broil element. Reposition the oven rack to provide proper clearance
between the meat & the element. Preheat the broil element for searing.
• Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to
prevent curling, but do not cut into lean.
• Broiler pan and insert wrong side up and grease not draining. Always place insert on the
broiler pan with ribs up & slots down to allow grease to drip into pan (some models).
• Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
• Excessive spillovers in oven. This will happen for pie spillovers or large amounts of grease left
on the oven bottom. Wipe up excessive spillovers before starting oven. If flames or
excessive smoke are present follow broiling instructions in Setting Oven Controls section.
Drip bowls are pitting or rusting (coil cooktop
models only).
Drip bowls are turning color or distorted (coil
cooktop models only).
• Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.
Remove and wash drip bowls as soon as possible after a spill over.
• Normal environment. Houses located along sea coasts are exposed to salt air. Protect bowls
as much as possible from direct exposure to salt air.
• Bottom of cookware extends beyond surface element and touches cooktop surface. This can
cause high enough temperatures to discolor drip bowls. DO NOT use cookware of this type.
Pan sizes should match the size of the element. Replacement drip bowls may be purchased
from your appliance dealer.
15
MAJOR APPLIANCE WARRANTY
Y our appliance is covered by a one year limited warr anty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appl iance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANT ABILITY OR FITNES S FOR A PARTICUL AR PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED BY L AW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT
BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPER TY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STA TES AND PROVINCES DO NOT ALL OW THE EXCLUSION OR LIMITA TION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITA TIONS ON THE DURA TION OF IMPLIED W ARRANTIES, SO THESE
LIMITA TIONS OR EXCLUSIONS MAY NO T APPL Y TO YOU. THIS WRIT TEN WARRANT Y GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HA VE OTHER RIGHTS THA T V ARY FROM ST ATE TO STATE.
If You Need
Service
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or speci fications as described
or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
16
1.800.265.8352
Canada
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
Loading...
