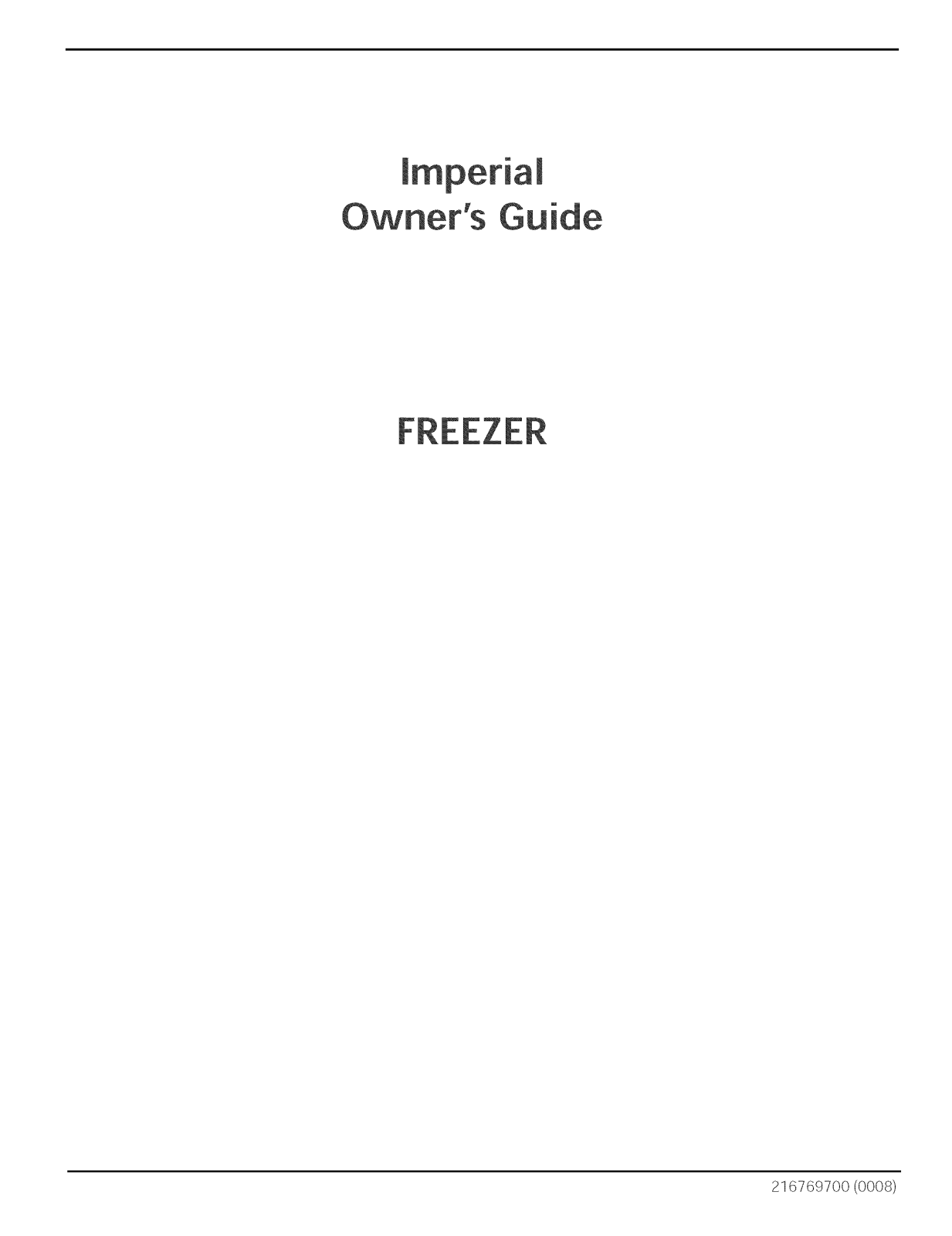

Frigidaire UL1793CA12 Owner’s Manual

Imperial

FREEZER

216769700(0008)

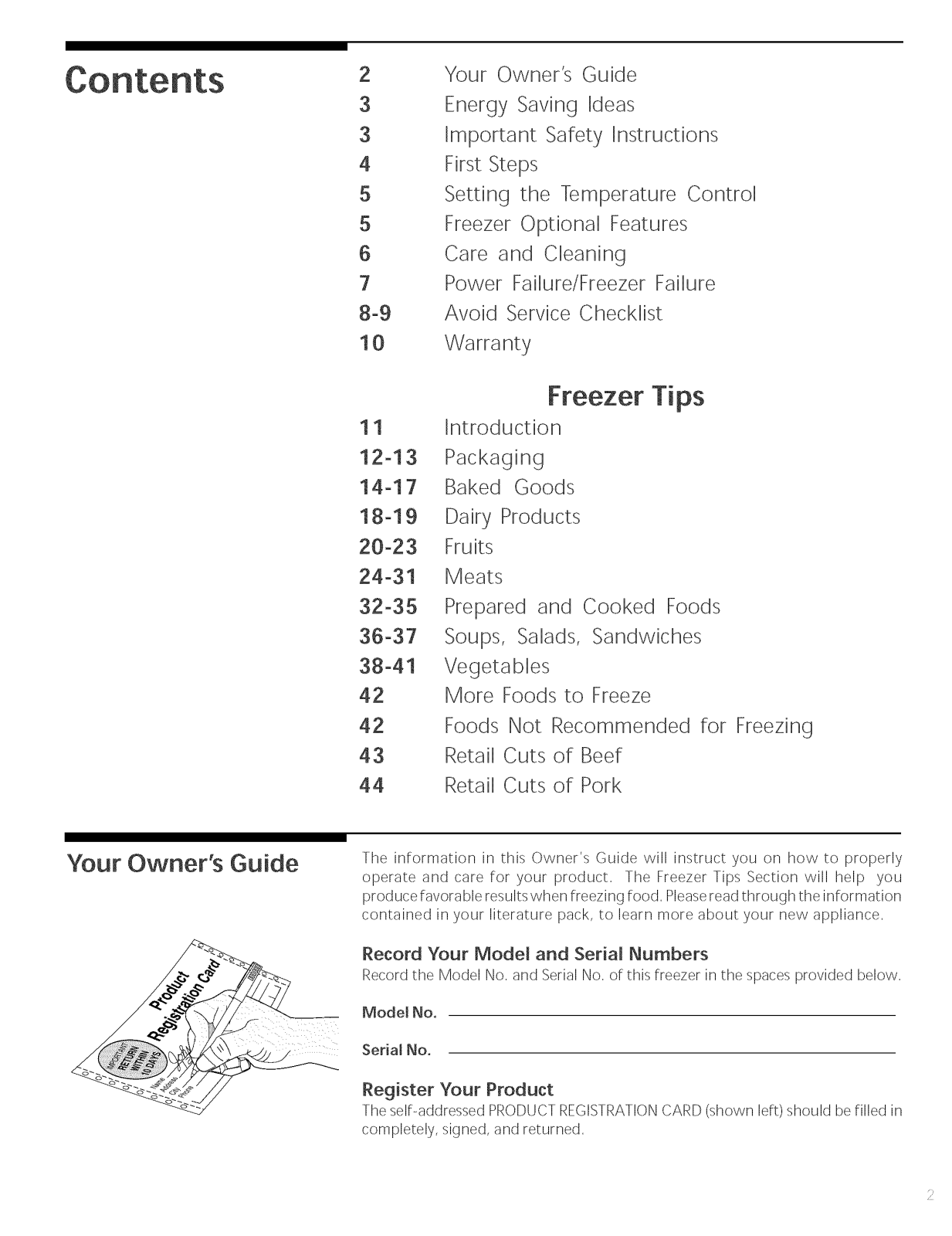

2 Your Owner's Guide
3 Energy Saving Ideas

3 Important Safety Instructions

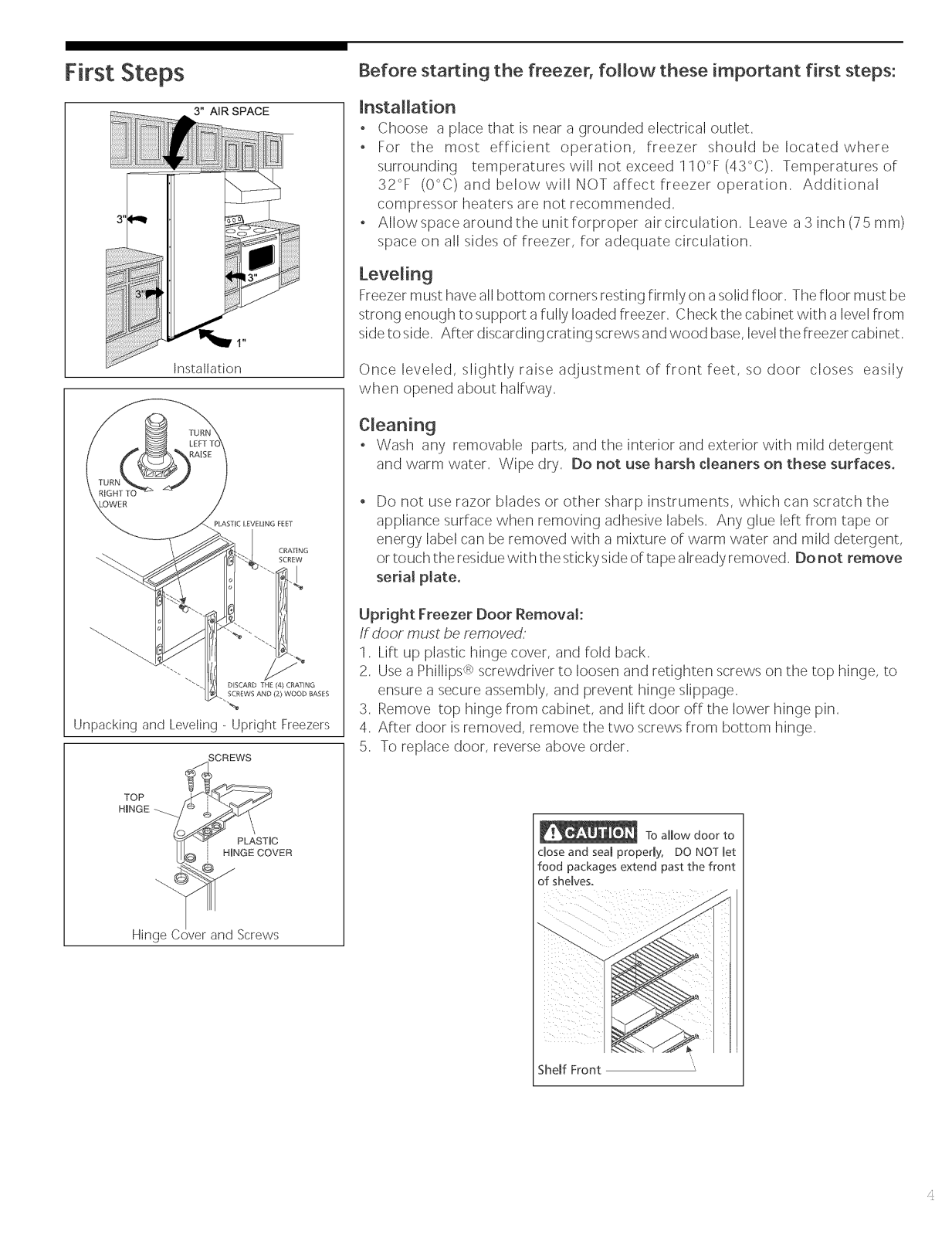

4 First Steps

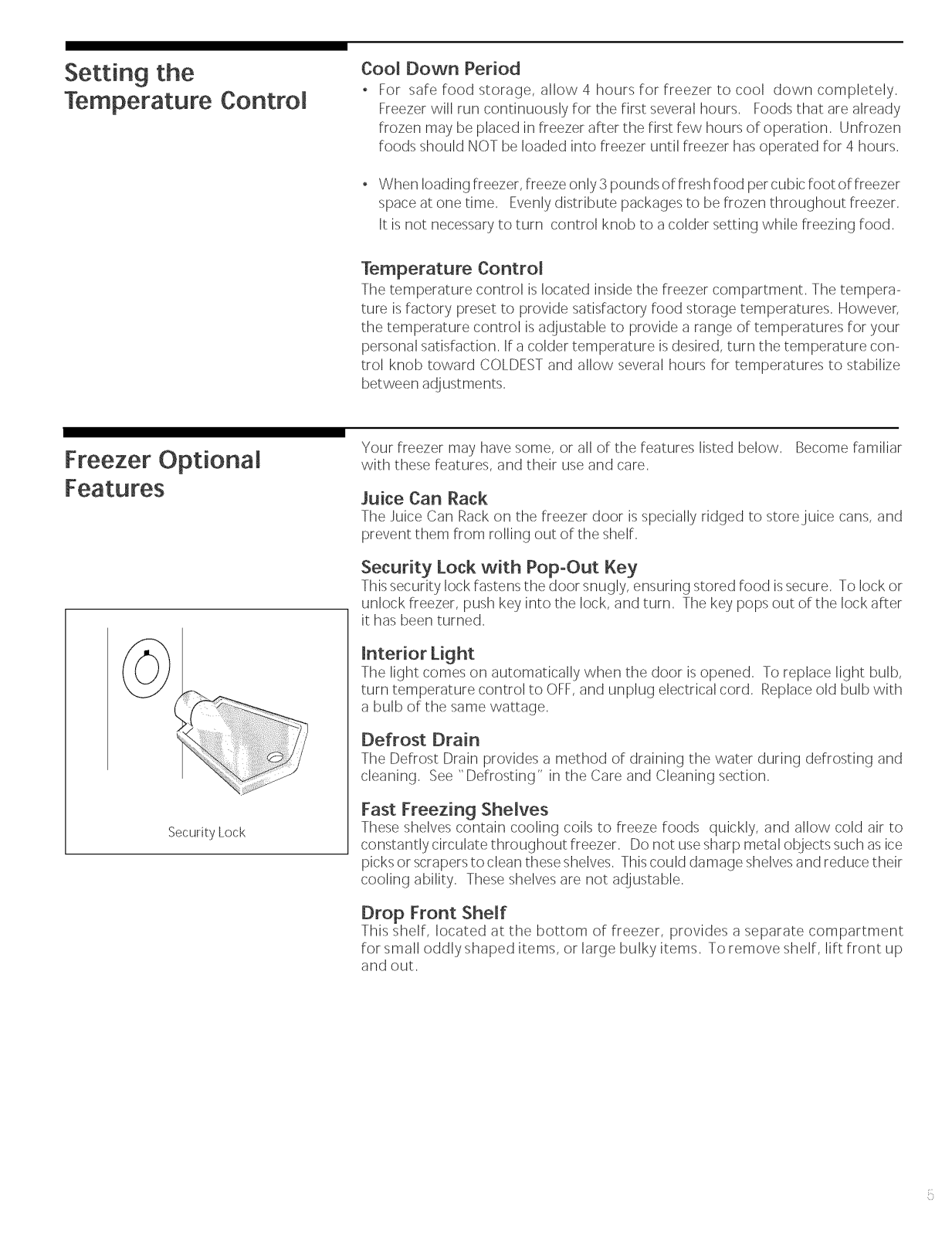

5 Setting the Temperature Control
5 Freezer Optionai Features

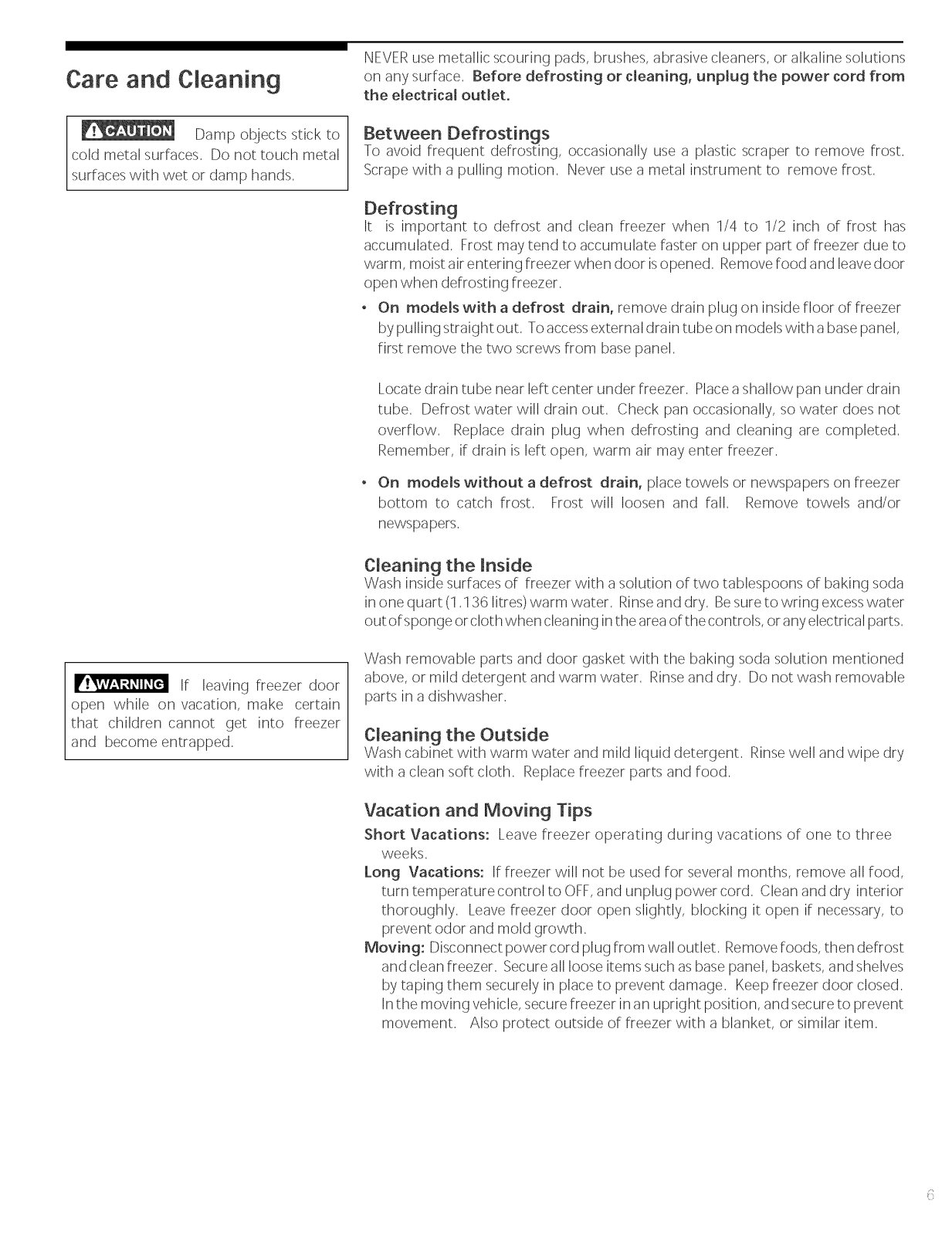

6 Care and Cleaning

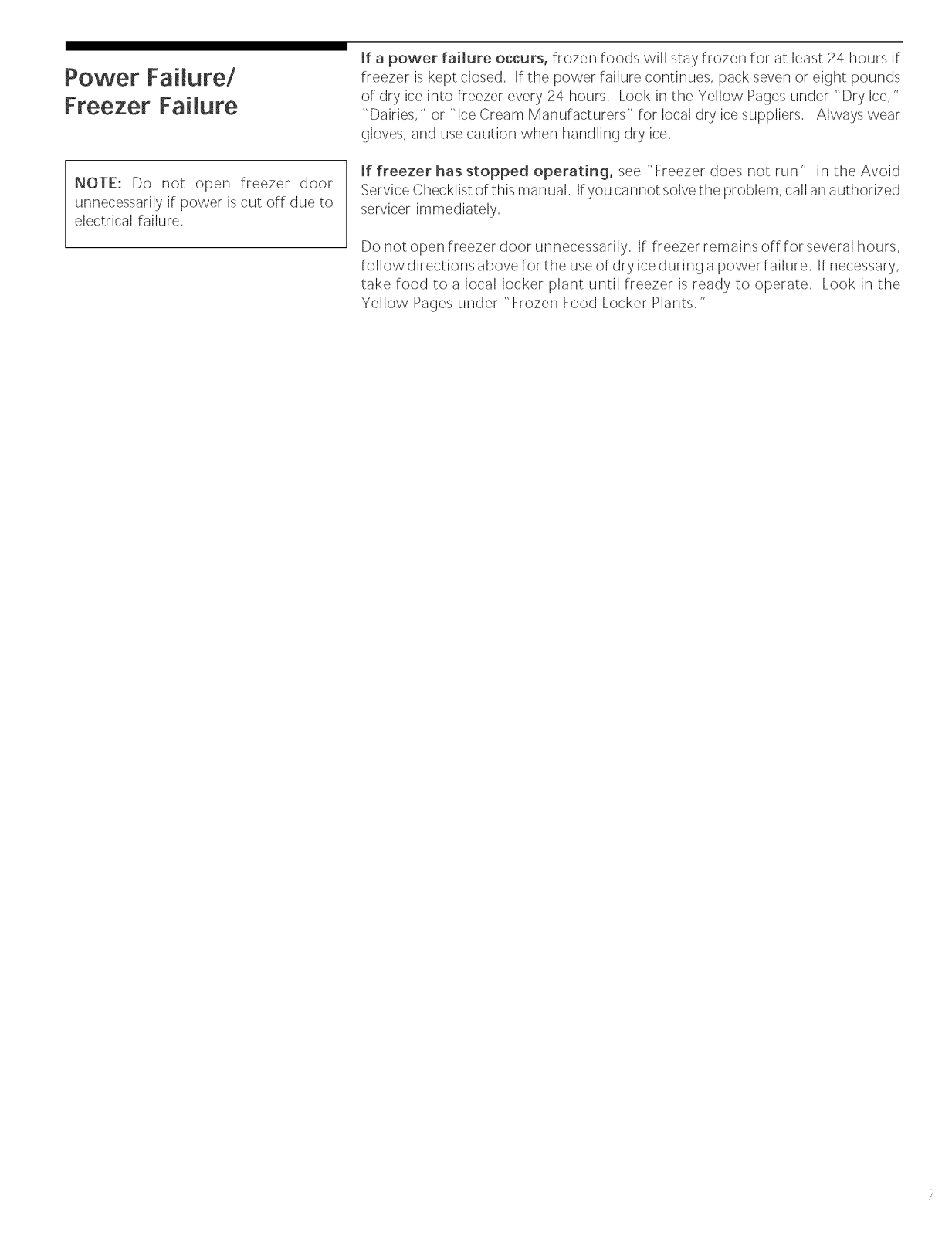

7 Power Faiiure/Freezer Faiiure

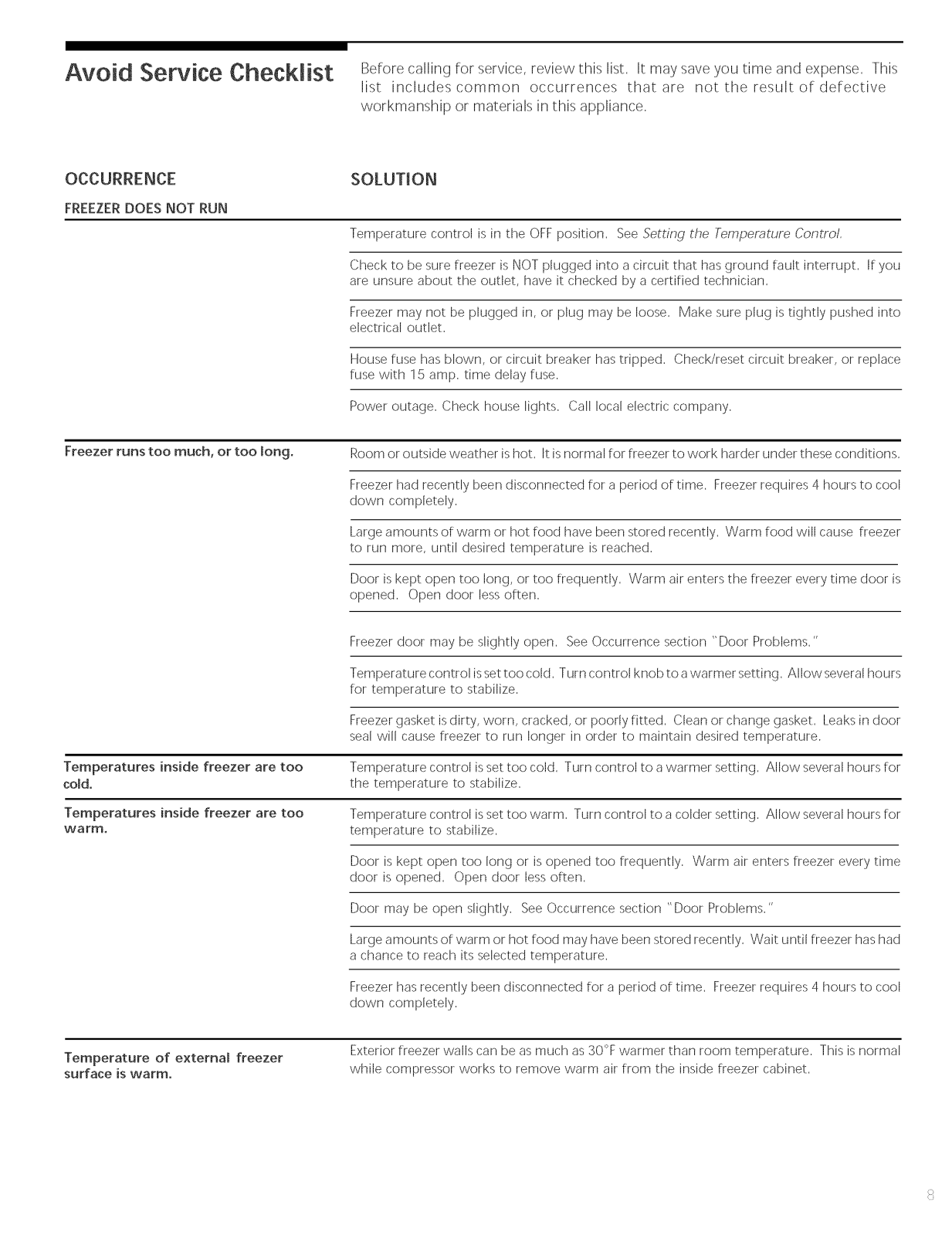

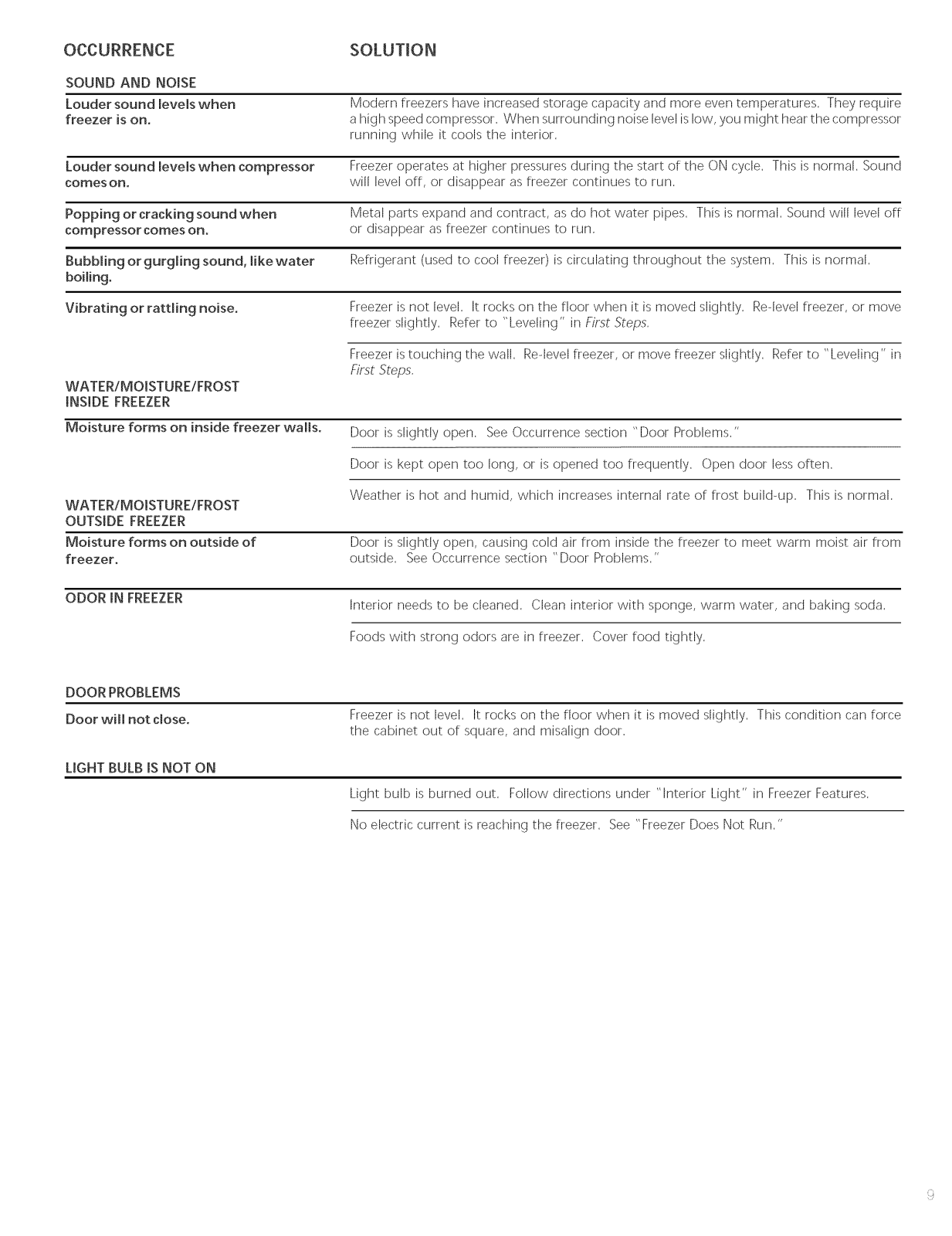

8-9 Avoid Service Checkiist

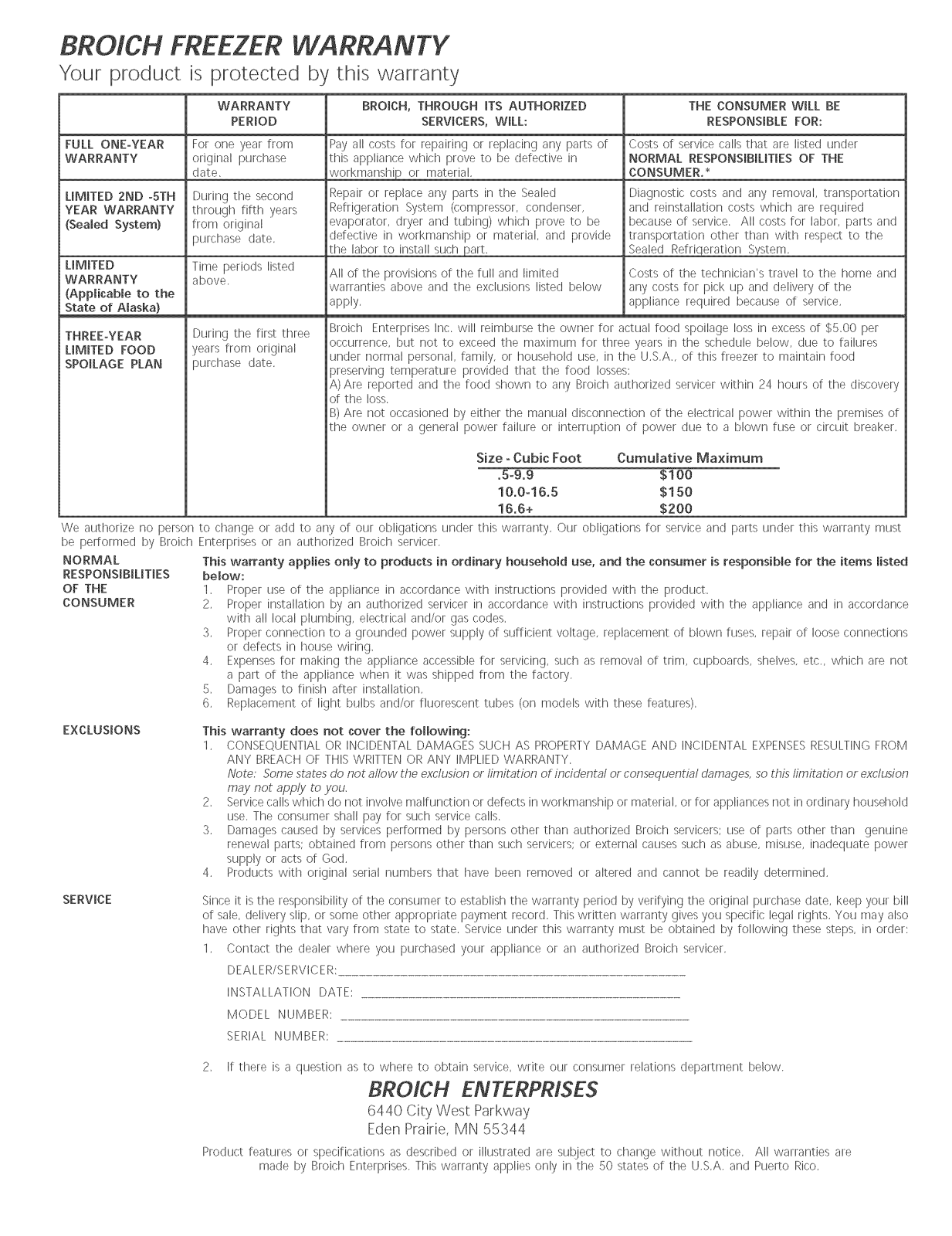

10 Warranty

Freezer Tips

11
12-13 Packaging

14-17 Baked Goods
18-19 Dairy Products

20-23 Fruits

Your Owner's Guide

24-31 Meats
32-35 Prepared and Cooked Foods

36-37 Soups, Salads, Sandwiches
38-41 Vegetables

42 More Foods to Freeze
42 Foods Not Recommended for Freezing

43 Retail Cuts of Beef
44 Retaii Cuts of Pork

The information in this Owner's Guide will instruct you on how to properly

operate and care for your product. The Freezer Tips Section will help you
produce favorable results when freezing food. Pleasereadthrough the information

contained in },our literature pack, to learn more about },our new appliance.

Record Your Model and Serial Numbers

Record the Model No, and Serial No, of this freezer in the spaces provided below.

Model No.

Serial No.

Register Your Product

The self-addressed PRODUCTREGISTRATIONCARD (shown left) should befilled in
completely, signed, and returned.

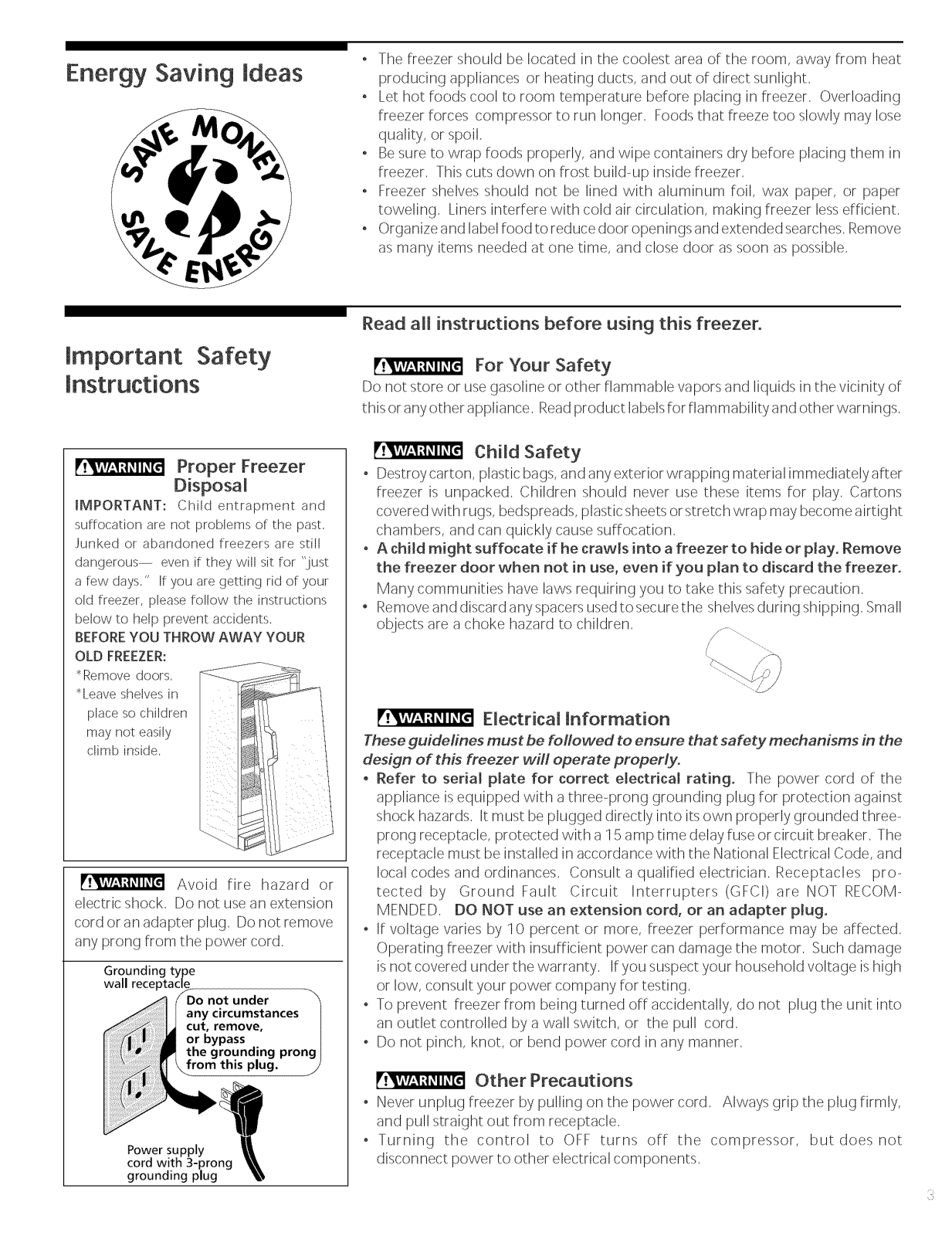

Energy Saving mdeas

o The freezer should be located in the coolest area of the room, away from heat

producing appliances or heating ducts, and out of direct sunlight,

• Let hot foods cool to room temperature before placing in freezer, Overloading
freezer forces compressor to run longer, Foods that freeze too slowly may lose
quality, orspoil,

o Be sure to wrap foods properly, and wipe containers dry before placing them in

freezer, This cuts down on frost build-up inside freezer,

o Freezer shelves should not be lined with aluminum foil, wax paper, or paper

toweling, Liners interfere with cold air circulation, making freezer lessefficient,

• Organize and label food to reduce door openings and extended searches, Remove
as many items needed at one time, and close door assoon as possible,

Read all instructions before using this freezer.

Important Safety
Instructions

Proper Freezer

Disposal

IMPORTANT: Child entrapment and
suffocationare not problems of the past,

Junked or abandoned freezers are still

dangerous-- even if they will sit for "just

a few days," If you are getting rid of your
old freezer, pleasefollow the instructions
below to helppreventaccidents,

BEFOREYOU THROWAWAY YOUR
OLDFREEZER:
*Removedoors,
*Leaveshelvesin

placeso children

may noteasily
climb inside.

'!_lvAvL4!ll_ll_['tl Avoid fire hazard or

electric shock, Do not usean extension

cord or an adapter plug, Do not remove

any prong from the power cord,

Grounding type
wall receptacl

Do not under

any circumstances |

cut, remove, /
or bypass |
the grounding prong I

from this plug.

Power supply
cord with 3-prong
grounding plug

[!v,v-,_:t,,ll_[€I For Your Safety

Do not store or usegasoline or other flammable vapors and liquids in the vicinity of

this or anyother appliance. Readproduct labels for flammability and other warnings.

[!v_v:_:_,_,i,_[_Child Safety

° Destroycarton, plastic bags, and anyexteriorwrapping material immediatelyafter

freezer is unpacked. Children should never use these items for play. Cartons
covered with rugs, bedspreads, plastic sheets orstretch wrap may become airtight
chambers, and can quickly causesuffocation.

° A child might suffocate if he crawls into a freezer to hide or play. Remove

the freezer door when not in use, even if you plan to discard the freezer.
Many communities have laws requiring you to take this safety precaution.

, Remove and discard any spacersusedto securethe shelvesduring shipping. Small

objects are a choke hazard to children.

ELectrical Information

These guidelines must be followed to ensure that safety mechanisms in the

design of this freezer will operate property,

o Refer to serial plate for correct electrical rating. The power cord of the

appliance isequipped with athree-prong grounding plug for protection against
shock hazards. Itmust be plugged directly into its own properly grounded three-
prong receptacle, protected with a15 amp time delay fuse or circuit breaker. The
receptacle must beinstalled in accordance with the National ElectricalCode, and
local codes and ordinances. Consult a qualified electrician. Receptacles pro-
tected by Ground Fault Circuit Interrupters (GFCI) are NOT RECOM-
MENDED. DO NOT use an extension cord, or an adapter plug.

o If voltage varies by 10 percent or more, freezer performance may be affected.

Operating freezer with insufficient power can damage the motor. Suchdamage
isnot covered under the warranty. If you suspectyour household voltage is high
or low, consult your power company for testing.

° To prevent freezer from being turned off accidentally, do not plug the unit into

an outlet controlled by a wall switch, or the pull cord.

o Do not pinch, knot, or bend power cord in any manner.

r'!'_','L'_:_"tl'V_lOther Precautions

o

Never unplug freezer by pulling on the power cord. Always grip the plug firmly,
and pull straight out from receptacle.

o

Turning the control to OFF turns off the compressor, but does not

disconnect power to other electrical components,
