FILTERED ICE KIT: TTFLTRICEKIT
Kit Contents:
Models: FPFU19F8WF
FPRU19F8WF
EI33AF80WS
EI33AR80WS
INSTRUCTION SHEET
A
(1x) 218976831
1/4” Green water line,
16 feet
E
(1x) A19408101
Wiring Harness
19 Feet
B
(2x) 240396804
1/4” Green water line
strain relief
F
(2x) 305346-00
Wiring Harness
support clips
Rear View
Refrigerator
C
C
(2x) 240396805
1/8” Wiring harness
strain relief
ORIGINAL CONFIGURATION
Rear View
Freezer
D
(2x)
© 2020 Electrolux Home Products, Inc.
1 of 5
Instructions: A20113801
FILTERED ICE KIT: TTFLTRICEKIT
Models: FPFU19F8WF
FPRU19F8WF
EI33AF80WS
EI33AR80WS
INSTRUCTION SHEET
NOTE: This kit is designed to provide ltered water to the freezer ice maker when a single-door freezer
is installed next to a single-door refrigerator.
NOTE: An authorized service technician is recommended to install the ltered ice kit.
NOTE: Disconnect electrical power prior to servicing this product.
Tools Required: 1/4” nut driver
Access Cover Removal
CAUTION: Wear gloves and use extreme CAUTION when installing the PROTECTIVE rubber
trim. The opening may have sharp edges.
1. Remove the 8 access panel screws on the
refrigerator and Freezer.
2. Apply the protective rubber trim (D) to the
inside edge of water valve opening on both
access covers.
(D)
© 2020 Electrolux Home Products, Inc.
2 of 5
Instructions: A20113801
INSTRUCTION SHEET
Refrigerator Connections
Models: FPFU19F8WF
FPRU19F8WF
EI33AF80WS
EI33AR80WS
1. Feed the green water line (A) and wiring harness (E) through the opening of the refrigerator
access cover.
2. Push the green water line into the green port of
the water valve.
(E)
(A)
3. Connect the wiring harness (E), to the connector on the refrigerator.
4. Locate wiring harness support clip at top of
refrigerator machine compartment (F), and insert
wiring harness to secure.
(E)
(F)
© 2020 Electrolux Home Products, Inc.
3 of 5
Instructions: A20113801
INSTRUCTION SHEET
Freezer Connections
Models: FPFU19F8WF
FPRU19F8WF
EI33AF80WS
EI33AR80WS
NOTE: The freezer water valve and the connecting harness are not used when this kit is installed
for ltered water provided by the paired refrigerator.
1. Disconnect and remove the 10” green water
line by pushing upward on the port tab, while
pulling out the line.
TAB
4. Connect the harness (E) from the refrigerator
to the connector for the freezer. Locate wiring
harness support clip at top of refrigerator machine compartment (F), and insert wiring harness
to secure.
(E)
(F)
2. Feed the green water line (A) coming from
the refrigerator along with the wiring harness (E)
through the opening of the access cover.
3. Push the green water line into cabinet tube
connection.
(A)
(E)
5. Disconnect the harness connection from the
water valve. Not required. Water will be supplied
from the refrigerator water valve.
X
6. Reinstall access cover for both units.
© 2020 Electrolux Home Products, Inc.
4 of 5
Instructions: A20113801
INSTRUCTION SHEET

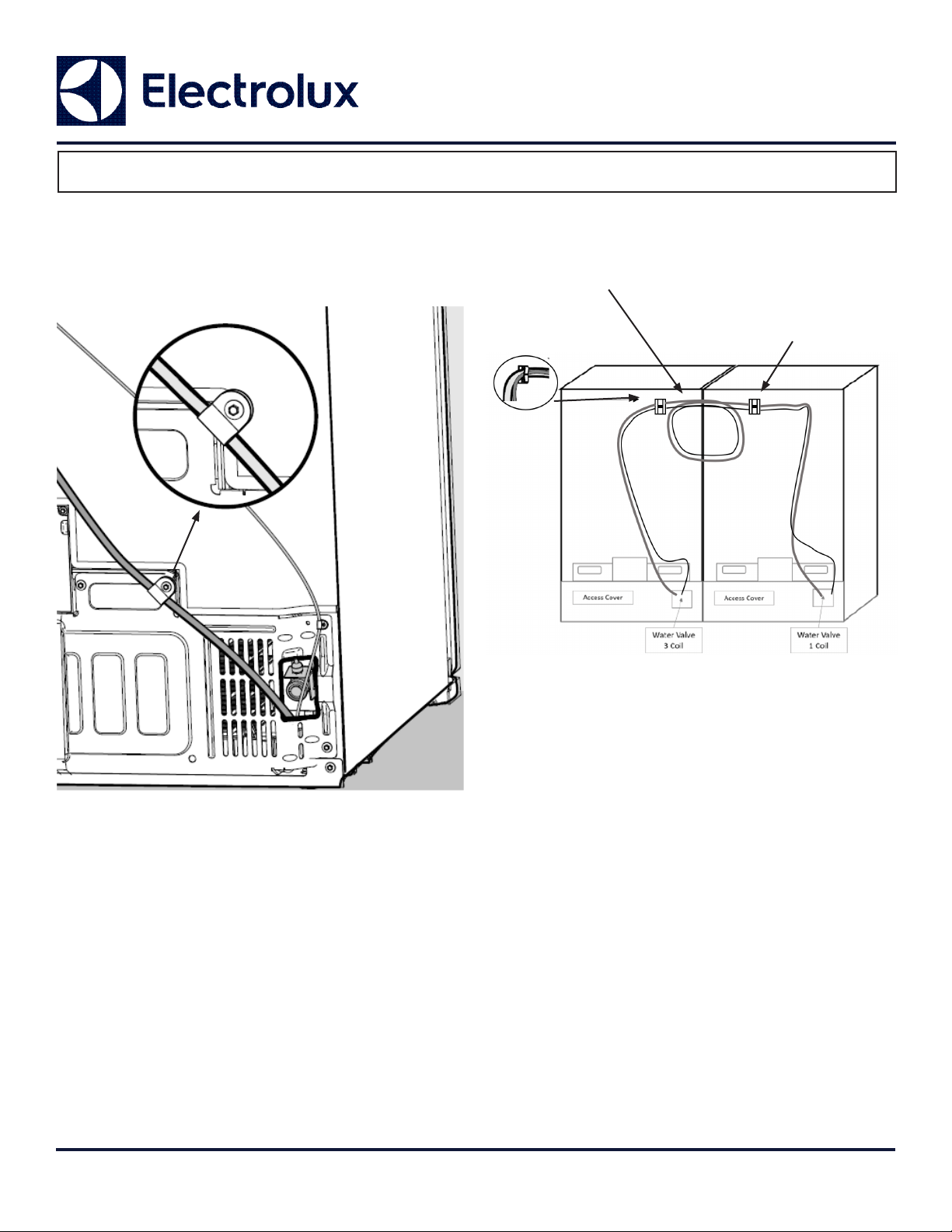

Water Line Final Connections
Models: FPFU19F8WF
FPRU19F8WF
EI33AF80WS
EI33AR80WS
1. Fasten the strain reliefs for green water line
(B) and for wiring harness on each unit. (C)
(B)
(C)
2. Attach the two adhesive support clips (F) and
insert the green water line and harness.
3. Loop the water line and wire harness in the
center of the two units.
(F)
(F)
(F)
4. Connect and turn on water supply.
5. Purge air from water lines by dispensing water
from refrigerator water dispenser.
(See Use and Care manual for details on water
dispenser operation and purging method)
© 2020 Electrolux Home Products, Inc.
5 of 5
Instructions: A20113801
