Built-In Downdraft Cooktop
RC30DG60PS
30" Gas
Product Dimensions
Width 30"
Depth 21-13/32"
Height (Min.)/(Max.) 17-13/16"/ 23-3/8"
More Easy-To-Use Features
Low Simmer Burner
Perfect for delicate foods and sauces.
Stainless Steel Recessed Cooktop
3 Ducting Options
Dishwasher-Safe Filter
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
BTU
12,000
5,000
9,500
17,000
Signature Features
Downdraft System
Whisks away odors and smoke without
the need for overhead ventilation.
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls..
PowerPlus® Boil
17,000 BTU sealed burner boils
water faster.
Continuous Grates
Continuous grates make it easy to
move heavy pots and pans between
burners without lifting.
frigidaire.com
Features
A
B
C
Right Side View
Rear
Down
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Control Location
Knob Color
Knob Type
Nominal Width
Installation Type
Style
Air Discharge
Air Delivery (CFM)
Intake Area
Blower Type
Sound Level (dBA)
Fan Speeds
Dishwasher-Safe Stainless Steel Filters
Exhaust Duct
Duct Required
Ready-Select®
Stainless Steel Recessed
Yes
Continuous Cast Iron
w/Black Matte Finish
12,000
5,000
9,500
17,000
Center
Stainless
Cast Metal
30"
Built-In Downdraft
In-Cabinet
Rear, Down
500
55 Sq. In.
Centrifugal
71
3-Speed
1
External
3-1/4" x 10" or 6" Round
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Amps @ 120 Volts
1
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
Right Rear
Right Rear
Included
120V / 60 Hz / 15A
15
15
89 Lbs.
Built-In Downdraft Cooktop
RC30DG60PS 30" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height (Min.)/(Max.)
2
Overall height determined by discharge direction.
30"
21-13/32"
2
17-13/16"/23-3/8"
Cutout Dimensions
Width
Depth
Height (Min.)/(Max.)
28"
19-1/8"
17-13/16"/23-3/8"
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
RC30DG60P 06/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.

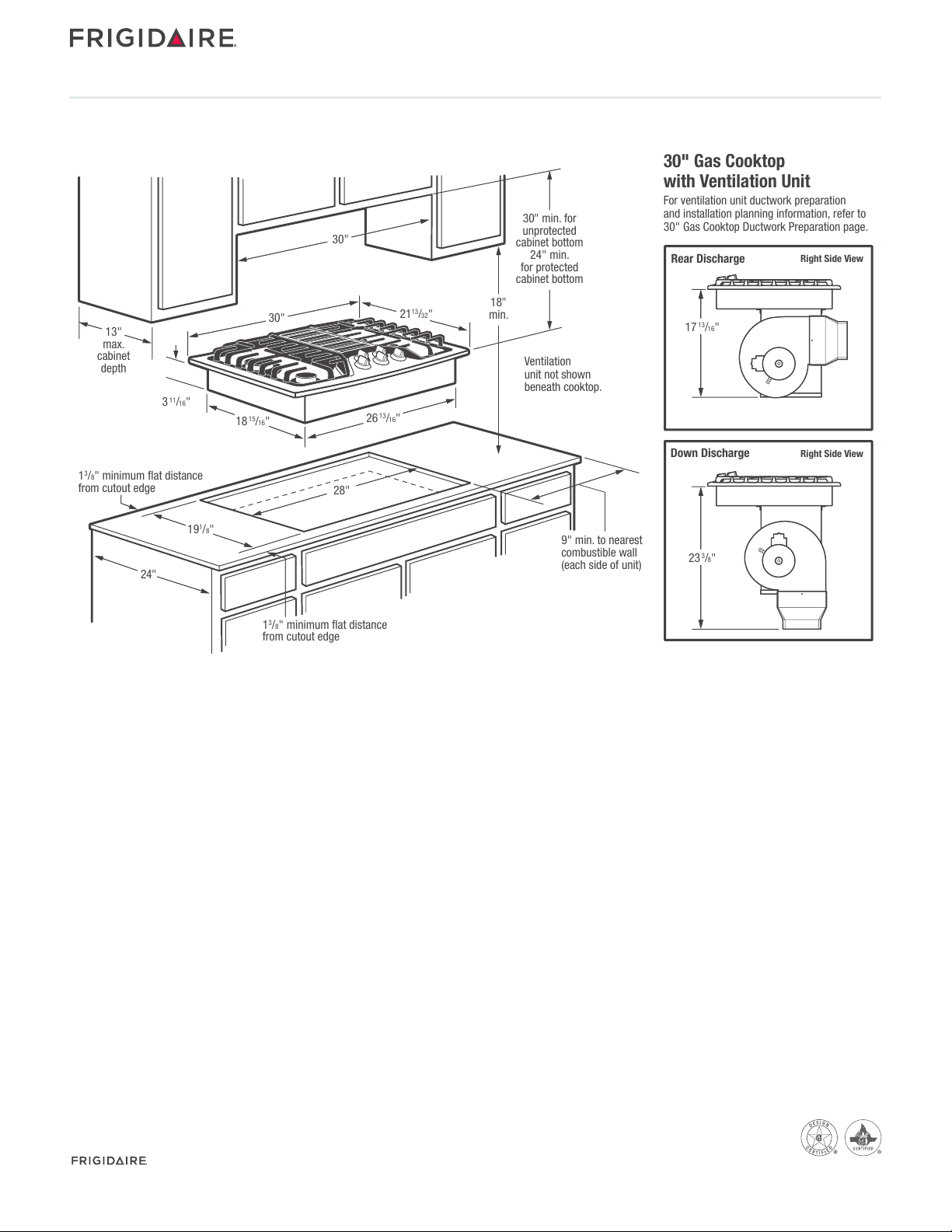

30" Gas Cooktop/Downdraft Vent (RC30DG60P)
Non Branded
Ventilation
unit not shown
beneath cooktop.
30"
13"
max.
cabinet
depth
18"
min.
30" min. for
unprotected
cabinet bottom
24" min.
for protected
cabinet bottom
24"
1
3
/8" minimum flat distance
from cutout edge
9" min. to nearest
combustible wall
(each side of unit)
13/8" minimum flat distance
from cutout edge
19
1
/8"
28"
3
11/16"
26
13/16"
18
15/16"
30"
21
13
/32"
For ventilation unit ductwork preparation
and installation planning information, refer to
30" Gas Cooktop Ductwork Preparation page.
30" Gas Cooktop
with Ventilation Unit
Right Side View
Rear Discharge
17
13/16"
Right Side View
Down Discharge
23
3/8"
Built-In Downdraft Cooktop
RC30DG60PS 30" Gas
Built-In Cooktop Specifications
•
Shipping Weight (approx.) – 89 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
•
Amps @ 120 Volts = 15
•
Always consult local and national electric and gas codes.
•
For detailed electrical and gas supply locations, refer to
30" Gas Cooktop (RC30DG60P) Ductwork Preparation page.
•
Locate cooktop between wall studs or floor joists so that ductwork
may be installed properly.
•
Installing cooktop into pre-existing base cabinets may require
modifications. Cabinets with drawers require drawers be removed
and drawer fronts attached to cabinet face. Verify internal length
and width of cabinet base because sides or back wall may need cut
out and corner braces removed to accommodate unit.
•
Countertop opening MUST be cut based on dimensions shown, cut
squarely with sides parallel to each other and with front and rear
perpendicular to cabinet sides.
•
Pre-formed countertops with raised lip and radius at base of
backsplash may not allow enough flat area for proper installation.
Minimum 1-3/8" distance required from rear and front edge of
cooktop cutout.
•
Provide adequate gas supply. Cooktop ships with 3/4" factory
regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
•
Allow 30" minimum clearance between top of cooktop platform
•
and bottom of unprotected wood or metal overhead cabinet.
•
Allow 9" minimum required clearance from left edge and right edge
of cooktop to nearest combustible wall on each side.

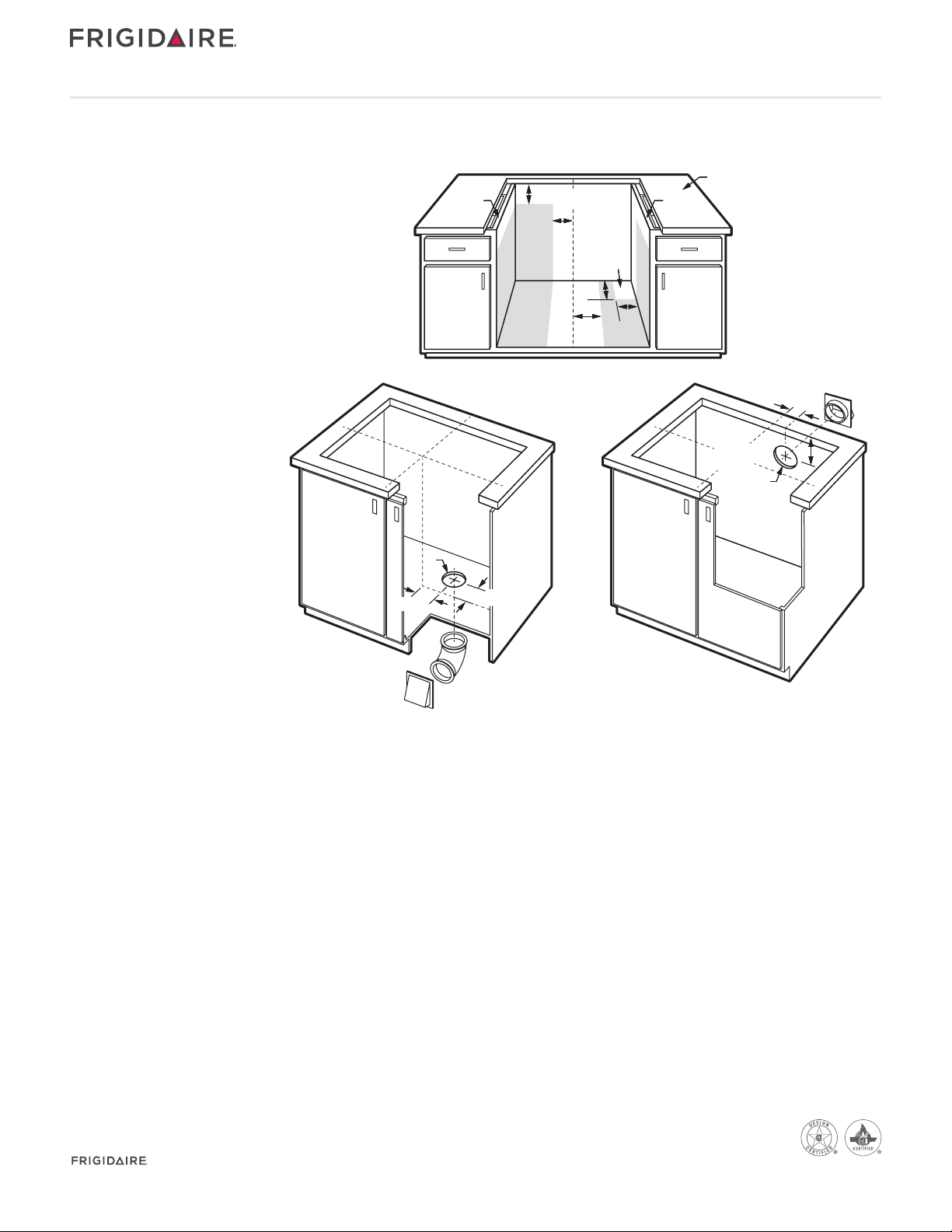

Ductwork Preparation
•
For ventilation unit ductwork preparation and planning information,
refer to 30" Gas Cooktop (RC30DG60P) Ductwork Preparation page.
Note: For planning purposes only. Refer to Product Installation Guide on the
web at frigidaire.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903103-9010).
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
RC30DG60P 06/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Built-In Downdraft Cooktop
30" Gas Downdraft Cooktop –
Ductwork Preparation
RC30DG60PS 30" Gas
30" Gas Downdraft Cooktop –
Ductwork Preparation
Ventilation unit comes detached from cooktop.
To ensure proper installation, refer to 30" Gas Downdraft
Cooktop Specifications page for planning information, and
installation guide on web for complete installation details
including countertop and cabinet requirements.
Ducting Options
On floor, through floor or through wall.
Cabinet
side wall
Exhaust Outlet Locations –
Cut exhaust outlet hole in wall or
floor based on desired installation.
Exhaust duct MUST be located
between wall studs or floor joists.
Cutout
center
4
5/16"
6"
Electrical / Gas Supply Location
5
1/2"
C
L
3
1/4"
Recomm.
gas supply
stub area
4"
4"
11"
7
1/8"
Cabinet
side wall
Countertop
surface
Electrical
Installation Note:
Locate 120 volt,
60 Hertz, properly
grounded branch
circuit protected
by 15 amp circuit
breaker or time
delay fuse within
shaded area
shown.
Cutout
center
4
5/16"
8"
6"
Bottom
Exhaust Outlet
Built-In Cooktop Ductwork Preparation
•
Ventilation unit comes detached from cooktop. To ensure proper
installation, refer to 30" Gas Downdraft Cooktop Specifications page
for planning information, and installation guide on web for complete
installation details including countertop and cabinet requirements.
•
Ducting Options – On floor, through floor or through wall.
•
Ventilation Unit Discharge Options – Rear or down.
•
Consider ductwork location and desired installation before cutting
exhaust outlet hole in cabinet. For proper installation, cooktop
exhaust duct MUST be located between wall studs or floor joists.
•
Vent exhaust air outside only and NOT into any concealed space.
•
Exhaust Duct Required – Galvanized or aluminum duct in 6" round
or 3-1/4" x 10" rectangular, or combination of both. PVC should
be used if installing under concrete slab.
•
Local building code must be followed in specifying approved type
and schedule of ALL duct used; always use appropriate roof or
wall cap with damper.
Rear Wall
Exhaust Outlet
•
For maximum efficiency, use shortest, straightest duct run possible.
Unit operates most efficiently with up to 100 equivalent feet of duct.
(Refer to Calculating Duct Length Table in Product Installation Guide.)
•
Flexible ducting is not recommended due to severely restricted
airflow; if blower outlet and floor or wall duct location do NOT align,
flexible METAL ducting can be used to adapt to offset.
•
Thermal breaks such as short section of nonmetallic duct, should
be used in areas of extreme cold. Cold weather installations should
have additional backdraft damper installed.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
RC30DG60P 06/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
