Built-In Downdraft Cooktop
30" Electric Cooktop/Downdraft Vent (RC30DE60P)
Non Branded
Ventilation
unit not shown
beneath cooktop.
30"
13"
max.
cabinet
depth
18"
min.
30" min. for
unprotected
cabinet bottom
24" min.
for protected
cabinet bottom
24"
1" minimum flat distance
from cutout edge
9" min. to nearest
combustible wall
(each side of unit)
1" minimum flat distance
from cutout edge
21
1
/8" min.
211/4" max.
28
7
/8" min.
29" max.
3
9/32"
28
19/32"
20
27
/32"
30
3/4"
22
1
/16"
For ventilation unit ductwork preparation and
installation planning information, refer to 30"
Electric Cooktop Ductwork Preparation page.
30" Electric Cooktop
with Ventilation Unit
Right Side View
Rear Discharge
Right Side View
Down Discharge
21
11/16"
18
19/32"
23
3
/8"
RC30DE60PB 30" Electric
Built-In Cooktop Specifications
•
Shipping Weight (approx.) – 78 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 41.7 / 36.4 kW
•
Amps @ 240 / 208 Volts = 50 Amps
•
Recommended Circuit Breaker – 50 Amps
•
Always consult local and national electric codes.
•
For detailed electrical supply location, refer to 30" Electric Cooktop
(RC30DE60P) Ductwork Preparation page.
•
Locate cooktop between wall studs or floor joists so that ductwork
may be installed properly.
•
Installing cooktop into pre-existing base cabinets may require
modifications. Cabinets with drawers require drawers be removed
and drawer fronts attached to cabinet face. Verify internal length
and width of cabinet base because sides or back wall may need
cut out and corner braces removed to accommodate unit.
•
Countertop opening MUST be cut based on dimensions shown,
cut squarely with sides parallel to each other and with front and
rear perpendicular to cabinet sides.
•
Pre-formed countertops with raised lip and radius at base of
backsplash may not allow enough flat area for proper installation.
Minimum 1" distance required from rear and front edge of cooktop
cutout.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30".
•
Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
Allow 9" minimum required clearance from left edge and right edge
of cooktop to nearest combustible wall on each side.
Ductwork Preparation
•
For ventilation unit ductwork preparation and planning
information, refer to 30" Electric Cooktop (RC30DE60P) Ductwork
Preparation page.
•
Down discharge can also be adapted for alternate ductwork
installation providing left or right exhaust, by ordering Alternate
Duct Transition Kit (PN # 5304488297).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903061-9010).
•
Alternate Duct Transition Kit – (PN # 5304488297).
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
RC30DE60P 07/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Built-In Downdraft Cooktop
30" Electric Downdraft Cooktop –
Ductwork Preparation
Cutout
center
22
3/4"
3
3/4"
6"
RC30DE60PB 30" Electric
30" Electric Downdraft Cooktop –
Electrical Supply Location
Ductwork Preparation
Ventilation unit comes detached from cooktop.
To ensure proper installation, refer to 30" Electric Downdraft
Cooktop Specifications page for planning information, and
installation guide on web for complete installation details
including countertop and cabinet requirements.

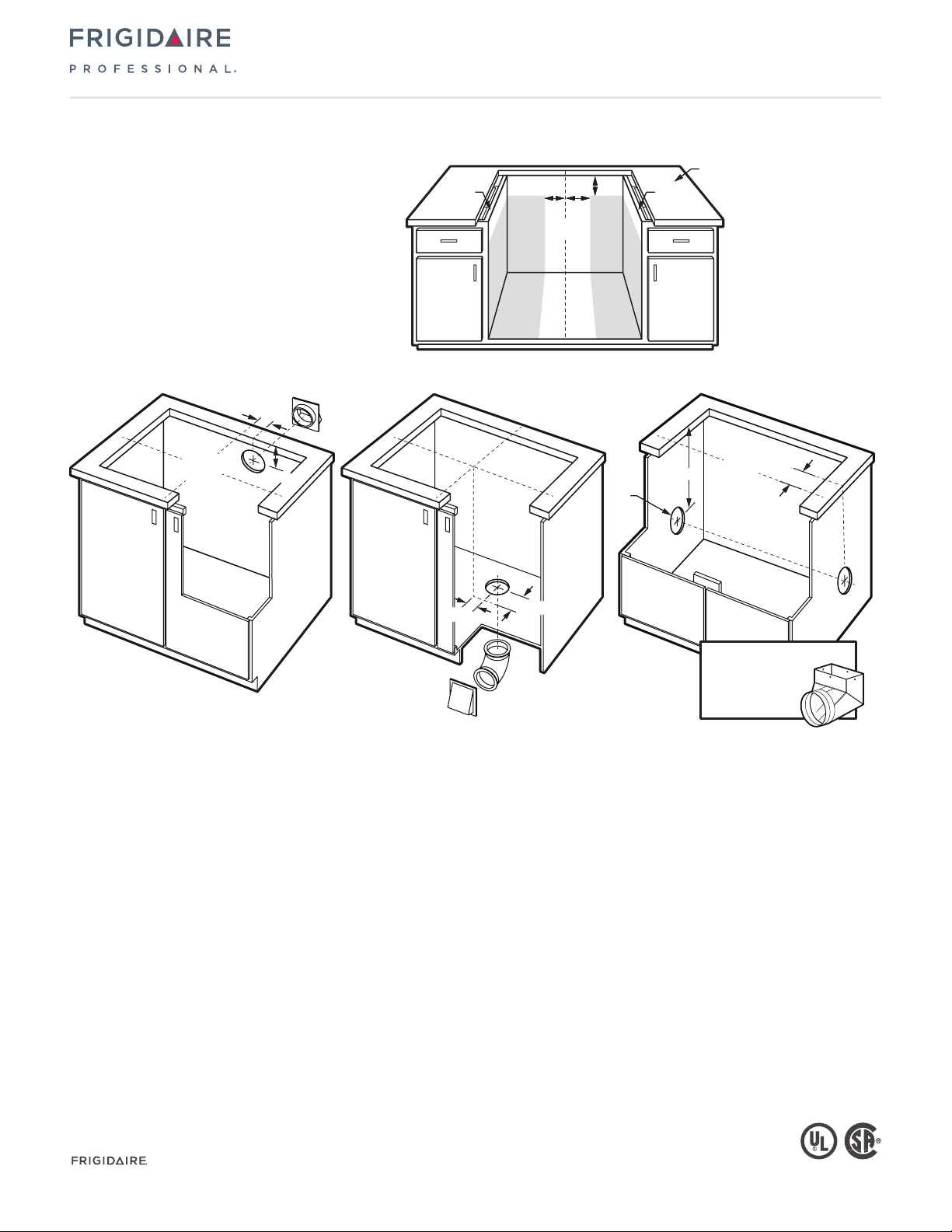

Ducting Options
On floor, through floor or through wall.
Exhaust Outlet Locations –
Cut exhaust outlet hole in wall or floor based on
desired installation. Exhaust duct MUST be located
between wall studs or floor joists.
1
13/16"
Cutout
center
8
27/32"
Cabinet
side wall
Cutout
center
4
1/2"5
1/2"6"
C
L
Cabinet
side wall
Countertop
surface
Electrical
Installation Note:
Locate junction
box under cabinet
within shaded
area shown and
run 120/240 or
120/208 Volt, AC
wire from main
circuit panel.
3
1
13/16"
Rear Wall
Exhaust Outlet
Built-In Cooktop Ductwork Preparation
•
Ventilation unit comes detached from cooktop. To ensure proper
installation, refer to 30" Electric Downdraft Cooktop Specifications
page for planning information, and installation guide on web for
complete installation details including countertop and cabinet
requirements.
•
Ducting Options – On floor, through floor or through wall.
•
Ventilation Unit Discharge Options – Rear or down.
•
Down discharge can also be adapted for alternate ductwork
installation providing left or right exhaust, by ordering Alternate
Duct Transition Kit (PN # 5304488297).
•
Consider ductwork location and desired installation before cutting
exhaust outlet hole in cabinet. For proper installation, cooktop
exhaust duct MUST be located between wall studs or floor joists.
•
Vent exhaust air outside only and NOT into any concealed space.
•
Exhaust Duct Required – Galvanized or aluminum duct in 6" round
or 3-1/4" x 10" rectangular, or combination of both. PVC should
be used if installing under concrete slab.
•
Local building code must be followed in specifying approved type
and schedule of ALL duct used; always use appropriate roof or
wall cap with damper.
Bottom
Exhaust Outlet
27/32"
Alternate Duct Transition Kit
Alternate
Side Exhaust
Outlets
•
For maximum efficiency, use shortest, straightest duct run possible.
Unit operates most efficiently with up to 100 equivalent feet of duct.
(Refer to Calculating Duct Length Table in Product Installation Guide.)
•
Flexible ducting is not recommended due to severely restricted
airflow; if blower outlet and floor or wall duct location do NOT align,
flexible METAL ducting can be used to adapt to offset.
•
Thermal breaks such as short section of nonmetallic duct, should
be used in areas of extreme cold. Cold weather installations should
have additional backdraft damper installed.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Alternate Duct Transition Kit – (PN # 5304488297).
PN #5304488297
Available for use with
left or right exhaust
ductwork.
