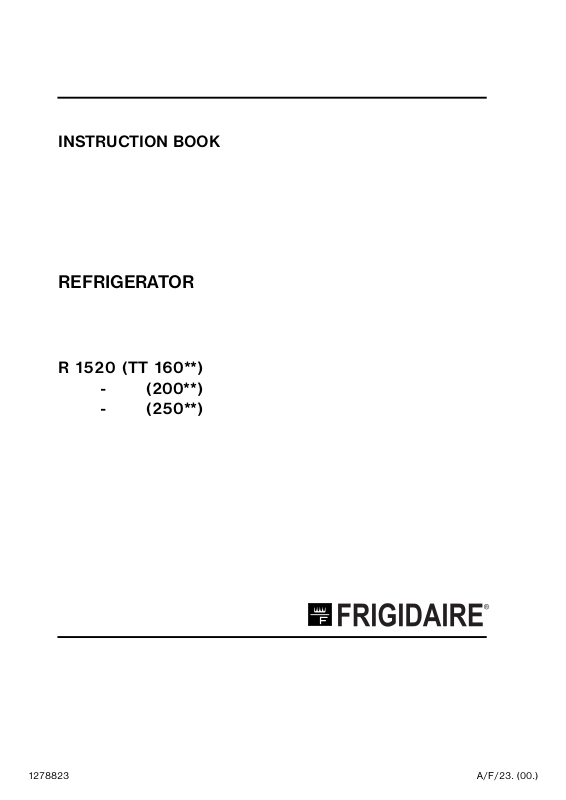

Frigidaire R1520 User Manual

A/F/23. (00.)1278823

INSTRUCTION BOOK

REFRIGERATOR

R 1520 (TT 160**)

- (200**)

- (250**)

Before installing and using the appliance read this user's instruction book carefully. It contains safety precautions, hints, information and ideas. If the refrigerator is used in compliance with the instructions written, it will operate properly and provide you with greatest satisfaction.

The symbols below help you to find things more easily:

Safety precautions

Warnings and information at this symbol serve safety for you and your appliance.

Hints, useful information

Environmental information

Symbol for ideas

At this symbol ideas can be found according to food and its storing.

Cont

ents

Important safety information ....................................................................................................4

General safety precautions......................................................................................................4

Precautions for child safety .....................................................................................................4

Safety precautions for installation .............................................................................................4

Instructions for the User...........................................................................................................5

General information................................................................................................................5

Description of the appliance, main parts ....................................................................................5

Handling the appliance ...........................................................................................................6

Putting it into use...............................................................................................................6

Controlling the temperature, setting......................................................................................6

Hints for storage................................................................................................................7

Storage time and temperature of foods .................................................................................7

How to use the two-star frozen food compartment ..................................................................7

How to use the fresh food compartment................................................................................8

How to make ice cubes......................................................................................................8

Some useful information and advice..........................................................................................8

Hints and ideas .....................................................................................................................8

How to save energy ...........................................................................................................8

The appliance and environment ...........................................................................................8

Maintenance .........................................................................................................................8

Defrosting ........................................................................................................................8

Regular cleaning ...............................................................................................................9

When the refrigerator is not in use........................................................................................9

Trouble shooting ....................................................................................................................9

How to change the bulb .....................................................................................................9

If something does not work ...............................................................................................10

Instructions for the Installer....................................................................................................10

Technical data .....................................................................................................................10

Installing the appliance..........................................................................................................11

Transportation, unpacking .................................................................................................11

Cleaning.........................................................................................................................11

Placement ......................................................................................................................11

Change of door opening direction ......................................................................................12

Electrical connection........................................................................................................13

Storage time chart (1)............................................................................................................14

Storage time chart (2)............................................................................................................15

Warranty and service .............................................................................................................15

Guarantee conditions............................................................................................................15

Service and spare parts....................................................................................................15

por

portt

ant saf

ant safeett

y inf

mation

Precautions for child safety

Do not allow children to play with the packaging of the appliance. Plastic foil can cause suffocation.

Adults must handle the appliance. Do not allow children to play with it or its controlling parts.

If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

Safety precautions for installation

Put the appliance to the wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

When moving the appliance take care of the plug not to be in the socket.

When placing the appliance take care not to stand it on the power cord.

Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

For the safety of life and property keep

the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

General safety precautions

Keep these instructions and they should remain at the appliance when moving away or changing owner.

This appliance is designed for storing food, domestic use and being used according to these instructions only.

Specialised companies that are qualified to do so by the manufacturer must carry out service and repairs including repairing and changing the power cord. Accessory parts supplied by

them should be used only for repairing. Otherwise the appliance can be damaged or can cause other damage or injury.

The appliance is out of circuit only in that case if the plug is removed from the socket. Before cleaning and maintenance always unplug it (do not get it by the cable). If the socket is difficult to reach, switch off the appliance by cutting off the current.

Power cord must not be lengthened.

Without the lamp cover of interior lighting you must not operate the appliance.

When cleaning, defrosting, taking out frozen food or ice tray do not use sharp, pointed or hard devices, as they can cause damage to the appliance.

Be careful not to allow liquids to the temperature control and lighting box.

Ice and ice-cream can cause hurt if they are eaten immediately after removal from the frozen food compartment.

After dissolving frozen food must not be refrozen, it must be used up as soon as possible.

Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

You must not make defrosting faster with any electric heating appliance or chemicals.

Do not put hot pot to the plastic parts.

Do not store flammable gas and liquid in the appliance, because they may explode.

Do not store carbonated drinks, bottled drinks and bottled fruits in the frozen food compartment.

Ins

Instrtr

uctions f

or the User

Description of the appliance, main parts

General information

The official designation of the appliance is home refrigerator with a two-star frozen food compartment. According to this the appliance is suitable for storing frozen and deep-frozen food for limited time and making ice.

The appliance can meet the requirements of standards between different temperature limits according to the climate class.

The letter symbol for class of climate can be found on the data label.

1. Frozen food compartment

2. Drip tray

3. Wire shelf

4. Glass shelf

5. Vegetable box

6. Data label

7. Adjustable feet

8. Ice tray

9. Butter compartment

10. Lighting box

11. Door shelf

12. Gasket

13. Bottle shelf

14. Egg tray

15. Air circulation

16. Air grid

17. Condenser

18. Compressor

In figures the T T 160** appliance can be seen.
