USER’s MANUAL & INSTALLATION INSTRUCTIONS

13 SEER
Single Package Heat Pump

Single Package Heat Pump

IMPORTANT:

Read this owner information to become familiar with the capabilities and use of your
appliance. Keep this with literature on other appliances where you have easy access to
it in the future. If a problem occurs, check the instructions and follow recommendations
given. If these suggestions don’t eliminate your problem, call your installing contractor or
distributor in your area.

INTRODUCTION

Your heat pump is a unique, all weather comfort­control system appliance. The basic operation
of the heating/cooling system is described
and illustrated on page 1 of this manual. The
surprising fact that heat exists in air even at
below-freezing temperatures is actually the
basic law of physics which the heat pump
uses to provide energy saving heating comfort.
At outdoor temperatures of 47° Fahrenheit

(or 8° Celsius), your heat pump can deliver
approximately 2 to 3 units of heat energy per each
unit of electrical energy used, as compared to a
maximum of only 1 unit of heat energy produced
with conventional heating systems. During the
cooling season, the heat pump reverses the fl ow
of the heat-absorbing refrigerant to become an
energy-effi cient, central air conditioner.

SECTION 1. OWNER INFORMATION

Your heat pump will heat and cool your home
year round, saving your energy dollars. During the
summer, a heat pump performs like any normal
air conditioner. That is, the excess heat energy
inside the home is absorbed by the refrigerant
and exhausted outside the home. During the
winter months, a heat pump performs like an
air conditioner run in reverse. That is, available
heat energy outside the home is absorbed by
the refrigerant and exhausted inside the home.
This is an effi cient heating means because you
only pay for “moving” the heat from the outdoors
to the indoor area. You do not pay to generate
the heat, as is the case with more traditional
furnace designs.

It is the sole responsibility of the homeowner
to make certain that the heat pump has been
correctly set up and adjusted to operate
properly.

A warranty certifi cate with full details is included
with the heat pump. However, the manufacturer
will not be responsible for any costs found neces­sary to correct problems due to improper setup,
improper installation, adjustments, improper op­erating procedure on the part of the user, etc.

Some specifi c examples of service calls which
are not included in the limited warranty are:

1. Correcting wiring problems in the electrical
circuit supplying the heat pump.

2. Resetting circuit breakers or other switches.

3. Adjusting or calibrating of thermostat.

To avoid misunderstandings at a later date,
carefully review these responsibilities with your
dealer or service company.

OPERATING INSTRUCTIONS

To Operate Your Heat Pump For Cooling —

1. Set the thermostat system switch to COOL
and the thermostat fan switch to AUTO. (See
Figure 1)

2. Set the ther mostat temperature selector to the
desired cooling temperature. The outdoor unit
fan, the indoor blower, and the compressor
will all cycle on and off to maintain the indoor
temperature at the desired cooling level.

NOTE: If the thermostat temperature level is
re-adjusted, or if the thermostat system switch
is re-positioned, the outdoor unit fan and the
compressor may not start immediately. A
protective timer circuit holds the compressor and

2

Figure 1. Typical Thermostat

the outdoor fan off for approximately fi ve minutes
following a previous operation or the interruption
of the main electric power.

To Operate Your Heat Pump For Heating —

1. Set the thermostat system switch for HEAT
and the thermostat fan switch to AUTO. (See
Figure 1)

2. Set the thermostat temperature selector to the
desired heating temperature. The outdoor unit
fan, the indoor blower, and the compressor
will all cycle on and off to maintain the indoor
temperature at the desired heating level.

NOTE: If the thermostat temperature level is
re-adjusted, or if the thermostat system switch
is re-positioned, the outdoor unit fan and the
compressor may not start immediately. A
protective timer circuit holds the compressor and
the outdoor fan off for approximately fi ve minutes
following a previous operation or the interruption
of the main electrical power.

Emergency Heat — Some thermostats will
include a system switch position termed EM HT
or AUX HT, etc. This is a back-up heating mode
to be used only if there is a suspected problem.
With the system switch set to EM HT, etc., the
compressor and outdoor fan will be locked off and
supplemental heat (electric resistance heating)
will be used as a source of heat. Sustained
use of electric resistance heat in place of the
heat pump will result in an increase in electric
utility costs.

Defrost — During cold weather heating opera­tion, the outdoor unit will develop a coating of
snow and ice on the heat transfer coil. This is
normal and the unit will periodically defrost itself.
During the defrost cycle, the outdoor fan will stop,
while the compressor continues to run and heat
the outdoor coil, causing the snow and ice to melt.
During defrost, there may be some steam rise
from the outdoor unit as the warm coil causes
some melted frost to evaporate.

SECTION 2. INSTALLER INFORMATION

GENERAL

Pressures Within The System — This equip-

ment contains R-410A refrigerant under high
pressure. Installation or servicing should only
be performed by qualifi ed trained personnel
thoroughly familiar with this type equipment.

CAUTION:

This unit uses refrigerant R-410A. DO NOT
under any circumstances use any other re­frigerant besides R-410A in this unit. Use of
another refrigerant will damage this unit.

Read the following instructions completely
before performing the installation.

These instructions are for the use of qualifi ed
personnel specially trained and experienced
in the installation of this type of equipment
and related system components. Some states
require installation and service personnel to
be licensed. Unqualifi ed individuals should not
attempt to interpret these instructions or install
this equipment.

The single packaged heat pumps are designed
for outdoor installation only and can be readily
connected into the high static duct system of a
home. The only connections needed for instal­lation are the supply and return ducts, the line
voltage, and thermostat wiring. A complete heat
pump system typically consists of:

• Single Package Heat Pump

• Home Fittings Kit

• Unit Fittings Kit

• Thermostat

CAUTION:

To prevent personal injury and/or
equipment damage, check thermostat
manufacturer’s operation of fan relay
circuit when in EMER HEAT. When the
thermostat system switch is in the
EMER HEAT position, the thermostat
must energize the fan relay when the

fan switch is in the AUTO position.

The single package heat pump is completely
assembled, factory wired, and factory run tested.
The units are ready for easy and immediate
installation.

Use of components other than those speci­fi ed may invalidate ARI Certifi cation, Code
Agency Listing, and limited warranty on the air
conditioner.

PRE-INSTALLATION CHECK

Before any installation is attempted, the cool­ing load of the area to be conditioned must be
calculated and a system of the proper capacity
selected. It is recommended that the area to
be conditioned be completely insulated and
vapor sealed.

The installer should comply with all local codes
and regulations which govern the installation
of this type of equipment. Local codes and
regulations take precedence over any recom­mendations contained in these instructions.
Consult local building codes and the National
Electrical Code (ANSI CI) for special installation
requirements.

The electrical supply should be checked to de­termine if adequate power is available. If there
is any question concerning the power supply,
contact the local power company.

Inspecting Equipment: All units are securely
packed at the time of shipment and, upon arrival,
should be carefully inspected for damage. Claims
for damage (apparent or concealed) should be
fi led immediately with the carrier.

INSTALLATION

1. SELECT THE BEST LOCATION FOR THE
HEAT PUMP UNIT

IMPORTANT: DO NOT PLACE UNIT UNDER
THE HOME.

• Select a solid, level position, preferably on a
concrete slab, slightly above the grade level,
and parallel to the home.

• The hot condenser air must be discharged
up and away from the home, and if possible,
in a direction with the prevailing wind.

• Do not place the unit in a confi ned space.

• If practical, place the heat pump where it and
the ducts will be shaded from the afternoon
sun when the heat load is greatest.

• Try to select a site for the unit that is as close
as possible to the proposed return grille
location.

• Keep in mind that the length of the supply and
return ducts should be kept to a minimum with
no sharp radiused bends.

3

Transition Duct Screws

6 ft.

24"

12"

12"

14” Duct Dimples

Figure 2. Minimum Unit Clearances

2. UNPACK THE UNIT

It is recommended that the unit be unpacked
at the installation site to minimize damage due
to handling.

CAUTION:

Do not tip the unit on its side. Oil may
enter the compressor cylinders and
cause starting trouble. If unit has been
set on its side, restore to upright posi­tion and do not run for several hours.
Then run unit for a few seconds. Do this
three or four times with fi ve minutes

between runs.

a. Remove the bands from around the unit.

b. Unfold the top and bottom cap fl anges.

c. Carefully remove the top cap and tube.

3. CLEARANCES

Minimum clearances, as specifi ed in Figure 2,
MUST by maintained from adjacent structures
to provide room for proper servicing and air
circulation.

Do NOT install unit in a confi ned or recessed
area that will allow discharge air from the unit to
re-circulate into the condenser air inlet, through
the coil.

Service Access Clearance:

Blower access panel side .......................... 24”

Electrical compartment access panel side .. . 12”

Supply Air

Figure 3. Return and Supply Air Fittings

Clearance between overhang and top of

unit .........................................................72”

Clearance around condenser coil area to wall

or shrubs (excludes duct panel side) .......... 12”

Minimum clearance to combustible materials:

Combustible Base (Wood or Class A, B, or C

roof Covering material) ...............................0”

Supply and Return Air Ducts .......................0”

Duct Connection side ..................................0”

DUCT REQUIREMENTS

The supply duct system, including the number
and type of registers, will have much more ef­fect on the performance of an air conditioning
system then any other factor. The duct must be
suffi ciently large to conduct an adequate amount
of air to each register.

4. INSTALL THE RETURN AND SUPPLY AIR
FITTINGS ON THE UNIT

The supply and return fi ttings are included with
select models. If supplied, the duct fi ttings are
shipped in the supply duct. They attach to the unit
openings with a fl ange and bead arrangement,
secured with two sheet metal screws. Note: For
ease of access, install fi tting before positioning
unit in fi nal location.

13 SEER Return Dia. (in)

2 Ton 12

2 1/2 Ton 14

3 Ton 14

3 1/2 Ton 14

4 Ton 14

5 Ton 14

Return Air

4

Figure 4. Return Air Box

SUPPLY DUCT

Position the supply duct collar, if supplied, so the
edge of the unit opening fi ts between the fl ange
and the bead. Overlap the collar ends keeping the
small screw holes underneath. Align the holes in
the crimped area and install one screw.

Note: It may be necessary to loosen the four
screws that hold the transition duct in order to
install the supply fi tting. Re-tighten when instal-

lation is complete.

Tap collar as necessary to ensure engagement
with unit opening and install second screw.
Tighten fi rst screw. Rotate collar clockwise so
joint is near three o’clock position.

RETURN DUCT

The 12” return duct is installed in the same
manner as the supply duct. If the duct has a 14”
return, follow these instructions.

Align the slots with the holes in the collar and
install two screws. Position the collar over the
opening and align the four notches in the collar
with the four dimples in the panel. Using self­drilling screws (10-16x.5) attach the collar to the
rear panel. On some models a 14” duct collar is

provided for the return duct.

5. LOCATING AND INSTALLING THE
RETURN AIR ASSEMBLY

an open area equal to or greater than the 12” x
20” grille furnished. The return air grille can be
placed in the wall of a closet and the air ducted
into the fi lter box through a boxed-in area at the
closet fl oor level. Make sure the fi lter is readily
accessible.

After determining the location of the return air
opening, start the installation from under the
home by cutting a small hole in the fi ber under­board to determine how the fl oor joist location
will affect cutting the opening needed for the box.
Floor joists generally are located on 16” centers,
leaving 14-3/8” between joists. After measuring
the return air box (approximately 12-1/4” x 20­1/4”), cut the hole through the fl oor so that the
box will fi t between the fl oor joists. Care should
be taken when cutting through carpeting to avoid
snags. In most installations it will be necessary to
cut a similar hole in the fi berboard directly under
the hole in the fl oor. However, if the fl oor is more
than ten inches deep, it will only be necessary
to cut a hole for the collar on the return air box
or for the insulated duct.

Set the box into the opening and fasten with
screws or nails. Put the fi lter and return air
grille in place.

6. LOCATING AND INSTALLING THE
SUPPLY DAMPER(S)

When locating the supply damper(s), carefully
check fl oor joists and frame members that could
interfere with the installation of the damper
or fl exible duct. Ideally, the damper should be
located in the bottom of the main duct, forward
of center of the home, at least three feet from
the nearest register. The round supply opening
in the slanted side of the damper should face
the side of the home where the heat pump is
located. To locate the center of the heat duct,
fi rst cut a small hole in the fi berboard below the
duct at the desired location. After locating the
duct center, cut a hole approximately 3/4” larger
than the damper opening in the fi berboard. Cut
a 9-1/8” x 13-1/8” hole in the duct and bend over

To avoid complications, locate and install the
return air assembly fi rst. The return air box with
grille and fi lter (Figure 4) should not be located
in heavy traffi c areas like hallways or center of
rooms. A good spot is in a corner or under a table,
if a minimum two inch clearance is available.
If desired, the return opening can be located
inside a closet with louvered doors that have

AUTOMATIC DAMPER IS CLOSED

WHEN HEAT PUMP IS OFF

Figure 5. Supply Damper

5

all tabs fl at on the inside of the heat duct. After

6

6

4

4

5

2

3

1

5

2

3

6

4

1

7

inserting the damper into the duct, bend over all
tabs fl at on the inside of the heat duct. Seal the
opening between the fi berboard and damper or
fl exible duct.

DUCTING SYSTEM

DUCT REQUIREMENTS

The supply duct system, including the number
and type of registers, will have much more
effect on the performance of the system than
any other factor. The duct must be suffi ciently
large to conduct an adequate amount of air to
each register.

Elbow

P-Trap

Figure 6. Drain Trap

Air ducts should be installed in accordance
with the standards of the National Fire Protec­tion Association “Standard for Installation of Air
Conditioning and Ventilation Systems” (NFPA
90A), “Standard for Installation of Residence
Type Warm Air Heating and Air Conditioning
Systems” (NFPA 90B), these instructions, and
all applicable codes.

TYPICAL APPLICATIONS

Note: For highly resistive duct systems it may
be necessary to add an additional return air duct
and or supply to achieve maximum performance
and prevent coil icing and refrigerant fl ood
back.

Ref. No. Description

1

2

3

4

5

6

6

7

MULTIPLE DUCT APPLICATIONSINGLE DUCT APPLICATION

12” x 20” Return Air

16” x 20” Air Filter

12” x 20” Grille

Supply Damper

12” or 14” Diameter Flex Return Duct

12” Diameter Flex Supply Duct

12” x 12” x 12” “Y” Fitting

Figure 7. Typical Applications

THE HEAT PUMP SYSTEM WILL NOT COOL
OR HEAT THE HOME IF THE AIR IS LOST
TO THE OUTSIDE THROUGH LEAKS IN THE
DUCT SYSTEM. ALSO, DUCTS WHICH ARE
COLLAPSED OR RESTRICTED BY FOREIGN
OBJECTS WILL PREVENT ADEQUATE AIR
FLOW.

CONNECTING THE RETURN AND SUPPLY
AIR FLEXIBLE DUCTS

The return duct may be 12” or 14” diameter de­pending on unit size. (See Table on page 5)

a. The supply duct for all units is twelve inches

in diameter.

b. The fl exible ducts can be connected to the

corresponding fi ttings with the clamps pro­vided with the ducts. Note: All connections
should be leak tight or a loss in cooling
capacity will result.

c. The fl exible ducts may be cut to the required

length, see instructions packed with duct.
Keep all ducts as short and straight as
possible. Avoid sharp bends.

d. Ducts may be spliced with sheet metal

sleeves and clamps. (See Ducting Installation
Accessories page 6.)

Model Q5RD

024K

030K

036K

042K

048K

060K

* Denotes Factory Set Cooling Speed
** Denotes Factory Set Electric Heating Speed
† Denotes Factory Set Cooling and Electric Heating Speed

Wire Color /

Speed Tap

T6 Low 490

Black/T5

T4 High 1133

Red Low 770

Black

T1 Low 750

Red/T2 Med/Low ** 1000

Orange/T3 Medium * 1140

T4 Medium/High 1300
T5 High 1450

T1 Low 1340

Orange/T2 Med/Low * 1450

Red/T3 Medium ** 1500

T4 Medium/High 1650
T5 High 1970

T1 Low 1340

Red/T2 Med/Low ** 1450

Orange/T3 Medium * 1500

T4 Medium/High 1650
T5 High 1970

T1 Low 1300
T2 Med/Low 1400
T3 Medium** 1500
T4 Medium/High* 1650
T5 High 1950

Motor Speed

Med †

High †

Air Flow

(0.3 In. WC)

802

1064

Figure 8. Motor Lead Connection

e. Once the inner duct is connected to the

proper fi tting, the insulation and plastic sleeve
should be pulled over the connection and
clamped.

f. For homes with multiple supply ducts or for

special applications, a Y fi tting is available to
divide the supply air so it can be ducted to
different areas of the home for more effi cient
cooling. Note: The Y fi tting should be insulated
for maximum performance.

Blower Speed For optimum system performance
and comfort, it may be necessary to change
the factory set speed. See Figure 8 for factory
settings. NOTE: The 2 Ton blower motor has
three speed taps, Low, Med, High. The 2.5 ton
standard blower motor has two speeds, Low and
High. The 3, 3.5 and 4 ton models have High
Effi ciency Motors with 5 speed taps.

If Standard Motor (2 and 2.5 Ton)

1. Disconnect all electrical power to the unit
and remove the service panel.

2. The blower speed is preset at the factory
for operation at the same speed for
heating and cooling.

3. Place the desired blower speed lead on
the “COM” terminal of the blower relay.
Use another wire tie (fi eld supplied) to
bundle the remaining motor lead up and
out of the way.

If High Effi ciency Motor (3, 3.5, and 4 Ton)

1. Disconnect all electrical power to the unit

and remove the service panel.

2. Locate the orange and red wires

terminated to the blower motor. The
orange wire controls the cooling
operation and the red wire controls the
heating operation.

3. Verify the required speed from the airfl ow

data found in Figure 8. Place appropriate
wire on the appropriate motor speed tap
for the required airfl ow.

CAUTION:

To avoid personal injury or property
damage, make certain that the motor
leads cannot come into contact with
any uninsulated metal components
of the unit.

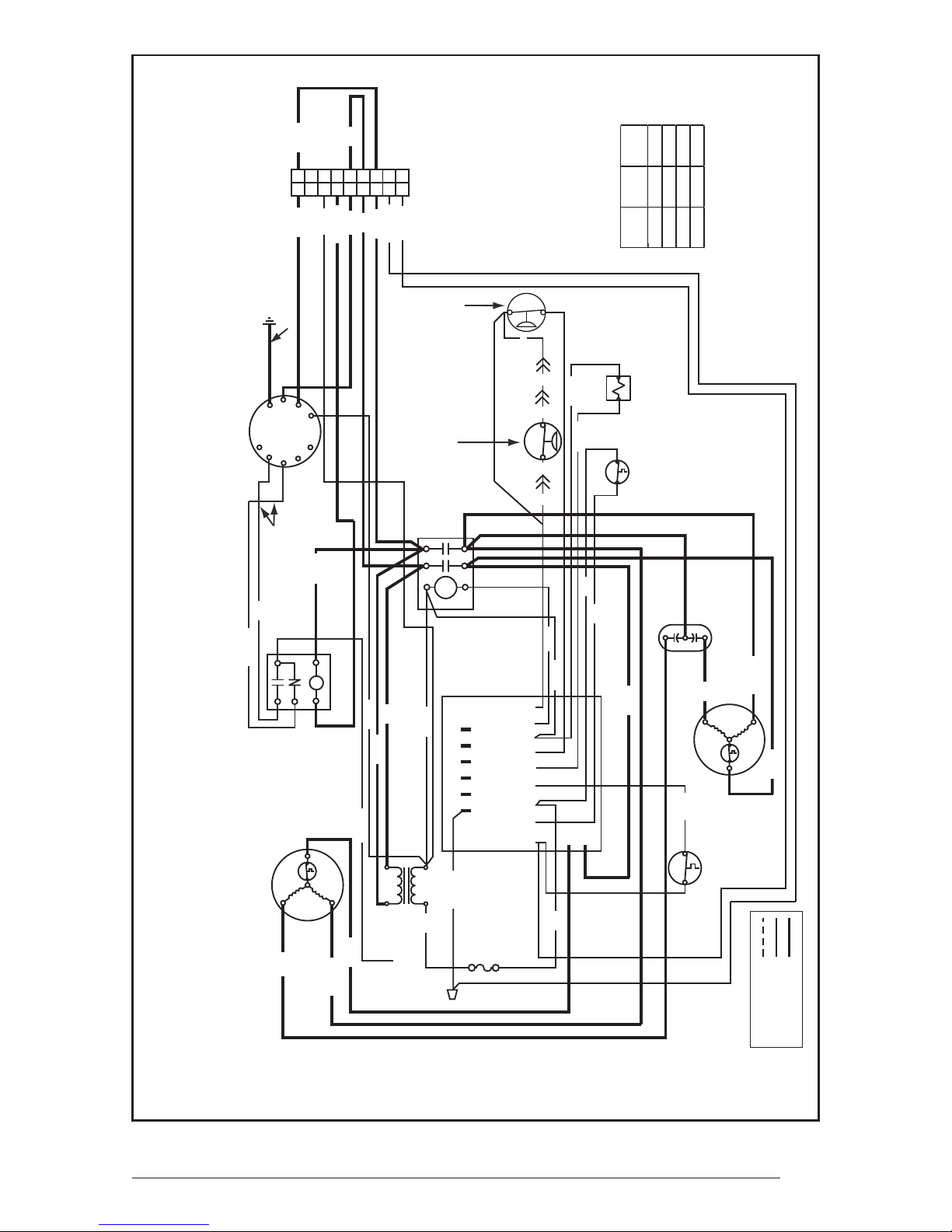

Check all factory wiring per the unit wiring
diagram and inspect the factory wiring connec­tions to be sure none loosened during shipping
or installation.

7

CONDENSATE DRAIN

A 3/4” condensate fi tting extends out of the side
of the unit. The drain trap, shipped in the electrical
compartment, must be installed to prevent water
from collecting inside the unit. Thread the elbow
provided with the unit into the drain connection
until hand tight. Install the trap into the fi tting
making sure it is level. Route the condensate
from the trap to a suitable drain. Any tubing or
hose connected must have the outlet below trap
level for proper drainage.

b. Connect the control wires to the defrost board

and blower relay wire. (See Figure 10.)

2. OVERCURRENT PROTECTION

In general, the best fuse or breaker for any
heat pump is the smallest size that will permit
the equipment to run under normal use and
service without nuisance trips. Such a device,
sized properly, gives maximum equipment
protection. The principal reason for specifying

a

time delay type is to prevent nuisance trips

when the unit starts.

WARNING:

Turn off electrical power before servic­ing controls. Severe electrical shock
may result unless power is turned off.
Unit must be installed in compliance
with the National Electrical Code (NEC)
and local codes.

ELECTRICAL CONNECTIONS

1. ELECTRICAL SERVICE

High Voltage

a. Install a branch circuit disconnect of adequate

size per NEC. Locate the disconnect within
sight of the unit.

b. Extend leads through power wiring hole

provided. Connect L1 and L2 directly to the
contactor. (See Figure 9.)

c. Ground the heat pump unit using the green

grounding screw provided in the control
panel.

In the event that a fuse does blow or a breaker
trips, always determine the reason. Do not arbi­trarily put in a larger fuse or breaker and do not,
in any case, exceed the maximum size listed on
the data label of the unit.

3. LOCATING THE THERMOSTAT

Locate the thermostat away from drafts and
slamming doors and place it where there is a free
fl ow of air. Mount on an inside wall approximately
fi ve feet from the fl oor.

Do not locate near a lamp, kitchen range, direct
sunlight, or in line with air fl ow from supply
registers.

Connect the Heat-Cool Thermostat: The
heat-cool thermostat is equipped with a system
HEAT-COOL switch, which provides a positive
means of preventing simultaneous operation of
the heating and cooling units. The thermostat is
also equipped with an ON-AUTO fan switch which
allows the home owner to operate the indoor
blower when air circulation is desired.

Low Voltage

a. Route 24v control wires through the sealing

grommet near the power entrance. (See
Figure 9.)

High Voltage

Low Voltage

8

Connect the low voltage wires to the respective
terminals on the thermostat base. See thermo­stat instruction sheet for more detailed informa­tion. (See Figure 10).

Figure 9. Power Entry

W2

Y1

Outdoor

Green

C

R

G

Thermostat

(Factory Option)

O

E

INDOOR

THERMOSTAT

SUB-BASE

Typical Wiring (Field Supplied) for 1-Stage Cool, 1 Stage Electric Heat

C

W2

DEFROST

Green

BOARD

1

Brown

2

Orange

3
4
5
6
7

8

9

Accessory Heat Plug

Optional 2nd Stage
Outdoor Thermostat
(Field Supplied)

Outdoor Thermostat

(Factory Option)

Y1

R

G

O

E

INDOOR

THERMOSTAT

SUB-BASE

Typical Wiring (Field Supplied) for 1-Stage Cool, 2-Stage Electric Heat

Figure 10. Typical Heat Pump Thermostat Connections

DEFROST

BOARD

with an Optional Outdoor Thermostat

1

Brown

2

Orange

3
4
5
6
7

8

9

Accessory Heat Plug

9

If two stage heating is desired, an optional
2nd stage outdoor thermostat may be
installed:Connect the thermostat to the orange

low voltage wire and the E terminal on the
defrost board (See Figure 10 page 9). See the
thermostat instructions for details on setting
the outdoor thermostat.

4. DEFROST CYCLE CONTROL

The defrost cycle is initiated via a signal from
the defrost sensor on the outdoor coil to the
defrost control board inside the control panel
indicating the coil temperature is low enough
to start accumulating frost. The board has
interval settings of 30 minutes, 60 minutes, and
90 minutes. These time intervals represent the
time elapsed before defrosting cycle starts and
they are dependent on the climate conditions
of the installation. A 30 minute setting would
be recommended in a moist climate such as
Seattle, Washington. A 90 minute setting would
be adequate in a dry climate such as southern
Arizona. The factory time interval setting is 30
minutes.

5. OUTDOOR THERMOSTAT (Factory Option)

The outdoor thermostat prevents the electrical
auxiliary heat (if used) from operating above
a desired set point. The factory temperature
setting is at 40°F.

6. ELECTRIC HEAT PACKAGE (OPTIONAL)

The heat pumps are shipped without an
auxiliary electric heat kit installed. If electric
heat is desired, an accessory Heater Kit must
be fi eld installed. See Specifi cations Sheet for
available kits and their application.

• Select the correct size heat package for the
installation.

• Follow installation instructions provided with
each heater kit.

• Installation is most easily accomplished before
making duct or electrical connections.

• Refer to fi gure 8 for blower speeds.

SYSTEM OPERATION

1. PRE-START CHECK LIST

The following check list should be observed prior
to starting the unit.

Is the unit level? It should be level or slightly

slanted toward the drain for proper conden­sate drainage.

Is the unit installed with the proper clear-

ances (See Figure 2)?

10

Is the wiring correct according to the wiring

diagram and electrical codes?

Are all the wiring connections tight? Check

the condenser fan to make sure it turns
freely.

Is the overcurrent protection properly

sized?

Is the thermostat wired correctly? Is it

installed in a proper location?

2. START-UP PROCEDURE

The control circuit consists of an anti-short cycle
timer that will not let compressor re-start before
fi ve (5) minutes have elapsed.

Set the thermostat system switch to OFF, and
the thermostat fan switch to AUTO. Apply power
at the disconnect switch and check the system
operations:

a. Air Circulation — Leave the thermostat

system switch at OFF, and set the thermostat
fan switch to ON. Blower should run
continuously. Check the air delivery at the
supply registers and adjust register openings
for balanced air distribution. Examine
ductwork for leaks or obstruction if insuffi cient
air is detected.

Set the thermostat fan switch to AUTO; the blower
should stop running.

b. System Heating — Set the thermostat

system switch to HEAT and set the thermostat
fan switch to AUTO. Position the thermostat
temperature selector above the existing room
temperature and check for the discharge of
warm air at the supply registers.

c. System Cooling — Set the thermostat

system switch to COOL and set the thermostat
fan switch to AUTO. Position the thermostat
temperature selector below the existing room
temperature. Allow the cooling system to
operate for several minutes and check for the
discharge of cool air at the supply registers.

d. Short cycle protection — The control

circuit is equipped with a time-delay feature
for protection against short cycling. With
the system operating in the cooling mode,
gradually raise the thermostat temperature
setting until the whole system de-energizes.
Immediately lower the thermostat temperature
to the original setting and verify that the indoor
blower is energized. After approximately 5
minutes the compressor and the outdoor fan
will energize.

e. Emergency Heat — (Available only when

Electric heat is supplied) Set the thermostat
system switch to EM HT and set the thermostat
fan switch to either AUTO (intermittent air) or
to ON (continuous air). Position the thermostat
temperature selector above the existing room
temperature and check the following:

1. The thermostat auxiliary heat light
(RED) should be on.

2. The heat pump compressor and the
fan should not run; low voltage circuit
remains energized.

3. The blower will run according to the
thermostat fan switch setting.

Refrigerant Charging — Packaged Air
Conditioners are fully charged with R410-A
refrigerant at the factory. The system refrigerant
charge can be checked and adjusted by removing
the compressor cover panel and attaching gauge
lines which have a “schrader” depression device
present to activate the valve. Draw a vacuum
on gauge lines to remove air before attaching
them to the service ports on the unit. Refrigerant
charging must be done by qualifi ed personnel
familiar with safe and environmentally responsible

refrigerant handling procedures.

DEFROST CONTROL BOARD OPERATION
AND TESTING

1. Terminals “R”-”C” must have 24±V present
between them in order for the time delay and
defrost sequences to be operational.

2. Jumper the “T2”-”DFT” test pins. This will
indicate to the board that the defrost T-stat
is closed(if the compressor is running).
Defrost T-stat is closed at 32° or below and
is open at 68° or above. But it’s state is
unknown if the temperature is between 32°F
and 68°F. The defrost thermostat tells the
board whether a defrost cycle needs to be
started or terminated. With the DFT closed
the unit will run for 30/60/90 minutes in heat
mode and then defrost the outdoor coil. The
defrost will turn off the outdoor fan, turn on the
compressor and raise the coil temperature to
68°F. This will open the DFT and terminate
the defrost. If the DFT does not open the
defrost will end after 10 minutes.

3. Defrost board speed-up. With compressor
running in heat mode, next jump the “Test”
pin to “C” on terminal strip. This will initiate
a defrost test in 5, 10 or 15 seconds (This
is determined by the 30, 60 or 90 minute
defrost pin settings. The factory setting will

be 30 minutes). Note that this will bypass the
compressor off delay when the unit goes into
defrost test and if left in defrost test, the delay
will be bypassed when the test is terminated
by the processor. If the jumper is removed
before the test is over the processor will
perform the remainder of a normal defrost.
See step 2 above.

4. Remove the jumpers.

Note: The delay/no-delay pin concerns compressor
operation during defrosts. The default setting is
delay. Reciprocating compressors should only
use this setting in conjunction with an approved
hard start kit. Scroll compressors that have noise
issues while going into or coming out of defrost
should use this 30 second delay to reduce the
defrost noise. To switch from no-delay to delay
remove the pin from the “no-delay” pin location
and shift it to the “delay” pin location.

Speed up changes:

Manually initiating a defrost will cause the

compressor to run continually when entering
defrost.

Normal defrost operation:

To test normal defrost operation when the
temperature is above 35°F, jumper “R” to
“DFT” on the 624656 board and allow the unit
to run for 30 minutes. Defrost will continue
until the “R” to “DFT” jumper is removed or
for 10 minutes. Remove the jumper.

The 5 minute time delay feature can be shortened
1 time to 1 second by jumping the “Test” to “C”
terminal. Remove the jumper and repeat as
desired.

Note: If jumper is left on the “Test” to “common”
pins permanently, the defrost cycle will become
inoperable.

Defrost Test Procedure for 624656

1. Jumper “T2” to “DFT” at the test terminals.

2. With unit running in heat mode, short the
“TEST” terminal to the common terminal near
it. This will speed up the board and cause
it to enter defrost mode in 5/10/15 seconds
depending on the defrost time selection.
Compressor delay will not function during
speed-up.

3. This test will end in 5 seconds if the “TEST”­common short is not removed.

4. Remove both the short and the “T2” to “DFT”
jumper to terminate the defrost cycle. The
30 second compressor delay should operate
normally.

5. Test is complete, reset thermostat to home
owner preference.

11

13 SEER - Refrigerant Charging Tables for Cooling Mode of Operation

*

Note: All pressures are listed in psig. and all temperatures in °F.

- Shaded Boxes indicate flooded conditions

- Rated Design Values. Suction Pressure will be lower than design
value if indoor air flow, entering dry bulb, or entering wet bulb

temperatures are lower than design.

- Discharge temperatures greater than charted values indicate an
undercharged system.

Refrigerant Charging Chart Legend for Cooling Mode of Operation

2

To n

Suct.

Press.

136
138

140 265 147

142

144 274 148

146 296 154

148 319 158

150 342 163

152 345 167 364 167

154 368 171 387 171

156 390 175 410 175
158 413 179 432 179
160 436 183
162

2.5

To n

Suct.

Press.

139 258 115

141

143 262 126

145

147 269 131

149 292 137

151 315 143

153 338 148

155 341 152 361 154

157 364 158 384 159

159 387 163 407 165

161 410 169 430 170

163 433 175

165

70 75 80 85 90 95 100 105

Liq.

Dis.

Liq.

Dis.

Dis.

Liq.

Press.

306 143

309 148

311 153

315 155

Liq.

Press.

304 126

306 131

308 136

312 139

Press.

Temp.

Press.

Temp.

260 136
262 142

270 146

70 75 80 85 90 95 100 105

Liq.

Press.

Temp.

260 121

266 129

Dis.

283 140

285 145

288 150

293 150

Liq.

Press.

Temp.

281 121

283 126

285 131

289 134

OUTDOOR TEMPERATURE (°F)

Dis.

Liq.

Dis.

Dis.

Liq.

Press.

353 151

355 155

357 160

361 163

Liq.

Press.

350 137

352 142

354 146

357 150

Temp.

Press.

Temp.

330 147

332 152

334 156

338 159

OUTDOOR TEMPERATURE (°F)

Dis.

Liq.

Temp.

Press.

Temp.

327 132

329 136

331 141

334 145

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

376 155

378 159

380 163

383 167

Liq.

Press.

373 143

375 147

377 151

380 155

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

399 159

401 163

403 167

406 171

Liq.

Press.

Temp.

396 148

398 152

400 156

403 161

Dis.

Temp.

Dis.

Liq.

Press.

422 163

424 167

426 170

429 175

Liq.

Press.

419 154

421 157

423 161

426 166

Temp.

Temp.

Dis.

Dis.

12

13 SEER - Refrigerant Charging Tables

for Cooling Mode of Operation Continued

3

To n

Suct.

Press.

138 267 113

140

142 271 123

144

146 276 133

148 300 138

150 323 143

152 347 148

154 351 152 371 154

156 374 158 395 159

158 398 163 418 165

160 422 169 442 171

162 445 175

164

3.5

To n

Suct.

Press.

134 269 129

136

138 274 140

140

142 282 142

144 305 148

146 328 154

148 351 159

150 355 163 374 164

152 378 168 398 169

154 401 173 421 174

156 424 178 444 179

158 447 183

160

70 75 80 85 90 95 100 105

Liq.

Dis.

Liq.

Dis.

Press.

Temp.

Press.

269 118

272 131

70 75 80 85 90 95 100 105

Liq.

Press.

271 135

279 139

Dis.

Temp.

290 119

292 124

294 129

296 135

Liq.

Press.

293 134

295 139

297 144

302 145

Temp.

Dis.

Temp.

Liq.

Press.

314 125

316 130

318 135

320 140

Liq.

Press.

316 138

318 143

320 148

325 150

OUTDOOR TEMPERATURE (°F)

Dis.

Liq.

Dis.

Dis.

Liq.

Press.

360 137

362 142

364 146

367 150

Liq.

Press.

363 148

365 152

367 156

371 160

Temp.

Press.

Temp.

337 131

339 136

341 141

344 145

OUTDOOR TEMPERATURE (°F)

Dis.

Liq.

Temp.

Press.

Temp.

340 143

342 148

344 152

348 155

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

384 143

386 147

388 151

391 155

Liq.

Press.

387 153

389 157

391 161

394 165

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

Temp.

407 148

409 152

411 156

415 161

Liq.

Press.

Temp.

410 157

412 161

414 165

417 170

Dis.

Dis.

Liq.

Press.

430 154

432 157

434 161

439 166

Liq.

Press.

434 162

436 166

438 170

440 174

Temp.

Temp.

Dis.

Dis.

13

13 SEER - Refrigerant Charging Tables

for Cooling Mode of Operation Continued

4

To n

Suct.

Press.

133 280 143

135

137 285 154

139

141 293 156

143 318 161

145 342 166

147 367 170

149 370 174 391 175

151 395 179 416 179

153 419 183 440 183

155 444 187 465 187

157 468 191

159

5 Ton

Suc.

Press.

124

126 274 101

128

130 277 124

132

134 280 146

136 304 150

138 329 155

140 354 159 376 153

142 378 164 401 158

144 403 168 425 163

146 428 172 450 167

148 452 176

150

70 75 80 85 90 95 100 105

Liq.

Dis.

Liq.

Dis.

Dis.

Temp.

Liq.

Press.

330 151

332 156

334 160

339 163

Liq.

Press.

318 119

320 128

326 128

327 141

Press.

Temp.

Press.

Temp.

282 149

290 153

70 75 80 85 90 95 100 105

Liq.

Press.

276 112

279 129

Dis.

Temp.

305 147

307 152

309 157

314 158

Liq.

Press.

295 111

298 121

300 131

303 136

OUTDOOR TEMPERATURE (°F)

Dis.

Liq.

Dis.

Liq.

Temp.

Press.

Temp.

Press.

355 155

357 159

359 164

363 167

OUTDOOR TEMPERATURE ( deg. F )

Dis.

Liq.

Temp.

Dis.

Press.

Temp.

340 128 360 130

344 134 363 137

350 133 367 145

352 145 374 145

Temp.

380 158

382 163

384 167

388 171

Liq.

Press.

Temp.

Dis.

Dis.

Liq.

Press.

405 163

407 167

409 171

412 175

Liq.

Press.

383 136

387 142

391 149

398 148

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

430 167

432 171

434 175

437 179

Liq.

Press.

406 141

410 148

415 154

423 153

Dis.

Temp.

Dis.

Temp.

Liq.

Press.

455 171

457 175

459 178

461 183

Liq.

Press.

430 148

434 153

439 159

447 158

Temp.

Temp.

Dis.

Dis.

14

13 SEER - Refrigerant Charging Tables

for Heating Mode of Operation

Press. Press. Temp.

Press. Temp.

Press.

Press. Temp.

Press.

Press. Temp.

127 353 165

322 154

110

292 142

94

277 133

367 153

129

336 145

112

306 137

96

284 129

381 140

131

350 136

114

320 131

98

292 125

327 143

136

300 134

111

274 125

87

262 122

341 130

138

314 125

113

288 119

89

269 118

Press.

Press. Temp.

Press.

Press. Temp.

Press.

0102030405060

Press. Temp.

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

2 Ton OUTDOOR TEMPERATURE (DEG. F)

Press

78

254 127

65

232 121

51

209 114

37

38 216 112 52 238 119 66 259 125 79 281 131 95 299 140 111 329 149 128 360 159

80

264 123

67

244 117

53

223 110

39

40 230 108 54 250 115 68 269 121 81 288 127 97 313 134 113 343 140 130 374 147

82

274 119

69

255 113

55

237 106

41

42 244 104 56 261 111 70 278 117 83 295 123 99 327 128 115 357 131 132 388 134

43 251 102 57 267 109 71 283 115 84 299 121 100 334 125 116 364 127 133 395 128

OUTDOOR TEMPERATURE (DEG. F)

0102030405060

2.5

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

Ton

Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.

47 226 137 55 235 134 62 245 130 69 254 126 85 260 131 109 286 143 134 313 155

48 233 135 56 241 132 63 250 128 70 258 124 86 267 128 110 293 138 135 320 149

71

254 126

64

247 130

57

240 133

49

50 247 131 58 253 128 65 259 124 72 265 120 88 281 122 112 307 129 137 334 137

73

264 122

66

259 126

59

254 129

51

52 261 127 60 265 124 67 269 120 74 273 116 90 295 117 114 321 120 139 348 124

53 268 125 61 271 122 68 274 118 75 276 114 91 302 114 115 328 116 140 355 118

15

13 SEER - Refrigerant Charging Tables

for Heating Mode of Operation (continued)

327 142

126

308 136

111

289 130

95

276 126

341 129

128

322 127

113

303 124

97

283 122

357 151

123

333 145

109

309 139

94

290 135

371 139

125

347 136

111

323 133

96

298 131

0102030405060

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

3 Ton OUTDOOR TEMPERATURE (DEG. F)

Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.

34 216 127 49 234 128 63 251 129 78 269 130 93 275 135 109 294 145 124 313 154

35 223 125 50 240 126 64 256 127 79 272 128 94 282 133 110 301 140 125 320 148

80

261 125

65

246 124

51

230 123

36

37 237 121 52 251 122 66 266 123 81 280 124 96 296 127 112 315 131 127 334 136

82

270 121

67

257 120

53

244 119

38

39 251 117 54 263 118 68 275 119 83 287 120 98 310 121 114 329 122 129 348 123

40 258 115 55 269 116 69 280 117 84 291 118 99 317 118 115 336 118 130 355 117

0 102030405060

33 217 136 48 239 137 63 261 138 78 283 139 92 295 144 107 319 154 121 343 163

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

3.5 Ton OUTDOOR TEMPERATURE (DEG. F)

Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.

34 224 134 49 245 135 64 266 136 79 287 137 93 302 141 108 326 149 122 350 157

80

271 134

65

251 133

50

231 132

35

36 238 130 51 257 131 66 275 132 81 294 133 95 316 136 110 340 140 124 364 145

82

280 130

67

262 129

52

245 128

37

38 252 126 53 268 127 68 285 128 83 301 129 97 330 130 112 354 131 126 378 133

39 259 124 54 274 125 69 290 126 84 305 127 98 337 127 113 361 127 127 385 126

16

13 SEER - Refrigerant Charging Tables

g

g

g

g

g

p

for Heating Mode of Operation (continued)

Temp.

Disch.

360 145

124

329 139

107

299 133

89

279 129

74

374 133

126

343 130

109

313 128

91

287 125

76

Liquid

Press.

Suc.

Press.

Temp.

Disch.

Liquid

Press.

Suc.

Press.

Temp.

Disch.

Liquid

Press.

Suc.

Press.

Temp.

Disch.

Liquid

Press.

Suc.

Press.

389 198

118

358 177

102

327 156

86

302 144

72

403 186

120

372 168

104

341 151

88

309 140

74

eration

Mode of O

end for Heatin

Chart Le
in

Temp.

Disch.

Note: All pressures are listed in psig. and all temperatures in °F.

264 127

61

248 125

48

273 123

63

259 121

50

Liquid

Press.

Suc.

Press.

Temp.

Disch.

Liquid

Press.

Suc.

Press.

273 139

59

245 135

46

283 135

61

257 131

48

erant Char

Refri

- Rated Design Values. Suction Pressure will vary if indoor air flow,

*

- Shaded Boxes indicate flooded conditions

entering dry bulb temperature varies.

- Discharge temperatures greater than charted values indicate an
undercharged system.

Temp.

Disch.

0 102030405060

232 123

246 119

33 218 127 46 236 129 59 254 131 72 272 133 87 285 139 105 315 148 122 346 158

34 225 125 47 242 127 60 259 129 73 276 131 88 292 136 106 322 144 123 353 151

4 Ton OUTDOOR TEMPERATURE (DEG. F)

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

Press Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp. Press. Press. Temp.

35

36 239 121 49 254 123 62 268 125 75 283 127 90 306 131 108 336 135 125 367 139

37

38 253 117 51 265 119 64 278 121 77 290 123 92 320 125 110 350 126 127 381 127

39 260 115 52 271 117 65 283 119 78 294 121 93 327 122 111 357 121 128 388 121

0 102030405060

Liquid

Press.

5 Ton OUTDOOR TEMPERATURE (DEG. F)

Suc.

Press

31 203 134 44 233 139 57 264 143 70 294 148 84 313 162 100 344 186 116 375 210

32 210 132 45 239 137 58 269 141 71 298 146 85 320 159 101 351 182 117 382 204

217 130

33

34 224 128 47 251 133 60 278 137 73 305 142 87 334 154 103 365 173 119 396 192

231 126

35

36 238 124 49 263 129 62 288 133 75 313 138 89 348 148 105 379 164 121 410 180

37 245 122 50 269 127 63 293 131 76 316 136 90 355 145 106 386 159 122 417 173

17

876
876

GREY

RED

5
5

BLUE

YELLOW

WHITE

9
9

WHITE

60HZ/SINGLE PHASE

1. Couper le courant avant de faire letretine.

2. Employez uniquement des conducteurs

3. Ne convient pas aux installations de plus

de 150V a la terre.

en cuiver.

432
432

RED

WHITEWHITE

1
1

BROWN

ORANGE

HIGH

SWITCH

PRESSURE

YE

BLACK

YE

COIL

VALV E

REVERSING

RED

LOW

SWITCH

PRESSURE

L1

L2

BLACK

(SELECT MODELS ONLY)

T1

T2

T1

C

T2

Y

MOTOR

BLOWER

RED

BROWN

BROWN

CAPACITOR

WAY.

ROUTE WIRE INTO

ELEC. BOX ON UNIT.

TIE EXTRA MATERIAL

UP SO IT IS OUT OF THE

BLACK

208/230 VOLT

4. For replacement wires use conductors suitable for 105°C.

BLOWER

COM

RELAY

NC

NO

OW2RE

BOARD

DEFROST

ADAPTER

REF; 631849 AMP

COM

BLACK

24V

GREEN

MOTOR

C

OUTDOOR FAN

S

R

CONTROL

DFTE R W2 O Y C

BROWN

YE

YE

BLUE

BLACK

DF1

BLACK

DF2

RED

RED

BLACK

VIOLET

SENSOR

DEFROST

DUAL

YELLOW

CAPACITOR

F

C

COMPRESSOR

GREY

H

YELLOW

RED

S

C

IS INSTALLED)

BROWN JUMPER

(ON SELECT MODELS

OUTDOOR THERMOSTAT

BLACK

R

NOTES:

2. For supply connections use copper conductors only.

1. Disconnect all power before servicing.

3. Not sutiable on systems that exceed 150V to ground.

SMALL PACKAGE HEAT PUMP

BLUE

ORANGE

18

TRANSFORMER

240V

BLACK

RED

FUSE

T-S T AT

TO “G” ON

3 AMP

RED

LEGEND:

FIELD WIRING

LOW VOLTAGE

HIGH VOLTAGE

7108380

ZH06TLOV 032/802

MODE L

ORANGE

WIRE

RED

WIRE

036 T3 T2

042 T2 T3

048 T3 T2

060 T4 T3

WHITE

876

9

876

9

GREY

WHITE

1. Couper le courant avant de faire letretien.

2. Employez uniquement des conducteurs

en cuivre.

3. Ne convient pas aux installations de plus

de 150V a la terre.

GREEN-YELLOW

N

L

G

C

MOTOR

BLOWER

ORANGE

4. For replacement wires use conductors suitable for 105° C.

T1

RED

T2

OUTDOOR FAN

SEE TABLE FOR FACTORY

MOTOR

S

T4

T3

SET BLOWER WIRING

C

T5

WHITE

BLOWER

R

RED

5
5

BLUE

YELLOW

RELAY

432

1

432

1

RED

WHITEWHITE

BROWN

ORANGE

RED

BLACK

GREEN

COM

TRANSFORMER

240V

HIGH

LOW

SWITCH

PRESSURE

COMPRESSOR

L1

L2

BLACK

24V

RED

SWITCH

PRESSURE

(SELECT MODELS ONLY)

CONTACTOR

T1

T2

C

Y

OW2RE

BROWN

DEFROST

FUSE

3 AMP

FACTORY SET INDOOR MOTOR WIRING

YE

YE

BLACK

YE

BLACK

YE

YE

RED

RED

BLUE

BLACK

T1

VALV E

REVERSING

SENSOR

DEFROST

BLACK

COIL

T2

BOARD

CONTROL

DFTERW2OYC

DF1

DF2

VIOLET

RED

DUAL

YELLOW

CAPACITOR

F

C

COMPRESSOR

GREY

ORANGE WIRE IS COOLONG/HEATING SPEED

RED WIRE IS AUX. HEATING SPEED (ELECTRIC HEAT)

REFER TO INSTALLATION INSTRUCTIONS FOR CFM DATA

H

RED

S

YELLOW

R

C

IS INSTALLED)

BROWN JUMPER

(ON SELECT MODELS

OUTDOOR THERMOSTAT

BLACK

BLUE

NOTES:

1. Disconnect all power before servicing.

2. For supply connections use copper conductors only.

SMALL PACKAGED HEAT PUMP- SINGLE PHASE

Q5RD/GQ5RD/PPH2RD 3 TON THRU 5 TON

3. Not suitable on systems that exceed 150V to ground.

BLACK

ORANGE

TO “G” ON

T- ST AT

LEGEND:

FIELD WIRING

LOW VOLTAGE

HIGH VOLTAGE

710837A

19

INSTALLER

PLEASE LEAVE THESE INSTALLATION INSTRUCTIONS WITH THE HOMEOWNER.

¢709067?¤

709067A

709067A (Replaces 7090670)

Specifi cations and illustrations subject to change

without notice and without incurring obligations. (08/09)
