Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No. PLES389ECB
37957366H53S2
Series 30" slide-in
Color stainless
Market North America
Wiring Diagram 318271927
Owner's Guide 318203859
Installation Instructions 318201611
Timer Guide 318200194
Publication No.
5995449856
05/09/30
(EN/SERVICE/ECL)
377
30-INCH SLIDE-IN
ELECTRIC RANGE
Model No.
PLES389E
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995449856 PLES389ECB
BACKGUARD
09/05 2
PLES389ECB Publication No: 5995449856
BACKGUARD
POS. NO PART NO. DESCRIPTION
16 318299102 Console, assy., black
17 318306900 Bracket, bushing, (2)
19 318313825 Control Panel Assembly, steel/glass, stainless/black, w/touch pad
19A 318224405 Panel, control mtg.
20 # 316 418 735 Clock/Timer, electronic, ES510
20* 5304451726 Screw, control mtg., 8-18 x 1/2"
35 318233710 Retainer, control panel, black
36 318319301 Knob, control, black, (4)
42 318298001 Trim, vent, black, upper
54A# 316441801 Control, electronic, dual element, (3), w/potentiometer
54B# 316441804 Control, electronic, left front, dual element, w/potentiometer
55 316247700 Nut, hex control mtg, (5)
55A 316247800 Washer, lock, (5), control mtg
69 5303323134 Screw, 8-32 x 0.188
99 316435702 Board, power supply
99A 318223900 Gasket, dark grey
101 318 233400 Bushing, retainer
* # 318228813 Harness, wiring, main, backguard
* # 318224813 Harness, wiring, timer
* 318083021 Harness, wiring, to transformer, interface
* 08016432 Screw, truss head, 8-18 x 0.375
* 5303300265 Screw, 8-18 X 1/2, (2)
* 5303311333 Screw, 8-32 x 3/8
# Functional Parts
3 09/05
* Non-Illustrated Parts
Publication No: 5995449856 PLES389ECB

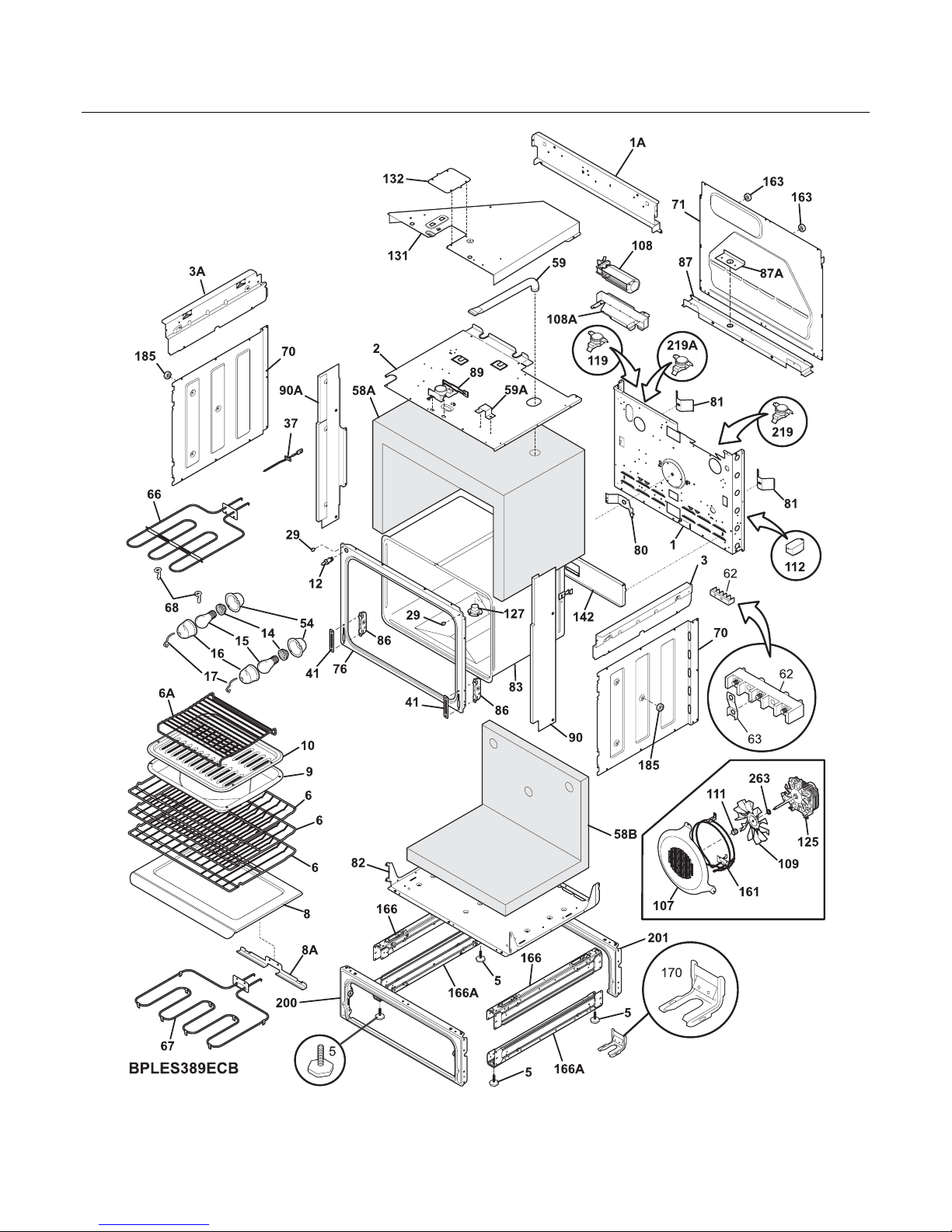

BODY
09/05 4
PLES389ECB Publication No: 5995449856
BODY
POS. NO PART NO. DESCRIPTION
1 318259203 Back, main
1A 318225112 Panel, main back, upper
2 318258902 Shield, insulation, upper
3 318225210 Panel, bodyside, upper RH
3A 318225211 Panel, bodyside, upper LH
5 318175503 Screw, leveling
6 318262503 Rack, oven
6A 318219500 Rack, broiler pan
8 318262001 Cover, element
8A 318318600 Bracket, element, hidden bake
9 5303317977 Pan, broiler
10 5303317976 Insert, broiler pan
12 # 318089917 Switch, light
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
16 3201911 Cover, oven light, glass
17 5304400195 Retainer, light cover
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
41 5303310526 Cover, hinge cutout
54 318222400 Housing, oven light
58A 318285055 Insulation, oven wrapper
58B 318285056 Insulation, oven back
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
62 5303935061 Terminal Block Kit
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
63 318264200 Plate, grounding strap
66 # 318255600 Element, broil, 2750W
67 318254901 Element, bake, 3400W, 8 pass
68 5304403015 Support, hanger, (2), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
76 318056217 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318258 70 8 Shield, insulation, lower
83 318261400 Liner, oven assy
86 5303310524 Receptacle, hinge
87 318260608 Bracket, cable mtg.
87A 318111804 Plate, cord set mtg
89 # 318261202 Motor, latch assy
90 318296904 Panel, filler, black, RH
90A 318296905 Panel, filler, black, LH
107 318 219401 Cover, fan
108# 318073018 Motor, blower
* 318249401 Tube, protector
108A 318251300 Bracket, fan support
109 316136400 Blade, fan
111 316 136600 Nut, fan retainer
# Functional Parts
5 09/05
* Non-Illustrated Parts
Publication No: 5995449856 PLES389ECB
BODY
09/05 6
PLES389ECB Publication No: 5995449856
BODY
POS. NO PART NO. DESCRIPTION
112# 318112703 Relay
119# 318005212 Switch, thermal cutout
125# 316415800 Motor, fan
127 318317100 Adapter Assembly, vent tube, w/converter
131 318272900 Box, vent
132 318 003000 Plate, shield
142 318 123910 Deflector
161# 318255503 Element, convection, 350 W
163 318 014110 Spacer, (6)
166 318 298401 Bracket, base support, upper, (2)
166A 318298402 Bracket, base support, lower, (2)
170 318 335500 Anti-tip & accessories
185 318 165800 Spacer, (2)
200 318298201 Frame, drawer, black, front
201 318 298210 Frame, drawer
219# 318003614 Thermostat, safety
219A 318003613 Thermostat, safety
263 316136500 Washer, flat
* # 318224941 Harness, wiring, main
* 318235300 Connector assy., w/3 lugs, & instructions
* 3051050 Screw, shoulder
* 3201861 Screw, 6 x 0.375, (4)
* 08016432 Screw, truss head, 8-18 x 0.375
* 5303211311 Screw, 8 x 0.500
* 5303307980 Screw, 8-32 x 0.437, (4)
* 5304415832 Screw, 8-18 x 0.406
* 5304436875 Screw, 8-18 X 1/2, black
* 5303323129 Screw, 8 X 0.750
# Functional Parts
7 09/05
* Non-Illustrated Parts
Publication No: 5995449856 PLES389ECB
TOP/DRAWER
09/05 8
PLES389ECB Publication No: 5995449856
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 318304401 Drawer, body assembly
1A 318300000 Panel, warmer drawer, side, (2)
1C 318300300 Panel, warmer drawer, rear
2 318303901 Panel, drawer, black, inner
4 318298810 Panel, drawer, stainless, front
13 318259501 Glide, warmer, inner RH
13A 318259500 Glide, warmer, inner LH
15B# 318198925 Element, surface, 6/9, 1200/2500W, dual radiant
15C# 316419901 Element, surface, dual, 750W/1800W, (2)
16 318223640 Main Top, glass assy., black
29 318147430 Bumper, (2)
39 318219802 Handle, door/drawer, stainless
46 318225410 Box, burner
51 # 318044822 Light, indicator, clear
52B 318122010 Spring, element mtg, 1000W/2500W
52C 318122008 Spring, element mtg
60 5303311174 Screw, 10-24 x 3/8
81 # 318255300 Element, warmer drawer
84 # 318005105 Thermostat
85 318257600 Rack, warmer drawer
86 316095800 Clip, hold down, warmer element
87 318300100 Panel, warmer drawer, lower
95 318303800 Shield, wire
124 316105501 Glide, warmer drawer, outer/RH & LH, (2)
141# 318005211 Switch, thermal cutout
165 318227503 Plate, mounting
193 5303325173 Cap, plug
* # 318228913 Harness, wiring, cooktop
* 5303325171 Washer, plastic
* 318163600 Cleaner, cooktop
* 08016432 Screw, truss head, 8-18 x 0.375
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, (2)
* 5303311333 Screw, 8-32 x 3/8
# Functional Parts
9 09/05
* Non-Illustrated Parts
Publication No: 5995449856 PLES389ECB
DOOR
09/05 10
PLES389ECB Publication No: 5995449856
DOOR
POS. NO PART NO. DESCRIPTION
3A 318260401 Trim, oven door, side, (2)
3B 318262101 Cover, rear door, black, (2)
6 318260500 Baffle, door
7 318285057 Insulation, oven door
7A 318285062 Insulation, oven door
8 316117500 Glass, oven door, heat barrier
9 318259605 Liner, door
10 5303311174 Screw, 10-24 x 3/8
12 318053130 Seal, oven door
13 318272162 Door Assy, w/nameplate, stainless steel, outer, w/tape & foil
17 316402 40 3 Spacer, door glass, (2)
23 318024714 Hinge, door, (2)
* 5304415832 Screw, 8-18 x 0.406
24 318260301 Trim, door, black, lower
39 318219802 Handle, door/drawer, stainless
40 318242700 Bracket, glass holder, (2)
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer, (2)
* 316221001 Label, anti-tip
# Functional Parts
11 09/05
* Non-Illustrated Parts
Publication No: 5995449856 PLES389ECB
WIRING DIAGRAM
OVEN CIRCUIT // CIRCUIT DU FOUR
BR-6
BK-9
BK-6
BR-2
B14
Y-6
BL-6
T.B.
L1
N
L2
B1
BAKE ELEMENT
ELEMENT CUISSON
BROIL ELEMENT
ELEMENT GRIL
W-5
R-9
BK-6
R-6
Y-6
BL-6
P7
123456
BK-21
ELECTRONIC OVEN CONTROL ES 510
COMMANDE FOUR ELECTRONIQUE ES 510
DLB OUT
DLB IN
CONV.
P8 P7 P9 P3
B13
R-2
B10
Y-2
B4
BL-2
GY-1
MDL
W-1
COOLING RELAY
RELAIS VENTILATEUR
R-5R-5
BR-5
C
R-5
BAKE
NO
NC
BROIL
P2 P1
CON
P7
P7
123456
123456
L1
P5
1
BK-1
BL-19
BL-5
B4
HIGH SPEED
HAUTE VITESSE
BK-5
W-5
R-5
LOW SPEED
BASSE VITESSE
P4
B9
P7
O-19
B12
123456
123
6543212345678
V-19
THERMAL CIRCUIT BREAKER
DISJONCTEUR THERMIQUE
B6
V-19
BR-19
B15
SW.A
MDL SW.
C
NO
BL-14
NC
BR-10
DOOR SWITCH
INTER. PORTE
B11
BR-1
BR-1
FAN HOLD THERMOSTAT
THERMOSTAT DE MAINTIEN
DU VENTILATEUR
BK-5
R-5
V-14
B3
V-14
O-14
BR-14
BR-10
CONVECTION ELEMENT
ELEMENT CONVECTION
O-5
CONVECTION MOTOR
MOTEUR CONVECTION
BR-5
OVEN LAMP
LAMPE FOUR
B8
BR-5
THERMAL CIRCUIT BREAKER
DISJONCTEUR THERMIQUE
t
PROBE
SONDE
BR-19
B5
DIODE
DIODE
MR754
O-5 O-5
BR-5
OVEN LAMP
LAMPE FOUR
BK-5
W-5
V-14
OPTION
FACULTATIF
W-5
OPTIONAL
FACULTATIF
TIMER
MINUTERIE
P11-4
TIMER
MINUTERIE
P11-1
LEGEND/LEGENDE
SW. - SWITCH/INTERRUPTEUR
R.F. - RIGHT FRONT/AVANT DROIT
R.R. - RIGHT REAR/ARRIERE DROIT
L.F. - LEFT FRONT/AVANT GAUCHE
L.R. - LEFT REAR/ARRIERE GAUCHE
LIM.-LIMITOR/LIMITEUR
H.S.-HOT SURFACE/SURFACE CHAUDE
T.B.-TERMINAL BLOCK/BLOC DE
CONNECTION
CON. -CONTROL/CONTROLE ESEC 15
C.T.-COOK TOP/TABLE DE CUISSON
MDL.-MOTOR DOOR LATCH/MOTEUR PORTE VERROU
CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.
ATTENTION:COUPEZ L`ALIMENTATION AVANT D`EFFECTUER LA REPARATION.
WARMER DRAWER/TIROIR RECHAUD
WARMER ELEMENT/ELEMENT RECHAUD
Y-5 Y-5
LO LIMIT THM/THM BASSE LIMITE
W-5BR-5
TIMER
MINUTERIE
P11-2
COLOR CODE/CODE DE COULEUR
G.-GREEN/VERT
W.-WHITE/BLANC
R.-RED/ROUGE
O.-ORANGE/ORANGE
Y.-YELLOW/JAUNE
BR.-BROWN/BRUN
BL.-BLUE/BLEU
BK.-BLACK/NOIR
WIRE GAUGE TEMP.C CSA UL
FIL CALIBRE
1 18 125 CL1251 3173
2 16 125 CL1251 3173
3 14 125 CL1251 3173
4 12 125 CL1251 3173
5 18 150 EXL-150 3321
6 16 150 EXL-150 3321
7 14 150 EXL-150 3321
8 12 150 EXL-150 3321
9 10 150 EXL-150 3321
10 18 200 SEW-1 3122
11 16 200 SEW-1 3122
12 12 250 3252
13 16 250 3252
14 20 150 EXL-150 3321
15 8 150 EXL-150 3321
WIRE GAUGE TEMP.C CSA UL
FIL CALIBRE
16 8 60
17 10 60
18 10 200 SEW-1 3122
19 20 125 SEW-1 3173
20 20 200 SEW-1 3122
21 22 125 CL-1252 3266
22 22 150 10109
CONNECTOR
CONNECTEUR
A
123
10
CONNECTOR
CONNECTEUR
B
123
654
987
11
12
11
12
10
15
13
14
318271927 REV:A
SHEET/FEUILLE:1/2
09/05 12
654
987
PLES389ECB Publication No: 5995449856
WIRING DIAGRAM
# Functional Parts
13 09/05
* Non-Illustrated Parts
