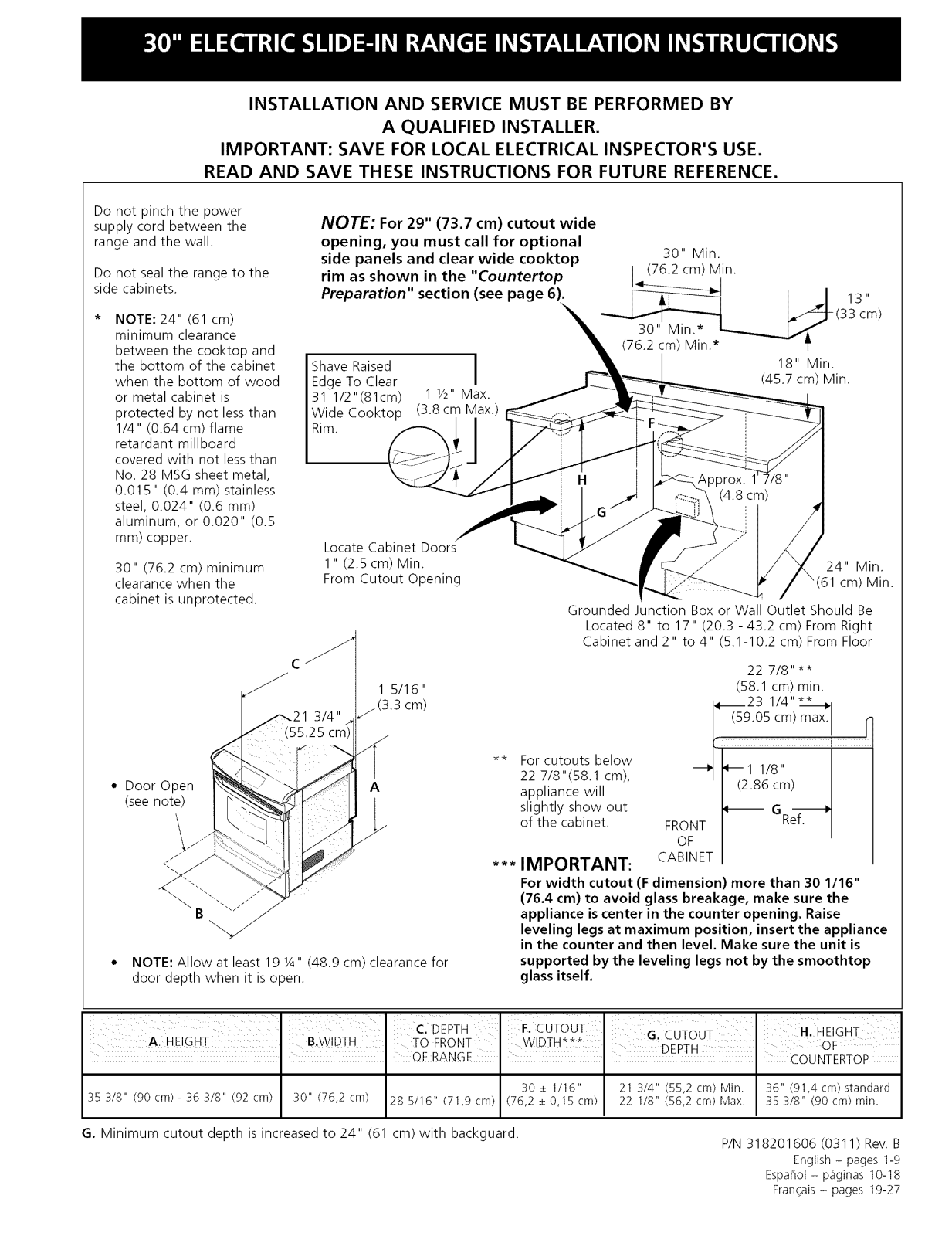

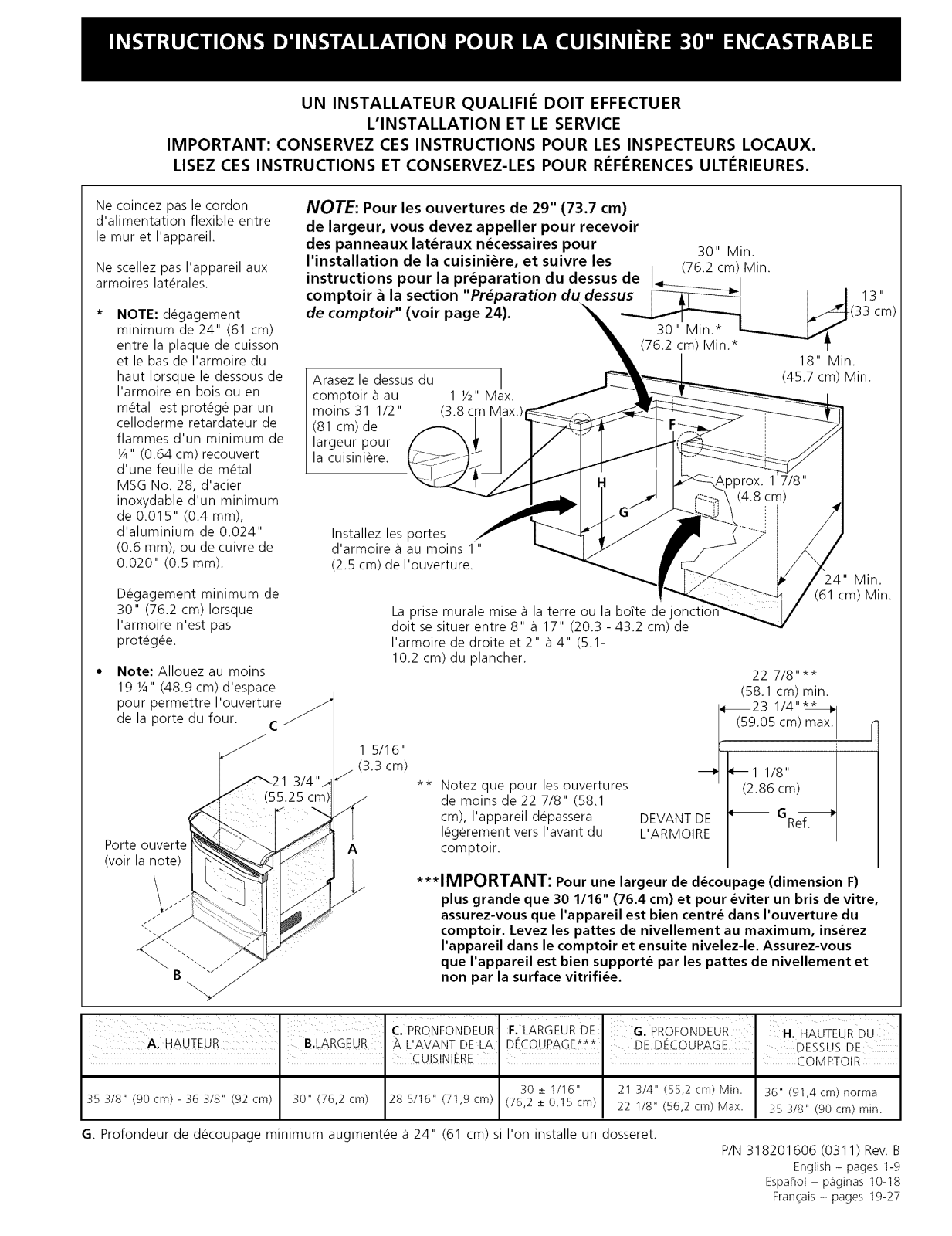

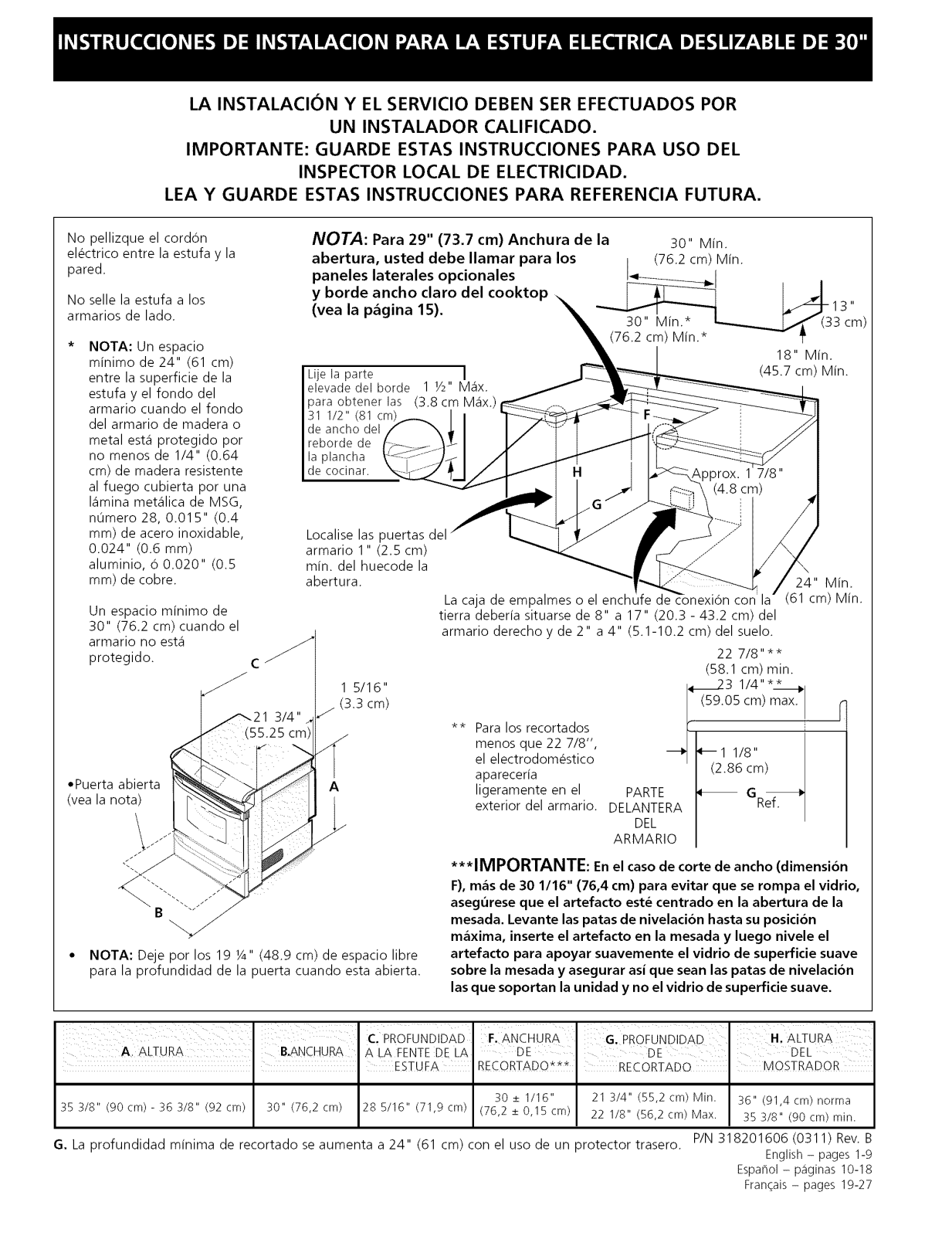

Frigidaire CFES367DB3, CFES367DC3, CFES367DC4, CFES367DQ3, CFES367DS3 Installation Guide

...

INSTALLATION AND SERVICE MUST BE PERFORMED BY

A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Do not pinch the power supply cord between the range and the wall.

Do not seal the range to the side cabinets.

NOTE: 24" (61 cm) minimum clearance

between the cooktop and

the bottom of the cabinet when the bottom of wood or metal cabinet is

protected by not less than 1/4" (0.64 cm) flame retardant millboard

covered with not less than

No. 28 MSG sheet metal,

0.015" (0.4 ram) stainless steel, 0.024" (0.6 ram) aluminum, or 0.020" (0.5

mm) copper.

30" (76.2 cm) minimum clearance when the

cabinet is unprotected.

NOTE: For 29" (73.7 cm) cutout wide

opening, you must call for optional side panels and clear wide cooktop , /_30" Min.

rim as shown in the "Countertop 1___.2 cm) Mlin.

Preparation" section (see page 6). _ / 13"

\ /33cm/

_, (76.2 cm) Min.* 'r

Shave Raised ___, I 18" Min. Edge To Clear I J_E_'_J_._..._ (45.7 cm) Min.

31 1/2"(81cm) 1 1/2" Max. / --L_-_........__ i

Wide Cooktop (3.8cm Max.) _ ......... _1___

Rim. _ ..... iF:...... i -

zG ----_L..jj i

Locate Cabinet Doors _ _'__iiiii_;:; /

l"(2.5cm) Min. __ T_ / ............... /_/ 24" Min.

From Cutout Opening _t___ / \(61 cm) Min.

Grounded Junction Box or Wall Outlet Should Be

Located 8" to 17" (20.3 - 43.2 cm) From Right

Cabinet and 2" to 4" (5.1-10.2 cm) From Floor

22 7/8" **

(58.1 cm) min.

_23 1/4" _

(59.05 cm) max. [-

_1 1/8"

(2.86 cm)

GR_

OoorOpen

(see note) _-e_

1 5/16"

cm)

For cutouts below 22 7/8"(58.1 cm),

appliance will slightly show out of the cabinet. FRONT

IMPORTANT: CABINET

For width cutout (F dimension) more than 30 1/16" (76.4 cm) to avoid glass breakage, make sure the

. J

• NOTE: Allow at least 19 ¼" (48.9 cm) clearance for door depth when it is open.

35 3/8" (90 crn) - 36 3/8" (92 crn) 30" (76,2 cm) 28 5/16" (71,9 crn) (76,2 _+0,15 crn) 22 1/8" (56,2 cm) Max. 35 3/8" (90 cm) rnin.

appliance is center in the counter opening, Raise leveling legs at maximum position, insert the appliance

in the counter and then level. Make sure the unit is supported by the leveling legs not by the smoothtop

glass itself.

H. HEIGHT

30 _+1/16" 21 3/4" (55,2 cm) Min. 36" (91,4 cm) standard

G. Minimum cutout depth is increased to 24" (61 cm) with backguard.

PIN 318201606 (0311) Rev. B

English - pages 1-9

Espahol - paginas 10-18

Fran_ais - pages 19-27

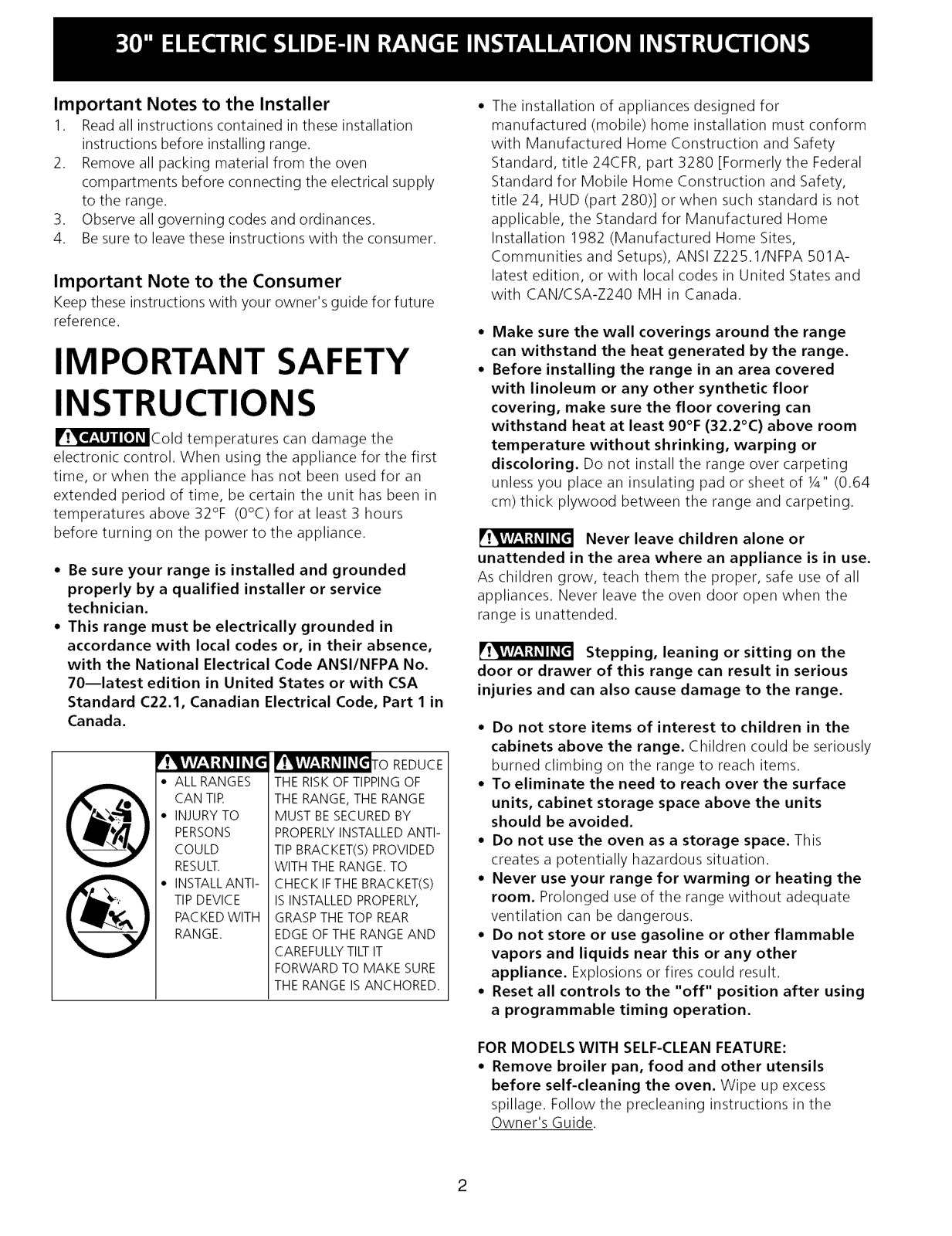

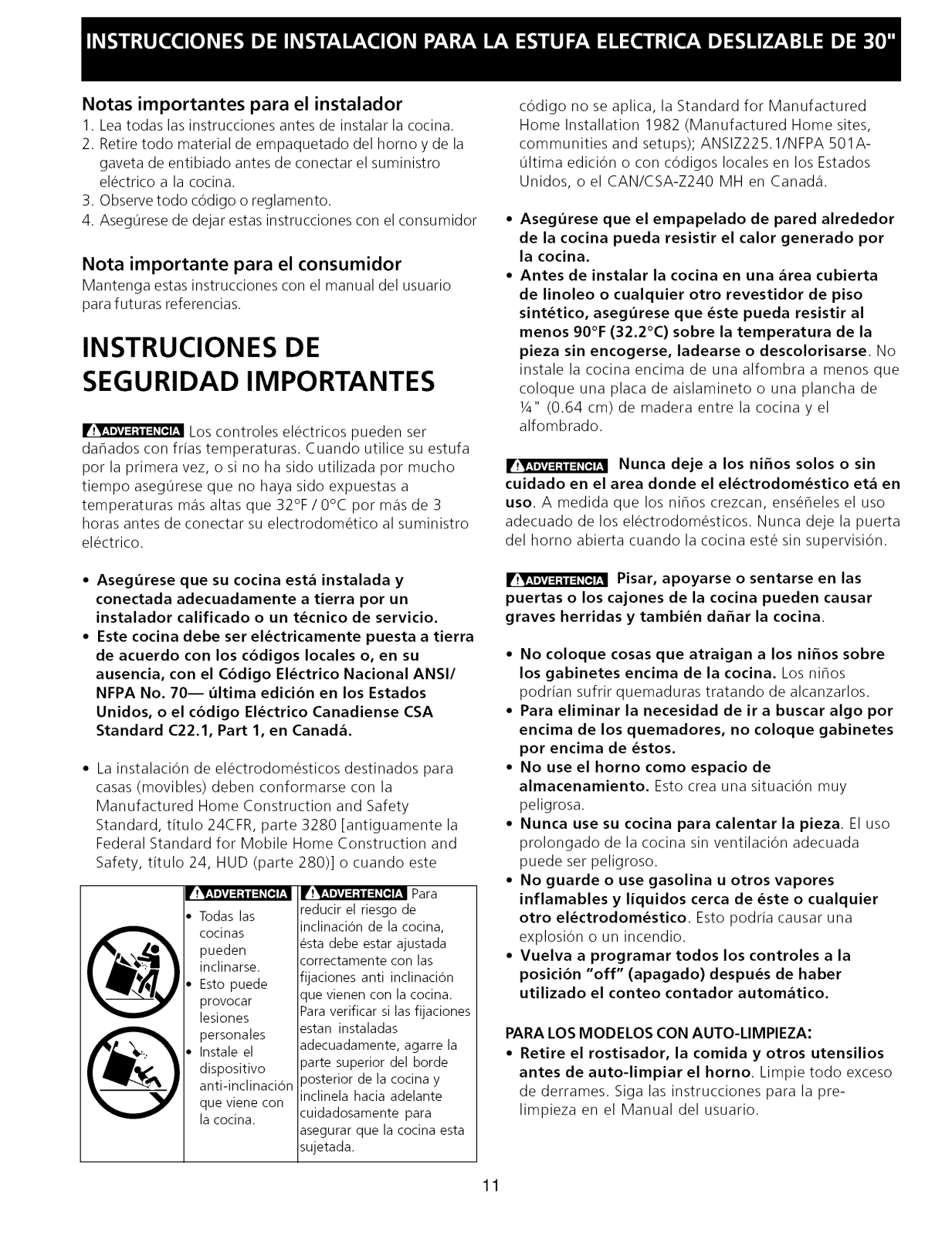

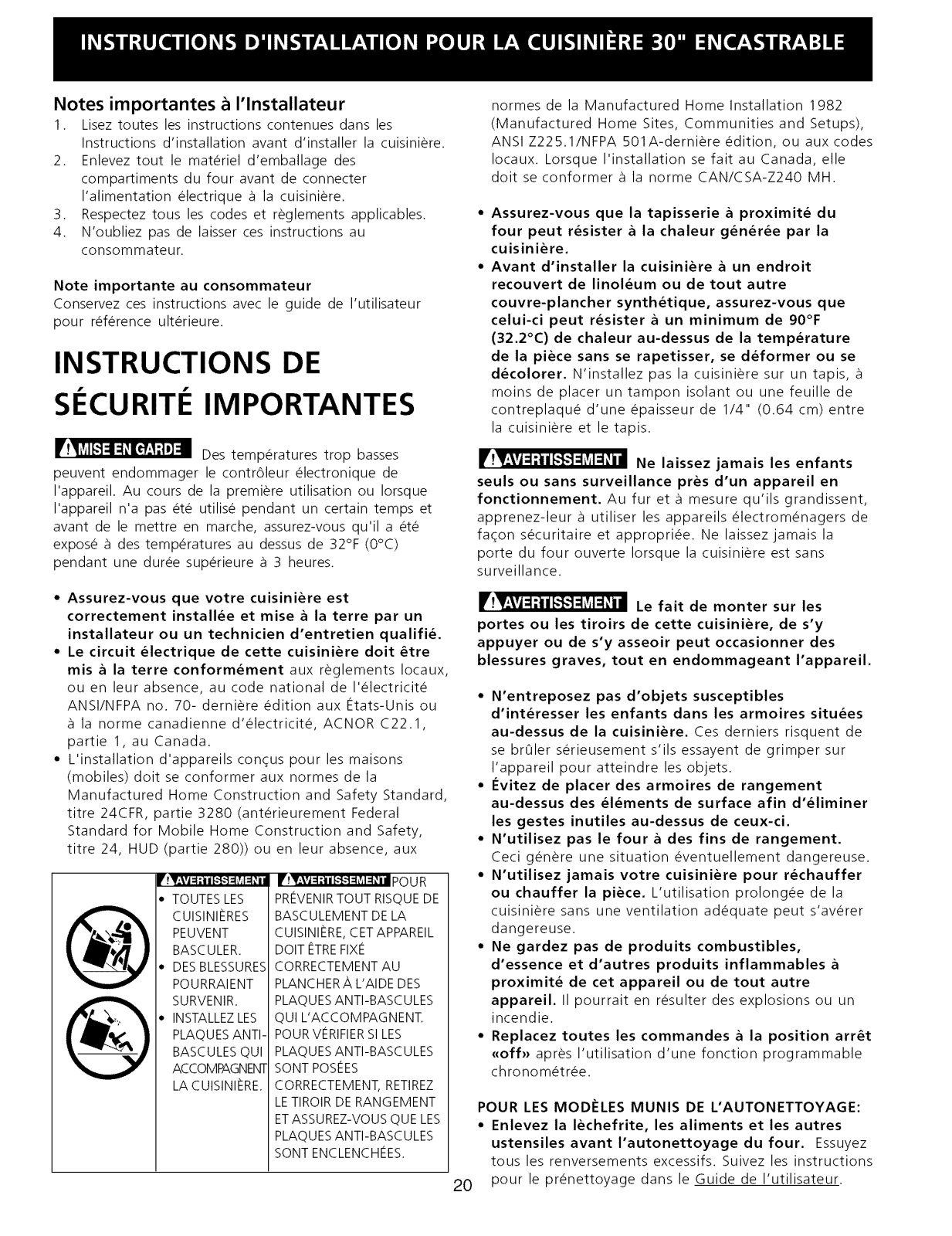

Important Notes to the Installer

1. Read all instructions contained in these installation instructions before installing range.

2. Remove all packing material from the oven compartments before connecting the electrical supply to the range.

3. Observe all governing codes and ordinances.

4. Be sure to leavethese instructions with the consumer.

Important Note to the Consumer Keep these instructions with your owner's guide for future

reference.

IMPORTANT SAFETY INSTRUCTIONS

[!__Cold temperatures can damage the

electronic control. When using the appliance for the first time, or when the appliance has not been used for an extended period of time, be certain the unit has been in temperatures above 32% (O°C)for at least 3 hours before turning on the power to the appliance.

• Be sure your range is installed and grounded

properly by a qualified installer or service technician.

• This range must be electrically grounded in

accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No.

70--latest edition in United States or with CSA Standard C22.1, Canadian Electrical Code, Part 1 in

Canada.

_'!VAVI-*I ;| _ II_[€11-O REDUCE

ALL RANGES CAN TIn

INJURY TO PERSONS

COULD

RESULT. INSTALL ANTI-

TIP DEVICE

PACKED WITH RANGE.

THE RISK OF TIPPING OF THE RANGE, THE RANGE

MUST BE SECURED BY PROPERLY INSTALLED ANTI-

TIP BRACKET(S) PROVIDED WITH THE RANGE. TO

CHECK IF THE BRACKET(S) IS INSTALLED PROPERLY,

GRASP THE TOP REAR EDGE OF THE RANGE AND CAREFULLY TILT IT

FORWARD TO MAKE SURE THE RANGE IS ANCHORED.

The installation of appliances designed for manufactured (mobile) home installation must conform with Manufactured Home Construction and Safety Standard, title 24CFR, part 3280 [Formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD (part 280)] or when such standard is not applicable, the Standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups), ANSI Z225.1/NFPA 501A- latest edition, or with local codes in United States and

with CAN/CSA-Z240 MH in Canada.

Make sure the wall coverings around the range

can withstand the heat generated by the range.

Before installing the range in an area covered with linoleum or any other synthetic floor covering, make sure the floor covering can withstand heat at least 90°F (32.2°C) above room temperature without shrinking, warping or discoloring. Do not install the range over carpeting unless you place an insulating pad or sheet of ¼" (0.64 cm) thick plywood between the range and carpeting.

Never leave children alone or unattended in the area where an appliance is in use. As children grow, teach them the proper, safe use of all appliances. Never leave the oven door open when the range is unattended.

Stepping, leaning or sitting on the door or drawer of this range can result in serious injuries and can also cause damage to the range.

• Do not store items of interest to children in the

cabinets above the range. Children could be seriously burned climbing on the range to reach items.

• To eliminate the need to reach over the surface

units, cabinet storage space above the units should be avoided.

• Do not use the oven as a storage space. This

creates a potentially hazardous situation.

• Never use your range for warming or heating the

room. Prolonged use of the range without adequate ventilation can be dangerous.

• Do not store or use gasoline or other flammable

vapors and liquids near this or any other appliance. Explosions or fires could result.

• Reset all controls to the "off" position after using

a programmable timing operation.

FOR MODELS WITH SELF-CLEAN FEATURE:

• Remove broiler pan, food and other utensils

before self-cleaning the oven. Wipe up excess spillage. Follow the precleaning instructions in the

Owner's Guide.

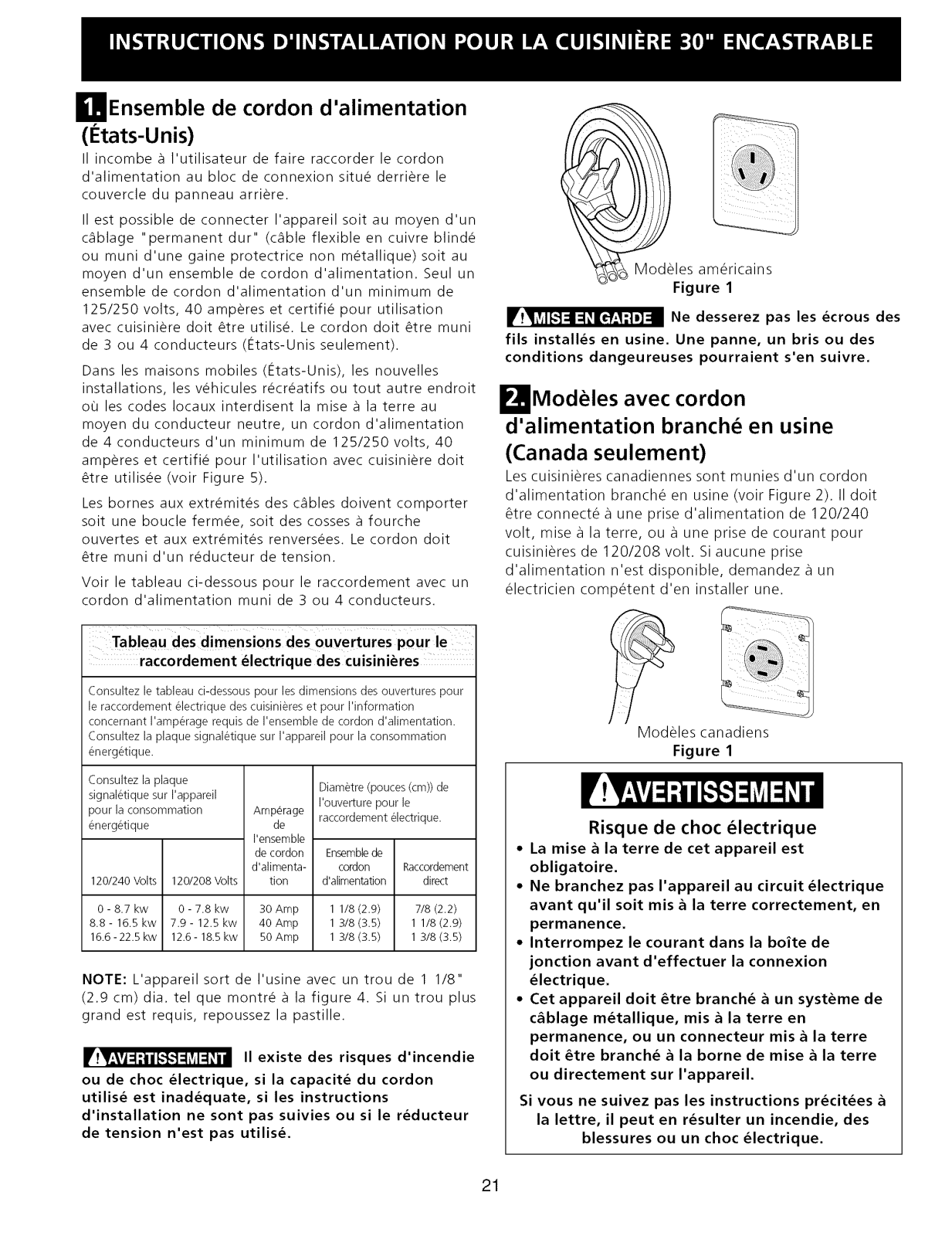

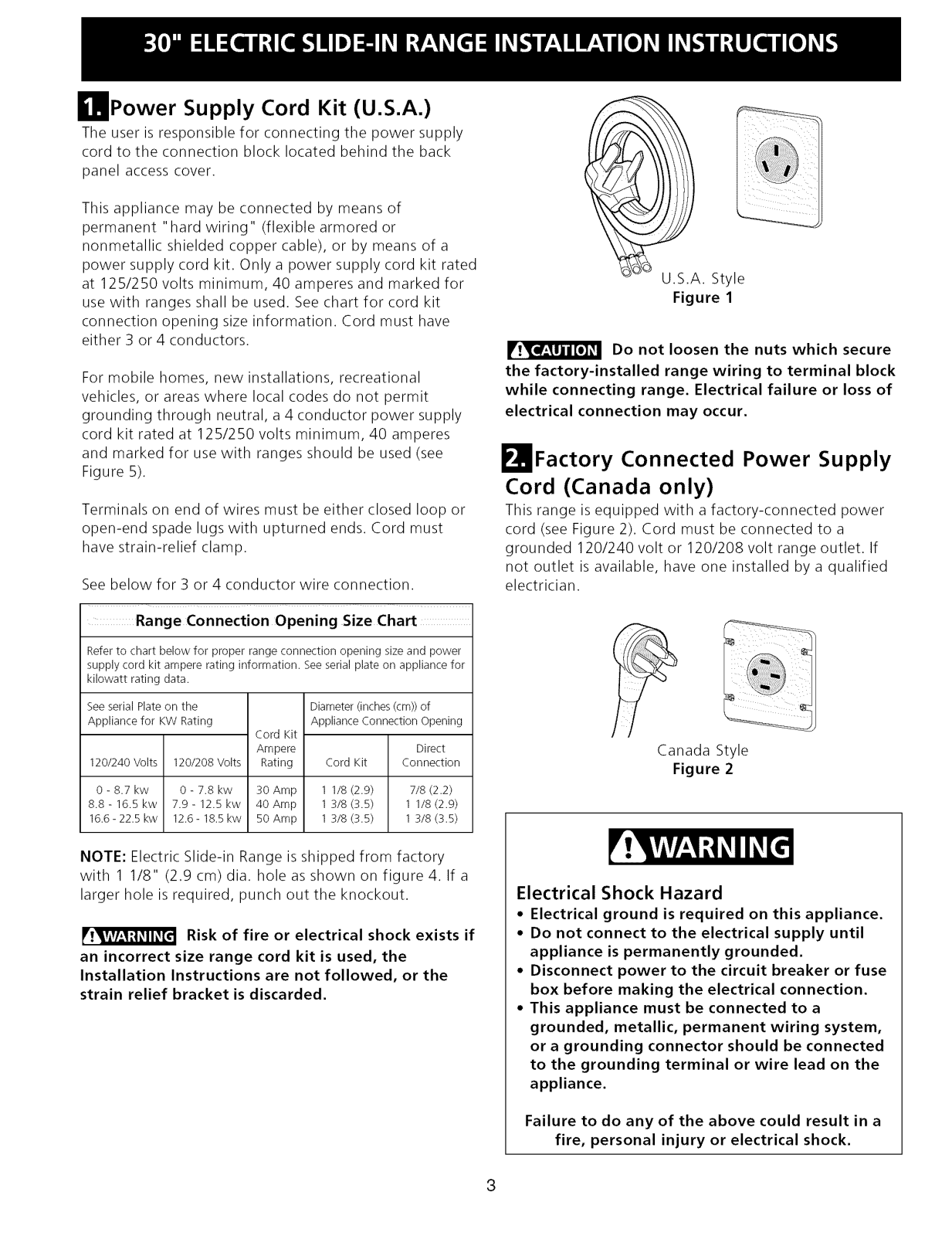

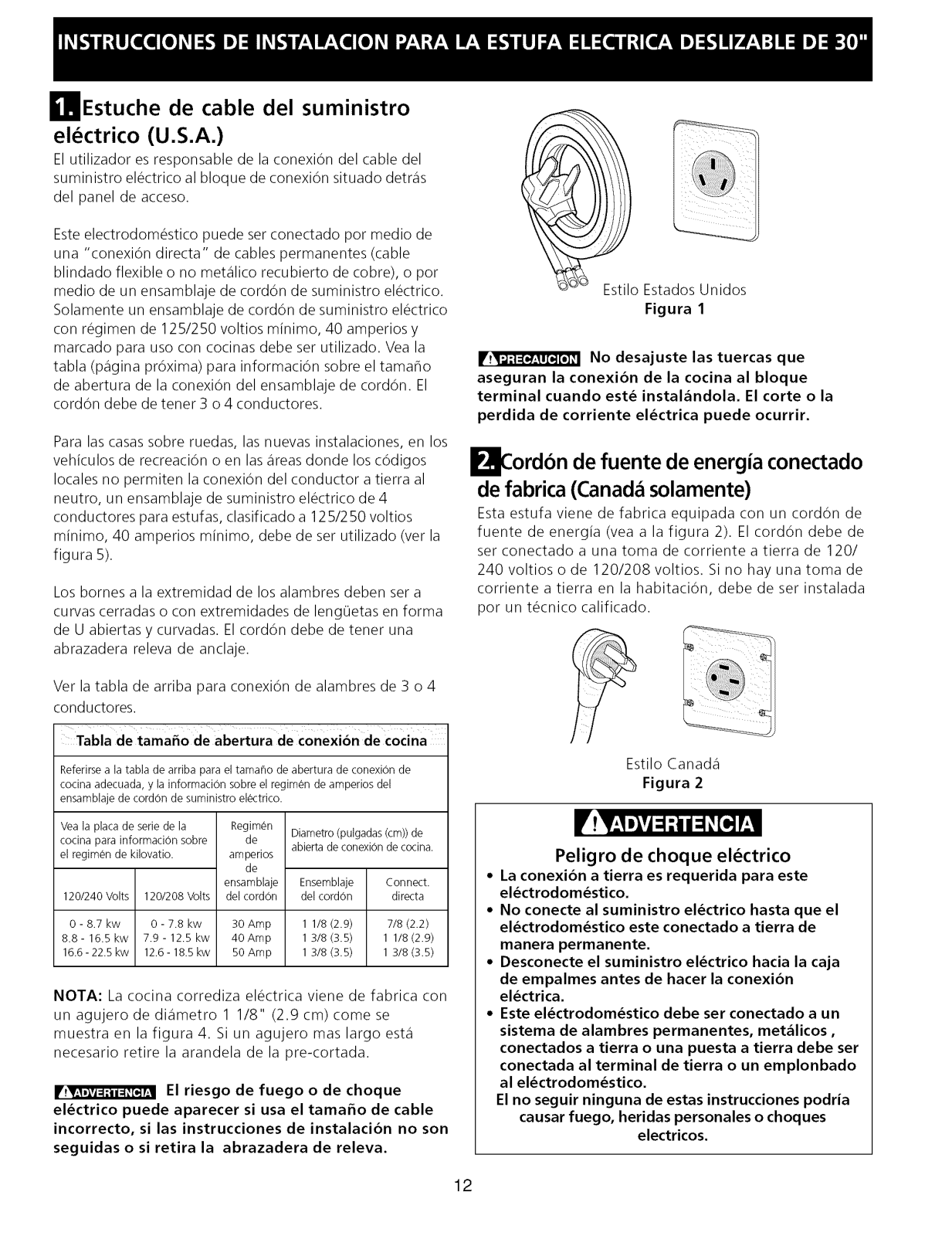

Power Supply Cord Kit (U.S.A.)

The user is responsible for connecting the power supply cord to the connection block located behind the back

panel access cover•

This appliance may be connected by means of permanent "hard wiring" (flexible armored or

nonmetallic shielded copper cable), or by means of a power supply cord kit. Only a power supply cord kit rated

at 125/250 volts minimum, 40 amperes and marked for use with ranges shall be used. See chart for cord kit

connection opening size information• Cord must have either 3 or 4 conductors•

For mobile homes, new installations, recreational vehicles, or areas where local codes do not permit

grounding through neutral, a 4 conductor power supply cord kit rated at 125/250 volts minimum, 40 amperes

and marked for use with ranges should be used (see Figure 5).

Terminals on end of wires must be either closed loop or open-end spade lugs with upturned ends. Cord must

have strain-relief clamp•

See below for 3 or 4 conductor wire connection•

• . . Style

Figure 1

Do not loosen the nuts which secure

the factory-installed range wiring to terminal block while connecting range. Electrical failure or loss of

electrical connection may occur.

F Factory Connected Power Supply

Cord (Canada only)

This range is equipped with a factory-connected power cord (see Figure 2). Cord must be connected to a grounded 120/240 volt or 120/208 volt range outlet. If not outlet is available, have one installed by a qualified

electrician•

Range Connection Opening Size Chart

Refer to chart below for proper range connection opening size and power supply cord kit ampere rating information. Seeserial plate on appliance for kilowatt rating data.

See serial Plate on the

Appliance for KW Rating

120/240 Volts 120/208 Volts

0 - 8.7 kw 0 - 7.8 kw

8.8-16.5kw 7.9-12.5kw

16.6- 22.5 kw 12.6- 18.5 kw

Cord Kit Ampere

Rating

30 Amp 40 Amp 50 Amp

Diameter (inches (cm)) of Appliance Connection Opening

Direct

Cord Kit Connection

1 1/8 (2.9) 7/8 (2.2) 1 3/8 (3.5) 1 1/8 (2.9) 1 3/8 (3.5) 13/8 (3.5)

NOTE: Electric Slide-in Range is shipped from factory with 1 1/8" (2.9 cm) dia. hole as shown on figure 4. If a larger hole is required, punch out the knockout.

Risk of fire or electrical shock exists if

an incorrect size range cord kit is used, the Installation Instructions are not followed, or the

strain relief bracket is discarded.

Canada Style

Figure 2

Electrical Shock Hazard

• Electrical ground is required on this appliance.

• Do not connect to the electrical supply until appliance is permanently grounded.

• Disconnect power to the circuit breaker or fuse box before making the electrical connection.

• This appliance must be connected to a grounded, metallic, permanent wiring system, or a grounding connector should be connected to the grounding terminal or wire lead on the appliance.

Failure to do any of the above could result in a

fire, personal injury or electrical shock.

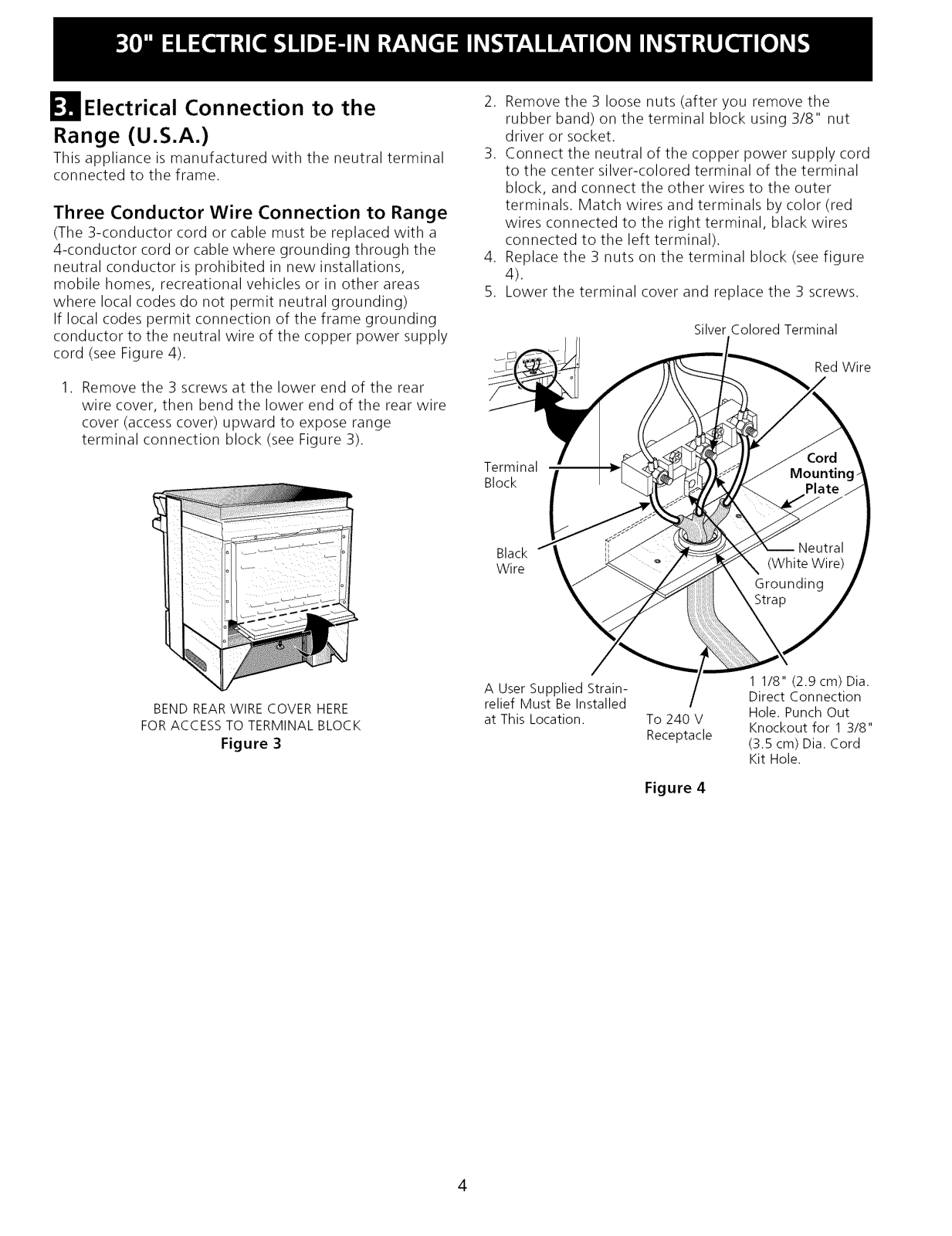

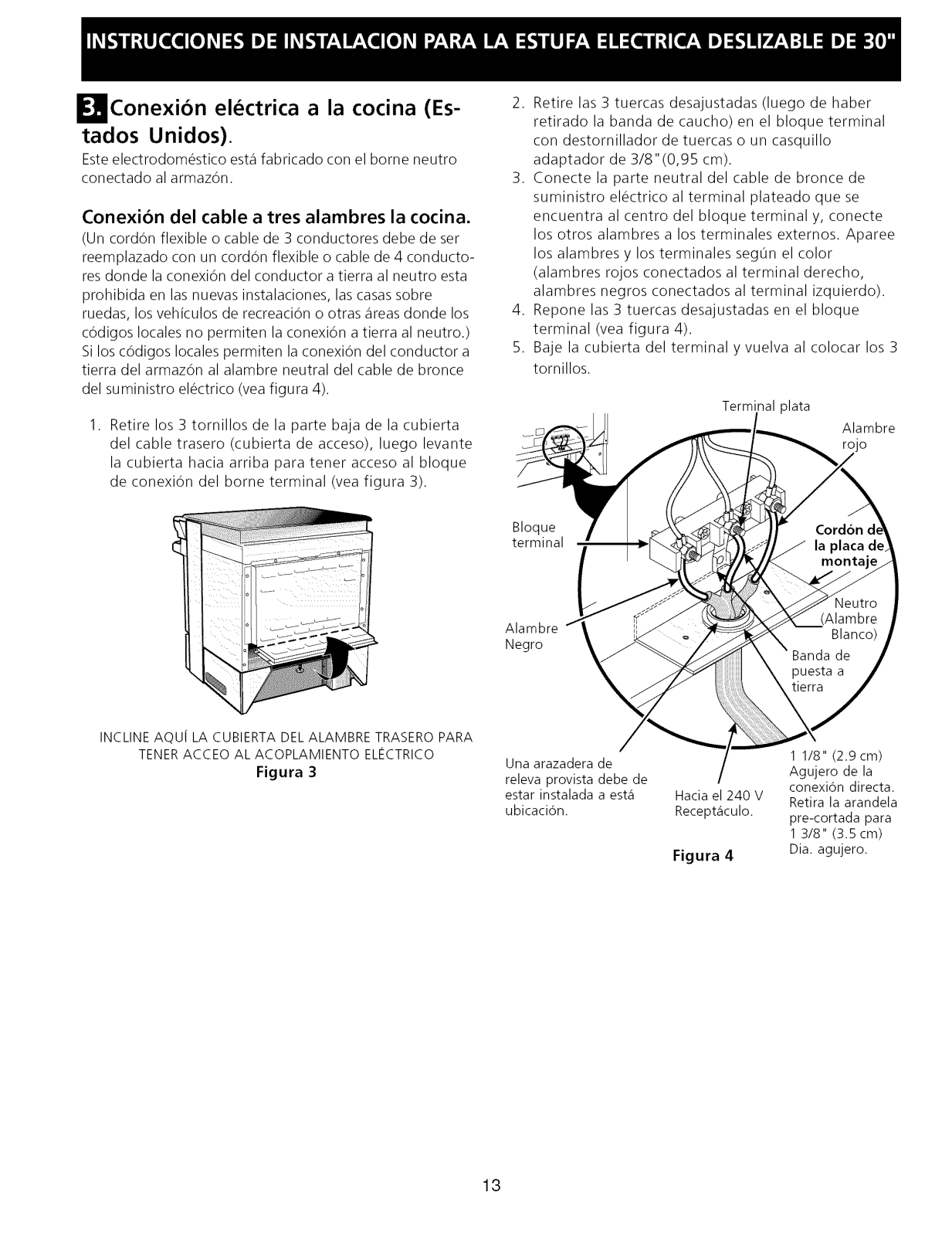

I Electrical Connection to the

Range (U.S.A.)

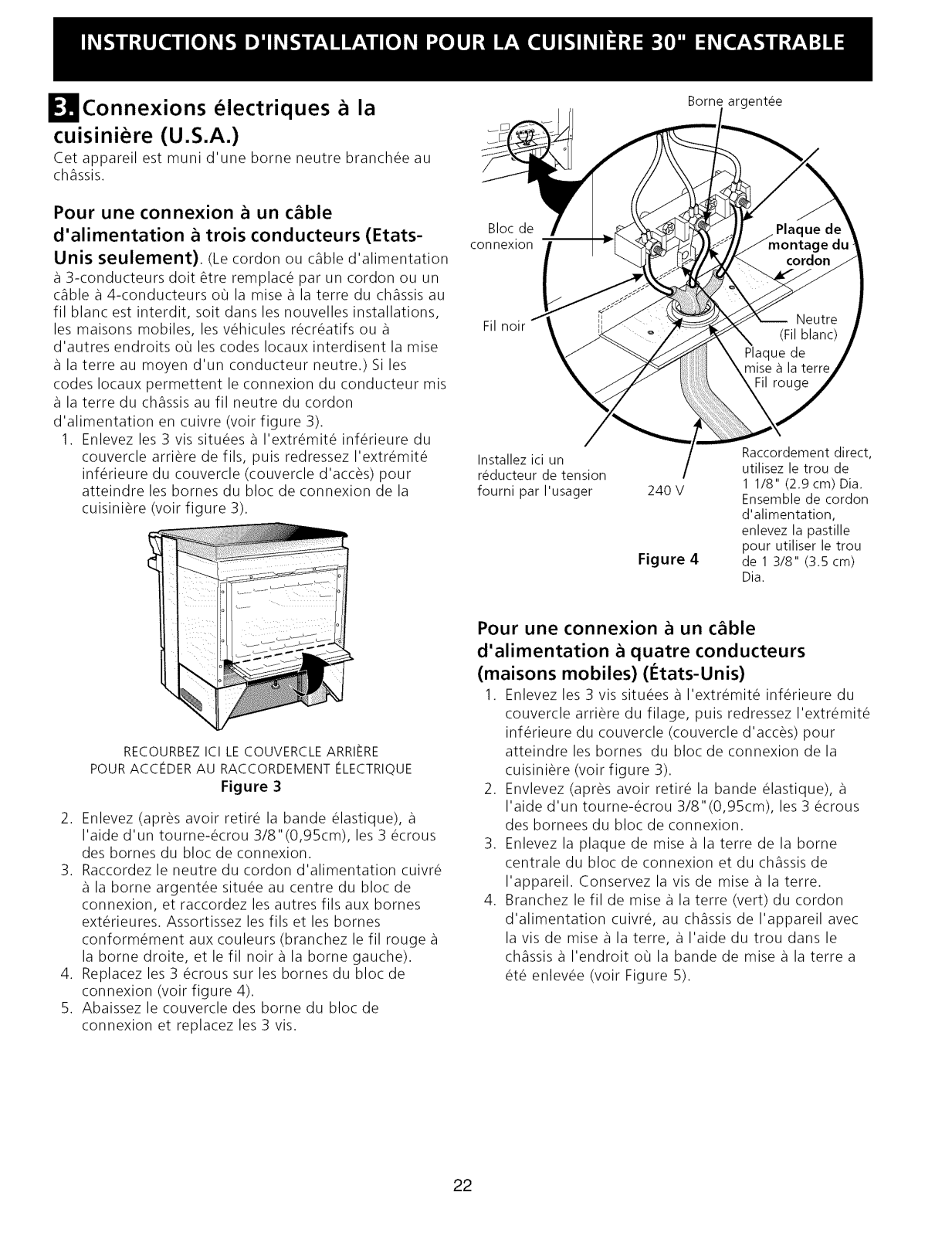

This appliance is manufactured with the neutral terminal connected to the frame.

Three Conductor Wire Connection to Range

(The 3-conductor cord or cable must be replaced with a 4-conductor cord or cable where grounding through the neutral conductor is prohibited in new installations,

mobile homes, recreational vehicles or in other areas where local codes do not permit neutral grounding)

If local codes permit connection of the frame grounding conductor to the neutral wire of the copper power supply cord (see Figure 4).

Remove the 3 screws at the lower end of the rear wire cover, then bend the lower end of the rear wire cover (access cover) upward to expose range

terminal connection block (see Figure 3).

2. Remove the 3 loose nuts (after you remove the rubber band) on the terminal block using 3/8" nut

driver or socket.

3. Connect the neutral of the copper power supply cord to the center silver-colored terminal of the terminal

block, and connect the other wires to the outer terminals. Match wires and terminals by color (red

wires connected to the right terminal, black wires connected to the left terminal).

4. Replace the 3 nuts on the terminal block (see figure

4).

5. Lower the terminal cover and replace the 3 screws.

Silver Colored Terminal

Red Wire

Terminal

Block

Black

Wire

BEND REAR WIRE COVER HERE

FOR ACCESS TO TERMINAL BLOCK

Figure 3

A User Supplied Strain-

relief Must Be Installed at This Location.

To 240 V Receptacle

Figure 4

1 1/8" (2.9 cm) Dia.

Direct Connection Hole. Punch Out

Knockout for 1 3/8"

(3.5 cm) Dia. Cord

Kit Hole.

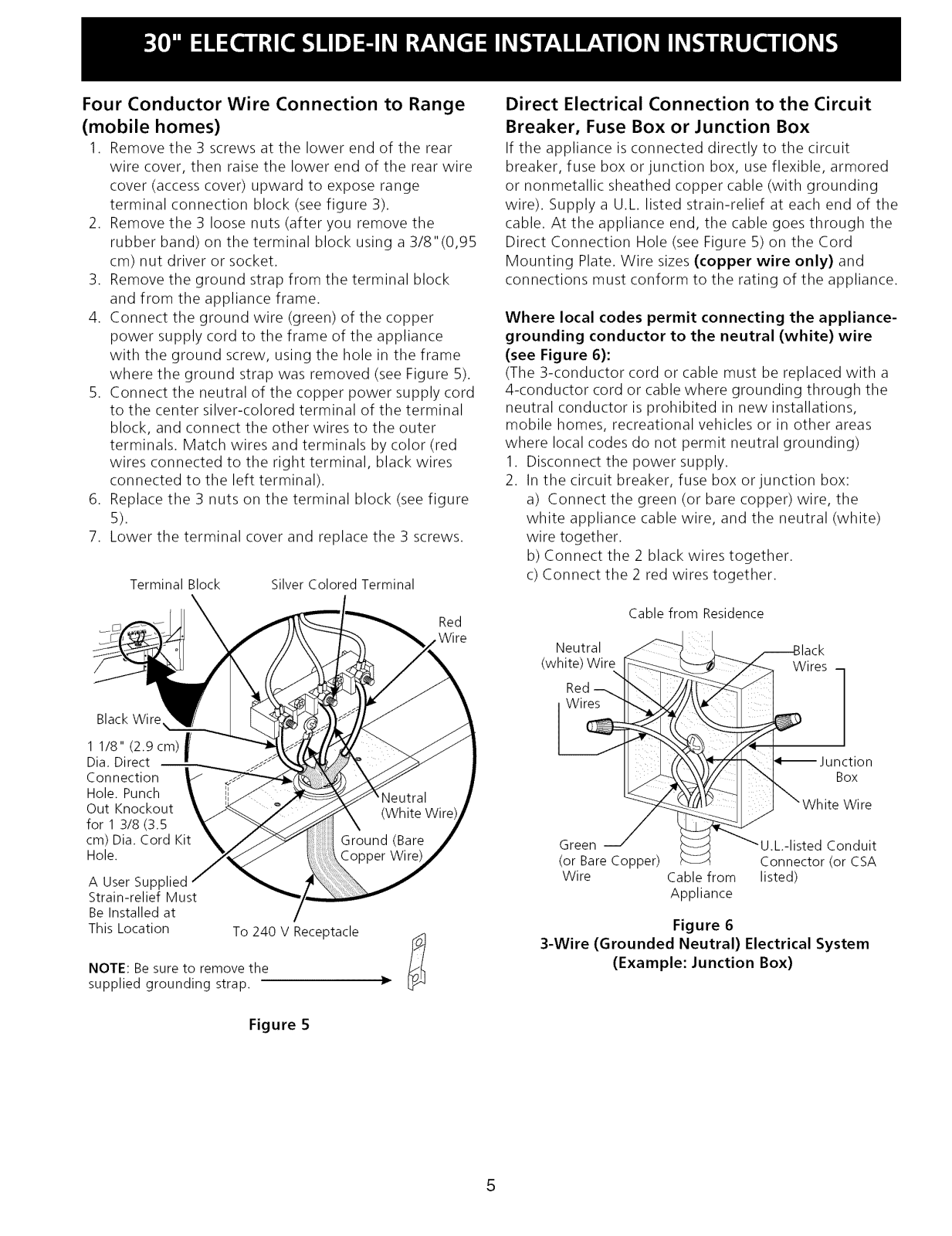

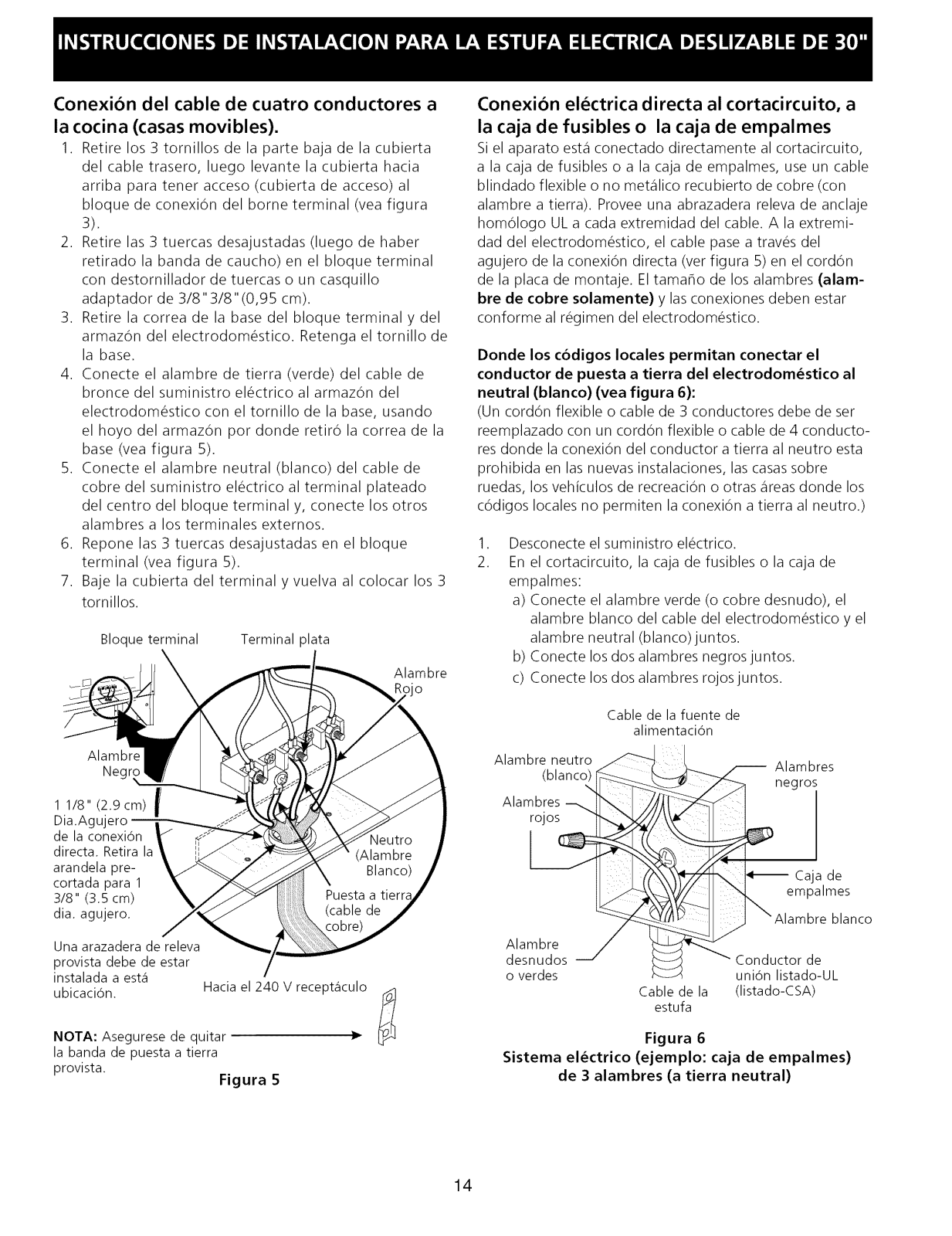

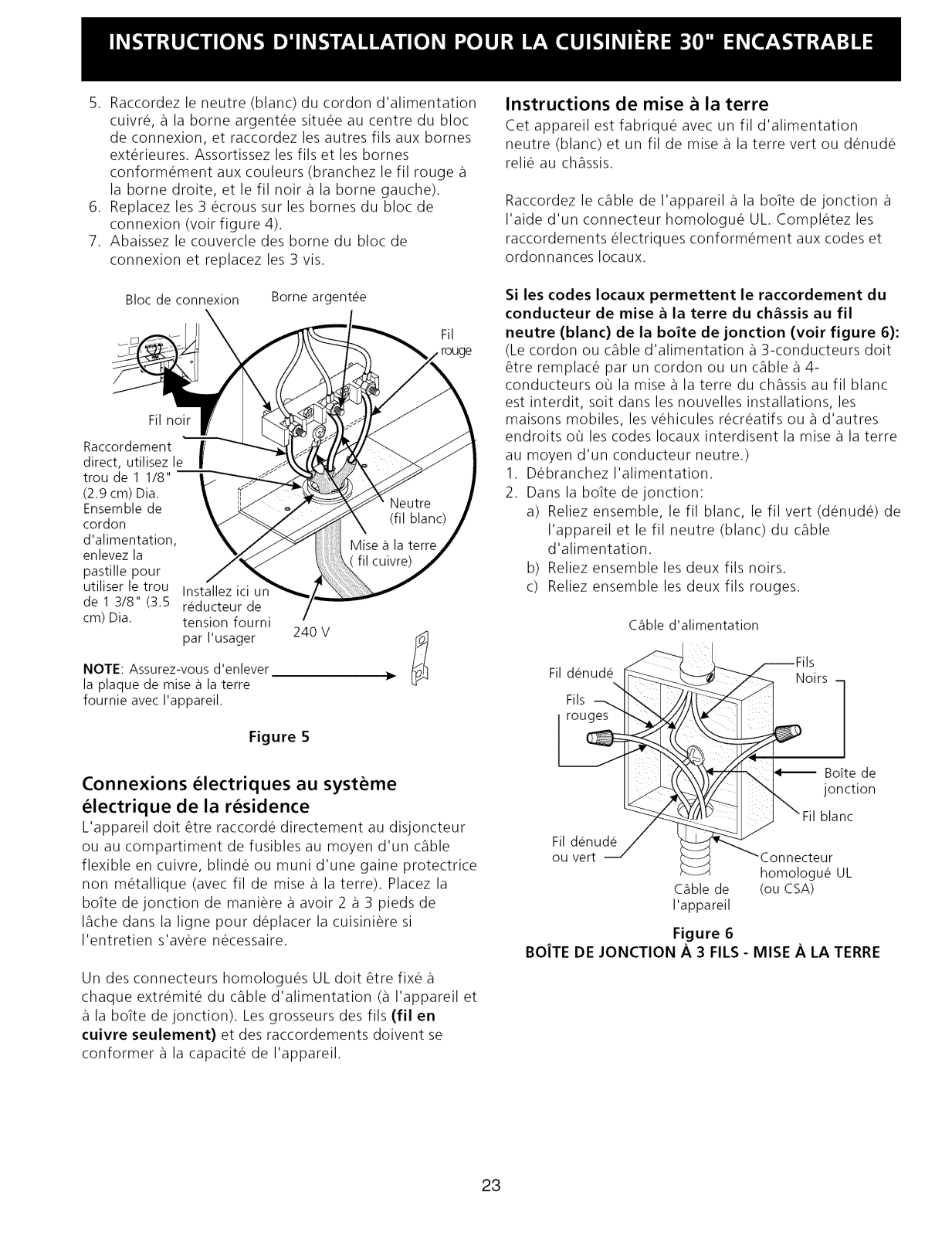

Four Conductor Wire Connection to Range

(mobile homes)

1. Remove the 3 screws at the lower end of the rear wire cover, then raise the lower end of the rear wire

cover (access cover) upward to expose range terminal connection block (see figure 3).

2. Remove the 3 loose nuts (after you remove the rubber band) on the terminal block using a 3/8"(0,95 cm) nut driver or socket.

3. Remove the ground strap from the terminal block and from the appliance frame.

4. Connect the ground wire (green) of the copper power supply cord to the frame of the appliance with the ground screw, using the hole in the frame where the ground strap was removed (see Figure 5).

5. Connect the neutral of the copper power supply cord to the center silver-colored terminal of the terminal

block, and connect the other wires to the outer terminals. Match wires and terminals by color (red wires connected to the right terminal, black wires

connected to the left terminal).

6. Replace the 3 nuts on the terminal block (see figure

5).

7. Lower the terminal cover and replace the 3 screws.

Terminal Block Silver Colored Terminal

Direct Electrical Connection to the Circuit Breaker, Fuse Box or Junction Box

If the appliance is connected directly to the circuit breaker, fuse box or junction box, use flexible, armored or nonmetallic sheathed copper cable (with grounding wire). Supply a U.L listed strain-relief at each end of the cable. At the appliance end, the cable goes through the Direct Connection Hole (see Figure 5) on the Cord Mounting Plate. Wire sizes (copper wire only) and connections must conform to the rating of the appliance.

Where local codes permit connecting the appliance- grounding conductor to the neutral (white) wire (see Figure 6):

(The 3-conductor cord or cable must be replaced with a 4-conductor cord or cable where grounding through the neutral conductor is prohibited in new installations, mobile homes, recreational vehicles or in other areas

where local codes do not permit neutral grounding)

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box: a) Connect the green (or bare copper) wire, the

white appliance cable wire, and the neutral (white) wire together.

b) Connect the 2 black wires together. c) Connect the 2 red wires together.

Black Wire

1 1/8" (2.9 cm) I Dia. Direct Connection Hole. Punch

Out Knockout for 1 3/8 (3.5

cm) Dia. Cord Kit Hole.

A User Supplied

Strain-relief Must Be Installed at

This Location

NOTE: Besure to remove the

supplied grounding strap.

To 240 V Receptacle

Figure S

Red

,Wire

Cable from Residence

Neutral

(white) Wire

Wires

Red

Box

Wi re

Green (or Bare Copper) Connector (or CSA

Wire Cable from listed)

Appliance

Figure 6

3-Wire (Grounded Neutral) Electrical System

(Example: Junction Box)

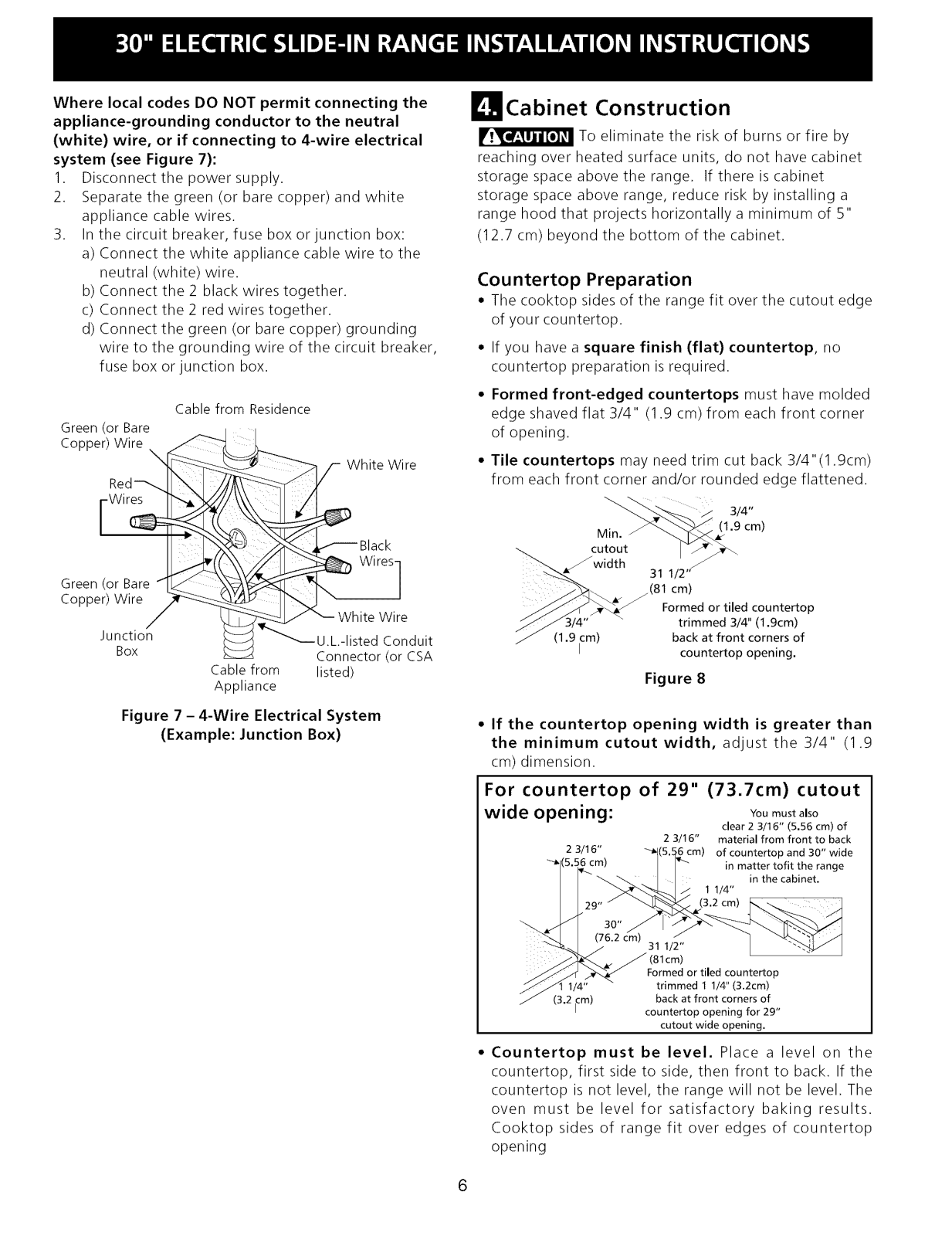

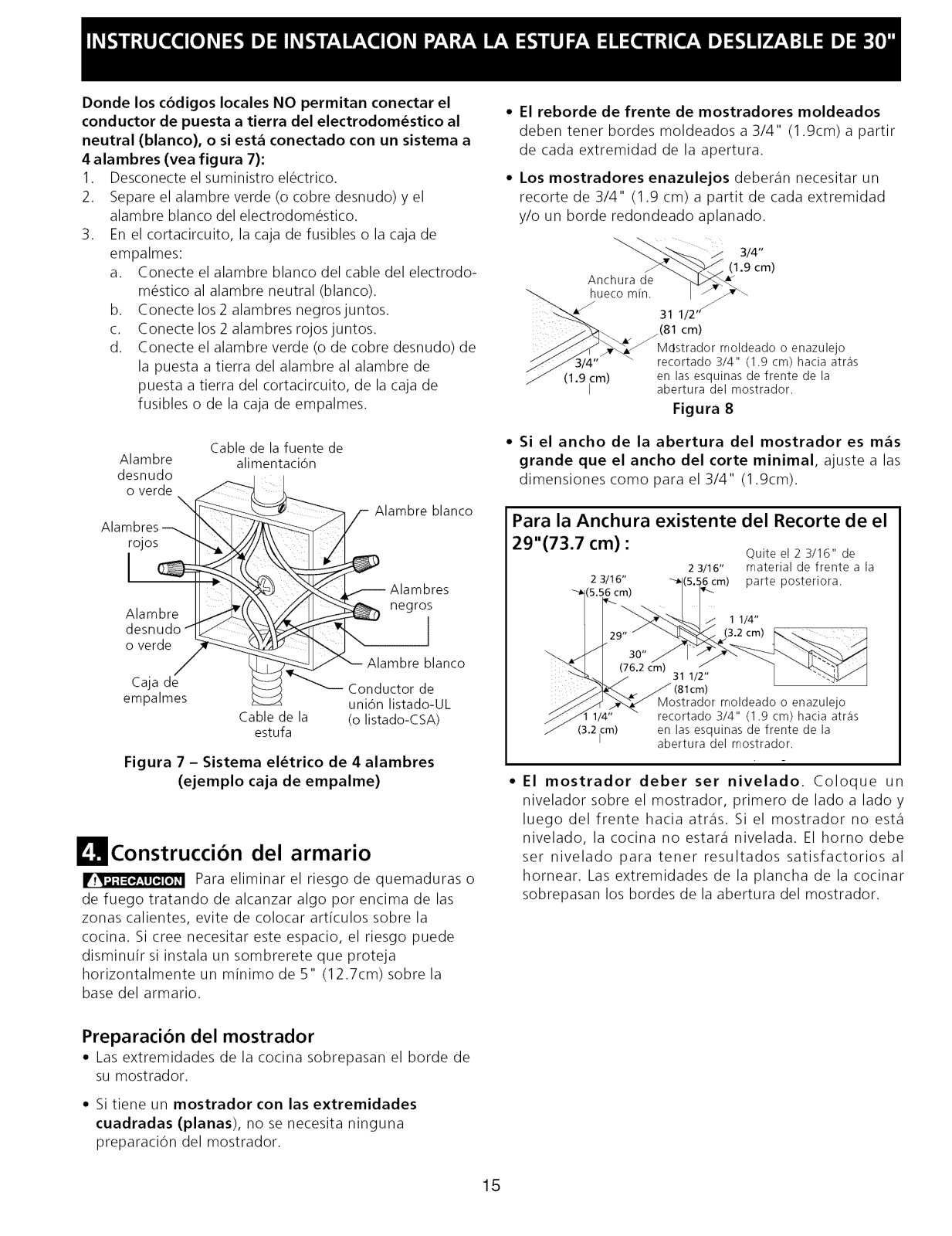

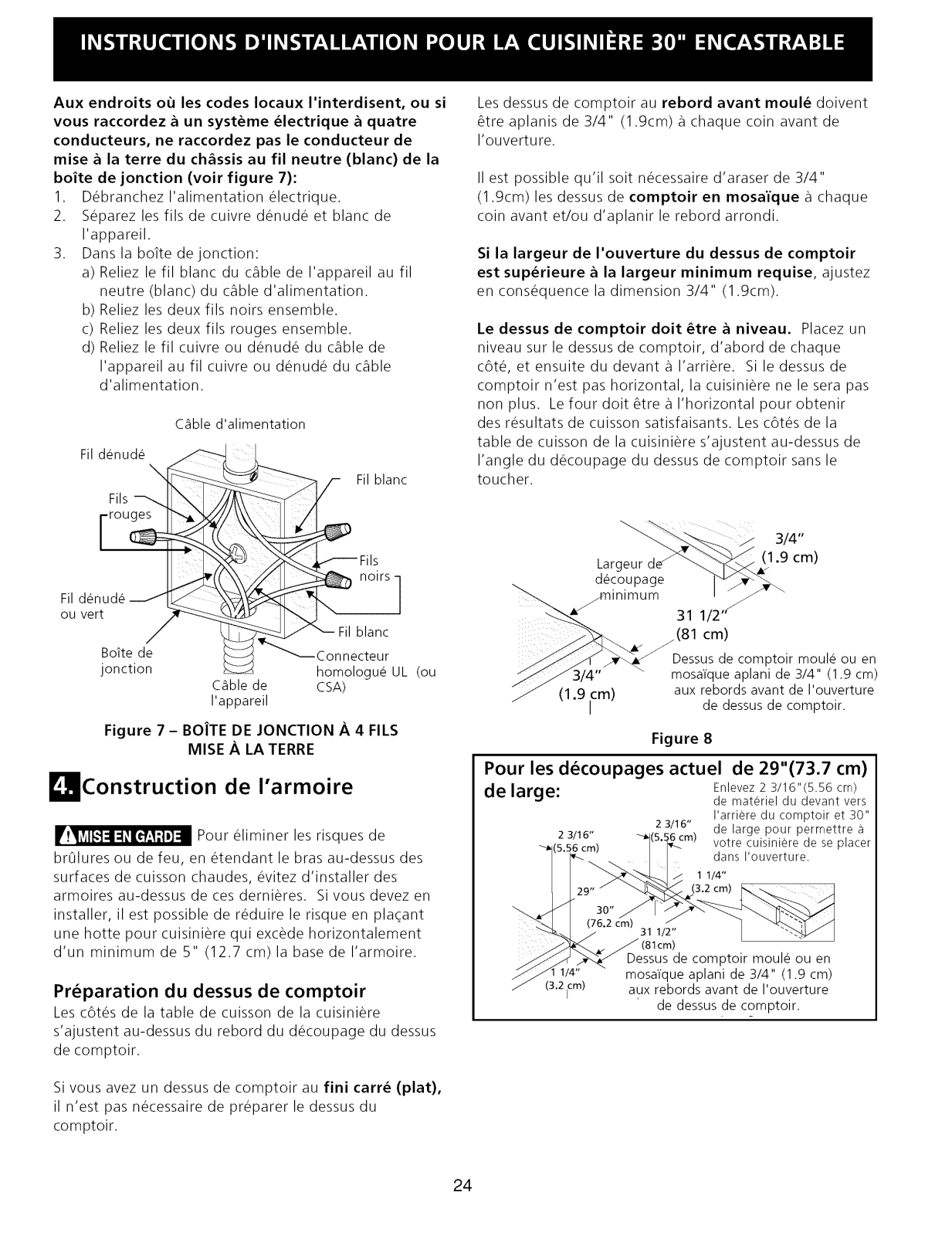

Where local codes DO NOT permit connecting the appliance-grounding conductor to the neutral (white) wire, or if connecting to 4-wire electrical system (see Figure 7):

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white appliance cable wires.

3. In the circuit breaker, fuse box or junction box: a) Connect the white appliance cable wire to the

neutral (white) wire. b) Connect the 2 black wires together. c) Connect the 2 red wires together. d) Connect the green (or bare copper) grounding

wire to the grounding wire of the circuit breaker, fuse box or junction box.

Cabinet Construction

To eliminate the risk of burns or fire by

reaching over heated surface units, do not have cabinet storage space above the range. If there is cabinet storage space above range, reduce risk by installing a range hood that projects horizontally a minimum of 5"

(12.7 cm) beyond the bottom of the cabinet.

Countertop Preparation

• The cooktop sides of the range fit over the cutout edge of your countertop.

° If you have a square finish (flat) countertop, no

countertop preparation is required.

Cable from Residence

Green (or Bare Copper) Wire

Wires

Green(or Bare Copper)Wire

Junction U.L.-listed Conduit

Box Connector (or CSA

Cable from listed)

Appliance

Figure 7 - 4-Wire Electrical System

(Example: Junction Box)

White Wire

° Formed front-edged countertops must have molded

edge shaved flat 3/4" (1.9 cm) from each front corner of opening.

° Tile countertops may need trim cut back 3/4"(1.9cm)

from each front corner and/or rounded edge flattened.

3/4"

Min,

cutout

_width 31 1/2'_

(1.9cm)

_(81cm)

-_'/ Formed or tiled countertop

trimmed 3/4" (1.9cm)

(1.9 icm) back at front corners of

countertop opening.

Figure 8

° If the countertop opening width is greater than

the minimum cutout width, adjust the 3/4" (1.9 cm) dimension.

For countertop of 29" (73.7cm) cutout

wide opening: ¥o.mu_talso

2 3/16" material from front to back

2 3/16" cm) of countertop and 30" wide

cm) in matter tofit the range

clear 2 3/16" (5.56 cm) of

in the cabinet.

1 1/4"

(3,2 cm)

31 1/2"

Formed or tiled countertop

trimmed 1 I/4" (3.2cm)

(3.2 icm)

back at front corners of

countertop opening for 29"

cutout wide opening.

• Countertop must be level. Place a level on the countertop, first side to side, then front to back. If the

countertop is not level, the range will not be level. The oven must be level for satisfactory baking results.

Cooktop sides of range fit over edges of countertop opening

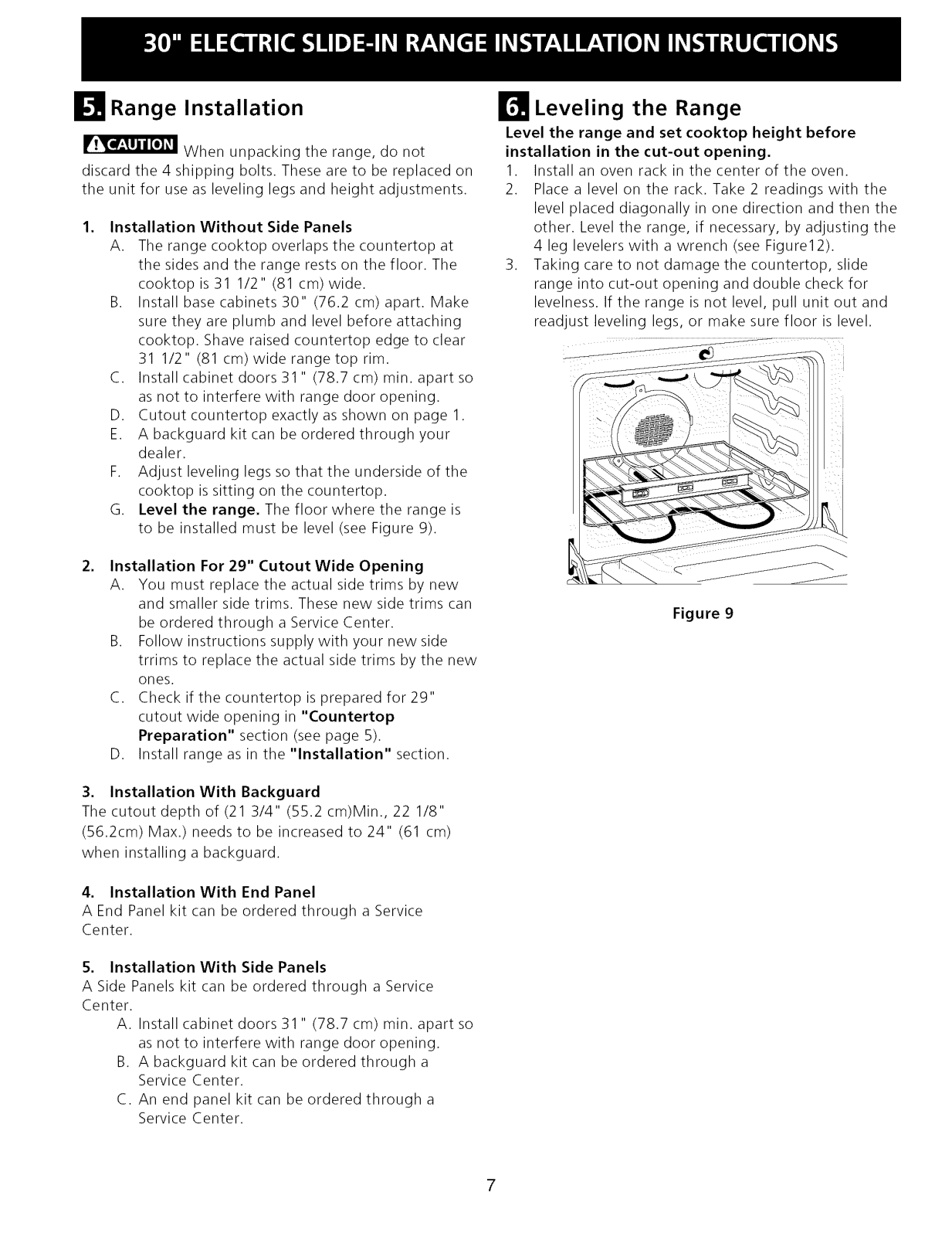

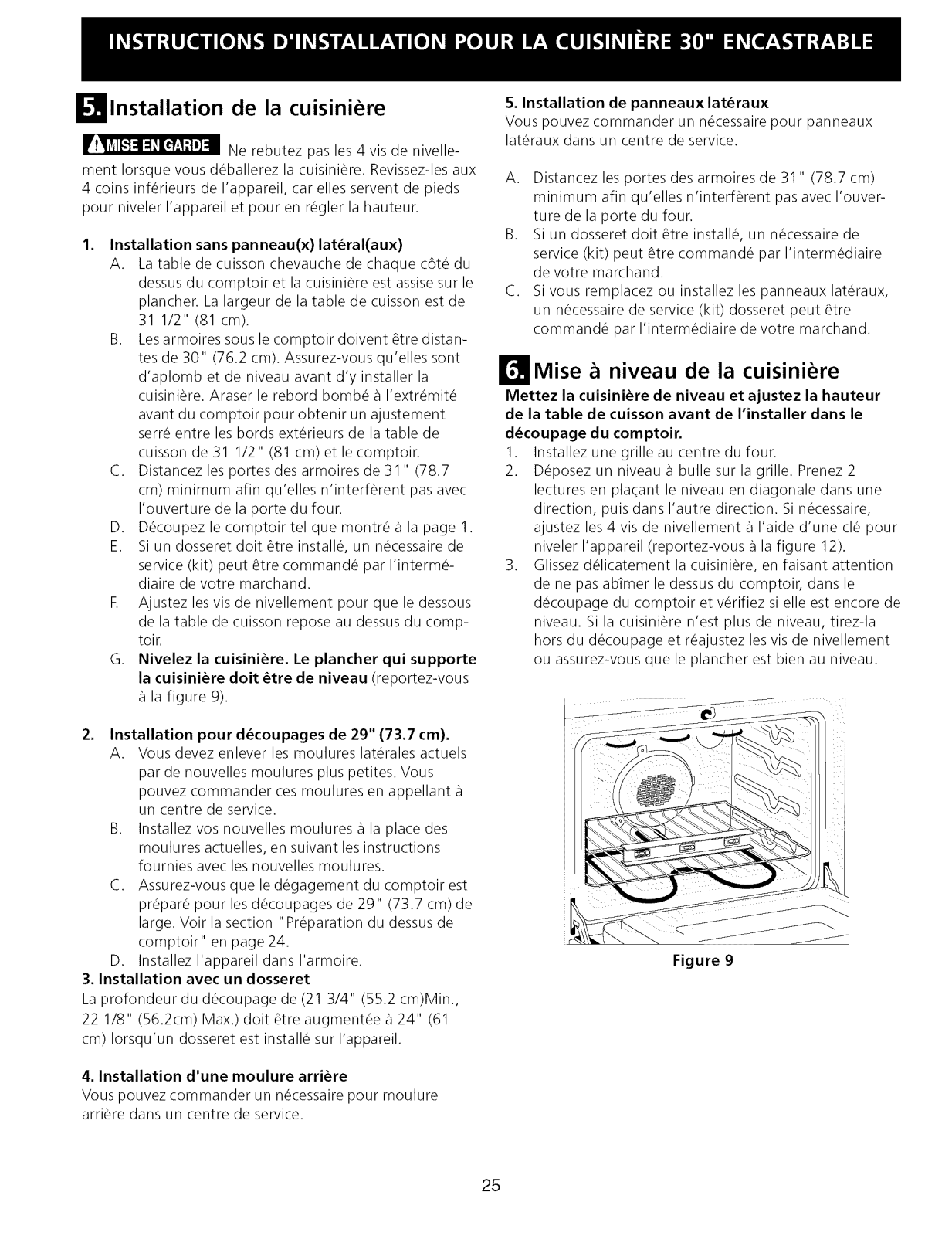

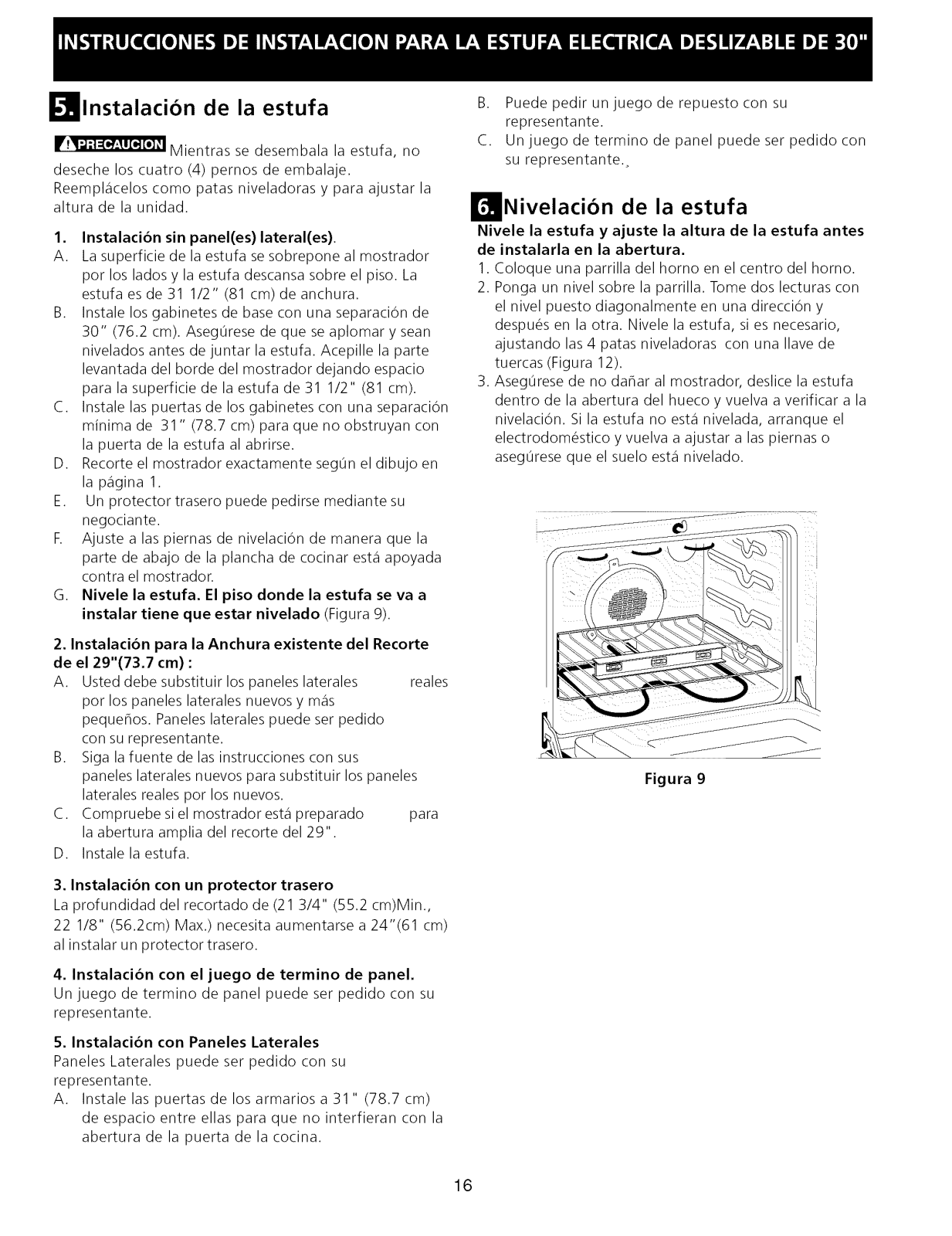

Range Installation

When unpacking the range, do not

discard the 4 shipping bolts. These are to be replaced on the unit for use as leveling legs and height adjustments.

Installation Without Side Panels A. The range cooktop overlaps the countertop at

the sides and the range rests on the floor. The cooktop is 31 1/2" (81 cm) wide.

B. Install base cabinets 30" (76.2 cm) apart. Make

sure they are plumb and level before attaching cooktop. Shave raised countertop edge to clear

31 1/2" (81 cm) wide range top rim.

C. Install cabinet doors 31 " (78.7 cm) min. apart so

as not to interfere with range door opening.

D. Cutout countertop exactly as shown on page 1. E. A backguard kit can be ordered through your

dealer.

F. Adjust leveling legs so that the underside of the

cooktop issitting on the countertop.

G. Level the range. The floor where the range is

to be installed must be level (see Figure 9).

Installation For 29" Cutout Wide Opening A. You must replace the actual side trims by new

and smaller side trims. These new side trims can be ordered through a Service Center.

B. Follow instructions supply with your new side

trrims to replace the actual side trims by the new ones.

C. Check if the countertop is prepared for 29"

cutout wide opening in "Countertop Preparation" section (see page 5).

D. install range as in the "Installation" section.

Leveling the Range

Level the range and set cooktop height before installation in the cut-out opening.

1. Install an oven rack in the center of the oven.

2. Place a level on the rack. Take 2 readings with the level placed diagonally in one direction and then the

other. Level the range, if necessary, by adjusting the 4 leg levelers with a wrench (see Figure12).

3. Taking care to not damage the countertop, slide range into cut-out opening and double check for

levelness. If the range is not level, pull unit out and readjust leveling legs, or make sure floor is level.

Figure 9

3. Installation With Backguard The cutout depth of (21 314" (55.2 cm)Min., 22 118"

(56.2cm) Max.) needs to be increased to 24" (61 cm) when installing a backguard.

4. Installation With End Panel A End Panel kit can be ordered through a Service

Center.

5. Installation With Side Panels A Side Panels kit can be ordered through a Service

Center.

A. Install cabinet doors 31 " (78.7 cm) min. apart so

as not to interfere with range door opening.

B. A backguard kit can be ordered through a

Service Center.

C. An end panel kit can be ordered through a

Service Center.

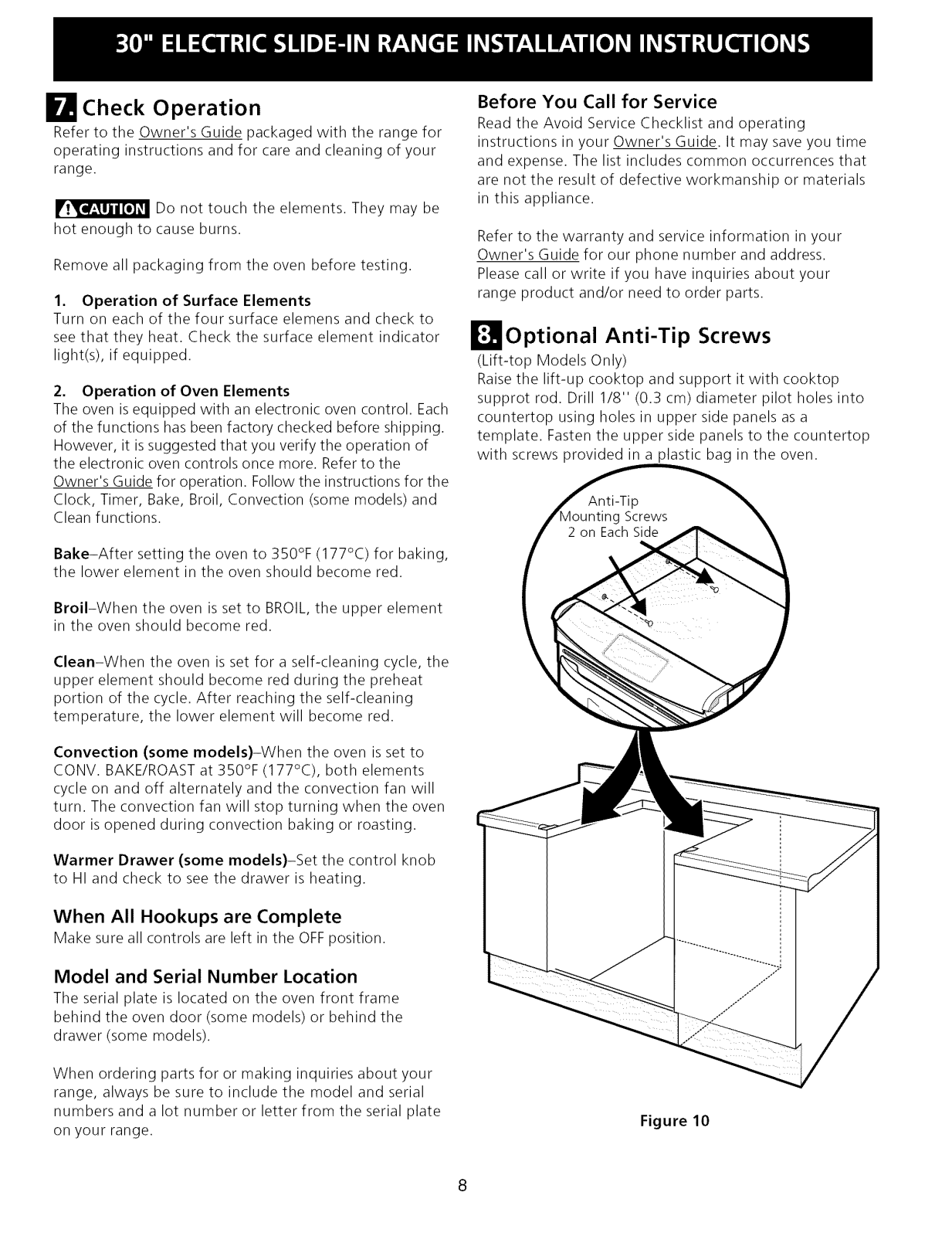

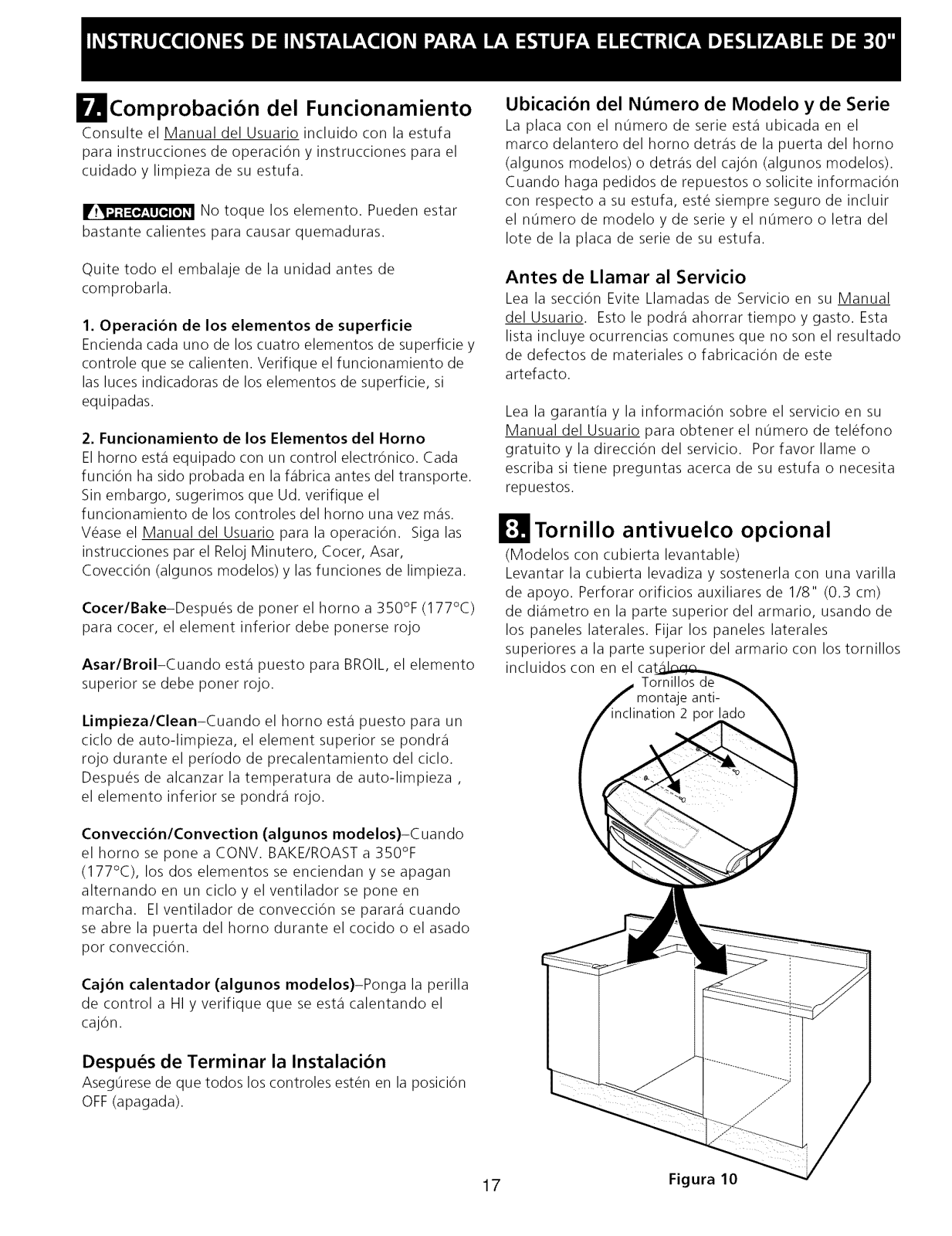

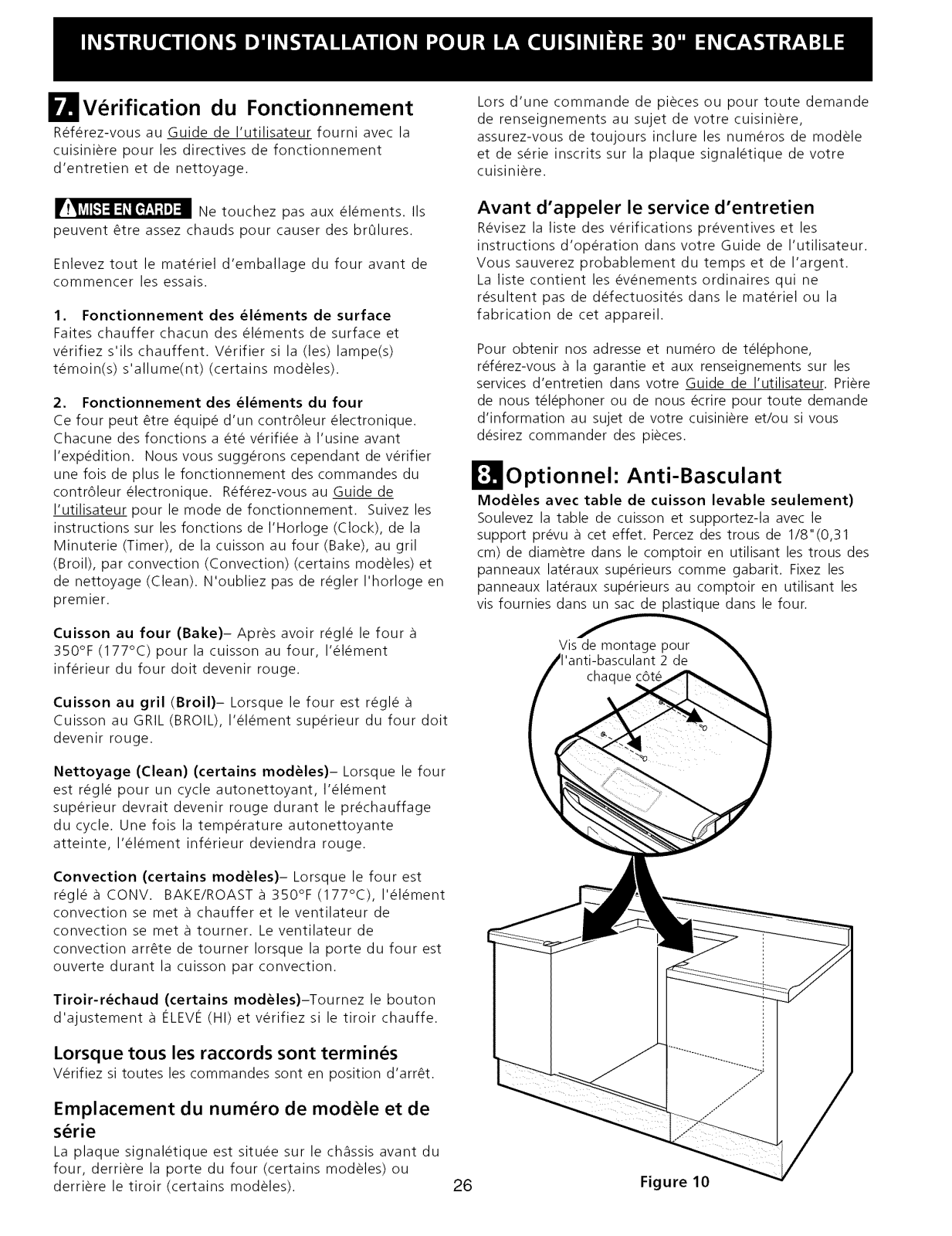

Check Operation

Refer to the Owner's Guide packaged with the range for operating instructions and for care and cleaning of your range.

Do not touch the elements. They may be

hot enough to cause burns.

Remove all packaging from the oven before testing.

1. Operation of Surface Elements Turn on each of the four surface elemens and check to

see that they heat. Check the surface element indicator light(s), if equipped.

2. Operation of Oven Elements The oven isequipped with an electronic oven control. Each

of the functions has been factory checked before shipping. However, it is suggested that you verify the operation of

the electronic oven controls once more. Refer to the Owner's Guide for operation. Follow the instructions for the

Clock, Timer, Bake, Broil, Convection (some models) and Clean functions.

Bake-After setting the oven to 350% (177°C) for baking, the lower element in the oven should become red.

Before You Call for Service

Read the Avoid Service Checklist and operating instructions in your Owner's Guide. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Refer to the warranty and service information in your Owner's Guide for our phone number and address. Please call or write if you have inquiries about your range product and/or need to order parts.

Ir optional Anti-Tip Screws

(Lift-top Models Only) Raise the lift-up cooktop and support it with cooktop

supprot rod. Drill 1/8" (0.3 cm) diameter pilot holes into countertop using holes in upper side panels as a

template. Fasten the upper side panels to the countertop with screws provided in a plastic bag in the oven.

Anti-Tip

g Screws

2 on Each Side

Broil-When the oven is set to BROIL, the upper element in the oven should become red.

Clean-When the oven is set for a self-cleaning cycle, the upper element should become red during the preheat

portion of the cycle. After reaching the self-cleaning temperature, the lower element will become red.

Convection (some models)-When the oven is set to CONV. BAKE/ROAST at 350% (177°C), both elements

cycle on and off alternately and the convection fan will turn. The convection fan will stop turning when the oven

door isopened during convection baking or roasting.

Warmer Drawer (some models)-Set the control knob to HI and check to see the drawer is heating.

When All Hookups are Complete

Make sure all controls are left in the OFFposition.

Model and Serial Number Location

The serial plate is located on the oven front frame behind the oven door (some models or behind the drawer (some models).

When ordering parts for or making inquiries about your

range, always be sure to include the model and serial numbers and a lot number or letter from the serial plate

on your range.

Figure 10

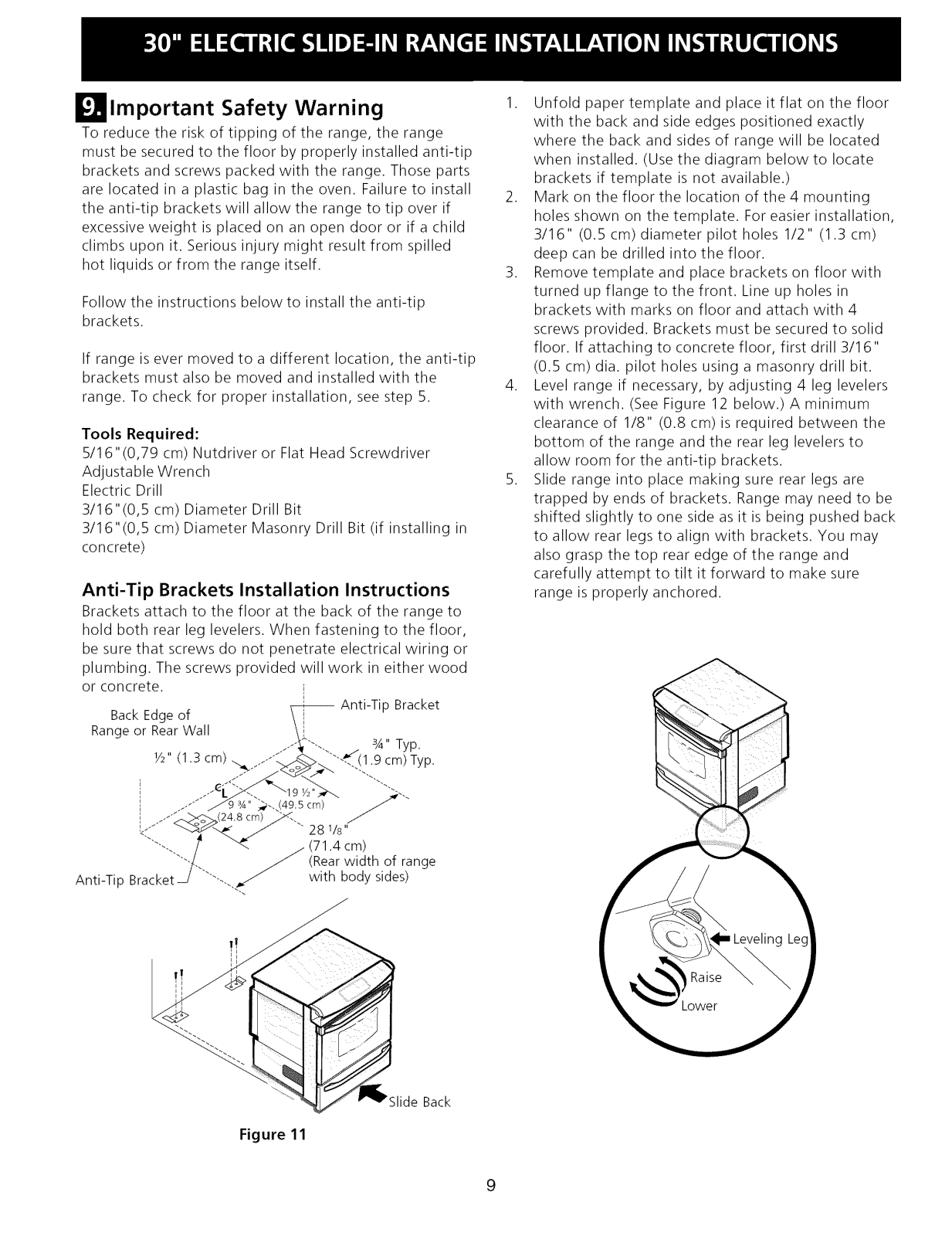

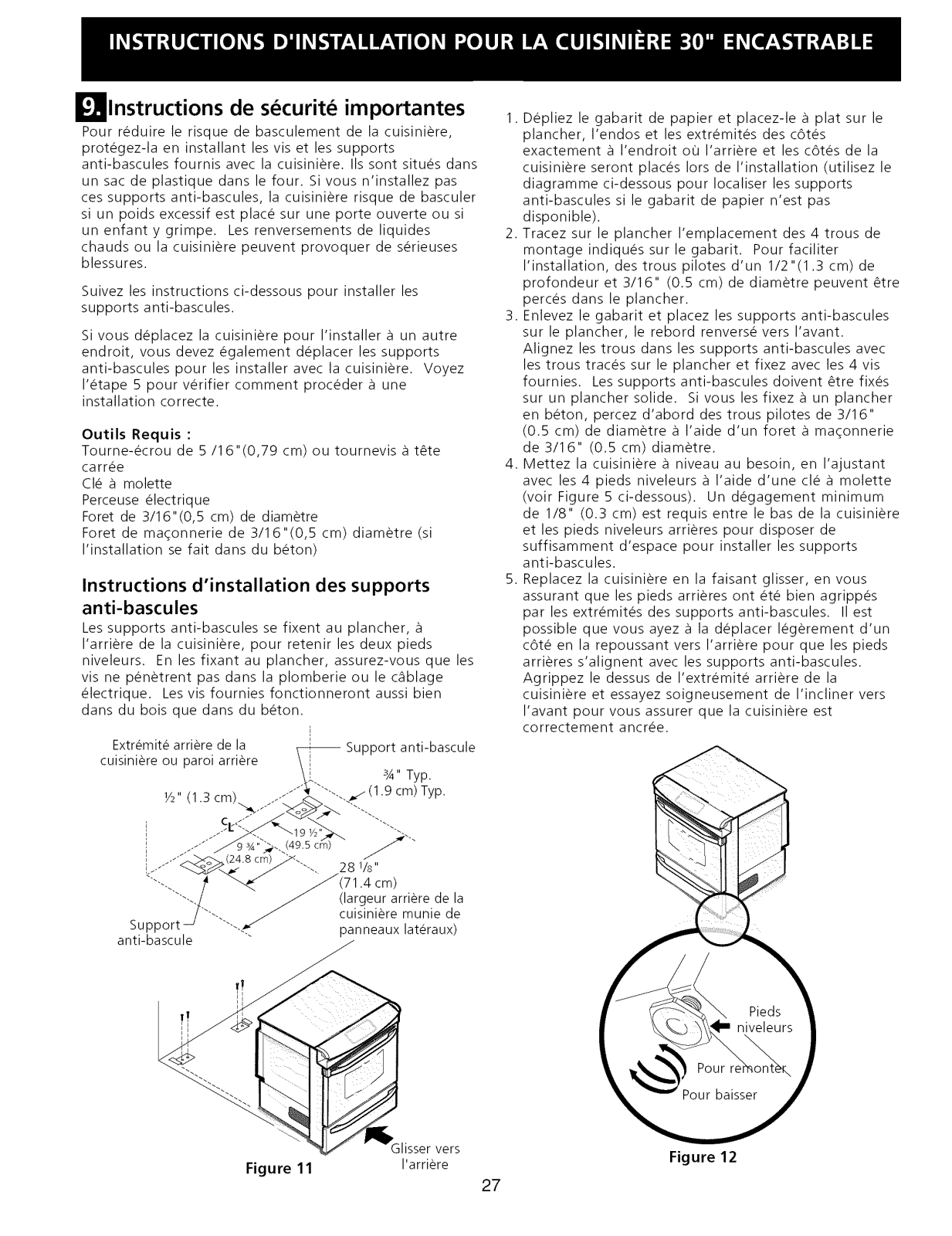

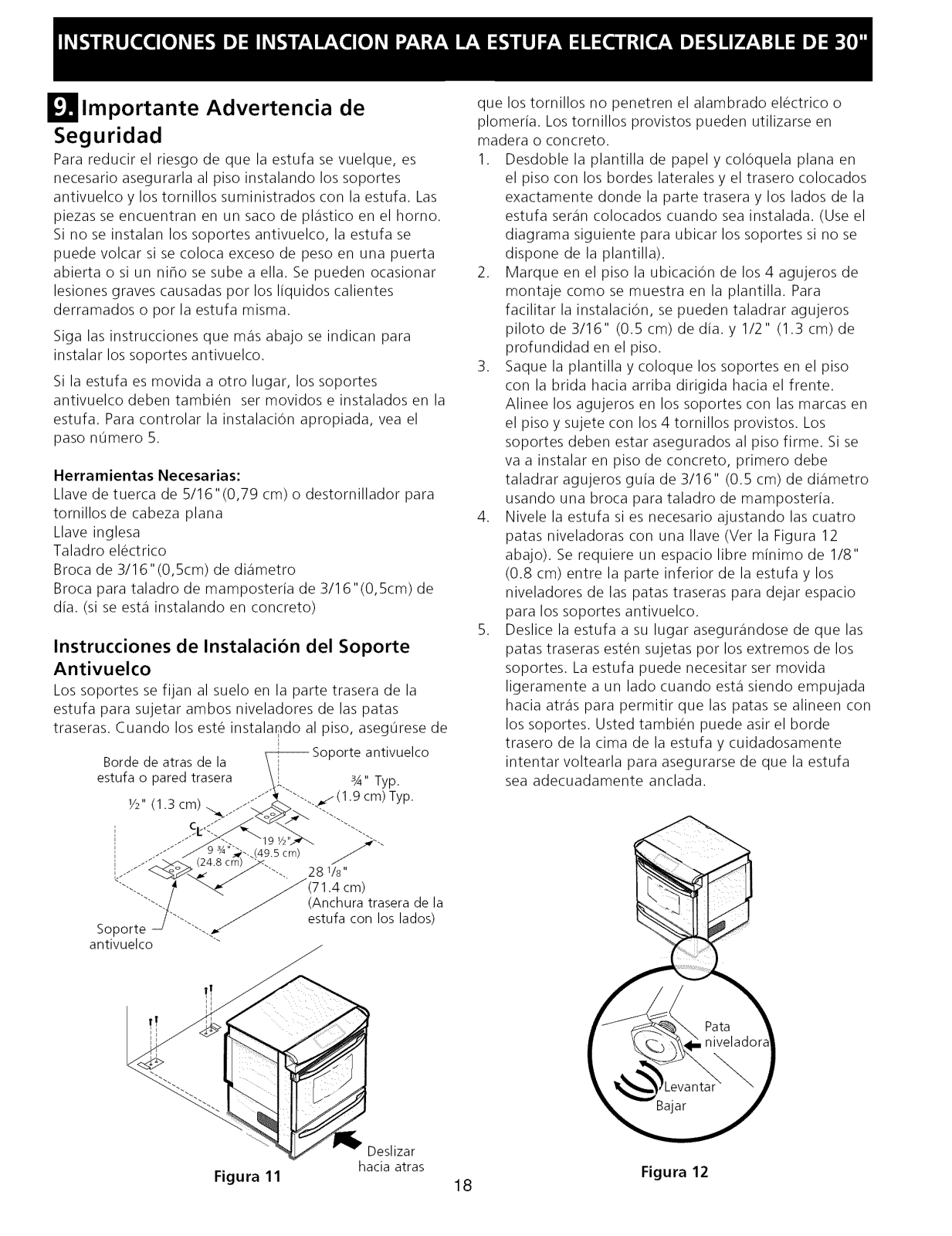

I lmportant Safety Warning

To reduce the risk of tipping of the range, the range must be secured to the floor by properly installed anti-tip

brackets and screws packed with the range. Those parts are located in a plastic bag in the oven. Failure to install

the anti-tip brackets will allow the range to tip over if excessive weight isplaced on an open door or if a child

climbs upon it. Serious injury might result from spilled hot liquids or from the range itself.

Follow the instructions below to install the anti-tip brackets.

If range is ever moved to a different location, the anti-tip brackets must also be moved and installed with the

range. To check for proper installation, see step 5.

Tools Required:

5/16" (0,79 cm) Nutdriver or Flat Head Screwdriver Adjustable Wrench

Electric Drill 3/16"(0,5 cm) Diameter Drill Bit

3/16"(0,5 cm) Diameter Masonry Drill Bit (if installing in concrete)

Anti-Tip Brackets Installation Instructions

Brackets attach to the floor at the back of the range to hold both rear leg levelers. When fastening to the floor, be sure that screws do not penetrate electrical wiring or plumbing. The screws provided will work in either wood

or concrete.

Back Edge of

Range or RearWall

-- Anti-Tip Bracket

1. Unfold paper template and place it flat on the floor with the back and side edges positioned exactly where the back and sides of range will be located when installed. (Usethe diagram below to locate brackets if template is not available.)

2. Mark on the floor the location of the 4 mounting holes shown on the template. For easier installation, 3/16" (0.5 cm) diameter pilot holes 1/2" (1.3 cm) deep can be drilled into the floor.

3. Remove template and place brackets on floor with turned up flange to the front. Line up holes in

brackets with marks on floor and attach with 4 screws provided. Brackets must be secured to solid

floor. If attaching to concrete floor, first drill 3/16" (0.5 cm) dia. pilot holes using a masonry drill bit.

4. Level range if necessary, by adjusting 4 leg levelers with wrench. (See Figure 12 below.) A minimum clearance of 1/8" (0.8 cm) is required between the bottom of the range and the rear leg levelers to allow room for the anti-tip brackets.

5. Slide range into place making sure rear legs are trapped by ends of brackets. Range may need to be shifted slightly to one side as it is being pushed back to allow rear legs to align with brackets. You may also grasp the top rear edge of the range and carefully attempt to tilt it forward to make sure range is properly anchored.

Figure 11

Back

+ 19 hidden pages
