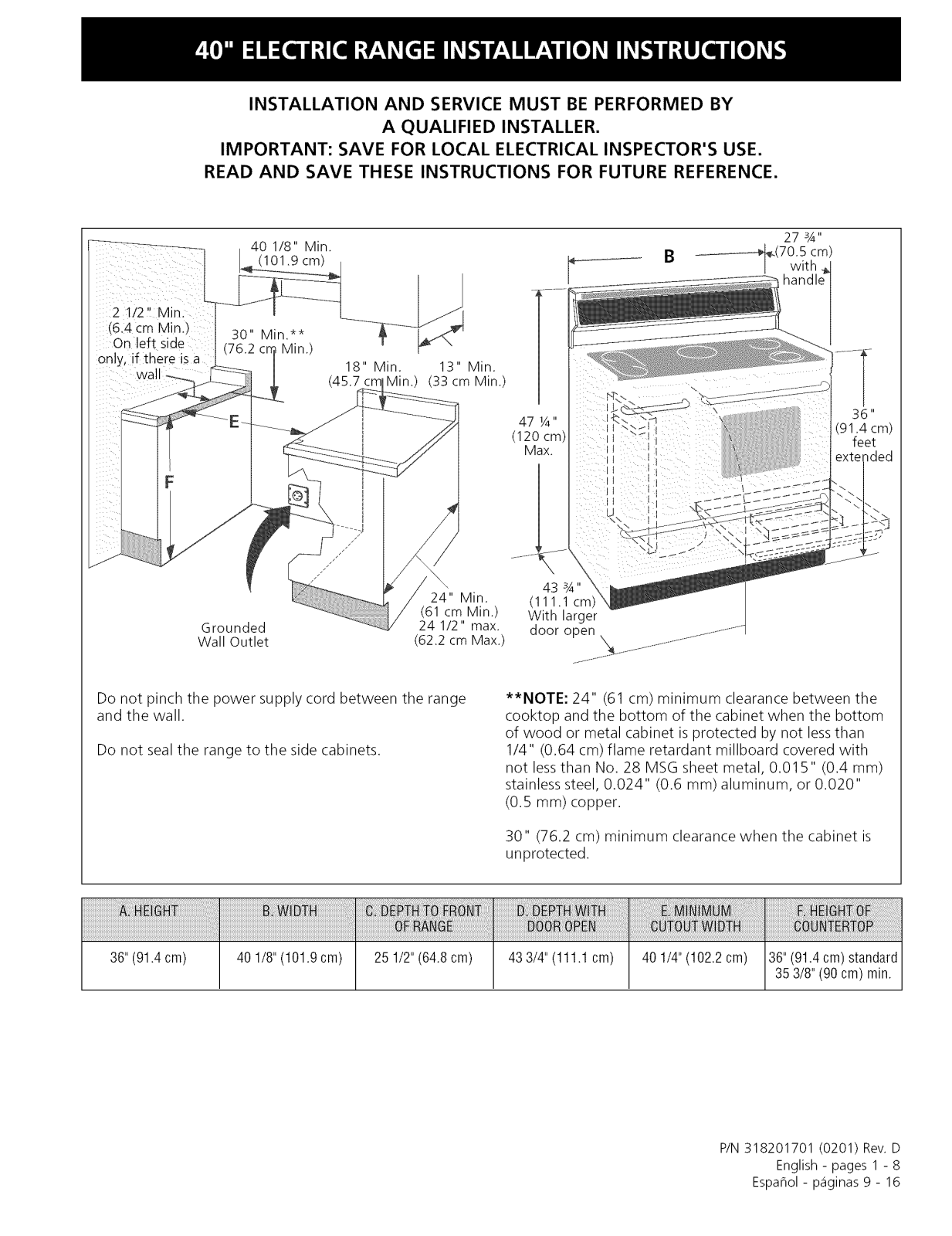

Frigidaire PLEF489CCE, PLEF489CCF, PLEF489CCG, PLEF489CCH Installation Guide
INSTALLATION AND SERVICE MUST BE PERFORMED BY
A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
40 1/8" M n
.... I (101 9cm)
(6.4 cm M.in.)i/2" !!!l___Onleft side ,I ......30"_--_lMin.**_lin./
.)
only, if there isa 18" Min. 13" Min.
Min.) (33cm Min.)
24" Min.
(61 cm Min.)
Grounded 24 1/2" max.
Wall Outlet (62.2 cm Max.)
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
47 ¼"
(120 cm)
Max.
36 "
(91.4 cm)
feet
,, _. >.,J
43 3A"
(111.1
With larger
door open
**NOTE: 24" (61 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not lessthan
1/4" (0.64 cm) flame retardant millboard covered with
not lessthan No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii7_!7i!_!_!_ii_7_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiii7i!7iiii:iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!!_!i_i_iii_7ii7ii7ii7ii7iii_7ii!iiiiii_i_ililiiii_!_i_i_i_iiii_i!_!_!ii!ii!i_!_i!_!_i_iiiiiii7iiiiiiiiiiiiiiii_71_71_:i_!_i!_i_iiiii!_;!_TiTiTi_iiii_ill_7;i:_i:7i_i_i_i_ii_!_7i!i_i_;_i_!_!_i_i_i_ii_i_!_iiii_i!i_7Jiiiiiiiiiiiiiiii7_!!!_!7_!i!_!_i_!_i_7_i_!_!_!_!i!!i!i_i_i_iiii_i_!_i_!_7_!_!7i
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii7_:iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i' _i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_iii_!;i_'ili_'i_i__ii_ii_iiii7ilililili7ilililili7ili!i_i_!iJJi!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!!ii_;_!_!_!_!!;!_!i_i_!_3_i_i_Ti_7i_i_7i_i_Ti_7i_i_7i_i_Ti_L!_!_!_!_!_!_!_!_!_!__i_i_:_i_i_i_i_ii_i_iiiiiiiiiiiiiiiiiiiiiiiiii_iii:ililiiilili171ililiiilili171ilili;i_i_i_!_j_j_!_i_i_7ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iiiiiilii
36"(91.4cm) 40 1/8"(101.9cm) 251/2"(64.8cm) 433/4"(111.1cm) 40 1/4"(102.2cm) 36"(91.4cm)standard
353/8"(90cm) min.
PIN 318201701 (0201) Rev. D
English - pages 1 - 8
Espa_ol - p_iginas 9 - 16

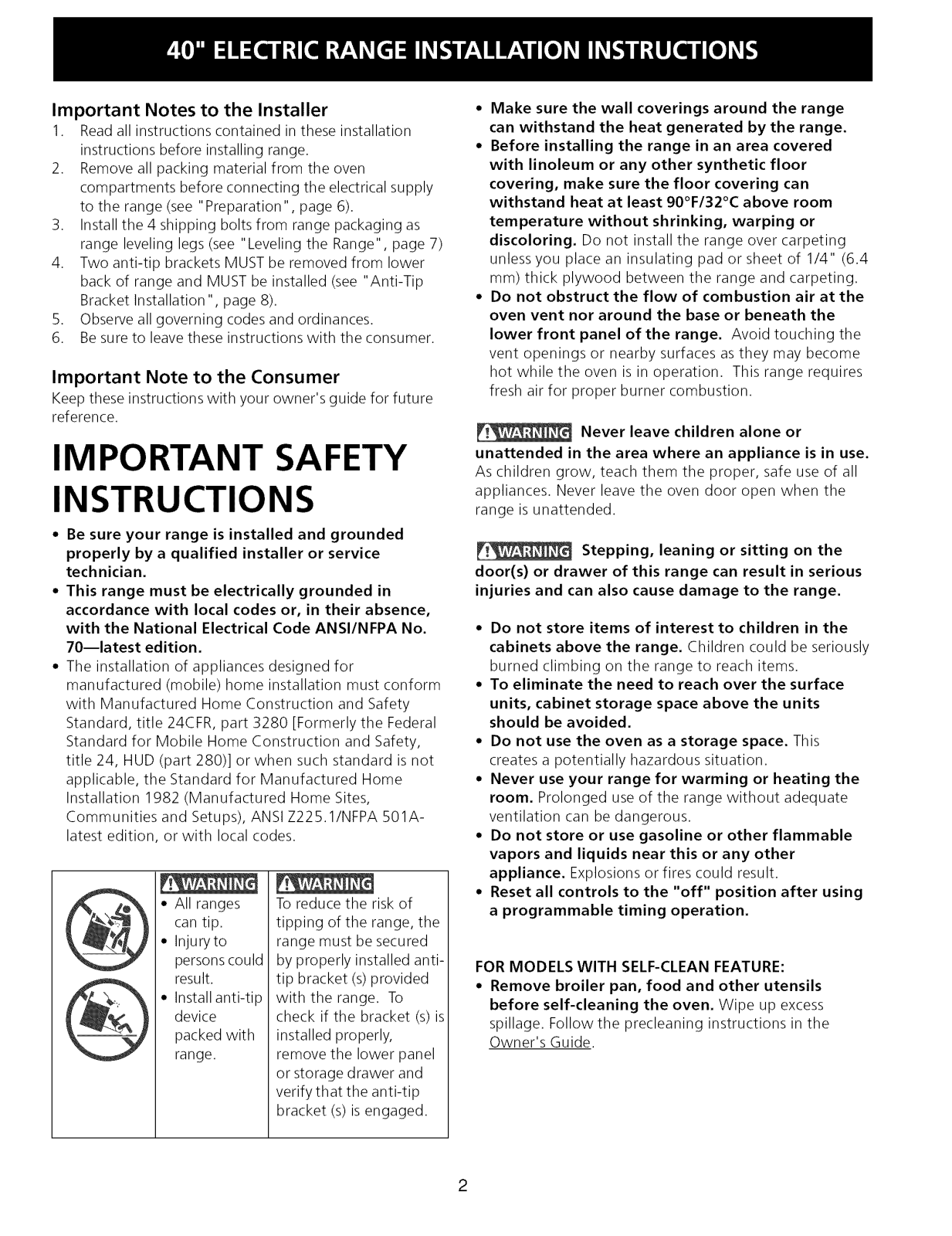

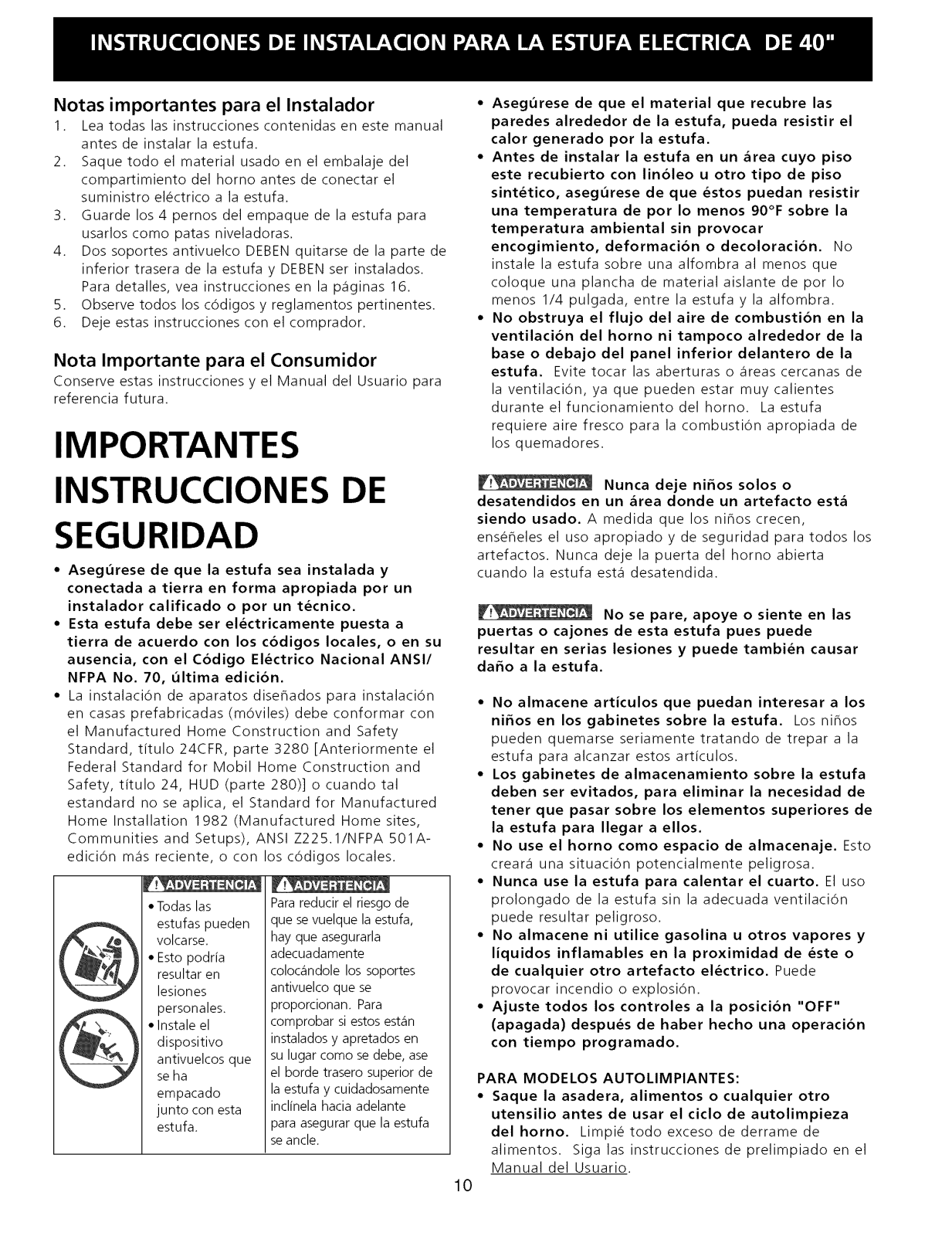

Important Notes to the Installer
1. Readall instructions contained inthese installation
instructions before installing range.
2. Remove all packing material from the oven
compartments before connecting the electrical supply
to the range (see "Preparation ", page 6).
3. Install the 4 shipping bolts from range packaging as
range leveling legs (see "Leveling the Range", page 7)
4. Two anti-tip brackets MUST be removed from lower
back of range and MUST be installed (see "Anti-Tip
Bracket Installation ", page 8).
5. Observe all governing codesand ordinances.
6. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
IMPORTANT SAFETY
INSTRUCTIONS
• Be sure your range is installed and grounded
properly by a qualified installer or service
technician.
• This range must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70--latest edition.
• The installation of appliances designed for
manufactured (mobile) home installation must conform
with Manufactured Home Construction and Safety
Standard, title 24CFR, part 3280 [Formerly the Federal
Standard for Mobile Home Construction and Safety,
title 24, HUD (part 280)] or when such standard is not
applicable, the Standard for Manufactured Home
Installation 1982 (Manufactured Home Sites,
Communities and Setups), ANSI Z225.1/NFPA 501A-
latest edition, or with local codes.
All ranges
can tip.
Injuryto
personscould
result.

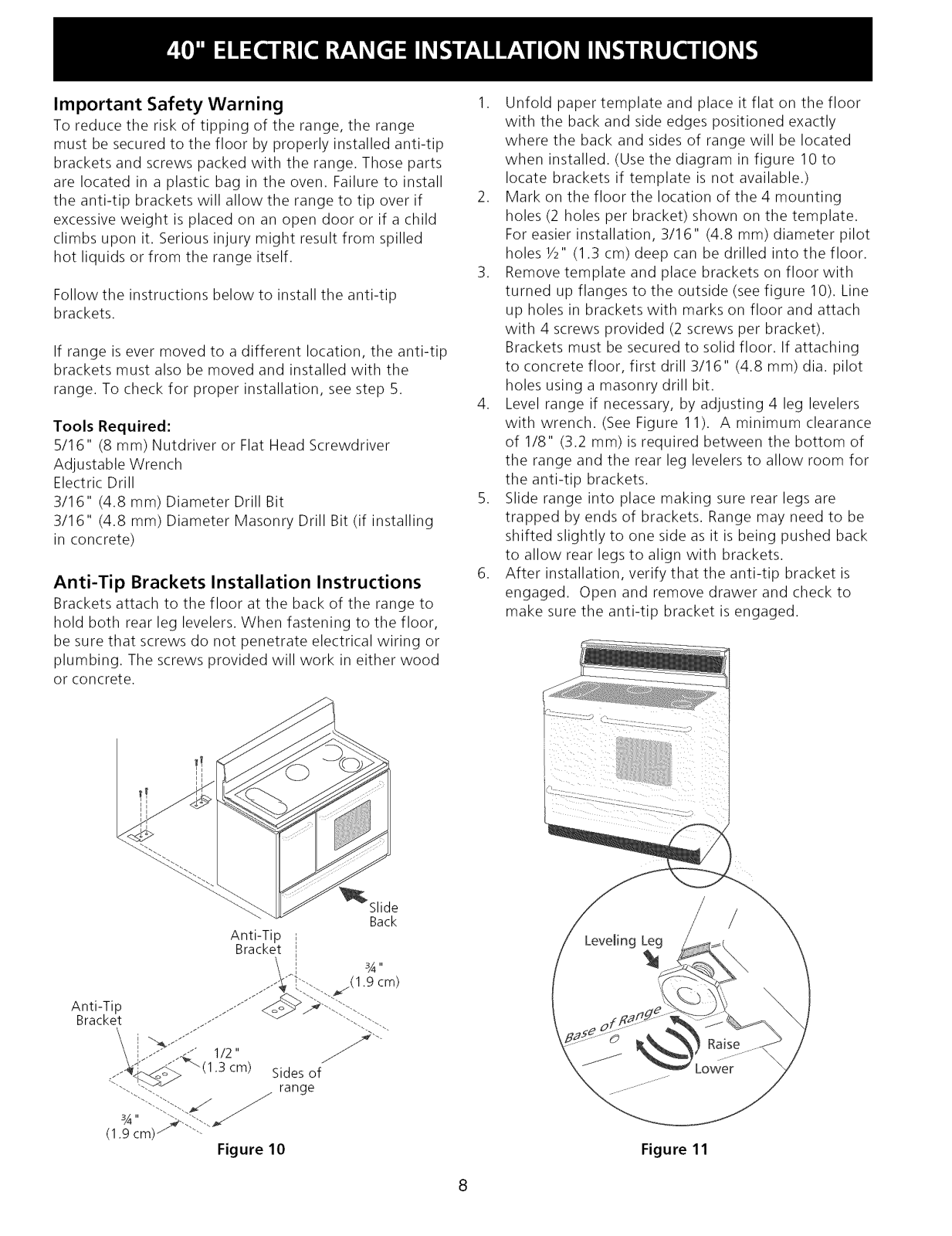

• Install anti-tip
device
packed with
range.
To reduce the risk of
tipping of the range, the
range must be secured
by properly installed anti-
tip bracket (s)provided
with the range. To
check if the bracket (s) is
installed properly,
remove the lower panel
or storage drawer and
verify that the anti-tip
bracket (s) isengaged.
• Make sure the wall coverings around the range
can withstand the heat generated by the range.
• Before installing the range in an area covered
with linoleum or any other synthetic floor
covering, make sure the floor covering can
withstand heat at least 90°F/32°C above room
temperature without shrinking, warping or
discoloring. Do not install the range over carpeting
unless you place an insulating pad or sheet of 1/4" (6.4
ram) thick plywood between the range and carpeting.
• Do not obstruct the flow of combustion air at the
oven vent nor around the base or beneath the
lower front panel of the range. Avoid touching the
vent openings or nearby surfaces as they may become
hot while the oven is in operation. This range requires
fresh air for proper burner combustion.
Never leave children alone or
unattended in the area where an appliance is in use.
As children grow, teach them the proper, safe use of all
appliances. Never leave the oven door open when the
range is unattended.
Stepping, leaning or sitting on the
door(s) or drawer of this range can result in serious
injuries and can also cause damage to the range.
• Do not store items of interest to children in the
cabinets above the range. Children could be seriously
burned climbing on the range to reach items.
• To eliminate the need to reach over the surface
units, cabinet storage space above the units
should be avoided.
• Do not use the oven as a storage space. This
creates a potentially hazardous situation.
• Never use your range for warming or heating the
room. Prolonged use of the range without adequate
ventilation can be dangerous.
• Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
• Reset all controls to the "off" position after using
a programmable timing operation.
FOR MODELS WITH SELF-CLEAN FEATURE:
• Remove broiler pan, food and other utensils
before self-cleaning the oven. Wipe up excess
spillage. Follow the precleaning instructions in the
Owner's Guide.
2

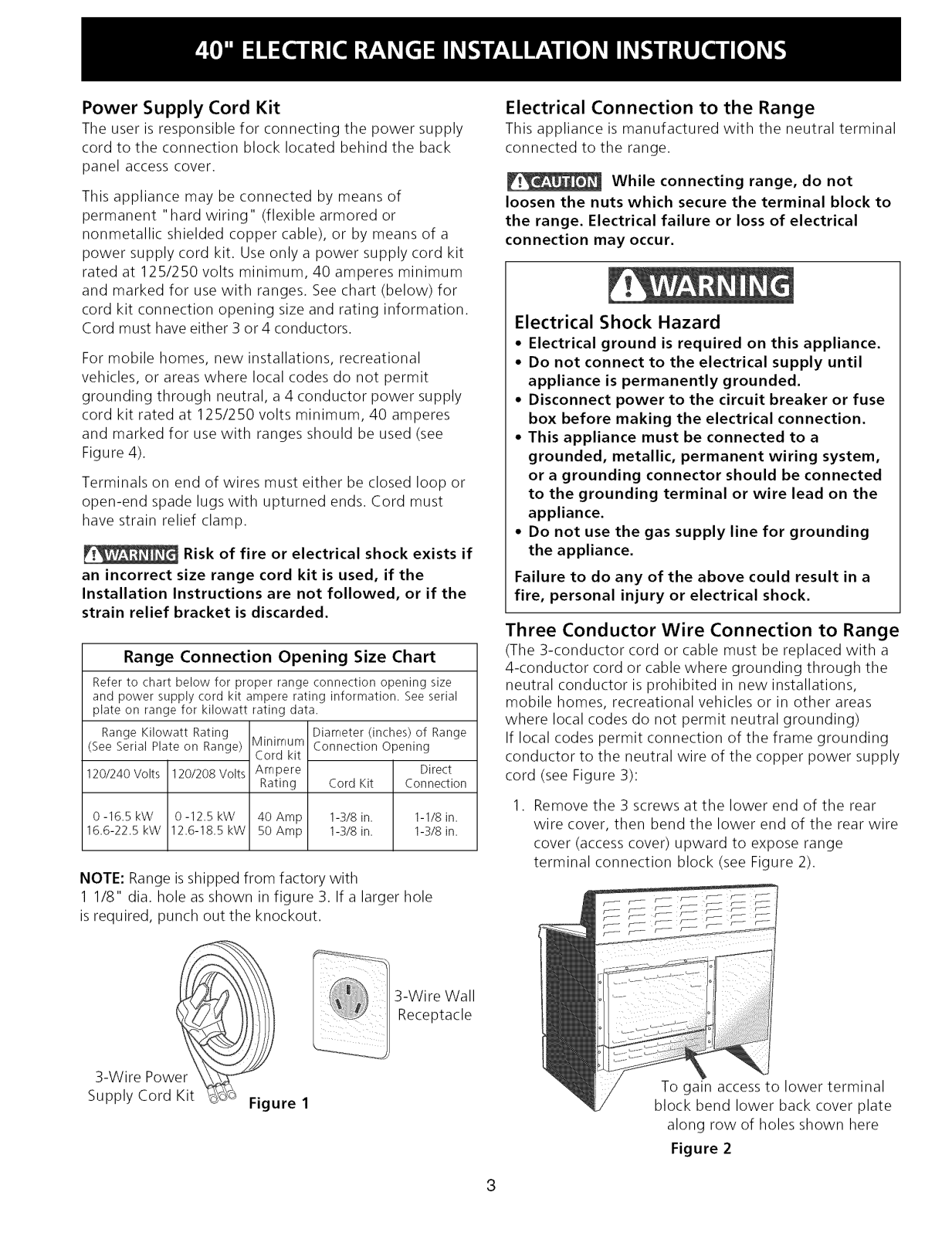

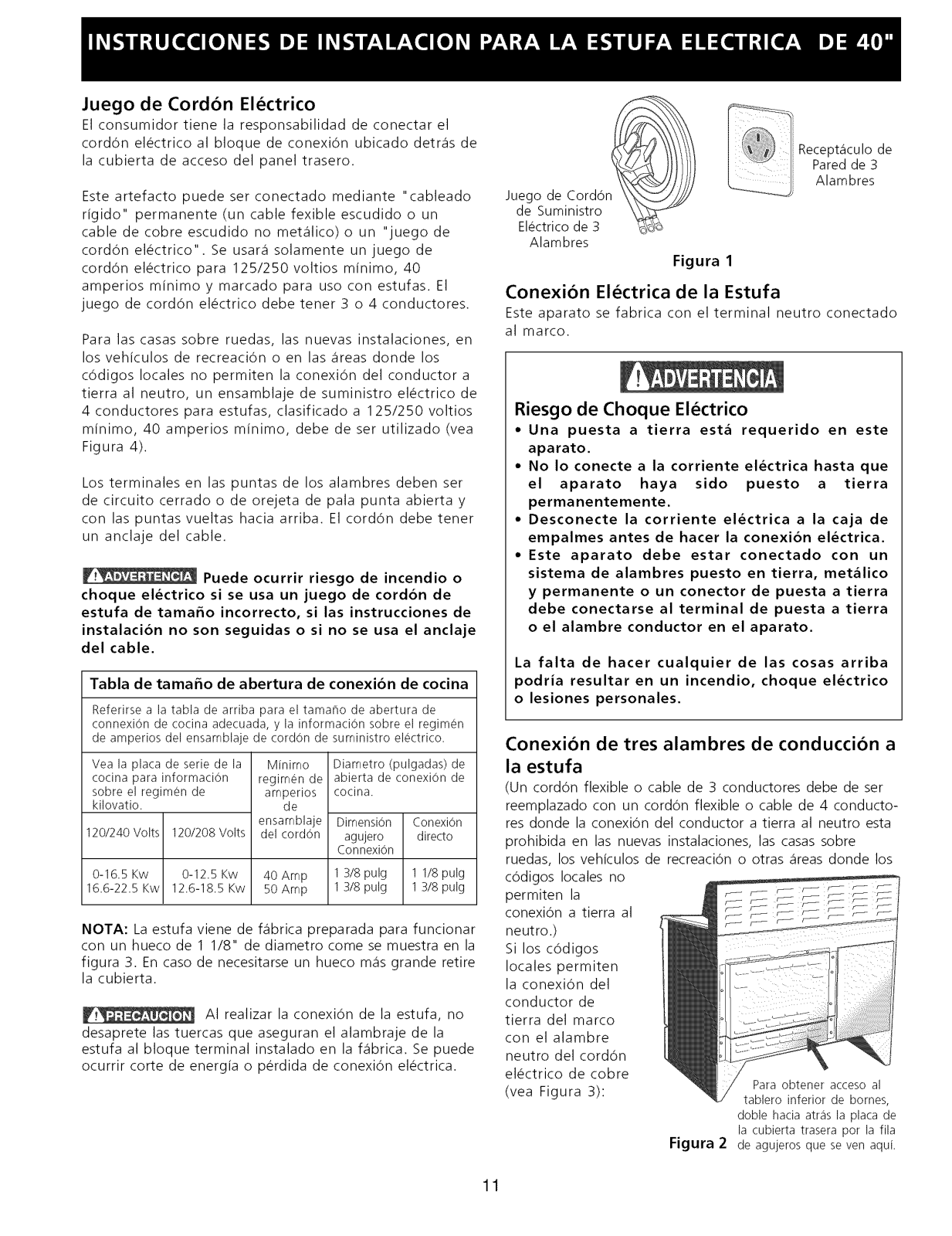

Power Supply Cord Kit
The user is responsible for connecting the power supply
cord to the connection block located behind the back
panel access cover.
This appliance may be connected by means of
permanent "hard wiring" (flexible armored or
nonmetallic shielded copper cable), or by means of a
power supply cord kit. Use only a power supply cord kit
rated at 125/250 volts minimum, 40 amperes minimum
and marked for use with ranges. See chart (below) for
cord kit connection opening size and rating information.
Cord must have either 3 or 4 conductors.
For mobile homes, new installations, recreational
vehicles, or areas where local codes do not permit
grounding through neutral, a 4 conductor power supply
cord kit rated at 125/250 volts minimum, 40 amperes
and marked for use with ranges should be used (see
Figure 4).
Terminals on end of wires must either be closed loop or
open-end spade lugs with upturned ends. Cord must
have strain relief clamp.
Risk of fire or electrical shock exists if
an incorrect size range cord kit is used, if the
Installation Instructions are not followed, or if the
strain relief bracket is discarded.
Range Connection Opening Size Chart
Refer to chart below for proper range connection opening size
and power supply cord kit ampere rating information. See serial
plate on range for kilowatt rating data.
Range Kilowatt Rating Diameter (inches) of Range
(See Serial Plate on Range) Minimum Connection Opening
120/240 Volts 120/208 Volts Ampere Direct
0 -16.5 kW 0 -12.5 kW 40 Amp 1-3/8 in. 1-1/8 in.
16.6-22.5 kW 12.6-18.5 kW 50 Amp 1-3/8 in. 1-3/8 in.
NOTE: Range is shipped from factory with
1 1/8" dia. hole as shown in figure 3. If a larger hole
is required, punch out the knockout.
Cord kit
Rating Cord Kit Connection
Electrical Connection to the Range
This appliance is manufactured with the neutral terminal
connected to the range.
While connecting range, do not
loosen the nuts which secure the terminal block to
the range. Electrical failure or loss of electrical
connection may occur.
Electrical Shock Hazard
• Electrical ground is required on this appliance.
• Do not connect to the electrical supply until
appliance is permanently grounded.
• Disconnect power to the circuit breaker or fuse
box before making the electrical connection.
• This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector should be connected
to the grounding terminal or wire lead on the
appliance.
• Do not use the gas supply line for grounding
the appliance.
Failure to do any of the above could result in a
fire, personal injury or electrical shock.
Three Conductor Wire Connection to Range
(The 3-conductor cord or cable must be replaced with a
4-conductor cord or cable where grounding through the
neutral conductor is prohibited in new installations,
mobile homes, recreational vehicles or in other areas
where local codes do not permit neutral grounding)
If local codes permit connection of the frame grounding
conductor to the neutral wire of the copper power supply
cord (see Figure 3):
Remove the 3 screws at the lower end of the rear
wire cover, then bend the lower end of the rear wire
cover (access cover) upward to expose range
terminal connection block (see Figure 2).
s s s r
S ......
s s s _ s s
-- s s s
s _ _ s s
3-Wire Power
Supply Cord Kit
Figure 1
3-Wire Wall
Receptacle
:i
,_ T i
,r :
To gain access to lower terminal
block bend lower back cover plate
along row of holes shown here
Figure 2

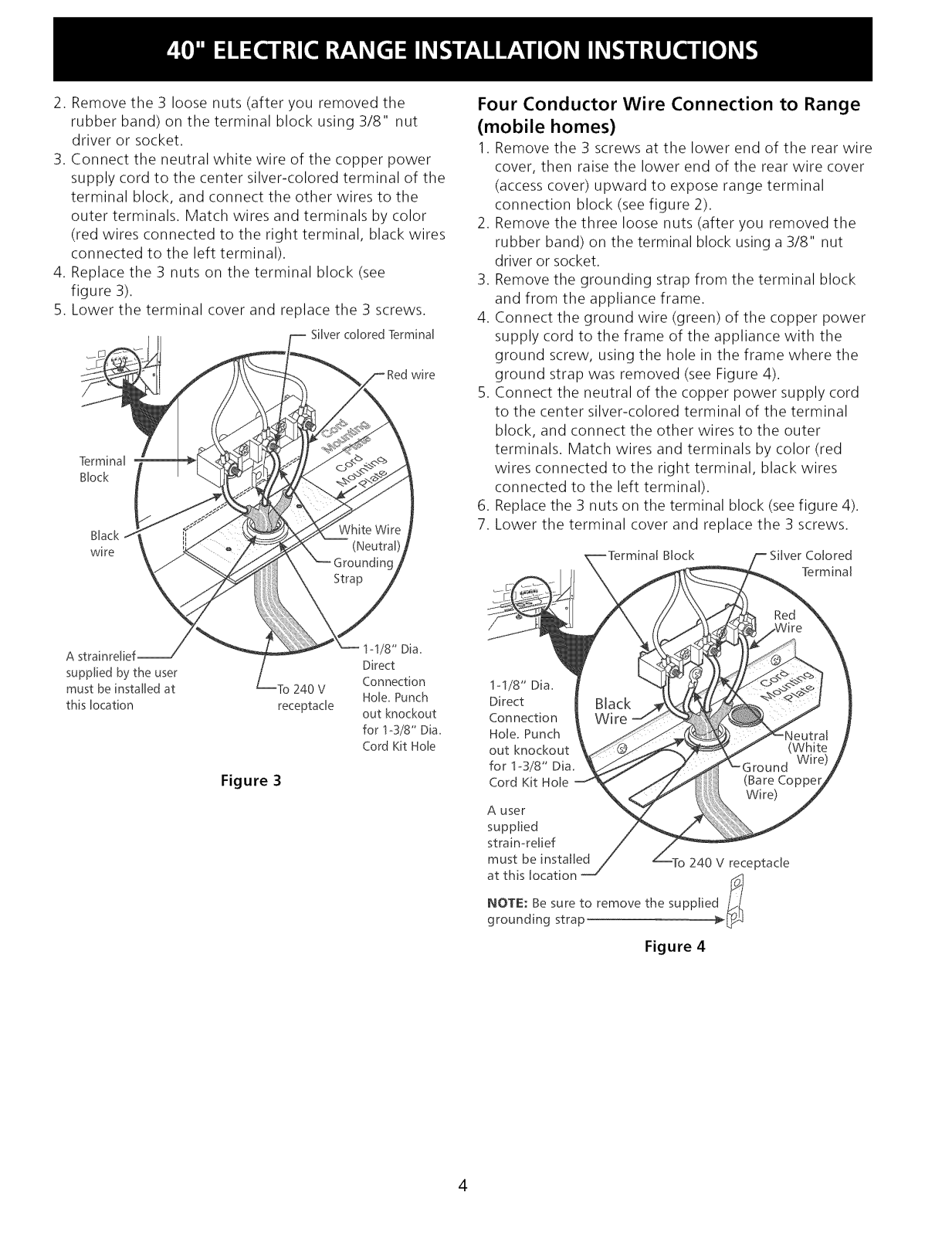

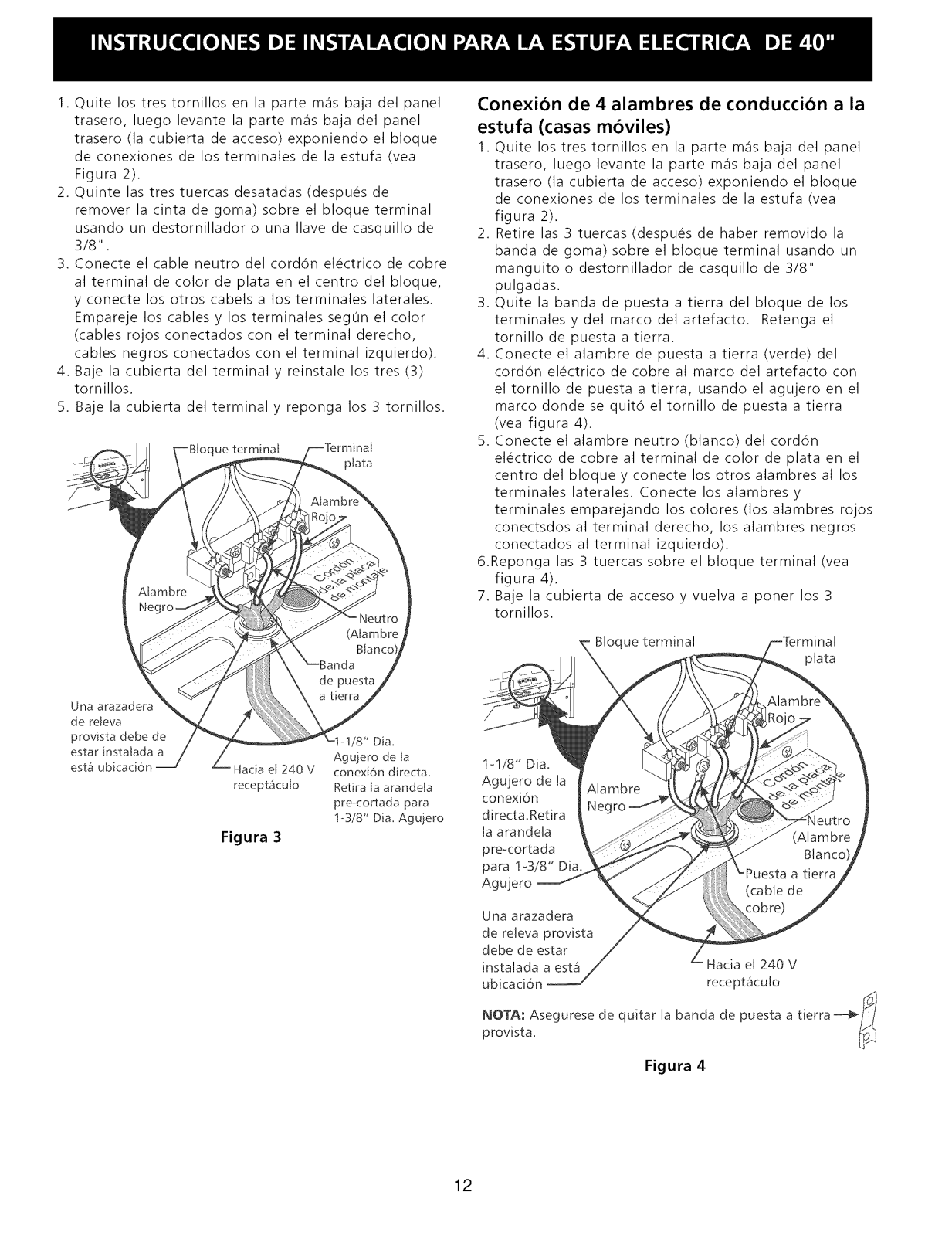

2.Removethe3 loosenuts(afteryouremovedthe
rubberband)ontheterminalblockusing3/8"nut
driverorsocket.
3.Connect the neutral white wire of the copper power
supply cord to the center silver-colored terminal of the
terminal block, and connect the other wires to the
outer terminals. Match wires and terminals by color
(red wires connected to the right terminal, black wires
connected to the left terminal).
4. Replace the 3 nuts on the terminal block (see
figure 3).
5. Lower the terminal cover and replace the 3 screws.
Silver colored Terminal
Terminal
Block
Black
wire
Four Conductor Wire Connection to Range
(mobile homes)
1. Remove the 3 screws at the lower end of the rear wire
cover, then raise the lower end of the rear wire cover
(access cover) upward to expose range terminal
connection block (see figure 2).
2. Remove the three loose nuts (after you removed the
rubber band) on the terminal block using a 3/8" nut
driver or socket.
3. Remove the grounding strap from the terminal block
and from the appliance frame.
4. Connect the ground wire (green) of the copper power
supply cord to the frame of the appliance with the
ground screw, using the hole in the frame where the
ground strap was removed (see Figure 4).
5. Connect the neutral of the copper power supply cord
to the center silver-colored terminal of the terminal
block, and connect the other wires to the outer
terminals. Match wires and terminals by color (red
wires connected to the right terminal, black wires
connected to the left terminal).
6. Replace the 3 nuts on the terminal block (seefigure 4).
7. Lower the terminal cover and replace the 3 screws.
Block Silver Colored
Terminal
A strainreJief Direct
supplied by the user Connection
must be installed at 240 V
this location receptacle out knockout
Figure 3
1-1/8" Dia.
Hole. Punch
for 1-3/8" Dia.
Cord Kit Hole
1-1/8" Dia.
Direct
Connection
Hole. Punch
out knockout
for !-3/8" Dia.
Cord Kit Hole
A user
supplied
strain-relief
must be installed V receptacle
NOTE; Be sure to remove the supplie
at this location I_J_t
grounding strap
Figure 4
4

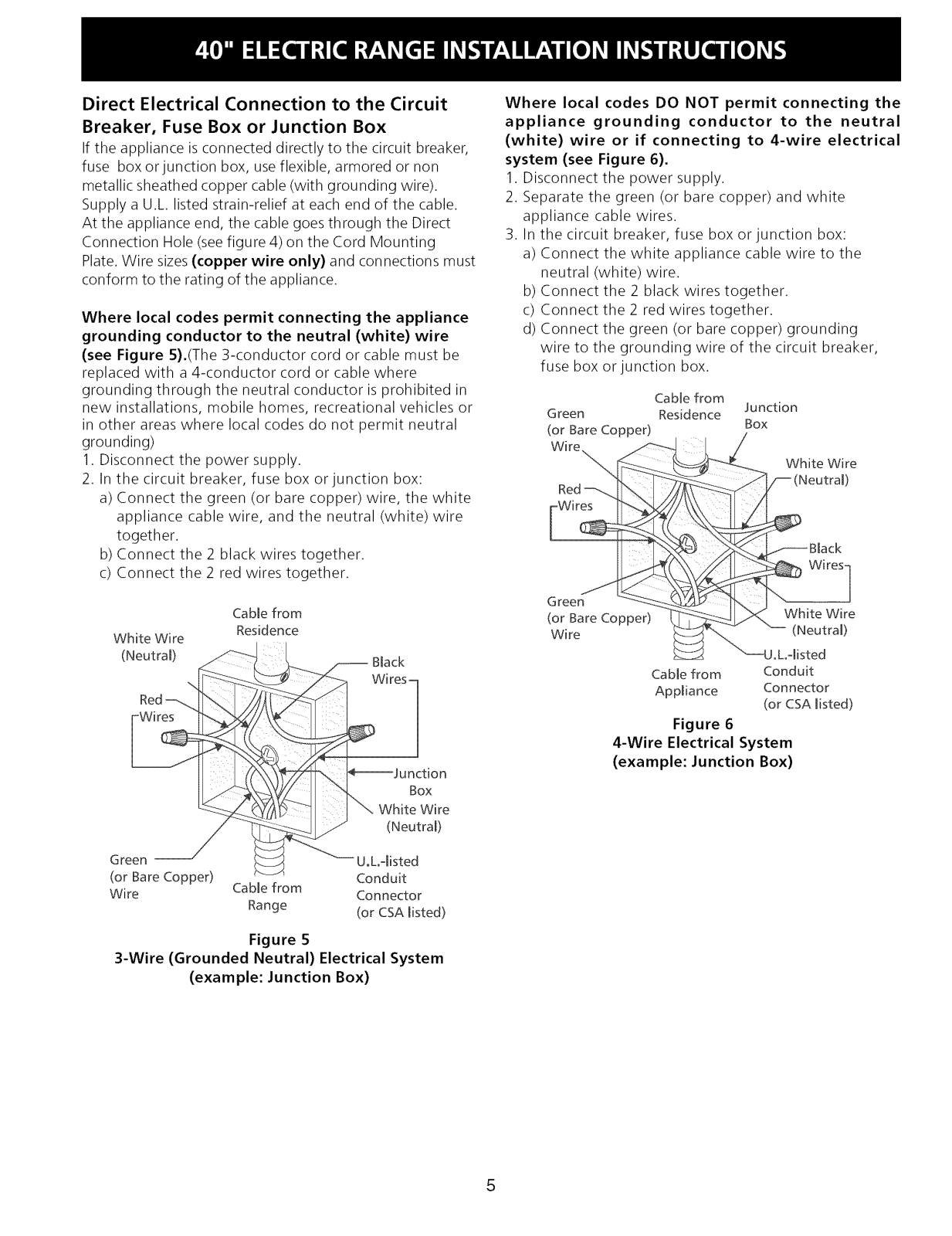

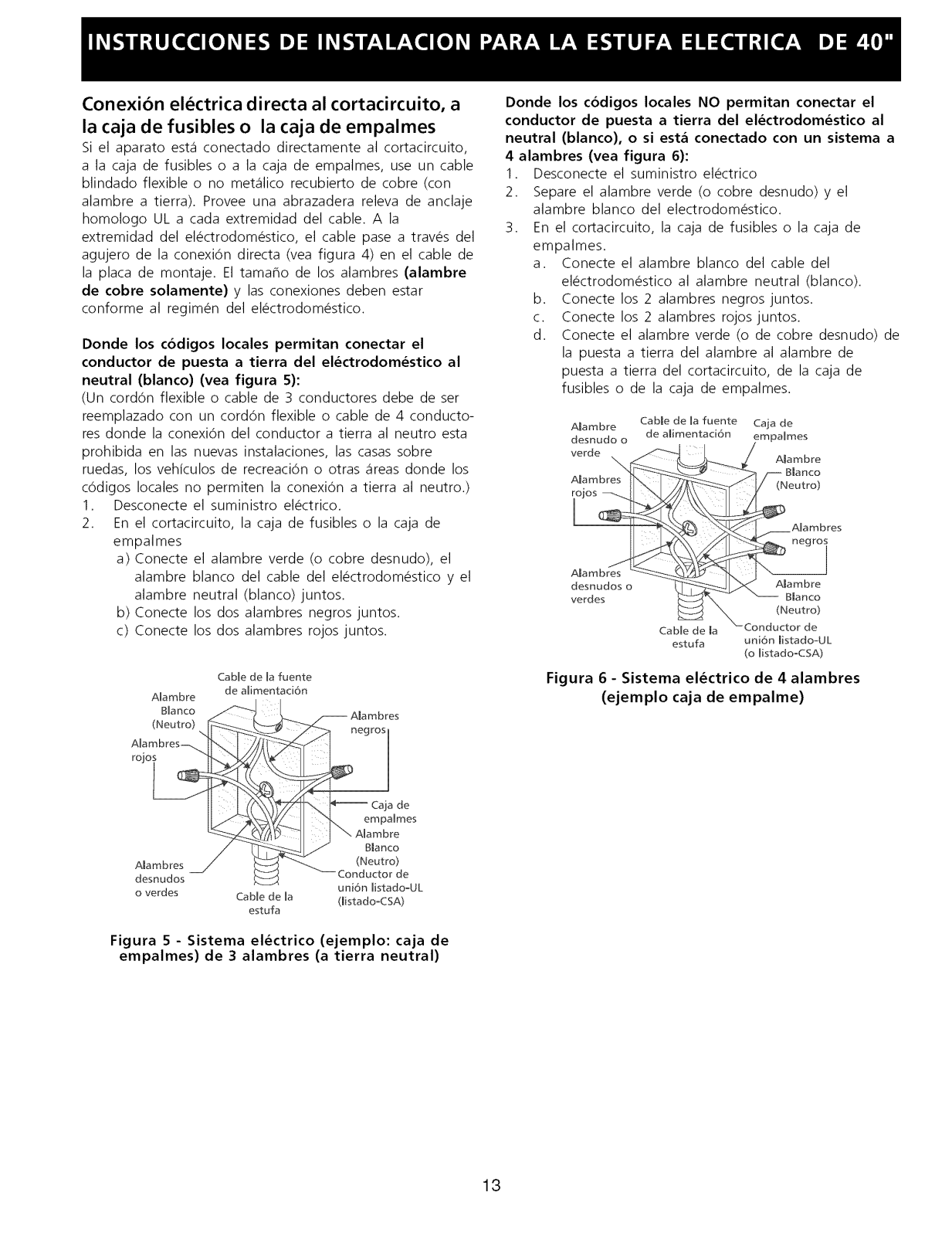

Direct Electrical Connection to the Circuit
Breaker, Fuse Box or Junction Box
If the appliance is connected directly to the circuit breaker,
fuse box or junction box, useflexible, armored or non
metallic sheathed copper cable (with grounding wire).
Supply a U.L. listed strain-relief at each end of the cable.
At the appliance end, the cable goes through the Direct
Connection Hole (seefigure 4) on the Cord Mounting
Plate. Wire sizes(copper wire only) and connections must
conform to the rating of the appliance.
Where local codes permit connecting the appliance
grounding conductor to the neutral (white) wire
(see Figure 5).(The 3-conductor cord or cable must be
replaced with a 4-conductor cord or cable where
grounding through the neutral conductor is prohibited in
new installations, mobile homes, recreational vehicles or
in other areas where local codes do not permit neutral
grounding)
1. Disconnect the power supply.
2. In the circuit breaker, fuse box or junction box:
a) Connect the green (or bare copper) wire, the white
appliance cable wire, and the neutral (white) wire
together.
b) Connect the 2 black wires together.
c) Connect the 2 red wires together.
Cabmefrom
White Wire
(Neutra[)
Residence
BRack
Wires ]
Box
WEre
(Neutra[)
Where local codes DO NOT permit connecting the
appliance grounding conductor to the neutral
(white) wire or if connecting to 4-wire electrical
system (see Figure 6).
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the circuit breaker, fuse box or junction box:
a) Connect the white appliance cable wire to the
neutral (white) wire.
b) Connect the 2 black wires together.
c) Connect the 2 red wires together.
d) Connect the green (or bare copper) grounding
wire to the grounding wire of the circuit breaker,
fuse box or junction box.
Cable from
Green
(or Bare Copper)
Green
Residence Junction
Box
\_Black
White Wire
eutra[)
(or BareCopper)
WEre
CabNefrom Conduit
Appmiance Connector
(or CSAmisted)
Figure 6
4-Wire Electrical System
(example: Junction Box)
Green -- U.L.qisted
(or Bare Copper) Conduit
Wire Cable from Connector
Range (or CSA misted)
Figure S
3-Wire (Grounded Neutral) Electrical System
(example: Junction Box)
Loading...
