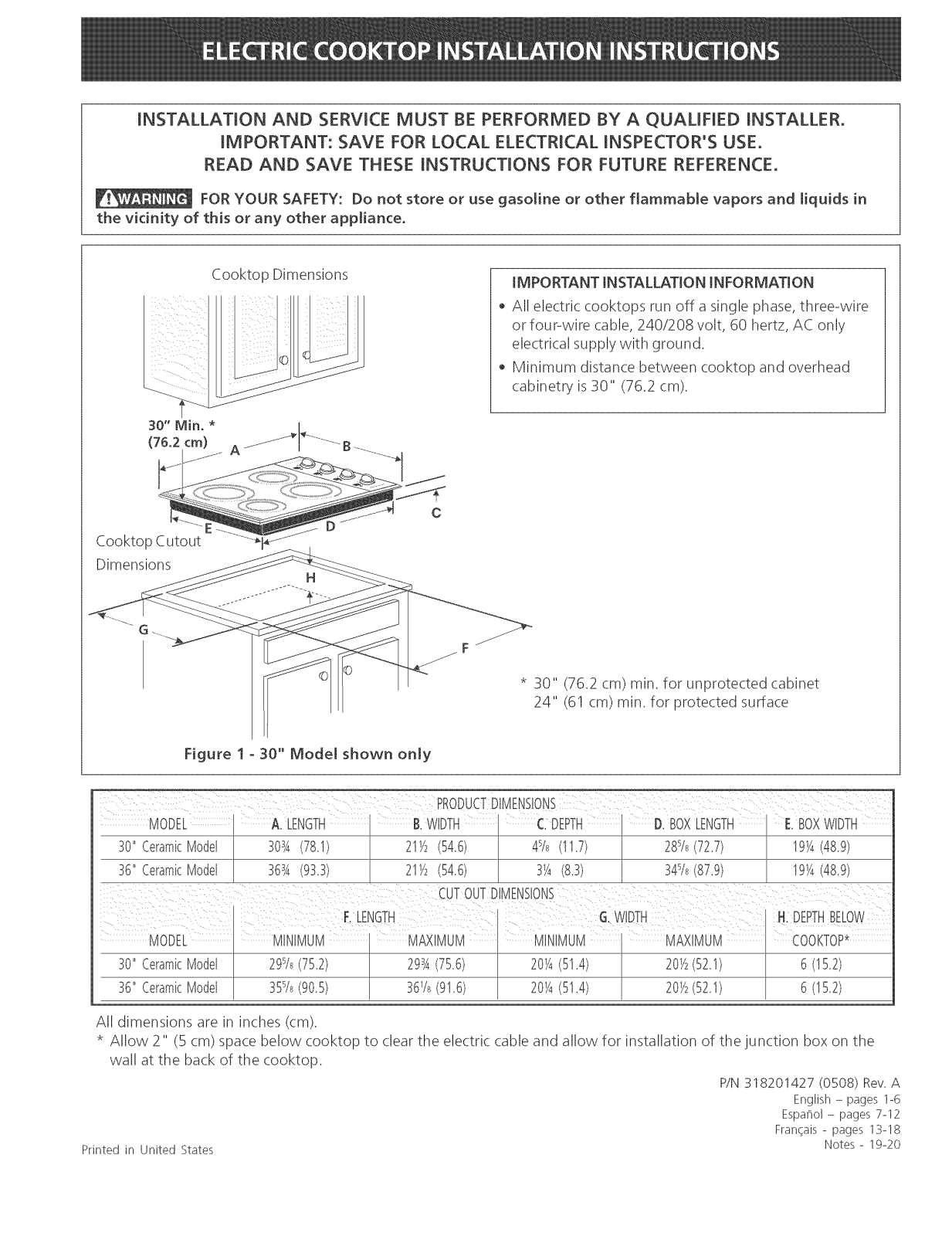

Frigidaire GLEC30S9EBA, GLEC30S9EBB, GLEC30S9EBC, GLEC30S9EQA, GLEC30S9EQB Installation Guide

...

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUAUFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasotine or other flammabte vapors and tiquids in

the vicinity of this or any other appliance.

30" Min. *

Dimensions

Cooktop Dimensions

j°-

IMPORTANT INSTALLATION INFORMATION All electric cooktops run off a single phase, three-wire

or four-wire cable, 240/208 volt, 60 hertz, AC only electrical supply with ground.

Minimum distance between cooktop and overhead

(.abinetry is30" (76.2 cm).

* 30" (76.2 cm) rain. for unprotected cabinet

24" (61 cm) rain. for prote(.ted surface

Figure 1 - 30" Model shown only

PRODUCTDIMENSIONS

A LENGTH B.WIDTH C DEPTH D.BOXLENGTH E.BOXWIDTH

30"CeramicM0del 303A(78.I) 21_/2(54.6) 4% (11.7) 28%(72.7) 19_/4(48.9) 36"CeramicM0del 363A(93.3) 21_/2(54.6) 3_/4(8.3) 34%(87.9) 19_/4(48.9)

MODEL MINIMUM I MAXIMUM I MINIMUM I MAXIMUM I COOKTOP*

30"CeramicM0deJ 29%(75.2) 293A(75.6) 20_A(51.4) 6 (I52) 36"CeramicModel 35%(90.5) 20¼(51.4) 6 (I5.2)

All dimensions are in inches (cm).

* Allow 2" (5 cm) space below cooktop to clear tile electric cable and allow for installation of tile junction box on the

wall at tile back of tile cooktop.

P/N 318201427 (0508) Rev A

English - pages 1-6

EspaF_ol- pages 7-12

Frangais - pages 13-18

Printed in United States

Notes - 19-20

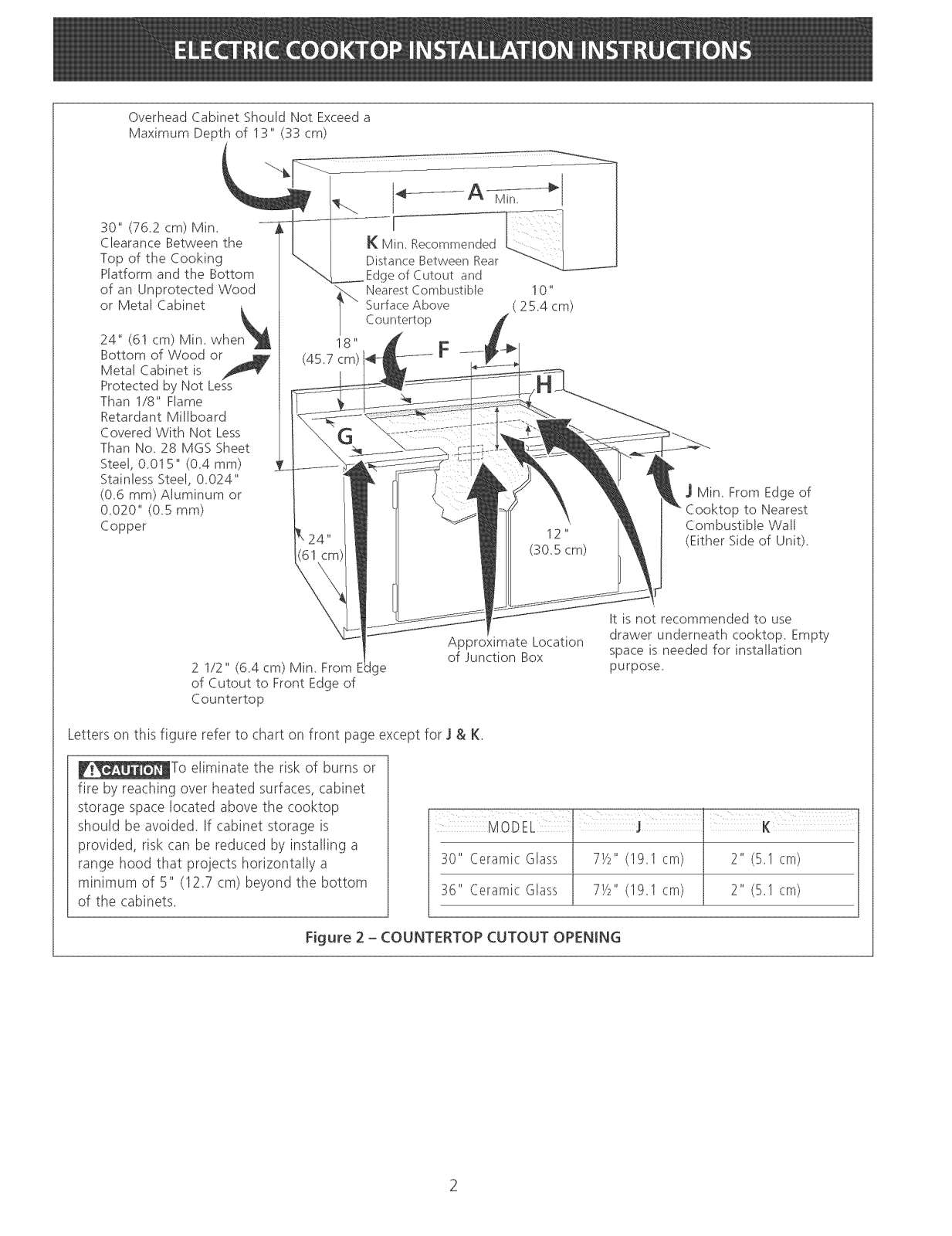

Overhead Cabinet Should Not Exceed a Maximum Depth of 13" (33 cm)

30" (76.2 cm) Min. Clearance Between the

Top of the Cooking Platform and the Bottom

of an Unprotected Wood or Metal Cabinet

24" (6! cm) Min when_l_ Bottom of Wood or_

Metal Cabinet is Protected by Not Less

Than 1/8" Flame Retardant Millboard Covered With Not Less Than No. 28 MGS Sheet

Steel, 0015" (04 ram) Stainless Steel, 0.024"

(0.6 ram) Aluminum or

0.020" (0.5 ram) Copper

of Cutout and

Nearest Combustible I O"

254 cm)

J Min. From Edge of

:p to Nearest

Combustible Wall (Either Side of Unit)

Approximate Location

2 1/2" (64 cm) Min. From E of Cutout to Front Edge of

Countertop

of Junction Box

Letterson this figure refer to chart on front pageexcept for J & K

_To eliminate the risk of burns or

fire by reaching over heated surfaces,cabinet

storage space located above the cooktop should be avoided, If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12# cm) beyond the bottom

of the cabinets,

30" Ceramic Glass 7Y2" (I9.1 cm) 2" (5.I cm)

36" Ceramic Glass 7Y2" (19.1 cm) 2" (5.I cm)

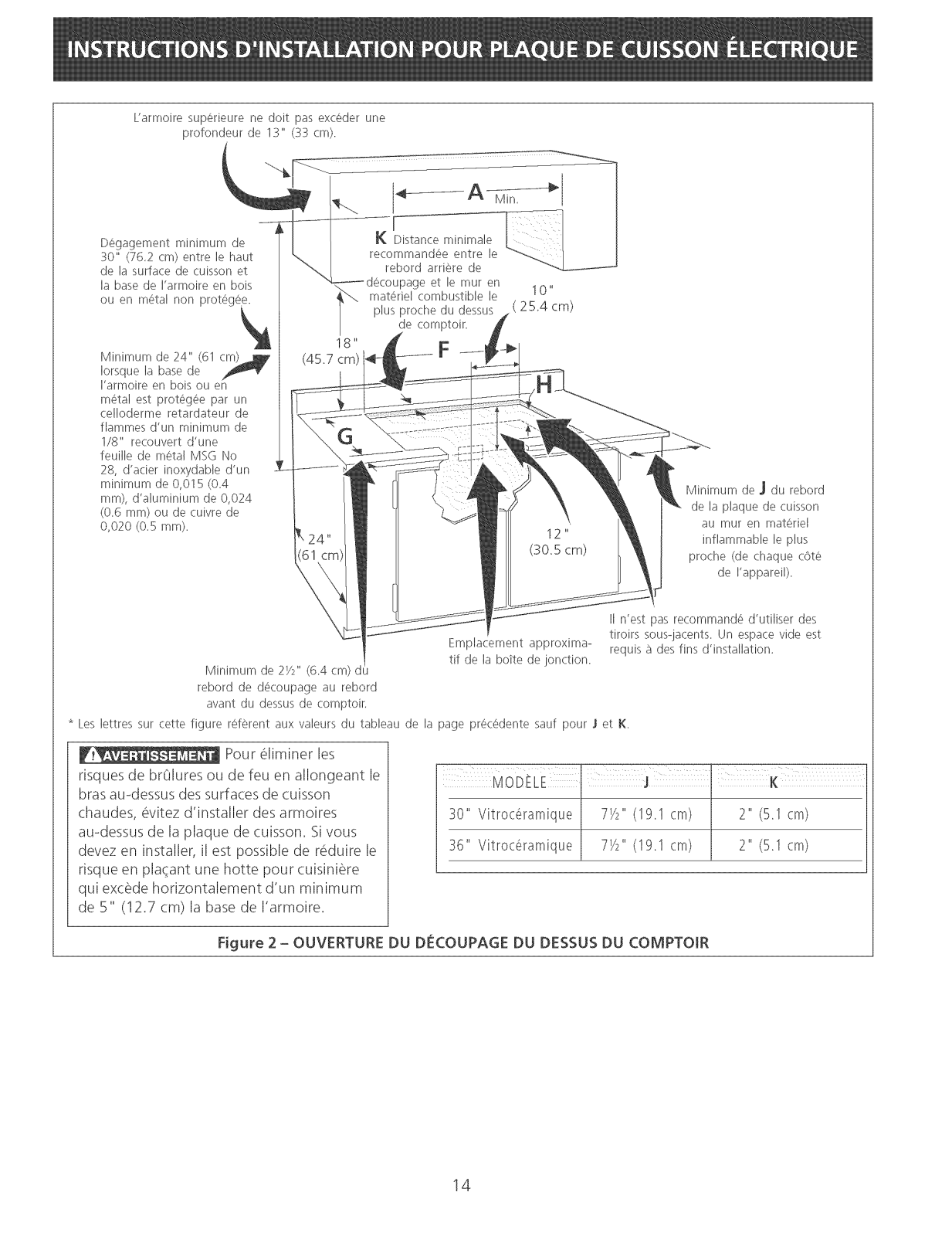

Figure 2 - COUNTERTOP CUTOUT OPENING

It is not recommended to use

drawer underneath cooktop. Empty space is needed for installation

purpose

MODEL, J • K

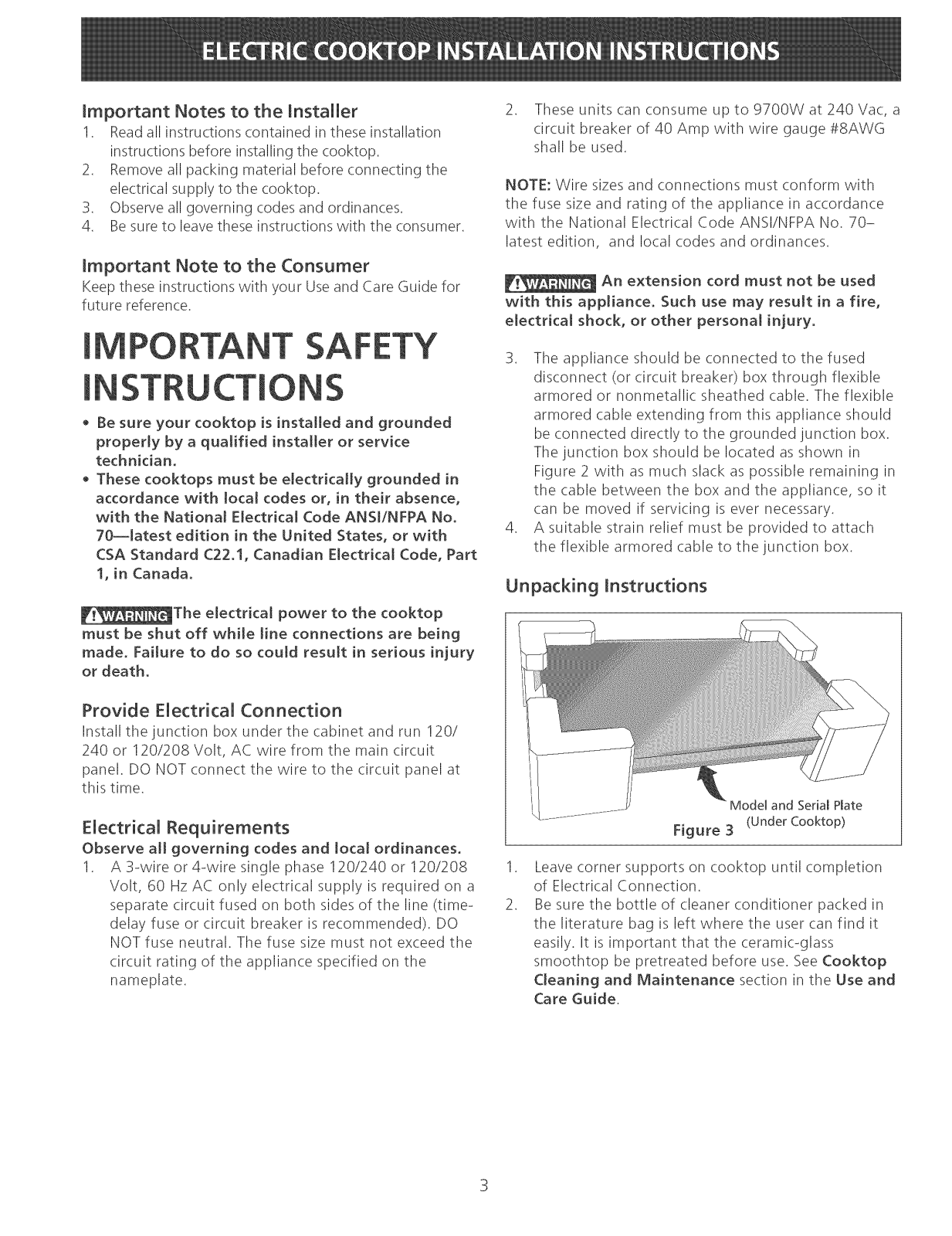

Important Notes to the Installer

1. Readallinstructionscontainedintheseinstallation instructionsbeforeinstallingthecooktop.

2. Removeallpackingmaterialbeforeconnectingthe electricalsupplytothecooktop.

3. Observeallgoverningcodesandordinances.

4. Besuretoleavetheseinstructionswiththeconsumer.

Important Note to the Consumer KeeptheseinstructionswithyourUseandCareGuidefor

futurereference.

IMPORTANT SAFETY INSTRL! S

,, Be sure your cooktop is installed and grounded

properly by a qualified installer or service technician,

• These cooktops must be e[ectricaHy grounded in

accordance with local codes or, in their absence, with the Nationa[ Electrical Code ANSI/NFPA No.

70--Jatest edition in the United States, or with CSA Standard C22.1, Canadian Electrical Code, Part 1, in Canada.

2. These units can consume up to g700W at 240 Vac, a circuit breaker of 40 Amp with wire gauge #SAWG

shall be used.

NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance

with the National Electrical Code ANSI/NFPA No. 70- latest edition, and local codes and ordinances.

An extension cord must not be used with this appliance, Such use may result in a fire, e[ectrka[ shock, or other personal injury,

3. The appliance should be connected to the fused

disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible

armored cable extending from this appliance should be connected directly to tile grounded junction box. The junction box should be located as shown in Figure 2 with as much slack as possible remaining in the (:able between tile box and the appliance, so it can be moved if servicing is ever necessary.

4. A suitable strain relief must be provided to attach

tile flexible armored cable to the junction box.

Unpacking Instructions

_The electrical power to the cooktop

must be shut off while line connections are being made, Failure to do so could result [n serious injury

or death.

Provide Electrical Connection

Install the junction box under the cabinet and run !20/ 240 or 120/208 Volt, AC wire from the main circuit

panel. DO NOT connect the wire to the circuit panel at this time.

Electrical Requirements

Observe all governing codes and local ordinances,

1. A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a

separate circuit fused on both sides of the line (time- delay fuse or circuit breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed tile

circuit rating of the appliance specified on the nameplate.

Mode[ and Serial Plate

Figure 3 (Under Cooktop)

Leave corner supports on cooktop until completion

of Electrical Connection.

Be sure the bottle of cleaner conditioner packed in the literature bag is left where the user can find it easily. It is important that tile ceramic-glass smoothtop be pretreated before use. See Cooktop Cleaning and Maintenance section in the Use and

Care Guide.

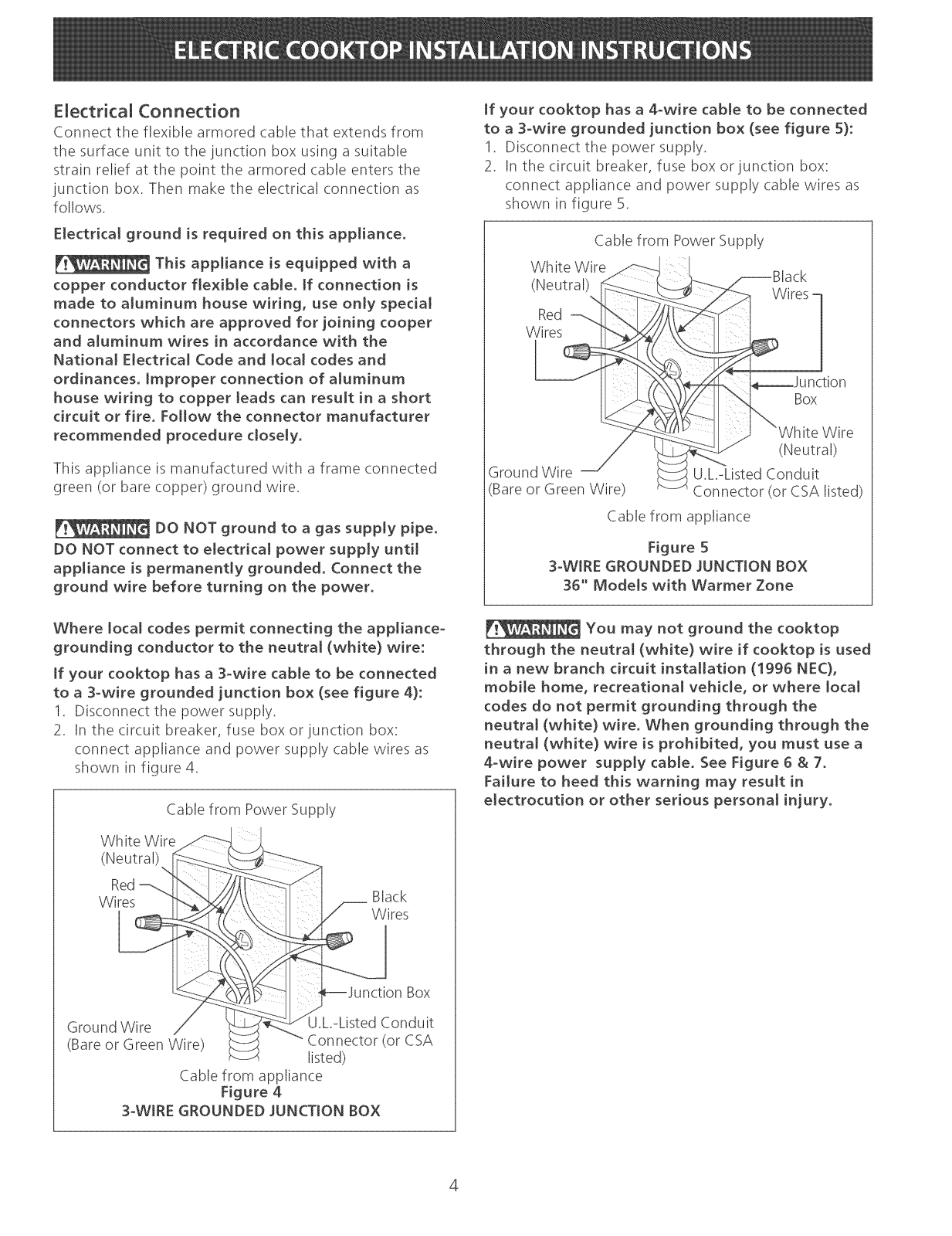

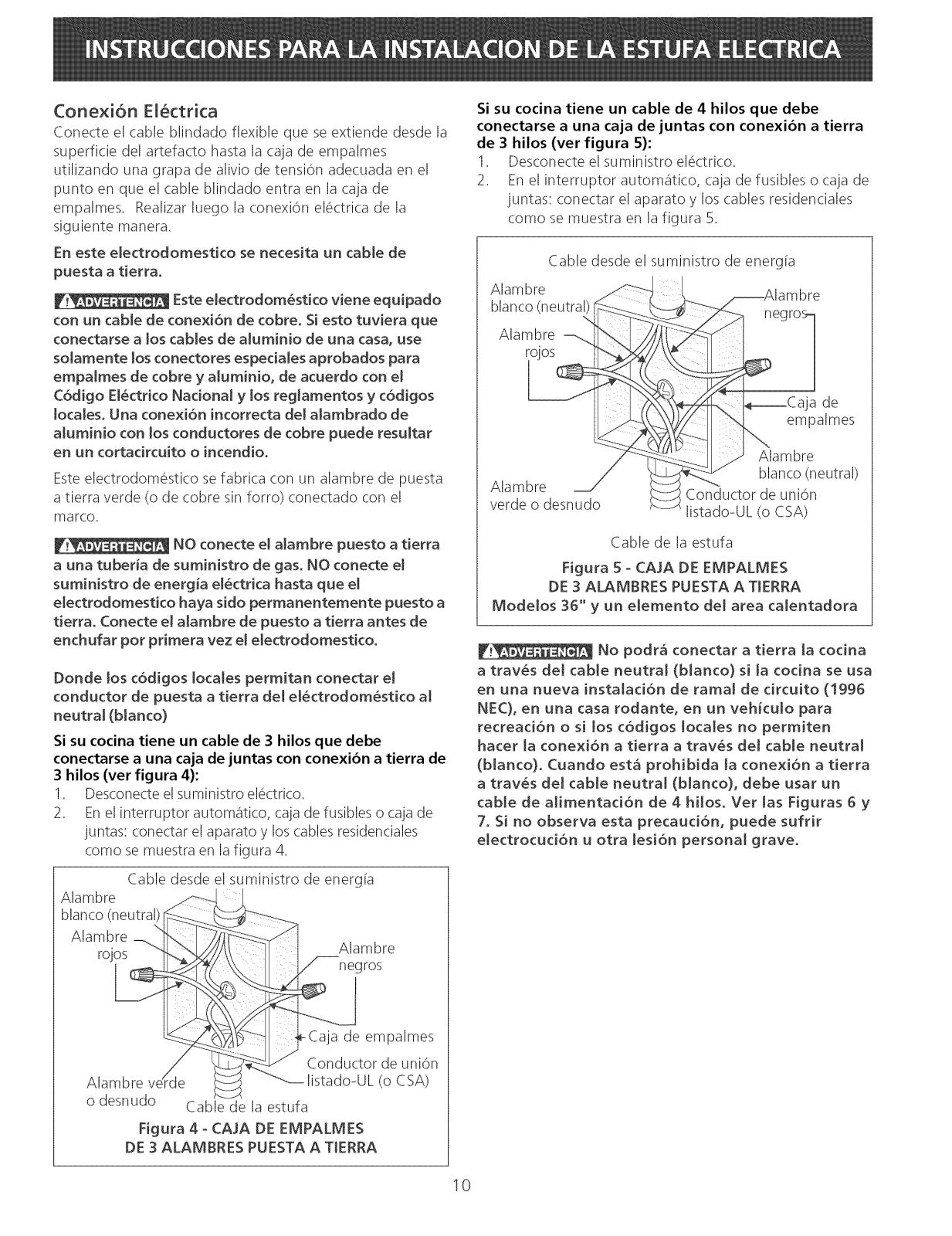

Electrical Connection

Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable

strain relief at the point the armored cable enters the

junction box. Then make the electrical connection as

follows.

tf your cooktop has a 4-wire cable to be connected

to a 3-wire grounded junction box (see figure 5):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box: connect appliance and power supply cable wires as shown in figure 5.

Electrical ground is required on this appliance.

This appliance is equipped with a

copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining cooper

and aluminum wires in accordance with the Nationa[ EJectrica[ Code and toca[ codes and

ordinances. Improper connection of aluminum house wiring to copper leads can result in a short

circuit or fire. FoIIow the connector manufacturer recommended procedure closely.

This appliance is manufactured with a frame connected green (or bare copper) ground wire.

DO NOT ground to a gas supply pipe.

DO NOT connect to electrical power supply until appliance is permanentJy grounded. Connect the ground wire before turning on the power.

Where local codes permit connecting the appliance- grounding conductor to the neutra[ (white} wire:

tf your cooktop has a 3-wire cable to be connected to a 3-wire grounded junction box (see figure 4):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box: connect appliance and power supply cable wires as shown in figure 4.

Cable from Power Supply

White Wire (Neutral)

Wires -

Red

Wires

Box

(Neutral)

Ground Wire U.L.-Listed Conduit (Bare or Green Wire) Connector (or CSA listed)

Cable from appliance

Figure 5

3-WIRE GROUNDED JUNCTION BOX

35" Models with Warmer Zone

You may not ground the cooktop

through the neutral (white} wire if cooktop is used

in a new branch circuit installation (1996 NEC), mobiIe home, recreational vehicle, or where Jocal

codes do not permit grounding through the

neutral (white) wire. When grounding through the neutral (white) wire is prohibited, you must use a

4-wire power supply cable. See Figure 6 & 7.

Failure to heed this warning may result in

electrocution or other serious personal injury.

White Wire (Neutral)

Wires

Black Wires

Box

Ground Wire U.L.-Listed Conduit (Bare or Green Wire) Connector (or CSA

listed)

Cable from appliance

Figure 4

3-WIRE GROUNDED JUNCTION BOX

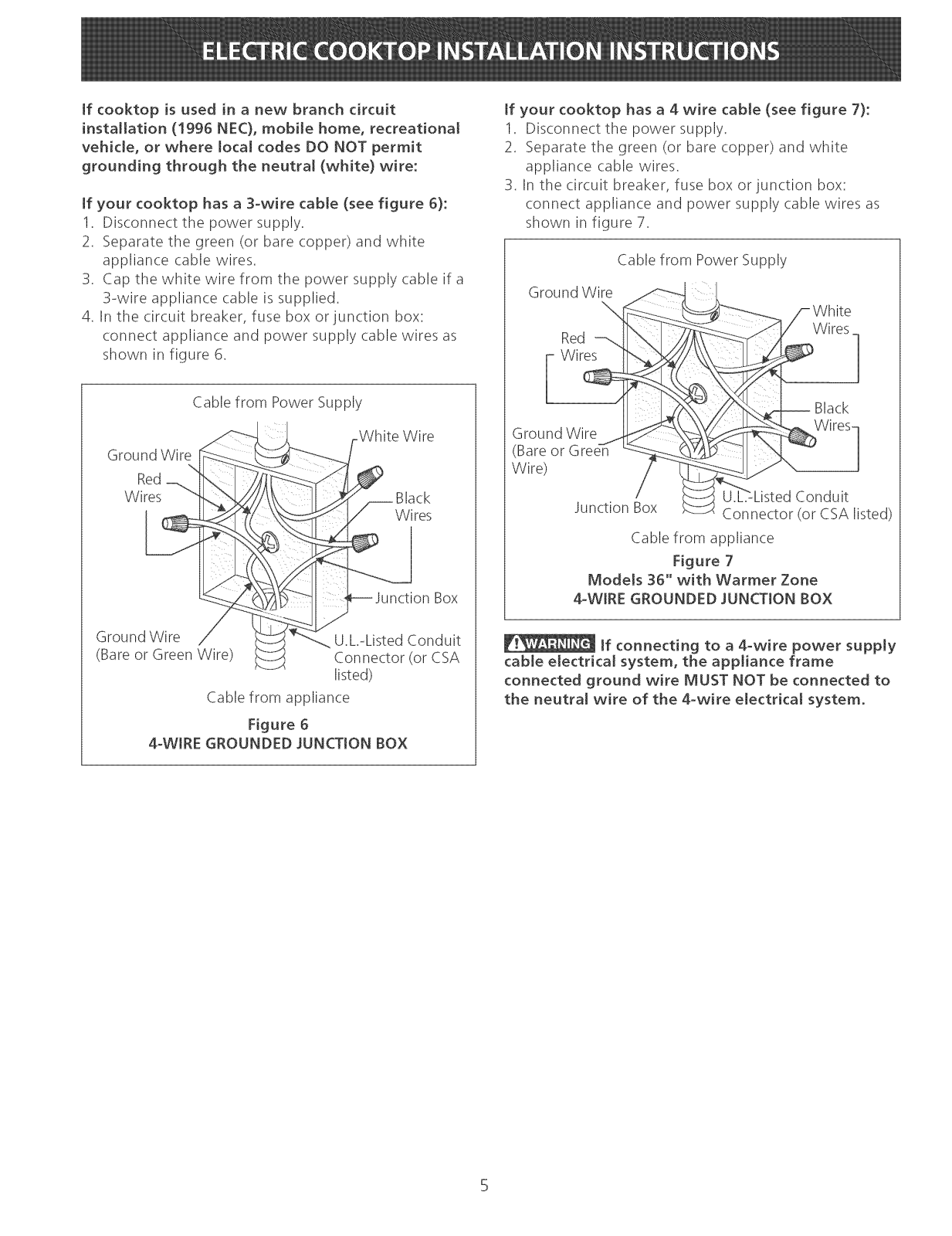

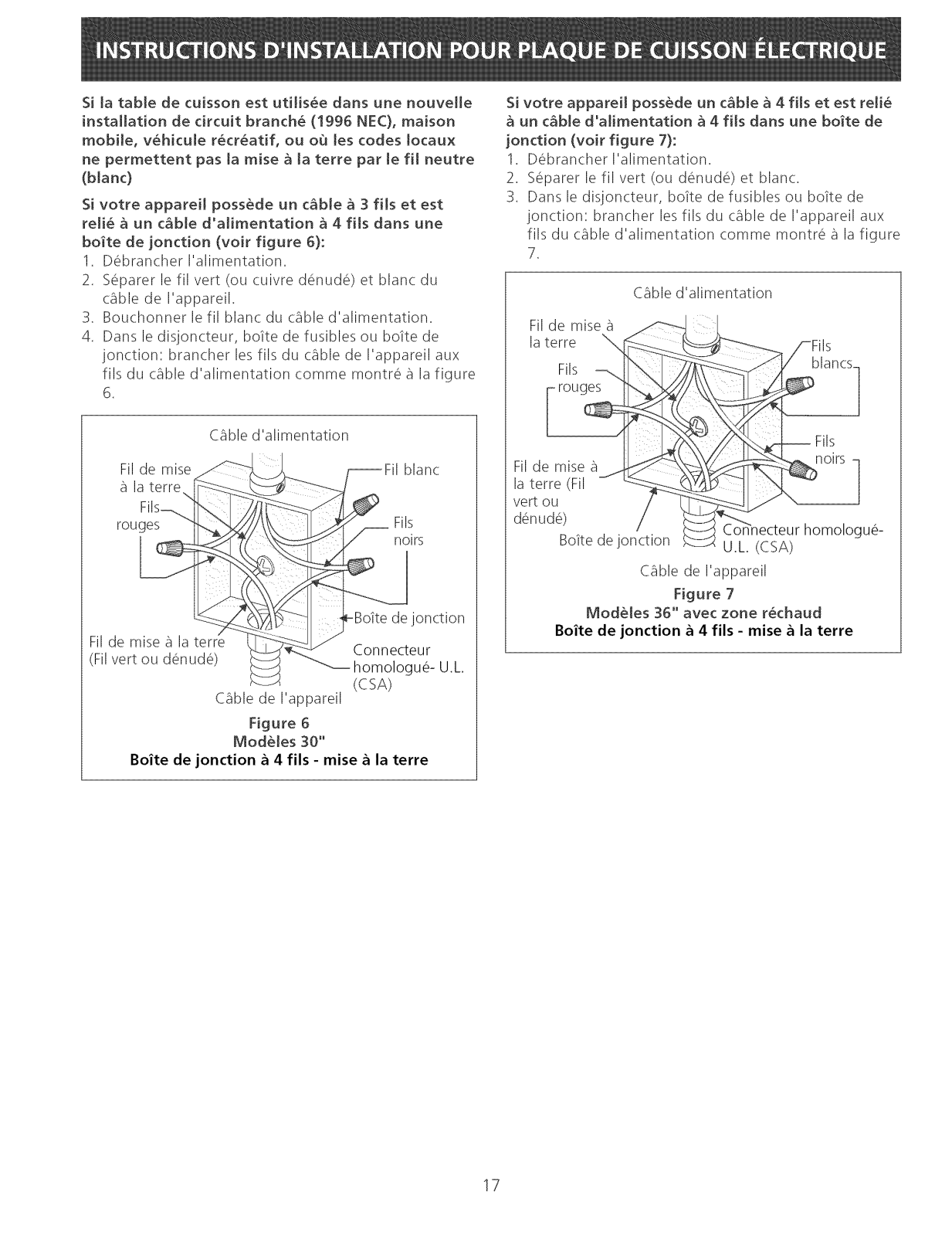

tf cooktopisused in a new branch circuit

instaJtation (!995 NEC), mobile home, recreaNonat vehicle, or where local codes DO NOT permit

grounding through the neutral (white) wire:

tf your cooktop has a 3-wire cable (see figure 6):

1. Disconnect the power supply.

2, Separate the green (or bare copper) and white

appliance cable wires.

3, Cap the white wire from the power supply cable if a

3-wire appliance cable is supplied.

4, In the circuit breaker, fuse box or junction box:

connect appliance and power supply (.able wires as shown in figure 6,

Cable from Power Supply

tf your cooktop has a 4 wire cable (see figure 7):

1. Disconnect the power supply.

2, Separate the green (or bare copper) and white

appliance cable wires.

3, In tile circuit breaker, fuse box or junction box:

connect appliance and power supply (.able wires as shown in figure 7,

Cable from Power Supply

Ground Wire

Red

Wires

]

_-_ _ .White Wire

Groun Wire "

Red

__ ___on Box

Ground ' / _;'_ U.L.-Listed Conduit (Bare or Green Wire) _ Connector (or CSA

listed)

Cable from appliance

Figure 6

4-WIRE GROUNDED JUNCTION BOX

Ground Wire (Bare

Wire)

Conduit

Junction Box Connector (or CSA listed)

Cable from appliance

Figure 7

Models 36" with Warmer Zone

4-WIRE GROUNDED JUNCTION BOX

If connecting to a 4-wire power supply

cable electrical system, the appliance frame connected ground wire MUST NOT be connected to

the neutral wire of the 4-wire electrical system.

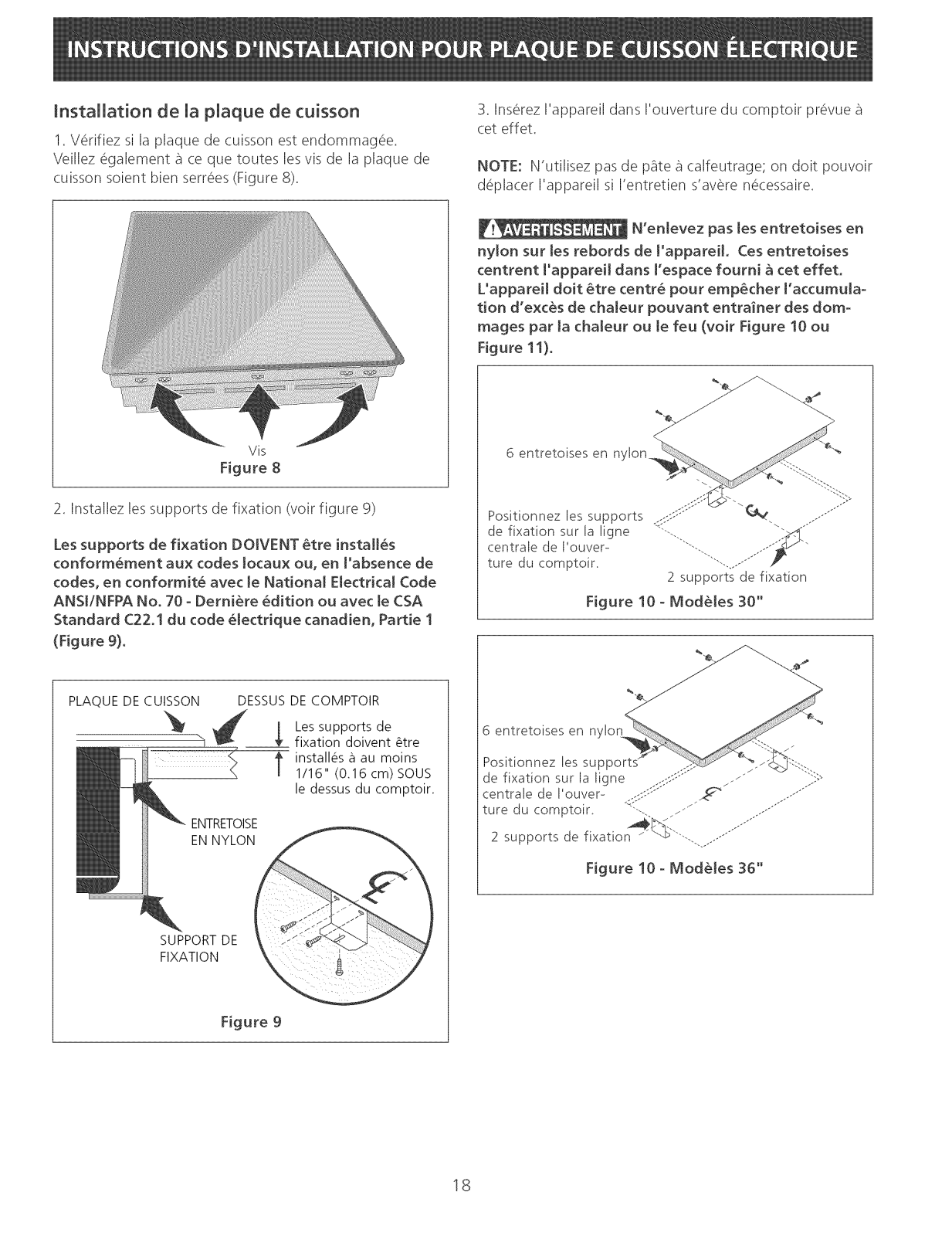

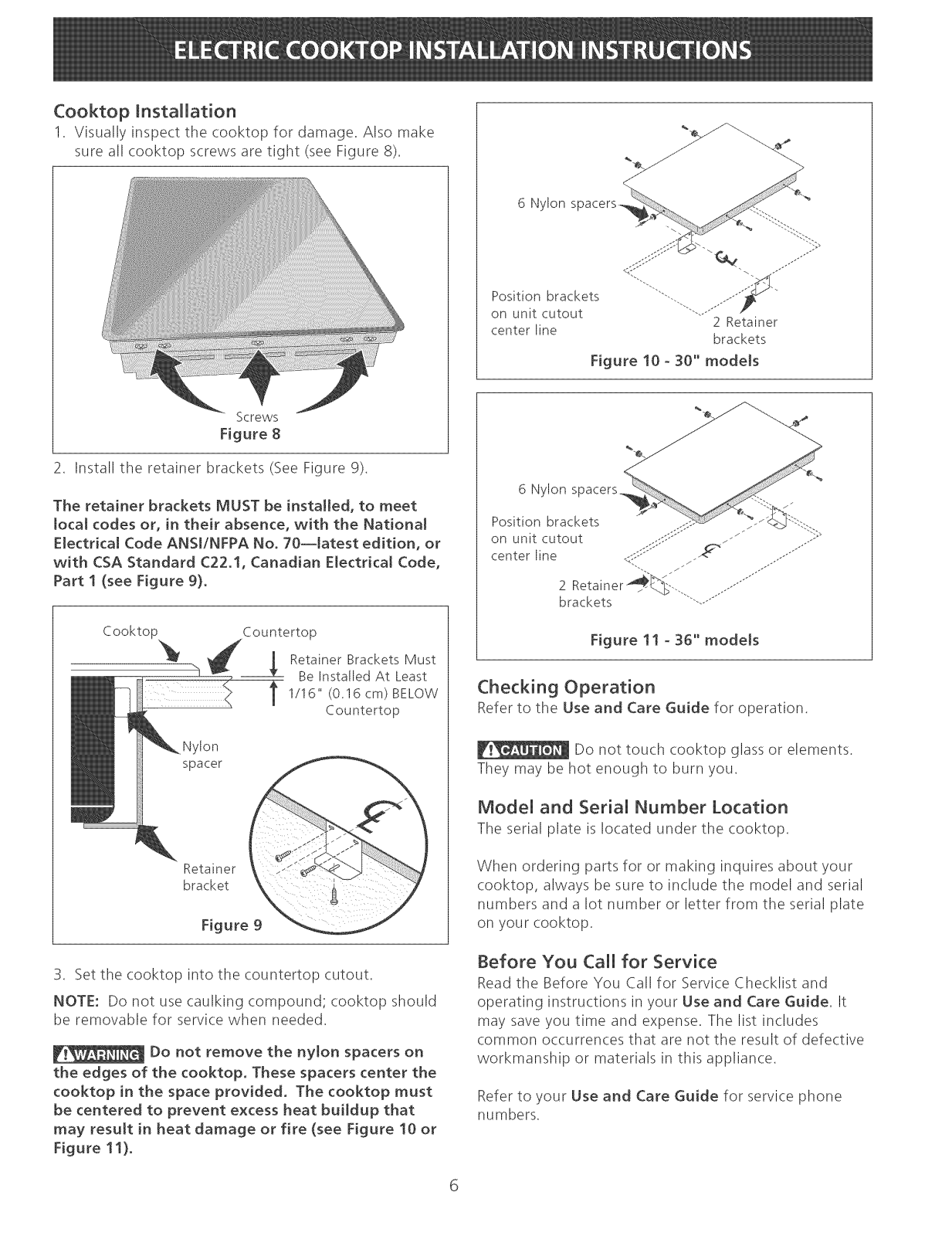

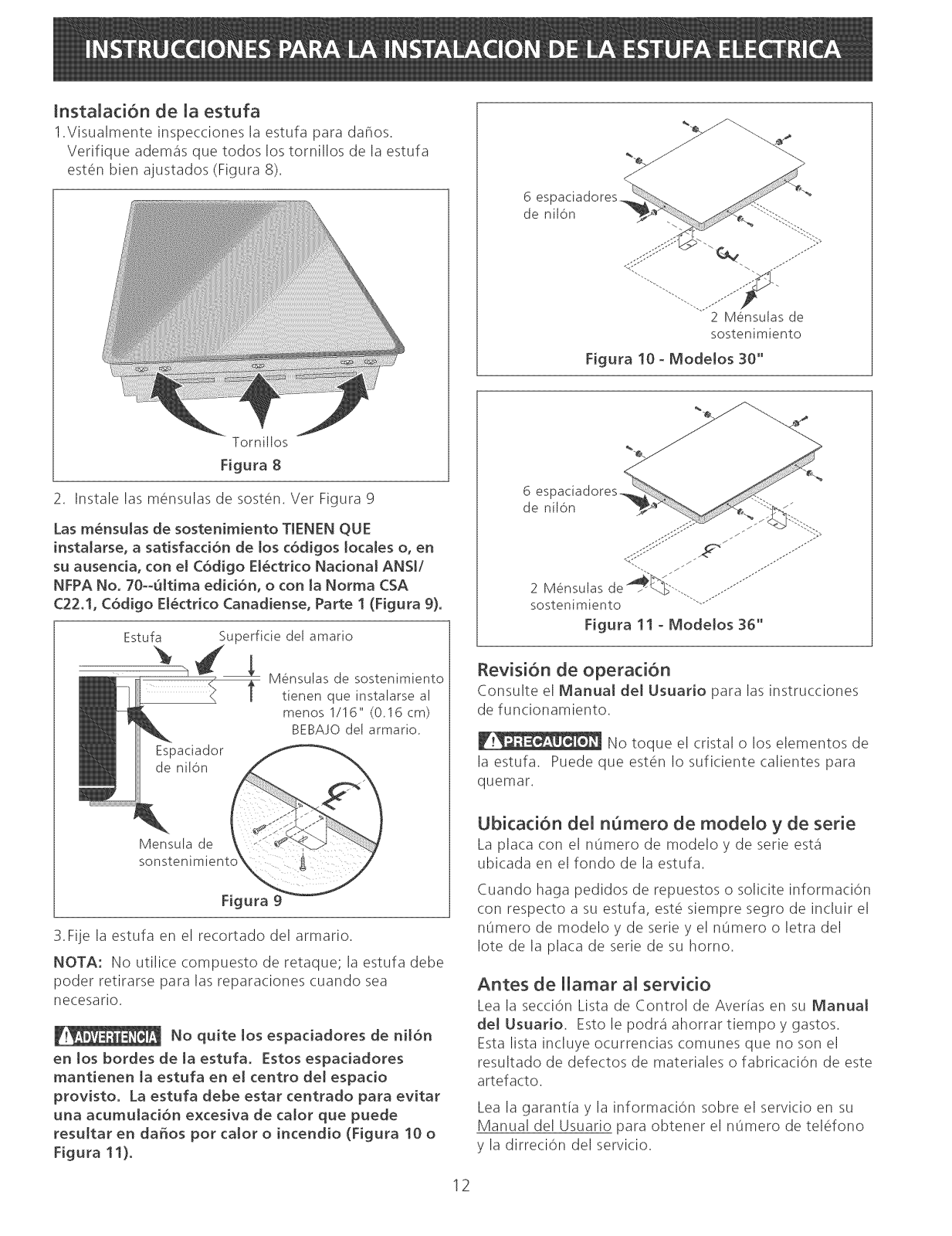

Cooktop Installation

1. Visually inspect the cooktap for damage. Alse make sure all cooktop screws are tight (see Figure 8).

Screws

Figure 8

2. Install the retainer brackets (See Figure 9).

The retainer brackets MUST be installed, to meet

local codes or, in their absence, with the National Electrkal Code ANSI/NFPA No. 70--latest edition, or

with CSA Standard C22.1, Canadian Electrical Code, Part 1 (see Figure 9).

6 Nylon

Position brackets on unit cutout

center line

Figure 10 - 30" models

6 Nylon

Position brackets

on unit cutout .-:::'" _-_

center line <_::-" . ......

2 Retainer_.-[_ -..... .......

brackets ............

Cooktop Countertop

j Be fnstalled At Least

__ Retainer Brackets Must

Ion

spacer

Retainer bracket

1/16" (016 cm) BELOW

Countertop

Figure 9

3. Set the cooktop into the countertop cutout. NOTE: Do not use caulking compound; cooktop should

be removable for service when needed.

Do not remove the nylon spacers on

the edges of the cooktop. These spacers center the cooktop in the space provided. The cooktop must

be centered to prevent excess heat buildup that may resutt in heat damage or fire (see Figure 10 or

Figure 11).

Figure 11 - 35" models

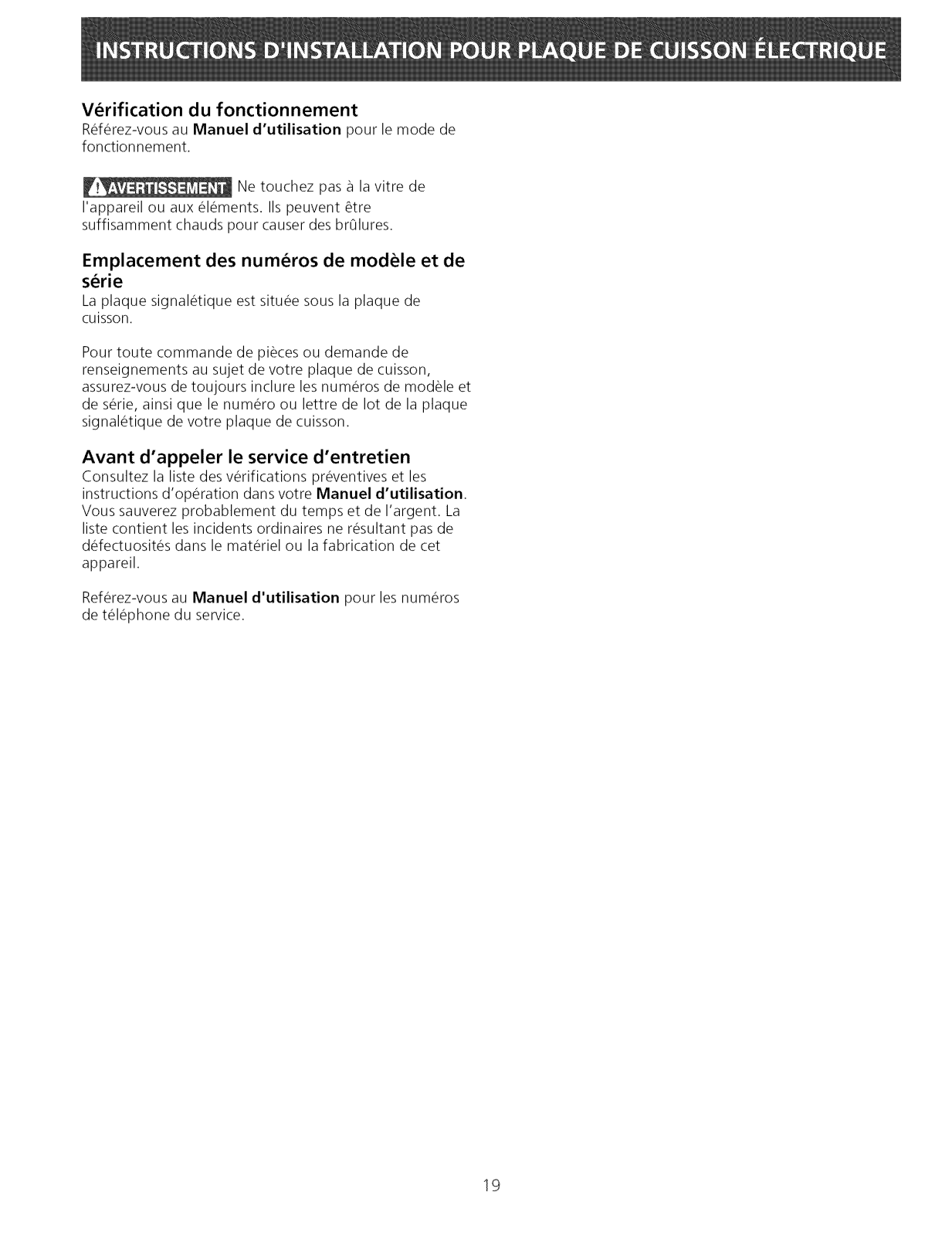

Checking Operation

Refer to tile Use and Care Guide for operation.

Do not touch cooktop glass or elements.

They may be hot enough to burn you.

Model and Serial Number Location

Tile serial plate is located under the cooktop.

When ordering parts for or making inquires about your cooktop, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your cooktop.

Before You Call for Service

Read the Before You Call for Service Checklist and operating instructions in your Use and Care Guide. It

may save you time and expense. The list includes common occurrences that are not the result of defective

workmanship or materials in this appliance.

Refer to your Use and Care Guide for service phone numbers.
