Frigidaire PLEB27S8C Factory Parts Catalog

FACTORY PARTS CATALOG

RANGE

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

PLEB27S8CCA PLEB27S8C 38257793G30S1 stainless North America

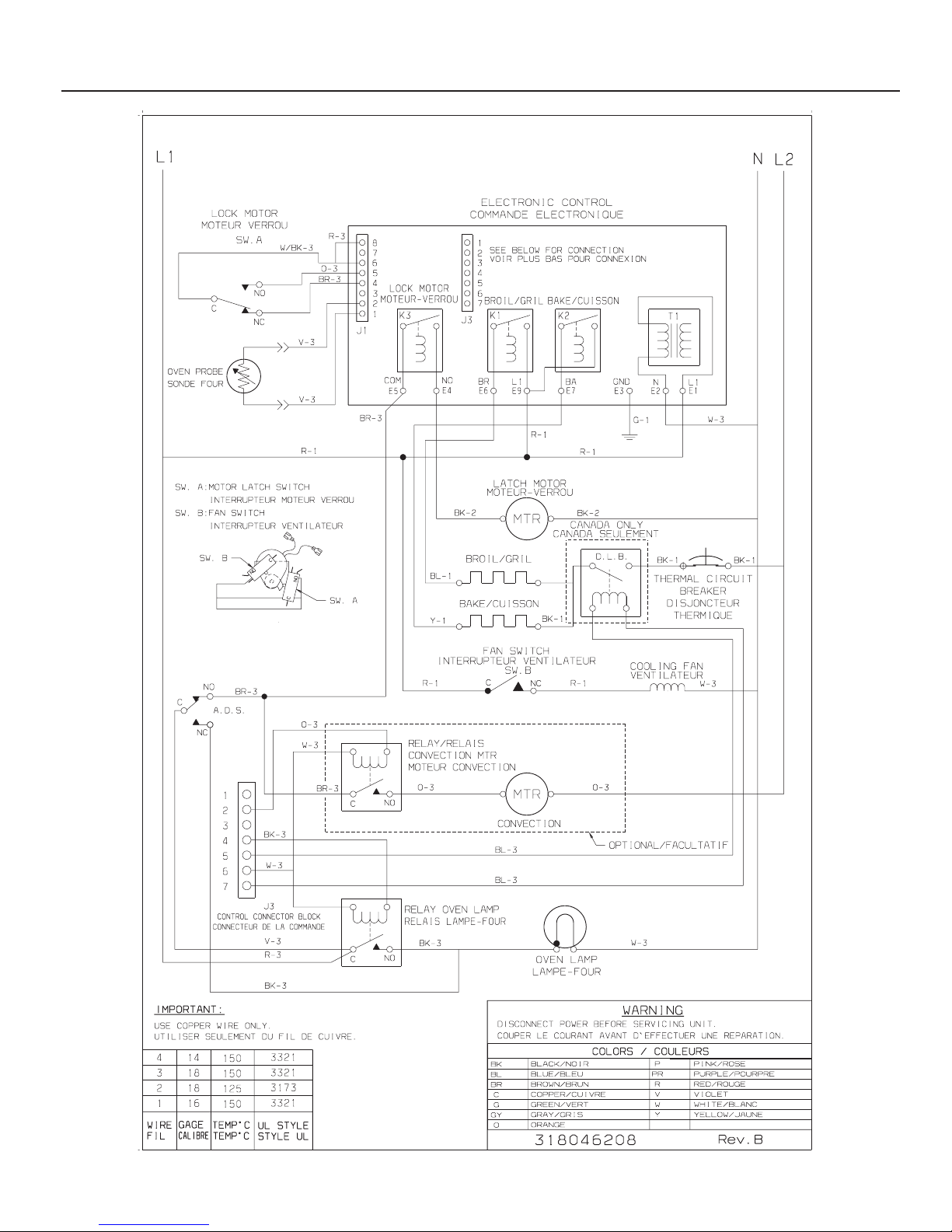

WIRING DIAGRAM - # 318046208
OWNER’S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200181
INSTALLATION INSTRUCTIONS - # 318201507

ELECTRIC

WALL OVEN

ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917

Publication No.

5995379368

021007

-EN/SERVICE /ECL
377

©2002 Electrolux Home Products, Inc.
All rights reserved

Model No.

PLEB27S8C

Publication No. PLEB27S8CCA
5995379368

CONTROL PANEL

10/02 2

PLEB27S8CCA Publication No.

5995379368

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030215 Panel,control ,black ,back
19A 318192802 Panel,control ,stainless ,front
20 # 318010700 Clock/Timer,EOC
21 318028330 Trim,canopy
23 318111602 Bracket,clock & relay
42 318027310 Trim,vent
78 318037200 Cover,oven vent ,stainless
79 318029602 Trim,top ,stainless steel
80 # 318111501 Relay,convection ,oven light ,(2)
96 316037700 Seal,vent cover
97 316037800 Tape,vent cover
99 5303300265 Screw,8-18 x 0.500 ,chrome

* 218490900 Cleaner,stainless steel
* 3201861 Screw,6 x 0.375
* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box
* 5303211311 Screw,8 x 0.500
* 5303302745 Screw,10-16x1-1/8 ,square drive
* 5303311528 Screw,oval hd sq dr ,6-20AB x 0.625 ,black

# = Functional Parts 3 10/02

* = Non-Illustrated Parts
