Even-Cook Convection Oven
Conv
Pre
Speed
Bake
bake
Heat
clean
time
Conv
Start
Bake
Clean
convert
time
Maxx
Keep
Conv
Broil
clean
Warm
roast
123
456
789
Oven
Clear
Timer
Clock
START
0
On/Off
light
/Off
Controls

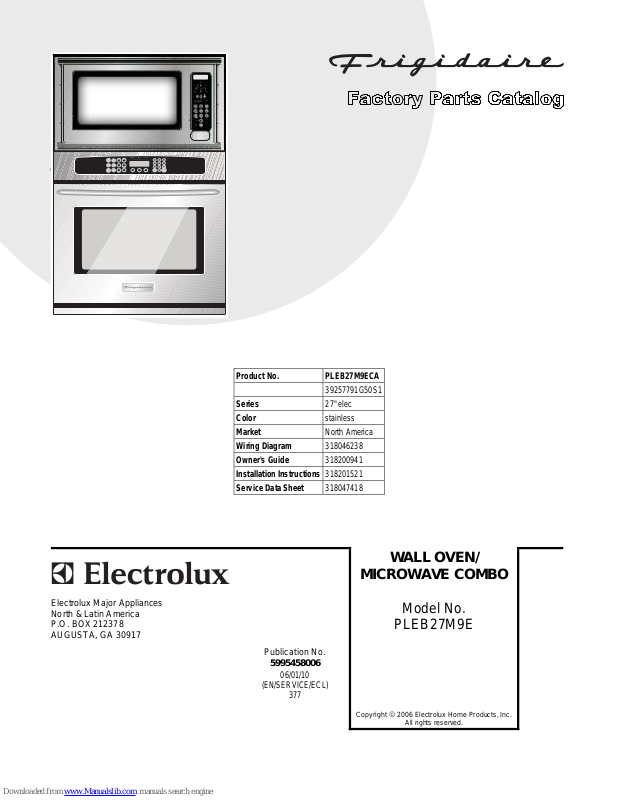

Product No. PLEB27M9ECA
39257791G50S1
Series 27" elec
Color stainless
Market North America
Wiring Diagram 318046238
Owner's Guide 318200941
Installation Instructions 318201521
Service Data Sheet 318047418
PLEB27M9EC.eps CPLEB27M9ECA.eps MPLEB27M9ECA.eps BGLEB27M9ESA.eps
DPLEB27M9ECA.eps 318046238.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995458006
06/01/10
(EN/SERVICE/ECL)
377
WALL OVEN/
MICROWAVE COMBO
Model No.
PLEB27M9E
Copyright © 2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995458006 PLEB27M9ECA
CONTROL PANELS
01/06 2
PLEB27M9ECA Publication No: 5995458006
CONTROL PANELS
POS. NO PART NO. DESCRIPTION
1 318331303 Control Panel Assembly, glass, black, w/touch pad
2 # 316418721 Clock/Timer, electronic, ES510W1
* 316021107 Screw, hex head, 8-32, silver
3 318295701 Deflector, timer
4 318271315 Frame, control panel, stainless
16 # 5304440820 Control Board, printed circuit
17 5304452253 Frame, control panel, stainless steel
18 # 5304440824 Switch Assy, touch control, black
19 5304448833 Push Button, door opener, stainless steel
20 5304442134 Spring, button
21 5304440282 Screw, control board, 3mm x 10mm
22 5304440832 Connector, rubber, control board
23 5304440833 Panel, touch pad mount
24 # 5304440834 LED Sheet, backlight
25 # 5304440835 LCD, display
26 5304440836 Bracket, PCB support
* 5303211311 Screw, 8 x 0.500
# Functional Parts
3 01/06
* Non-Illustrated Parts
Publication No: 5995458006 PLEB27M9ECA
UPPER OVEN
01/06 4
PLEB27M9ECA Publication No: 5995458006
UPPER OVEN
POS. NO PART NO. DESCRIPTION
1 # 5304440777 Capacitor, high voltage
2 # 5304440778 Rectifier, high voltage
3 # 5304440779 Lamp Assy, with socket
4 # 5304448490 Motor, cooling fan
5 # 5303319559 Switch, monitor, with CT fuse
6 # 5304440026 Switch, interlock, door sensor
7 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V
8 # 5304440781 Magnetron
9 # 5304448832 Motor, turntable
10 # 5304440783 Transformer, power
11 # 5304440784 Power Cord, electric
12 # 5304440785 Sensor, humidity, cook control
13 5304440814 Base, unit chassis
15 5304440816 Cabinet, outer casing, black
28 5304440838 Retainer, capacitor strap
29 5304440839 Bracket, chassis support
30 5304440840 Latch Hook
31 5304440841 Lever, door release
32 5304440842 Duct, magnetron
33 # 5304440843 Fan Blade, cooling fan
34 5304440844 Duct, cooling fan
36 5304440845 Cover, waveguide
37 5304440288 Bushing, motor shaft, turntable
38 5304441909 Cushion, base plate pad
39 5304440847 Duct, AH sensor
40 5304441910 Cushion, magnetron pad
52 5304452260 Wiring Harness, main
53 5304440284 Support Assy, turntable
54 5304440868 Tray, turntable, glass
55 5304440334 Label, Caution-monitor
56 5304440333 Label, Caution-DHHS
57 5304453941 Label, caution, UL screw
58 # 5304440870 Wire, high voltage-A
59 5303319636 Screw
60 5303319641 Screw
61 5304440871 Screw, 4mm x 12mm, ground
62 5304440340 Screw, 4mm x 12mm
62 5304452261 Screw, outer casing
63 5303319633 Screw, 3mm x 8mm
64 5304440872 Screw, 4mm x 8mm
65 5304440873 Screw, torx head, tamper proof
66 5304440874 Screw
67 # 5304451818 Filter, noise, electronic
68 5303322975 Bracket, noise filter, angle
# Functional Parts
5 01/06
* Non-Illustrated Parts
Publication No: 5995458006 PLEB27M9ECA
LOWER OVEN
01/06 6
PLEB27M9ECA Publication No: 5995458006
LOWER OVEN
POS. NO PART NO. DESCRIPTION
1 318259210 Back, main
2 318258910 Shield, insulation, upper
6 318262603 Rack, oven, (3)
6A 318219500 Rack, broiler pan
8 318262011 Cover, element
8A 318318600 Bracket, element, hidden bake
9 5303317977 Pan, broiler
10 5303317976 Insert, broiler pan
12 # 318089917 Switch, light
14 318224000 Receptacle, oven light
14* 318268099 Insulation, oven light
15 5303013071 Bulb/Lamp, light
16 3201911 Cover, oven light, glass
17 5304400195 Retainer, light cover
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
41 5303310526 Cover, hinge cutout
* 5303325980 Screw, 10-32 x 0.437
54 318222400 Housing, oven light
56 318276304 Trim, side filler, black, RH
56A 318276305 Trim, side filler, black, LH
58A 318285060 Insulation, rear & bottom, oven wrapper
58B 318285059 Insulation, top & sides, oven wrapper
58D 318285058 Insulation, 1/2" thick, 43 x 9.5
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
62 316056000 Terminal Block
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
66 # 318255601 Element, broil, 3400W
67 318254902 Element, bake, 2700W, 6 pass
68 5304403015 Support, hanger, (2), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260001 Panel, rear box
76 318056222 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
82 318258 71 0 Shield, insulation, lower
83 318261500 Liner, oven assy
84 # 318146828 Outlet-electrical, miniature, black-glossy
86 5303310524 Receptacle, hinge
87 318260601 Bracket, cable mtg.
89# 318261202 Motor, latch assy
90 318259811 Trim, base, stainless
99 318256200 Bracket, side, bottom, (2)
107 318 219401 Cover, fan
108# 318073018 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
109 316136400 Blade, fan
111 316 136600 Nut, fan retainer
# Functional Parts
7 01/06
* Non-Illustrated Parts
Publication No: 5995458006 PLEB27M9ECA
LOWER OVEN
01/06 8
PLEB27M9ECA Publication No: 5995458006
LOWER OVEN
POS. NO PART NO. DESCRIPTION
112# 318112701 Relay
119# 318004900 Switch, thermal
125* 5303316994 Insulation, 3.81 x 3.13
125# 316415800 Motor, fan
127 318317100 Adapter Assembly, vent tube, w/converter
131 318272900 Box, vent
132 318 003000 Plate, shield
142 318 123910 Deflector
143 318 172904 Support, wire
161# 318255503 Element, convection, 350 W
163 318014111 Spacer
185 318 014700 Spacer, oven shield, (4)
219# 318003614 Thermostat, safety
* 3201861 Screw, 6 x 0.375, (4)
219A 318003613 Thermostat, safety
263 316136500 Washer, flat
264 318257711 Trim, oven, black, front
272 318249401 Tube, protector
310 5304440067 Cabinet Mounting Kit
311 318 246010 Bracket, cabinet mtg, (2)
311* 5304438005 Screw, 6 x 1, black
312 318246702 Tool, cabinet bracket, RH
312 318246703 Tool, cabinet bracket, LH
400 318275603 Trim Assembly, microwave, 27", stainless
401 318 297 200 Plate, support, microwave, 27"
402 318 276 202 Bracket, base pad, RH
403 318 276203 Bracket, base pad, LH
406 318 277200 Shield, microwave rear
409 318 295300 Bracket, top trim
410 318297101 Flue, black
411# 5304442354 Holder, fuse
412# 5304442353 Fuse, 20 Amp
* # 318078543 Box & wires assy
* 318231737 Harness, wiring, main
* 5303323136 Screw ground
* 5303211311 Screw, 8 x 0.500
* 5303323277 Screw, 8-18 X 13/32
* 5303324184 Screw, 8-18 x 5/16, black, (4)
* 5304436875 Screw, 8-18 X 1/2, black
# Functional Parts
9 01/06
* Non-Illustrated Parts
Publication No: 5995458006 PLEB27M9ECA
DOORS
01/06 10
PLEB27M9ECA Publication No: 5995458006
DOORS
POS. NO PART NO. DESCRIPTION
3A 318260401 Trim, oven door, side, (2)
3B 318262101 Cover, rear door, black, (2)
6 318260510 Baffle, door
7 318285057 Insulation, oven door
7A 318285061 Insulation, (2)
8 318212200 Glass, oven door, heat barrier
9 318259615 Liner, upper door
10 5304400794 Screw, handle mtg, 10-32 x 3/4
12 318053125 Seal, door
13 318272104 Door Assy, stainless steel, outer, w/tape & foil
17 318264700 Spacer, glass, (2)
23 318024722 Hinge, door, (2)
24 318260311 Trim, door, black, lower
39 318219801 Handle, door/drawer, stainless
40 318242700 Bracket, glass holder, (2)
41 5304452258 Door Assembly, complete, stainless
43 5304440856 Latch, door
44 5304440316 Spring, door latch
45 5304440857 Panel, inner door, black
46 5304440860 Seal, door, film
47 5304440861 Frame, choke cover, inner door
48 5304442145 Door Stop
50 5304440862 Door Stop
51 5304452259 Screw
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer, (2)
* 318163602 Cleaner, stainless steel
* 5303323277 Screw, 8-18 X 13/32
# Functional Parts
11 01/06
* Non-Illustrated Parts
Publication No: 5995458006 PLEB27M9ECA
WIRING DIAGRAM
01/06 12
