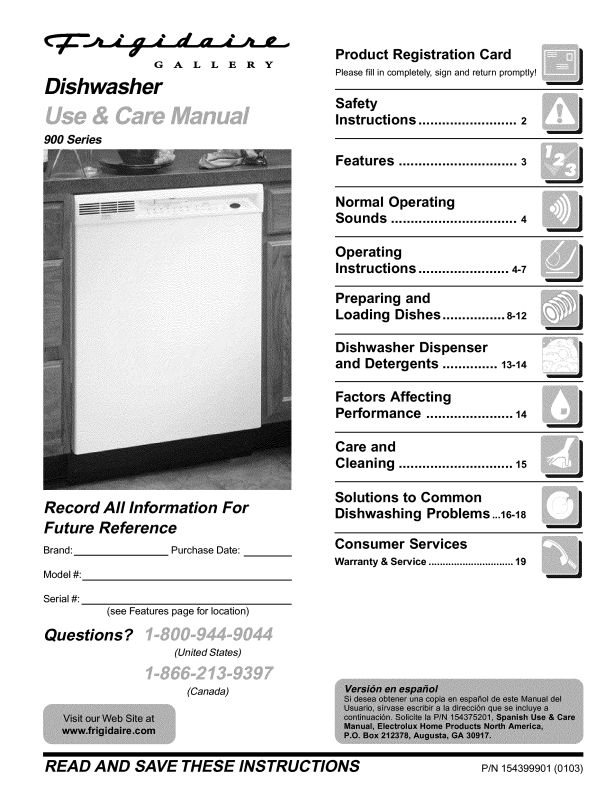

Dishwasher
900 Series
G
A L L E R Y
Product Registration Card
Please fill in completely, sign and return promptly!
Safety
Instructions ......................... 2
Features .............................. 3
Normal Operating
Sounds ................................ 4
Operating
Instructions ....................... 4-7
Preparing and
Loading Dishes ................ 8-12
Dishwasher Dispenser
and Detergents .............. 13-14
Record All Information For
Future Reference
Brand:
Model #:
Serial #:
(see Features page for location)
Questions?
Purchase Date:
(United States)
(Canada)
Factors Affecting
Performance ...................... 14
Care and
Cleaning ............................. 15
Solutions to Common
Dishwashing Problems...16-18
Consumer Services
Warranty & Service .............................. 19
READ AND SAVE THESE INSTRUCTIONS P/N154399901(olo3)
Important Safety Instructions
This symbol will help alert you to such
dangers as personal injury, burns, fire, and
electrical shock.
• If the dishwasher drains into a food disposer,
make sure disposer is completely empty before
running dishwasher.
• Disconnect electrical power to dishwasher
before servicing.
• Repairs should be done by a qualified
technician.
To reduce the risk of fire, electrical shock, or
injury when using your dishwasher, follow
basic precautions including the following:
Read all instructions before using your
dishwasher.
Use your dishwasher only as instructed in this
Use and Care Manual.
• This Manual does not cover every possible
condition and situation that may occur. Use
common sense and caution when installing,
operating and maintaining any appliance.
• DISHWASHER MUST BE ELECTRICALLY
GROUNDED. Read the Installation Instructions
for details.
• This dishwasher is designed to operate on
regular house current (120 V, 60 Hz). Use a
circuit equipped with a 15 ampere fuse or circuit
breaker. Use a 20 ampere fuse if dishwasher is
connected with a food waste disposer.
• Do not operate dishwasher unless all enclosure
panels are in their proper place.
• To avoid entrapment and/or suffocation,
remove door or door latch mechanism from any
dishwasher that is discarded or not in use.
Keep young children and infants away from
dishwasher when it is operating.
Do not let children abuse, sit, stand or play on
door or racks of a dishwasher.
Use only detergents and rinse agents
recommended for use in a dishwasher.
Store dishwasher detergent and rinse agents
out of the reach of children.
Do not wash plastic items unless marked
"dishwasher safe" or the equivalent. Check with
manufacturer for recommendations, if not
marked. Items that are not dishwasher safe
may melt and create a potential fire hazard.
Do not tamper with controls.
Do not touch the heating element during or
immediately after use.
Use care unloading the dishware when the
SANITIZE option has been selected. Contents
may be hot to the touch immediately after the
end of cycle.
Water vapor from the vent may be hot to the
touch when the SANITIZE option has been
selected. Use care and do not let small
children play around or touch the vent area of
the dishwasher.
When loading items to be washed:
- Locate sharp items and knives so that they
are not likely to damage the door seal or
tub.
- Load sharp items and knives with the
handles up to reduce the risk of cut-type
injuries.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If hot water system has
not been used for such a period, before using
dishwasher, turn on all hot water faucets and let
water flow from each for several minutes. This
will release any accumulated hydrogen gas.
HYDROGEN GAS IS FLAMMABLE. Do not
smoke or use an open flame during this time.
• Do not store or use combustible materials,
gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
SAVE THESE
INSTRUCTIONS
@2001 White Consolidated Industries, Inc.
All rights reserved. Printed in U.S.A.
Dishwasher Features
Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against
soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter
area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water
is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.
Tub Gasket 9,10,16 Top Rack
page 15 pages 8,9,10
Middle Spray Arm
pages 8,11,16
Lower Spray Arm
pages 11,12,16
Overfill Protector
page 15
Prewash Detergent Cup
page 13
Detergent Dispenser
page 13
Funnel
pages
Nozzle and Upper Spray
Serial Label
(located on right
side of tub)
iiii!iiiii!i!i:!ili! i! !!;i i iiiiiil.... ii i'i!i i i
Bottom Rack
page 11
Glass Trap
page 15
Self-Cleaning Filter
page 15
Heating Element
page 15
Rinse Aid
Dispenser
page 14
Vent
pages
4,6,17
\
Operating Instructions
Vent Latch
Very Important
InformationmRead Before
Operating Your Dishwasher!
Normal Operating
Sounds
This dishwasher does not sound like most
dishwashers--IT'S QUIETER.
Your Precision Wash System@ dishwasher uses
energy efficient motors for the wash and drain
portions of the cycle you select. Each cycle has
a series of water fills and drains for washing and
rinsing dishes. As each cycle begins, you may-
or may not-hear the drain motor.
Appearance may vary from your model.
Getting Started
.
Load dishwasher (See Preparing and Loading
Dishes).
.
Add detergent (See Dishwasher Dispenser &
Detergents).
.
Add rinse aid, if needed (See Rinse Aid).
4.
Close door to latch.
5.
Select desired CYCLE (See Cycle Chart). The
indicator light above the pad will glow when
selected.
.
Select desired OPTIONS (See Energy
Options). The indicator light above the pad will
glow when selected.
.
Run hot water faucet nearest dishwasher until
water is hot. Turn water off.
8. To start, press START/CANCEL pad.
The next sound you will hear is the splashing
water as it enters the tub. Then the lower arm
rotates and circulates water. This is followed by
a pause and a slightly different sound as the
middle arm sprays water. If you listen closely,
you will hear the change in sound as the wash
action switches from one arm to the other.
PLEASE BE ADVISED: If you compare this
dishwasher to previous models, you may be
surprised at what you DON'T hear!
Wash Cycle Selections
Note: Cycle times are approximate and will vary
with options selected. Hot water is necessary to
activate dishwasher detergent and melt fatty food
soils. An automatic sensor will check the incoming
water temperature and, if it is not hot enough, the
timer will be delayed for automatic water heating in
the main wash of all cycles. This happens even
when HI-TEMP WASH option has not been
selected. When HI-TEMP WASH is selected, an
even higher temperature will be guaranteed to
handle heavier soil loads.
Operating Instructions (continued)
The Smart Sensor checks the soil level on your dishes in the Pots Pan, Normal and Light Wash (Both
Racks) cycles. Depending on soil level, the sensor will determine if additional water fills are needed to clean
the dishes or if water fills can be deleted. Cycle time and water usage will vary based on the amount of soil
on the dishes. Cycle time will also vary based on the options selected and the incoming water temperature.
Note: Not all cycles available on all models.
Cycle Chart
Cycle
Pots Pans
For pots, pans, casseroles
and dinnerware with
dried-on or baked-on soils.
Normal Wash
For regularly soiled dishes
and silverware.
Light Wash - Both Racks
For lightly soiled and
pre-rinsed dishes and
silverware.
China Crystal 6.1
For lightly soiled china and Select CHINA CRYSTAL 5.1
crystal, and desired OPTIONS. 23.1
To Select Cycle
Select POTS PANS and
desired OPTIONS.
HI-TEMP WASH and
SANITIZE will
automatically be provided.
Select NORMAL WASH
and desired OPTIONS.
Select LIGHT WASH
(BOTH RACKS) and 32.2
desired OPTIONS.
Soil Level
Heavy and
Medium
Light
Heavy
Medium
Light
Heavy
Medium 6.1
Light 4.9
Water
(approx.)
9.7 gal.
8.1 imp. gal.
36.7 liters
7.3 gal.
6.1 imp. gal.
27.6 liters
9.7 gal.
8.1 imp. gal.
36.7 liters
7.3 gal.
6.1 imp. gal.
27.6 liters
4.9 gal.
4.1 imp. gal.
18.5 liters
8.5 gal.
7.1 imp. gal.
liters
gal. 85
5.1
imp. gal. 4
23.1
liters
gal.
4.1
imp. gal.
18.5
liters
gal.
imp. gal.
liters
Time*
(minutes)
115
95 2 washes
115 2 washes
95 2 washes
75 2 washes
105 1 wash
75 1 wash
85 1 wash
Washes/
Rinses
2 washes
6 rinses
4 rinses
6 rinses
4 rinses
2 rinses
6 rinses
1 wash
rinses
3 rinses
4 rinses
Light Wash - Upper Rack
For lightly soiled or pre-rinsed Select LIGHT WASH
dishes and silverware when
you do not have a full load.
Light Wash - Lower Rack
For lightly soiled or
pre-rinsed dishes, pots,
pans and silverware when
you do not have a full load.
Rinse Hold
For rinsing dishes that will
be washed later.
(UPPER RACK) and
desired OPTIONS.
Select LIGHT WASH
(LOWER RACK) and
desired OPTIONS.
Select RINSE HOLD.
DO NOT USE detergent.
3.7 gal.
3.1 imp. gal.
14.0 liters
3.7 gal.
3.1 imp. gal.
14.0 liters
2.5 gal.
2.1 imp. gal.
9.5 liters
65 1 wash
2 rinses
65 1 wash
2 rinses
18 2 rinses
* Includes dry time.
Operating Instructions (continued)
Options Selections
Hi-Temp Wash
When HI-TEMP WASH option is selected, the
dishwasher heats water in the main wash to
approximately 140°F (60°C).
This increase in water temperature helps
dishwasher detergent remove food grease and
soil from dishes more effectively and aids in
drying. HI-TEMP WASH option can be used with
all cycles except CHINA CRYSTAL and RINSE
HOLD. HI-TEMP WASH is automatically provided
when POTS PANS cycle is selected.
When HI-TEMP WASH option is selected, the
light above the pad will come on and remain on
until end of cycle. To turn off the HI-TEMP WASH
option, press the pad a second time. The light
above the pad will turn off.
Sanitize Option
To sanitize your dishes and glassware, select the
SANITIZE option. When selected, the light above
the pad will come on and remain on until end of
cycle. The water temperature in the final rinse will
be raised to 150°F (66°C) and will maintain that
temperature for 9 minutes. This option is available
in Pots Pans, Normal and Light (Both Racks)
cycles.
The cycle time will be extended until the proper
water temperature is reached. Washing action will
continue during the water heating delay. For best
results, the incoming water temperature should be
at least 120°F (49°C).
The sanitize criteria may not be satisfied if there is
an interruption of the cycle, power failure or if the
incoming water temperature is below 120°F
(4g°c).
To turn off the SANITIZE option, press the pad a
second time. The light above the pad will turn off.
Power Dry Off/No Heat Dry
POWER DRY OFF/NO HEAT DRY option saves
electricity since the heating element is off during
drying portion of cycle. When selected, the light
above the pad will come on and remain on until
end of cycle. To speed the drying process, open
the door slightly after the cycle is complete. Some
water droplets may remain on door and tub and in
areas where dishes touch silverware basket and
rack.
To select heated dry, press the pad a second
time. The light above the pad will turn off. Heated
dry provides faster drying since the heating
element is on during the drying portion of the
cycle. With either option, a fan circulates the air
inside the dishwasher to speed drying (available
on some models).
You may see water vapor coming from the vent
during the rinsing and drying portion of cycle. The
vent is closed during washing to hold moisture and
sound inside. The vent opens during the last few
minutes of the final rinse and remains open for
drying. The drying option may be changed at any
time during the cycle and affects only the drying
period.
Opening the door longer than one minute during
the dry cycle cancels the selected dry program.
Delay Start
The DELAY START option allows you to delay
starting your dishwasher up to 9 hours or up to 6
hours (some models).
Press the DELAY START pad until the desired
delay time shows in the STATUS window. On
models with 2-4-6 hour delay, press the pad once
for a 2-hour delay, twice for 4 hours and three
times for 6 hours. A light will come on indicating
the delay start hours and will remain on until cycle
starts.
To cancel the DELAY START option and begin the
cycle before the delay period is over, press the
START/CANCEL pad.
To Cancel a Cycle
You can cancel a cycle anytime during the cycle.
Press START/CANCEL pad and the dishwasher
will start a 90 second drain. At the end of the
drain, select the desired cycle.
Note: The dishwasher is programmed to
remember your last cycle so you do not have to
reset each time. To start the dishwasher using
the same cycle and options selected on the
previous wash, just press the START/CANCEL
pad.
Operating Instructions (continued)
Status Indicator Lights
The SENSING light comes on at the beginning of
the selected cycle and will remain on until the end
of the sensing sequence.
The WASHING light comes on at the beginning of
cycle and remains on until the end of the main
wash.
The RINSING light will come on and remain on
during the last two rinses of all cycles. If RINSE
HOLD is selected, the RINSING light will remain
on until the door is opened.
The DRYING light indicates the drying portion of
the cycle. The light will come on when either
drying option is selected.
The CLEAN light will come on at end of cycle and
remain on until door is opened.
Child Lock Controls
To prevent children from accidently changing the
dishwasher cycle or starting the dishwasher, lock
the dishwasher controls by pressing and releasing
the POWER DRY OFF/NO HEAT DRY pad, then
pressing and holding the POWER DRY OFF/NO
HEAT DRY pad for 5 seconds. The CONTROLS
light will come on and no new selections can be
made until the lock is released. To unlock the
controls, press the POWER DRY OFF/NO HEAT
DRY pad for 5 seconds until the CONTROLS light
goes out.
Status Window
The STATUS window, available on some models,
indicates the following activity:
ITIME _EE_M_A_IININGI
Note: The time remaining could suddenly increase
or drop several minutes. This means the Smart
Sensor has checked the soil level and determined
if additional water fills are needed or if water fills
can be deleted.
1H-9H ............. Number of delay start hours.
The last hour will count down in
minutes.
CL .................. Close dishwasher door. The
status indicator lights will also
flash to indicate current cycle
status.
HO ................. Flashes to indicate a water heat
delay.
MINUTES ......... Number of minutes left in cycle
(1-99). If cycle is longer than 99
minutes, a small light will
appear in the lower right corner
and remain on until time counts
below 99.
PF .................. Appears in window when
dishwasher is first installed, or
when power has been
interrupted. HI-TEMP WASH
and POWER DRY OFF/NO
HEAT DRY indicator lights will
also flash. To clear, touch
START/CANCEL pad.
LO ....................
Will be displayed at the end of
the cycle when the rinse aid
dispenser needs refilling. It will
remain on until the door is
opened and will appear after
completion of each cycle until
the rinse aid dispenser is filled.
Preparing and Loading Dishes
Dish Preparation
Scrape away large pieces of food, bones, pits,
toothpicks, etc. The continuous filtered wash
system will remove remaining food particles.
Burned-on foods should be loosened before
loading. Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise, vinegar,
lemon juice and tomato based products may
cause discoloration of stainless steel and plastics
if allowed to sit for a long period of time. Unless
the dishwasher is to be operated at once, it is best
to rinse off these food soils.
• Load racks so that large items do not
prevent the detergent dispenser from opening.
• Check manufacturer's recommendations
before washing items in question.
• If the dishwasher drains into a food disposer,
be sure disposer is completely empty
before starting dishwasher.
Loading the Top Rack
Features and appearance of racks and silverware
basket may vary from your model.
Important: Do not cover the funnel when
loading.
The upper rack is designed for flexibility in loading
a wide variety of items including cups, glasses,
stemware, small plates, bowls, etc.
Load plastic items in top rack only. Melting may
occur if placed in bottom rack.
Be sure nothing protrudes through the bottom of
the rack to block rotation of middle spray arm.
Do not cover funnel
Preparing and Loading Dishes (continued)
Grabber (available select models)
The Grabber offers the ultimate in flexibility. When
closed, load with saucers or small dishes. Open
halfway and it is perfect for small casseroles.
Open completely for those hard to fit items such
as coffee pots, food processors, etc. As you load
your dishwasher, you will find many other ways to
use this unique feature.
Cup Shelf/Stemware Holder
(available select models)
The cup shelf/stemware holder handles your
delicate stemware with care. It can also be used
to hold two layers of cups, mugs and other short
items. When using both levels, alternate items
with layer below so that water can reach all inside
surfaces. Fold up to load tall glasses.
_f
/
Do not cover funnel
Preparing and Loading Dishes (continued)
Upper Rack Option
LIGHT WASH--UPPER RACK option can be used
to wash a wide assortment of items when you
don't have a full load. Also, when the upper rack
fills up with glasses and the lower rack is still
empty, you don't have to wait anymore for clean
glasses.
Utility Basket
The utility basket has two dividers that can be
opened to hold longer items or closed for small
items like measuring spoons, bottle stoppers, etc.
The covers on each end can be folded down out
of the way or closed to keep small items inside.
The utility basket also doubles as a silverware
basket when using the LIGHT WASH--UPPER
RACK option.
Do not cover funnel
ii 'i!
, I
I i,¸L_
10
Preparing and Loading Dishes (continued)
Loading the Bottom Rack
Features and appearance of racks and silverware
basket may vary from your model
The lower rack is best for plates, saucers, bowls,
and cookware. Large items should be placed along
the edge so they do not block the spray arm
rotation. For best results, place bowls, casseroles,
and sauce pans with soiled surface facing down or
toward the center. Tilt slightly for better drainage.
Make sure tall items do not block spray arm
rotation.
Be sure pan handles do not protrude through the
bottom of the rack and block the spray arm
rotation.
!
Lower Rack Option (available select
models)
LIGHT WASH--LOWER RACK option can be
used for lightly soiled pots and pans, large bowls,
casseroles, and odd shaped items when you do
not have a full load. This option is perfect for those
leftover items you usually have to wash by hand.
Fold-down Tines
The fold-down tines in the lower rack make easy
loading for those extra large and hard-to-fit items.
The tines may be left up for normal use or folded
down for more flexible loading.
11
Preparing and Loading Dishes (continued)
Loading the Silverware Basket
Mix spoons, forks and knives to prevent nesting.
Mixing items gives better cleaning and drying.
Adding a Dish
To add or remove items after wash cycle starts:
• Unlatch door and wait a few seconds until wash
action stops before opening.
• Add the item and wait a few seconds to allow
cold air to slowly expand inside dishwasher.
• Close door firmly to latch. Press START/
CANCEL pad to resume cycle.
For safety, load sharp knives and forks with
handles up.
Be sure nothing protrudes through bottom of
basket or rack to block the spray arm.
Do not mix silver and stainless to avoid damaging
the silver finish.
Some models have a covered section to hold
small items like measuring spoons, small plastic
items, etc. Close cover to keep items in place.
12
Dishwasher Dispenser & Detergents
Filling the Detergent Dispenser
The detergent dispenser has one covered and one
uncovered cup. Detergent in the uncovered cup falls
into the dishwasher when the door is closed. The
covered cup opens automatically to release
detergent.
How much Detergent to use
The amount of detergent to use depends on the
water hardness. Water hardness is measured in
grains per gallon. Using too little detergent can result
in poor cleaning and hard water filming or spotting.
Using too much detergent in soft water can cause a
permanent film called etching. Your local water
company, water softener company or county
extension agent can tell you the water hardness in
your area.
• Useonlyfresh automaticdishwashingdetergent.
Other detergents will cause oversudsing.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location. Moist or
caked detergent will not dissolve properly.
Pre Wash Cup
Main Wash Cu
Cover \
Detergent Usage Guide
Cycle Soft Water Medium Hard Water Hard Water Very Hard Water*
(0-3 grains) (4-8 grains) (9-12 grains) (over 12 grains)
Pots Pans
or
Normal Wash
Light Wash
or
China Crystal
Rinse Hold
*Note- For very hard water, detergent alone may not be enough. A water softener is recommended to improve
water quality and dishwashing performance. Try adding more detergent at the beginning of the main wash portion
of the cycle. As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent
to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.
2teaspoons
(each cup-
1_ full)
2 teaspoons
(Main Wash cup-
1/4 full)
No Detergent
5 teaspoons
(each cup-fill to line
above "Regular")
5 teaspoons
(Main Wash cup-fill to
line above "Regular")
No Detergent
8teaspoons
(each cup-
completelyfull)
8 teaspoons
(Main Wash cup-
completely full)
No Detergent
Each Cup-
Completely Full
(water softener
recommended)
Main Wash Cup-
Completely Full
(water softener
recommended)
No Detergent
(water softener
recommended)
13
........ & Detergents (continued)
Dishwasher Dispenser
Factors Affecting
Performance
Rinse Aid
Rinse aid greatly improves drying and reduces
water spots and filming. Water "sheets" off
dishes rather than forming water droplets that
cling and leave spots.
A dispenser, located next to the detergent cup,
automatically releases a measured amount of
rinse aid during the last rinse. If spotting and poor
drying are problems, increase the amount of rinse
aid dispensed by rotating the dial to a higher
number. The dial is located under the dispenser
cap. The indicator will be dark when full and will
show clear when it is time to refill. On models with
a STATUS window, LO will appear at the end of
the cycle indicating that it is time to refill.
To add liquid rinse aid, turn dispenser cap 1/4 turn
counterclockwise and lift out. Pour in rinse aid until
liquid touches the indicated fill level. Replace cap.
Do not overfill since this can cause oversudsing.
Wipe up any spills with a damp cloth.
Water Pressure
The hot water line to dishwasher must provide
water pressure between 20 and 120 psi.
Low water pressure may occur when laundry or
showers are in operation. Wait until water use is
reduced before starting dishwasher.
Water Temperature
Hot water is needed for best dishwashing and
drying results. Water entering dishwasher should
be at least 120°F (49°C) to give satisfactory
results.
To check water temperature entering dishwasher:
• Turn on hot water faucet nearest dishwasher
for several minutes to clear cool water from
pipes.
• Hold a candy or meat thermometer in stream of
water to check the temperature.
• If temperature is below 120°F (49°C), have a
qualified person raise the hot water heater
thermostat setting.
The dispenser holds enough for 35 to 140
washes, depending on setting.
Dispenser Opening
Indicator
RINSE AID
Dispenser Cap Adjustable setting
Important: Before starting a cycle, run hot
water to clear cool water from pipe.
14
Care and Cleaning
Burn Hazard
Allow heating element to cool
before cleaning the interior.
Failure to do so can result in
burns.
Outside--Occasionally wipe with a mild
nonabrasive detergent and water. Rinse and dry.
Models with Stainless Steel Door--
Clean stainless steel door and handle with
Stainless Steel Magic, trademark of Magic
American Corp., or similar product using a clean,
soft cloth. Avoid harsh or gritty cleaners or
scouring pads which may scratch the finish.
Inside--The inside of the dishwasher is self-
cleaning with normal use. If needed, clean around
the tub gasket area
with a damp cloth.
The filter is self-
cleaning. A glass
trap located in the
center of the filter
is designed to
collect pieces of
broken glass,
straws, bones and
pits. To remove
items in glass trap,
grasp handle, lift
out, empty and replace.
Note: Hard water may cause lime deposit buildup
on the interior of the dishwasher. For cleaning
instructions see "Removing Spots and Film"
section.
Overfill Protector--keeps dishwasher from
overfilling and is located in the left front corner of
the tub.
• Clean occasionally with household
cleaner containing
vinegar or bleach to
dissolve any buildup.
• Overfill Protector should
move up and down
freely about one inch. If
it does not move, lift
and clean underneath.
Care of Drain Air Gap
If a drain air gap was installed for your built-in
dishwasher, check to make sure it is clean so the
dishwasher will drain properly. A drain air gap is
usually mounted on countertop and can be
inspected by removing the cover. This is not part
of your dishwasher and is not covered by
warranty.
Property Damage Hazard
Freezing temperatures may cause water lines
to rupture. Be sure all supply lines to and
circulating lines within dishwasher are
protected.
Failure to do so could result in property
damage.
Winterizing
A dishwasher left in an unheated place should be
protected from freezing. Have a qualified person
do the following:
To Disconnect Service:
1. Turn off electrical power to the dishwasher at
the supply source by removing fuses or
tripping circuit breaker.
2. Shut off water supply.
3. Place a pan under the inlet valve. Disconnect
water line from inlet valve and drain into pan.
4. Disconnect drain line from pump and drain
water into pan.
Note: See Installation Instructions for more
details.
To Restore Service:
1. Reconnect the water, drain, and electrical
power supply.
2. Turn on water and electrical power supply.
3. Fill both detergent cups and run dishwasher
through a POTS PANS cycle.
4. Check connections to make sure they do not
leak.
Note: See Installation Instructions for more
details.
15
Solutions to Common Dishwashing Problems
Before calling for service, review this list. It
may save you both time and expense. This
list includes common experiences that are
not the result of defective workmanship or
material in your dishwasher.
Food Soils Left on Dishes
° Choose another cycle for longer washing
time.
° Check rack loading section for proper
loading--avoid nesting items.
° Home water pressure may be too low--
should be 20 to 120 pounds per square inch
(psi).
° Check incoming water temperature. It
should be at least 120°F (49°C). (See
Factors Affecting Performance.)
° Check water hardness. For extremely hard
water, it may be necessary to install a water
softener. (See Detergent Chart.)
° Use fresh detergent.
° Check to make sure funnel in top rack is not
blocked.
° Make sure items are not blocking the spray
arms, preventing them from rotating.
Dishes not Dry
° Select heat dry option.
° Make sure the rinse aid dispenser is filled.
• Increase the amount of rinse aid. (See
Rinse Aid.)
° Check the incoming water temperature. Be
sure it is at least 120°F (49°C).
° Check for proper loading--avoid nesting
items.
Glassware/Flatware Spotted or
Cloudy
• Check water hardness. For extremely hard
water, it may be necessary to install a water
softener. (See Detergent Chart.)
° Water temperature may be low. Avoid
extremely low or high temperatures. (See
Factors Affecting Performance.)
° Avoid overloading and improper loading.
(See Preparing and Loading Dishes.)
° Use fresh detergent. Old detergent is
ineffective.
° Make sure rinse aid dispenser is filled.
° Check to see that proper amount of
detergent is being used for cycle selected.
Also, check phosphate level. (See
Detergent Dispenser.)
• Home water pressure may be too low--it
should be 20 to 120 pounds per square inch
(psi).
Dishware Chipped
• Load with care and do not overload. (See
Preparing and Loading Dishes.)
• Place delicate items in top rack.
• Place glasses securely against pins and not
over pins.
• Load items so they are secure and don't jar
loose when moving racks in and out. Move
racks in and out slowly.
• Make sure tall glasses and stemware will
clear top of tub when rack is pushed in.
° Fine antique china and crystal should be
hand-washed.
° Plastic items may need to be towel dried.
° Cups with a concave bottom will collect
water.
16
Solutions to Common
(continued)
Dishwashing Problems
Dishware Stained or Discolored
• Tea and coffee can stain cups. Remove the
stains by hand washing in a solution of 1/2
cup (120 ml) bleach and one quart (1 L) of
warm water. Rinse thoroughly.
• Iron deposits in water can cause a yellow or
brown film. A special filter installed in the
water supply line will correct this problem.
(See Removing Spots and Film.)
• Aluminum utensils can leave gray/black
marks when they rub against other items.
Load properly.
• Certain high acid foods can cause
discoloration of stainless steel and plastics
if allowed to sit for a long period. Use the
Rinse Hold cycle or rinse by hand if not
operating dishwasher at once.
• Mixing stainless steel and silver utensils in
silverware basket can cause pitting of the
stainless steel blades. Avoid mixing
stainless steel and silver.
Etching
• Using too much detergent in soft or
softened water causes this film that cannot
be removed.
• Adjust the amount of detergent based on
the water hardness. (Check Detergent
Chart.)
• Lower the water temperature.
• Use no heat dry option.
Dishwasher Leaks
• Use only fresh detergent designed for
automatic dishwashers. Measure detergent
carefully. Try a different brand.
• Spilled rinse aid can cause foam and lead
to overflowing. Wipe up any spills with a
damp cloth.
• Check to see that dishwasher is level.
(See Installation Instructions.)
Normal Sounds You Will Hear
• Normal sounds include water fill, water
circulation and motor sounds.
• There is a noticeable change in sound
when the wash action switches between the
lower and middle spray arm. This is normal
since each spray arm has its own sound.
• It is normal for dishwasher to pause (no
sound) when the wash action is switching
between the lower and middle spray arms.
Water in Bottom of Tub
Water left in bottom of tub after cycle is
complete is not normal. If water remains in
the bottom of the tub, dishwasher may not
be draining properly. (See Dishwasher Does
Not Drain Properly.)
Vapor at Vent
• Water vapor escapes from the vent during
the final rinse and drying part of cycle. This
is normal.
Detergent Left in Cups
° Detergent may be old. Discard and use
fresh detergent.
• Be sure water action can reach the
dispenser.
• Check to see if cycle has been completed.
• Make sure items do not prevent the
detergent dispenser from opening.
Dishwasher Won't Run
• Check to see if circuit breaker is tripped or if
a fuse is blown.
• Make sure water supply is turned on.
• Check to see if cycle is set correctly.
(See Operating Instructions.)
• Is dishwasher set for delay start option?
• Make sure door is closed and latched.
17
Solutions to Common Dishwashing Problems
(continued)
Dishwasher Does Not Drain Properly
° If unit is hooked up to a food waste
disposer, make sure the disposer is empty.
• Check to see if the knockout plug has been
removed from inside the food waste
disposer inlet.
• Check to see if drain hose is kinked.
• Make sure cycle is complete, not in a
pause.
Cycle Takes a Long Time
° Is cycle in a water heating delay?
• Has the delay start option been selected?
• Has the sanitize option been selected?
Dishwasher Won't Fill
• Is water supply turned on?
• Does overfill protector move up and down
freely? (See Overfill Protector section.)
Dishwasher Has an Odor
• Soiled dishes left in dishwasher too long
can create an odor. Use Rinse Hold cycle.
• There will be a "new" smell when first
installed. This is normal.
• Check to see if unit is draining properly.
(See Dishwasher Does Not Drain Properly.)
Removing Spots and Film
Hard water can cause lime deposit buildup on
the interior of the dishwasher. Dishes and
glasses may also get spots and film for a
number of reasons. (See Glassware/Flatware
Spotted or Cloudy section.) To remove buildup,
spots and film, clean using the following
instructions:
1. Load clean dishes and glasses in normal
manner. Do not load any metal utensils or
silverware.
2. Do not add detergent.
3. Select the NORMAL WASH cycle. Close
and latch door. Press START/CANCEL
pad.
4. Allow dishwasher to run until it starts the
second water fill (approximately 10
minutes). The SENSING light will be off.
5. Unlatch and open door and pour 2 cups of
white vinegar into the bottom of
dishwasher.
6. Close and latch door. Press START/
CANCEL pad and allow cycle to finish.
Note: If these conditions persist, a home water
softener should be considered.
Stains on Tub Interior
Washing large amounts of dishware with
tomato based soil can cause a pink/orange
appearance. This will not affect performance
and will gradually fade over time. Pre-rinsing
or using the Rinse Hold cycle will reduce
the chance of staining. Using no heat dry
option will lessen staining.
To customize your dishwasher to match your cabinets:
• You will need a trim kit.
• See Step 10 of Installation Instructions that came with your dishwasher for more
information.
18
DISHWASHER WARRANTY Your dishwasher is protected by this warranty
WARRANTY THROUGH OURAUTHORIZED SERVICERS, THE CONSUMER WILL BE
PERIOD WE WILL: RESPONSIBLE FOR:
FULLONE-YEAR One year from original Payallcostsforrepairingorreplacinganypartsofthisappliance
WARRANTY purchasedate. whichproveto be defectiveinmaterials orworkmanship.
EXTENDED LIMITED
2ND YEAR
WARRANTY
EXTENDED LIMITED
2ND - 5TH YEAR
WARRANTY
EXTENDED LIMITED Second through tenth years Door seals; any costs for pickup and delivery of the
2ND - 10TH YEAR from original purchase date. product required because of service; and all costs
LIMITED Time periods listed above. All of the provisions of the full warranties above and the Costsofthetechnician'straveltothehomeandany
WARRANTY exclusions listed below apply, costs for pick up and delivery of the appliance
(Applicable to the required because of service.
State of Alaska)
Twoyears from
originalpurchasedate.
Second through fifth years
from original purchase date.
Replace any parts in the Water Distribution System which fail
because of a manufacturing defect. This includes the motor,
pump, lower wash arm and soft or hard food disposer on all
models, plus the wash tower, upper spray arms with associated
supply tube, and filter assembly on models including these
features. Associated inlet and drain plumbing parts are not
covered by this warranty.
(Electronic Controls, Nylon Racks and TufRacks) For models
with electronic controls, replace any electronic control that fails
due to a manufacturing defect. For models with nylon-coated
racks or TufRacks, replace any original upper or lower nylon-
coated rack orTufRack that peels or rusts due to a manufacturing
defect.
Provide a replacement tub or door liner ifthe originaltu b or door
liner fails to contain water because of a manufacturing defect.
In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries, Inc. We authorize
no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed
by us or an authorized Electrolux Home Products North America servicer. In Canada, your appliance is warranted by WCI Canada Inc.
Costs of service calls that are listed under
NORMAL RESPONSIBILITIES OF THE
CONSUMER.*
Associated inlet and drain plumbing parts. Costs
for pickup and delivery of the product required
because of service; and all costs for labor and
transportation.
Costs for pickup and delivery ofthe product required
because of service; and all costs for labor and
transportation.
for labor and transportation.
*NORMAL
RESPONSIBILITIES
OFTHE
CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than Electrolux Home Products North America or its authorized
servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons other than such
servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
IFYOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. Ifservice is performed, it is inyour best interest to obtain and keep all receipts. This written
warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by contacting Electrolux Home Products North America:
This warranty only applies in the 50 states of the U.S.A. and Puerto Rico, and Canada. Product features or specifications as described or illustrated
are subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of White Consolidated
Industries, Inc. In Canada, your appliance is warranted by WCI Canada Inc.
05-U-DW-01 (Rev. 01/2001 )
USA 800.944.9044
Electrolux Home Products North America
P.O. Box 212378
Augusta, GA 30917
Canada 866.213.9397
Electrolux Home Products North America
6150 McLaughlin Road
Mississauga, Ontario L5R 4C2
19
Notes
20
Loading...
