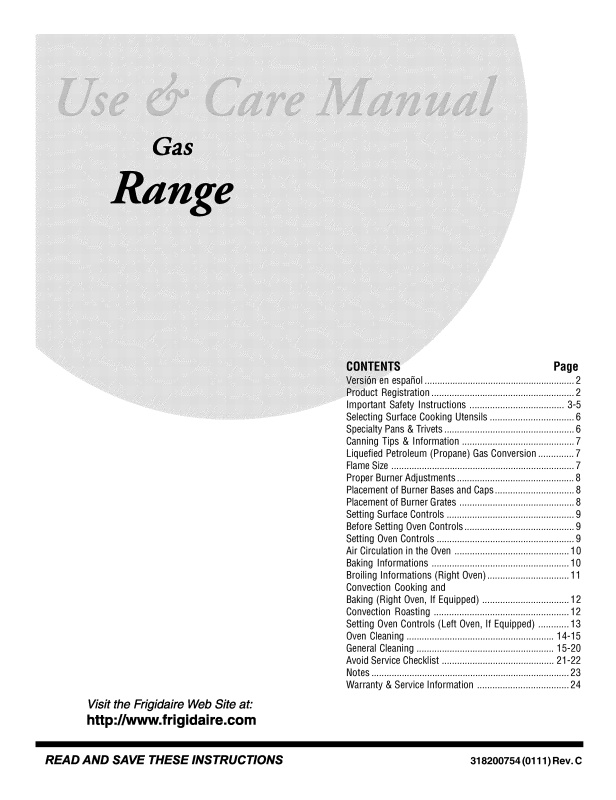

Frigidaire PLCF489CCD, PLCF489CCC, PLCF489CCB, PLCF489ACA, PLCF489CCA Owner’s Manual

Page

espaSol...........................................................2

Registration ........................................................ 2

Important Safety Instructions ..................................... 3-5

Selecting Surface Cooking Utensils ................................. 6

SpecialtyPans& Trivets................................................... 6

CanningTips & Information ............................................ 7

Liquefied Petroleum (Propane) GasConversion.............. 7

FlameSize........................................................................ 7

Proper BurnerAdjustments .............................................. 8

Placementof Burner Basesand Caps............................... 8

Placementof BurnerGrates............................................. 8

Setting Surface Controls ..................................................9

BeforeSetting OvenControls........................................... 9

Setting OvenControls ...................................................... 9

Air Circulation in the Oven .............................................10

Baking Informations ......................................................10

Broiling Informations (Right Oven)................................ 11

Convection Cooking and

Baking(Right Oven, If Equipped) ..................................12

Convection Roasting ..................................................... 12

Setting OvenControls (Left Oven, If Equipped) ............ 13

OvenCleaning.......................................................... 14-15

GeneralCleaning...................................................... 15-20

Avoid ServiceChecklist ............................................ 21-22

Notes..............................................................................23

Warranty & ServiceInformation .................................... 24

Visit the Frigidaire Web Site at:

http://www.frigidaire.com

READ AND SAVE THESE INSTRUCTIONS 318200754 (0111) Rev. C

Product Registration

Register Your Product
The PRODUCT REGISTRATION CARD

should be filled in completely, signed
and returned to Electrolux Home

Products North America.

This Owner's Guide contains general
operating instructions for your range and

feature information for several models.
Your range may not have al the

described features.

Thank you for choosing this appliance. The information contained within this

Owner's Guidewill instruct you on howto properly operate and care foryour range.
Pleaseread through the information contained inyour literature pack to learn more

about your new appliance.

Record Your Model and Serial Numbers

Record inthe space provided belowthe model and serial numbers found on the serial
plate located along the upper left corner of the oven frame behind the small oven

door.

Model Number:

Serial Number:

Date of Purchase:

Note: The instructions appearing in this

Owner's Guide are not meant to cover
every possible condition and situation

that may occur. Common sense and
caution must be practiced when
installing, operating and maintaining any
appliance.

Versibn en espafiol

Sideseaobtener una copia en espahol de
este Manual del Usuario, s[rvaseescribir a

la direcci6n que seincluye acontin uaci6n.
Solicite la P/N 318204014.

Spanish Owner's Guides
Electrolux Home Products North America

P.O. Box 9061
Dublin, Ohio 43017-0961

© 2001 White Consolidated Industries
All rights reserved

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains many important safety messages. Always read and obey all safety messages.
The safety alert symbol _!_ calls your attention to safety messagesthat inform you of hazards that can kill or hurt you or

others, or cause damage to the product.

Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.

Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or

product-damage-only.

All safety messageswill identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

If the information in this manual is not followed

exactly, a fire or explosion may result causing property damage,
personal injury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

-- WHAT TO DO IF YOU SMELL GAS:

* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any phone in

your building.

* Immediatelycall your gas supplier from a neighbor's phone.

Follow the gas supplier's instructions.

* If you cannot reach your gas supplier, call the fire department.

-- Installation and service must be performed by a qualified

installer, servicer or the gas supplier.

To reduce the risk of tipping, the range
must be secured by properly installed anti-tip
bracket(s) provided with the range. To

check if the bracket(s) is (are) installed
properly, remove the lower panel or storage

drawer and verify that the anti-tip bracket(s)
is (are) engaged. Refer to the Installation
Instructions for proper anti-tip bracket(s)

installation.

All ranges can tip.
Injury to persons could

result.

packed with range.

i Install anti-tip device

See Installation
Instructions.

• Remove all tape and packaging before using the range. • Never modify or alter the construction of a range by removing
Destroythe carton and plastic bagsafter unpacking the range, leveling legs, panels, wire covers, anti-tip brackets/screws, or

Never allow children to play with packaging material, any other part of the product.

Proper Installation-Be sure your appliance is properly
installed and grounded by a qualified technician in ac-

cordance with the National Fuel Gas Code ANSI Z223.1

latest edition, and National Electrical Code ANSI/NFPA
No. 70--latest edition, and local code requirements. In-

stall only per installation instructions provided in the literature

package for this range.

Ask your dealer to recommend a qualified technician and an

or drawer of this range can result in serious injuries and

also cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child on an
open door may causethe range to tip, resulting inserious burns
or other injury.

Stepping, leaning or sitting on the doors

Do not usethe oven for storage.

authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box and gassupply
at the main shutoff valve in case of an emergency. Remove

the drawer to accessthe valve.

in the cabinets above a range or on backguard of a
range. Children climbing on the range to reach items could

Do not store items of interest to children

be seriously injured.

User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manu-
als. All other servicing should be done only by a qualified

technician, this may reduce the risk of personal injury and

up the room.

Never use your appliance to warm up or heat

damage to the range.

3

IMPORTANT SAFETY INSTRUCTIONS

Storage in oron Appliance--Flammable materials should
not be stored in an oven, near surface burners or inthe

drawer (if equipped). This includes paper, plastic and cloth

items, such ascookbooks, plasticware and towels, as well as

flammable liquids. Do not store explosives, such as aerosol
cans, on or near the appliance. Flammable materials may
explode and result in fire or property damage.

Do not leave children alone--Children should not be
left alone or unattended in the area where appliance is

in use. They should never be allowed to sit or stand on any
part of the appliance.

DO NOT TOUCH SURFACEBURNERS,AREASNEAR THESE
BURNERS,OVEN HEATING ELEMENTSOR INTERIORSUR-

FACESOF THE OVEN. Both surface burners and oven heat-

ing elements may be hot even though they are dark in color.

Areas near surface burners may become hot enough to cause

burns. During and after use, do not touch, or let clothing or

other flammable materials touch these areas until they have

had sufficient time to cool. Among these areasarethe cooktop,

surfaces facing the cooktop, the oven vent openings and sur-
faces near these openings, oven door and window.

* Wear proper apparel--Loose-fitting or hanging garments

should never be worn while using the appliance. Do

not let clothing or other flammable materials contact hot sur-

faces.

Use proper pan size--Adjust flame size so

it does not extend beyond the edge of the utensil. The use

of undersize utensils will exposed a portion of the burner flame
to direct contact and may result in ignition of clothing. Proper

relationship of utensil to flame will also improve efficiency.

Do not usestove top grills on the burner grates

of sealed gas burners. Ifyou usea stove top grill on asealed gas

burner, it will cause incomplete combustion and can result in
exposure to carbon monoxide levels above allowable current
standards. This can be hazardous to your health.

Electronic controllers can be damaged by

cold temperatures. When you use your appliance for the
first time, or if it has not been used for a long period of

time, make sure that it has been exposed to a tempera-
ture above 0°C/32°F for at least 3 hours before connecting

it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING YOUR

COOKTOP

* Know which knob controls each surface heating unit.

Always turn the knob to the LITEposition when igniting the

burners. Visually check that burner has lit. Then adjust the

flame so it does not extend beyond the edge of the utensil.

• Do not use water or flour on grease firesiSmother the fire
with a pan lid, or use baking soda, a dry chemical or foam-
type extinguisher.

• When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

Incaseof fire or gas leak, be sureto turn off the

main gas shutoff valve.

Useonly dry potholders--Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let

potholders touch hot heating elements. Do not use a towel

or other bulky cloth instead of a potholder.

• Do not heat unopened food containersiBuild-up of pressure

may cause container to burst and result in injury.

• Remove the oven doors from any unused range if it isto be
stored or discarded.

IMPORTANT--Do not attempt to operate the oven during

a power failure. If the power fails, always turn the ovens
off. If the ovens are not turns off and the power resumes, the

oven may begin to operate again. Food left unattended could
catch fire or spoil.

Use proper pan size. This appliance isequipped with one or
more surface burners of different sizes. Selectutensils having

flat bottoms large enough to cover the surface burner. The

useof undersized utensilswill exposea portion of the surface
burner to direct contact and may result inignition of clothing.
Proper relationship of utensil to the surface burner will also
improve efficiency.

Utensil handles should be turned inward and not ex-

tend over adjacent surface burnersiTo reduce the risk of

burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil. The handleof the utensil

should be positioned so that it is turned inward, and does not
extend over adjacent surface burners.

* Never leave surface burners unattended at high heat

settingsiBoilovers cause smoking and greasyspillovers that

may ignite, or a pan that has boiled dry may melt.

Protective linersiDo not use aluminum foil to line oven

bottom or any other part of the appliance. Only use alumi-

num foil asrecommended for baking if used asacover placed
on the food. Any other use of protective liners or aluminum
foil may result in arisk of electric shock or fire or short circuit.

Glazed cooking utensilsiOnly certain types of glass,glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for rangetop servicewithout breaking due to the sud-

den change in temperature. Check the manufacturer's rec-
ommendations for rangetop use.

IMPORTANT SAFETY INSTRUCTIONS

Do not use decorative surface burner covers. If a burner

is accidentally turned on, the decorative coverwill become

hot and possibly melt. Burns will occur if the hot covers are
touched. Damage may also be done to the cooktop or burn-
ers because the covers may cause overheating. Air will be

blocked from the burner and cause combustion problems.

• Do not usethe broiler pan without its grid. The broiler
pan and its grid allow dripping fat to drain and be kept

away from the high heat of the broiler.

• Do not cover the broiler grid with aluminum foil. Ex-
posed fat and grease could ignite.

FOR GLASS COOKTOPS ONLY

• Do not clean or operate a broken cooktopilf cooktop
should break, cleaning solutions and spillovers may penetrate
the broken cooktop and create a risk of electric shock. Con-
tact a qualified technician immediately.

Clean cooktop glass with cautionllf a wet sponge or
cloth isused to wipe spillson a hot cooking area, becareful
to avoid a steam burn. Some cleaners can produce harmful
fumes if applied to a hot surface.

• Do not place hot cookware on cold cooktop glass. This
could cause glass to break.

• Avoid scratching the cooktop glasswith sharp objects.

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

• Use care when opening oven dooriStand to the side of
the range when opening the door of a hot oven. Let hot air
or steam escape before you remove or replace food in the

oven.

Keep ovens vents unobstructed. Each vent has its own
vent located on the top, near eachside and towards the back
of the cooktop. Touching the surfaces in this area when the
oven is operating may causesevere burns. Also, do not place

plastic or heat-sensitive items on or near anoven vent. These

items could melt or ignite.

Do not touch a hot light bulb with a damp cloth. Do-

ing so could cause the bulb to break. Disconnect the appli-
ance or turn off the power to the appliance before removing
and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Cleanthe range regularly to keep all parts free of grease
that could catch fire. Exhaust fan ventilation hoods and

grease filters should be kept clean. Do not allow grease to
accumulate on hood or filter. Greasydeposits in the fan could
catch fire. When you are flaming food under the hood, turn

the fan on. Referto the hood manufacturer's instructions for
cleaning.

Kitchen cleaners and aerosols--Always follow the

manufacturer's recommended directions for use. Beaware
that excess residue from cleaners and aerosols may ignite

causing damage and injury.

SELF CLEANING OVENS

• In the self-Cleaning cycleonly clean the parts listed in
this Use and Care Guide. Before self cleaning the oven,

remove the broiler pan and any utensils or foods from the

oven.

• Do not use oven cleanerslNO commercial oven cleaner
or ovens liner protective coating of any kind should be used

in or around any part of the oven.

Placement of ovens racks. Always place oven racks in
desired location while ovens are cool. If rack must be moved

while oven is hot use extreme caution. Use potholders and

grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the ovens.
Remove all utensils from the rack before moving.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known
to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure

to such substances.

• Do not clean door gasketlThe door gasket isessential
for a good seal.Care should betaken not to rub, damage or

move the gasket.

• Remove oven racks. Oven racks color will change if left in
the oven during a self-cleaning cycle.

The health of some birds isextremely sensitive

to the fumes given off during the self-cleaning cycle of any

range. Move birds to another well ventilated room.

SAVE THESE INSTRUCTIONS

Selecting Surface
Cooking Utensils

Forbest result and energy conservation, choose cooking utensils that havethese

characteristics:

Pans should have flat bottoms. Check
for flatness by rotating a ruler acrossthe

bottom. Thereshould beno gap between
the pan and ruler.

Note: Always use a utensil for its
intended purpose. Follow manufacturer's

instructions. Some utensils were not
made to be used in the oven or on the

cooktop.

Do not use griddle over

more than one burner because it could
damage your cooktop. Itcan also result in

exposureto carbon monoxide levelsabove
allowable current standards and be

hazardous to your health.

* GOOD

• Flatbottom and straight sides.

• Tight fitting lids.

• Weight of handle does not tilt
pan. Pan is well balanced.

• Pansizes match the amount of
food to beprepared.

• Made of a material that conducts
heat well.

• Easyto clean.

* Specialty pans such as lobster pots, griddles and pressure cookers may be used

but must conform to the above recommended cookware requirements.

POOR

• Curved and wraped pan bottoms.

• Panoverhangs unit by more than
one inch or 2.5 cm.

• Heavy handle tilts pan.

• Flameextends beyond unit.

Specialty Pans & Trivets

Woks with flat bottoms suitable for
use on your cooktop are available in

most cookshop or hardware stores.
Round-bottomed woks (with a support
ring that does not extend beyond the
burner unit) may also be used. The
metal ring was designed to support

the wok safely when it is filled with

large amounts of liquids (soup
making) or fat (frying).

Wire trivets: Do not use wire trivets. Cookware bottoms must bein direct contact

with the grates.

DO NOT use two burner units to heat one large pan such as a

roaster or griddle, or allow cooking utensilsto boil dry.The bottom surface of the pan
in either of these situations could causediscoloring or crazing of the appliance cook-
ing surface, and damage to the grates and burner units.

DO NOT use a wok if it isequipped with

a metal ring that extends beyond the

burner unit. Becausethis ring traps heat,
the surface unit and cooktop surface
could be damaged.

Canning Tips &
Information

Canning can generate

largeamounts of steam. Useextreme cau-
tion to prevent burns. Always raise the lid
to vent steam away from you.

1. Use tested recipes and follow instructions carefully. Check with your local
Cooperative Agricultural Extension Service or a manufacturer of glass jars for
the latest canning information.

2. Useflat-bottomed canners only. Heat isspread more evenly when the bottom
surface is flat.

3. Center canner on the burner grate.

4. Start with hot water and a high heat setting to reduce the time it takes to bring
the water to aboil; then reduce the heat setting as low as possibleto maintain

a constant boil.

5. It is best to can small amounts and light loads.

Prevent damage to cooktop and burner grates:

1. Do not use water bath or pressure canners that extend more than one inch
beyond the edge of the burner grate.

2. Do not leave water bath or pressure canners on high heat for an extended
amount of time.

3. Alternate surface units between each batch to allow the units and surrounding
surfaces to cool down. Tryto avoid canning on the same burner unit all day.

Safecanning requires that harmful micro-organisms are destroyed

and the jars are sealed completely. When canning in a water bath canner, a gentle

but steady boil must be maintained continuously for the required time.

Liquefied Petroleum

(Propane) Gas

Conversion

Any additions, changes

or conversions required in order for this
appliance to satisfactorily meet the
application needs must be made by an
authorized ServiceCenter, Distributor or

Qualified Agency.

Flame Size

RIGHT

This appliance can be used with Natural Gas or Propane Gas. It is shipped from the
factory for usewith natural gas.

Ifyou wish to convert your range for usewith LP/Propanegas,follow instructions and
use the fixed orifices you will find in the bag marked "FOR LP/PROPANEGAS

CONVERSION".
The conversion must be performed by a qualified installer, LPsupplier or service

technician in accordancewith the installation instructions furnished with thisrange and
all codes and requirements of all local codes and requirements. Failure to follow

instructions could result in serious injury or property damage. The qualified agency
performing this work assumes responsibility for the conversion.

Personal injury or death from electrical shock mayoccur if the range

isnot installed by a qualified installer or electrician.

For most cooking, start on the highest control setting and then turn to a lower one
to complete the process. Usethetable below asaguide for determining proper flame
size for various types of cooking. The sizeand type of utensil used and the amount
of food being cooked will influence the setting needed for cooking.
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. Ifthe fat is too cool, the food will absorb the fat and be greasy. Ifthe fat

istoo hot, the food will brown soquickly that the center will be undercooked. Do not

attempt to deep fat fry too much food at once asthe food will neither brown norcook

properly.

i

*Flame Size

High Flame
Medium Flame

Low Flame

* These settings are based on using medium-weight aluminum pans with lids.

Settings may vary when using other types of pans.

Never extend the flame beyond the outer edge of the utensil. A higher flame simply

wastes heat and energy, and increases your risk of being burned bythe flame.

Type of Cooking

Start most foods; bring water to a boil; pan broiling

Maintain a slow boil; thicken sauces, gravies; steam
Keep foods cooking; poach; stew

7

Proper Burner

Adjustments

The color of the flame isthe keyto proper burner adjustment. A good flame isclear,

blue and hardly visible in awell-lighted room. Each cone of flame should besteady
and sharply defined. Adjust or clean burner if flame isyellow-orange. To adjust the
flame seethe Installation Instructions and to clean burner, seeinstructions under

General Cleaning.

Placement of Burner
Bases and Caps

Burner Cap

I

Burner Pan

Burner Gas

Base Opening

Electrode

Your Cooktop is equipped with three different sizes of burners: Power Burner,
Standard Burner and Simmer Burner.

Placethe burner baseover each gas opening, matching the burner basesizewith the
gasopening size. Placethe burner cap on each burner base, again matching the cap
sizetothe burner basesize. The cap for each burner hasan inner locating ring which

locates the burner cap in the center of the burner.

Make sure each burner cap is properly aligned and level.

Turn the burner on to determine if it will light. If the burner does not light, contact
a Service Center. Do not service the sealed burner yourself.

Placement of Burner
Grates

Grate

Jrner pan

Placegrate over burner pans. Make sure that the groove under grate fits over the

raised lip of the burner pan. The rounded corners of the grates should be placed
toward the front of the cooktop for the front burners and the rear of the cooktop for

the back burners.

lip

Setting Surface Controls

Your cooktop may be equipped with any combination of the following burners:
Simmer Burner; this burner is best used for simmering delicate sauces, etc.
Standard Burner; can be used for most all surface cooking needs.

Large Burner; the larger burner isbest used when bringing large quantities of liquid
to temperature and when preparing larger quantities of food.

Regardlessof size, always select a utensil that issuitable for the amount and type of
food being prepared. Select aburner and flame size appropriate to the pan. Never
allow flames to extend beyond the outer edge of the pan.

Do not place plastic items such as salt and pepper shakers,

spoon holders or plastic wrappings on top of the cooktop when it isin use.

These items could melt or ignite. Potholders, towels or wood spoons could catch fire

if placed too close to a flame.

To operate the surface burner:

1. Placecooking utensil on burner.

2. Pushin and turn the SurfaceControl knob to LITE Note: All electronic ignitors

will click at the same time. However, only the burner you are turning on will

ignite.

3. Visually check that the burner has lit.

4. Pushin and turn the SurfaceControl Knobto the desired flame size.Thecontrol

knobs do not have to beset at a particular mark. Usethe guides and adjust the

flame as needed. DO NOT cook with the Surface Control knob in the LITE

position. (The electronic ignitor will continue to click if left in the LITE position,

causing premature wear.)

Inthe event of an electrical power outage, the surface burners can be lit manually.
To light a surface burner, hold a lit match to the burner head, then slowly turn the
Surface Control knob to LITE Usecaution when lighting surface burners manually.

Before Setting Oven
Controls

Left Oven

Setting Oven Controls

(Right Oven)

Ovens Vents Locations

Eachoven has its own vent located on the top, near each sideand towards the back
of the cooktop. When an oven is on, warm air is released through the vent; this
ventilation is necessaryfor proper air circulation inthe oven and good baking results.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL

(PRIORTOOPERATINGTHEOVEN).Always useoven mitts when

using the oven.

To remove an oven rack, pull the rack forward until it stops. Lift
up front of rack and slide out.

To replace an oven rack, fit the rack onto the guideson the oven
walls. Tilt the front of the rack upward and slidethe rack back into
place.

Right Oven

Foroven settings, refer to the Electronic Oven Control guide supplied with this

range.

9

Air Circulation in the

Oven

If using multiple pans, stagger as shown. If using one pan, place in center of
oven.

For best air circulation and baking results, center pans asmuch as possible. Allow
2-4" (5-10 cm) around the utensil(s) for proper air circulation and be sure pans do

not touch each other or the door, sides and back of oven. The hot air must
circulate around the pans in the oven for even heat to reach all parts of the oven.

Baking Informations

Baking Problems Causes Corrections

Cookies and
biscuits burn on
the bottom.

Cakes too dark
on top or

bottom.

Cakes not done
in the center.

Cookies and biscuits put into the
oven before the pre-heating time
iscompleted.

Oven rack overcrowded.

Dark pan absorbs heat too fast.

Cakes put into the oven before
preheating time is completed.
Oven rack position too high or low.

Oven too hot.

• Oventoo hot.

• Incorrect pan size.

• Pan not centered in the oven.

For best results, preheat the oven before baking cookies, breads, cakes, pies or

pastries, etc. There is no need to preheat the oven for roasting meat or baking
casseroles.

Thecooking times andtemperatures needed to bake aproduct mayvary slightly from
your previously owned appliance.

Baking problems and solutions

• Allow oven to preheat to the selected temperature before

placing food in oven.

• Choose pan sizesthat will permit 5.1 cmto 10.2 cm (2" to
4") of air space on all sides when placed in the oven.

• Usea medium-weight aluminum baking sheet.

• Allow oven to preheat to the selected temperature before

placing food inthe oven.

• Use proper rack position for baking needs.

• Setoventemperature 25°F/12°C lower than recommended.

• Setoventemperature 25°F/12°C lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm

to 10.2 cm (2" to 4") of space on all sides of pan.

Cakes not level.

Foods not done
when cooking

time is up.

Range not level.

Pan too close to oven wall or rack
overcrowded.

Pan warped.

Oven too cool.

Ovenovercrowded.

Oven door opened too frequently.

• Placemarked glass measuring cup filled with water on the
center of the oven rack. Ifwater level is uneven, refer to the

installation instructions for leveling the appliance.

• Besure to allow 5.1 cm to 10.2 cm (2" to 4") of clearance
on all sides of each pan in the oven.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F/12°C higher than suggested

and bake for the recommended time.

• Besure to remove all pans from the oven except the ones
to be used for baking.

• Open oven door only after shortest recommended baking
time.

10

Broiling Informations

(Right Oven)

Broil Stop

Right Oven

Broiling is a method of cooking tender cuts of meat by direct heat from the broil

element of the oven. Meats are placed on the broiling rack and the rack isplaced

under the broiling element.
Seethe broiling instructions for right oven in the Electronic Oven Control guide.
See side oven step-by-step instructions in the Setting Oven Controls (Left Oven, If

Equipped) section.

Preheating

Preheating issuggested when searing rare steaks (remove the broiler pan before

preheating; food will stick if placed on hot metal.)To preheat, set the oven control(s)
to BROILas instructed in the Electronic Oven Control guide. Wait for the element to

become red-hot, usuallyabout 2 minutes. Preheating isnot necessarywhen broiling

meats well-done.

To Broil

Broil on one side until the food isbrowned; turn and cook on the other side; season
and serve.Always pull rack out to the stop position before turning or removing food.

Determining Broiling Times

Broiling times vary; watch the food closely. Time not only depends on the distance
from the element, but on the thickness and age of meat, fat content and doneness

preferred. Thefirst side usually requires afew minutes longer than the second. Frozen

meats also require additional time.

Broiling Tips

The broiler pan and itsgrid allow dripping greaseto drain and be kept away from the

high heat of the broiler.

DO NOT use the pan without its grid. DO NOT cover the grid with foil. The
exposed grease could ignite.

Should an oven fire occur, closethe oven door and turn off the oven.

Ifthe fire continues, throw baking soda on the fire or use afire extinguisher. DO NOT

put water or flour on the fire. Flour may be explosive.

Always pull oven rack out to the stop position before turning or removing
food.

Broiler Clean-Up Tips:

• To make cleaning easier, line bottom of the broiler pan with aluminum foil. DO

NOTcover the broiler grid with foil.

• To prevent grease from baking on, remove the broiler pan from the oven assoon
ascooking is completed. Use hot pads because the broiler pan isextremely hot.

Pour off grease. Soak the pan in HOT, soapy water.

• Clean the broiler pan assoon as possible after each use. If necessary, use soap-
filled steel wool pads. Heavy scouring may scratch the grid.

11

Convection Cooking

and Baking

(Right Oven, If Equipped)

Theconvection option, available on some models, isan alternative to the conventional
oven cooking methods of baking/roasting.

Convection cooking is a method of cooking in which the heated air of the oven is
circulated by a fan at the rear of the oven cavity, providing better heat distribution.
This fan is covered by a baffle to circulate the air uniformly, providing even heat
distribution for faster and more even cooking, baking and browning. The heated air

penetrates food from every angle, sealing in natural moisture and flavors. The

convection fan automatically turns off when the oven door is opened and

resumes when the door is closed again. However, the heating element will stay

on.

The oven can be programmed to bake in the convection mode at any temperature
from 170°F/80°C to 550°F/288°C. Preheating the oven for 10-12 minutes is

recommended when using convection but not necessarywhen roasting or cooking

casseroles.

Air circulation

during convection cooking.

Convection Roating

(Right Oven, If Equipped)

CAUTION: Inthe convection mode, using cooking times from conventional cooking

recipes may cause food to be overcooked. For satisfactory results, use only tested
recipeswith times adjusted for convection cooking. Obtaining and using a convection

oven cookbook ishighly recommended.

Convection cooking usesa lower temperature and takes lesstime to achieve the
same results as conventional cooking. Inconvection mode, the actual temperature

in your oven automatically adjusts to be 25°F/12°C lower than the temperature
displayed on the oven control panel. Becauseof this automatic adjustment you can
enter the cooking temperature from your existing conventional cooking recipe, but
do not set the cooking time to be the same. Evenat the lower cooking temperature,
convection cooking times will be as much as 30% lessthan conventional cooking

times.

When programming cooking times for convection cooking, enter atime that is20 to
30 percent lessthan called for inyour conventional cooking recipe. After the cooking
cycle ends, decide if the food is done to satisfaction, slightly overdone or slightly

underdone (if underdone, cook ashort time longer to satisfaction). Make a note of
the time and results, and with your next use of the recipe adjust cooking time
accordingly.

When convection roasting, usethe broiler pan and grid, and the roasting rack. The

broiler pan will catch grease spillsand the grid will help prevent greasespatters. The

roasting rack will hold the meat.

Roasting Rack

Grid

1. Place oven rack on bottom or next to bottom rack position.

2. Placethe grid in the broiler pan. The roasting rack fits on the grid allowing the

heated air to circulate under the food for even cooking and helps to increase

browning on the underside. Make sure the roasting rack issecurely seated on the
grid inthe broiler pan. DO NOT use broiler pan without the grid. DO NOT cover
the grid with aluminum foil.

Broiler Pan

12

Setting Oven Controls

(Left Oven, If Equipped)

Left Oven

Temperature Control Knob

Broil Stop

Door Position

To Bake

1. Arrangeoven rackswhiletheoven isstill cool. See"Arranging Oven Racks" under
the "Before Setting Oven Controls" section in this manual.

2. Turn the Temperature Control Knob to the desired oventemperature. When the
oven is first turned on, the oven indicator light below the Temperature Control

Knob will glow.

3. Preheatthe oven for 10to 12 minutes before baking. Preheating is not necessary
when roasting, cooking casseroles or broiling most foods. When the desired
temperature isreached, the oven indicator light will go out. The light will then go
on and off asthe element cycleson and off to maintain the desired temperature.

4. When cooking isfinished, turn the Temperature Control Knob to OFF.

To Broil

1. Arrange oven rack while oven isstill cool. Forrare meats, position the broiler pan
closer to the element (upper position). For well-done foods such as chicken,

lobster tails or thick cuts of meat, position the pan further from the element (to

a lower position).

2. Turn the Temperature Control Knob to BROIL.To sear rare steaks, allow the
element to become red-hotiabout 2 minutesibefore placing food in oven.

3. Placethe grid on the left oven broiler pan, and then place the meat on the grid.

DO NOT usethe broiler panwithout the grid orcover the grid with aluminum foil.

The exposed fat could ignite.

4. Placethe side oven broiler pan on the oven rack. Close the oven door to the

Broil Stop position while broiling (door opened about 2 inches).

5. Broil on one side until food isbrowned; turn and cook on the other side. Season
and serve. Note: Always pull the rack out to the stop position before turning or

removing food.

6. When broiling isfinished, turn the Temperature Control Knob to OFF.

Side Oven

Thebroiler pan and itsgrid allow dripping
grease to drain and be kept away from
the high heat of the broiler. DO NOT use
the pan without its grid. DO NOT cover
the grid with foil. The exposed grease
could ignite.

Should an oven fire occur, closethe oven door and turn off the oven.

Ifthe fire continues, throw baking soda on the fire or use a fire extinguisher. DO NOT

put water or flour on the fire. Flour may be explosive.

13

Oven Cleaning

(Right Oven)

clean
frame

hand

Adhere to the Following Precautions:

Allow the oven to cool before cleaning.
Wear rubber gloves when cleaning any exterior parts of the oven manually.

During the self-clean cycle, the outside of the wall can become very

hot to touch. DO NOT leave small children unattended near the appliance. A venti-
lation system starts automatically; it isnormal for the hot air to be evacuated through

the front of the appliance.

Before cleaning any part of the oven, be sure the electronic oven

control isturned off or else push CANCEL pad. Wait until the oven is cool.

The health of some birds is extremely sensitive to the fumes given

off during the self-cleaning cycle of any range. Move birds to another well ventilated

room.

_DO hand

clean door

DO NOT

hand clean seal

DO NOT use commercial oven cleanersor oven protective coatings in or around any

part of the self-cleaning oven. DO NOT clean the oven door gasket. The gasket on
the oven door isessential for a good seal. Care should betaken not to rub, damage
or move the gasket. DO NOT use aluminum foil to line the oven bottom. This may
affect cooking, or the foil could melt and damage the oven surface.

A self-cleaning oven cleans itself with high temperatures (well above cooking tem-

peratures) which eliminate soil completely or reduce it to a fine powdered ash you
can wash away with damp cloth.

Preparing for the Self-Cleaning Cycle

1. Remove excessspillovers in the oven cavity before starting the self-clean cycle.To
clean, use hot soapy water and a cloth. Large spillovers can cause heavy smoke
or fire when subjected to high temperatures. DO NOTallow food spills with a high
sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie filling) to

remain on the surface as they may cause a dull spot even after cleaning.

2. Clean all soil from the oven frame and the inner door (see illustration to right).
These areasheat sufficiently during self-cleaning cycle to burn soil on. Clean with
soap and water. Do not clean door seal because doing so can permanently dam-
age it.

3. Remove the broiler pan and insert all utensils and any foil. These items do not
withstand high cleaning temperatures.

4. Oven racks may be left in the oven or may be removed. If they go through the
clean cycle, their color will turn slightly dull. After the cycle is completed and the
oven has cooled, rub the sides or the racks with wax paper or acloth containing
a small amount of baby oil or salad oil. This will make the racks glide easier.

What to Expect During Cleaning

While the oven self-cleans, it heats to temperatures much higher than those used in

normal cooking. Sounds of metal expansion and contraction are normal. Odor is also
normal asthe food soil isbeing removed. Smoke may appear through the oven vent,
located on both sides of the cooking surface.

If heavy spillovers are not wiped up before cleaning, they may flame and cause
more smoke and odor than usual. This is normal and safe and should not cause

alarm. If available, use an exhaust fan during the self-cleaning cycle.

NOTE: When the oven reaches its self-clean temperature, the smoke level will be
reduced to vapor.

Setting the Control for a Clean Cycle

Referto the Electronic Oven Control guide supplied with this range.

14

Oven Cleaning

(Left Oven, If equipped)

Porcelain Enamel Oven Cleaning

Porcelain has a smooth finish and is a type of glassfused to metal. Oven cleaners

can be used on all interior oven surfaces.

Adhere to the following cleaning
precautions:

• Allow the oven to cool before
cleaning.

• Wear rubber gloveswhen cleaning the
appliance manually.

Remove spillovers and heavy soils as
soon as possible. Regular cleanings

will reduce the number of future
major cleanings.

Ammonia must be

rinsed before operating the oven. Provide
adequate ventilation.

General Cleaning

Remove soils using hot, soapy water. Do not allow food spillswith a high sugar or
acid content (such asmilk, tomatoes, saukerkraut, fruit juices or pie filling)to remain
on the surface asthey may cause a dull spot even after cleaning.

To Remove Heavy Soil

1. Allow adish of ammonia to sit inthe oven overnight or for several hourswith the
oven door closed. Clean softened spots using hot, soapy water. Rinsewell with

water and a clean cloth.

2. If soil remains, use a soap-filled scouring pad or a nonabrasive cleaner. If
necessary,usean oven cleaner following manufacturer's instructions. DO NOT

mix ammonia with other cleaners.

Adhere to the following precautions when using oven cleaners:

1. DO NOT spray on the electrical controls or switches becauseit could causeashort
circuit and result in sparking or fire.

2. DO NOT allow afilm from the cleaner to build up on the temperature sensing
bulb located at the top left rear corner of the oven; it could causethe oven to
heat improperly. Carefully wipe the bulb clean after each oven cleaning, being

careful notto move the bulb. A change in its position could affect how the oven

bakes. Avoid bending the bulb and capillary tube.

3. DO NOT spray any cleaner on the oven door trim or gasket, handles or any

exterior surfaces of the range, wood or painted surfaces. The cleaner can
damage these surfaces.

General Cleaning

To Clean the Oven Bottom

Clean using hot, soapywater, a mild abrasive cleanser, asoap-filled abrasive pad or
oven cleaner following oven cleaner manufacturer's instructions.

DO NOT line the oven walls, bottom, racks or any other part of the

appliance with aluminum foil. Doing sowill destroy heat distribution, produce poor

baking results and cause permanent damage to the oven interior (aluminum foil will
melt to the interior surface of the oven).

Changing Oven Light

Besure the oven is unplugged and all parts are COOL before replac-

ing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle.
High temperature will reduce lamp life.

To Change the Oven Light
The oven light automatically turns on when the door isopened (some models). To
turn the oven light on and off when the door isclosed, use the OVEN LIGHTswitch

located on the control panel.

1. Turn electrical power off at the main source or unplug the oven.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Presswire holder to one side to release the glassshield.

4. Replace bulb with a new 40 watt appliance bulb.

5. Replace glass shield in socket and snap wire holder into place.

6. Turn power back on at the main source (or plug the appliance back in).

7. The clock will then need to be reset.To reset,see Setting the Clock and Minute

Timer in the Electronic Oven Control guide.

15

General Cleaning

(continued)

Surfaces How to Clean

Vinyl and Use hot, soapy water and a cloth. Dry with a clean cloth.
Aluminum (Trim Pieces)

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFFand the
range is cool. Remove spillovers and heavy soiling as soon as possible. Regular

cleaning will reduce the effort required for major cleaning later.

Control Panel

Stainless Steel
Control panel,

Oven door and
Drawer front panel

Oven Racks

Cooktop, under Cooktop,
Broiler Panand Insert,

Door Liner, Small Oven

Before cleaning the controlpanel, turn all controls to OFFand remove the control knobs. To
remove, pull each knob straight off the shaft. Clean using hot, soapywater and a dishcloth.
Be sure to squeeze excesswater from the cloth before wiping the panel; especially when

wiping around the controls. Excesswater inor around the controls may cause damage to the

appliance. To replace knobs after cleaning, line up the flat sides of both the knob and the
shaft; then push the knob into place.

Cleaners made especially for stainless steel as StainlessSteel Magic, or other similar clean-
ers are recommended. Always follow the manufacturer's instructions. Be sure to rinse the
cleaners asbluish stains may occur during heating and cannot be removed.

Remove racks. See"To remove and to replace an Oven Rack" under Before Setting Oven
Controls. Use a mild, abrasive cleaner, following manufacturer's instructions. Rinsewith
clean water and dry. After cleaning the racks, rub the sides of the rackswith wax paper or
a cloth containing a small amount of baby oil or salad oil (this will make the racks glide
easier into the rack positions).

Gentle scouring with a soapy scouring pad will remove most spots. Rinsewith a 1:1 solution
of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinsewith clean water and adamp cloth and then scrub

with a soap-filled scouring pad. Rinse and wipe dry with aclean cloth. Removeall cleaners

or the porcelain may become damaged during future heating. DO NOT use spray oven
cleaners on the cooktop.

Oven Door

To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the

door in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material

which isessential for a good seal. Care should be taken not to rub, damage or remove the

gasket.

16

General Cleaning

(continued)

To Clean the Cooktop Glass

The cooktop isdesigned to make cleaning easier. Cleanups are easywhen spillovers
are cleaned up immediately. Toclean, wipe with a clean, damp cloth and wipe dry.

THIS COOKTOP ISNOT REMOVABLE.

Do not attempt to remove or lift the
cooktop.

Heavyburned-on spills can be removed
with a razor blade scraper. Usecaution
to avoid damaging surface.

DO NOT use a cooktop

cleaner on ahot cooktop. The fumes can
be hazardous to your health, and can
chemically damage the ceramic- glasssur-

face. Be sure the controls are turned to
OFF. Do not use commercial oven clean-

ers on any part of the cooktop. Damage

to the finish or parts could result.

Correct and consistent cleaning is essential to maintaining your heat-resistant glass
top. Spills and spatters should be wiped up using a clean paper towel and sudsy
water. This should be done either as soon as possible after the spill occurs, after
cooking iscompleted, or at the latest, before using the cooktop again. Usecaution

if the cooktop is hot. For heavy spills, spatter or burned-on materials, use a razor
blade scraper. Hold the razor blade scraper at a30° angle and remove food spillsor

burned on food residue.

Finish the cleaning process by applying arecommended heat-resistant glasscooktop
cleaning cream. Apply cleaner with clean, damp paper towel. Rinsewith a paper
towel dampened with clean water and wipe dry. Always wipe the cooktop thor-
oughly to avoid heating any cleaner residue.

Apply cleaning cream before first useof the cooktop. The cream provides a protec-
tive coating on the glass surface which makes it easier to clean. Use the cream

regularly to preserve the appearance of your cooktop.

Things to Remember

1. Avoid using bleach and do not use ammonia to clean the ceramic surface.

2. Do not put plastic items on warm cooking areas.

3. Neverslide oven racks acrosscooktop surface. They may scratch or metalmark the
cooktop.

4. Ifcooktop should break, do not usecooktop orattempt to clean it. Callyour Service
Center immediately.

5. Never use rivet or metal stand between the cooking utensil and the ceramic
cooktop. Theceramic surface may be scratched, metal marked or etched bysuch

items.

6. Sugaryspills can cause pitting of your cooktop surface. Therefore, you must begin
cleaning the spillswhile the cooktop is still hot. Use caution when following the
steps below.

a) Turn off all surface units and remove all pans immediately.

b) Wearing an oven mitt, use a razor to scrape the hot spill out of the cooking

zone to cooler area on the cooktop.

c) Allow the cooktop to cool.

Problem

Fine "Brown lines" (tiny scratches

or abrasions which havecollected
soil).

Metalmarking (mark or black
marks).

Brown streaks and

specks.

Use and Care of Glass Surface

Cause To Remove

Coarse particles (salt, sand, sugar
or grit) between bottom of cook-
ware and cooktop that are not

removed before cooking. Using
incorrect cleaning materials.

Sliding or scraping metal utensils
or oven shelves across cooktop.

Cleaning with a sponge or dish-
cloth that hasbeen usedfor other

kitchen tasks.

To Prevent

Clean cooktop after every use.

Use cleaner cream daily.

Do not slide cookware across

cooktop.

Use cleaner cream with clean,
damp paper towel.

Tiny scratches are not removable.
They can be minimized by con-

tinual useof cleaner cream. Such
scratches do not affect cooking.

Apply cleaner cream with damp-
ened paper towel to cooled sur-

face

Use a small amount of cleaner

cream with clean, damp paper
towel.

17

General Cleaning

(continued)

Donot usecleaners on a

heated surface. Fumes could be
hazardous. Wait for areato cool before

cleaning. Do not use cleaner cream to
clean porcelain, paint or aluminum
because it can damage the surface.

Cleaning Materials for Ceramic-Glass Cooktop

Some cleaning materials may contain an ingredient which can damage the cooktop.

Use recommended cleaning products only (see below). Cleaner cream should be
used regularly. First use recommended products listed below, then use cleaner

cream.

Useonly recommended cleaning products and followthese basiccleaning suggestions.

1. Before the cooktop is used, thoroughly clean and saturate the cooktop with
cleaner cream.

a) Dampen clean paper towel and clean unit.

b) Wipe off with another clean, damp paper towel; then wipe dry.

2. Fornormal dailycleaning, apply a dabof cleaner cream inthe center of each unit-
area to becleaned. Start with approximately 1/8 teaspoon (apply more if needed).
Then, proceed as stated above in a and b.

3. Make sure bottom of cookware and cooking area are clean and dry.

4. Select heat settings and cookware large enough for food and liquid.

5. Wipe up food spills and spatters before they burn into surface.

IMPORTANT: Regularly usecleaner cream. Ifyou run out of cream, useone of the

cleaners listed. Be sure to get a new supply of cleaner cream.

Never mixcleaning products! Mixtures may interact, with damaging

or hazardous results.

Recommended cleaning products for ceramic-glass cooktop

1. Baking soda.

2. Non-impregnated plastic and nylon pads.

3. Forburned on material, scrape with single-edged razor blade, held ata 30° angle.

4. Ceramic glass cleaning cream.

Do not use on ceramic-glass cooktop

1. Avoid pads, that can leave marks and scratches.

2. Avoid heavy-duty cleaning powders; these can scratch, depending on their
abrasiveness and cleaning pressure applied.

3. Avoid chemical oven cleaners. These can etch the cooktop surface and are
caustic.

4. Avoid rust stain removers containing hydrofluoric acid.

5. Avoid using bleach and do not use ammonia.

Special Cleaning Instructions for Mineral Deposits and Discolorations

Problem: Condensation, when cooking, often collects anddrips from cookware.

The minerals found in water may causea gray or brown film to develop
on cooktop. This film isvery thin and appears to be under cooktop.

Prevention: Daily and proper use of cleaner cream. Stain from mineral deposits

must be removed from the cooktop as soon as possible.

Removal:

• Wet surface with water and apply cleaner cream.

• Scrub with clean, damp paper towel until stain disappears.

• Clean remaining paste away with damp paper towel.

• Apply dab of cleaner cream and polish with clean paper towel.

18

General Cleaning

(Continued)

To Clean the Burner Grates, Contoured Burner Pans, Burner
Caps, and Burner Bases.

The burner grates, contoured burner pans, burner cap, and burner base should be

routinely cleaned. Keeping the burner ports clean will prevent improper ignition and

an uneven flame. Follow instructions below.

To Clean the Contoured Burner Pans

The square burner pans are attached to the cooktop and are not removable. The

burner pan forms a recessed well area located around each burner unit. If a spill
occurs in one of the four well areas, blot up spill with an absorbent cloth. Rinsewith
a clean, damp cloth and wipe dry.

To Clean the Grates

Any remaining soil may beremoved by gently scouring with a soapyscouring pad.

Rinsewith a 1:1 solution of clean water and ammonia. If necessary, cover difficult
spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinsewith clean
water and a damp cloth, then scrub with a soap-filled scouring pad. Rinseand wipe
dry with a clean cloth. Remove all cleaners thoroughly or the grate porcelain may

become damaged during future heating. DO NOT use spray oven cleaners.

To Clean the Burner Caps

Use a soap-filled scouring pad or a mild abrasive cleanser to clean burner caps. If

necessary, cover stubborn spots with an ammonia-soaked paper towel for 30

minutes. Rubgentlywith asoap-filled scouring pad and rinse with a mixture of clean
water and vinegar. Wipe dry. Remove all cleaners thoroughly or the burner cap

porcelain may become damaged during future heating.

To Clean the Burner Bases and Gas Openings

The ports (or slots) around the burner base must be routinely cleaned. Usea small-
gauge wire or needle to clean small slots or holes. Usecare to prevent damage to
the electrode. Ifa cleaning cloth should catch the electrode, it could break or damage
the electrode. If the electrode is damaged orbroken, the surface burner will not light

because it will not spark. Manual lighting with a match isstill possible.

Forproper flow of gasand ignition of the burneriDO NOT ALLOW SPILLS,FOOD,
CLEANING AGENTSORANY OTHERMATERIALTO ENTERTHE GAS OPENING.Gas

must flow freely through the small hole in the brass orifice for the burners to light

properly. Ifthe gasopening orifice becomessoiled orclogged, useasmall-gauge wire
or needle to clean. ALWAYS keep the burner cap assembly and ring in place

whenever a surface burner isin use.
After cleaning make sure each burner cap is properly aligned and level. Turn the

burner on to determine if itwill light. Ifthe burner doesnot light after cleaning, contact
a Service Center. Do not service the sealed burner yourself.

19

General

(Continued)

Cleaning

To Remove and Replace Right Oven Door

1. Open the door to the fully opened position.

2. Pull up the lock located on both hinge supports and engage it in the hinge

levers.You may have to apply a little downward pressure on the door to pull the
locks fully over the hooks.

3. Grab the door by the sides, pull the bottom of the door up and toward you to

disengage the hinge supports. Keep pulling the bottom of the door toward you
while rotating the top of the door toward the range to completely disengage the

hinge levers.

4. To replace the door, reverse the door removal steps. Make sure the hinge sup-

ports are fully engaged before unlocking the hinge levers.

The door is heavy. After removing door, lay it flat on the floor with

its inside facing down.

Support

Left Glide

Push down with finger

e lever

in

normal position

Pull up with finger

Right Glide

o

for door removal

ed

Hinge Slot
Door removed

from range

To Remove and Replace Storage Drawer
To Remove Storage Drawer:

1. Open the drawer to the fully opened position.

2. Locatethe glide lever on each side of drawer; pull up on the left glide lever and

push down on the right glide lever (see figure 1).

3. Pullthe drawer away from the range.

To Replace Storage Drawer:

1. Pull the bearing glides to the front of the range (see figure 2).

2. Align the drawer glides with the slots on the bearing glides.

3. Pushthe drawer intothe range until the glides levers"click" (approx. 2 in.). Pull

the drawer open again to seat it into position.

4. If you do not hear the glide levers "click" or if the drawer does not feel

seated, remove it and repeat steps 1 through 3. Doing so will minimize
damage to the bearing glides. Do not try to force the drawer into place.

Fig. 1

Fig. 2

20

Avoid Service

Checklist

You may savethe cost and inconvenience of an unnecessary service call by first reviewing this
Checklist of commonly encountered problem situations.

You will be charged for aservice call while the appliance isin warranty if the problem is not caused

by defective product workmanship or materials.

Your new appliance isa carefully engineered product. Many times, what appears to be a reason
to call service requires nothing more than a simple adjustment you can easily make in your own

home.

OCCURRENCE

Range is not level.

Cannot move appliance easily. Appliance Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
must be accessible for service.

Entire range or oven does not operate. Make sure cord/plug is tightly into outlet.

*Oven control beeps and displays F1, F3or Electronic control has detected a fault condition. Push CLEAR to clear the display and stop
F9. beeping. Program oven again. If fault recurs, record fault number. Push CLEAR and contact

Ovenand/orcooktoplightsdoesnotwork. Replace or tighten bulb. See "Changing Oven Light" in this Guide for instructions.

POSSIBLE CAUSE/SOLUTION

Poor installation. When range is level, cooktop may appear out of alignment if countertop
is not level.

Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are

square and have sufficient room for range clearance.

Contact builder or installer to make appliance accessible.

Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.

Servicewiring is not complete. Contact your dealer, installing agent or authorized servicer.

Power outage. Check house lights to be sure. Call your local electric company for service.

an authorized servicer.

Surface unit does not heat. No power to the appliance. Check steps under "Entire Range or Oven Does Not Operate"

Surface burners do not light. Surface control knob has not been completely turned to LITE.Push in and turn the surface

Surface burner flame burns half way Burner ports or slots are clogged. With the burner off, clean by using a small-gauge wire or
around, needle to lean ports or slots.

in this Avoid Service Checklist.

Incorrect control setting. Make sure the correct control ison for the surface unit to be used.

control knob to LITE (until burner ignites) and then turn the surface control knob to the

desired flame size.

Burner ports are clogged. Clean burners. See "To Clean Burner Grates, Contoured Burner
Pans,Burner Cap and Burner Base" under General Cleaning. With the burner off, usesmall-
gauge wire or needle to clean ports or slots.

Gas supply is turned off. Turn gas supply on.

Moisture ispresent after cleaning. Lightly fan the flame and allow the burner to operate until

flame is full. Dry the burners thoroughly following instructions under General Cleaning.

21

Surface burner flame is orange. Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.

Salt air in coastal areas. A slightly orange flame is unavoidable.

Scratches or abrasions on cooktop surface. Coarse particles such as salt or sand between cooktop and utensil can cause scratches. Be

sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do
not affect cooking and will become lessvisible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See "To
Clean the Cooktop Glass" section under general cleaning.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

Metalmarks.

Brown streaks or specks. Boilover are cooked onto surface. Use razor blade scraper to remove soil. See "To Clean

Areas of discoloration with metallic sheen. Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning

Poor baking results. Many factors affect baking results. Make sure the proper rack position isused. Center food

Flames inside oven or smoking from vent. Excessivespillovers in oven. Set self-clean cycle for a longer cleaning time.

Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under "Setting Oven Controls" in the

Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Useaceramic-glass cooktop cleaning cream to remove the marks. See "To

Clean the Cooktop Glass" section under General Cleaning.

the Cooktop Glass" section under General Cleaning.

cream. Use cookware with clean, dry bottoms.

in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set
temperature before placing food in the oven. Try adjusting the recipes' recommended
temperature or baking time. If you feel the oven istoo hot or cool, see "Adjusting Oven
Temperature" in the ELECTRONICOVEN CONTROL guide.

Excessivespillovers in oven. This is normal, especially for pie spillovers or large amounts of

grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle.

Ifflames or excessive smoke are present, stop the self-clean cycle and follow the steps under

"Stopping or Interrupting the Self-Cleaning Cycle" inthe ELECTRONICOVENCONTROL

guide.

ELECTRONICOVEN CONTROLguide.

Make sure oven door is opened to the Broil Stop Position.

Meat too close to the element. Reposition the rack to provide proper clearance between the

meat and the element. Preheat broil element. Preheat broil element for searing.

Grid on broiler pan wrong side up and grease not draining. Always place grid on the broiler

pan with ribs up and slots down to allow grease to drip into pan.

Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking.

Self-cleaning cycle does not work. Control(s) not set properly. Follow instructions under "Oven Cleaning" in the ELECTRONIC

OVEN CONTROL guide.

Self-cleaning cyclewas interrupted. Stop time must be 3to 4 hours past the start time. Follow

steps under "Stopping or Interrupting the Self-Cleaning Cycle" in the ELECTRONIC

OVEN CONTROL guide.

Soil not completely removed after self-
cleaning cycle.

Failureto clean bottom, front top or oven, frame or door area outside oven seal. These areas

are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas

before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon

brush and water or nylon scrubber. Be careful not to damage the oven seal.

22

Notes

23

RANGE WARRANTY

Your range is protected by this warranty

FULL ONE-YEAR
WARRANTY

LIMITED 2"D-5TM
YEAR WARRANTY

(Glass Smoothtop,
Seal & Elements)

LIMITED
WARRANTY

(Applicable to the
State of Alaska)

WARRANTY

PERIOD

One year from original
purchase date

Second through fifth
years from original
purchase date

Time periods listed Costs of the technician's travel to the home and anycosts for pick
above, up and delivery of the appliance required becauseof service.

THROUGH OUR AUTHORIZED SERVICERS,

Pay all costs for repairing or replacing any parts of this
appliance which prove to be defective in materials or

workmanship.

Provide a replacement for any defective surface heating
element, deteriorated rubberized-silicone seal (upswept
models only), or glasssmoothtop that cracks due to
thermal breakage (not customer abuse).

All of the provisions of the full and limited warranties
above and the exclusions listed below apply.

WE WILL:

THE CONSUMER WILL BE RESPONSIBLEFOR:

Costs of service calls that are listed under NORMAL
RESPONSIBILITIESOF THE CONSUMER. *

Diagnostic and any transportation and labor costs which are
required because of service.

In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries, Inc. We authorize no
person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by

us or an authorized Electrolux Home Products North America servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.

*NORMAL

RESPONSIBILITIES
OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTYDAMAGE AND INCIDENTAL EXPENSES
RESULTINGFROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products North America or its
authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons other

than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED
SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products:

USA

1,800,944,9044
Electrolux Home Products

North America
RO. Box 212378

Augusta, GA 30917

Canada

1,866,294,9911
Electrolux Home Products
North America
802, boul. L'Ange-Gardien
L'Assomption, Qu6bec

J5W IT6

This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and
Canada. Product features or specifications as described or illustrated

are subject to change without notice. All warranties are made by
Electrolux Home Products North America, a division of White Consolidated
Industries, Inc. In Canada, your appliance is warranted by Electrolux

Canada Corp.

24
