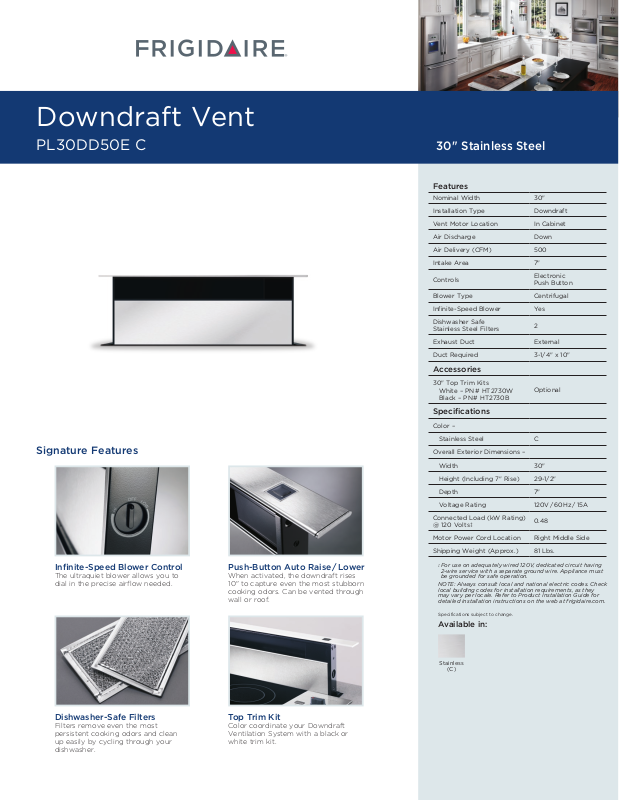

Downdraft Vent
PL30DD50E C
Signature Features
Infinite-Speed Blower Control
The ultraquiet blower allows you to
dial in the precise airflow needed.
Push-Button Auto Raise / Lower
When activated, the downdraft rises
10" to capture even the most stubborn
cooking odors. Can be vented through
wall or roof.
30" Stainless Steel
Features
Nominal Width 30"
Installation Type Downdraft
Vent Motor Location In Cabinet
Air Discharge Down
Air Delivery (CFM) 500
Intake Area 7"
Controls
Blower Type Centrifugal
Infinite-Speed Blower Yes
Dishwasher Safe
Stainless Steel Filters
Exhaust Duct External
Duct Required 3-1/4" x 10"
Accessories
30" Top Trim Kits
White – PN # HT2730W
Black – PN # HT2730B
Specifications
Color –
Stainless Steel C
Overall Exterior Dimensions –
Width 30"
Height (Including 7" Rise) 29-1/2"
Depth 7"
Voltage Rating 120V / 60 Hz / 15A
Connected Load (kW Rating)
@ 120 Volts‡
Motor Power Cord Location Right Middle Side
Shipping Weight (Approx.) 81 Lbs.
‡ For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.
NOTE: Always consult local and national electric codes. Check
local building codes for installation requirements, as they
may vary per locale. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Specifications subject to change.
Available in:
Electronic
Push Button
2
Optional
0.48
Dishwasher-Safe Filters
Filters remove even the most
persistent cooking odors and clean
up easily by cycling through your
dishwasher.
Top Trim Kit
Color coordinate your Downdraft
Ventilation System with a black or
white trim kit.
Stainless
(C)
Downdraft Vent
PL30DD50E C 30" Stainless Steel
Downdraft Vent Specifications
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.48 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @ 120 Volts = 4.0 Amps
•
Do not use same circuit as cooktop.
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Locate grounded electrical outlet for 2'- long power cord within
reachable distance. When installing vent in 30"- wide cabinet, outlet
cannot be located on back wall of cabinet, but can be wall-mounted
with access hole in cabinet.
•
Vent unit outside of building only.
•
Exhaust Duct Required – 3-1/4" x 10" (3-1/4" x 10" to 6"-round transition
duct can be used if needed)
•
Three different blower discharge directions available. Unit ships with
discharge facing down and can be changed if needed.
•
Vent must be installed in vertical orientation only and can be installed
in island, peninsula or conventional wall locations. (Cutout template
provided, packed with vent.)
•
Consider possible interferences before cutting hole in cabinet for
ductwork location. Blower can be adjusted side-to-side to allow for
accurate alignment of ductwork to floor joists, wall studs, electrical
wiring or plumbing.
•
Countertop with raised lip and / or backsplash may not allow enough
flat area for proper installation, 2" of flat countertop required behind
cooktop and 1-3/4" necessary between back edge of cooktop and
inside of cabinet back.
•
Minimum of 1/32" to 1/16" gap needed between back of cooktop and
front of vent’s chimney top to ensure adequate clearance for air vent
to be raised and lowered.
•
For most efficient airflow exhaust, choose ducting option which allows
for shortest length of ductwork having fewest elbows and transitions.
•
Do not use flexible duct. Round duct instead of rectangular duct
recommended, especially when elbows are required.
•
Thermal breaks such as short section of nonmetallic duct, should be
used in areas of extreme cold.
•
Cold weather installations should have additional backdraft damper
installed.
•
Installing a Downdraft Vent in combination with any gas cooking
surface will affect optimum burner efficiency when blower is operated
at higher speeds.
•
Downdraft Vent can NOT be used in combination with any cooktop
backsplash.
•
Downdraft Vent model PL30DD50E can only be used in combination
with 30" built-in range in custom island application having 35"
minimum depth of flat countertop area.
•
Downdraft Vent model PL30DD50E is approved to be used in
combination with any Frigidaire® 30" gas or electric Drop-In
Cooktop. (For detailed countertop preparation, refer to Drop-In
Cooktop / Downdraft Vent Countertop Preparation on this page and
Downdraft Vent installation guide on web.)
•
To ensure proper Cooktop / Downdraft Vent installation, refer to
model-specific cooktop installation guide on web for cooktop
dimensions, cutout dimensions and cabinet requirements. Due to
varying cooktop depths, tight fit is possible between cooktop and
vent.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
30" Top Trim Kit: Black (PN # HT2730B), White (PN # HT2730W).
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
PL30DD50E 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
Specifications
subject to change.
