Product No. PHS69EJSS0
Series Professional
Color stain/blk
Volts 115
Wiring Diagram 241725001
Owner's Guide 241856000
Market North America
Energy Guide 241868008
Service Data Sheet 241636604
N58L00001.eps N58FFDEEA2.eps N58RFCBBC12.eps N58BAAAAB5.eps
N58SLDJEE1.eps N58TCAAAB4.eps N58CAAAAC8.eps N58XEAAAA1.eps
N58YDAAAC6.eps N58I115TServo.eps W241725001.eps S241725001.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995506127
08/01/31
(EN/SERVICE/RLF)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PHS69EJS
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995506127 PHS69EJSS0
FREEZER DOOR
22C
11
1
79
18
79
80
4B
68
80
4C
5
13A
01/08 2
21A
22A
5
55
N58FFDEEA2
PHS69EJSS0 Publication No: 5995506127
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786002 Gasket-frzr door, white, magnetic
4B 240334202 Bin-door, frzr-upper
4C 240351702 Bin-door, frzr-dispenser
5 241545005 Bin-tilt out, tilt-out
11 241837110 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit
# Functional Parts
3 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
REFRIGERATOR DOOR
2
22B
12
15
49
49
49
7
80
79
18
80
79
4
4
01/08 4
22
21A
13
N58RFCBBC12
PHS69EJSS0 Publication No: 5995506127
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786001 Gasket-refr door, white, magnetic
4 240323002 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 241808801 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
49 241808206 Bin-door, gallon
49* 241780401 Liner, bin
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
# Functional Parts
5 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
CABINET
92
41
58
38
37
14A
58
47
81
81
81
45
14
45
40
66
92
38
37
45
45
10
100
11
90
89
45
23
22
10A
42
30
21C
23
82
22
83
43
42
72
30A
21C
28
N58BAAAAB5
01/08 6
PHS69EJSS0 Publication No: 5995506127
CABINET
POS. NO PART NO. DESCRIPTION
10 240435914 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337612 Trim-cabinet corner, nickeloid, (2)
38 240327207 Bracket-upper hinge
40 241555105 Cover-upper hinge, light gray
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 241882901 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 241595402 Screw-#10-32 X 3/4
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324414 Grille/Kickplate, metallic gray
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733905 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
# Functional Parts
7 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
SHELVES
120
11C
81
122
126
81
51A
126
11A
15
16
121
15
141
81
39
52A
11
142
39
140A
140
24B
24A
24
52
52B
49B
52
101
81
51
49A
51
97
2
51B
60
109
2
101
49
100
16A
123
21
42A
15A
47
143
42
62
26A
25
26
27A
01/08 8
136
47A
25A
27
N58SLDJEE1
PHS69EJSS0 Publication No: 5995506127
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 Trim-basket
11 240350668 Shelf-freezer, glass, lower
11A 240350667 Shelf-freezer, glass, upper
11C 240324101 Shelf-pizza
15 241552801 Light Bulb
15A 241555401 Light Bulb
16 240590401 Socket-light
16* 241537504 Harness-wiring
16A 241513901 Socket-light
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240355203 Shelf-"Spill-Safe", fixed
24A 240350106 Shelf-"Spill-Safe", cantilever, sliding
24B 240424609 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240350703 Cover-crisper pan
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351042 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351219 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367602 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
42A* 240356702 Seal-meat pan
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
49A 240530502 Basket-sliding, upper, half
49B 240530504 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
51B 240579801 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
52B 240579802 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240342818 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545307 Water Tank
100 240 326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240 351301 Base-crisper light socket
120 241 691901 Shelf-ice cream
121 241561001 Rail-ice cream shelf, LH
122 241692001 Rail-ice cream shelf, LH
123 215 005101 Screw, hanger/rlr mtg, 8-10 x 7/16
# Functional Parts
9 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
SHELVES
120
11C
81
122
126
81
51A
126
11A
15
16
121
15
141
81
39
52A
11
142
39
140A
140
24B
24A
24
52
52B
49B
52
101
81
51
49A
51
97
2
51B
60
109
2
101
49
100
16A
123
21
42A
15A
47
143
42
62
26A
25
26
27A
01/08 10
136
47A
25A
27
N58SLDJEE1
PHS69EJSS0 Publication No: 5995506127
SHELVES
POS. NO PART NO. DESCRIPTION
126 241 674401 Channel, auger mtg, LH
126 241 674402 Channel, auger mtg, RH
136 241 657701 Dispenser-can, white
140 240 430501 Channel, wtr tube cover
140A 240430503 Channel, wtr tube cover
141 240 585404 Bracket-light socket
142 240 582703 Shield-light Mid Level
143 240 423301 Divider-crisper pan
* 241868008 Label, energy guide
# Functional Parts
11 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
CONTROLS
115
21
21A
151
101
150
81
23
15
139
198
199
138
137
200
14
53
16
81
81
13
17
20
81
8
9
5
149
01/08 12
N58TCAAAB4
PHS69EJSS0 Publication No: 5995506127
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17*# 241737801 Harness-wiring, control box
20 241603922 Label-control box
21 # 241608401 Thermistor-refr
21A# 241608501 Thermistor-frzr
23 # 241739703 Control, electronic, w/housing
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600905 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240 397301 Button-filter release
139 240 396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241 563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241 505101 Insulation-water tube cover
151 241 526001 Filter housing
154 241 525801 Duct-air
155 241 526102 Motor-air filter
155* 241611901 Harness-wiring, filter fan
198 240 397401 Retainer
199 240 397501 Rod
199* 240398401 Spring-filter release rod
200 240 397601 Light Pipe
205 241 525 90 1 Air Filter Door
206 241 504902 Filter-air
* 3205266 Edge Protector, wiring harness
# Functional Parts
13 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
SYSTEM
70
45
62
21
3
15
14
16
59A
58
59A
25
25
29
41
44
86
61
60
59B
59A
85
59B
59
4
57
1
23
23
32
55
30
22
34
6
82
84
26
34
50
01/08 14
83
82
83
45
N58CAAAAC8
PHS69EJSS0 Publication No: 5995506127
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241641401 Harness-wiring, machine compt
6* 241651601 Harness-wiring, evaporator
6* # 241737801 Harness-wiring, control box
6* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918329 Compressor, kit, w/electricals
30 # 241707701 Starter, PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* # 5303918328 Heat Exchanger Kit, suction line, service
* # 5303918222 Hot Tube Repair Kit, service
# Functional Parts
15 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
ICE & WATER DISPENSER
30C
30A
30
87A
39
30B
10
43
35
41
38A
17
56
1
87
17
90
91
17
8
38
23
24A
38C
36
14
24
4
82
N58XEAAAA1
01/08 16
PHS69EJSS0 Publication No: 5995506127
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561703 Seal-water inlet, inlet valve, to ice maker
4 241678710 Cover-module, silver metallic
8 241680504 Module-dispenser
10 241688901 Spring-torsion
14 241611218 Label-module cover, silver metallic
17 241679801 Screw
23 241649005 Drip Tray, silver metallic
24 241685704 Actuator, stainless
24A 241682304 Actuator-ice, stainless
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241680301 Carrier
38# 241527601 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241708307 Board-control
38C* 241 680001 Harness-ribbon cable
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
90 241680201 Light Pipe, reflector, long
91 241680101 Light Pipe, reflector, short
* 218515403 Clip-grille
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit
# Functional Parts
17 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0

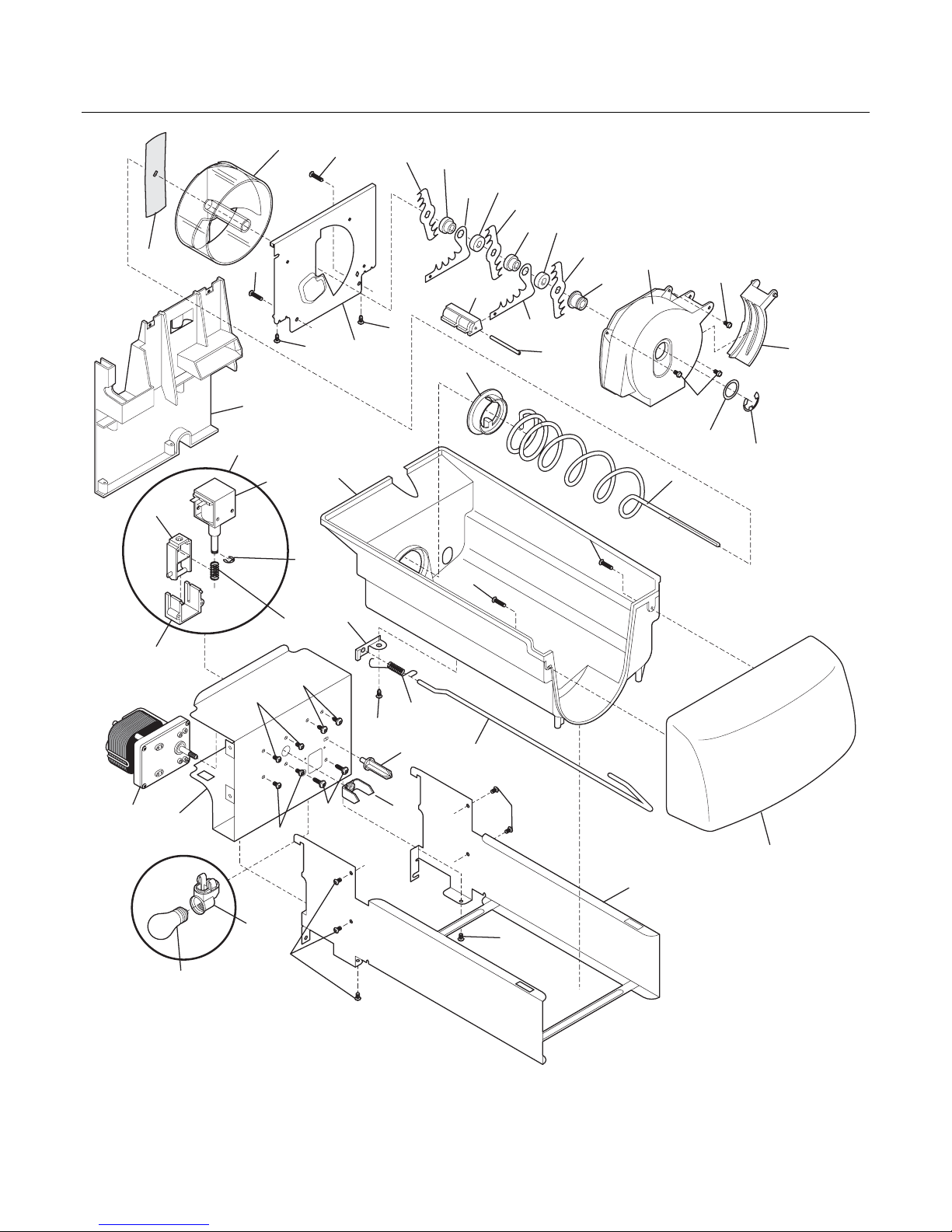

ICE CONTAINER
17
6
26
26
37A
34
35A
33
37B
52
34
33
37C
54
41
25
45C
50
45
70
44
45D
45A
45B
44
39
4
48
23
39
39
51
47
3
26
46
35B
53
13
25
55
56
2
26
18
20
26
44
16
43
15
01/08 18
10
43
43
49
7
N58YDAAAC6
PHS69EJSS0 Publication No: 5995506127
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241561302 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241561401 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241 676 20 2 Motor-auger, 115V
18* 241578401 Wiring Harness, auger motor
20 241675502 Cover-motor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
43 218359202 Screw, pan head, 8-32 x 0.250
44 5304455847 Screw, pan head, 8-32 x 0.250
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241561502 Plate-mounting
70* 241716801 Clip
* 240562101 Insulator
* 241860804 Ice Container Assy, w/moving parts
# Functional Parts
19 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
ICE MAKER
18
60
21
39
17
19
6
22
66
6
40
43
12
23
67
9
34
34
35
36
27
38
11
23
13
16
5
7
33
29
14
15
25
30
8
37
4
34
15
24
41
15
2
42
31
32
6
45
64
51
1
01/08 20
55
INSTALLATION PARTS
N58I115TServo
PHS69EJSS0 Publication No: 5995506127
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561703 Seal-water inlet, inlet valve, to ice maker
2 5304459922 Spring, shut-off arm
4 5304458380 Gear
5 5304458383 Plate-mounting
6 5304458386 Screw
7 # 5304458382 Motor-ice maker Svo
8 5304458388 Spacer-hold switch
9 5304456662 Cam
11 # 5304458400 Thermal Cutoff, ice maker
12 5304458379 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304458384 Screw
15 # 5304456667 Switch-micro, (3)
16 5304458395 Housing, control
17 5304456669 Mold-ice maker, w/therm cut off
18 5304458377 Ejector-ice
18*# 240352601 Wiring Harness, internal, with plug
19 5304458378 Cup-water inlet
21 5304458390 Ice Stripper
22 5304458375 Shut-off Arm
23 5304458394 Screw
24 5304458391 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 Screw
29 5304458393 Screw
30 5304458387 Screw
31 5304458381 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, timing adjust
34 5304455684 Screw, plazscrew, 8-10 x 1/2, (3)
35 5304456684 Screw
36 5304458376 Cover-ice maker
37 5304408583 Spring-timing adj
38 5304458398 Clip
39 5304458399 Conductor-heat
40 5304458401 Clip-retainer
41 5304458389 Screw
42 218515403 Clip-grille
43 241720601 Extension
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796403 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
64 5304455846 Clamp, .31 ID, steel, water tube
66 5304458374 Bracket-ice maker
67 5304458392 Switch-on/off
* 241583301 Deflector-air, ice maker
* 241587402 Deflector-ice
* 241806601 Connector-water, straight
* 5304456689 Retainer, thermostat
* # 241709801 Ice Maker, radius cube, 115 V, no instl parts
# Functional Parts
21 01/08
* Non-Illustrated Parts
Publication No: 5995506127 PHS69EJSS0
WIRING SCHEMATIC
AIR FILTER
FAN
FF THERMISTOR
FRZ THERMISTOR
M
1
2
BETA
1
CONTROL
2
1
2
FAST
ICE/FRZ
01/08 22
PHS69EJSS0 Publication No: 5995506127
WIRING DIAGRAM
7 8 9 10 11 12
123456
WHITE
WHITE
GRAY
GRAY
12
BLACK
BARE
NATURAL
1
2
3
M
# Functional Parts
23 01/08
* Non-Illustrated Parts
Loading...
