Product No. PHS66EJSB0
Series Professional
Color stainless/blk
Volts 115

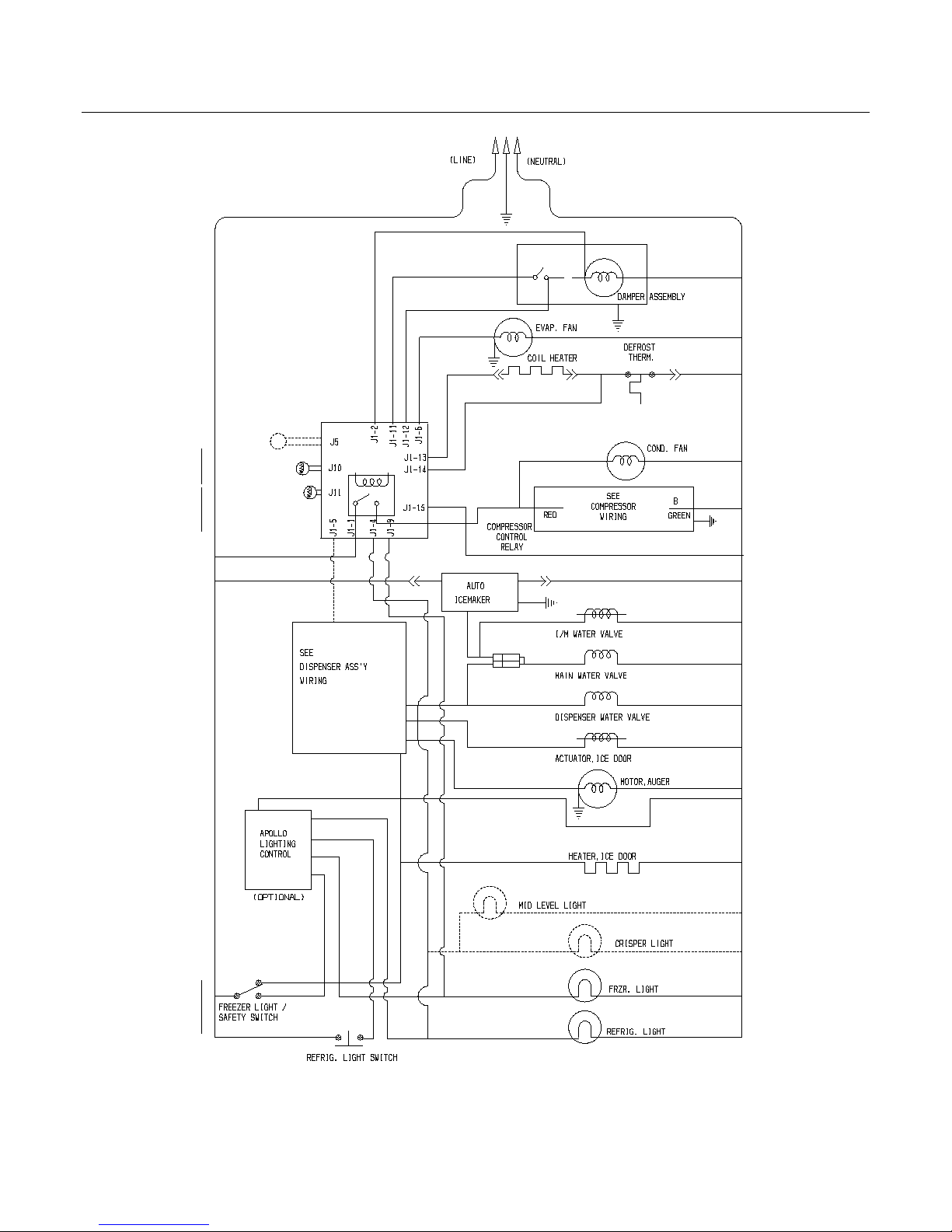

Wiring Diagram 241725001
Owner's Guide 241856000
Market North America
Energy Guide 241868007
Service Data Sheet 240389633
N58L00002.eps N58FFDBBB1.eps N58RFCBBC10.eps N58BAAAAA2.eps
N58SJCHBB11.eps N58TCAAAB4.eps N58CAAAAC10.eps N58XBAAAB1.eps
N58YBAAAA5.eps N58I1151.eps W241725001.eps S241725001.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
THIS CATALOG SUPERCEDES
PUBLICATION # 5995506457
Publication No.
5995507638
08/02/26
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PHS66EJ
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995507638 PHS66EJSB0
FREEZER DOOR
22C
11
1
79
18
79
80
4A
68
80
13A
21A
02/08 2
22A
4B
4B
N58FFDBBB1
PHS66EJSB0 Publication No: 5995507638
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786006 Gasket-frzr door, black, magnetic
4A 240334201 Bin-door, frzr-upper
4B 240351601 Bin-door
11 241837111 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit
# Functional Parts
3 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
REFRIGERATOR DOOR
2
22B
12
15
49
7
80
79
18
49
80
79
4
4
02/08 4
22
21A
13
N58RFCBBC10
PHS66EJSB0 Publication No: 5995507638
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786005 Gasket-refr door, black, magnetic
4 240323001 Bin-door, pseudo, bottom
7 240326203 Door-dairy
12 241808801 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534541 Door-refr, stainless steel, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
49 240356401 Bin-door, gallon
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
# Functional Parts
5 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
CABINET
58
40
58
92
41
40
38
37
14A
100
47
81
81
81
14
92
66B
38
37
91
45
10
11
90
89
45
23
22
10A
42
30
21C
23
82
22
83
43
42
72
30A
21C
28
N58BAAAAA2
02/08 6
PHS66EJSB0 Publication No: 5995507638
CABINET
POS. NO PART NO. DESCRIPTION
10 240435912 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337610 Trim-cabinet corner, black, (2)
38 240327207 Bracket-upper hinge
40 240327010 Cover-upper hinge, silver metallic
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 241882901 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 218659500 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66B 240374301 Diffuser-air
66B* 240518802 Pin-push, push-in, plastic
72 240324414 Grille/Kickplate, metallic gray
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 5303321321 Paint, touch-up, black
# Functional Parts
7 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
SHELVES
11C
81
140
126
81
126
11B
11A
39B
39B
109
97
16A
81
15A
123
42
21
47
25
24
24
24
42
62
26A
26
11
100
101
39
51
26A
101
52
49
47A
25A
27
N58SJCHBB11
02/08 8
PHS66EJSB0 Publication No: 5995507638
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657602 Shelf, flip up, wire
11A 241657502 Shelf, fixed, freezer
11B 241657504 Shelf, fixed, upper, freezer
11C 240324101 Shelf-pizza
15A 241555401 Light Bulb
16A 241513901 Socket-light
16A* 241537603 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240355205 Shelf-"Spill-Safe", fixed
25 240350702 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
26 240351005 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351205 Pan-crisper, lower
39 240430706 Trim-shelf, 11.21", front
39B 240430702 Trim-shelf, 12.39", front
42 240356501 Track, meat pan hanger, RH
42 240365401 Track, meat pan hanger, LH
47 240350602 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
49 240564401 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240342806 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545307 Water Tank
100 240 326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240 351301 Base-crisper light socket
123 215 005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241 674401 Channel, auger mtg, LH
126 241 674402 Channel, auger mtg, RH
140 240 430 501 Channel, wtr tube cover
* 241868007 Label, energy guide
# Functional Parts
9 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
CONTROLS
115
21
21A
151
101
150
81
23
15
139
198
199
138
137
200
14
53
16
81
81
13
17
20
81
8
9
5
149
02/08 10
N58TCAAAB4
PHS66EJSB0 Publication No: 5995507638
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241608801 Box-control, front
17*# 241737801 Harness-wiring, control box
20 241603913 Label-control box
21 241608401 Thermistor-refr
21A 241608501 Thermistor-frzr
23 # 241739701 Control, electronic, w/seal
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600905 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240 397301 Button-filter release
139 240 396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241 563501 Shroud-fan orfice
149* 241528306 Seal, shroud
150 241 505101 Insulation-water tube cover
151 241 505001 Cover-water tube
198 240 397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
* 3205266 Edge Protector, wiring harness
# Functional Parts
11 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
SYSTEM
70
45
62
21
3
15
14
16
86
61
6
60
59
59B
59A
1
34
59A
59B
34
25
41
58
25
59A
29
44
85
4
57
23
32
55
23
30
22
84
26
82
02/08 12
83
82
83
45
N58CAAAAC10
PHS66EJSB0 Publication No: 5995507638
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241586801 Harness-wiring, machine compt
6* # 241651601 Harness-wiring, evaporator
6* # 241737801 Harness-wiring, control box
6* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918329 Compressor, kit, w/electricals
30 # 241707701 Starter, PTC
32 241650901 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* # 5303918328 Heat Exchanger Kit, suction line, service
* 5303918222 Hot Tube Repair Kit, service
# Functional Parts
13 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
ICE & WATER DISPENSER
30C
30A
30
87A
39
30B
10
43
35
41
38A
17
56
88
1
87
15
16
17
90
91
17
8
38
23
38C
36
14
24A
24
4
82
N58XBAAAB1
02/08 14
PHS66EJSB0 Publication No: 5995507638
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241678710 Cover-module, silver metallic
8 241680510 Module-dispenser, silver
10 241688901 Spring-torsion
14 241611216 Label-module cover, silver metallic
15 241689401 Light Bulb
16 240548901 Socket-light
17 241679801 Screw
23 241649005 Drip Tray, silver metallic
24 241682005 Actuator-water, silver metallic
24A 241681905 Actuator-ice, silver metallic
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241680301 Carrier
38 # 241708202 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C* 241 680001 Harness-ribbon cable
38C# 241708309 Board-control
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
88 241686101 Shield-light
90 241680201 Light Pipe, reflector, long
91 241680101 Light Pipe, reflector, short
* 241686201 Insulator-electrical
* 218515403 Clip-grille
* 5303918256 Dispenser heater kit
# Functional Parts
15 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
ICE CONTAINER
17
45C
45
26
6
45D
45A
39
45B
26
48
23
4
37A
39
34
35A
3
26
52
33
37B
34
35B
53
33
37C
26
54
41
25
13
25
55
56
2
57
18
50
20
15
44
16
44
43
43
26
39
10
47
51
46
43
43
49
7
N58YBAAAA5
02/08 16
PHS66EJSB0 Publication No: 5995507638
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241734001 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241734201 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241 676202 Motor-auger, 115V
18*# 240352602 Wiring Harness, internal, wiring harness
18*# 241732001 Harness Wiring
20 241734902 Cover, motor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 218359202 Screw, pan head, 8-32 x 0.250
44 241842101 Screw, 8-32 x 1/4
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
57 241734101 Door-access
* 240507202 Deflector-ice container
* 241860803 Ice Container Assy, w/moving parts
# Functional Parts
17 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
ICE MAKER
02/08 18
PHS66EJSB0 Publication No: 5995507638
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ice maker
3 5304456657 Nameplate
4 5304456658 Gear
5 5304456659 Plate-mounting
6 5304456691 Screw, M 3x20 #3, valve plate
7 # 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 5304456661 Spacer-hold switch
9 5304456662 Cam
10 5304456689 Retainer, thermostat
11 # 5304456663 Thermal Cutoff, ice maker, complete assy
12 5304456664 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304455676 Screw, plask, 4x14x3/4
15 # 5304456667 Switch-micro, (3)
16 5304456668 Support
17 5304456669 Mold-ice maker, w/therm cut off
18 5304456670 Ejector-ice
18* 240352602 Wiring Harness, internal, wiring harness
19 5304456671 Bearing & Inlet, fill cup
20 5304455677 Screw, 8-32 x 3/8
21 5304456672 Ice Stripper
22 5304456673 Shut-off Arm
23 5304456674 Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 Screw, plask, 4-14 x 3/8
27 5304456677 Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 Screw, M 4x6 #2
29 5304456678 Screw, M 3x12 #3, (2)
30 5304456679 Screw-timing adj, M 4x25 #3
31 5304456680 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, timing adjust
34 5304456683 Screw, M 4x12 #2, (3)
35 5304456684 Screw
36 5304456685 Cover-ice maker
36* 5304456690 Label, ID plate
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
# Functional Parts
19 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
ICE MAKER
02/08 20
PHS66EJSB0 Publication No: 5995507638
ICE MAKER
POS. NO PART NO. DESCRIPTION
61 5304456686 Bracket-leveling, ice maker
62 5304456687 Screw-IM brkt mtg, pan hd phillips, 8-32T x 0.375
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
* 241806601 Connector-water, straight
* 5304456666 Screw, M 3x20 #2, (6)
* 5304456688 Terminal
* 5304456692 Washer
* 5304456693 Nut, M 3.5
* 5304456737 Washer
* 241642501 Ice Maker, radius cube, 115 V, Svce
# Functional Parts
21 02/08
* Non-Illustrated Parts
Publication No: 5995507638 PHS66EJSB0
WIRING SCHEMATIC
AIR FILTER
FAN
FF THERMISTOR
FRZ THERMISTOR
1
M
2
BETA
1
CONTROL
2
1
2
FAST
ICE/FRZ
02/08 22
PHS66EJSB0 Publication No: 5995507638
WIRING DIAGRAM
7 8 9 10 11 12
123456
WHITE
WHITE
GRAY
GRAY
12
BLACK
BARE
NATURAL
1
2
3
M
# Functional Parts
23 02/08
* Non-Illustrated Parts
Loading...
