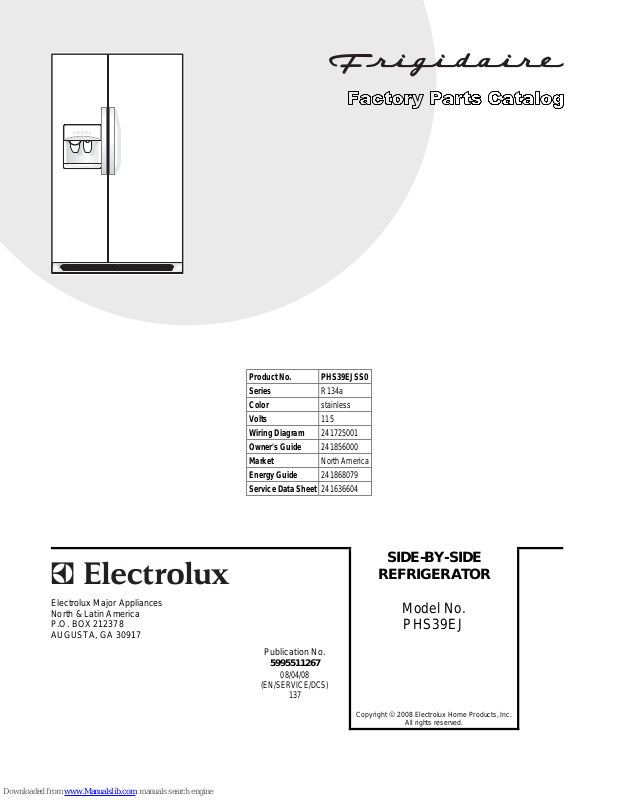

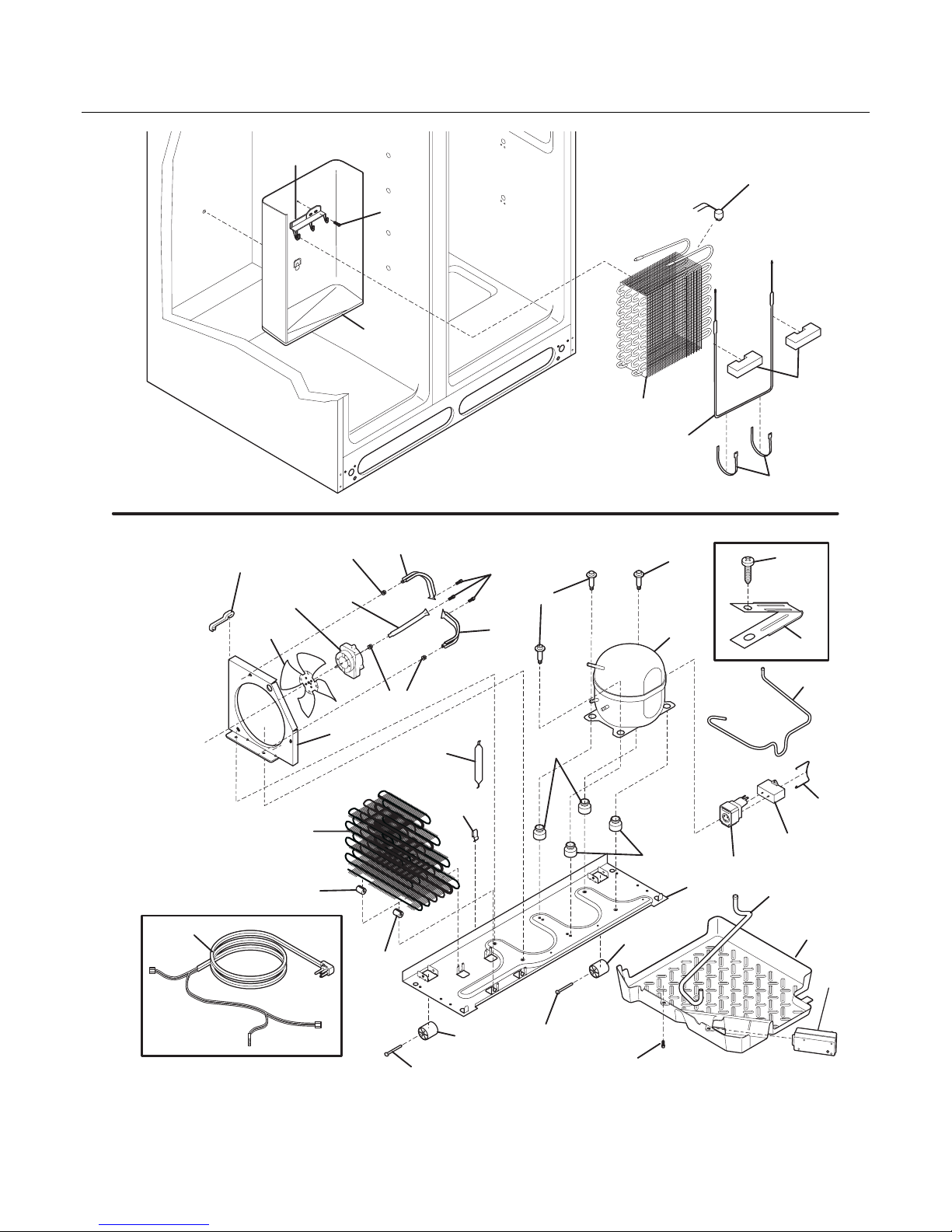

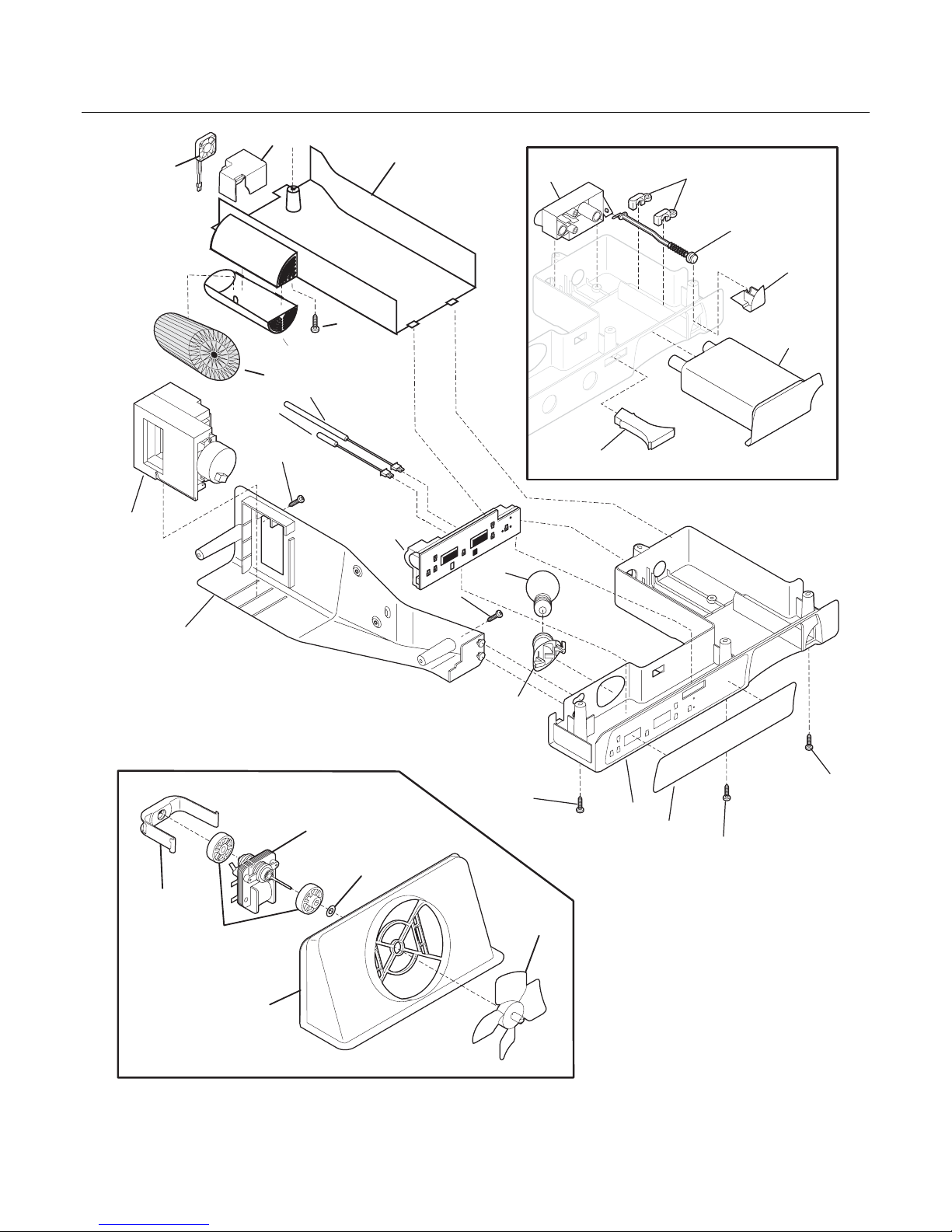

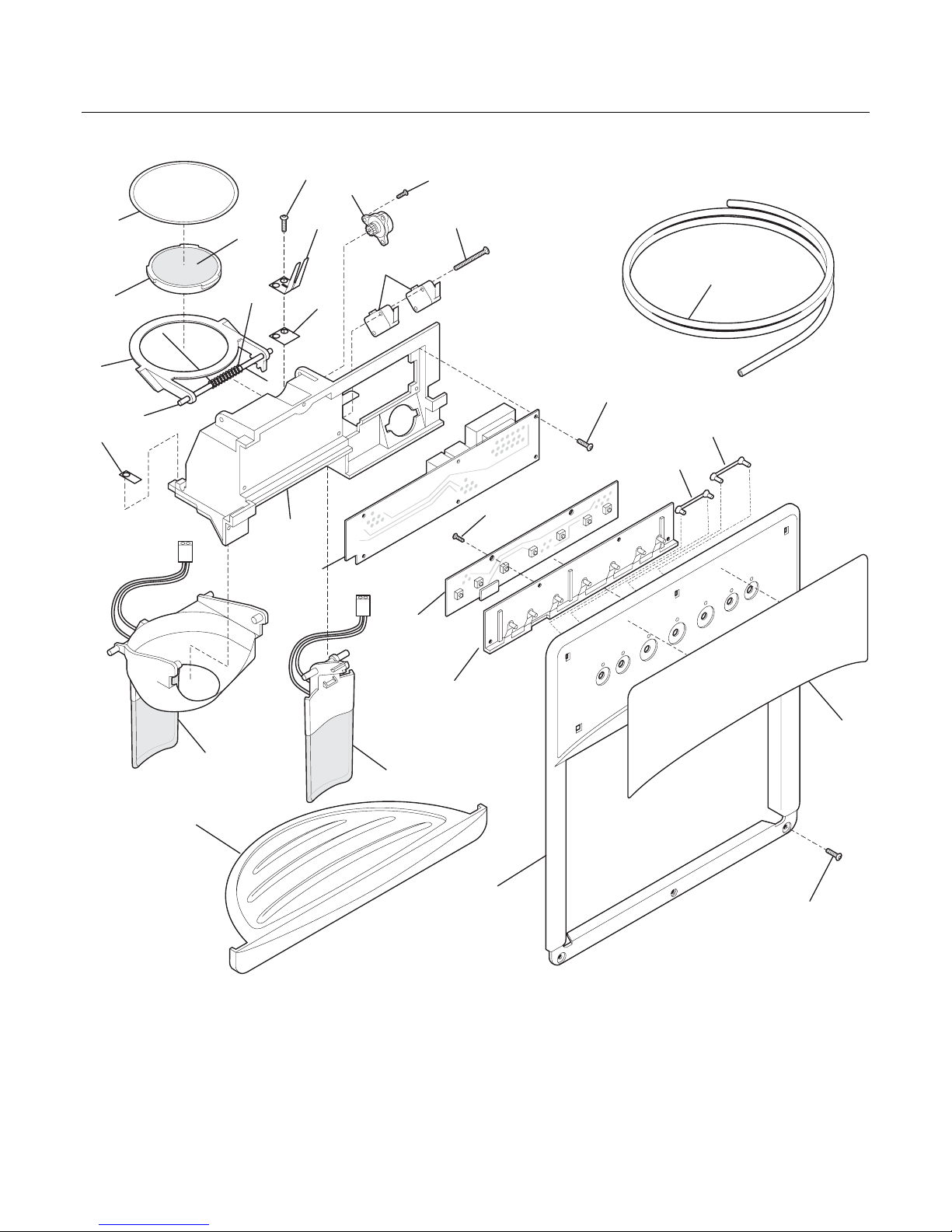

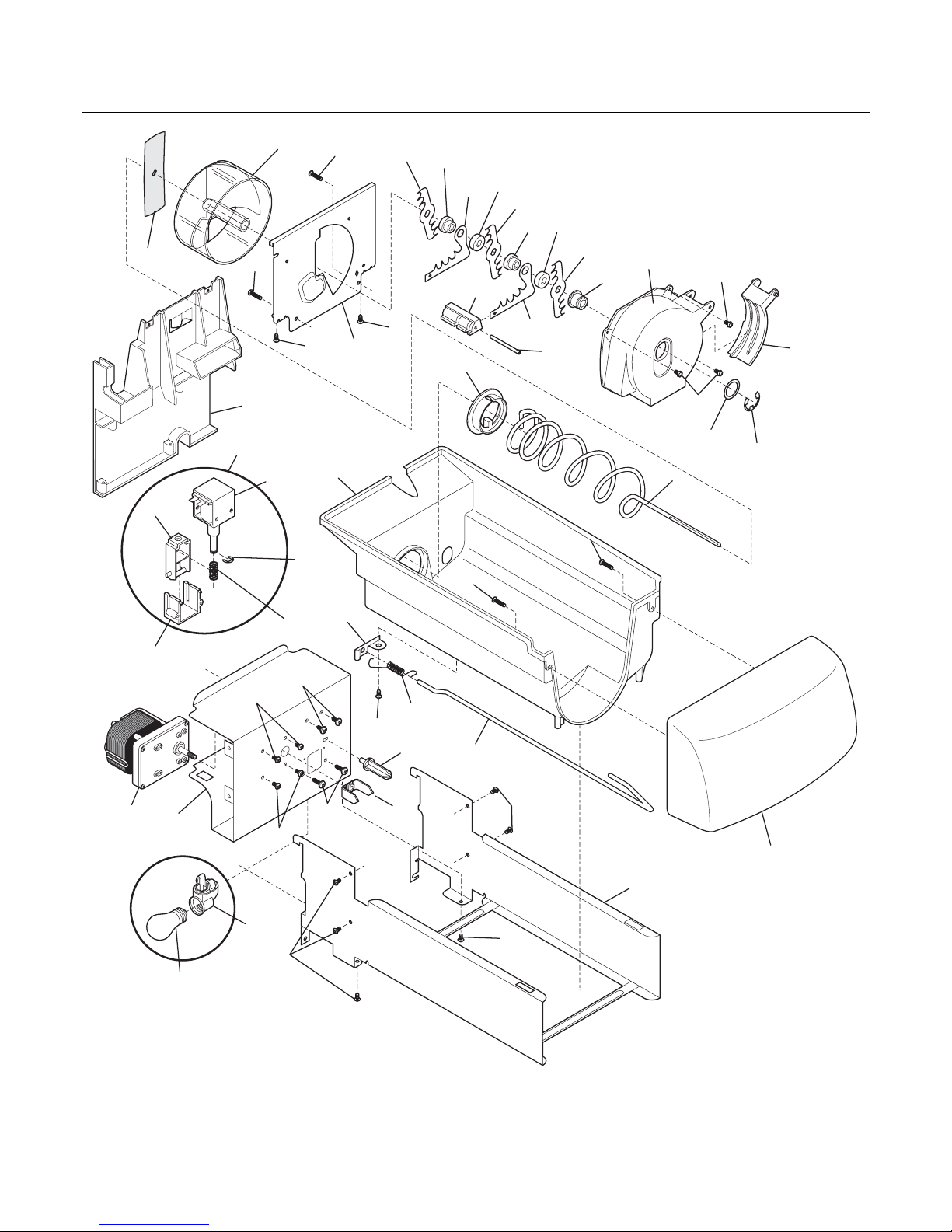

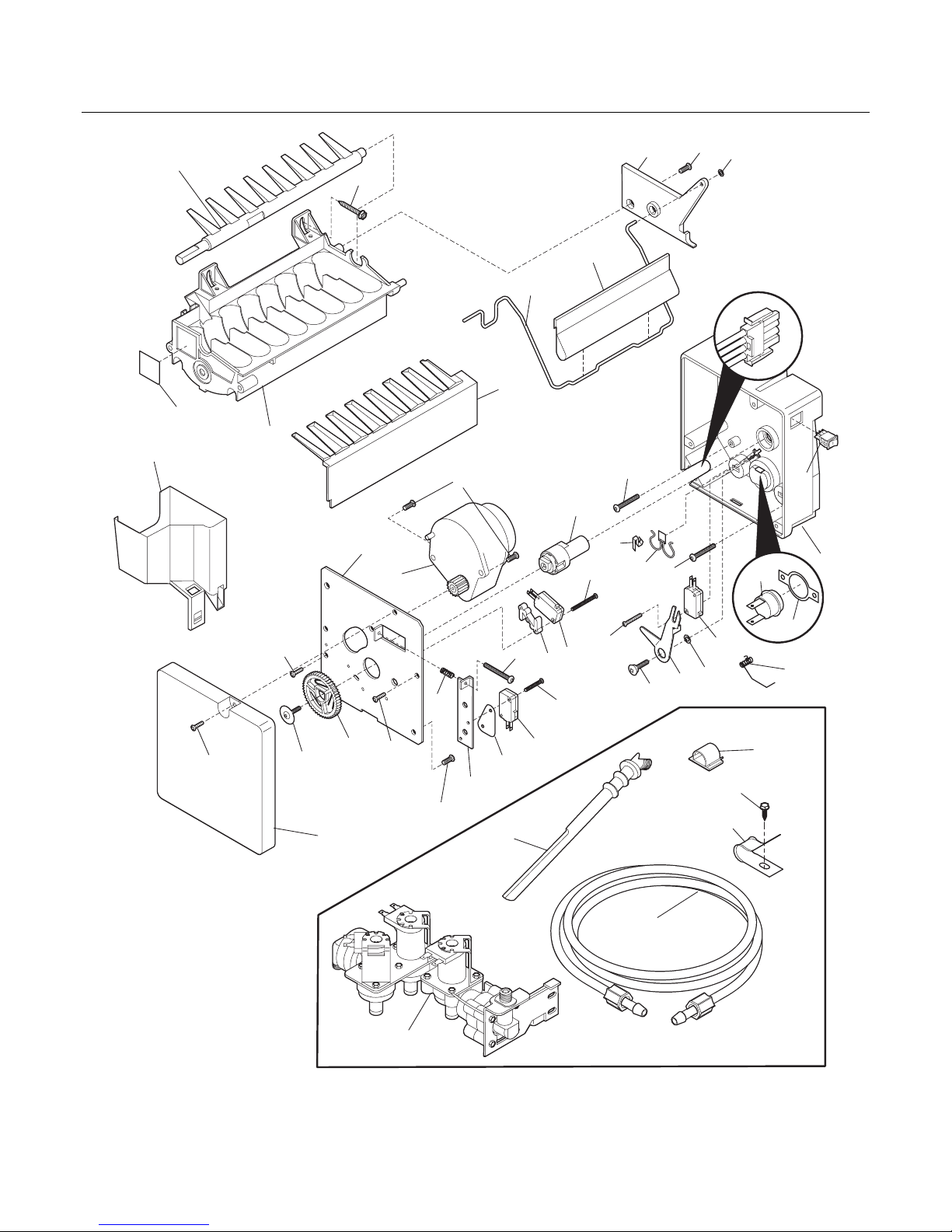

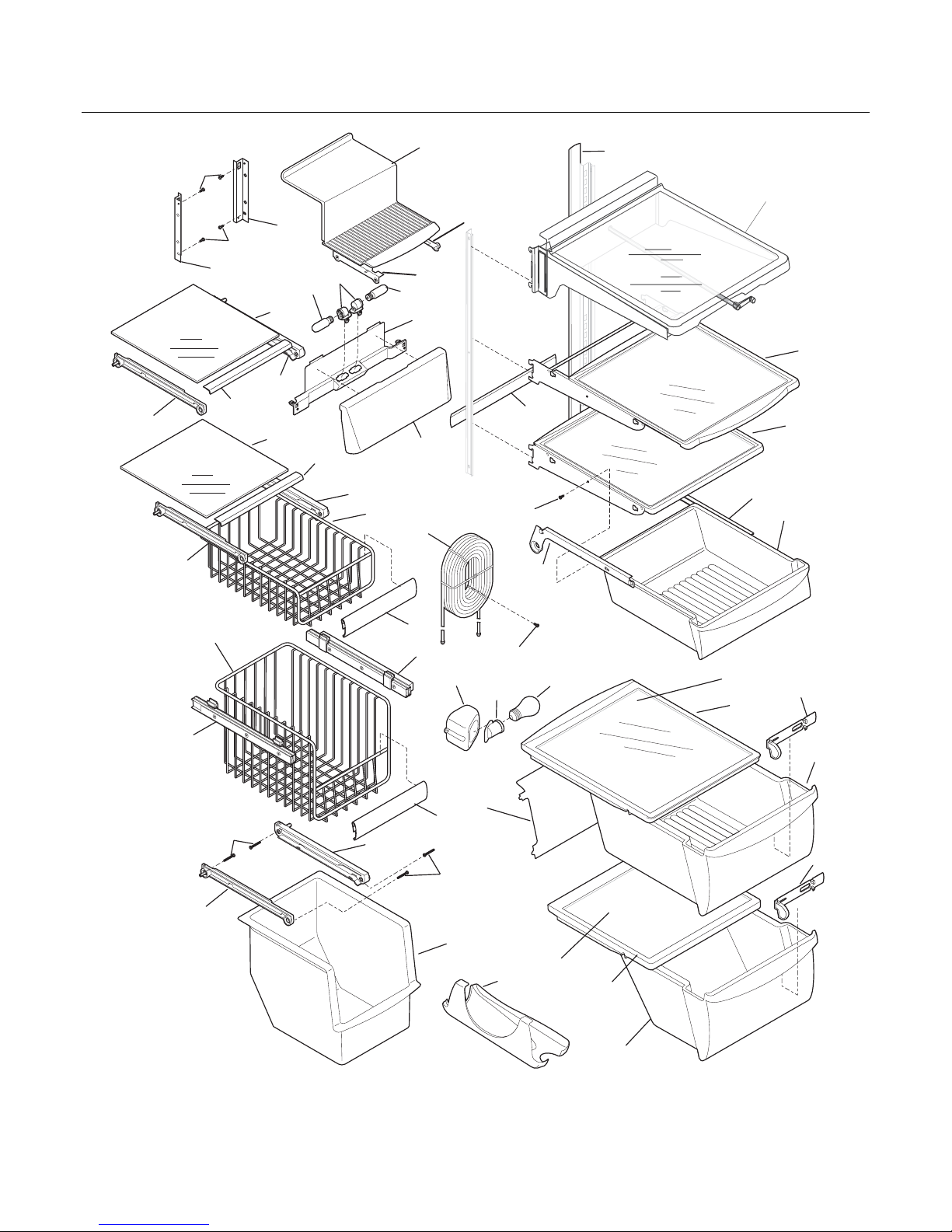

Frigidaire PHS39EJSS - 23CF SxS SS DISP ProStyle F-G, PHS39EJSS, PHS39EJ Service Data Sheet
Product No. PHS39EJSS0
Series R134a
Color stainless
Volts 115

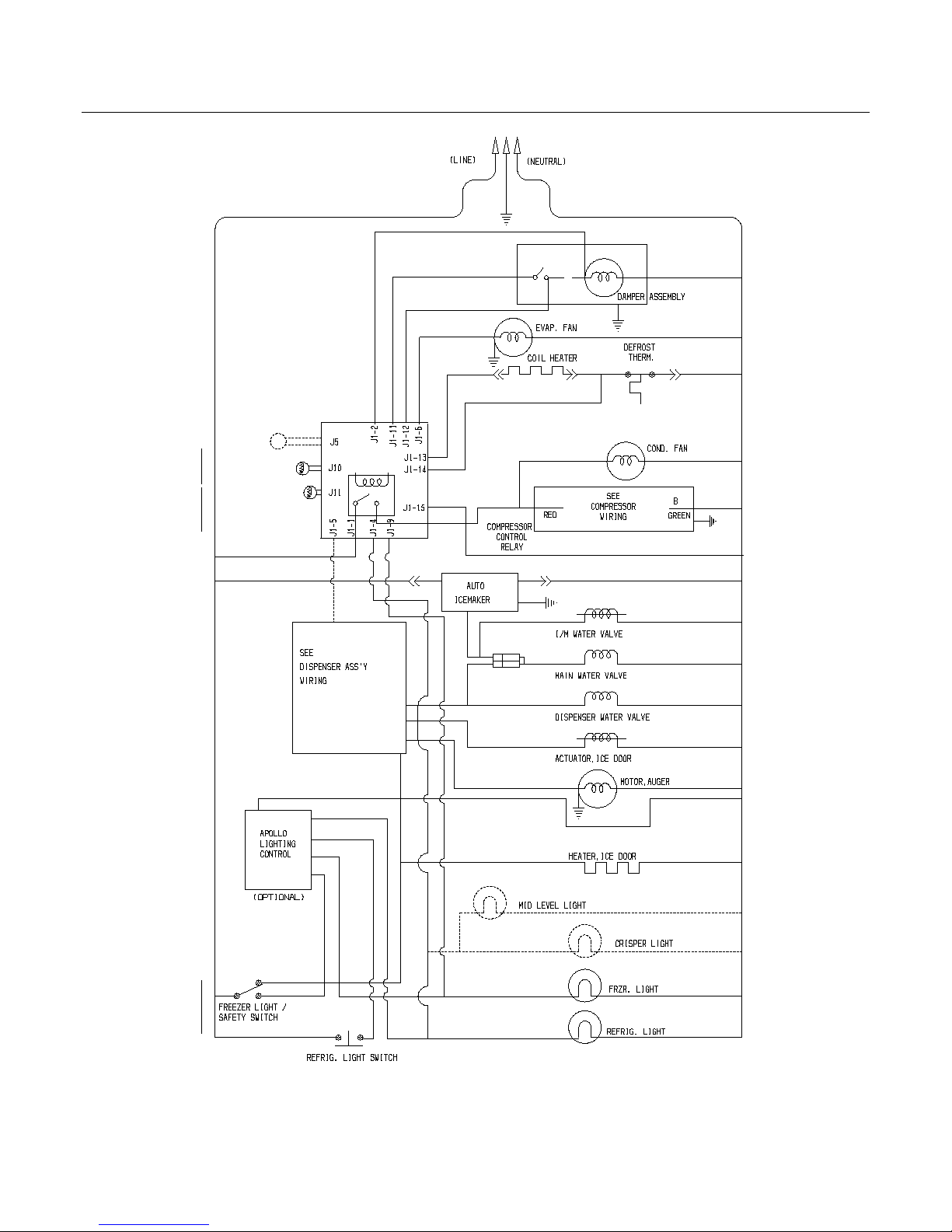

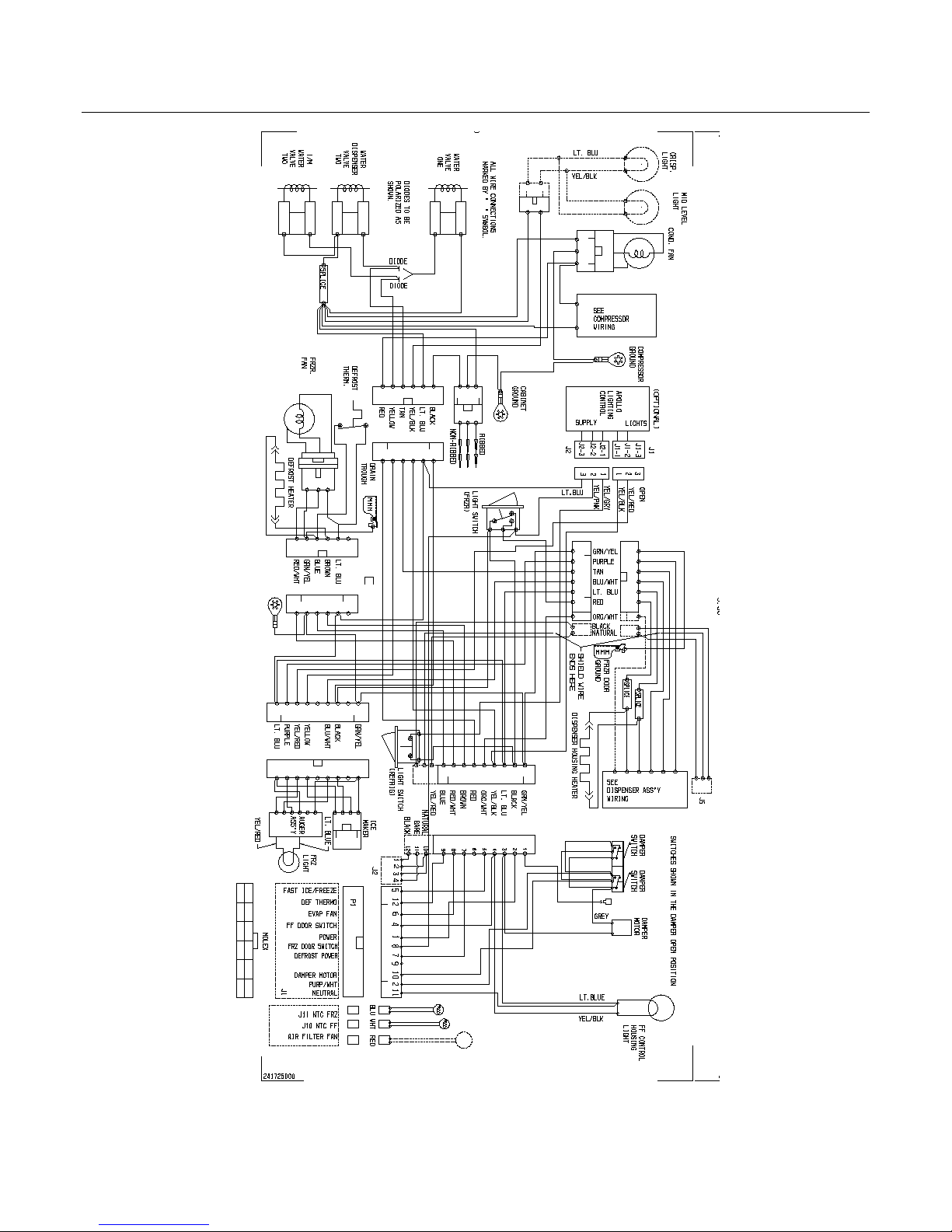

Wiring Diagram 241725001
Owner's Guide 241856000
Market North America
Energy Guide 241868079
Service Data Sheet 241636604
N58L00002.eps N58FFDEEA2.eps N58RFCBBC12.eps N58BAAAAB5.eps
N58SLDLBE12.eps N58TCBAAB0.eps N58CAAAAC8.eps N58XEAAAA1.eps
N58YDAAAC7.eps N58I115TServo.eps W241725001.eps S241725001.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995511267
08/04/08
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PHS39EJ
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995511267 PHS39EJSS0
FREEZER DOOR
22C
11
1
79
18
79
80
4B
68
80
4C
5
13A
04/08 2
21A
22A
5
55
N58FFDEEA2
PHS39EJSS0 Publication No: 5995511267
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786004 Gasket-frzr door, white, magnetic
4B 240367302 Bin-door, frzr-upper
4C 240358402 Bin-door, frzr-dispenser
5 241545004 Bin-tilt out, tilt-out
11 241615188 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit
# Functional Parts
3 04/08
* Non-Illustrated Parts
Publication No: 5995511267 PHS39EJSS0
REFRIGERATOR DOOR
2
22B
12
15
49
49
49
7
80
79
18
80
79
4
4
04/08 4
22
21A
13
N58RFCBBC12
PHS39EJSS0 Publication No: 5995511267
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786003 Gasket-refr door, white, magnetic
4 240363702 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 241808801 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534542 Door-refr, stainless, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
49 241808204 Bin-door, gallon, w/trim
49* 241780301 Liner, bin
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
# Functional Parts
5 04/08
* Non-Illustrated Parts
Publication No: 5995511267 PHS39EJSS0
CABINET
92
41
58
38
37
14A
58
47
81
81
81
45
14
45
40
66
92
38
37
45
45
10
100
11
90
89
45
23
22
10A
42
30
21C
23
82
22
83
43
42
72
30A
21C
28
N58BAAAAB5
04/08 6
PHS39EJSS0 Publication No: 5995511267
CABINET
POS. NO PART NO. DESCRIPTION
10 240435913 Cover-air duct
10A 240475910 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337612 Trim-cabinet corner, nickeloid, (2)
38 240327207 Bracket-upper hinge
40 241816004 Cover-upper hinge, eyebrow, silver metallic
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 241882901 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324415 Grille/Kickplate, silver mist
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733904 Cover-access, w/label
90 218249807 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
# Functional Parts
7 04/08
* Non-Illustrated Parts
