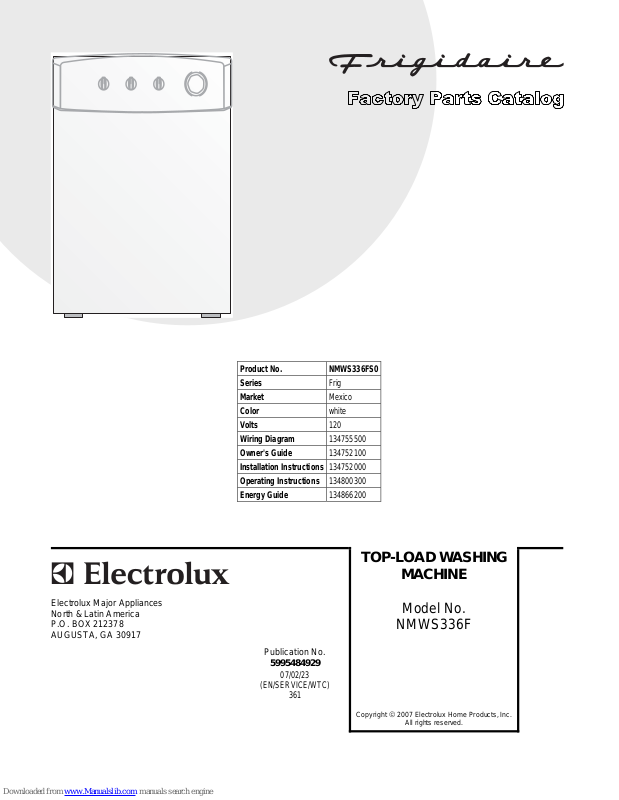

Page 1
P12L0038.eps P12V0092.eps P12T0091.eps P12M0014.eps P12C0376.eps
134755500-EN.eps 134755500-FR.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No. NMWS336FS0
Series Frig
Market Mexico
Color white
Volts 120
Wiring Diagram 134755500
Owner's Guide 134752100
Installation Instructions 134752000
Operating Instructions 134800300
Energy Guide 134866200
Publication No.
5995484929
07/02/23
(EN/SERVICE/WTC)
361
TOP-LOAD WASHING
MACHINE
Model No.
NMWS336F
Copyright © 2007 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995484929 NMWS336FS0

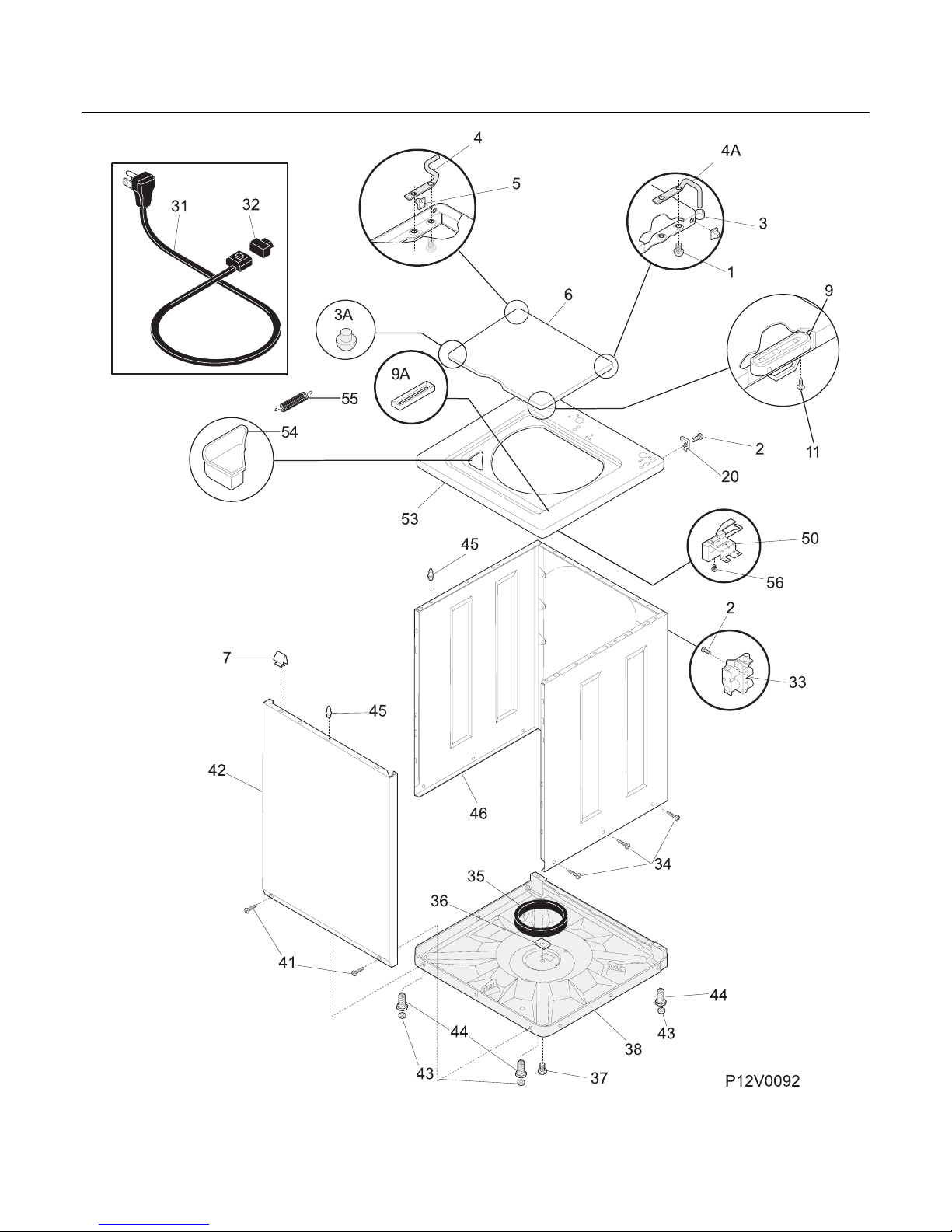

CABINET/TOP
02/07 2
Page 3
NMWS336FS0 Publication No: 5995484929
CABINET/TOP
POS. NO PART NO. DESCRIPTION
1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point
2 131168200 Screw, pan head, 8-18B x 0.31
3 131433300 Bumper, lid hinge
3A 134075500 Bumper, lid, front
4 131385910 Hinge Bar, LH
4A 131374220 Hinge Bar, RH
5 5303208743 Grommet, hinge
6 131374401 Lid, white
7 3205821 Clip, top-to-front
9 131390000 Lid Strike
9A 134768500 Insert, striker plate, lid slot
11 3204368 Screw, lid strike mtg, 6-20B X 0.375
20 5303208751 Hinge, top panel, cabinet rear
31 # 134501000 Power Cord, electric svce
32 5303209428 Bushing, power cord
33 # 134210800 Valve, water, 115 V
34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base
35 5308002385 Snubber Ring
36 3204380 Shipping Block
37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming
38 134773500 Base Assembly
41 131258400 Screw, 10-16AB x 0.500
42 131104303 Panel, front, white
43 131422100 Pad, leveling leg
44 5303309673 Screw, leveling leg, with pad
45 131346 400 Pin, panel locator
46 134046600 Cabinet Assy, white, back and sides
50 # 134101800 Lock, lid, w/ext switch
53 131452692 Panel, white, top
54 5303208778 Dispenser, bleach
55 5303212876 Spring, lid assist
56 131243700 Screw, pan head, 8-18AB x 0.375
# Functional Parts
3 02/07
* Non-Illustrated Parts
Page 4
Publication No: 5995484929 NMWS336FS0

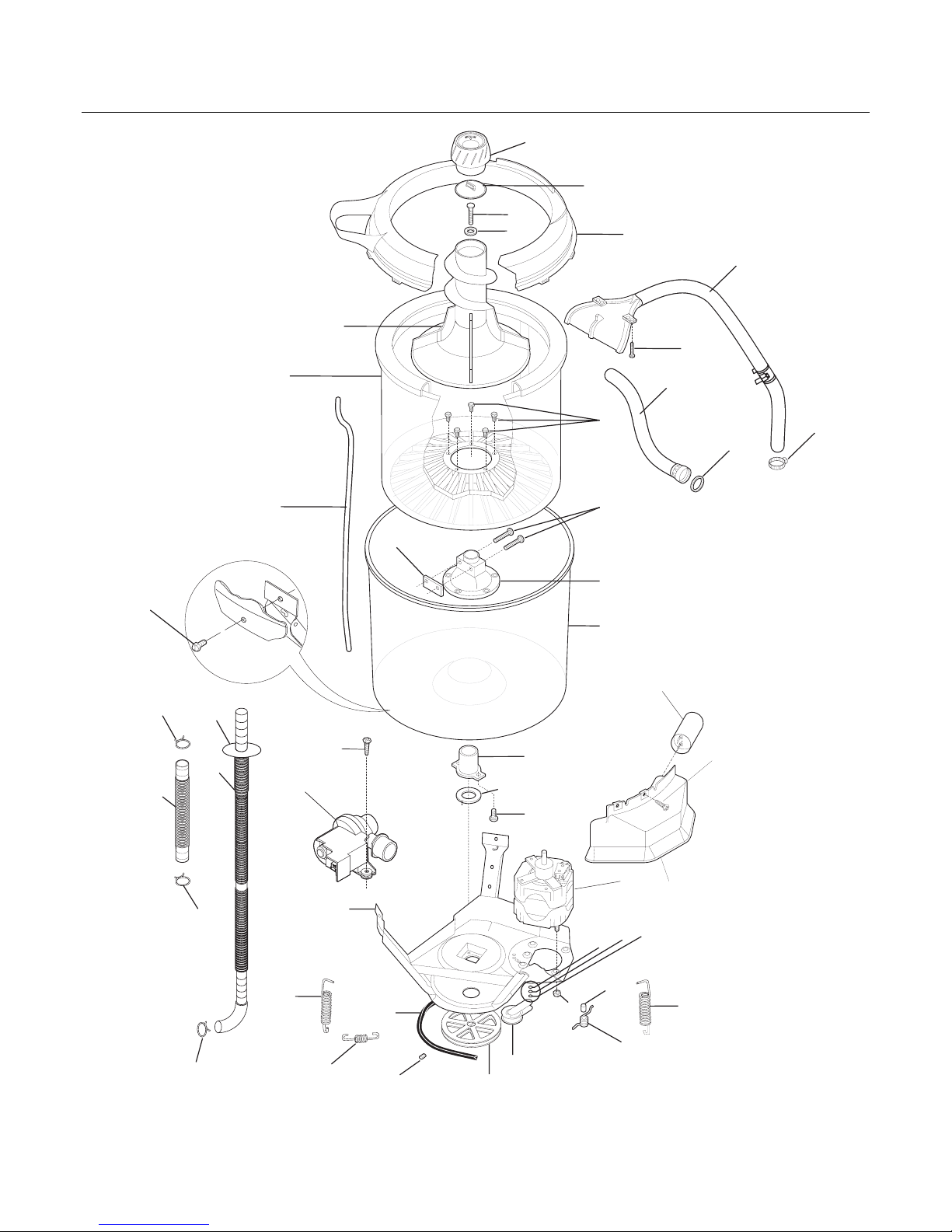

MOTOR/TUB
56
57
11
66
67
3
10
19
51
49
48
68
45
53
12
43
58
15
21
26
20
13
14
16
18
6
9
7
4
62
48
23A
48
24
02/07 4
22
28
27
29
30
38
35
34
36
40
33
37
41
23
P12T0091
Page 5
NMWS336FS0 Publication No: 5995484929
MOTOR/TUB
POS. NO PART NO. DESCRIPTION
3 131551102 Cover, splash tub, with seal
3* 131901400 • Seal, splash cover
4 # 131212301 Capacitor, motor
6 131454100 Hose, water inlet, 4 ft., hose & washer
7 5303161296 Washer, inlet hose
9 5303304824 Clamp
10 134211701 Hose Assy, ATC, w/nozzle, clamp
11 # 131605901 Agitator Assy, dual action
12 131221300 Tub, spin
13 5303283293 Screw, trunion, 5/16-18 x 0.625, (5)
14 131192800 Screw, lockplate, 5/16-18 x 1.625
15 5308001923 Plate, lock
16 131545101 Trunnion
18 131557201 Tub, splash, w/air dome, brg
19 131205300 Screw, 10-16 x 0.750
20 3205150 Screw, tub bearing, 8-12B x 0.750
21 5308002401 Washer, spin bearing, upper
22 131373610 Leg & Dome Assy
23 5303208858 Spring, vertical, short
23* 5303212877 Insert, spring adjuster, vertical
23A 5303208860 Spring, vertical
24 131373900 Spring, horizontal
26 # 3204405 Bearing, outer tub
27 5303304825 Screw, set, hex hd cup, 5/16-18 x 0.85, xmsn pulley, hex head cup pt
28 # 134511600 V-Belt, washer drive, standard 4L
29 # 131498301 Pulley, xmsn drive
30 # 131862900 Idler Arm Assy, VAW, with pulley
33 3204425 Spring, torsional
34 3204426 Sleeve, idler pivot
35 3161433 Ring, retaining
36 5303261031 Washer, pivot shaft
37 5303161306 Washer, spring type
38 5303318708 Nut, hex flange, motor mounting
40 # 134159500 Motor, 3/4 hp, 2 speed, with pulley
41 131513300 • Shield, motor assy, w/speed nuts
41 5303283052 • Speed Nut, motor shield, steel clip
41 # 131715800 Shield, motor assy, w/capacitor, nut
43 # 134740500 Pump, drain
45 # 134592700 Hose, drain
45* 131453000 Bushing, snap-in
45* 131663500 Cushion, drain hose, base
45* 134261300 Clip, drain hose, push-mount
45* 134745300 Clip, drain hose
48 131306234 Clamp, hose, wire
49 # 131494800 Hose, pump to tub
51 134164400 Screw, hex washer head, 5/16-18 x 0.625
53 5300771996 Tube, pressure, vinyl
56 131468900 Screw, agitator mtg, 5/16-18 x 1.250
57 131339600 Spacer, agitator mtg, rubber
58 134160900 Screw, washer hd, 10-16AB X 0.75
62 131258400 Screw, 10-16AB x 0.500
66 131624500 Agitator Cap Assy, dispenser cup, dual action
67 131606210 Mechanism, disp cap assy, dual action
68 131707800 Ring, drain hose
68* 5303309503 Clip, drain hose, back sheet
# Functional Parts
5 02/07
* Non-Illustrated Parts
Page 6
Publication No: 5995484929 NMWS336FS0

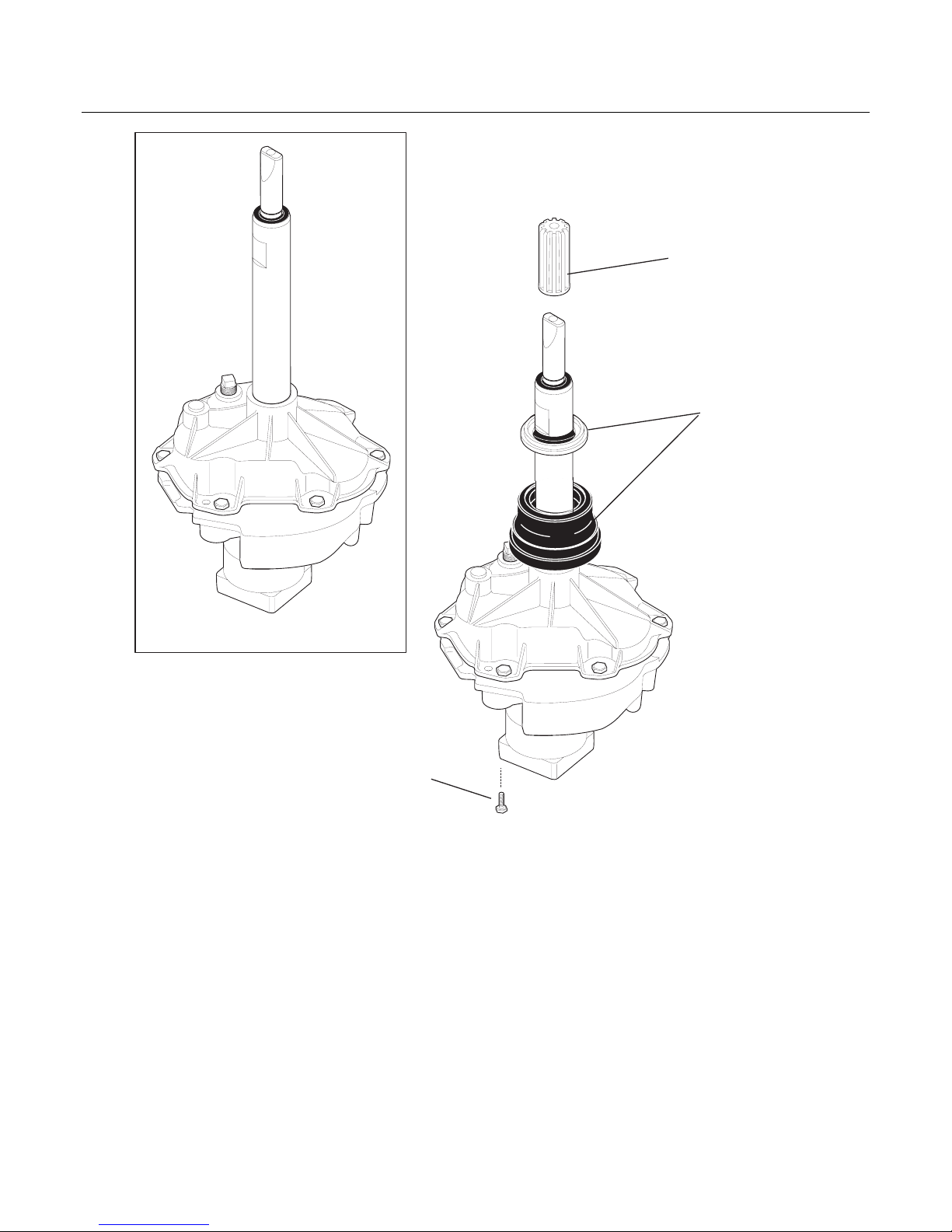

TRANSMISSION
3
2
26
02/07 6
6
P12M0014
Page 7
NMWS336FS0 Publication No: 5995484929
TRANSMISSION
POS. NO PART NO. DESCRIPTION
2 # 134418700 Hub, drive, agitator
3 # 134737100 Transmission, service kit
6 134197900 Screw, hex washer head, 1/4-20 x 0.437
26 # 5303279394 Seal Assy, tub, transmission
# Functional Parts
7 02/07
* Non-Illustrated Parts
Page 8
Publication No: 5995484929 NMWS336FS0

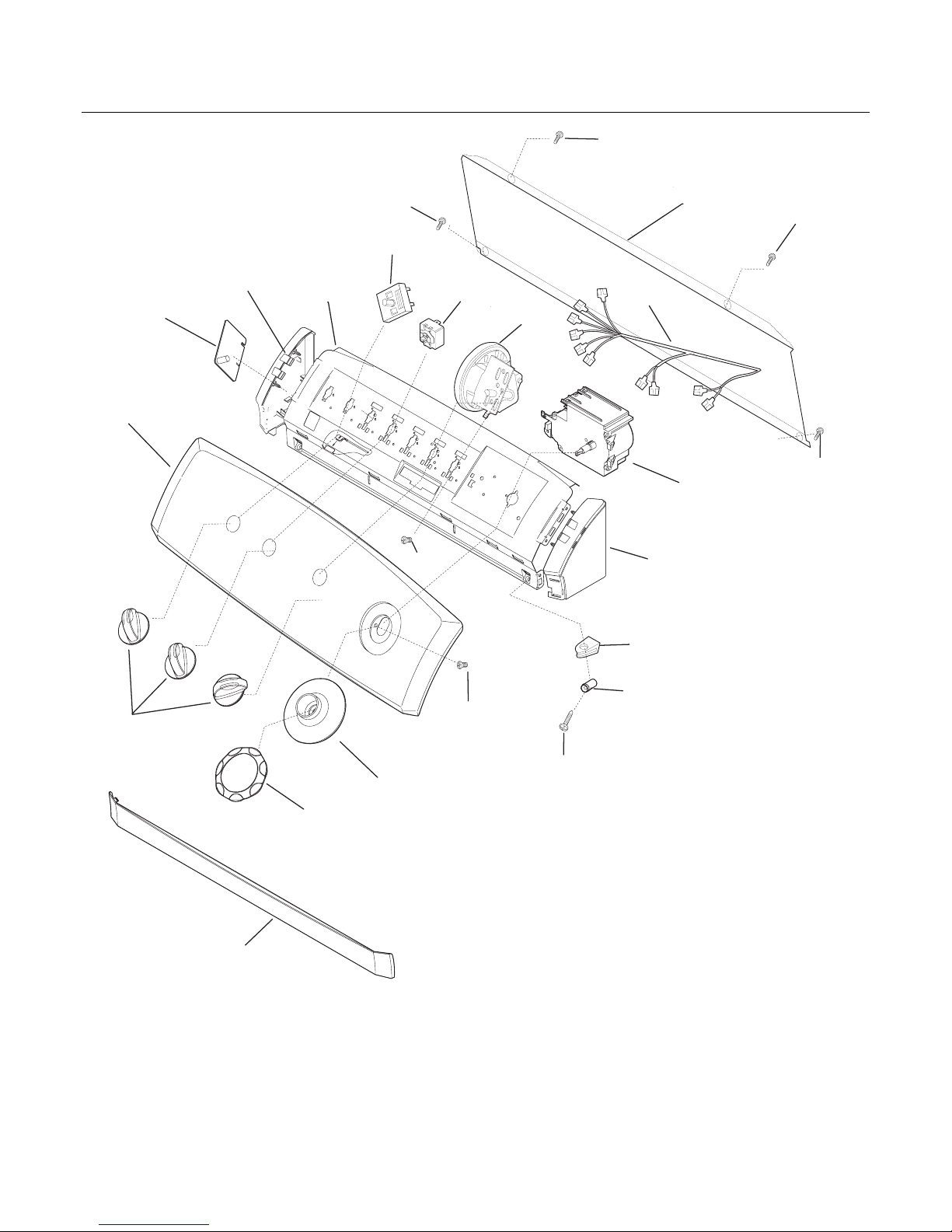

CONTROL/PANEL
12
18
64
20
17
15
12
56
33
9
12
29
5
12
8
31
27
2
16
4
22
25
21
11
P12C0376
02/07 8
Page 9
NMWS336FS0 Publication No: 5995484929
CONTROL/PANEL
POS. NO PART NO. DESCRIPTION
2 134096100 Spacer, console mtg
4 134034910 Knob, rotary, white
5 # 134421000 Switch, pressure, infinite
8 # 134049500 Timer, 5-off
9 131992910 Panel, backsheet, console
11 134019900 Closure, console trim, white, front
12 131168200 Screw, pan head, 8-18B x 0.31
15 # 134403500 Switch, temp selector, 3 position
16 131477001 Screw, pan head, 10-16AB x 0.375
17 131993040 Bracket, control mtg.
18 134866300 Panel, trimplate, white, console front
20 134019610 End Cap, white, LH
21 134035200 Knob, timer, white, assy
22 131266330 Screw, 8-18 x 1.250
25 134035100 Pointer, timer knob, white, dark gray ind
27 131197000 Clip, console mtg
29 134762500 Wiring Harness, washer
31 134019600 End Cap, white, RH
33 # 131243200 Switch, 2 position
56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point
64 # 134810610 Control Board, temperature, ATC
* 134866200 Energy Guide
# Functional Parts
9 02/07
* Non-Illustrated Parts
Page 10
Publication No: 5995484929 NMWS336FS0

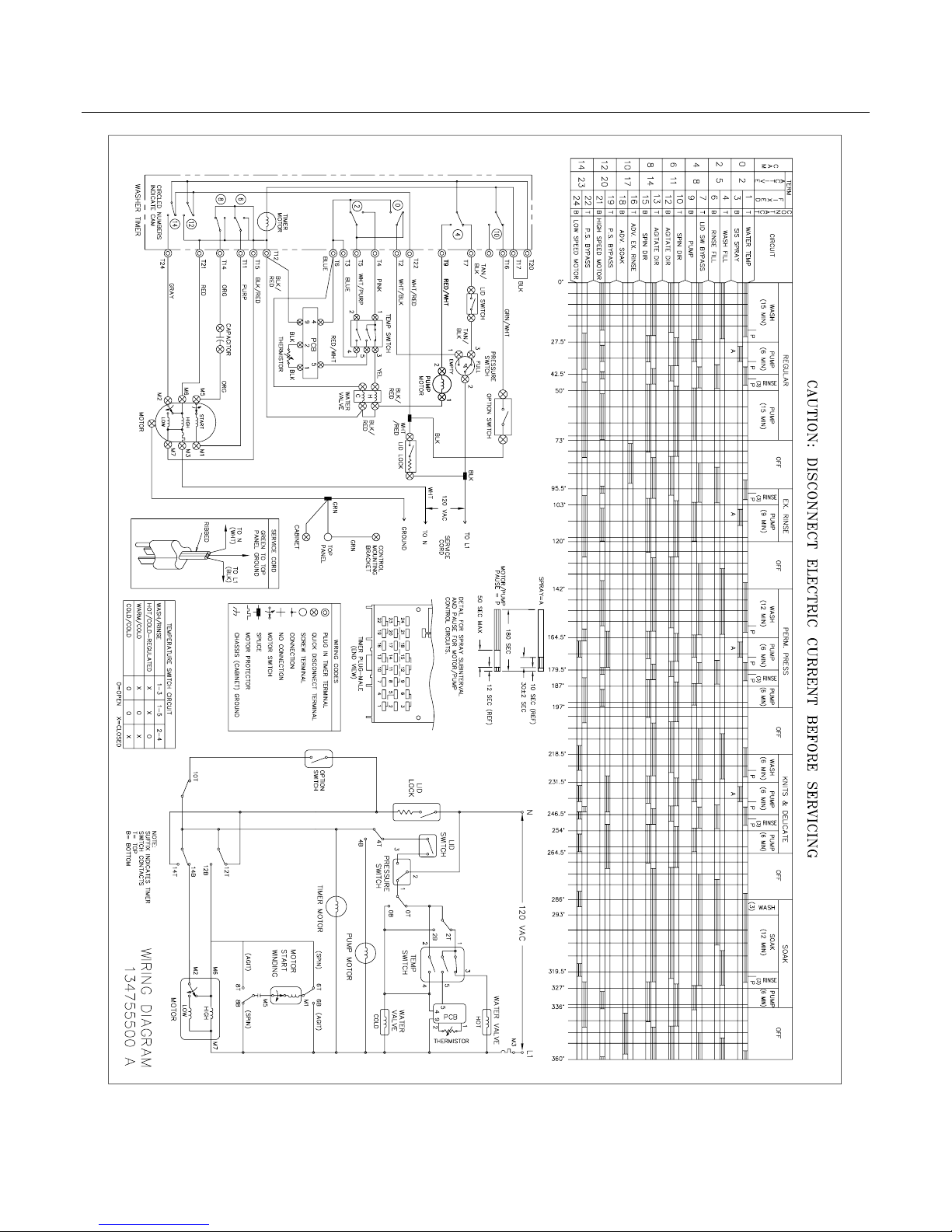

WIRING DIAGRAM
02/07 10
Page 11
NMWS336FS0 Publication No: 5995484929

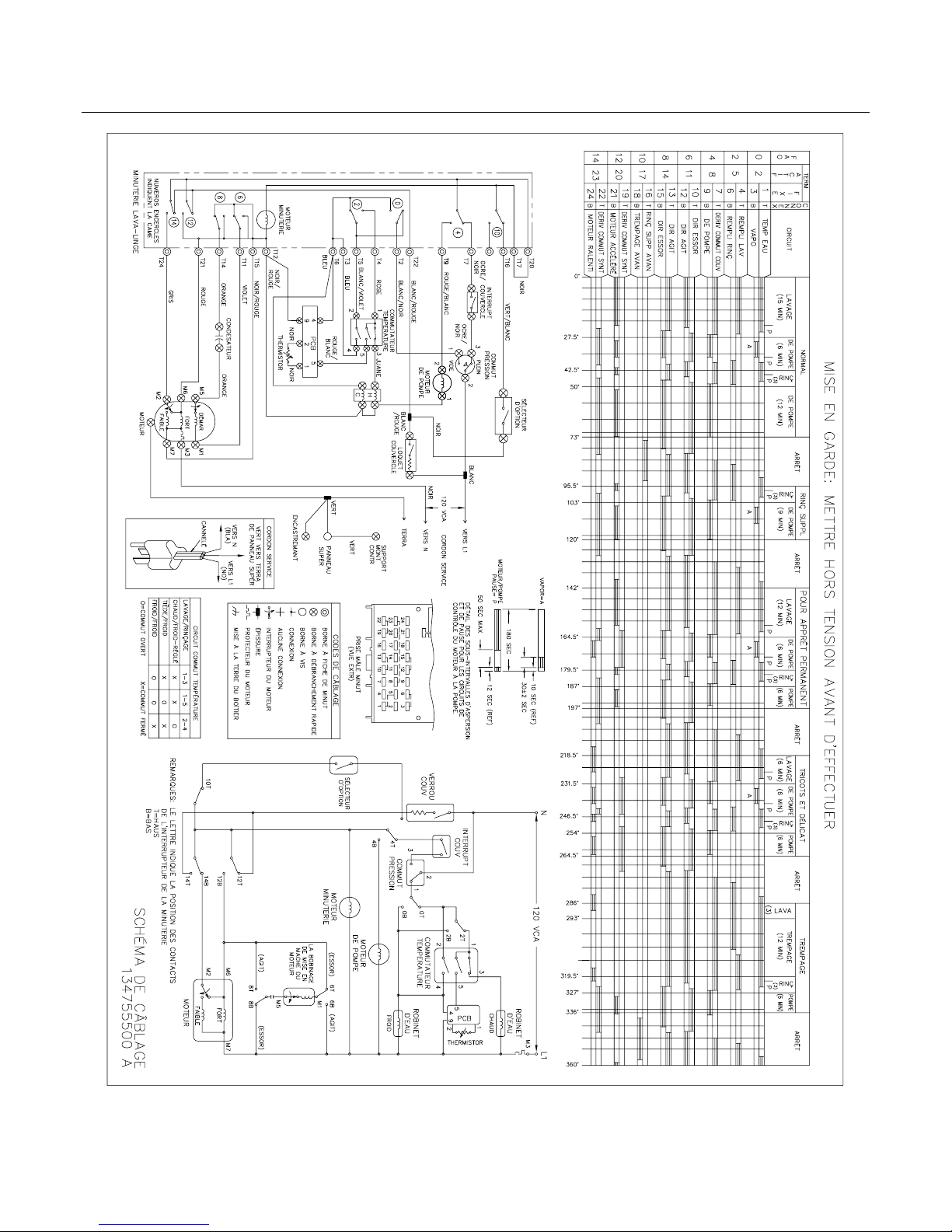

WIRING DIAGRAM
# Functional Parts
11 02/07
* Non-Illustrated Parts
