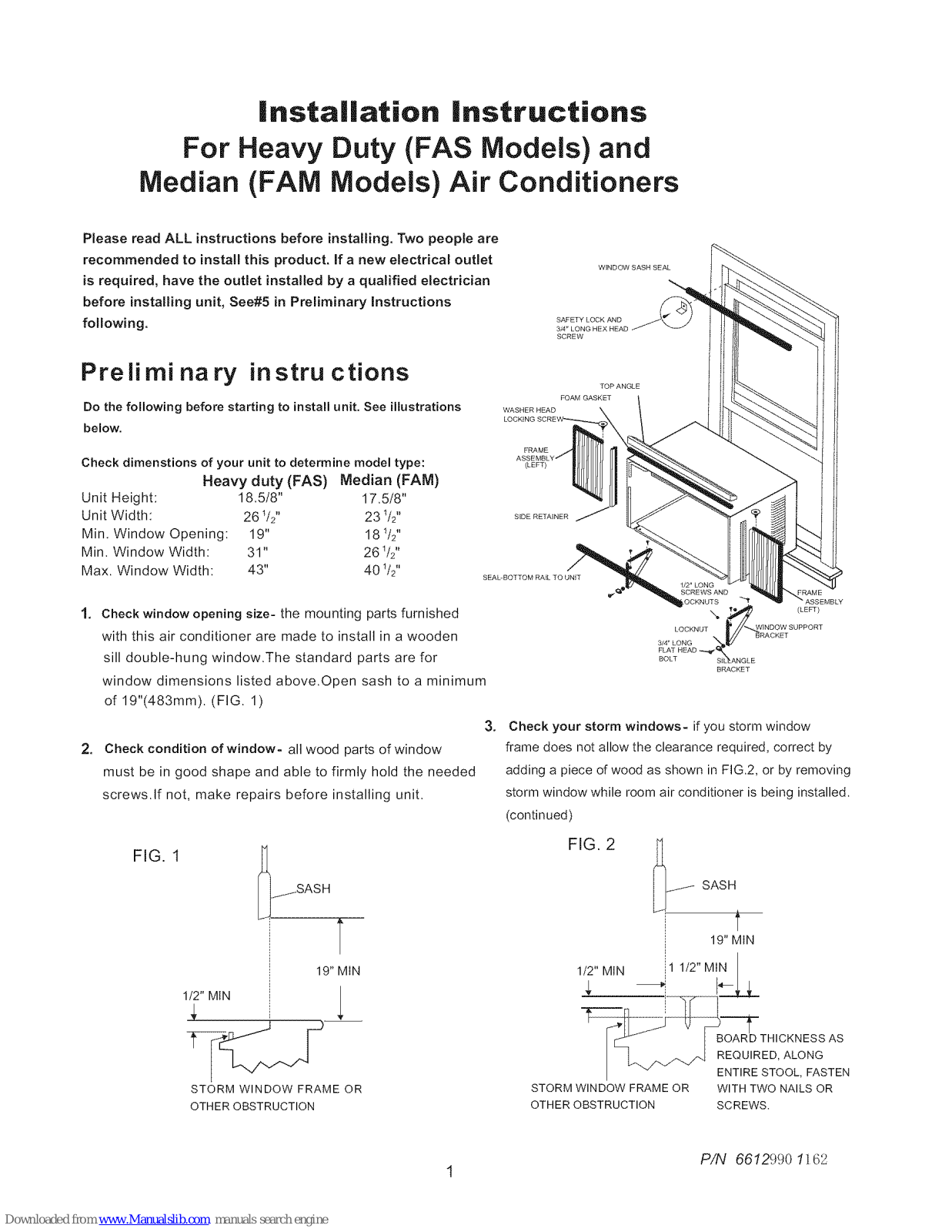

Frigidaire L0806995, FAS Series, FAM Series Installation Instructions Manual

installation instructions
For Heavy Duty (FAS Models) and
Median (FAM Models) Air Conditioners
Please read ALL instructions before installing. Two people are recommended to install this product. If a new electrical outlet is required, have the outlet installed by a qualified electrician before installing unit, See#5 in Preliminary Instructions
following.
Do the following before starting to install unit. See illustrations below.
Check dimenstions of your unit to determine model type:
Heavy duty (FAS) Median (FAM) Unit Height: 18,5/8" 17.5/8" Unit Width: 261/2" 231/2" Min. Window Opening: 19" 181/2" Min. Window Width: 31" 26 Vj' Max. Window Width: 43" 40 V2"
1. Check window opening size- the mounting parts furnished with this air conditioner are made to install in a wooden
sill double-hung window.The standard parts are for window dimensions listed above.Open sash to a minimum
of 1g"(483mm). (FIG. 1)
2. Check condition of window- all wood parts of window
must be in good shape and able to firmly hold the needed screws.if not, make repairs before installing unit.
FIG. 1
_1SASH
19" MIN
1/2" MIN
STORM WINDOW FRAME OR OTHER OBSTRUCTION
FOAM GASKET
WASHERHEAD
LOCKENG SCREW_._._ X
ASSEMBLY
(LEFT)
SIDE RETAENER J
BRACKET
3. Check your storm windows= if you storm window frame does not allow the clearance required, correct by
adding a piece of wood as shown in FIG.2, or by removing storm window while room air conditioner is being installed. (continued)
FIG. 2
// SASH
f
19"MIN
1112
STORM WINDOW FRAME OR WITH TWO NAILS OR
OTHER OBSTRUCTION SCREWS.
P/N 6612990 1162
1

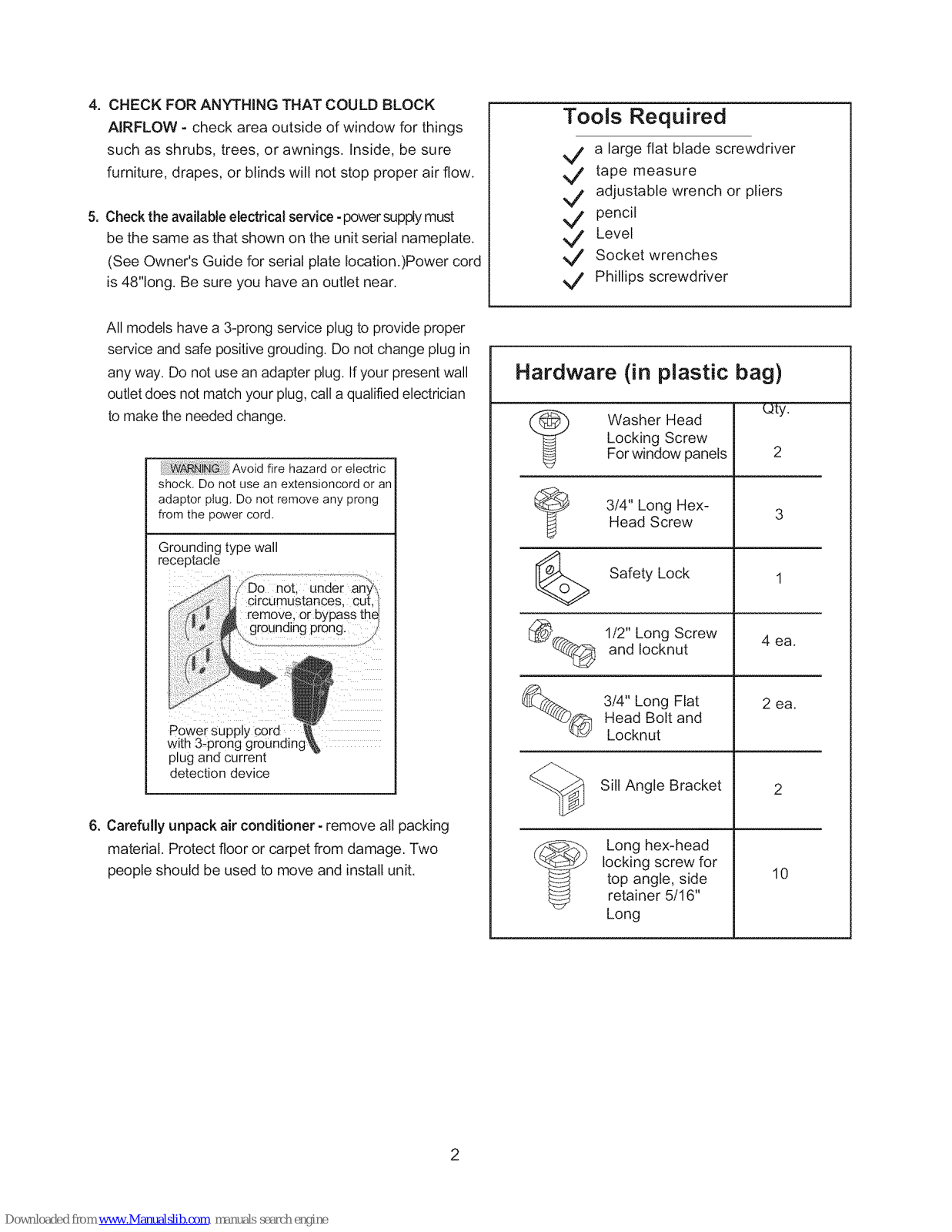

4. CHECK FOR ANYTHING THAT COULD BLOCK AIRFLOW - check area outside of window for things such as shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper air flow.
5. Check the available electrical service - power supply must be the same as that shown on the unit serial nameplate.
(See Owner's Guide for serial plate Iocation.)Power cord
is 48"long. Be sure you have an outlet near.
Tools Required
a large flat blade screwdriver
tape measure adjustable wrench or pliers
pencil _/ Level _/ Socket wrenches
_/ Phillips screwdriver
All models have a 3-prong service plug to provide proper
service and safe positive grouding. Do not change plug in any way. Do not use an adapter plug. If your present wall
outlet does not match your plug, call a qualified electrician
to make the needed change.
::_i Avoid fire hazard or electric
shock, Do not use an extensioncord or an adaptor plug. Do not remove any prong from the power cord.
Grounding type wall receptacle
Power supply core NIth3-prong groundi
plug and current detection device
6. Carefully unpack air conditioner - remove a!l packing material. Protect floor or carpet from damage. Two
people should be used to move and install unit.
Hardware (in plastic bag)
Washer Head
Locking Screw For window panels
3/4" Long Hex-
Head Screw
[_ Safety Lock
_ 1/2" Long Screw
and Iocknut
3/4" Long Flat
Head Bolt and
Locknut
Sill Angle Bracket
Long hex-head
locking screw for
top angle, side
retainer 5116"
Long
LJty.
2
4 ea.
2 ea.
2
10
2

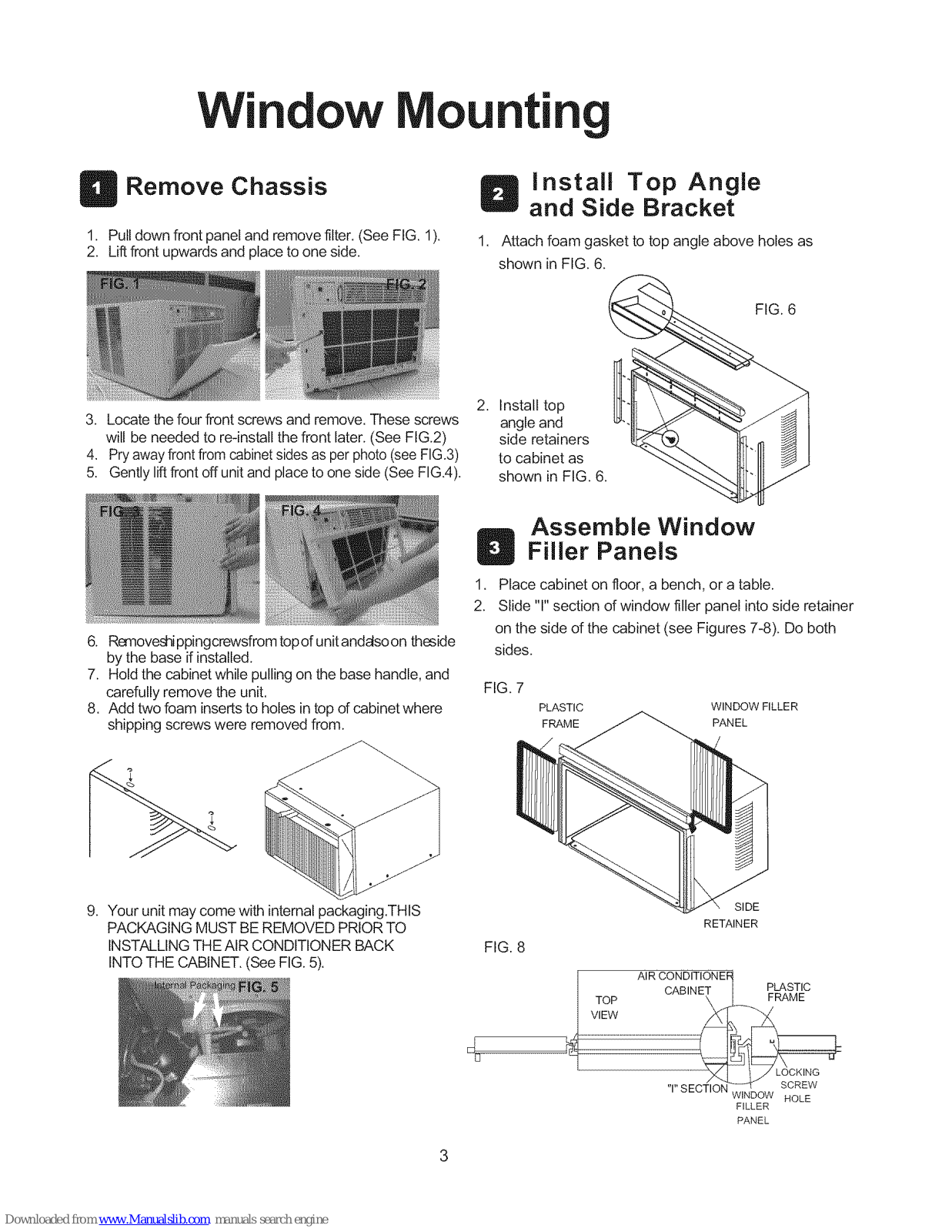

"ndow Mounting
g Remove Chassis
1. Pull down front panel and remove filter. (See FIG. 1).
2. Lil_front upwards and place to one side.
D Install Top Angle
and Side Bracket
1. Attach foam gasket to top angle above holes as shown in FIG. 6.
3. Locate the four front screws and remove. These screws will be needed to re-install the front later. (See FIG.2)
4. Pry away front from cabinet sides as per photo (see FIG .3)
5. Gently lift front off unit and place to one side (See FIG.4).
2. Install top angle and
side retainers to cabinet as shown in FIG. 6.
FIG. 6
6. Removeshi ppingcrewsfrom top d unit and_tso on theside by the base if installed.
7. Hold the cabinet while pulling on the base handle, and
carefully remove the unit.
8. Add two foam inserts to holes in top of cabinet where shipping screws were removed from.
Assemble Window
a Filler Panels
1. Place cabinet on floor, a bench, or a table.
2. Slide 'T' section of window filler panel into side retainer on the side of the cabinet (see Figures 7-8). Do both
sides.
FIG. 7
PLASTIC WINDOW FILLER
FRAME PANEL
9. Your unit may come with internal packaging.THIS PACKAGING MUST BE REMOVED PRIOR TO
INSTALLING THE AIR CONDITIONER BACK INTO THE CABINET. (See FIG. 5).
FIG. 8
TOP
VIEW
SIDE
RETAINER
PLASTIC
FRAME
LOCKING
'T'SECTION WINDOW SCREW
HOLE
FILLER
PANEL
3
