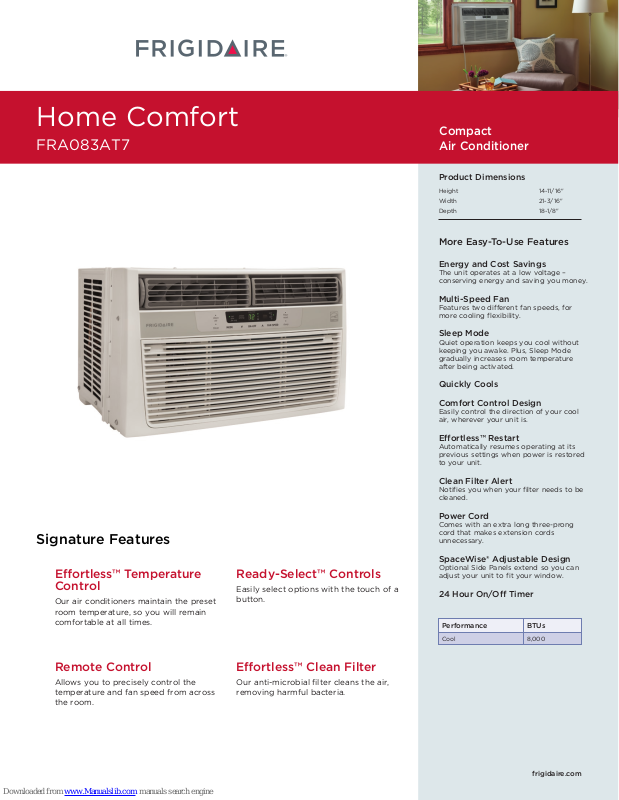

Frigidaire Home Comfort FRA083AT7 Product Specifications
Home Comfort
FRA083AT7
Compact
Air Conditioner
Product Dimensions
Height 14-11/16"
Width 21-3/16"
Depth 18-1/8"
More Easy-To-Use Features
Energy and Cost Savings
The unit operates at a low voltage –
conserving energy and saving you money.
Multi-Speed Fan
Features two different fan speeds, for
more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Comfort Control Design
Easily control the direction of your cool
air, wherever your unit is.
Signature Features
Eortless™ Temperature
Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
Ready-Select™ Controls
Easily select options with the touch of a
button.
Eortless™ Clean Filter
Our anti-microbial filter cleans the air,
removing harmful bacteria.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Clean Filter Alert
Notifies you when your filter needs to be
cleaned.
Power Cord
Comes with an extra long three-prong
cord that makes extension cords
unnecessary.
SpaceWise® Adjustable Design
Optional Side Panels extend so you can
adjust your unit to fit your window.
24 Hour On/O Timer
Performance
Cool
BTUs
8,000
frigidaire.com
C
B
A
E
D
*Plug Type (NEMA)
(A) 5-15P
Performance
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord (Min. / Max.)
Plug Type (NEMA)*
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24 Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
Cabinet Louvers
Rear Grille
Window Mounting Kit
Certifications
Performance
Specifications
Refrigerant
Shipping Weight (Approx.)
Home Comfort
FRA083AT7 Compact Air Conditioner
8,000
1.7
350
9.8
115
7.4
815
6' / 6.5'
LCDI (A)
Ready-Select™ Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function
217 / 176 / 147
8-Way
No / No / Yes
Antimicrobial Mesh
Tilt-Out
Yes
Pleated Quick Mount
AHAM
R410a
53 Lbs.
•
USA
10200 David Taylor Drive
•
CANADA
FRA083AT7 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
•
frigidaire.com
•
frigidaire.ca
14-11/16"
21-13/16"
18-1/8"
Window Dimensions
D -Height (Min.)
E -Width (Min. / Max.)
Accessories information available
on the web at frigidaire.com
14"
23" / 36"
Specifications
subject to change.
