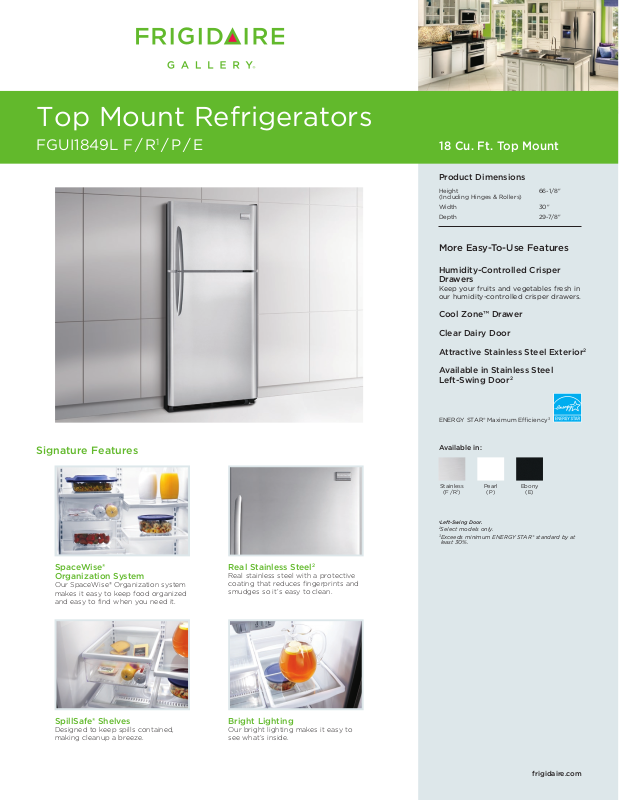

Page 1
Top Mount Refrigerators
FGUI1849L F / R1 / P / E
18 Cu. Ft. Top Mount
Product Dimensions
Height 66-1/8"
(Including Hinges & Rollers)
Width 30"
Depth 29-7/8"
More Easy-To-Use Features
Humidity-Controlled Crisper
Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Cool Zone™ Drawer
Clear Dairy Door
Attractive Stainless Steel Exterior
Available in Stainless Steel
Left-Swing Door
ENERGY STAR® Maximum Eciency
2
3
2
Signature Features
SpaceWise®
Organization System
Our SpaceWise® Organization system
makes it easy to keep food organized
and easy to find when you need it.
SpillSafe® Shelves
Designed to keep spills contained,
making cleanup a breeze.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
2
Bright Lighting
Our bright lighting makes it easy to
see what’s inside.
Available in:
Stainless
(F / R
1
Left-Swing Door.
2
Select models only.
3
Exceeds minimum ENERGY STAR® standard by at
least 30%.
Pearl
1
)
(P)
Ebony
(E)
frigidaire.com
Page 2
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front / Rear
Sound Package
Toe Grille
UltraSoft™
Stainless Steel (F / R),
Color-Coordinated (P / E)
Grey (F / R),
Color-Coordinated (P / E)
Yes
Grey (F / R),
Color-Coordinated (P / E)
No (F / R),
Yes (P / E)
Yes (R Model Only)
Adjustable / Yes
Quiet Pack
Grey (F / R),
Color-Coordinated (P / E)
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
1 Sliding and 3 Fixed
SpillSafe® Adjustable Glass
Clear
2 Clear
2
Clear Dairy Door
1 Quick-Find,
3 Adj. Half-Width Clear,
1 Fixed Full-Width White
3
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
Lighting
1 Full-Width White
1 Tilt-Out Full-Width Wire
1 Full-Width Glass w/ Sliding
Wire Under-Basket
Included (PN # IM115)
Yes
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
18.2
14.13
4.07
Right Bottom Rear
Bottom Right
120V / 60Hz / 15 or 20A
.54
4.5
15
205 Lbs.
Top Mount Refrigerators
FGUI1849L F / R / P / E 18 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges and Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FGUI1849L 12/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
66-1/8"
30"
29-7/8"
58-1/8"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3

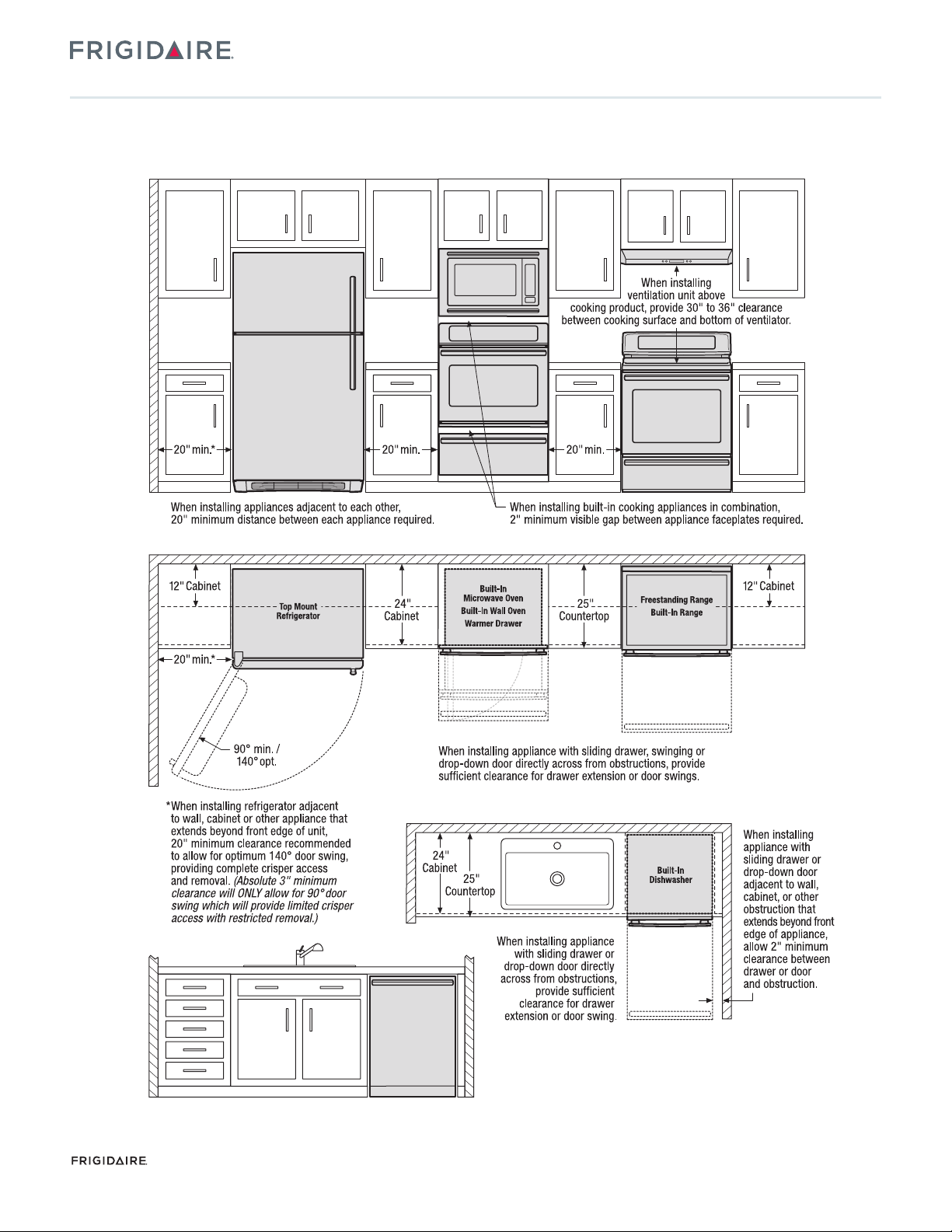

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
