FRIGIDAIRE Grill User Manual

5-8

3-4

9-11

17-18

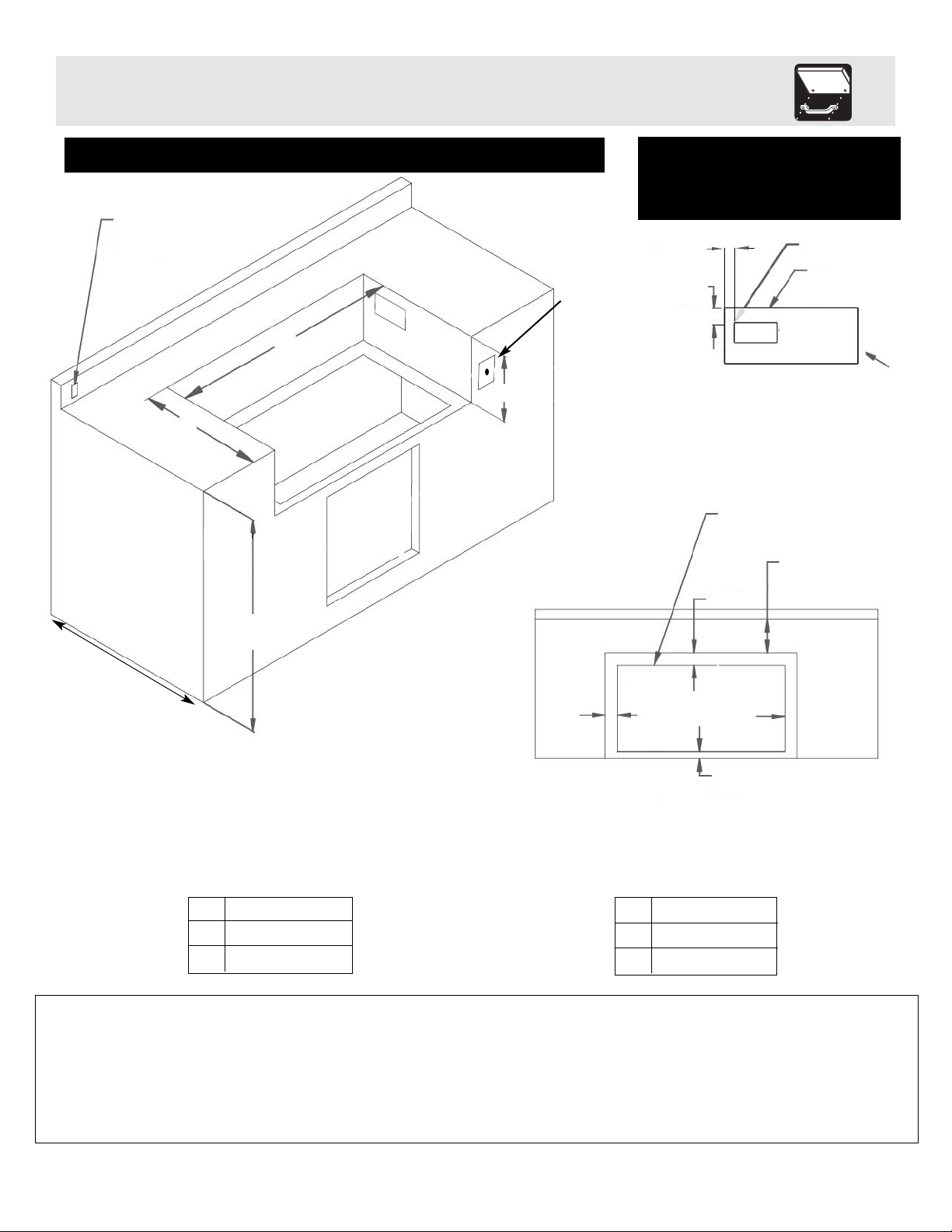

Grill Assembly Built-In Instructions

Welcome/Product Registration

General Safety Instructions

Grill Features and Components

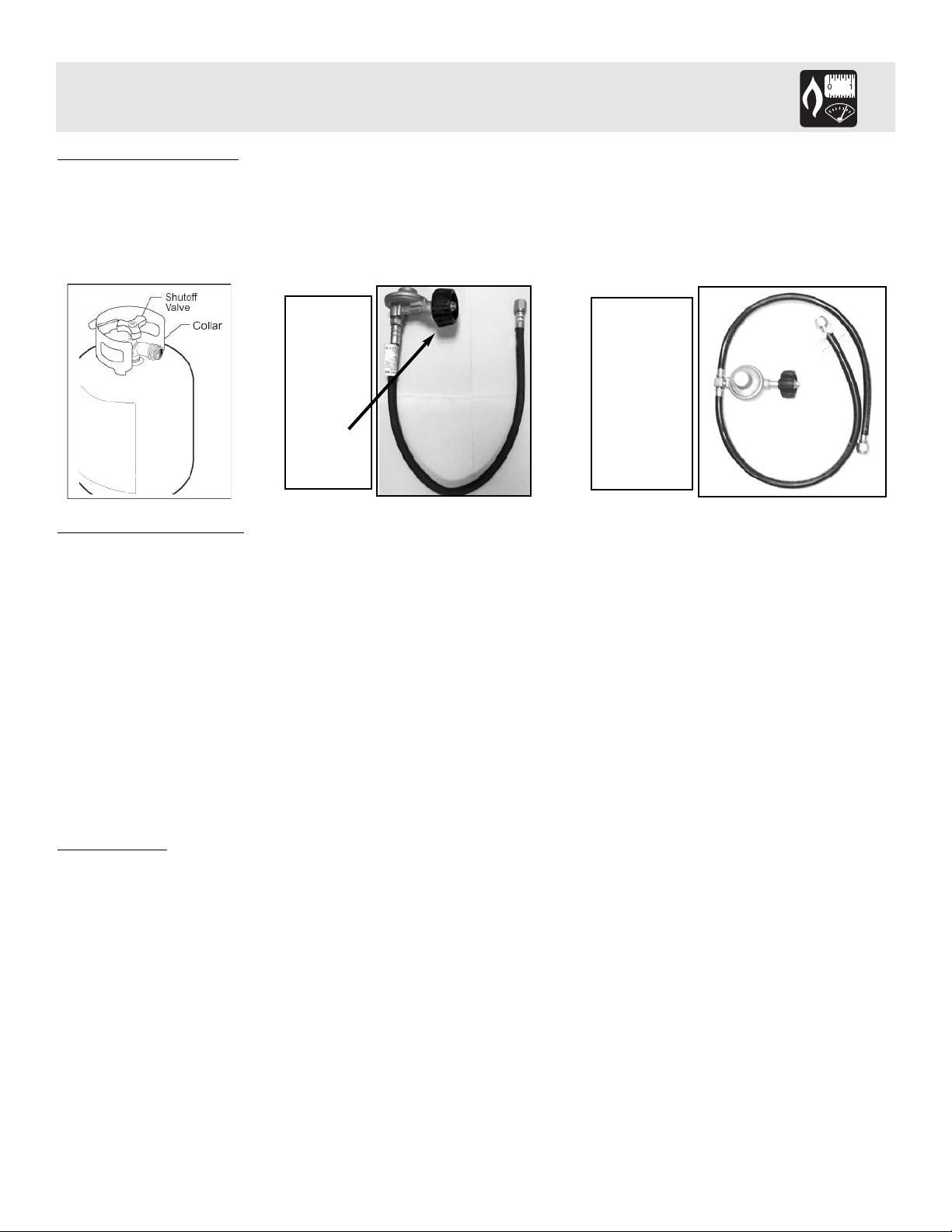

Gas Requirements Leak Testing

13-15

Using the Grill

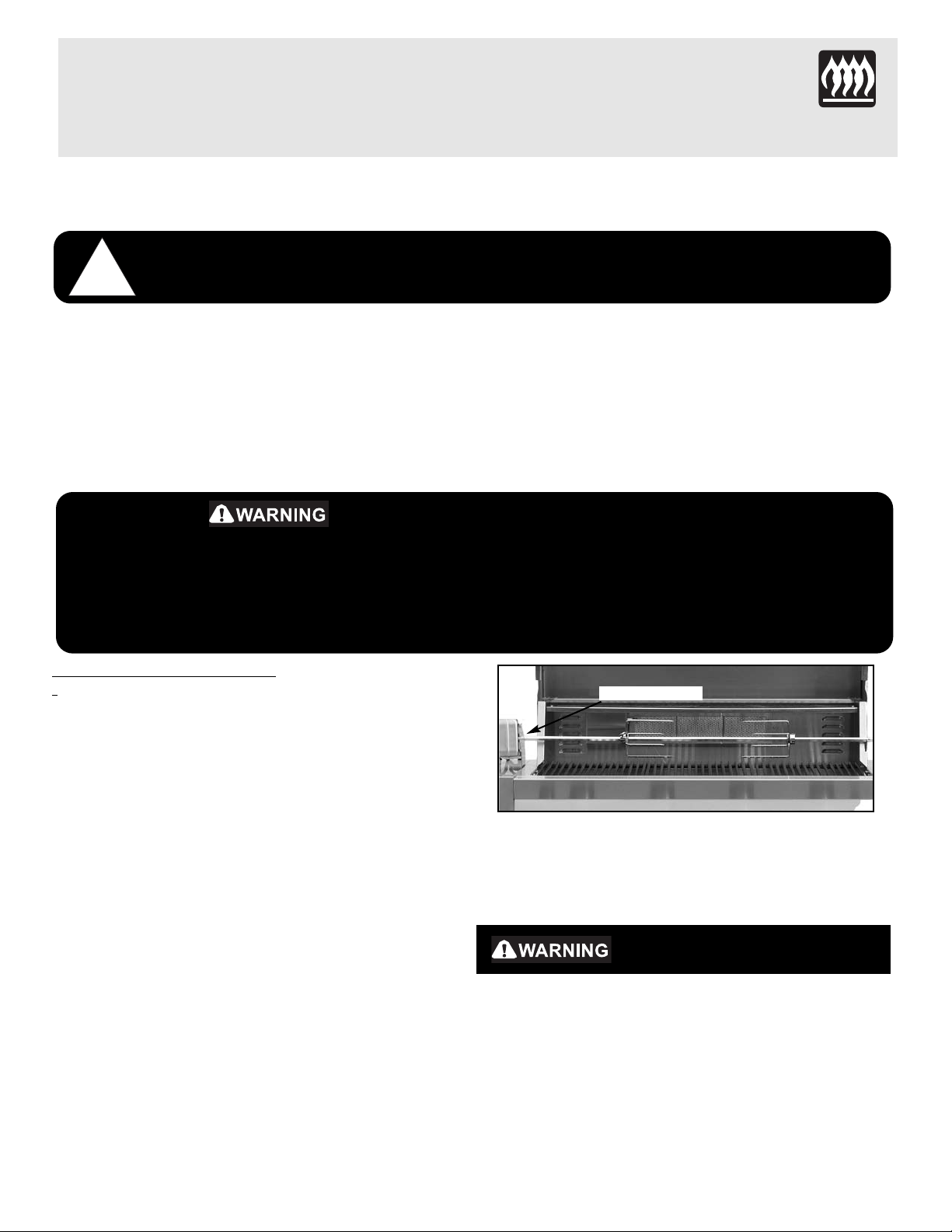

Rotisserie/Side Burner Usage

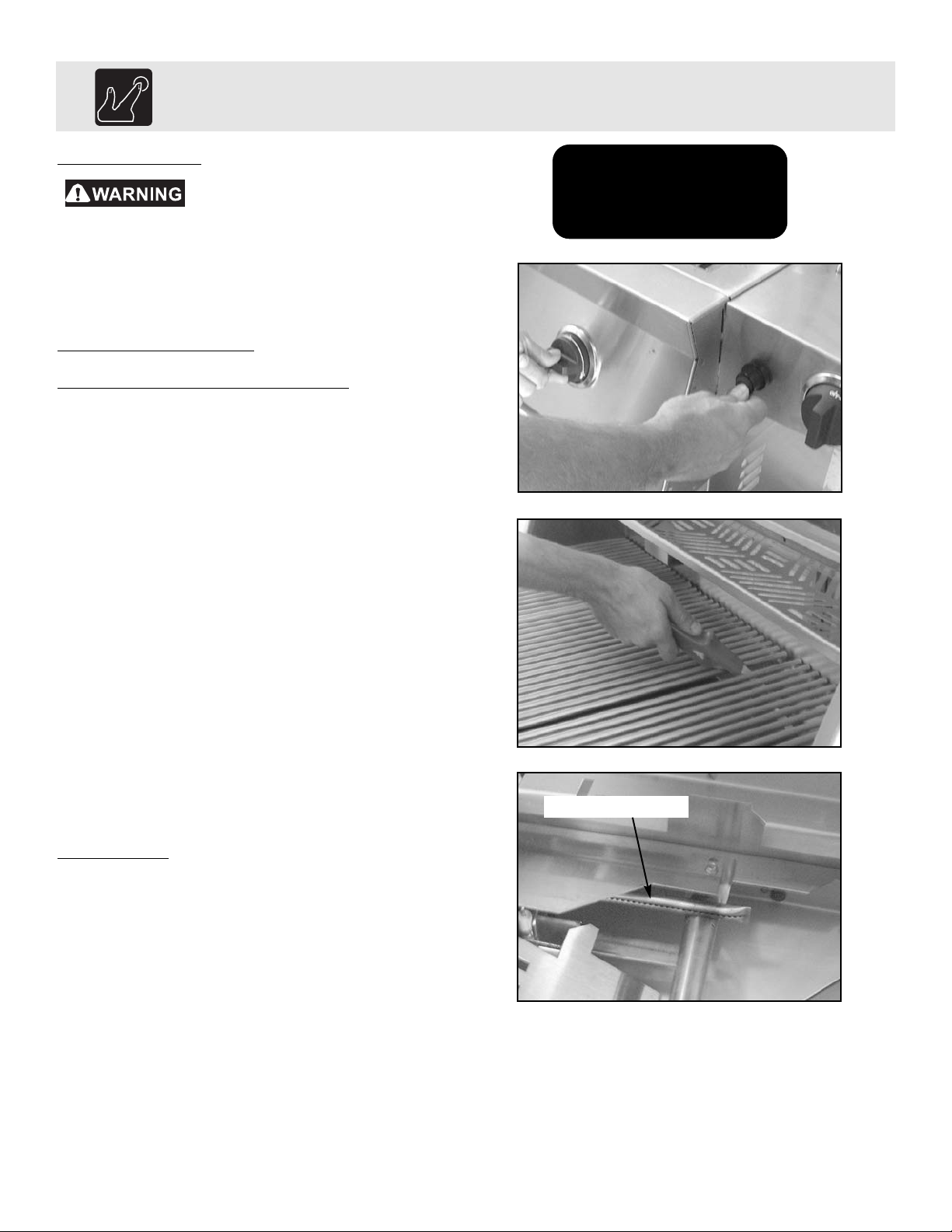

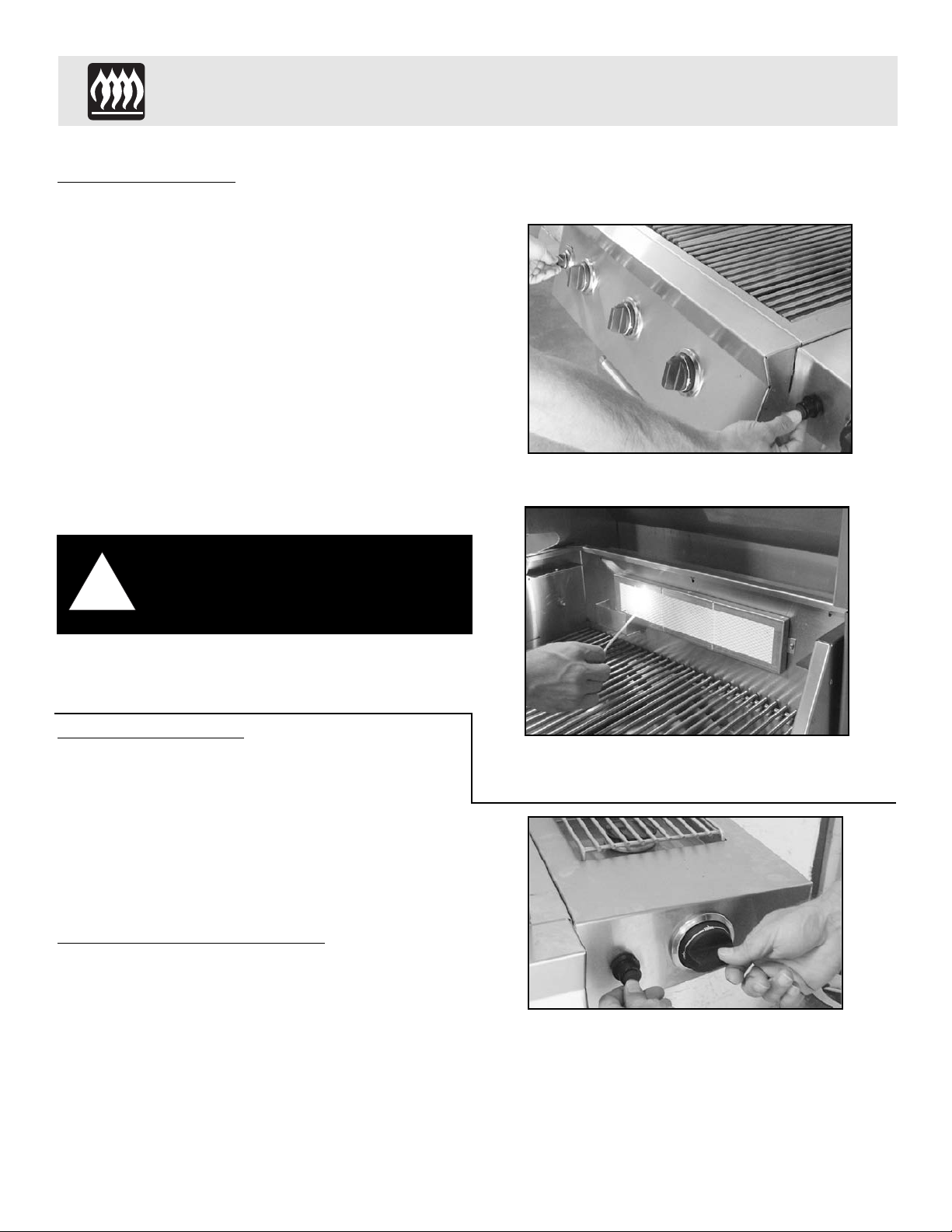

Lighting the Grill

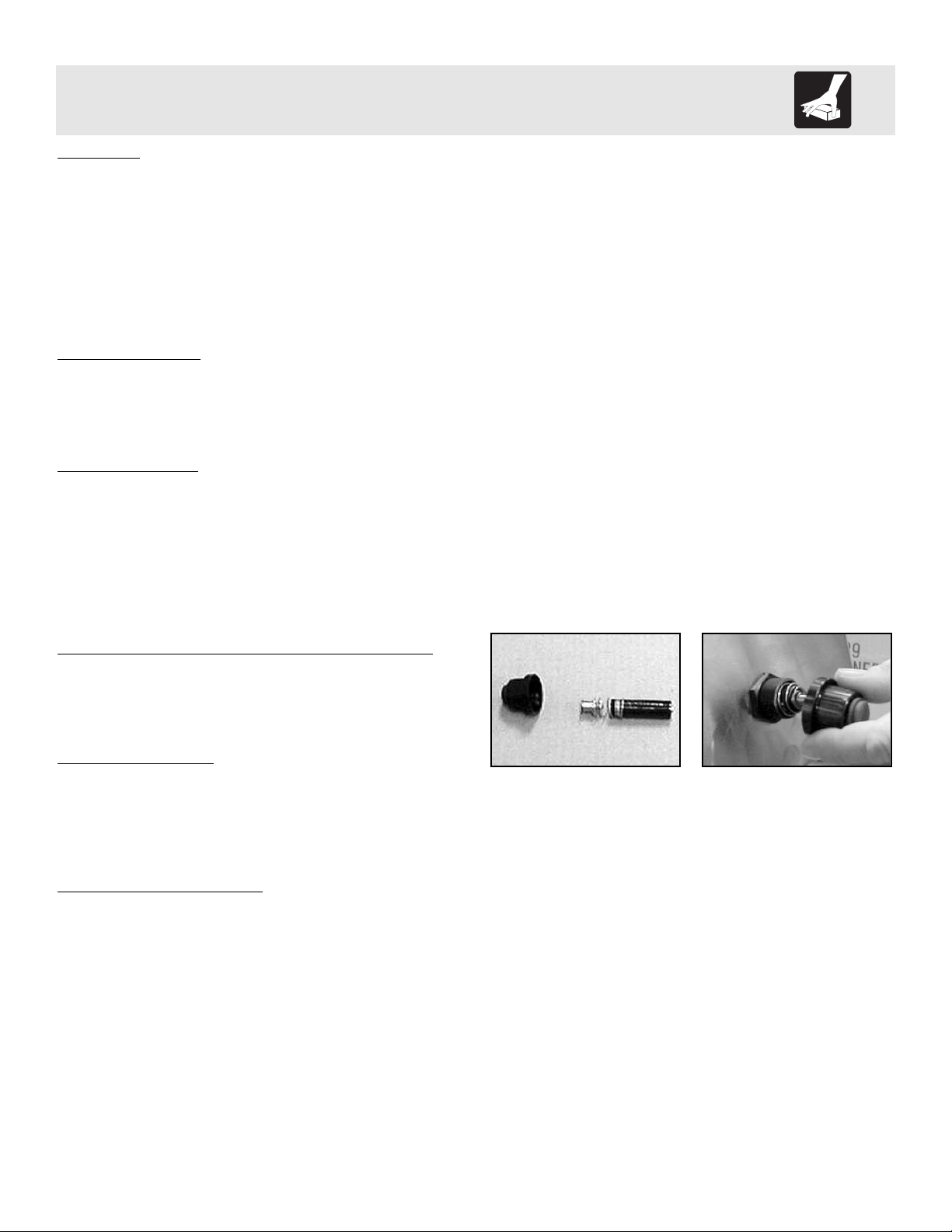

Care & Maintenance

Troubleshooting Your Grill

Warranty

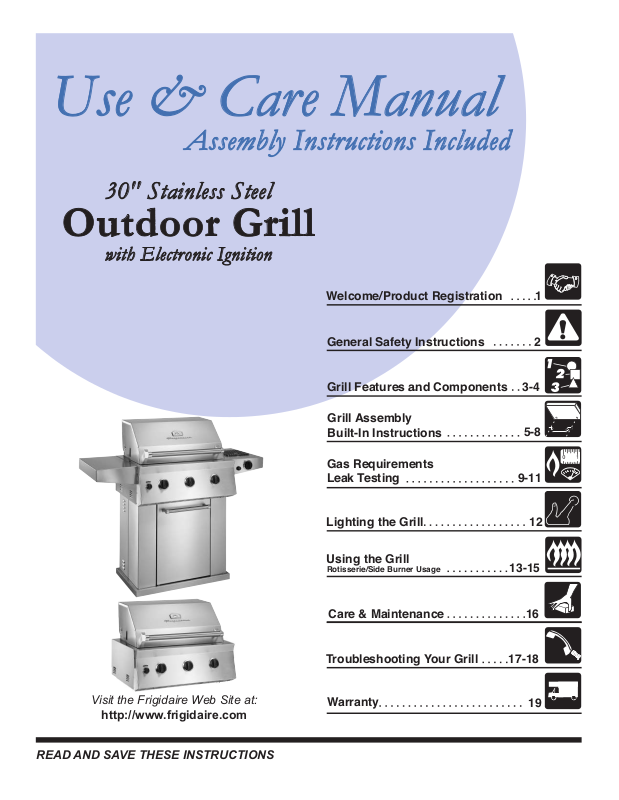

Use & Care ManualUse & Care Manual

Assembly Instructions Included

3300" Stainless Steel

Outdoor Grill

with Electronic Ignition

Visit the Frigidaire Web Site at:

http://www.frigidaire.com

READ AND SAVE THESE INSTRUCTIONS

Welcome & Congratulations

The PRODUCT REGISTRATION CARD should be filled in completely, signed and returned to Electrolux Home Products North America.

Congratulations on your purchase of a new grill! We at Electrolux Home Products are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new grill.

We know you’ll enjoy your new grill and thank you for choosing our product. We hope you consider us for future purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your grill only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference. This information is found on the serial plate located on the back of the built-in grill or on the inside of the cart door (complete grill & cart model).

Questions?

1-800-320-0859

The PRODUCT REGISTRATION CARD should be filled in completely signed and returned to Electrolux Home Products North America.

NOTE: Use only soap and water to clean serial plate.

Model Number: ______________________________

Serial Number: ______________________________

Purchase Date:

Type: __________________________________

Gas

______________________________

Please complete and mail in the Product Registration Card included with your grill.

Please retain this manual for future reference

Please attach sales receipt here for

future reference.

General Safety Instructions

IMPORTANT SAFETY INFORMATION

- Read this manual carefully before using your grill to reduce the risk of fire, burn

hazard or other injury.

- Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.

- This appliance must be kept clear from combustible materials, gasoline or other flammable vapors and liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.

- Use only outdoors and provide good ventilation to avoid carbon monoxide build-up which could result in injury or death.

- Do not repair or replace any part of this appliance unless it is specifically recommended in this manual. A qualified service technician should conduct all other service.

- Follow the installation and servicing instructions provided with this product. Have your grill installed by a qualified service technician.

- Locate the main gas supply valve so that you know how to shut the gas off to your grill.

- If you smell gas, make sure all gas connections are tight before operation. If you continue to smell gas call a qualified technician.

- When lighting a burner, always pay close attention to what you are doing and be certain you are pushing the igniter that lights the burner you intend on using.

- Always keep your face and body as far away as from the grill as possible when lighting to reduce the risk of burn.

- Extinguish all flames and do not smoke while engaging gas and igniting the grill.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open grill hood.

4. If odor continues, immediately call your gas supplier.

CALIFORNIA PROPOSITION 65 - WARNING:

The Burning of gas cooking fuels generates some by products which are on the list of substances which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to

o minimize exposure to these

such substances. substances, always operate this unit according to the use and care manual, provide good ventilation when

cooking with gas.

This appliance is not intended to be

installed in or on recreational

vehicles or boats.

TESTED IN ACCORDANCE WITH ANSI Z21.58b-2002/CGA 1.6b-M02 STANDARD FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS FOR OUTDOOR USE ONLY.

Check your local building codes for the proper method of installation. In the absence of local codes, this unit should be installed in accordance with the National Fuel Gas Code No. Z223.1-2002 and the National Electrical Code ANSI/NFPA

No. 70-1990

FOR YOUR SAFETY

DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

LP cylinder not connected for use shall not be stored in

the vicinity of this or any other appliance.

WARNING

DO NOT

try lighting this appliance without reading

the “LIGHTING INSTRUCTIONS” section of

this manual.

FOR OUTDOOR USE ONLY

Grill Features: GL30

1. Roll top grill hood

2. Grilling/Cooking surface

3. Side Shelf

4. Control knob: back infrared burner

5. Control knobs: main burners

6. Convection vents

7. Hood Handle

NOTE: Cart, side burner and side shelf are not included with the head only units.

8. Warming shelf

9. Infrared back burner

10. Electronic igniter: main, rear infrared & side burner

11. Cart with door

12. Side Burner

13. Control knob: Side Burner

Grill Assembly

IMPORTANT: Remove all protective plastic film from stainless steel parts prior to assembly/use. This film is installed at the factory to prevent damage that could occur during shipment and handling.

SIDE SHELF ATTACHMENT

1. Attach the shelf to the left side of grill by inserting the shelf hooks into the slots on the side of the grill and pushing down on the shelf assembly until level with grill. (See Fig. 1)

2. Lock the shelf in place by inserting (2) self tapping screws into shelf. (See Fig. 2)

INTERIOR PARTS INSTALLATION

1. Install the bottom Flavor Grids in the lower cutouts and

around the igniters. (See Fig. 3)

2. Insert the top row of Flavor Grids with the 90 degree

angled heat shield (bottom side of flavor grid) facing the rear of the unit into cutouts with triangle ridges facing up. (See Fig. 4-5)

Shelf Hooks

Fig. 1

Fig. 2

3. Install cooking grates on the ledges provided on the grill

to create your cooking surface. (See. Fig. 6)

4. Place warming shelf on support brackets by setting it

flat across brackets allowing the two holes to line up with the holes on each bracket. (See Fig. 6)

5. Remove label from drip tray and verify that the tray is

The drip tray is located underneath

installed correctly the grill, inside the storage compartment. (See Fig. 7)

arming Shelf

Cooking Grates

Fig. 6

Fig. 7

Fig. 3

Bottom Flavor Grids

in between burners

Fig. 4

Faces the back of

the grill

Fig. 5

Side Burner Assembly

SIDE BURNER PARTS ASSEMBLY

1. Attach the side shelf to the grill by inserting the shelf

hooks into the slots on the side of the grill and pushing down on the shelf assembly until level with the grill. (See Fig. 8)

2. Lock the side shelf in place by inserting (2) hex head

screws in the side burner. (See Fig. 9)

NOTE: A power screwdriver extension is needed to insert screws.

3. Install burner and cap.

4. Install grate over burner

5. Attach the three (3) wires coming out from the side of

the grill and the side burner wire to the igniter terminals. (See Fig. 13-14)

NOTE: It does not matter which wire goes to which terminal on the igniter.

Back of side burner.

(See Fig. 10-11)

. (See Fig. 12)

Screw Holes

Side Shelf

Tabs

Fig. 8

Fig. 9

Fig. 13

Fig. 14

Fig. 10

Fig. 1

Fig. 12
