Refrigerator
use & care
Introduction .......................................................2
Important Safety information.....................3
Features (2-Door Model) .............................6
Features (3-Door Model) .............................7
Installation .........................................................8
Door Removal .................................................10
Door Reversal ................................................. 13
Door Handle Installation
(some models) ............................................... 15
Water Supply Connection ..........................16
Controls and Settings .................................. 18
Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
Automatic Water Dispenser ...................... 21
Ice Maker ......................................................... 22
Storage Features .......................................... 24
Storing Food and Saving Energy ........... 27
Normal Operating Sounds ........................ 28
Filter Replacement ...................................... 29
Care and Cleaning ....................................... 32
Troubleshooting ..........................................34
Limited Warranty ......................................... 37
A25264802 (May 2024)
2
INTRODUCTION
Welcome to our family
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home
accessories are available at Frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number ____________________
Serial Number ____________________
Purchase Date ____________________
Installation Checklist
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side to side and
slightly elevated in front to assist
with door and drawer closing (front
should be higher than back)
Cabinet is set solid on all corners
Electrical Power
House power is turned on
Refrigerator is plugged in
Ice Maker
House water supply is connected
to refrigerator (Warning: Potable
water supply only.)
No water leaks are present at all
connections - recheck in 24 hours
Ice maker is turned ON
Final Checks
Shipping material is removed
Fresh food and freezer
temperatures are set
Registration card is sent in
Serial Number Location
IMPORTANT SAFETY INFORMATION
3
WARNING
Please read all instructions before using
this appliance.
Safety Definitions
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation or maintenance information which
is important but not hazard-related.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized
service parts. Any repair equipment
used must be designed for flammable
refrigerants. Follow all manufacturer
repair instructions. Do not puncture
refrigerant tubing.
CAUTION
CAUTION Risk of fire or explosion.
Dispose of refrigerator properly
in accordance with the applicable
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
WARNING
CALIFORNIA RESIDENTS ONLY
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4
IMPORTANT SAFETY INFORMATION
Child Safety
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
Safety Instructions
• DO NOT store or use gasoline, or
other flammable liquid within or in
the vicinity of this appliance. Read
Product Label for warnings regarding
flammability and other hazards.
• DO NOT store explosive substances
such as aerosol cans with a flammable propellant in this appliance.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy finishes if they come in
contact with other appliances
or furniture.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
Proper Disposal of your Appliance
Risk of child entrapment
Child entrapment and suocation are
not problems of the past. Junked or
abandoned appliances are still dangerous
– even if they will sit for “just a few days”.
If you are getting rid of your old
appliance, please follow the instructions
below to help prevent accidents.
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
energystar.gov/products/recycle for more
information on recycling your
old appliance.
Before you throw away your
old appliance:
• Remove doors.
• Leave shelves in place so children
may not easily climb inside.
• Have refrigerant removed by a
qualified service technician.
IMPORTANT
CFC/HCFC Disposal
Your old appliance may have a cooling
system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released
to the atmosphere. Other refrigerants
may also cause harm to the environment if released to the atmosphere.
If you are throwing away your old
appliance, make sure the refrigerant
is removed for proper disposal by a
qualified technician. If you intentionally
release refrigerant, you may be subject
to fines and imprisonment under provisions of environmental legislation.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
IMPORTANT SAFETY INFORMATION
5
WARNING
These guidelines must be followed to
ensure that safety mechanisms in this
appliance will operate properly.
Electrical information
• Plug the appliance into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord
of the appliance is equipped with a
3-prong grounding plug for your protection against electrical shock hazards. Plug it directly into a properly
grounded 3-prong receptacle. Install
the receptacle in accordance with
local codes and ordinances. Consult a
qualified electrician. Avoid connecting the appliance to a Ground Fault
Interrupter (GFI) circuit. Do not use
an extension cord or adapter plug.
• If the power cord is damaged, an
authorized service technician should
replace it to prevent any risk.
• Never unplug the appliance by pulling on the power cord. Always grip
the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
• Unplug the appliance before cleaning
to avoid electrical shock.
• Performance may be aected if the
voltage varies by 10% or more. Operating the appliance with insucient
power can damage the compressor.
Such damage is not covered under
your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or
pull cord to prevent the appliance
from being turned o accidentally.
IMPORTANT
To turn o power to your appliance you
must unplug the power cord from the
electrical outlet.
6
FEATURES (2-DOOR MODEL)
MG
H
F
E
C
A Lower Freezer Basket
B Ice Bin/Upper Freezer Basket
C Ice Maker
D Center Mullion
E PurePour Water Filter
F Internal Water Dispenser
G PureAir Air Filter
H Spillsafe® Shelves
H
I
J
D
B
A
P
I
O
K
B
L
L
N
I CrispSeal® Fresh Crispers
with Auto Humidity
J Deli Drawer
K Door Hinges
L Gallon Door Bins
M 2-Liter Door Bin
N Strap Bin
O Freezer Light
P
Appliance Control Display
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
FEATURES (3-DOOR MODEL)
I
G G
J
K
7
H
G
G G
F
A Lower Freezer Basket
B Ice Bin/Upper Freezer Basket
C Ice Maker
D Center Mullion
E Door Hinges
F Strap Bins
G Gallon Door Bins
H Flipper Mullion
L L
M
E
C
B B
J
N
D
A
P
O
I PureAir Air Filter
J Spillsafe® Shelves
K Internal Water Dispenser
L CrispSeal® Fresh Crispers
with Auto Humidity
M PurePour Water Filter
N Deli Drawer
O Freezer Light
P Appliance Control Display
G
F
E
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
8
This Use & Care Manual provides general
installation and operating instructions
for this model. We recommend using
a service or kitchen contracting
professional to install the refrigerator.
Use the appliance only as instructed in
this Use & Care Manual. Before starting
the appliance, follow these important
first steps.
INSTALLATION
Location
• Choose a place near a grounded,
non-GFCI, electrical outlet. Do Not
use an extension cord or an
adapter plug.
• If possible, place the appliance
out of direct sunlight and away
from the range, dishwasher, or
other heat sources.
• Install the appliance on a floor level
and strong enough to support a fully
loaded appliance.
• Consider water supply availability for
models equipped with an automatic
ice maker.
WARNING
This appliance is intended for use
in residential household and similar
interior applications such as:
• Kitchen / Kitchenette
• Pantry Room
• Basement
• Enclosed Garage
• Other interior
residential-type environments
WARNING
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides 1.57 in. (40 mm)
Back 1.97 in. (50 mm)
Top 3.54 in. (90 mm)
NOTE
If you place your appliance with the
door hinge side against a wall, you may
have to allow additional space for the
handle so you can open the door wider.
Door opening
Position the appliance to allow easy
access to a counter when removing food.
For best use of refrigerator drawers and
freezer baskets, position the appliance
where both can open fully.
CAUTION
The sides of the refrigerator are warm
surfaces. The warmth felt on the left
and right sides of the fridge is normal
for this cooling technology.
CAUTION
Do Not install the appliance where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the appliance.

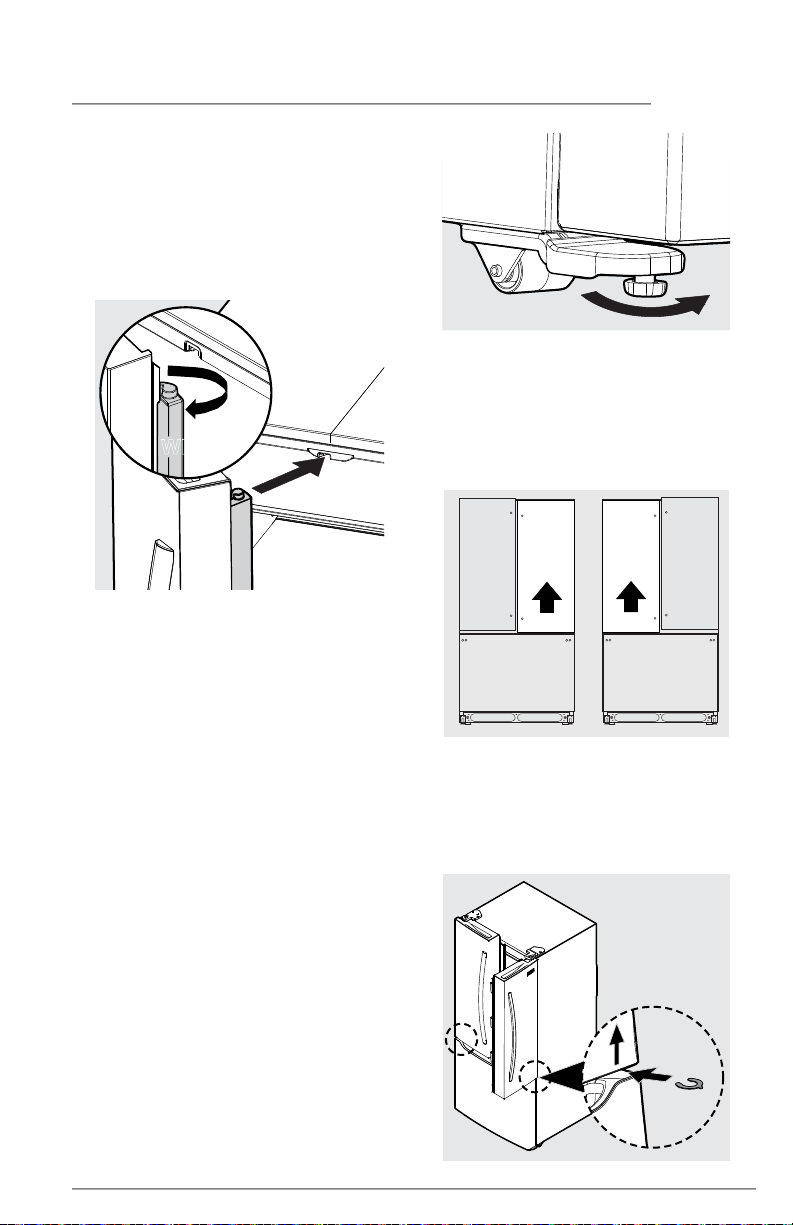

Flipper Mullion (some models)
WRONG
Adjust the flipper mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the fresh food door. If
the mullion guide is not in the correct
position, it could prevent the door from
closing completely.
INSTALLATION
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
4 sides and the cabinet is stable.
4. After you level the unit, lower the
anti-tip leg until it firmly contacts
the floor. You may need to use an
adjustable wrench for adjustment.
9
Cabinet Leveling / 3-Door Model
Door Alignment (if necessary)
Guidelines for final positioning of refrigerator:
• Rest all 4 corners of the cabinet
firmly on the floor.
• Slightly elevate the front to ensure
doors close and seal properly.
• Align and level the doors with each other.
You can meet most of these conditions by
raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer to reveal
adjustable rollers at bottom of cabinet.
2. Make initial cabinet adjustments
by using the front roller height
adjusting screws. Use a ⅜” socket
wrench to turn the adjustment
screws (1 per side).
To raise unit: turn the adjustment
screw clockwise.
To lower unit: turn
screw
counterclockwise
adjustment
.
Door
If the doors are not aligned, lift the
lower door up and insert the washer
(two are included in the plastic bag
in the Crisper) on the center hinge
pin. This will raise the door to be
aligned with the other door.
Door
10
Tools Necessary:
T20 Torx driver
Wrench
Wrench
Fixed
Wrench
Allen Wrench
DOOR REMOVAL
(OR)
Phillips head/
flat head
Screwdriver or
6mm
Getting Through Narrow Spaces
If the refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the door(s):
1. Unplug the electrical power cord
from the wall outlet.
2. Remove any food from the shelves
and door bins and close the door.
To remove the refrigerator door(s):
1. Open the door(s) to 90°.
2. Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
NOTE
* We do not recommend to using an
electric tool to unscrew and screw
parts because it may damage the screw
threads or cause screw heads to be
stripped o.
For the 3-door model only:
1. Remove the screw from the top
hinge cover, and disconnect the
electrical harness running from the
door to the hinge cover.
ANDAND
OR
8mm Socket
OR
Adjustable
CAUTION
Place the doors aside in a secure
position where they cannot fall and
cause personal injury or damage to the
doors or handles.
2. With the doors closed, remove
the three 8 mm screws from the
top hinges. Leave the hinges
attached to the doors. Lift the doors
up o the center hinge pins, and
carefully set aside.
⅜"
DOOR REMOVAL
11
3. If the center hinge is still preventing
access through the entryway, open
the bottom drawer and remove the
center hinge pin using an adjustable
wrench and set it aside. Remove the
center hinge by unscrewing the 3
center hinge screws.
Center Hinge Removal
IMPORTANT
When reinstalling the hinge pin, be sure
to securely tighten the pin to the hinge.
4. Go to Removing the Freezer Drawer.
5. To reinstall the doors, reverse
the procedure.
CAUTION
The door is heavy. We recommend two
people to remove or replace the door
assembly from the cabinet.
For the 2-door model only:
1. With the door closed, use a plastic
putty knife to remove the left hand
top hinge cover. Then, unsnap the
right hand top hinge cover and set
both aside. Remove the three 8 mm
screws from the top hinge.
2. Open the refrigerator door, and lift
the door o of center hinge pin. Set
the door aside.
3. If the center hinge is still preventing
access through the entryway, open
the bottom drawer and remove the
center hinge pin using an adjustable wrench and set aside. Remove
the center hinge by unscrewing the
three center hinge screws.
CAUTION
Place the doors on a padded surface to
avoid damage where they cannot fall
and cause personal injury.
4. Go to Removing the Freezer Drawer
5. To reinstall the door, reverse
the procedure.
.
12
DOOR REMOVAL
Removing the Freezer Drawer
CAUTION
Drawer is heavy. Use caution when lifting.
1. Open the drawer and fully extend it.
2. Remove the freezer bins and basket.
3. Inside the cabinet, press the 2 tabs
on both sides to release the sliders.
4. Remove the drawer with brackets
and sliders.
Reinstalling the Freezer Drawer
1. Place the drawer with brackets and
sliders inside the cabinet and click
into place.
2. Replace the basket and bins.
IMPORTANT
Once the door(s) is/are in place, ensure
it/they is/are aligned and level (See
INSTALLATION for more details), and
replace the top hinge cover.
NOTE
For additional instructions, see
STORAGE FEATURES.
DOOR REVERSAL
13
For the 2-door model only:
NOTE
For the following steps, find replacement parts in the plastic bags located
in the Crispers.
CAUTION
The door is heavy. We recommend two
people to remove or replace the door
assembly from the cabinet.
1. With the door closed, use a plastic
putty knife to remove the left hand
top hinge cover. Then, unsnap the
right hand top hinge cover and set
both aside. Remove the three 8 mm
screws from the top hinge. Carefully
remove the door from the unit and
set aside.
2. Unscrew the center hinge pin using
an adjustable wrench and set it aside.
Center Hinge Pin
3. Using the putty knife remove the
three plastic plugs on the center left
hand side.
Remove Plastic Plugs
4. Open the freezer drawer to prevent
damaging the unit while you remove
the center hinge. Using a T20 Torx
driver, remove the three screws from
the center hinge. Flip the center
hinge over and install it on the left
side of the unit.
CAUTION
Place the doors on a padded surface to
avoid damage where they cannot fall
and cause personal injury.
Center Hinge
5. Screw in and fully tighten the
center hinge pin using an
adjustable wrench.
Center Hinge Pin
14
DOOR REVERSAL
6. Locate the three new plastic plugs
in the Door Reversal Kit located in
the Crisper, and install them on the
center right hand side.
Install Plastic Plugs
7. A. Flip the refrigerator door over
and remove the screw from the
auto-closer hook using a Phillips
head screwdriver and set it aside.
B.
Pry out the hinge bearing
from the door with a flat
head screwdriver.
C. Install the bottom hinge bearing
on the opposite side of the
door. Flip the auto-closer
hook over. Using the Phillips
head screwdriver, screw in the
auto-closer and fully tighten.
A
B
8. Remove the left side top hinge
from the Door Reversal Kit located
in the Crisper.
CAUTION
Apply ¼ of the grease packet, from the
Door Reversal Kit, inside the hole on
the door for the top hinge to ensure
proper door operation.
9. Lower the refrigerator door onto
the center hinge pin at a 90 degree
angle, and then close the door.
Align the holes of the top hinge
with the cabinet holes and reinsert
the three 8 mm screws. Do not fully
tighten the screws.
Top Hinge
10. Ensure the door has approximately
0.68 in. (17.5 mm) between the
refrigerator door and freezer drawer.
Once level, securely tighten the hinge
screws. Replace the top hinge covers.
17.5mm/
0.68˝
Level the Door
11. Reconnect the electrical power cord
to the wall outlet.
DOOR HANDLE INSTALLATION
(SOME MODELS)
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
Handle Installation Instructions
Part quantities
vary per model.
1. Position the
15
handles over
the handle
mounts,
ensuring the
holes for
the Allen set
screws are
facing toward
the opposite
door.
2. Turn the Allen
set screw on
the top of
the handle
clockwise
with the
Allen wrench,
tightening to
secure the
handle onto the
door. Repeat
for the bottom
of the handle.
NOTE
When tightening the Allen set screws, it is imperative to apply force to the longer
arm of the Allen wrench.
NOTE
Tighten all set screws so the screw is below the surface of the handle. Draw the
handles tight to doors with no gaps. Opening the opposite door while tightening
the Allen screw makes installation easier.
The door handles may loosen over time or if you installed them improperly. If this
happens, tighten the set screws on the handles.
3. Repeat Steps
1 and 2 for the
opposite door
(if applicable).
16
WATER SUPPLY CONNECTION
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Use copper or stainless steel braided
tubing for the water supply line. Do
not use water supply tubing made of
¼ in. plastic. Plastic tubing greatly
increases the potential for water
leaks, and the manufacturer will not
be responsible for any damage if you
use plastic tubing for the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If you use a water softening
system, ensure the softener is
maintained and working properly.
IMPORTANT
Ensure the water supply line connections
comply with all local plumbing codes.
To install the water supply line, you will
need the following:
• Basic Tools: adjustable wrench, flathead
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water
line with water pressure between 30
and 100psi.
• A water supply line made of ¼in.
(6.4mm) OD, copper or stainless
steel tubing. To determine the length
of tubing needed, measure the distance from the ice maker inlet valve
at the back of the refrigerator to the
cold water pipe. Then add approximately 6ft. (1.8m.), so you can move
the refrigerator out for cleaning.
• A shuto valve to connect the water
supply line to the household water
system. DO NOT use a self-piercing
type shuto valve.
• Do not reuse compression fitting or
use thread seal tape.
• A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.
NOTE
Check with the local building authority for recommendations on water
lines and associated materials prior to
installing the refrigerator. Depending on
local/state building codes, we recommend you use Smart Choice® water
line kit 5304437642 with a 6ft. (1.8 m.)
stainless steel water line on homes with
existing valves. Please refer to Frigidaire.com for more information.
WATER SUPPLY CONNECTION
water valve
17
To Connect the Water Tube to
the Household Water Supply
1. Disconnect the refrigerator from
the electrical
power source.
2. Place the end of
the water supply
line into a sink or
a bucket. Turn ON
the water supply
and flush the
supply line until
water is clear. Turn
OFF the water
supply at the
shuto valve.
3. Open the locking
clips and grab
the water line
coming from
the refrigerator.
Remove the plastic
cap from the water
inlet fitting and
discard the cap.
4. If you are using stainless steel
braided tubing (recommended)
- the nut and ferrule are already
assembled on the tubing. Slide the
compression nut onto the water inlet
fitting and finger tighten.
To
household
water
supply
To
unit
5. Using two ½ in. wrenches (one to
hold the household water line nut
and the other to hold the water inlet
fitting nut), tighten a half turn with a
wrench. DO NOT overtighten.
6. Replace the connected tubes into
the clips and lock the clips back
in place to keep the tubing in the
right position.
Place ½" wrench
here. Turn
clockwise.
Place ½" wrench
here. Do not turn.
7. Turn ON the water supply at the
shuto valve and tighten any
connections that leak.
8. Reconnect the refrigerator to the
electrical power source.
9. Ensure the ice maker is turned ON.
10. Purge air from the ice and water
dispenser system by operating the
water dispenser for 3-4 minutes.
This will require dispensing several
glasses of water.
18
CONTROLS AND SETTINGS
Appliance Control Display
Ice Maker Press and hold for 3 seconds to turn the ice
1
maker on/o.
Freeze Boost Prior to grocery shopping we recommend
1
2
3
4
2
you activate Freeze Boost to freeze your food faster. It
remains active for up to 12 hours before automatically
deactivating or you manually exit. Press Freeze Boost
to turn the function o. This resets the freezer to the
previous temperature setting.
Temp F-C Press to toggle from Fahrenheit to Celsius.
3
REFRIGERATOR Press to adjust the refrigerator
4
temperature. With each press, the temperature increases
and cycles in a loop as shown below. Temperatures range
from 33°F / 1°C to 43°F / 6°C.
Fahrenheit
33 34 35 36 37 38 39
40
41
42
43
5
6
7
8
9
NOTE
The recommended
settings for a
product installed
in a kitchen is 37°F
for the fresh food
compartment
and 0°F for the
freezer. It takes
up to 24 hours
for temperatures
to stabilize after
adjusting.
Celsius
Press and hold Temp F-C for 3 seconds to lock the control
5
display. While locked, you cannot make any changes to
the control display until you unlock it. Press and hold
Temp F-C for 3 seconds to disable it.
FREEZER Press to adjust the freezer temperature.
6
With each press, the temperature increases and cycles in
a loop as shown below. Temperatures range from
-6°F / -21°C to 4°F / -15°C.
Fahrenheit
Celsius
Water Dispenser illuminates when the internal water
7
dispenser is ON. Press the water dispenser paddle inside
the cabinet to dispense water. Turn the dispenser o by
pressing and holding Water Dispenser for 3 seconds.
When the water dispenser is o, the display shows DISP
OFF, and you cannot dispense water
Water Filter The display shows the current status of the
8
water filter (Good, Order, or Replace). Replace the water
filter when the indicator illuminates Replace. Change the
water filter every 6 months. To reset the filter status to
Good, press and hold Water Filter for 3 seconds.
Air Filter The display shows the current status of the air
9
filter (Good, Order, or Replace). Replace the air filter
when the indicator illuminates Replace. Change the air
filter every 6 months. To reset the filter status to Good,
press and hold Air Filter for 3 seconds.
-6 -5 -4 -3 -2 -1 0
1 2 3 4 5 6
1
-21 -20 -19 -18 -17
4
3
2
-15
-16
CONTROLS AND SETTINGS
19
IMPORTANT
If food is freezing in the fresh food
compartment, increase the temperature
setting 1 or 2 degrees.
IMPORTANT
Food placed within 1" in front of the air
ports may cause food to freeze.
Alarms
DOOR
OPEN
HIGH
TEMP
POWER
OUT
If you leave a door open for
5 minutes or more, an alarm
sounds and the DOOR OPEN
indicator illuminates on the
control display. Turn the
alarm o by closing the door
or pressing any key. The control display returns to normal
operations after you close
the door.
In the event of a high temperature condition the red
HIGH TEMP LED illuminates,
and an alarm sounds. Also,
the refrigerator or freezer
compartment where you
detect the high temperature
displays HI, and the alarm
sounds every 10 seconds until
acknowledged. Touch any
key or open a door to silence
the alarm.
In the event of a power outage, the POWER OUT alert
illuminates to inform you of
a power interruption. Once
power is restored and a tone
sounds, press any button to
silence the tone.
NOTE
The unit should stabilize temperatures
within 24 hours of installation.
20
CONTROLS AND SETTINGS
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the refrigerator and its
controls in accordance with observance of the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if
you leave the door ajar the High Temp alarm is activated. The refrigerator will function
normally once you close the door, without any violation of the Sabbath/Holidays. The
High Temp alarm is permitted when the cabinet temperature is outside the safe zone
for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon
stays lit until you exit the Sabbath mode.
To activate Sabbath Mode, press and
hold Temp F-C and REFRIGERATOR
simultaneously for 5 seconds. Sb displays,
and no audible sounds will occur until you
exit Sabbath Mode.
To exit Sabbath Mode, press and
hold Temp F-C and REFRIGERATOR
simultaneously for 5 seconds. An audible
tone sounds, and the refrigerator will
go back to the state it was in prior to
activating Sabbath Mode.
1
For further assistance, guidelines for proper usage and a complete list of
models with the Sabbath feature, please visit the web at star-k.org.
NOTE
While in Sabbath Mode, neither the
lights nor the control display will work
until Sabbath Mode is deactivated.
The refrigerator stays in Sabbath
Mode after power failure recovery.
Deactivated it with the buttons on
the control display.
1
2
NOTE
Although you may have initiated the
Sabbath Mode, the ice maker will complete the cycle it had already started.
The ice cube compartment will remain
cold and you can make new ice cubes
with standard trays.
2
AUTOMATIC WATER DISPENSER
21
The Internal water dispenser is mounted
inside the cabinet, along the left-hand
cabinet wall.
Before using the water dispenser for the
first time or after changing the water filter,
you must prime your water supply system.
Priming the water supply system
CAUTION
For proper dispenser operation, the
recommended water supply pressure
should fall between 30 psi and 100
psi. Excessive pressure may cause the
system to malfunction.
Using the dispenser after installation:
If you do not flush the system, the first
glass of water may be discolored or have
an odd flavor.
1. Before dispensing, please ensure
you enable Water Dispenser on the
appliance control display (LEDs
above the button are illuminated).
2. Begin filling the system by pressing
and holding a drinking glass against
the water dispenser paddle.
3. Keep the glass in this position
until the water comes out of
the dispenser. It may take up
to 4 minutes to purge air from
the system.
4. Continue dispensing at least 1 full
gallon (3.78 L) of water, stopping to
empty the glass as necessary.
If the water dispenser function becomes
disabled, enable the water dispenser by
pressing and holding Water Dispenser on
the appliance control display. When the
water dispenser is turned on, the LEDs
above Water Dispenser are illuminated.
NOTE
If you prefer to keep the internal
water dispenser disabled, use the
appliance control display to disable it.
The LEDs will not be illuminated above
Water Dispenser.
Water Dispenser OnWater Dispenser
Place a cup against the paddle and press
to dispense water.
O
22
ICE MAKER
CAUTION
If the water supply to the refrigerator
is softened, be sure the softener
is properly maintained. Chemicals
from a water softener can damage
the ice maker.
Your appliance has an automatic ice
maker that will provide a sucient supply
of ice for normal use. The unit will not
produce ice during the first 24 hours of
initial operation.
Turning Your Ice Maker On
After you have completed connecting
the plumbing, you must open the water
supply valve. To turn the ice maker on,
press ICE MAKER on the appliance
control display until the LEDs above ICE
MAKER illuminate. New plumbing connections may cause the first production of
ice cubes to be discolored or have an odd
flavor. Discard these first cubes until the
cubes produced are free of discoloration
and taste.
Turning Your Ice Maker O
To turn the ice maker o, press ICE
MAKER on the appliance control display
until the LEDs above ICE MAKER turn o.
Separately, the ice maker automatically
stops producing ice when the bin is full,
and then restarts when the level of ice
drops. Note that when the ice maker
is turned O on the appliance control
display, the ice maker will not produce ice
at all.
Ice Maker Tips
• If you turn the ice maker for a long
period of time, turn the water supply
valve to the closed position.
• Ice cubes stored too long may develop an odd flavor. Empty the ice
bin. The ice maker will then produce
more ice.
• Occasionally shake the ice bin to
keep ice separated.
• Keep the ice maker o until the ice
maker is connected to the water
supply or whenever the water supply
is turned o.
• The following sounds are normal
when the ice maker is operating:
• Motor running
• Ice loosening from tray
• Ice dropping into ice container
• Running water
• Water valve opening or closing
IMPORTANT
To ensure proper function of your
ice maker, hook up the water supply
immediately or turn the ice maker o
(see WATER SUPPLY CONNECTION).
CAUTION
• DO NOT place the ice bin in
the dishwasher.
• Wash the ice bin in warm water with
mild detergent. Rinse well and dry.
• Turn o the ice maker when cleaning
the freezer and during vacations.
ICE MAKER
23
Ice Maker Storage Bin
Capacity
The ice maker should produce about 3.5 lbs
of ice per 24 hours, depending on conditions
of use.
How much ice can be stored in the ice bins?
When completely full, the bins will hold
about 8 lbs of ice.
Remove and empty the ice bin if:
An extended power failure (one hour
or longer) causes ice cubes in the ice
bin to melt and refreeze together after
power is restored.
Remove the ice bin by (1) lifting upward
and (2) pulling straight out, and then
shake to loosen the cubes or clean as
explained above.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
Removing Ice Bin
24
STORAGE FEATURES
Glass shelves
CAUTION
When removing the shelf, disable Water
Dispenser on the appliance control
display to avoid water spillage.
Dispenser on
Dispenser o
CAUTION
When you move the shelf, be sure to
avoid hitting the dispenser cover.
1
3
Change the Position of a Shelf
1. Remove all food from the shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock it
into position.
Drawers
The refrigerator includes a variety of
storage drawers.
Auto CrispSeal Drawer
Crispers are designed for storing fruits,
vegetables, and other fresh produce.
Crispers have an auto humidity control
at the rear of each crisper under the
humidity control cover.
2
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change. Allow
the glass shelves to stabilize to room
temperature before cleaning. Do not
wash in the dishwasher.
You can easily adjust shelf positions in
the fresh food compartments as needed.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
To remove the CrispSeal drawer for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove
the drawer.
Removing CrispSeal Drawer
STORAGE FEATURES
25
To remove the auto humidity control
membrane for cleaning:
1. Reach to the back of humidity
control cover.
2. Place fingers between the humidity
control and the back wall; pull up
on cover.
3. Pull the cover toward the front of
the cabinet and remove it.
4. Remove the humidity membrane
from the housing by lifting it up and
sliding it over.
5. Clean the humidity membrane with
hot soapy water. Thoroughly dry it
before replacing.
6. Replace the membrane in the
housing and unit by reversing the
steps above.
Doors
Storage bins
The doors to the fresh food compartment
use a system of modular storage bins.
You can remove all of these bins for easy
cleaning. Adjust the bins as needed.
Door bins are ideal for storing jars,
bottles, cans, and large drink containers.
They also allow quick selection of
frequently used items.
Adjustable door bins (varies by model)
You can move adjustable door bins to suit
individual needs.
To move door bin side to side:
1. Tilt the bin up so the back of the
bin is o the door but the hook is
still engaged.
2. Slide the bin along the rail to the
desired position.
3. Lower bin back into place.
To move door bin up or down:
1. Lift the bin up disengaging the hook.
2. Move the bin to the desired
rail location.
3. Push the bin hook into the rail
engaging the hook.
Removing Auto Humidity
Control Membrane
NOTE
We do not recommend replacing the
auto-humidity membrane unless it
becomes damaged or ruined. If the
membrane becomes soiled, you can
wash it with soap and water. Ensure
the membrane is dry before replacing it
in the unit.
Adjustable Door Bins
26
STORAGE FEATURES
Freezer Features
Freezer Drawer
To remove the upper freezer drawer:
1. Open the freezer compartment
completely.
2. Lift it up and out to remove the
upper freezer drawer.
Reverse the steps to reinstall the drawer.
IMPORTANT
Make sure all wheels on the bottom of
the drawer are aligned on their respective tracks for proper function. If drawer
is not aligned properly, it will cause
problems with the door operation.
NOTE
If the basket is not resting on the stabilizer bar retainer clips, the drawer will
not close properly.
To remove freezer basket:
1. Open the freezer compartment
completely.
2. Lift the basket up and remove it.
Reverse the steps to reinstall the
freezer basket.
STORING FOOD AND SAVING ENERGY
27
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 44°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of
air ports. (See CONTROLS AND
SETTINGS for illustration.)
Fruits and vegetables
• Store fruits and vegetables in crispers,
where trapped moisture helps
preserve food quality for longer time
periods.
• Do not wash items until ready to use.
Remove excess water before placing
them inside the unit.
• Wrap any items with strong odors or
high moisture content.
Meat
Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
Frozen food storage
• Keep the freezer compartment at
0°F or lower.
• A freezer operates most eciently
when it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum
foil, freezer wrap, freezer bags, or
airtight containers. Force as much air
out of the packages as possible and
seal them tightly. Trapped air
can cause food to dry out, change
color, and develop an “o” flavor
(freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze completely
thawed meat.
Loading the freezer
• Prior to grocery shopping, we
recommend you activate Freeze
Boost to freeze your food faster It
will remain active for up to 24 hours.
• Activating Freeze Boost will help the
freezer more eciently maintain the
selected temperature after placing
new purchases with pre-existing
frozen foods.
• Avoid adding too much warm food to
the freezer at one time. This overloads
the freezer, slows the rate of freezing,
and can raise the temperature of
frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct
sunlight, and away from heating ducts
or registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry or
an added layer of insulation between
the two appliances will help the
refrigerator operate more eciently.
• Level the refrigerator so that the
doors close tightly.
Temperature settings
Refer to the CONTROLS AND SETTINGS
for procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers
dry before placing them in the
refrigerator. This cuts down on
moisture build-up inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and close
the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
28
NORMAL OPERATING SOUNDS
Understanding the sounds
coming from the refrigerator
High-eciency refrigerators may introduce
unfamiliar sounds. These sounds normally
indicate the refrigerator is operating
correctly. Some surfaces on floors, walls,
and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components
in the refrigerator and the sounds they
can cause:
A Evaporator Refrigerant through
the evaporator may create a
boiling or gurgling sound.
B Evaporator fan You may hear
sounds of air being forced
through the refrigerator by
the evaporator.
C Defrost heaters During defrost
cycles, water dripping onto the
defrost heaters may cause a
hissing or sizzling sound. After
defrosting, a popping sound
may occur.
D Automatic ice maker When
ice has been produced, you may
hear sounds of ice cubes falling
into the ice bin. The ice maker
fan, water valve activation, and
refrigerant gas fluid may create
sounds from its operation.
E Electronic control & automatic
defrost control These parts can
produce a snapping or clicking
sound when turning the cooling
system on and o.
F Compressor High-eciency
compressors run much faster
than previous models. The
compressor may have a
noticeable hum or pulsating
sound during operation.
G Water valves They make a
buzzing sound each time they
open to fill the ice maker.
H Drain pan (not removable)
You may hear sounds of water
dripping into the drain pan
during the defrost cycle.
I Motorized damper May produce
a light humming during operation.
NOTE
Energy ecient foam in the refrigerator
is not a sound insulator.
NOTE
During the automatic defrost cycle, a
red glow in the back wall vents of the
freezer compartment is normal.
E
C
I
D
B
A
G
H
Features vary by model
F
FILTER REPLACEMENT
29
PurePour™ Water Filter
The refrigerator is equipped with a water
filtering system. The water filtering
system filters water used to produce ice.
The water filter is located at the top left
side of the fresh food compartment.
Ordering your replacement water filter
If you have not used your refrigerator
for a period of time (during moving
for example), change the filter before
reinstalling the refrigerator. To order
your replacement filters, please visit our
online store at Frigidaire.com, by calling
1-800-374-4432 (Frigidaire.ca or 1-800265-8352 in Canada) or through the
dealer from which the refrigerator was
purchased. We recommend replacing
filters at least once every 6 months.
Here is the product number to request
when ordering:
PurePour™ Water & Ice Refrigerator
Filter PWF-1™ FPPWFUO1
NOTE
When ordering replacement filters,
please reorder the same filter type that
is currently in the refrigerator.
*Find the Performance Data Sheet
located in the Guides and Manuals
section for your specific water filter
on Frigidaire.com.
More about your advanced water filter
Certified by IAPMO R&T against NSF/
ANSI Standards 42, 53, 401, CSA B483.1
and NSF/ANSI/CAN 372 in PurePour
PWF-1 systems for reduction of the claims
on the Performance Data Sheet*.
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. You may use systems
certified for cyst reduction on disinfected
waters that may contain filterable cysts.
Test & certification results:
• Rated Capacity - 125 gallons/473
liters for PurePour ice and water filter
• Rated service flow - .65 gallons/minute
• Operating Temp: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 lb/in.
• Recommended Minimum Operating
Pressure: 30lb/in.
Replacing your water filter
Change the water filter every 6 months
to ensure the highest possible water
quality. Replace Water Filter on the
display indicates when to replace the
filter after a standard amount of water
(125 gallons/473 liters for PurePour) has
flowed through the system.
2
2
30
FILTER REPLACEMENT
It is not necessary to turn the water
supply o to change the filter. Be ready
to wipe up any small amounts of water
released during the filter replacement.
1. Turn o Ice Maker on the appliance
control display.
2. Remove the old filter by rotating it
counterclockwise (to the left) 90
degrees to release it.
3. Slide the old filter cartridge straight
out of the housing and discard it.
4. Unpackage the new filter cartridge.
Slide it into the filter housing
as far as it will go with the grip
end horizontal.
5. Push lightly inward on the filter
while rotating it clockwise (to the
right). The filter will then pull itself
inward as it is rotated. Rotate the
filter 90 degrees until it stops and
the grip end is vertical. You may
hear a very light click as the filter
locks into place.
6. Press and hold the Reset Water
Filter button on the appliance
control display for 3 seconds.
When the indicator is no longer
illuminated, the water filter status
has been reset.
7. Turn on Ice Maker on the appliance
control display.
8. In order for the ice maker to
work properly, clear air from the
water filter tubing by filling the
ice bin completely twice. Discard
the ice produced.
PureAir® RAF-1™ Air Filter
The air filter is located in the top center
of the fresh food compartment.
replacement filters, please visit our online
store at Frigidaire.com, by calling 1-800374- 4432
8352 in Canada)
from which the refrigerator was purchased.
We recommend replacing filters at least
once every 6 months.
Here is the product number to request
when ordering:
PureAir RAF-1 Air Filter PAULTRA2
Replacing your air filter
To ensure optimal filtering of refrigerator
odors, change the air filter every 6 months
(Replace Air Filter appears on the
appliance control display after 6 months).
1. Remove the air filter cover by
2. Remove the old filter and discard it.
3. Unpack the new filter and snap it into
4. Replace the air filter cover by
5. Press and hold the Reset Air Filter
(Frigidaire.ca or 1-800-265-
or through the dealer
squeezing the top and bottom of
the cover together and removing
from liner.
the filter cover. Install the open face
(carbon media) of the filter facing
outward in the cover.
squeezing the sides and snapping it
back into place.
button on the appliance control
display for 3 seconds. When the
indicator turns o, the status has
been reset.
To order
FILTER REPLACEMENT
31
PureAir PK-2 Produce Keeper Plus™
Keep fruits and vegetables fresher longer
with PureAir PK-2 Produce Keeper Plus.
Our produce keeper absorbs ethylene
gas, the natural gas that causes produce
to ripen quicker. Reduce food waste, save
money and enjoy fresh-tasting produce
with a longer storage life.
replacement filters, please visit our online
store at Frigidaire.com, by calling tollfree at 1-800-372-4432, or by visiting the
dealer where you purchased your unit.
recommend replacing filters at least once
every 12 months.
numbers to request when ordering:
PureAir Produce Keeper Plus
FRPAPK2RF
Here are the product
To order
We
Installing the PureAir Produce Keeper Plus:
1. Remove the plastic wrapper. Insert
the packet into the holder in the rear
of the crisper.
2. For optimal results, replace the
refill every 12 months along with
your air filter.
=
CAUTION
DO NOT OPEN CLOTH POUCH. Keep
out of the reach of children.
DO NOT EAT. If ingested, seek medical
treatment immediately.
WASH HANDS AFTER HANDLING.
DO NOT SUBMERGE IN WATER.
32
CARE AND CLEANING
Care and Cleaning Tips
Keeping the refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do
not use scouring pads or other abrasive cleaning materials.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline
solutions on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
NOTE
When setting temperature controls to turn o cooling, power to lights and other electrical components will continue until the power cord is unplugged from the wall outlet.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removing the serial plate voids the warranty.
• Before moving the refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas
of refrigerator.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
IMPORTANT
When storing or moving refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when
the refrigerator is put back into service. Contact a service representative to perform
this operation.
CARE AND CLEANING
33
Vacation and moving tips
Occasion Tips
Short
Vacations
Long
Vacations
Moving • Unplug the unit.
• Leave the refrigerator operating during vacations of 3 weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn the automatic ice maker o and empty the ice bucket, even if
only away a few days.
• Remove all food and ice if leaving for 1 month or more.
• Turn the cooling system o (see CONTROLS AND SETTINGS for the
location of the On/O button) and disconnect the power cord.
• Turn the water supply valve to the closed position.
• Clean the interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block the
doors open if necessary.
• Remove all food and ice.
• If using a handcart, we reommend loading from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad the cabinet to avoid scratching the surface.
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior &
Door Liners
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners
Glass Shelves • Soap and water
Exterior &
Handles
• Soap and water
• Baking soda
and water
• Glass cleaner
• Mild liquid sprays
• Soap and water
• Non abrasive
glass cleaner
Use two tablespoons of baking soda in
one quart of warm water. Be sure to wring
excess water out of sponge or cloth
before cleaning around controls, light
bulb or any electrical part.
and tracks.
Allow glass to warm to room temperature
before immersing in warm water.
Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles. Use a soft cloth to clean
smooth handles or exterior. DO NOT use a
dry cloth to clean smooth doors.
34
Let us help you troubleshoot your concern! This section will help you with common
issues. If you need us, visit our website, chat with an agent, or call us. We may be able
to help you avoid a service visit. If you do need service, we can get that started for you!
TROUBLESHOOTING
1-800-374-4432 (United States)
Frigidaire.com
1-800-265-8352 (Canada)
Frigidaire.ca
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
Ice maker is
not making
enough ice.
Ice cubes
are freezing
together.
• Ice maker is turned o.
• Refrigerator is not
connected to water line or
water valve is not open.
• The water supply line
is kinked.
• The water filter is not
seated properly.
• Ice maker is producing
less ice than expected.
• The water supply line
is kinked.
• Water pressure is
extremely low. Cut-o and
cut-on pressures are too
low (well systems only).
• Reverse osmosis system
is in regenerative phase.
• Ice cubes are not being
used frequently enough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow cubes
break open in the bin
and leak their water onto
existing ice, which causes
it to freeze together.
• Press Ice Maker on the appliance
control display.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure the supply line does not kink
when the refrigerator is pushed into
place against the wall.
• Remove and reinstall the water
filter. Be sure to seat it fully into the
locked position.
• The ice maker will produce approximately 3.5 lbs. of ice every 24 hours
depending on usage conditions.
• Ensure the supply line does not kink
when the refrigerator is pushed into
place against the wall.
• Have someone turn up the cut-o
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during
the regenerative phase.
• Remove ice bin and discard ice. The
ice maker will produce
fresh supply. Ice should be used
at least twice weekly to keep the
cubes separated.
• This generally occurs when the
ice maker does not get enough
water. This is usually the result of
a clogged water filter or restricted
water supply. Replace the water
filter and if the condition still occurs,
check to see if the water valve is not
turned on all the way or if there is a
kinked water supply line.
TROUBLESHOOTING
Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
Drawers are
dicult to
move.
Running of Refrigerator
Compressor
does not run.
Refrigerator
seems to
run too
much or
too long.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Door was closed too
hard, causing other door
to open slightly.
• Refrigerator is not level.
It rocks on the floor
when moved slightly.
• Refrigerator is touching
a wall or cabinet.
• Food/packaging is
obstructing the door
from closing.
• Flipper mullion on left
fresh food door is not in
the correct position.
• Food is touching shelf
on top of drawer.
• Track the drawers slide
on is dirty.
• Refrigerator is in
defrost cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• The variable speed
compressor is designed
to run 100% of the
time except during the
defrost cycle. At times
it will run faster, such as
after a defrost cycle.
• Electronic control
system has detected a
performance problem.
• Close both doors gently.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Make sure no food/packaging is
blocking the doorway.
• Ensure the flipper mullion is in the
correct position to allow the door
to close. (See Flipper Mullion in
INSTALLATION.)
• Remove top layer of items in drawer.
• Ensure drawer is properly installed
on track.
• Clean drawer, rollers, and track. See
CARE AND CLEANING.
• This is normal for a fully automatic
defrost refrigerator. The defrost
cycle occurs periodically, lasting
about 30 minutes.
• Ensure plug is tightly pushed
into outlet.
• Check/replace fuse with a 15-amp
time-delay fuse. Reset circuit breaker.
• Check house lights. Call local
electric company.
• It is normal for the compressor to
run continuously except during
defrost mode.
• Contact Electrolux Customer Care
for assistance with any errors or
codes flashing in the display by
calling 1-800-374-4432.
35
36
TROUBLESHOOTING
Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
Water
collects on
bottom side
of drawer
cover.
Water
collects in
bottom of
drawer.
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
Food/Drinks in Fresh Food Compartment
Food is
freezing.
• Weather is hot and humid.
• Flipper mullion
• Vegetables contain and
give o moisture.
• Washed vegetables
and fruit drain while
in the drawer.
• Weather is humid. • This is normal in humid weather.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right
side of fresh food area).
• Food is covering the
air ports.
• The rate of frost buildup and
internal sweating increases.
• Adjust flipper mullion. (See Flipper
Mullion in INSTALLATION.)
• It is not unusual to have moisture on
the bottom side of the cover.
• Both crispers contain an automatic
humidity control, which should
adjust automatically to the varying
levels of moisture inside the
drawer without creating additional
condensation or drying out the air
inside the crisper drawer, works with
various types of produce. If excess
moisture is noticed, check to verify
humidity membrane is not damaged
and replace as necessary.
• Dry items before putting them in
the drawer. Water collecting in
bottom of drawer is normal.
When humidity is lower, the
moisture should disappear.
• Move the setting to a higher degree.
• Allow space for air flow to the sensor.
• Allow space between the air ports
and the food.
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your date of delivery,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be
defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or
for appliances not in ordinary household use or used other than in accordance with the
provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your
appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,
tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the
state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not
limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts
other than genuine Electrolux parts or parts obtained from persons other than authorized
service companies; or external causes such as abuse, misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT
LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY
BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS
OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or
add to any obligations under this warranty. Obligations for service and parts under this warranty must
be performed by Electrolux or an authorized service company. Product features or specifications as
described or illustrated are subject to change without notice.
37
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
1.800.265.8352
Canada
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
welcome home
Our home is your home. Visit us if you
need help with any of these things:
owner support
accessories
service
registration
(See your registration card
for more information.)
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
Loading...
