FACTORY PARTS CATALOG
WASHER
PRODUCT NO. BASE MODEL NO. COLOR
GLWS1649AS1 GLWS1649A White
WIRING DIAGRAM - # 134125700
OWNER’S GUIDE - # 131843000
OPERATING INSTRUCTIONS - # 134074400
Publication No.
5995369161
020327
ENG/SERVICE/JAM
WASHER
Model No.
GLWS1649A
361
Publication No. GLWS1649AS1
5995369161
CABINET/TOP
03/2002 2
GLWS1649AS1 Publication No.
CABINET/TOP
POS. NO PART NO DESCRIPTION
1 131587500 Screw-hinge, pph 45deg hdrpt,
6-32 x 0.3125
2 131168200 Screw, 8-18 x 0.31
3 131433300 Bumper-hinge
3A 134075500 Bumper-lid
4 131385910 Hinge-bar L.H.
4A 131374220 Hinge bar R.H.
5 5303208743 Grommet-lid
6 131374401 Lid, white, w/o inst.
7 3205821 Clip-top panel to front panel
9 131390000 Strike-lid
11 3204368 Screw-strike, pfh b, 6-20 x .375
20 5303208751 Hinge-rear cabinet
31 # 134100800 Cord-service
32 5303209428 Bushing-cord
33 # 131389300 Valve-water
34 131205500 Screw-body, 1/4-14 x 0.625
35 5308002385 Ring-snubber
36 3204380 Block-shipping
37 131658900 Screw-shipping
38 5303311213 Base Assembly
41 131258400 Screw-front pnl, comb th ab,
10-16 x 0.500
42 131104303 Panel-front, white
43 131422100 Pad-leveling leg
43A 131422200 Pad-level leg
44 5303309673 Leg-leveling with pad
45 131346400 Pin-locating
46 134046600 Asmy-cabinet wht
50 134101800 Lock-lid
53 131452692 Panel-top blch wht FS wshr
54 5303208778 Dispenser-bleach
55 5303212876 Spring-lid
56 131243800 Screw-brkt top, pan hd locking,
8-32CA x 0.375, cr/sq drive
59 131744301 Barrier-noise
60 131362400 Fastener
5995369161
* 5303309503 Clip-backsheet
* 131744202 Vibration damper
# = Functional Part 3 03/2002
* = Non-illustrated Part
Publication No. GLWS1649AS1
5995369161

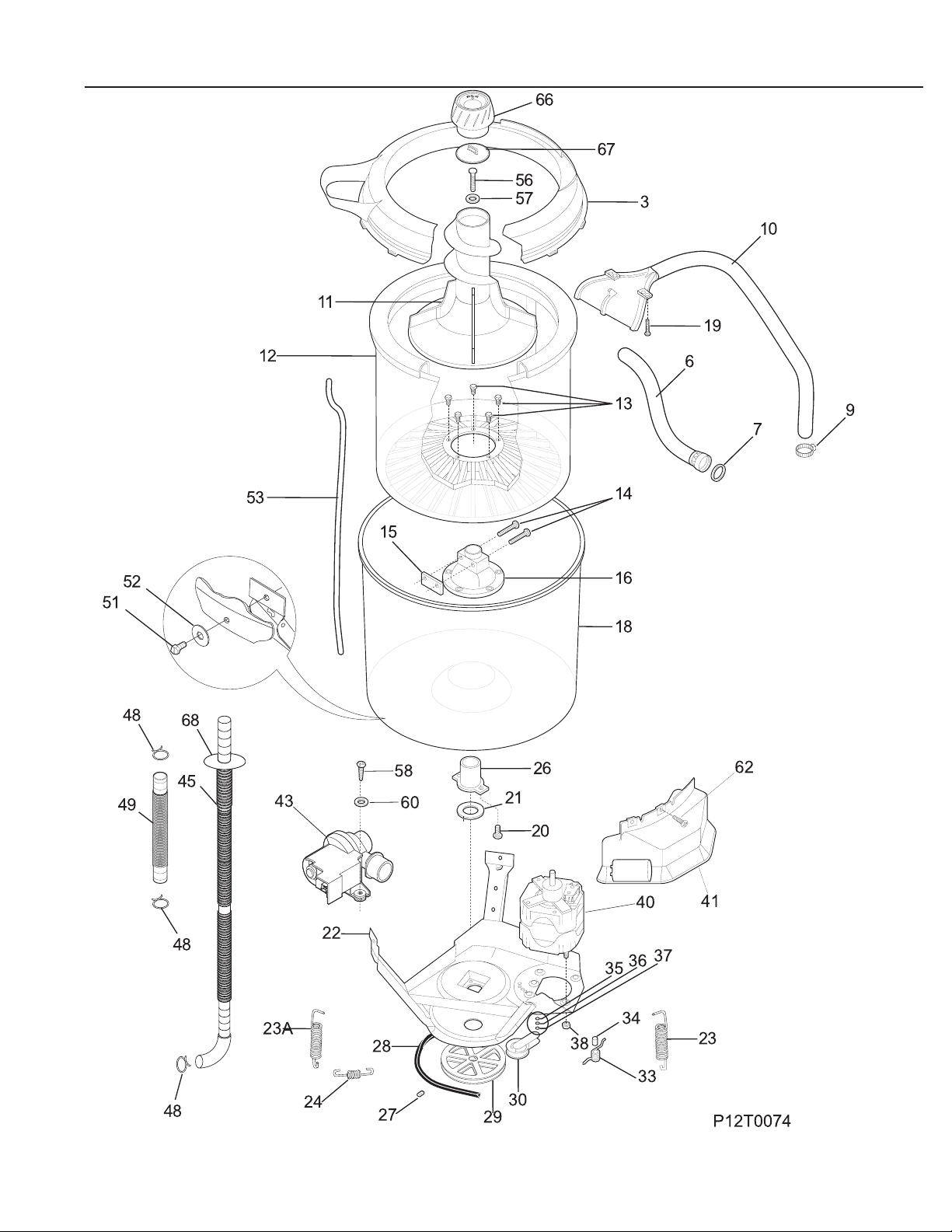

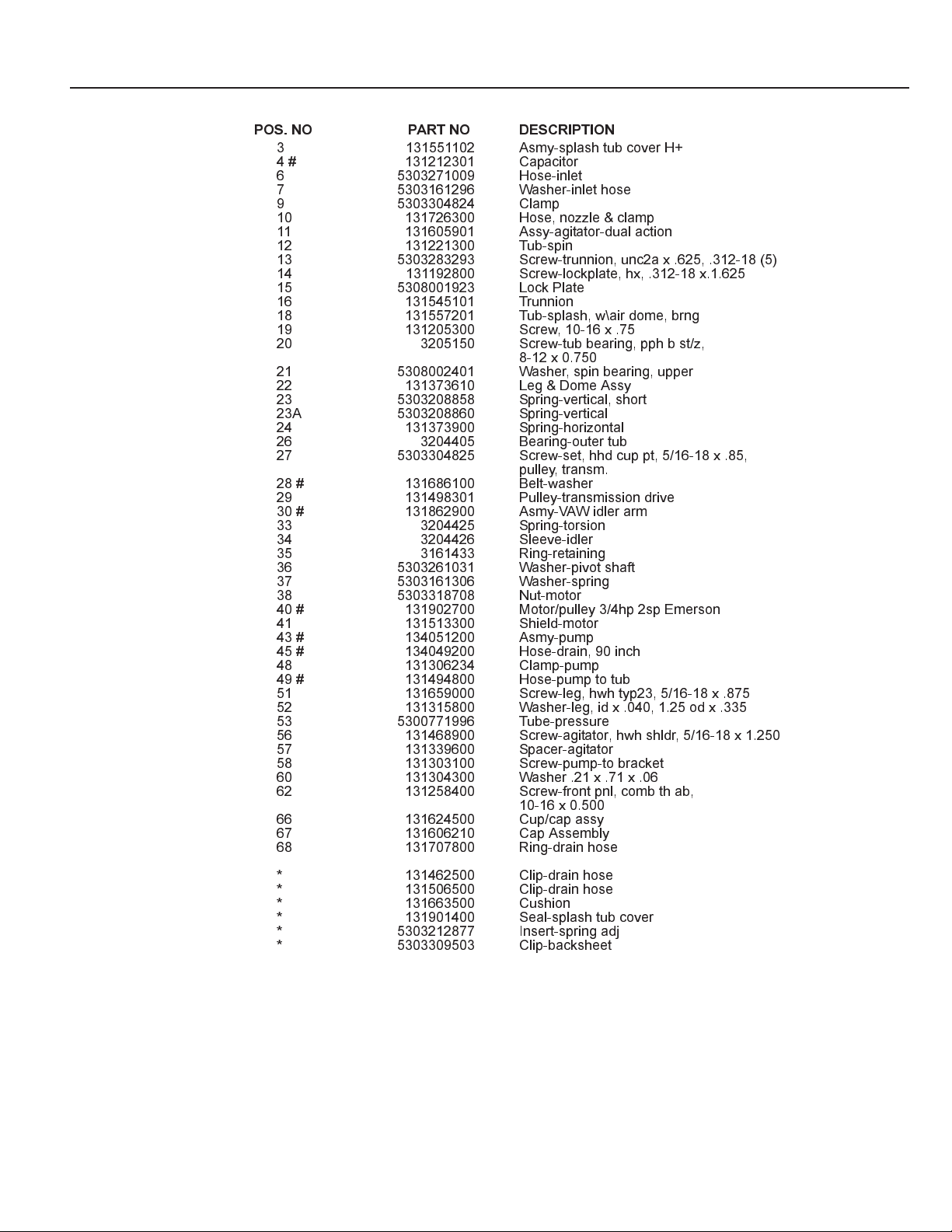

MOTOR/TUB
03/2002 4
GLWS1649AS1 Publication No.
MOTOR/TUB
POS. NO PART NO DESCRIPTION
3 131551102 Asmy-splash tub cover H+
4 # 131212301 Capacitor
6 5303271009 Hose-inlet
7 5303161296 Washer-inlet hose
9 5303304824 Clamp
10 131726300 Hose, nozzle & clamp
11 131605901 Assy-agitator-dual action
12 131221300 Tub-spin
13 5303283293 Screw-trunnion, unc2a x .625, .312-18 (5)
14 131192800 Screw-lockplate, hx, .312-18 x.1.625
15 5308001923 Lock Plate
16 131545101 Trunnion
18 131557201 Tub-splash, w\air dome, brng
19 131205300 Screw, 10-16 x .75
20 3205150 Screw-tub bearing, pph b st/z,
8-12 x 0.750
21 5308002401 Washer, spin bearing, upper
22 131373610 Leg & Dome Assy
23 5303208858 Spring-vertical, short
23A 5303208860 Spring-vertical
24 131373900 Spring-horizontal
26 3204405 Bearing-outer tub
27 5303304825 Screw-set, hhd cup pt, 5/16-18 x .85,
pulley, transm.
28 # 131686100 Belt-washer
29 131498301 Pulley-transmission drive
30 # 131862900 Asmy-VAW idler arm
33 3204425 Spring-torsion
34 3204426 Sleeve-idler
35 3161433 Ring-retaining
36 5303261031 Washer-pivot shaft
37 5303161306 Washer-spring
38 5303318708 Nut-motor
40 # 131902700 Motor/pulley 3/4hp 2sp Emerson
41 131513300 Shield-motor
43 # 134051200 Asmy-pump
45 # 134049200 Hose-drain, 90 inch
48 131306234 Clamp-pump
49 # 131494800 Hose-pump to tub
51 131659000 Screw-leg, hwh typ23, 5/16-18 x .875
52 131315800 Washer-leg, id x .040, 1.25 od x .335
53 5300771996 Tube-pressure
56 131468900 Screw-agitator, hwh shldr, 5/16-18 x 1.250
57 131339600 Spacer-agitator
58 131303100 Screw-pump-to bracket
60 131304300 Washer .21 x .71 x .06
62 131258400 Screw-front pnl, comb th ab,
10-16 x 0.500
66 131624500 Cup/cap assy
67 131606210 Cap Assembly
68 131707800 Ring-drain hose
5995369161
* 131462500 Clip-drain hose
* 131506500 Clip-drain hose
* 131663500 Cushion
* 131901400 Seal-splash tub cover
* 5303212877 Insert-spring adj
* 5303309503 Clip-backsheet
# = Functional Part 5 03/2002
* = Non-illustrated Part
Publication No. GLWS1649AS1
5995369161

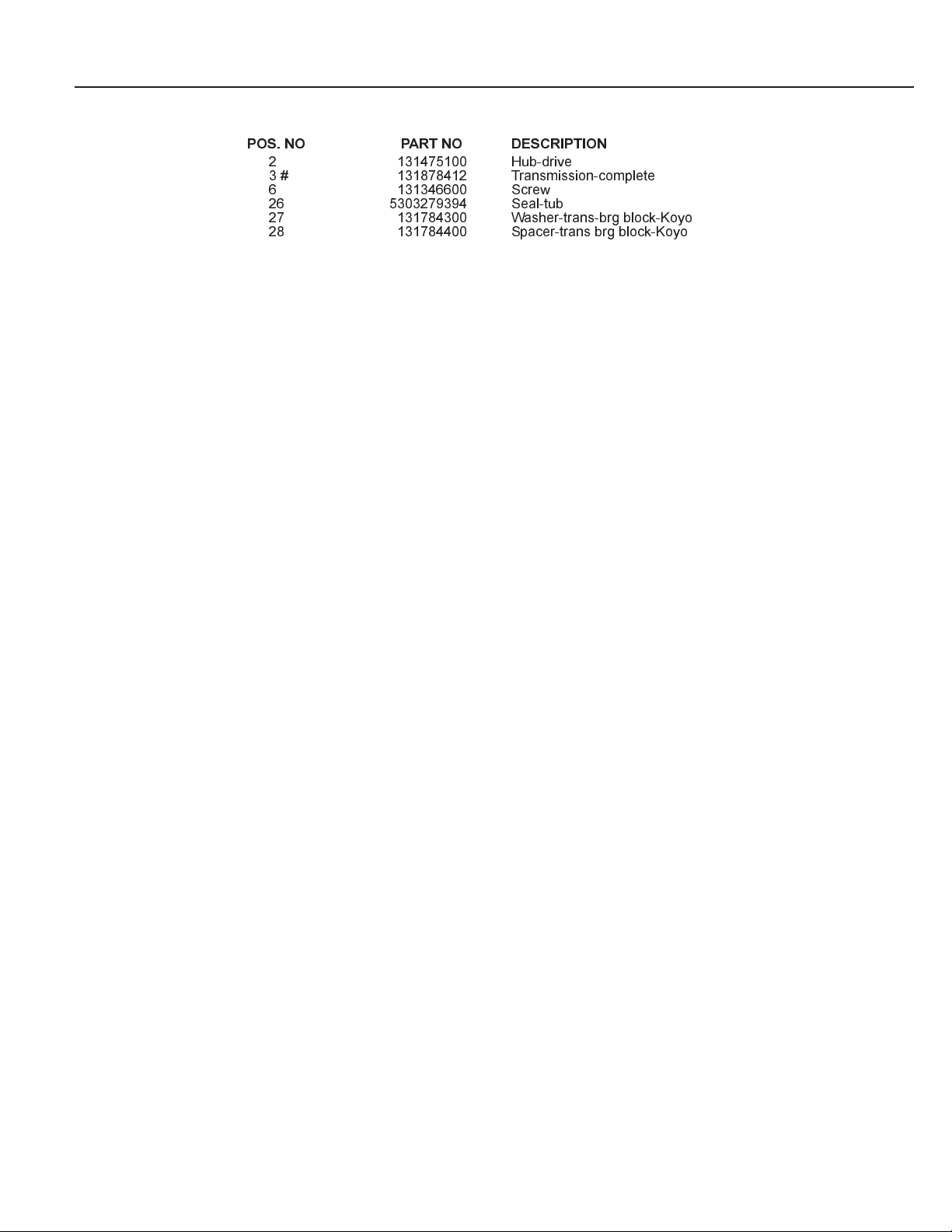

TRANSMISSION
03/2002 6
GLWS1649AS1 Publication No.
TRANSMISSION
POS. NO PART NO DESCRIPTION
2 131475100 Hub-drive
3 # 131878412 Transmission-complete
6 131346600 Screw
26 5303279394 Seal-tub
27 131784300 Washer-trans-brg block-Koyo
28 131784400 Spacer-trans brg block-Koyo
5995369161
# = Functional Part 7 03/2002
* = Non-illustrated Part
Publication No. GLWS1649AS1
5995369161

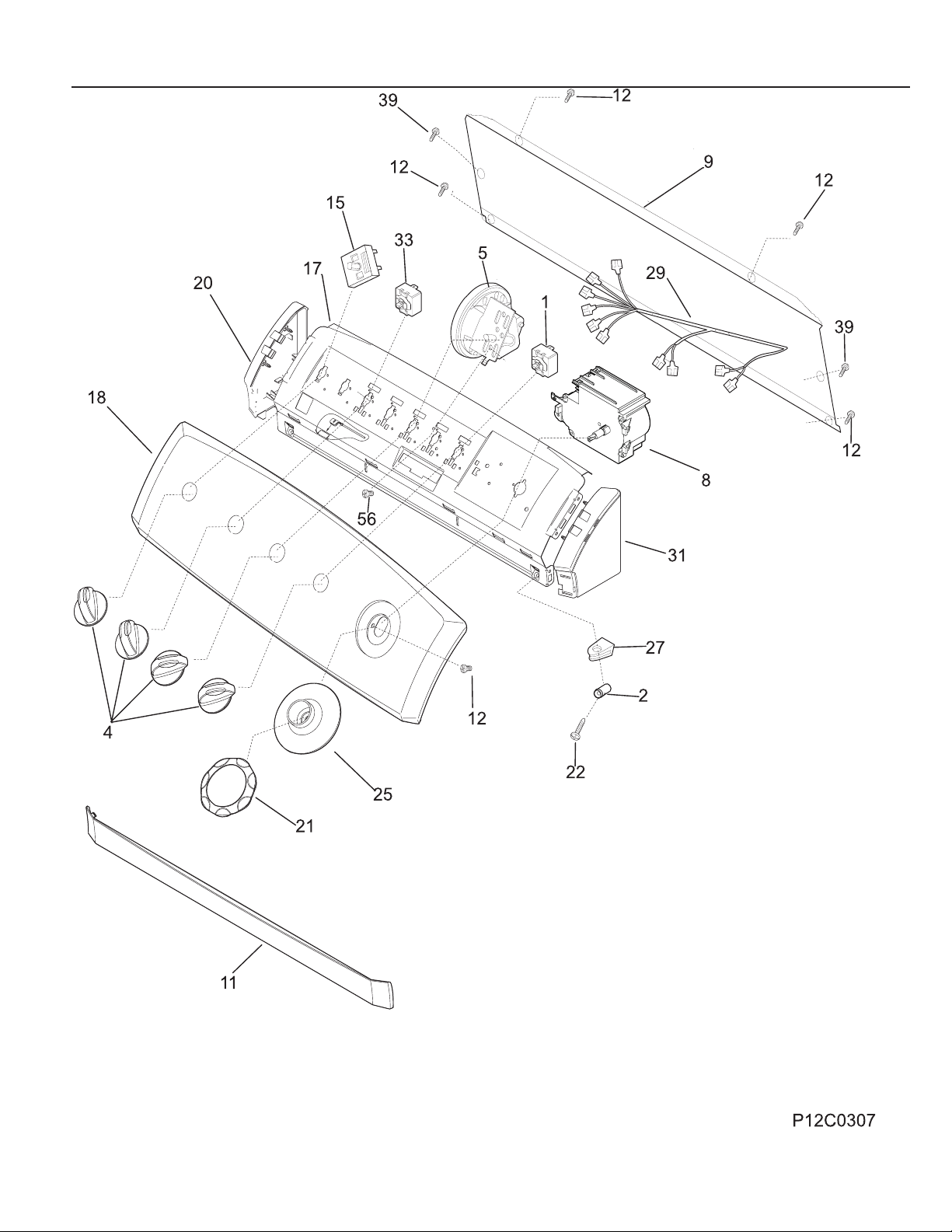

CONTROL PANEL
03/2002 8
GLWS1649AS1 Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 # 131157900 Switch-speed
2 134096100 Spacer-console mounting
4 134034900 Knob-rotary-wht Z cons
5 # 131396200 Switch-pressure
8 # 131856400 Timer-elec Y
9 131992910 Backsheet "Z" cons-VAW
11 134019900 Closure-front-wht "Z" cons
12 131168200 Screw, 8-18 x 0.31
15 # 131081200 Switch-temperature
17 131993000 Brkt-cont mtg "Z" cons-Delta
18 134074200 Trimplate FDA1YRSZ
20 134019610 End cap-LH-wht "Z" cons
21 134035200 Asmy-knob-timer-Delta white
22 131266300 Screw-end cap, cr oval head,
8-18AB x 1.250, black
25 134035100 Pointer-timer Delta wht/dk gry
27 131197000 Clip-control panel
29 # 134123100 Harn-Y-rot sp/temp/x-rinse
31 134019600 End cap-RH-wht "Z" cons
33 # 131243200 Switch-extra rinse/speed
39 131205100 Screw, #8 pan head, 10-10B x 0.50,
cr/sq drive
56 131243800 Screw-brkt top, pan hd locking,
8-32CA x 0.375, cr/sq drive
5995369161
# = Functional Part 9 03/2002
* = Non-illustrated Part
Publication No. GLWS1649AS1
5995369161
WIRING DIAGRAM
03/2002 10
