Welcome ...................... 2

Safety lnstruct)ons ........... 3

Instalmationo°I_d_deaConr,eot_ng

Ice Maker To Water Supply ............ 4 = 5

Door Removal

instructions ................... 6

Features at a Glance ......... 7

Temperature Controls.. 8 - JJ

Looking Inside..........12 - 14

Automatic ice and Water

Dispenser ................J5 - J9

Food Storage

& Energy Saving Tips ....... 20

Normal Operatin Sounds..21

Care & Cleaning ........ 22 - 23

Warranty ..................... 24

Before You Call

Solutions to

CommooProblems.............. 25 - 29

READ AND SAVE THESE INSTRUCTIONS p!N241_22400A(0501>

Congratulations on your purchase of a new refrigerator! We here at F:lectroJux Home Products are very proud of our product and we are completely committed to providing you with the best service possible, Your satisfaction is our #1 priority,

Please read this Use & Care Manual very carefully, it contains valuable information on how to properly maintain your new refrigerator,

We know you'll enjoy your new refrigerator and ThankYou for choosing our product, We hope you consider us for future purchases,

PLEASE READ AND SAVE THESE INSTRUCTIONS This Use & Care blanual provides specific operating

instructions for your model, Use your refrigerator only as instructed in this manual, These instructions are not meant

to cover every possible condition and situation that may occur, Common sense and caution must be practiced when installing, operating and maintaining any appliance,

Questions?

1°800=944°9044

(United States)

1-866-213-9397

(Canada)

or visit our web site at www.frigidaire, corn

Extend Your Warranty Protection

With An

Extended Service Contract

CALL t-800-944-9044

To Enjoy These Benefits:

Please record your model and seriaJ numbers beJow for

future reference.This information is found on the serial

plate located inside the refrigerator compartment.

NOTE:Use

Model Number: Serial Number: Purchase Date:

only soar., and water to clean serial plate.

Total freedom from repair biims so

unexpected repairs won't upset your budget.

Fast, convenient toil-free service is just a phone call away.

Top-quality repairs by factory-trained

experts. Quick access to genuine replacement

parts so you can rest assured your refrigerator is repaired with the proper

components.

Please attach sales receipt

here for future reference.

Please complete and maia in the Product Registration Card included with your refrigerator.

FORYOURSAFETY

* Do not store or use gasoline, or other flammable liquids

in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and

other hazards. Do not operate the refrigerator in the presence of

explosive fumes.

o Avoid contact with any moving parts of automatic ice

maker. Remove all staples from the carton. Staples can cause

severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

CHILD SAFETY Destroy or recycle the carton, plastic bags, and any exterior

wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play with. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

PROPER DISPOSAL OF YOUR REFRmGERATOR OR FREEZER

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous - even if they will sit for "just a few days." if you are getting rid of your old refrigerator or freezer, please

follow the instructions below to

Before you throw away your old refrigerator/freezer:

Remove doors. Leave shelves in place so children may not easily climb

inside. Have refrigerant removed by a qualified service

technician.

ELECTRICAL mNFORMATION * The refrigerator must be ptugged into its own

dedicated 115VoJt, 60 Hz., AC onty electric outJet. The power cord of the appliance is equipped with a three=prong grounding plug for your protection against electrical shock hazards, it must be plugged directly into a properly grounded three=prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualified electrician. Do not use an extension cord or adapter plug.

, if the power cord is damaged, itshould be replaced bythe

manufacturer, service technician or a qualified person to prevent any risk.

, Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.

, Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

, Performance may be affected ifthe voltage varies by

10% or more. Operating the refrigerator with insufficient power can damage the compressor. Such damage is not covered under your warranty.

, Do not plug the unit into an outlet controlled by a wall

switch or pull cord to prevent the refrigerator from being

MPORTANT:PieSSngandho!d ngiheoozo bu oo

for S seconds located on the {eft side of the

temperature control pane!, wil! disab} e your

refrigerator's cooling system, but does net disconnect

must unplug the power cord from the wail outlet. ....

Do not, under any circumstances, I cut, remove, or bypass the

grounding prong..,)

Powercord with 3=pronggrounded pjug

Avoid connecting refrigerator to a Ground Fault interrupter (GFI) circuit.

ThisOwner'sGuideprovidesspecificoperatinginstructions foryourmodekUsetherefrigeratoronUyasinstructedinthis

Use&CareManuakBeforestartingtherefrigerator,follow

theseimportantfirststeps.

LOCATION

* Choose a pUacethat is near a grounded eUectricaUoutbt,

Do Not use an extension cord or an adapter pUug,

* if possiMe, pUacethe refrigerator out of direct sunlight

and away from the range, dishwasher or other heat

SOUrces,

* The refrigerator must be installed ona floor that is bveU

and strong enough to support a fully baded refrigerator,

* Consider water suppUyavailability for modeb equipped

with an automatic ice maker.

mNSTALLATJON

the temperature will drop beJow 55°F (13°C) or rise above tl O°F(430C). The compressor wiJJnot be aMe

to ma!ntain proper temperatures inside the

lowerfront of your refrigerator. Sufficient air circulation

!s essential for the proper operation of your

refrigerator.

Installation Clearances

* Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical

connections:

Sides &Top 3/8" Back 1"

DOOR OPENING

side against a wail, you may have to allow additional space so the door can be opened wider,

To/rratall Toe Grille:

1, Open freezer and

fresh food

2, Line up toe grille at

making sure the four bottom tabs are -_ /

resting through hobs --_

at base of cabinet,

Starting from left side of toe grille, press in on first top tab using your thumb and push toe grille forward until it snaps in place, Continue this process until all tabs aresnapped in place and toe grille issecured to refrigerator,

LEVEUNG Allfourcorners ofyour refrigeratormust restfirmlyon a solid floor,

Your refrigerator is equipped with adjustable front rollersto help levelyou runit,Toensure proper doorseal and assistdoor closing, the refrigerator should be tilted 1/4"(6 mm),front to back,

ToLevel Your Refrigerator:

1, Removetoe grille,(See '?-oRemove ToeGrille",) 2, Useflat-blade screwdriver or 3/8" socket wrench to adjust

front rollers.

Cabinet

Your refrigerator should be positioned to allow easy access to a counter when removing food, For best use of drawers and freezer baskets, the refrigerator should be in a position where

both the refrigerator and freezer doors can be fully opened,

TOE GRILLE INSTALLATmON / REMOVAL

To Remove Toe Grille:

1. Open freezer and fresh food compartment doors,

2. Working from left side of toe grille, slip your fingers between top of toe grille and cabinet. Gently pull forward until first set of tabs are free. Slide your hand down past the free tabs and pull forward again until the second set of tabs are free. Continue this process until all tabs are free and the toe grille can be removed. (See graphic at top of page in right column.)

themselves within a 20 degree opening,

Raise

3, Check both doors to be sure seals touch cabinet on all four

sides,

iftstallatio - connecting Ice Maker To Water Supply

To avoid eJectric shock, which can cause death or severe personaJ injury, disconnect the refrigerator

from eJectricaJ power before connecting a water supply line to the refrigerator.

To Avoid Property Damage:

o Copper tubing is recommended for the water suppJy Jine.Water supply tubing made of ¼"" plastic is not

recommended since it greatly increases the potentiaJ for water leaks. Manufacturer will not be responsiMe for any damage if plastic tubing is used for supply line.

o DO NOT install water supply tubing in areas where temperatures fai! beJowfreezing. o ChemicaJs from a maffunctioning softener can damage the ice maker, if the ice maker is connected to soft

water, ensure that the softener is maintained and working properly.

IMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes,

Before/nstafling The Water Supply Line, You Wifl Need ,, BasicTools: adjustable wrench, flat=blade screwdriver, and PhillipsTM screwdriver o Access to a household cold water line with water pressure between 20 and 100 psi,

A water supply line made of ¼ inch (6,4 mm) OD, copper tubing, Todetermine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe, Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown),

A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shutoff valve.

A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

To Connect Water Supply Line To Ice Maker Inlet Va/ve

1, Disconnect refrigerator from ebctric power source, _ F_U!Tub_

to Ice Maker

2, Place end of water supply line into sink or bucket, Turn ON water supply Brass

and flush supply line until water is clear. Turn OFF water supply at shut compression off valve.

,Jut

3. Unscrew plastic cap from water valve inlet and discard cap.

4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,

as shown.

5. Push water supply line into water valve inlet as far as it wiii go (¼ inch).

Slide ferrule (sleeve) into valve inlet and finger tighten compression nut watervalve onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to rear panel of inbt

refrigerator as shown.

7. Coil excess water supply line (about 2V2turns) behind refrigerator as shown

and arrange coils so they do not vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any connections that

leak. flora househald water supply

9, Reconnect refrigeratortoelectrical powersource, (!ncludeenoughtubinginlooptoallow

10. Make sure ice maker power switch is turned On (See page 13 for location of rr_ovin_ refr geratorouforcleaning.}

power switch),

cause !ce make[ to CYC!etwo or three times before making a full tray of ice. New plumbing may cause ice to be

discolored or have poor flavor. Discard ice made during the first 24 hours.

Screw Cover Sc,ew

Hinge _///_iup H{ng_

TO DmSCONNECT

•Pressouter r gagal _tface

TO CONNECT n_ _,<

1SO_"t tube 8rid u_ _

oush until mark touches face of fitting

Screw

_emove JuDe

Door Removal Instructions

ToolsNecessar,

3/8" Fixed Wrench

Phi ED_ r_eoc_

DOOR REMOVAL INSTRUCTIONS:

If it is necessary to move the refrigerator through narrow doorways, foflow these steps to remove the doors.

IMPORTANT: Before you begin, turn OFF the Electronic Control on your refrigerator. Toturn off al power to your refrigerator you must unplug the power cord from the wall outlet. Remove any food from door shelves.

1. Disconnect electrical supply.

2. Open both doors, then remove toe grille.

3. Close doors.

To Remove Refrigerator Door:

1 Remove top hinge cover screw on refrigerator door and remove cover.

2. Trace around hinge with soft lead pencil. This will make it easier to realign doors when they are replaced.

3. Remove top hinge and lift refrigerator door off bottom hinge pin. Set door aside

4. Remove bottom hinge, f necessary.

5. Reverse this procedure to reinstall refrigerator door

To Remove Freezer Door:

1. Disconnect water line coming from lower hinge of freezer door at connection located under front of freezer: Press outer ring against face of fitting, then pull

to remove tube.

2. Remove top hinge cover screw on freezer door and remove cover.

3. Disconnect wiring harness connector plug at top hinge: place your thumbs on fiat sides of each connector and bend both parts back and forth, then with firm grasp, puii both pieces apart.

4. Trace around hinge with soft lead pencil. This wiii make it easier to realign doors when they are replaced.

5. Remove top hinge, allowing wiring harness to pull through hinge and lift freezer door off of bottom hinge pin.Lay door down fiat to avoidkinking water line.

6. Remove bottom hinge, f necessary.

7. Reverse this procedure to reinstall freezer door.

When both doors have been reinstalled, connect water line by inserting tube and

push until mark touches face of fitting, replace toe grille and plug in electrical power

cord. Turn both temperature controls to center position. Adjust settings as necessary.

SpiHProof_M CAUT(ON:

$he(f Do Not Remove

net Behind

Dairy

Compartment

iceContainer-

She(f--

Shelf--

Ti(tOut

DoorBin--

SmallBasket-

Large_

G(ideOut

Basket

Ti(tOut-

Door Bin

Large Basket-

Door Bin

Tall Bottle

Retainer Door Bin

Special item Rack

)

Meat Keeper and Cover

Can Rack

Crisper Pan

and Cover Fixed

Door Bin

Toe Grille

Features may vary according to model

ALLOWINGCOOLINGTIMEBEFOREUSE

To ensure reliable food storage, allow your refrigerator and freezer to operate with the doors closed for 8 to

12 hours before placing food inside. During this cooling pedod, you do not need to adjust the controls, which

are preset at the factory.

SETTINGCOOLINGTEMPERATURES

Your refrigerator comes with a state-of4he-art electronic digital control system. The system's control panel is located at the top of the the fresh food compartment.

The two digital displays on the left half of the control panel indicate the current settings or temperatures of your

freezer and fresh food compartments. The models with a 2-digit temperature display are for reference only, and

do not display the current accurate compartment temperature. Should you desire to see what the current accurate temperature is, place a separate thermometer inside the freezer or fresh food compartment in the

desired location.

(Temperatul'e DispJay - Features may vatyo}

To adjust the temperature to a higher or lower setting, press the Up (Cold) or Down (Co_der) button closest to the display. The first time you press the button, the display shows current setting you entered. Each press of the button after that changes the setting by one.

The display shows your new setting momentarily, then changes back to the current temperature.

MakingTemperatureAdjustments

After running your refrigerator for 24 hours, you can adjust temperatures as needed. Make your adjustments small and gradual, allowing time for temperatures to change and stabilize. Refer to the following guidelines for temperature settings.

ChoosingFahrenheitor Centigrade

Depending on which temperature standard you prefer to use, you can set your control panel to

display in fahrenheit or centigrade. To change between fahrenheit and centigrade, press the Mode button (located between the two digital temperature displays).

Press to alternate between Fahrenheit and Centigrade

WhatToDo ifTheTemperatureDisplaysFlash

if either display is continuously flashing, it may indicate that the control system has detected a performance

problem. Call your Electrolux service representative, who can interpret the flashing message.

Numeric Display

Freezer

Fresh

Food

TemperatureAdjustment Guide

If Fresh Eood compartment is too warm

if FreSh Food €ompa[tment iS too €o!d

If Freezer €ompartment is too wa[m

if Freezer Compartment is too Cold

Temperature Display (2-Digit)

Freezer

F o C °

Adjust Fresh Food control one degree colder by pressing Down (Colder} button.

Adjust Fresh Food control one degree warmer by pressing the Up (Cold} button.

Adjust Freezer control one degree colder by pressing Down (Colder} button.

Adjust Freezer control one degree warmer by pressing the Up (Cold} button.

Fresh Food

Fo Co

SYSTEM-MONITORINGALARMS

The electronic control system continuously monitors your refrigerator/freezer for temperature consistency

and doors left ajar. Variances from normal operating conditions are communicated by audible tones and a set of two status indicator lights.

Respondingto Alarms (AudibleTones&

IndicatorLights)

Your refrigerator's control system can convey the

following information through audible tones and the

alarm indicator lights.

Door Flashing Freezer or Fresh Food Close door to silence and reset alarm.

Ajar Green door has been open for

over five minutes.

Air Filter Indicator& StatusLights

Your refrigerator's fresh food air filter needs to be replaced from time to time. You can monitor the need for replacement by referring to the status light while the air filter is "ON". To turn on the air filter, press the "Air

Filter" button. To turn off the air filter, press the "Air Filter" button. To RESET the air filter, press the "Air Filter" button and hold for 3 seconds.

Air Filter Status Light

Green

Yellow

Red

Filter OK.

Air filter is about 80 percent used. Please order new one. Air filter is 100 percent used. Please change now.

(not available on all models)

TURNINGTHECOOLINGSYSTEMONANDOFF

You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel.

To ensure that you do not accidentally turn off the cooling system, the button does not work unless you

press and hold it for three seconds. WMle the cooling system is "OFF", the digital display

will show "OF .... OF" for temperature display models

and "0 .... F" for numeric display models.

Once you disable the cooling system, all refrigeration to the freezer and fresh food

compartments stops. To turn the cooling system back on, you must again

press and hotd the OnlOff button for three more seconds.

Cooling System On/Off Button

: / /t/¸

Looking reside

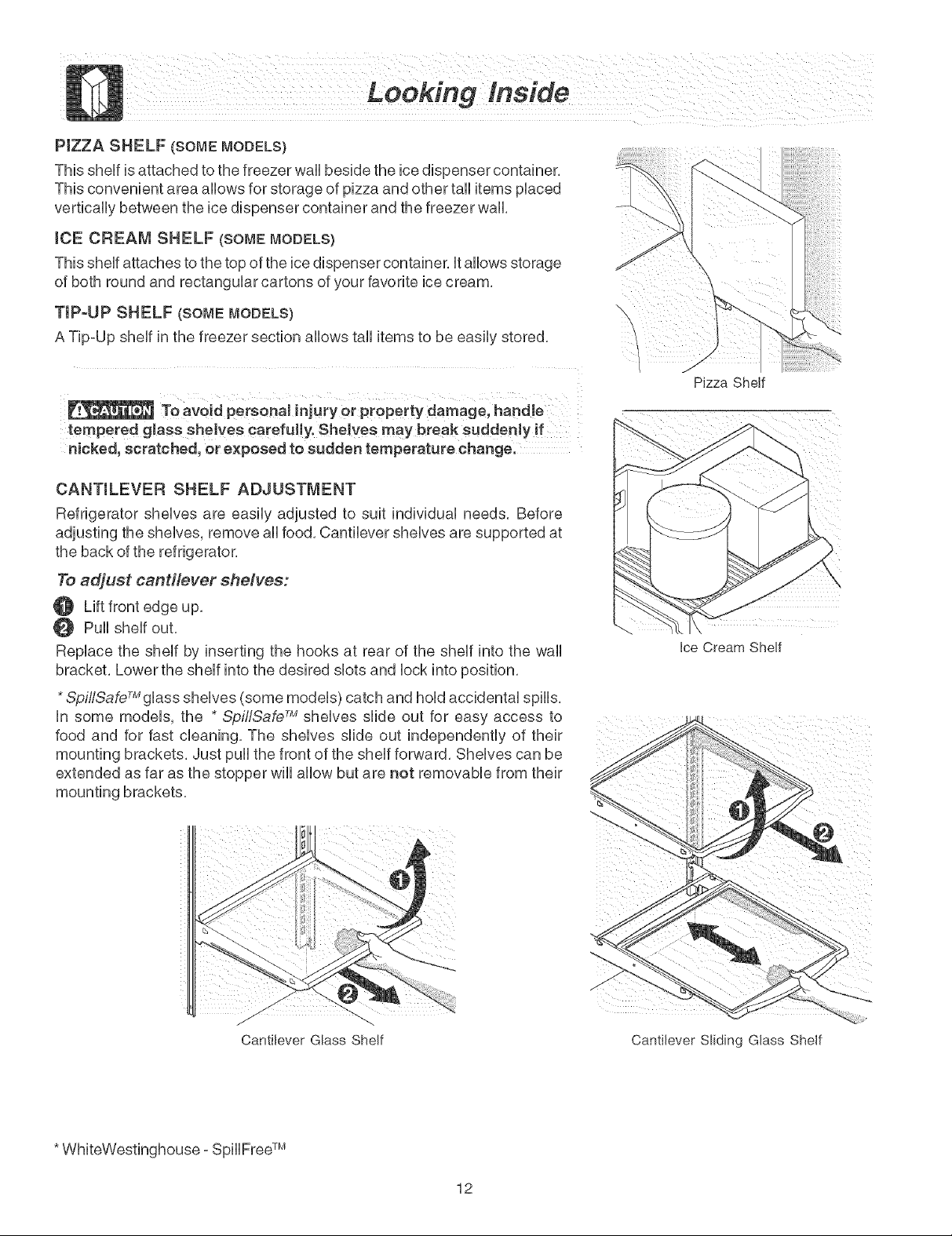

PIZZA SHELF (SOME MODELS}

This shelf is attached to the freezer wail bee[de the ice dispenser container, This convenient area allows for storage of pizza and other tail items placed vertically between the ice dispenser container and the freezer wail

ICE CREAM SHELF (SOME MODELS)

This shelf attaches to the top of the ice dispenser container, Itallows storage _. of both round and rectangular cartons of your favorite ice cream,

TIP-UP SHELF (SOME MODELS) A Tip-Up shelf in the freezer section allows tail items to be easily stored,

Pizza Shelf

tempered glass shelves carefully. Shelves may break suddenly !f

To avo!d Personal injUrY or Property damage, hand!e

nicked, scratched, or exposed to sudden temperature change.

CANTILEVER SHELF ADJUSTMENT

Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove a[[ food. Cantilever shelves are supported at the back of the refrigerator.

To adjust cantilever shelves:

O Lift front edge up,

Pu[[ shelf out,

Replace the shelf by inserting the hooks at rear of the shelf into the wail bracket, Lower the shelf into the desired slots and lock into position,

*SpiflSafe TMglass shelves (some models) catch and hold accidental spills,

In some models, the * Spfl/Safe TMshelves slide out for easy access to food and for fast cleaning, The shelves slide out independently of their

mounting brackets, Just pu[[ the front of the shelf forward, Shelves can be extended as far as the stopper w[[[ allow but are not removable from their

mounting brackets,

Ice Cream Shelf

Cantilever Glass Shelf

* TM

Wh[teWest[nghouse - Sp[[[Free

Cantilever Sliding Glass Shelf

DOORSTORAGE Doorbinsandshelvesareprovidedforconvenientstorage

ofjars,bottles,andcans,Frequentlyuseditemscanbe quicklyselected,

Somemodelshavedoorbinsthatcanaccommodate gallonosizedplasticdrinkcontainersandeconomyosized

jarsandcontainers,Somebinsareadjustablefor

maximumstoragecapacity, Thedairycompartment,whichiswarmerthanthegeneral

foodstoragesection,isintendedforshorttermstorageof cheese,spreads,orbutter.

ADJUSTABLE DOOR BraNS Some modeb have adjustabb door bins that can be

moved to suit individual needs,

Tomove door bins

1, Lift bin straight up,

2, Remove bin, 3, Place bin in desired position,

4, Lower bin onto supports until locked in place,

Tilt Out

Fixed DOor Bin

TALL BOTTLE RETAINER (SOME MODELS) The Tall Bottle Retainer keeps tall containers in the bin

from falling forward when opening or closing the refrigerator door, To install, hold the retainer at the top, and slide it over the outside wall of the bin, as shown in the diagram, The Tail BottUeRetainer works best with a Bin Snugger,

ustable Door Bin

SPECIAL ITEM RACK (SOME MODELS)

The innovative design of the SpeciaUitem Rack allows you to store a six-pack of 12 ounce drink cans, a bottb of

wine, a twoqter soft drink bottb, or a carton of eggs, The

SpeciaUitem Rack mounts on the Jeft side of your refrigerator, To install, just slide the SpedaU item Rack

onto any sheUfas shown in the drawing,

Tall Bottle Retainer (left) and Bin Snugger (right)

Special item Rack

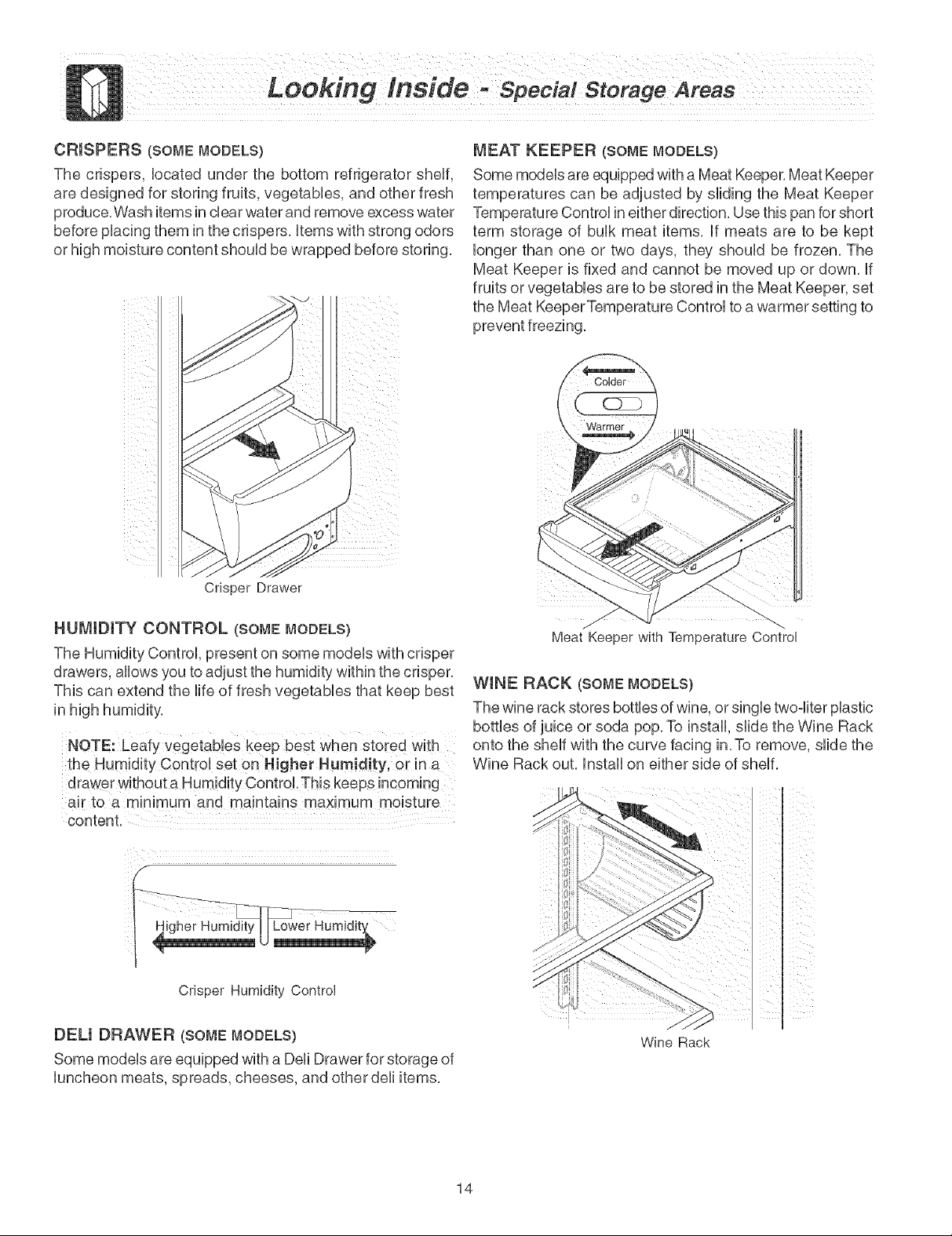

CRISPERS(SOMEMODELS) Thecrispers,bcatedunderthebottomrefrigeratorsheff,

aredesignedforstoringfruits,vegetaNes,andotherfresh produce,Washitemsindearwaterandremoveexcess water

before pUacingthem in the crispers, Utemswith strong odors or high moisture content shouUdbe wrapped before storing,

i i

Crisper Drawer

MEAT KEEPER (SOME MODELS) Some models are equipped with a Meat Keeper, Meat Keeper

temperatures can be adjusted by sliding the Meat Keeper Temperature Control in either direction, Use this pan for short term storage of bulk meat items, If meats are to be kept longer than one or two days, they should be frozen, The Meat Keeper is fixed and cannot be moved up or down, If fruits or vegetables are to be stored in the Meat Keeper, set the Meat KeeperTemperature Control to a warmer setting to prevent freezing,

HUMtD+TY CONTROL (SOME MODELS) The Humidity Control present on some modeUswith crisper

drawers, allows you to adjust the humidity within the crisper, This can extend the Hfeof fresh vegetables that keep best in high humidity,

iill

HigherHumidity Lower Humidit_

Crisper Humidity Control

DEU DRAWER (SOME MODELS) Some models are equipped with a Deli Drawer for storage of

luncheon meats, spreads, cheeses, and other deli items,

Meat Keeper with Temperature Control

WiNE RACK (SOME MODELS) The wine rack stores bottles of wine, or single two-liter plastic

bottles of juice or soda pop, To install, slide the Wine Rack onto the shelf with the curve facing in,To remove, slide the

Wine Rack out, Install on either side of shelf,

ii i

iii

t _

Wine Rack

AUTOMATIC iCE & WATER DISPENSER OPERATING iNSTRUCTiONS

\. \ / '\ / /

o? Ui //( ¸

Features may vary according to mode!.

EXTREME FREEZE

EXTRA ICE

CUBE

CRUSH

LIGHT

FILTER

STATUS

LOCK

To freeze food at a faster rate to preserve freshness, push the Touch Pad 0 for 3-5 seconds to activate this feature, A green HghtwHUappear above the Touch Pad, Push the Touch Pad Oagain

for 3-5 seconds to deactivate, To increase ice production for speciaU occasions, such as parties, push the Touch Pad _ for

3-5 seconds to activate this feature, A green HghtwHUappear above the Touch Pad, Push the Touch Pad _ again for 3-5 seconds to deactivate,

Press the CU BE Touch Pad _ to get cubed ice, A green light will appear above the Touch Pad, Press glass against ICE dispensing paddle _ as far up as possible to catch all ice,

Press the CRUSH Touch Pad Oto get crushed ice, A green light will appear above the Touch Pad, Press glass against ICE dispensing paddle _ as far up as possible to catch all ice,

Press the LIGHT Touch Pad _ to turn on dispenser light, Press___again to turn the light off,

The light also turns on automatically when ice and/or water is dispensed, Replace light bulb with an appliance bulb of the same wattage,

The FILTER STATUS indicator light above the Touch Pad _will light up each time the

is used, The following filter light indications are: Green The filter is still operating within its specified life cycle,

Amber The filter has reached approximately 80% of its useful life,This is the recommended time

to purchase a replacement filter,

Red The filter is 100% used up, Change the filter as soon as possible,

After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad_for

10-15 seconds,

NOTE: The Green, Red and Amber lights will flash when reset is completed,

The Ice & Water Dispenser can be tocked out to prevent unwanted use, To Lock Out Press the LOCK Touch Pad 0 for 3-5 seconds, A Red light will appear above

the Touch Pad,

dispenser

WATER

To UnJock Press the LOCK Touch Pad _ for 3-5 seconds until the Red light above the

Touch Pad goes out,

To operate the water dispenser, press a glass against the WATER d_pensing paddle _, To stop dispensing water, pull the glass away from the dispensing paddle_, Dispensed water is not

cold, For colder water, add crushed ice or cubes before dispensing water, A drip tray located at the base of the dispenser catches small spills and allows them to evaporate, This drip tray is

removable and dishwasher safe, Do not pour water and excess ice in this area because there is no drain,

iCE AND WATER DISPENSER FEATURES The ice and water dispenser convenbntUy dispenses chHbd water, and ice cubes or crushed ice, depending on the model

Tooperate the ice dispenser, sebct the ice option desired using the touchpad, Press a glass against the dispensing paddb as far up as possibb to catch aHice, To stop dispensing ice, pull gUassaway from dispensing paddb, Do not remove the gUassuntil the ice has compbteUy dispensed, (Compbte instructions for the dispenser operation are attached to the inside of the freezer door,)

How the Water Dispenser Works

The water tank, bcated behind the drawers in the refrigerator compartment, automatbaHy fills as water is dispensed. For proper dispenser operation, the recommended supply water pressure should fall between 20 psi and 100 psi.

After the refrigerator is connected to the water supply, fill the water tank by drawing one glass of water, It may take about 11/2minutes after activating the dispenser paddle before water begins to fill this first glass, Continue flushing the system for 3 minutes to rid the tank and plumbing connections of any impurities, The water dispenser has a built in shutoff device that will stop the water flow after 3 minutes of continuous use. Simply release the dispenser paddle to reset the shutoff

mechanism.

ChemicaJs from a maffunctioning softener Candamage the ice makerl ff the ice maker is Connected

to soft water, ensure that the softener is maintained and working properly.

How the ice Dispenser Works

The ice maker and container are located in the top of the freezer compartment. After the

refrigerator is installed properly and has cooled for several hours, the ice maker can begin

making ice within 24 hours. Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice. Ice production is controlled by the ice

maker's On/Off power switch. Press the switch to the "O" position to turn it Off and press it to the '1" position to turn it On. With no usage it will take approximately 2days to fill the ice

container. The ice maker also has a built-in wire signal arm,which automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the

)

ice maker. The ice maker produces 4 to 6 pounds of ice every 24 hours depending on usage conditions.

ice is produced at a rate of 8 cubes every 75 to 90 minutes. Because of new plumbing connections, the first production of ice cubes may be discolored or have an odd flavor. These

should be discarded until the cubes made are free of discoloration and taste.

iCE DmSPENSER TIPS

Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the ice maker's On/Off

power switch is turned On (set to the '1"position). The ice maker will then produce more ice. Occasionally shake the ice container to keep ice separated.

o Keep the ice maker's On/Off power switch turned Off (set to the "O" position) until the refrigerator is connected to

the water supply or whenever the water supply isturned off.

IMPORTANT: The ice maker !s turned On at the factory so itcan work as soon asyou insta!! your rdr!gerator, If you

canno t connect a water supply, turn the On!Off switch to the Off ('O) position. Otherwise, the ice makers valve maY be noisy when it attempts t° operate without water.

!fthed!spens!ng paddle is pushed for more tha n 4 minutes, the dispenser motor may 0verload

and stop.The overload protector wiJl reset automatically after 3 or 4minutes.

o Ufa Uargequantityoficeisneededatonetime,itisbesttoremovecubesdirectUyfromtheicecontainer. o ThefollowingsoundsarenormaUwhentheicemakerisoperating:

€

* Ucedropping into ice container * Water vaUveopening or dosing

* UceUoosening from tray

o Running water

o Turn Off the ice maker when cUeaning the freezer and during vacations. * Ufthe ice maker wHUbe turned off for a Uongperiod of time, you shouUd aUsoturn off the water suppUyvaUve.

CLEANING THE raCE DISPENSER

Do not use the ice chute as a handmewhen removing or repmacing the ice storage bin.

Surfaces there may be sharp.

Clean the dispenser and ice container at regular intervals, particularly before you take a vacation or move, or if the ice dispenser sticks,

1, Turn off ice production by pressing the ice maker's On/Off switch, 2, Remove ice container by lifting up and out, Empty and carefully clean

the container with mild detergent, Rinse with clear water, Do not use harsh or abrasive cleaners, Allow ice container to dry completely before replacing in the freezer,

3, Remove ice chips and clean the shelf and chute that supports the ice

container,

4, Replace the ice container, Press the ice maker's On/Off switch to

resume ice production,

Do not put fingers up ice chute. Surfaces

_,,theremay be sharp. 1

JlVIPORTANT: When removing or replacing the ice bin. do not

rotate the auger in the ice bin. If the auger is accidentally turned, you must realign the auger byturning it in 90° turns until the ice bin fits into place with the drive mechanism.

Remove and empty the ice storage bin if:

1. An extended power failure Conehour or Ionger_ causes ice cubes in the ice storage bin to melt and freeze together and jam the dispenser

mechanism

2. The ice dispenser is not used frequently, ice cubes wiii freeze together

n the bin and jam the dispenser mechanism. Remove the ice storage

bin and shake to loosen the cubes.

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice storage bin and dispenser mechanism

PureSource TM*ice and Water Fi#er (some models)

NOTE:ifyoup"t°has ,ar frigerator e ut"e ao.Waterf.te ,p easetea.thefo.o inguse

and care informat!on. This ice and water filter SYStem tinters water to your ice maker and water dispenser. It is located in the upper right back corner of the fresh food compartment.

a Put" So 'c TM*

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section

to properly fill the system with water. Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every 6 - 9 months normally will ensure the highest possible water quality. The Filter Status light will turn red after 400 gallons of water has flowed through the ice and water dispenser (some models). Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed),

To change filter:

It is not necessary to turn the water supply off to change the filter.

Fimter Cartridge-

FiBtercUpJL i?_\f

Order new filter cartridges through the dealer where you bought the refrigerator, contact the Customer Care Center at

1-800-944-9044, or go to our web site at

www.friqidaire.com. It might be good to order some filter cartridges when you first

install your refrigerator. Be sure to ask for the RG-100 PureSoume TM*replacement

cartridge.

The PureSoume TM * NGRG- 2000 Ice and Water Filter System with the RG-100 cartridge is tested and

certified by NSF International,

the nationally recognized and respected,

not for profit, certification organization for public health safety. The PureSource TM*

system is tested and certified to ANSl/NSF Standard 42. See performance data sheet

for specifications. This system should not

be used on water that is microbiologically unsafe or with water of unknown quality

unless the water has been adequately disinfected before or after traveling through

the filtration system.

Rated Capacity - 400 gallons Rated service flow - .5 GPM

Maximum Rated Pressure - 100 PSI Maximum Operating Temp. - 100° F

* White Westinghouse uses the name CrystaIClear instead of PureSource, but they are the same filter

1. Open freezer door and leave open until filter change is complete.

2. Turn the ice maker's power switch to the Off ("O") position (See illustration on page 16).

3. Hold filter cup firmly, and unscrew towards left (Some water could leak out as you remove cup. This is normaL). Filter cartridge should come down with cup. if cartridge remains in housing, pull down gently, while twisting filter back and forth.

4. Rinse out cup under running water.

5. The large o-ring that seals the filter system sets in the o-ring groove down inside the cup. Should the o-ring fall out during filter cartridge replacement, simply place it back in the groove prior to screwing the cup

back in place, if the o-ring becomes damaged, you will need to order one from the Customer Care Center.

6. Discard old filter cartridge.

7. Remove new filter cartridge from packaging and place in cup. The end

with the small o-ring should be up, out of the cup.

8. Screw cup, with filter, back onto housing. Do Not Use Wrench To Re{nstaH Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is

completely tightened with PureSource TM logo facing outward. Do Not Tighten Past Stop.

9. Turn the ice maker's power switch to the On ("1") position.

10. Check for leaks. Open refrigerator door. Wipe any water droplets from the filter cup. Fill a glass with water, if there is a leak, unscrew filter cup, and reinsert the filter cartridge. Check placement of large O-ring. Reinstall filter cup, making certain it is tightened completely.

11. To condition filter system and purge air from water line, fill a glass with

water. Continue flushing the system for approximately 3 minutes to assure

that the purest water possible is stored in the water tank.

After replacing the fiite[ cartridge, it w!il be necessary t0 press the Filter

Status reset button located Onthe ice and water dispenser. This will reset lights flash (10-15 seconds)_ P!ease refer to the complete dispenser

On models without a Filter Status reset button, there is a set of

Reminder Stickers !ncluded in the envelope that the Use & Care Manual

came in. Choose a dated sticker that indicates 6 _9 months (depending on your wate[ qua!ity and usage) from the date of !nstallation, Place the sticker on the front of th÷ filter Cup to rem!nd you when !t !s t!me to

change the filter,

PureSourceZ M * Ice and Water Front Filter (some models)

NOTE: If you purchased a refrigerator with a PureSoufce2TMIce and Water front fitter, please read the following use and care !nformation. This ice and wate_ filter system tinters water to YOUrice maker and water dispenser. !t is

located in the upper right front corner of the fresh food compartment.

System Startup:

Works section to properly fiii the system with water.

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every 6 - 9 months normally will ensure the highest possible water quality, The Filter Status light will turn red after approximately 400 gallons of water has flowed

through the ice and water dispenser. Also, if the filter has been in a refrigerator that has not been in use for awhile (during moving for example), change the filter

before reinstalling the refrigerator. The dispenser system will also operate without filtration (with filter cartridge removed and bypass installed).

To change filter:

it is not necessary to turn the water supply off to change the filter.

To mnstaU To Release

1. Turn the ice maker's power switch to the Off ("O") position (See illustration on page 16).

2. Push the Filter Release Button, located to the right of the filter cartridge, to release the filter from the housing. To minimize the possibility of the filter falling out of the housing during removal, it would be best to hold the

Order new filter cartridges through the dealer where you bought the refrigerator,

contact the Customer Care Center at 1-800-944-9044, or go to our web site at

www.friqidaire.com. It might be good to order some filter cartridges when you first

install your refrigerator. Be sure to ask for the FC-100 PureSource TM*replacement

cartridge.

filter as it moves out toward you.

NOTE: A small amount of water may be released during this operation,

You should have a paper towel or dish cloth handy to wipe up any water

that may drip out of the fi!ter or housing.Twc) small holes near the back of

the housing have been added for any excess water to escape. !t w0u!d be

best to Clear away any food near this area on the top she!f in advance of removing the filter.

3. Pull the old filter cartridge straight out of the housing.

4. Discard the old filter.

5. Remove the new filter cartridge from the packaging and insert into the

The PureSource2 rM" Ice and Water Filter System NGFC

2000 with the PureSoumeZ M" cartridge FC 100 is tested and

certified by NSF International,

the nationally recognized and respected,

not for profit, certification organization for

)ublic health safety. The PureSoumeZ '_

Filter system is tested and certified to ANSI/ NSF Standards 42 and 53. See

)erformance data sheet for specifications.

This system should not be used on water that is microbiologically unsafe or with water

of unknown quality unless the water has

been adequately disinfected before or after

traveling through the filtration system. ,, Rated Capacity - 400 gallons

,,Rated service flow - .5 GPM ,,Maximum Rated Pressure - 100 PSI

,,Maximum Operating Temp, - 100 ° F

White Westinghouse uses the name CrystaIClear instead of PureSource, but they are the same filter.

filter housing the same way the old one came out.

6. When the cartridge is almost in, you will feel it stop against the clip assembly in the back of the housing. The clip assembly holds the filter cartridge firmly in place. At this point, you will need to push firmly until the cartridge snaps fully in place.When completely in place, the front of the filter cartridge will be flush with the front of the housing.

7. Turn the ice maker's power switch to the On (1") position.

8. Fill a glass with water. As you are doing this, check for leaks at the filter housing. There will be noticable spurts and sputters as the system pushes the air out through the system and out the dispenser nozzle. This is normal.

9. After you have run one glass of water, continue to flush the system for approximately 3 minutes to assure that the purest water possible is stored

in the water storage tank.

IMPORTANT: Resetting The FiJter Status Light (some models) After replacing the filter cartridge, it will be necessary to press the Filter

Reset button located on the ice and water dispenser_ This will reset the

Filter Status light, Push the reset button until the green, red and amber

!ights flash (10:15 seconds). Please refer to the complete dispenser

operating instructions attached to the inside of the freezer door.

FOOD STORAGE IDEAS

Fresh Food Storage

The fresh food compartment shouUdbe kept between 34° F and 40° F with an optimum temperature of 37° R Avoid overcrowding the refrigerator sheUves.This reduces the circulation of air around the food and resuUtsin uneven cooling.

Fruits and VegetaMes o Storage in the crisper drawers traps moisture to heUppreserve the fruit and vegetabUe quality for Uongertime periods.

Meat * Raw meat and pouUtryshouUdbe wrapped secureUyso Ueakageand contamination of other foods or surfaces does not

occur,

Frozen Food Storage

o The freezer compartment shouUdbe kept at 0° F or Uower.

A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

To minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an off-flavor (freezer burn).

o Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

Do not refreeze meat that has completely thawed.

Loading the Freezer

o Avoid adding too much warm food to the freezer at one time, This overloads the freezer, slows the rate of freezing,

and can raise the temperature of frozen foods, o Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible. o Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are

best stored in the freezer interior where the temperature varies less.

ENERGY SAVING IDEAS

o Locate the refrigerator in the coolest part of the room. out of direct sunlight,

and away from heating ducts or regusters. Do not place the refrigerator next to heat-producing appliances such as a range, oven. or dishwasher.

f this is not possible a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently.

o Level the refrigerator so that the doors close tightly. ° Refer to this Use & Care Manual for the suggested temperature control

settings

° Periodic cleaning of the condenser will help the refrigerator run more

efficiently. See the Care and Cleanin9 Charton page 22.

o Do not overcrowd the refrigerator or block cold air vents. Doing so causes

the refrigerator to run longer and use more energy.

o Cover foods and wipe containers dry before placing them in the

refrigerator. This cuts down on moisture build-u p inside the unit. Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

UNDERSTANDINGTHESOUNDSYOUMAYHEAR

YournewMgh-effbbncyrefrigeratormaymakeunfamiliar sounds,TheseareaHnormaUsoundsandsoonwHUbecome

familiartoyou,Theyaboindicateyourrefrigeratorisoperating asdesigned,Hardsurfaces,suchasvinyUorwoodfloors, wafts,and kitchencabinetsmaymakesoundsmore

notbeabb,Listedbebwaredescriptionsofsomeofthemost

commonsoundsyoumayhear,andwhatiscausingthem,

butisnotasoundinsulator.

A. Evaporator

The flow of refrigerant through the evaporator may create a boiling or gurgfing sound,

B. Evaporator Fan

You may hear air being forced through the refrigerator by the evaporator fan,

C, Defrost Heater

During defrost cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound, After defrosting, a popping sound may occur,

your freezer Compartment. This is normal during the defrost cycle,

Do Automatic tce Maker

if your refrigerator is equipped with an automatic ice maker, you wiii hear ice cubes failing into the ice bin,

E. Cold Control & Automatic Defrost Control

These parts can produce a snapping or clicking sound when turning the refrigerator on or off,

F. Condenser Fan

You may hear air being forced through the condenser by the condenser fan,

G. Compressor

Modern, high-efficiency compressors operate much faster than older models, The compressor may have a high-pitched hum or pulsating sound,

H. Water Valve

If your refrigerator is equipped with an automatic ice maker, you will hear a buzzing sound as the water

valve opens to fill the ice maker during each cycle,

so it can work as soon as you install your refrigerator. To ensure proper function of your ice maker, connect a

water supply immediately or turn the on/off switch to

the Off ('10!')position.

t. Drain Pan (not removab/e)

You may hear water running into the drain pan during the defrost cycle,

do Condenser

May create minimal sounds from forced air,

Ko Motorized Damper

May produce a light humming during operation,

Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.WipeupanyspHbimmediateUyandcleanbothsections atbasttwiceayear,Neveruseanytypeofscouringpads,brushes,abrasivecbanersorstrongaUkaHnesoUutionson anysurface,DonotwashanyremovaMepartsinadishwasher.Alwaysunplug the electrical power cord from the

wall oudet before cleaning.

• When moving the refrigerator, pull straight out, Do not shift the refrigerator from side to side as this maytear or gouge the floor covering, If the refrigerator has an automatic ice maker, be carefuJ not to move the refrigerator beyond the pJumbing connections.

- Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands. o Never use CHLORIDE to clean stainless steel

NOTES:

- The On/Off button on the Electronic Control only controls your refrigerator's cooling system, To turn off power to your refrigerator you must unplug the power cord from the wal outlet,

, Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing

adhesive labels, Any glue bft from tape or labels can be removed with a mixture of warm water and mild

detergent, or. touch the glue residue with the sticky side of tape you have already removed, Do not remove the

seriaJ pJate,

Care & Cleaning Chart

Part

Interior/Door Liner

Door Gaskets • Drawers/Bins • Glass Shelves •

Toe Grille •

Exterior and • Handles •

(Stainless Steel Models Only)

What To Use Tips and Precautions

Soap and water Baking soda and water

Soap and water Soap and water

Soap and water Glass cleaner

Mild liquid sprays Soap and water

Mild liquid sprays Vacuum attachment

Soap and water Non Abrasive Glass

Cleaner

Soap and water Ammonia

Stainless Steel Cleaners

Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.

Wipe gaskets with a clean soft cloth. Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Allow glass to warm to room temperature before immersing in warm water.

Vacuum dust from front of toe grille. Remove toe grille (See illustration on page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and dry.

Do not use commercial household cleaners, ammonia, or alcohol to clean handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to clean smooth doors.

Never use CHLORIDE to clean stainless steel.

Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an

ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer's instructions. NOTE: Always clean, wipe and dry with the grain to prevent cross-grain scratching. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

buJbstoavoid getting cut.

REPLACING LmGHT BULBS

Wear gUovesas protection against possibUebroken gUass,

3, Remove Hghtcover, if necessary, 4, Unscrew and repUacecudbuUbwith an appliance buUb

of the same type and wattage,

5, RepUaceHght cover, if necessary, 6, Remember to pUugthe refrigerator back in,

Light SOckets ht Cover Located Behind

Refrigerator Light RepEacement

Light Bulbs

Short • Vacations •

Long

Vacations

Moving

Located Behind Right Rear of ',ceContainer

Crisper Light Replacement (Models may vary) Freezer Light Replacement

Vacation and Moving Tips

Leave refrigerator operating during vacations of 3 weeks or less. Use all perishable items from refrigerator compartment.

Turn automatic ice maker off and empty ice bucket, even if you will only be

gone for a few days.

• Remove all food and ice if you will be gone one month or more.

• Turn off automatic ice maker and turn water supply valve to closed position.

• The On/Off button on the Electronic Control only controls your refrigerator's cooling system. To turn off power to your refrigerator you must unplug the

power cord from the wall outlet.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

• Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

the ice and water system must be drained completely, Fa!lure to do so could result in water leaks when

the refrigerator is put back into Service, Contact a service representative to perform this operation,

REFRIGERATOR WARRANTY

Your refrigerator is protected by this warranty

WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:

PERIOD WE WILL:

FULL ONE-YEAR One year from original Pay all costs for repairing or replacing any parts of this Costs of service calls that are listed under NORMAL

WARRANTY purchase date appliance which prove to be defective in materials or RESPONSIBILITIES OF THE CONSUMER. *

LIMITED 2_-5 TM Second through fifth Repair or replace any parts in the cabinet liner or Costs for pick up and delivery of the appliance required because YEAR WARRANTY years from original Sealed Refrigeration System (compressor, condenser, of service. Costs for labor, parts and transportation other than (Cabinet Liner and purchase date evaporator, drier and tubing) which prove to be with respect to the cabinet liner or Sealed Refrigeration System.

Sealed System) defective in materials or workmanship.

LIMITED Time periods listed All of the provisions of the full warranties above and Costs of the technician's travel to the home and any costs for WARRANTY above, the exclusions listed below apply, pick up and delivery of the appliance required because of (Applicable to the service.

Stateof Alaska)

in the U.S.A. your appliance is warranted by Ebctrolux Home Products, Inc. We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized

Ebctrolux Home Products, Inc. servicer, in Canada, your appliance is warranted by Ebctrolux Canada Corp.

*NORMAL This warranty applies only to products in ordinary household use, and the consumer is responsible for the RESPONSIBILITIES items listed below:

OF THE CONSUMER 1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc. which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

8. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND iNCiDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY iMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc. Electrolux Canada Corp. or its authorized servicers; use of parts other than genuine Ebctrolux Home Products, Inc. parts; obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power

supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the SERVICE warranty period should service be required, if service is performed, it is in your best interest to obtain and keep all

receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Ebctrolux

Canada Corp.

This warranty only applies in the 80 States of the U.S.A, in Puerto Rico, and in Canada. Product features or specifications as described or illustrated are subject to change without notice. A!l warranties are made by Ebctrolux Home Products, Inc. In Canada, your appliance is

warranted by Electrolux Canada Corp.

workmanship. Excludes original and replacement Ice & Water filter cartridges (if equipped). Original and

replacement cartridges are warranted for 30 days (parts only).

0!-U-RE-02 (Rev. 01/2002)

USA

800.944.9044 Electrotux Home Products, Inc

RO. Box 212378

Augusta, GA 30917

Canada

866,,213,.9397

Electrolux Canada Corp.

8180 McLaughlin Road

Mississauga, Ontario

LSR 4C2

PROBLEM 1 CAUSE CORRECTION

RUNNING OF REFRIGERATOR

Compressor does not run.

Refrigerator runs too much or too long.

Compressor goes off and • Thermostat keeps the • This is normal. Refrigerator goes on and off to keep on frequently, refrigerator at a constant temperature constant.

TEMPERA TURES ARE TOO COLD

• Freezer control is set to "OF".

• Refrigerator is in defrost cycle.

Plug at wall outlet is

disconnected. House fuse blown or tripped

circuit breaker.

Power outage. Room or outside weather is

hot.

Refrigerator has recently been

disconnected for a period of time.

Automatic ice maker is operating.

Doors are opened too

frequently or too long.

Refrigerator/freezer door may

be slightly open.

Freezer control is set too cold

(control found in refrigerator section).

Refrigerator/freezer gasket is

dirty, worn, cracked, or poorly fitted.

Condenser is dirty.

temperature.

• Set freezer control. See Temperature Controls section.

• This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30

minutes.

• Ensure plug is tightly pushed into outlet.

Check/replace fuse with a 15 amp time-delay fuse.

Reset circuit breaker.

Check house lights. Call local Electric Company.

It's normal for the refrigerator to work longer under

these conditions.

It takes 8-12 hours for the refrigerator to cool down

completely.

• Ice maker operation causes refrigerator to run slightly more.

• Warm air entering the refrigerator causes it to run more. Open doors less often.

• Ensure refrigerator is level. Keep food and containers from blocking door. See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS.

• Set refrigerator control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours

for temperature to stabilize.

• Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.

Clean condenser. See Care & Cleaning Chart in Care and Cleaning section.

Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours cold. Refrigerator for temperature to stabilize.

temperature is satisfactory. Refrigerator temperature • Refrigerator control is set too • Set refrigerator control to a warmer setting. Allow 24

too cold. Freezer cold. hours for temperature to stabilize. temperature is satisfactory.

Food stored in drawers • Refrigerator control is set too • See solution above. freezes, cold.

Food stored in Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a lower Keeper freezes (some Control set too cold. setting. (Meat should be stored at a temperature just

models), below the freezing point for maximum fresh storage

time. It is normal for ice crystals to form due to the moisture content of meat.)

Digital temperature • Electronic control system has • Call your Electrolux service representative, who can displays are flashing, detected a performance interpret any messages or number codes flashing on

problem, the digital displays.

P.OBLEMJ CAUSEl CO..EOT.O.

TEMPERA TURES ARE TOO WARM

Freezer/Refrigerator

temperature is too warm.

Freezer temperature is too • Freezer control is set too • Set freezer control to a colder setting. Allow 24 hours

warm. Refrigerator warm. for temperature to stabilize.

temperature is satisfactory.

Refrigerator temperature is • Refrigerator control is set too • Set refrigerator control to a colder setting. Allow 24

too warm. Freezer warm. hours for temperature to stabilize. temperature is satisfactory.

Temperature in the Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a colder

Keeper is too warm (some Control is set too warm. setting. models).

WA TER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on inside

of refrigerator walls.

Water collects on bottom • • It is not unusual to have moisture on the bottom side of side of drawer cover, the cover.

Water collects in bottom of • Washed vegetables and fruit • Dry items before putting them in the drawer. Water drawer, drain while in the drawer, collecting in bottom of drawer is normal.

WA TER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Doors are opened too frequently or too long.

Door is slightly open.

Condenser is dirty.

Weather is hot and humid.

Door is slightly open.

Door is opened too often or too long.

Open containers.

• • Keep containers covered. Vegetables contain and give

off moisture.

• Warm air enters the refrigerator whenever the door is opened. Open the door less often.

• See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

• Clean condenser. See Care & Cleaning Chart in Care and Cleaning section.

• The rate of frost buildup and internal sweating increases.

• See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

• Open door less often.

• Move humidity control (some models) to lower setting.

Moisture collects on • Weather is humid. • This is normal in humid weather. When humidity is

outside of refrigerator or lower, the moisture should disappear.

between doors. • Door is slightly open, causing • See PROBLEM section OPENING/CLOSING OF

cold air from inside refrigerator DOORS/DRAWERS. to meet warm air from outside.

A UTOMA TIC ICE MAKER

Ice maker is not making

any ice.

Ice maker power switch is Off. Household water line valve is

not open. Freezer is not cold enough.

Saddle valve on cold water pipe is clogged or restricted by foreign material.

Check to see if the water dispenser is dispensing water.

• Turn power switch to On cr') position.

• Turn on household water line valve.

• See PROBLEM section TEMPERATURES ARE TOO WARM.

• Turn off household water line valve. Remove valve.

Ensure that valve is not a self-piercing saddle valve.

Clean valve. Replace valve if necessary.

• If not, the ice & water filter cartridge is clogged or

restricted by foreign material, and must be replaced.

PROBLEM 1 CAUSE _ CORRECTION

AUTOMA TIC ICE MAKER (CONTINUED)

Ice maker is not making

enough ice.

Ice maker will not stop making ice.

Ice maker is not separating

the ice cubes.

Ice has bad odor and taste.

ICE DISPENSER

Dispenser will not dispense ice.

Ice dispenser is jammed.

• Ice maker is producing less ice than you expect.

• Freezer is not cold enough.

• Household water line valve is not completely open.

• Check to see if water dispenser is dispensing slower

than normal.

Ice maker wire signal arm is

being held down by some item in the freezer.

• Ice cubes are not being used frequently enough.

• Ice cubes are hollow or smaller than normal.

• Ice has picked up odor or flavor from strong food stored in refrigerator or freezer.

• Water running to ice maker has poor taste or odor.

• Ice not used frequently enough.

Ice storage container is empty.

Freezer temperature is set too

warm.

Household water line valve is not open.

Freezer door is not closed.

Ice dispensing arm has been held in for more than 4-5 minutes.

• Ice has melted and frozen around auger due to infrequent use, temperature fluctuations,

and/or power outages.

• Ice cubes are jammed between ice maker and back

of ice container.

• Ice cubes are frozen together.

Ice cubes are hollow or smaller

than normal.

Ice maker should produce approximately 4 - 5 pounds of ice every 24 hours. Extra Ice should produce up to 6 pounds of ice every 24 hours. See PROBLEM section TEMPERATURES ARE TOO

WARM.

Turn on household water line valve.

If it is, replace the ice & water filter cartridge.

• Move item and release wire signal arm. Remove any ice cubes that are frozen together over the wire signal

arm.

• Remove and shake ice container to separate cubes.

• The ice & water filter cartridge may be clogged.

Replace filter cartridge.

• Cover foods tightly. Discard stale ice. Ice maker will produce fresh supply.

• Add filter to water supply line. Consult a water purifying company.

• Discard stale ice.

• When the first supply of ice is dropped into the container, the dispenser should operate.

• Turn freezer control to a higher setting so that ice cubes will be made. When first supply of ice is made, dispenser should operate.

• Open household water line valve. Allow sufficient time for the ice to be made. When ice is made, the

dispenser should operate.

• Ensure freezer door is closed.

• Motor is overloaded. Motor overload protector will reset in approximately 3 minutes. Ice can then be

dispensed.

Remove ice container, thaw, and empty the contents.

Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should

operate.

• Remove ice cubes that are jamming the dispenser.

Use the dispenser often so that cubes do not freeze together.

The ice & water filter cartridge could be clogged.

Replace the filter cartridge. Dispensing system

operates best at 20 - 100 psi water pressure. Well water pressures should fall within this range.

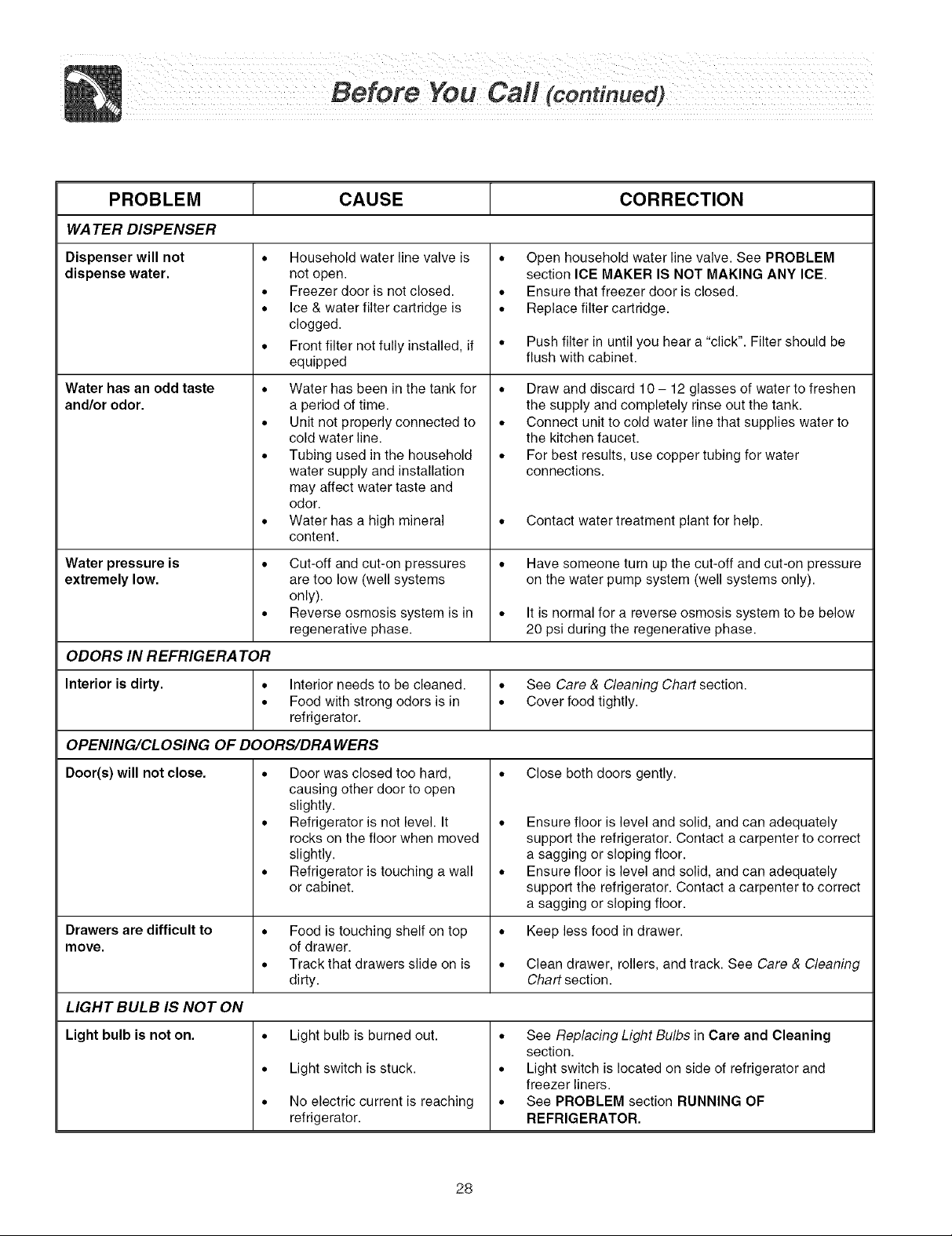

P.OBLEM1 C.OSE [ CO..EOT.O.

WATER DISPENSER

Dispenser will not

dispense water.

Water has an odd taste and/or odor.

Water pressure is • Cut-off and cut-on pressures • Have someone turn up the cut-off and cut-on pressure

extremely low. are too low (well systems on the water pump system (well systems only).

ODORS IN REFRIGERA TOR

• Household water line valve is not open.

• Freezer door is not closed.

• Ice & water filter cartridge is clogged.

• Front filter not fully installed, if equipped

Water has been in the tank for a period of time. Unit not properly connected to

cold water line. Tubing used in the household

water supply and installation may affect water taste and

odor. Water has a high mineral

• • Contact water treatment plant for help. content.

only).

• Reverse osmosis system is in • It is normal for a reverse osmosis system to be below regenerative phase. 20 psi during the regenerative phase.

• Open household water line valve. See PROBLEM section ICE MAKER IS NOT MAKING ANY ICE.

• Ensure that freezer door is closed.

• Replace filter cartridge.

Push filter in until you hear a "click". Filter should be flush with cabinet.

• Draw and discard 10 - 12 glasses of water to freshen the supply and completely rinse out the tank.

• Connect unit to cold water line that supplies water to the kitchen faucet.

• For best results, use copper tubing for water connections.

Interior is dirty. • Interior needs to be cleaned. • See Care & Cleaning Chart section.

• Food with strong odors is in • Cover food tightly. refrigerator.

OPENING/CLOSING OF DOORS/DRA WERS

Door(s) will not close. • • Close both doors gently.Door was closed too hard,

causing other door to open slightly.

Refrigerator is not level. It rocks on the floor when moved

slightly. Refrigerator is touching a wall

or cabinet.

Drawers are difficult to • Food is touching shelf on top • Keep less food in drawer.

move. of drawer.

• Track that drawers slide on is • Clean drawer, rollers, and track. See Care & Cleaning dirty. Chart section.

LIGHT BULB IS NOT ON

Light bulb is not on. • Light bulb is burned out.

• Light switch is stuck.

• No electric current is reaching refrigerator.

• Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct

a sagging or sloping floor.

• Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.

• See Replacing Light Bulbs in Care and Cleaning section.

• Light switch is located on side of refrigerator and freezer liners.

• See PROBLEM section RUNNING OF REFRIGERATOR.

IF YOU HEAR:

Before You Cail (cOntin"ed)

5 beeps • A door has been left open for 5 • These beeps will repeat once every minute until the

3 beeps • The refrigerator has experienced a • This is normal when "Power-On-Reset" is activated.

minutes or more. door has been closed. This is normal for the "Door

Ajar" alarm.

loss of power or a low voltage condition.

Frigidaire PLHS69EESS9, PLHS69EESS1, PLHS68EESB9, PLHS68EESB5, PLHS68EESB1 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
