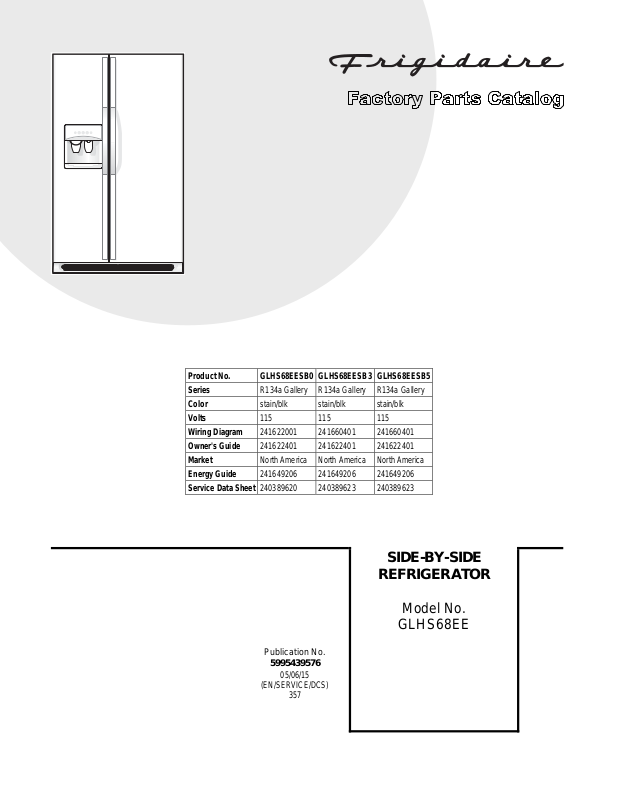

Product No. GLHS68EESB0 GLHS68EESB3 GLHS68EESB5
Series R134a Gallery R134a Gallery R134a Gallery
Color stain/blk stain/blk stain/blk
Volts 115 115 115

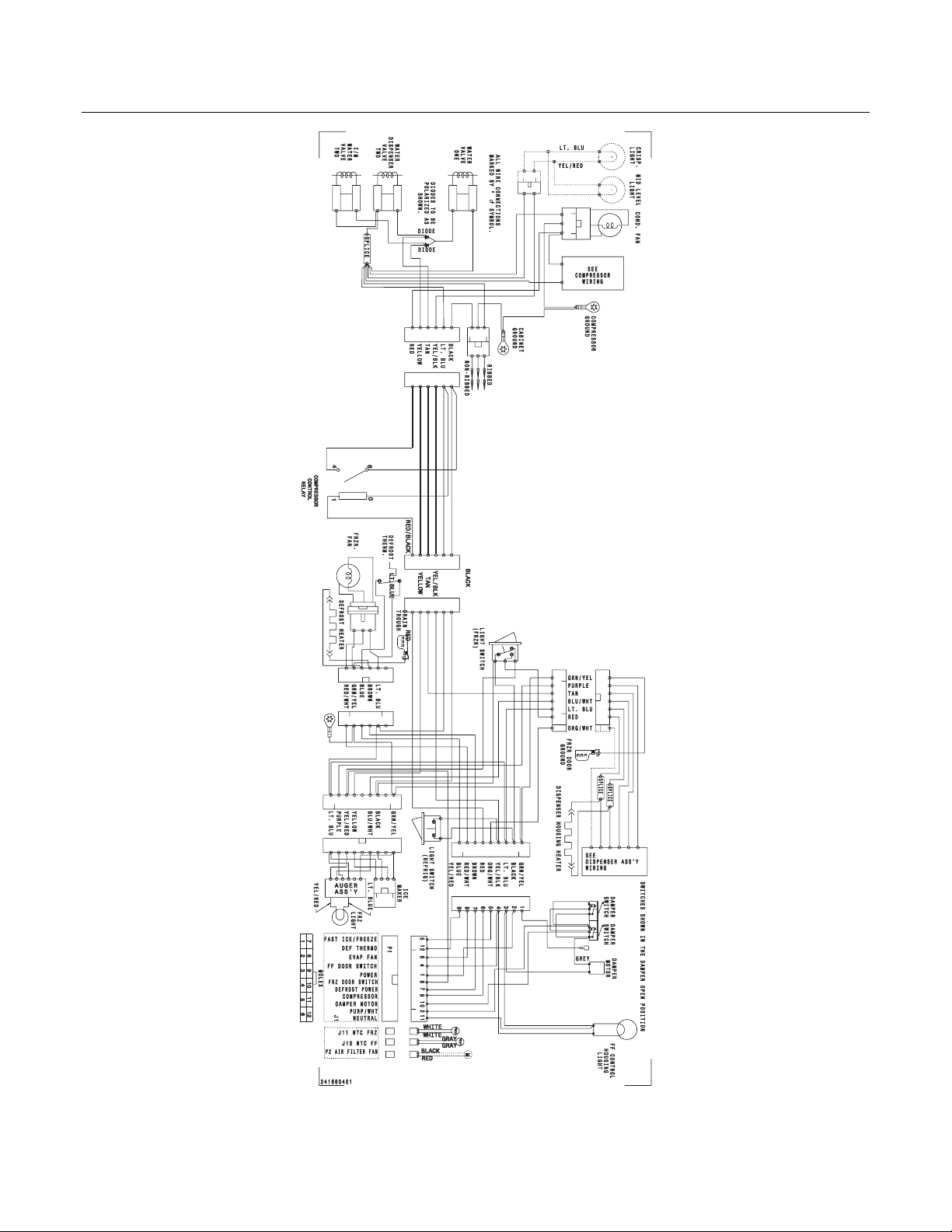

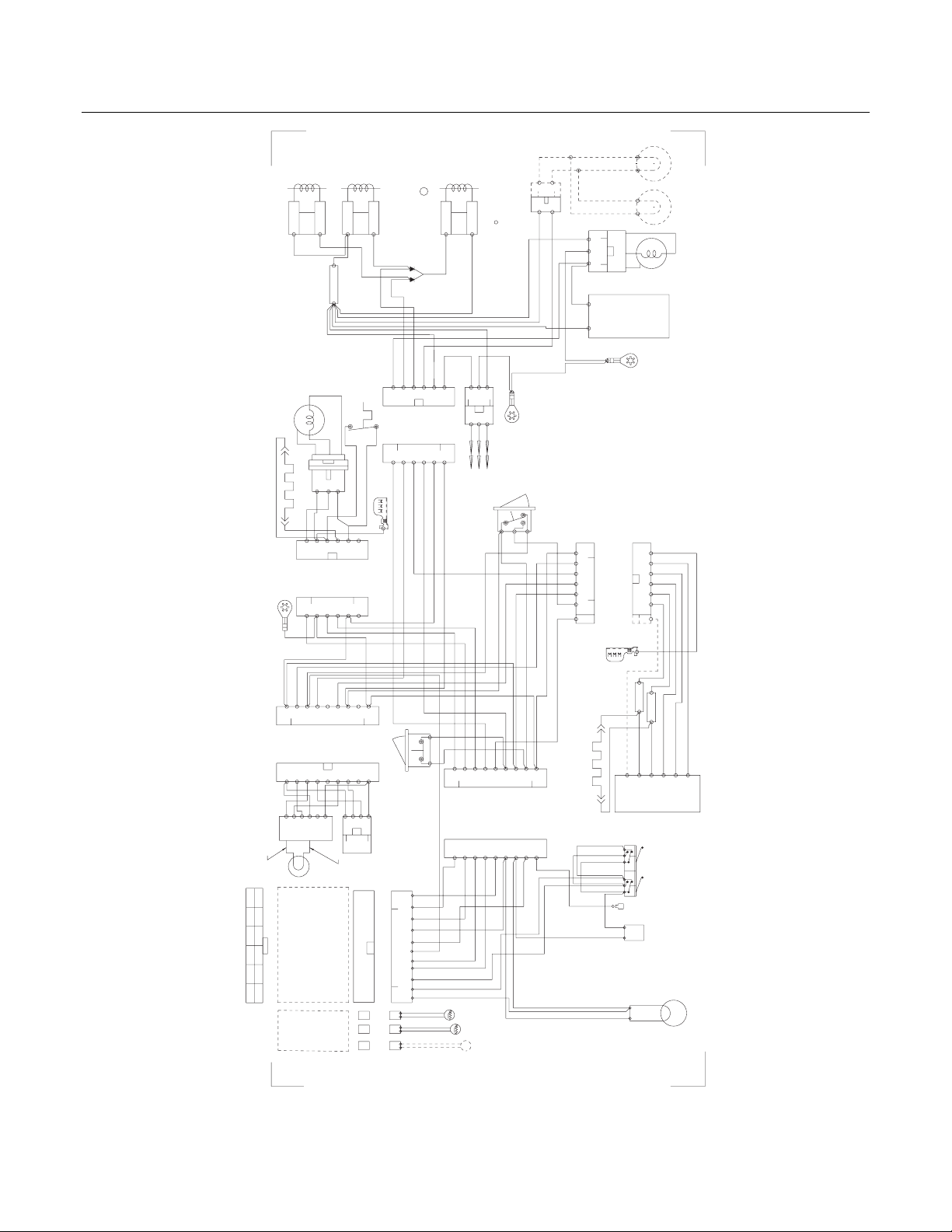

Wiring Diagram 241622001 241660401 241660401
Owner's Guide 241622401 241622401 241622401
Market North America North America North America
Energy Guide 241649206 241649206 241649206
Service Data Sheet 240389620 240389623 240389623
N58L00001.eps N58FCFEFA2.eps N58RCCBBC5.eps N58BAAAAB2.eps
N58SKDJBD1.eps N58TCAAAB0.eps N58CAAAAC3.eps N58XEAAAA0.eps
N58YDAAAC0.eps N58I115T.eps W241622001.eps W241660401.eps S241622001.eps
S241660401.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995439576
05/06/15
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLHS68EE
Copyright ©
All rights reserved.
Publication No: 5995439576 GLHS68EE
FREEZER DOOR
22C
11
18
73
37
73
21
73
74
21
74
21
21
74
21C
21C
72
72
1
4A
68
4C
4B
21C
4B
13A
5
22A
21A
06/05 2
N58FCFEFA2
GLHS68EE Publication No: 5995439576
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 240390606 A - - Gasket-frzr door, black, magnetic
1 # 241569806 - B C Gasket-frzr door, black, magnetic
4A 240334201 A B C Bin-door, frzr-upper
4B 240351601 A B C Bin-door
4C 240351701 A B C Bin-door, frzr-dispenser
5 241545005 A B C Bin-tilt out, tilt-out
11 241615109 A B - Door-frzr, stainless, complete assy
11 240554283 - - C Door-frzr, stainless, complete assy
13A 240581906 A B C Door Stop, black, frzr
18 240359108 A B C Handle-door, black, LH
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 240598401 A B C Screw, 10-32 x 1/2
21C 240521302 A B C Screw, #8-18 x 3/4
22A 240328204 A B C Bearing-hinge(frz), black, closer
22C 240328404 A B C Bearing-hinge, black, upper
37 240359203 A B C Trim-handle, 30.13", black, lower
68 241525101 A B C Chute-ice
72 240421701 A B C Button-handle mtg, dovetail
73 218396 70 0 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
* 240352102 A B C Connector-water, straight
* 240552102 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
3 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
REFRIGERATOR DOOR
06/05 4
GLHS68EE Publication No: 5995439576
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 240390605 A - - Gasket-refr door, black, magnetic
2 # 241569805 - B C Gasket-refr door, black, magnetic
4 240323002 A B C Bin-door, pseudo, bottom
7 240326203 A B C Door-dairy
12 240449710 A B C Nameplate
13 240581905 A B C Door Stop, black, ref
15 241534537 A B - Door-refr, stainless, complete assy
15 241534513 - - C Door-refr, stainless, complete assy
18 240359103 A B C Handle-door, black, RH
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 240598401 A B C Screw, 10-32 x 1/2
21C 240521302 A B C Screw, #8-18 x 3/4
22 240328203 A B C Bearing-hinge, black, closer
22B 240328404 A B C Bearing-hinge, black, upper
27A 240396102 A B C Retainer, tall bottle
37 240359203 A B C Trim-handle, 30.13", black, lower
49 240430311 A B C Bin-door, gallon
72 240421701 A B C Button-handle mtg, dovetail
73 218396 70 0 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
5 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
CABINET
58
40
66
92
58
92
41
40
38
37
14A
100
47
81
81
81
38
37
45
14
45
45
10
45
11
90
89
45
23
22
10A
42
30
21C
23
82
22
83
43
42
72
30A
06/05 6
21C
28
N58BAAAAB2
GLHS68EE Publication No: 5995439576
CABINET
POS. NO PART NO. DESCRIPTION
10 240435908 A B C Cover-air duct
10A 240475907 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14 240505801 A B C Switch, light/lamp
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 A B C Bracket-lower hinge, ref
30A 241603702 A B C Bracket-lower hinge
37 240337603 A B C Trim-cabinet corner, black, (2)
38 240327201 A B C Bracket-upper hinge
40 240327007 A B C Cover-upper hinge, black
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, adjustable, front, (2 )
45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
47 240349402 A B C Channel-shelf mtg, side, (2)
58 218781100 A B C Screw, pan head, 8-18 x 0.625
66 5304424968 A B C Damper Cover Assy
66* 240518802 A B C Pin-push, push-in, plastic
72 240324406 A B C Grille/Kickplate, black
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B C Cover access
90 218249808 A B C Seal-coil cover
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes, (2)
* 240481601 A B C Shim-lower hinge
* 5303305345 A B C Paint, touch-up, black
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
7 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
SHELVES
120
11C
81
122
126
81
126
15
16
121
15
81
141
140
24B
52A
52
11A
51A
11
39
39
51
49B
142
97
109
2
16A
123
81
140A
42A
15A
47
25
24A
24
42
62
26A
26
100
101
51
26A
101
52
49
136
47A
25A
27
N58SKDJBD1
06/05 8
GLHS68EE Publication No: 5995439576
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510604 A B C Trim-basket
11 240350668 A B C Shelf-freezer, glass, lower
11A 240350667 A B C Shelf-freezer, glass, upper
11C 240324101 A B C Shelf-pizza
15 241552801 A B C Light Bulb
15A 241555401 A B C Light Bulb
16 240590401 A B C Socket-light
16A* 241537502 A B C Harness-wiring
16A# 241513901 A B C Socket-light
24 240355203 A B C Shelf-"Spill-Safe", fixed
24A 240355205 A B C Shelf-"Spill-Safe", fixed
24B 240350106 A B C Shelf-"Spill-Safe", cantilever, sliding
25 240350702 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
26 240351020 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351218 A B C Pan-crisper, lower
39 240367602 A B C Trim-shelf, front
42 240356501 A B C Track, meat pan hanger, RH
42A 240349701 A B C Hanger-meat pan, LH
42A* 240349901 A B C Block-meat pan rail, LH
42A* 240350001 A B C Spring-meat pan rail
47 240350602 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
49 240564401 A B C Basket-sliding
49B 240530504 A B C Basket-sliding, upper, full
51 240343002 A B C Hanger-basket, RH
51A 240395502 A B C Hanger-basket, RH
52 240343102 A B C Hanger-basket, LH
52A 240395602 A B C Hanger-basket, LH
62 240342817 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B C Water Tank Assy, coiled tubing, front filter
100 240 326 30 2 A B C Cover-water tank
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 240 351 30 1 A B C Base-crisper light socket
120 241 559001 A B C Shelf-ice cream
121 241561001 A B C Rail-ice cream shelf, LH
122 241561201 A B C Rail-ice cream shelf, RH
123 215 005 10 0 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
126 241 630 701 A B C Channel, auger mtg, LH
126 241 630 70 2 A B C Channel, auger mtg, RH
136 240 424 50 1 A B C Dispenser-can, white
140 240 430 50 1 A B C Channel, wtr tube cover
140A 240430503 A B C Channel, wtr tube cover
141 240 585 40 4 A B C Bracket-light socket
142 240 582 701 A B C Shield-light, deli pan
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
9 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE

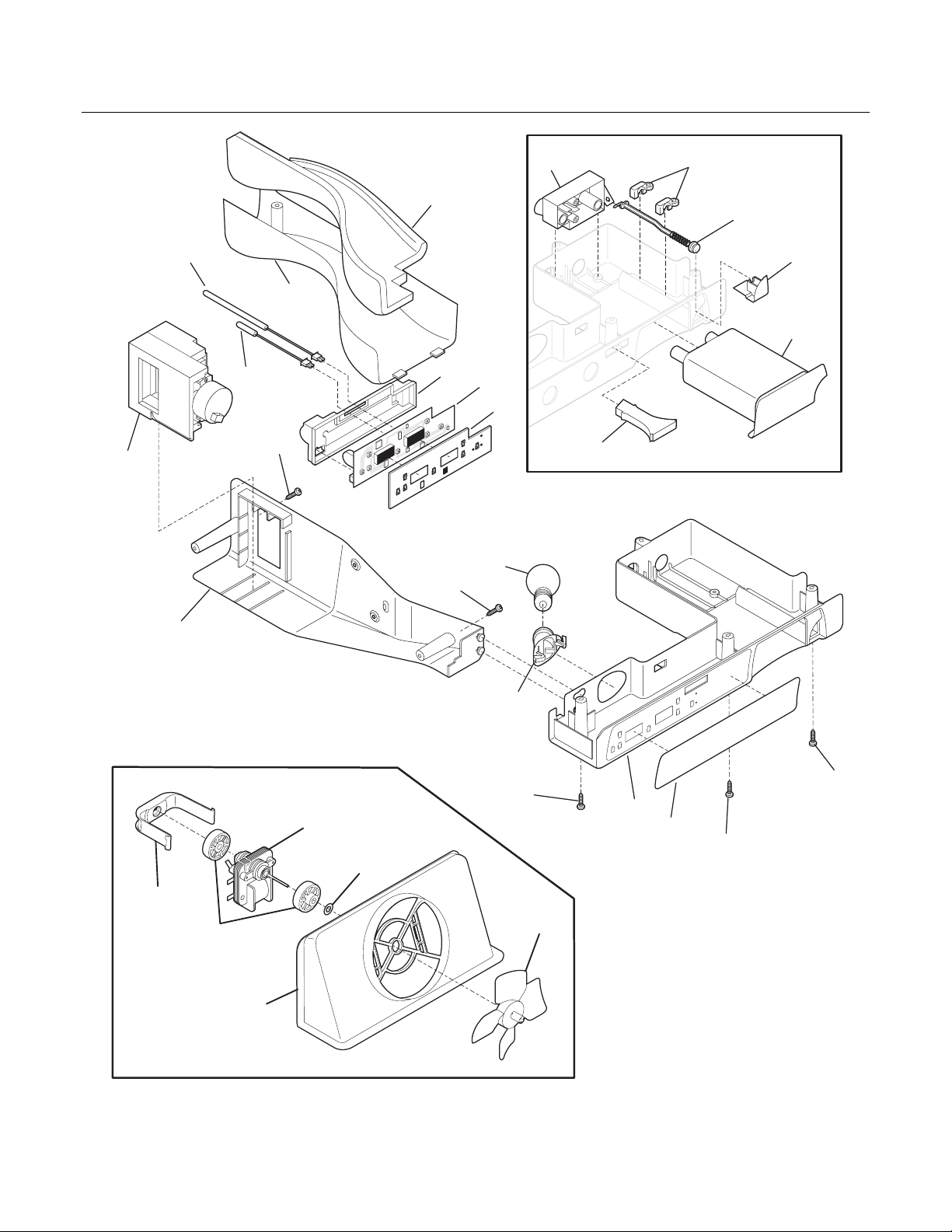

CONTROLS
115
21
21A
151
101
150
50
81
23
15
55
139
198
199
138
137
200
14
53
16
81
81
13
17
20
81
8
9
5
149
06/05 10
N58TCAAAB0
GLHS68EE Publication No: 5995439576
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 215474201 A B C Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C Bushing-motor mtg, (2)
13 240369702 A B C Motor-evap fan
14 241517701 A B C Clip, evap fan motor
15 241555401 A B C Light Bulb
16 # 241513901 A B C Socket-light
17 241608801 A B C Box-control, front
17* 241628701 A B C Harness-wiring, control box
20 241603902 A B C Label-control box
21 241608401 A B C Thermistor-refr
21A 241608501 A B C Thermistor-frzr
23 # 241591817 A B C Control, electronic
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
50 241609001 A B C Housing-control
53 241608901 A B C Box-control
55 241609101 A B C Cover-housing
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
101 241637201 A B C Screw-Hex HD #8AB X 1 3/4
115 241600902 A B C Damper Assy, w/seal
137 240396401 A B C Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B C Bypass, water filter, Optional Part
138 240 397 301 A B C Button-filter release
139 240 396 00 2 A B C Base-water filter
139* 240526901 A B C O-ring, wtr filter base
149 241 563 50 1 A B C Shroud-fan orfice
149* 241528306 A B C Seal, shroud
150 241 505 10 1 A B C Insulation-water tube cover
151 241 505 00 1 A B C Cover-water tube
198 240 397 40 1 A B C Retainer
199 240 397 50 1 A B C Rod
199* 240398401 A B C Spring-filter release rod
200 240 397 601 A B C Light Pipe
* 3205266 A B C Edge Protector, wiring harness
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
11 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
SYSTEM
70
45
62
21
3
15
14
16
42
59A
58
59A
25
25
29
41
44
86
61
60
59B
59A
85
59B
59
4
57
1
23
23
32
55
30
22
34
6
82
84
26
34
82
83
06/05 12
83
45
N58CAAAAC3
GLHS68EE Publication No: 5995439576
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 A B C Condenser
3 218679607 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 241586801 A B C Harness-wiring, machine compt
6* 240449601 A B C Harness-wiring
6* 241628701 A B C Harness-wiring, control box
14 # 5303918253 A B C Defrost Heater Kit
15 # 5303918284 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 5303918214 A B C Thermostat-defrost, kit
22 240330008 A B C Base-compressor mtg
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637401 A B C Pan-defrost
29 5303918314 A B C Compressor, w/o electricals
30 # 241527803 A B C Starter-TSD
32 241527901 A B C Clamp, elec cont mtg, compressor
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555001 A B C Screw-#8-32 X 3/8
42 # 241661201 - B C Relay
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 218897002 A - - Screw, hex washer head, 8-32 x 0.375
58 240569201 - B C Screw, 8-18 x 0.500
59 5304430246 A - - Bracket-cond motor assy
59 240315502 - B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
59A 240346501 - B C Bracket-support, cond mtr, (3)
59B 240346601 - B C Grommet-bracket, (3)
60 # 240525402 A - - Motor, condensor fan
60 # 241584301 - B C Motor-condenser fan
61 240524101 A - - Fan Blade, galv steel, condenser fan
61 241639501 - B C Blade-condenser fan
62 240429402 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 240553501 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* 5303918222 A B C Hot Tube Repair Kit, service
* # 5303918213 A B C Heat Exchanger Kit, suction line
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
13 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE

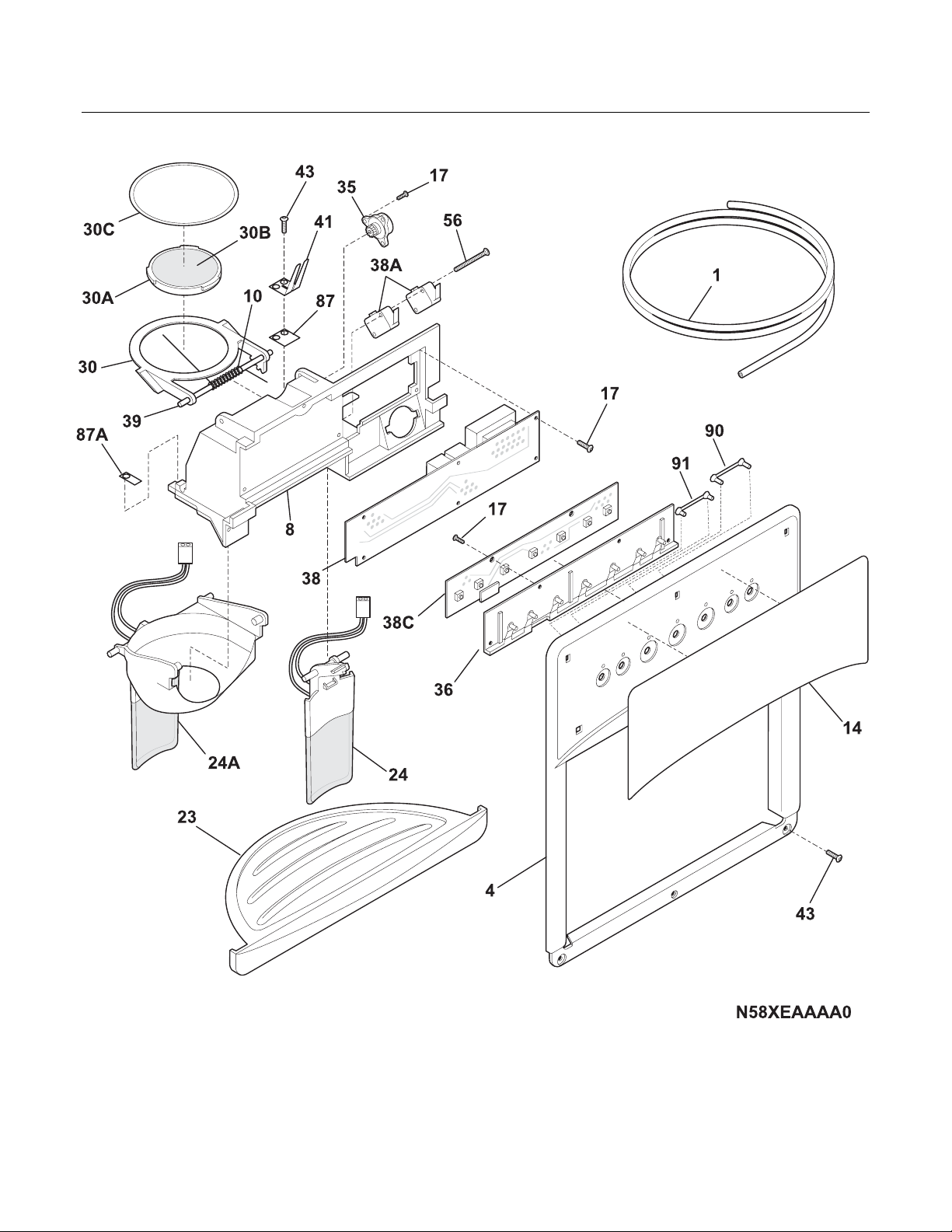

ICE & WATER DISPENSER
06/05 14
GLHS68EE Publication No: 5995439576
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water-DOOR
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
4 5304422012 A B C Cover-module, black
8 5304424549 A B C Module-dispenser
10 5304426649 A B C Spring-torsion
14 240323972 A B C Label-module cover, black
17 5304421619 A B C Screw
23 240323603 A B C Drip Tray, black
24 5304433613 A B C Actuator-water, black
24A 5304433610 A B C Actuator-ice, black
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
36 5304421824 A B C Carrier
38 5304433619 A B C Board-power
38A# 5304421617 A B C Switch-micro, single pole, double throw
38C 5304433818 A B C Board-control
38C* 5304430811 A B C Harness-ribbon cable
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw, plask h/l, #6 x 3/8
43* 240363401 A B C Screw-#8-18 X 1/2, #6 hd plask
56 5304421830 A B C Screw-micro switch, pan head
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
90 5304421831 A B C Light Pipe, reflector
91 5304421850 A B C Light Pipe, reflector, short
* 5303918256 A B C Dispenser heater kit
* 5304426535 A B C Insulator-electrical
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
15 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE

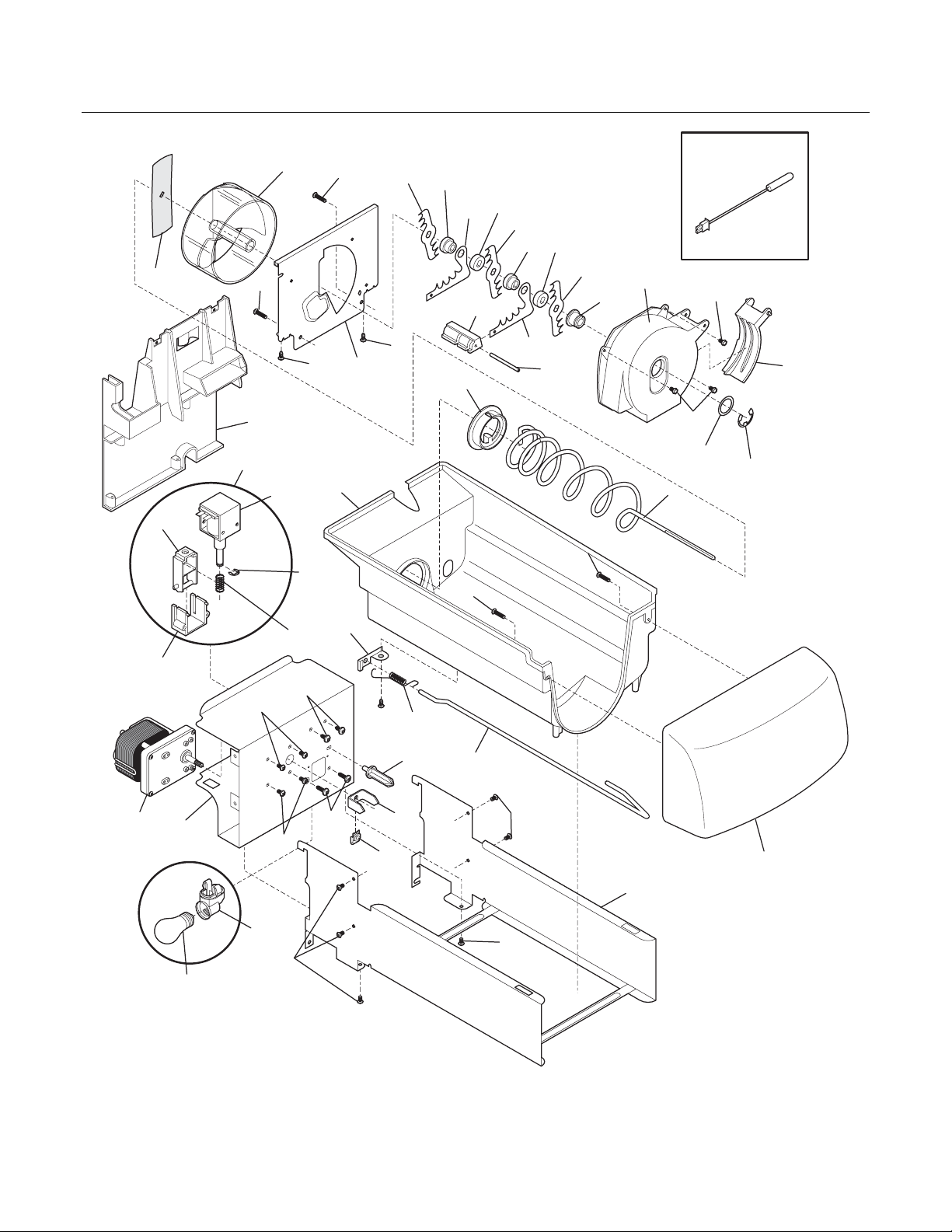

ICE CONTAINER
17
45C
45
26
70
6
45D
39
45B
22
26
37A
34
35A
33
37B
34
33
37C
54
41
25
52
39
23
35B
53
13
3
25
55
56
4
2
26
26
18
50
20
15
44
16
44
44
45A
58
26
48
21
10
51
47
46
44
7
49
44
N58YDAAAC0
06/05 16
GLHS68EE Publication No: 5995439576
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 241561301 A B C Container-ice, bucket only
6 5304404346 A B C Drum-ice disp
7 241561401 A B C Front-ice container
10 241624801 A B C Bar-drive
13 5304404359 A B C Gate
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 5304404345 A B C Drive Blade
18 # 5304440392 A B C Motor-auger
18* 241578401 A B C Wiring Harness, auger motor
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
22 240597201 A B C Sensor
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw, hex washer head, 8-32T x 0.375
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade, round
35B 5304404352 A B C Fixed Blade, square
37A 5304404348 A B C Blade, crusher #1
37B 5304404350 A B C Blade, crusher #2
37C 5304404356 A B C Blade, crusher #3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404329 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral, fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
58 5304404331 A B C Screw-solenoid
70 241561502 A B C Plate-mounting
70* 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
70* 241551601 A B C Screw, hex head, 8-18B x 0.875
* 241561601 A B C Ice Container Assy, w/moving parts
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
17 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE

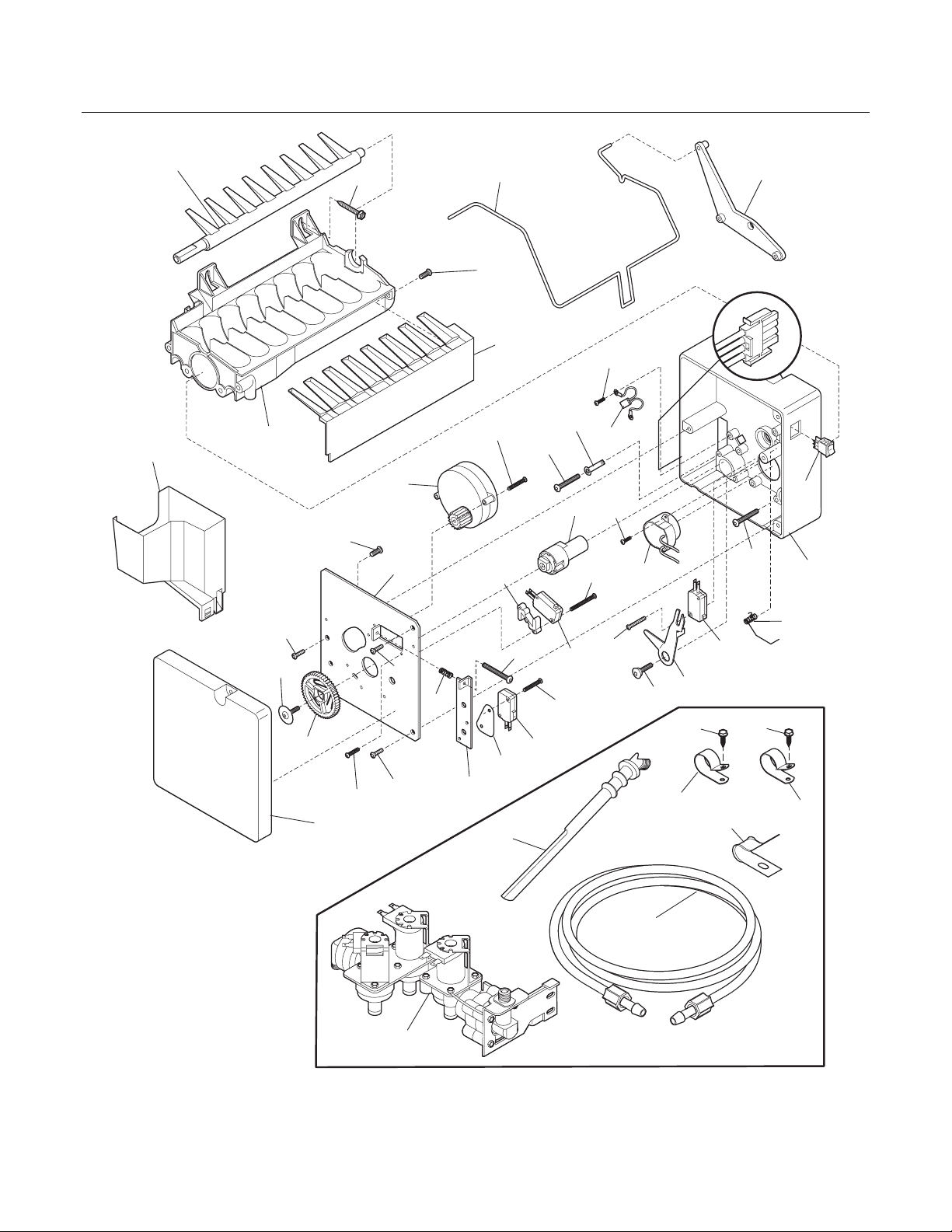

ICE MAKER
19
18
17
60
22
66
20
12
21
26
29
7
23
10
11
67
9
26
6
5
8
27
13
23
16
34
35
2
30
15
14
15
34
24
33
4
29
15
25
45
45
31
32
42
64
46
36
28
34
51
1
55
INSTALLATION PARTS
06/05 18
N58I115T
GLHS68EE Publication No: 5995439576
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water-DOOR
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304436616 A B C Spring, torsion
4 3206301 A B C Gear
5 5304436604 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 5304436619 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 5304436610 A B C Detent
10 3206315 A B C Clamp
11 # 5304436618 A B C Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 A B C Harness-wiring
13 5304436613 A B C Thermostat, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304436609 A B C Housing, control
17 # 5304436617 A B C Mold-ice maker, with heater
18 5304436607 A B C Ejector-ice
18*# 240352601 A B C Wiring Harness, internal, with plug
19 5304436606 A B C Cup-water inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 5304436608 A B C Ice Stripper
22 5304436602 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304436615 A B C Spring-thermostat
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 5304436605 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B C Clip, (2), tube mtg.
45 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B C Clamp, .50 ID, steel, water tube
46* 5308000133 A B C Clamp, nylon, .625 ID
51 241523503 A B C Tube-water fill, extension
55 # 240531101 A B C Valve-water, triple solenoid
55* 218709100 A B C Screw, hex head, 10-32 x 0.500
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
19 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
ICE MAKER
19
18
17
60
22
66
20
12
21
26
29
7
23
10
11
67
9
26
6
5
8
27
13
23
16
34
35
2
30
15
14
15
34
24
33
4
29
15
25
45
45
31
32
42
64
46
36
28
34
51
1
55
INSTALLATION PARTS
06/05 20
N58I115T
GLHS68EE Publication No: 5995439576
ICE MAKER
POS. NO PART NO. DESCRIPTION
55* 240363601 A B C Screw-shoulder
55* 240542901 A B C Cap-water valve
60 5303207328 A B C Screw, hex washer head, 8-15A x 1.000, (2)
64 5303001549 A B C Clamp, 0.31 ID, steel, copper wtr line
66 5304436611 A B C Bracket-ice maker
67 5304436612 A B C Switch, on/off
* 218888001 A B C Adapter-water supply, nut & sleeve, compression ftg
* 241583301 A B C Deflector-air, ICE MAKER
* 241587401 A B C Deflector-ice
* 241627701 A B C Ice Maker, Radius Cube, 115 V, no instl parts
Model Index: A GLHS68EES (GLHS68EESB0)
B GLHS68EES (GLHS68EESB3)
C GLHS68EES (GLHS68EESB5)
# Functional Parts
21 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
WIRING SCHEMATIC
AIR FILTER
FAN
FF THERMISTOR
FRZ THERMISTOR
1
M
2
1
2
1
2
DISPENSERASS'Y
P2
J10
J11
P1-1
P1-5
FAS T
ICE/FRZ
SEE
WIRING
P1-2
P1-10
GENESIS
CONTROL
P1-11
P1-8
P1-4
P1-7
P1-12
P1-9
NO
NC
NO
NC
P1-6
(LINE)
C
C
AUTO
ICEMAKER
COILHEATER
C
(NEUTRAL)
EVAP. FAN
RED
I/MWATERVALVE
MAINWATERVALVE
DAMPER MOTOR
DEFROST
THERM.
COND. FAN
SEE
COMPRESSOR
WIRING
B
GREEN
DISPENSER WATER VALVE
ACTUATOR,ICE DOOR
MOTOR,AUGER
HEATER,ICEDOOR
MID LEVEL LIGHT
CRISPER LIGHT
FRZR. LIGHT
FREEZER LIGHT /
SAFETYSWITCH
REFRIG.LIGHT SWITCH
REFRIG.LIGHT
06/05 22
GLHS68EE Publication No: 5995439576
WIRING SCHEMATIC
# Functional Parts
23 06/05
* Non-Illustrated Parts
Publication No: 5995439576 GLHS68EE
WIRING DIAGRAM
WATER
VALVE
TWO
I/M
TWO
DISPENSER
WATER
VALVE
DIODESTO BE
POLARIZED AS
SHOWN.
WATER
VALVE
ONE
C
ALLWIRE CONNECTIONS
MARKEDBY" "SYMBOL.
LT.B LU
YEL/RED
CRISP.
LIGHT
MIDLEVEL
LIGHT
COND.FAN
FRZR.
FAN
DEFROSTHEATER
GRN/YEL
RED/WHT
SPLICE
BLUE
BROWN
DIODE
DIODE
SEE
COMPRESSOR
WIRING
DEFROST
THERM.
CABINET
GROUND
BLACK
YEL/BLK
LT. BLU
TAN
YELLOW
RED
NON-RIBBED
RIBBED
DRAIN
TROUGH
LIGHTSWITCH
(FRZR)
LT.B LU
GRN/YEL
PURPLE
TAN
BLU/WHT
LT. BLU
RED
ORG/WHT
FRZRDOOR
GROUND
DISPENSER HOUSING HEATER
COMPRESSOR
GROUND
SPLICE
SPLICE
GRN/YEL
BLACK
BLU/WHT
YELLOW
YEL/RED
PURPLE
LT.B LU
LIGHTSWITCH
(REFRIG)
YEL/RED
RED
BROWN
RED/WHT
BLUE
AUGER
ASS'Y
FRZ
LIGHT
DEFTHERMO
EVAPFAN
POWER
DEFROST POWER
COMPRESSOR
DAMPERMOTOR
PURP/WHT
J1
NEUTRAL
J11 NTC FRZ
J10NTC FF
LT.B LUE
MAKER
ICE
6
8
9
7
5
12
P1
67
4
1
8
9
10 11
2
WHITE
WHITE
GRAY
GRAY
BLACK
RED
M
YEL/RED
7 8 9 101112
123456
FAST ICE/FREEZE
FFDOOR SWITCH
MOLEX
FRZD OOR SWITCH
P2AIR FILTER FAN
241622001
LT.B LU
YEL/BLK
ORG/WHT
3
5
4
GRN/YEL
BLACK
1
2
SEE
DISPENSERASS'Y
WIRING
GREY
LIGHT
DAMPER
SWITCH
DAMPER
SWITCH
DAMPER
MOTOR
FFCONTROL
HOUSING
SWITCHESSHOWN IN THEDAMPER OPEN POSITION
06/05 24
GLHS68EE Publication No: 5995439576
WIRING DIAGRAM
# Functional Parts
25 06/05
* Non-Illustrated Parts
Loading...
