Frigidaire GLHS36EJSB - 22.6 cu. Ft. Refrigerator, GLHS36EJ, GLHS36EJB0, GLHS36EJW0, GLHS36EJSB0 Service Data Sheet
Product No. GLHS36EJB0 GLHS36EJW0 GLHS36EJSB0
Series R134a R134a R134a
Color black white stainless
Volts 115 115 115
Wiring Diagram 241725001 241725001 241725001
Owner's Guide 241856000 241856000 241856000
Market North America North America North America
Energy Guide 241868065 241868065 241868075
Service Data Sheet 240389633 240389633 240389633
N58L00001.eps N58FCCBBC5.eps N58RCCBBB16.eps N58BAAAAB3.eps
N58SJCBBB11.eps N58TCBAAB0.eps N58CAAAAC10.eps N58XBAAAB1.eps
N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995508206
08/03/05
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLHS36EJ
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995508206 GLHS36EJ
FREEZER DOOR
22C
11
21C
18
73
37
73
21
73
74
21
74
21
21
74
21C
1
72
72
4A
68
21C
4B
Stainless Handle
80
79
13A
4B
18
22A
21A
79
80
03/08 2
N58FCCBBC5
GLHS36EJ Publication No: 5995508206
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786008 A - C Gasket-frzr door, black, magnetic
1 241786004 - B - Gasket-frzr door, white, magnetic
4A 240367301 A B C Bin-door, frzr-upper
4B 240359001 A B C Bin-door
11 241668153 A - - Door-frzr, black, complete assy
11 241668104 - B - Door-frzr, white, complete assy
11 241837139 - - C Door-frzr, stainless, complete assy
13A 240581906 A - C Door Stop, black, frzr
13A 240581902 - B - Door Stop, white, frzr
18 241934305 A - - Handle-door, black
18 241934304 - B - Handle-door, white
18 240536818 - - C Handle-door, stainless steel, with insert, & set screw
21 218781101 A B C Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B - Screw, #8-18 x 3/4
22A 240328204 A - C Bearing-hinge(frz), black, closer
22A 240328202 - B - Bearing-hinge(frz), closer
22C 240328404 A - C Bearing-hinge, black, upper
22C 240328402 - B - Bearing-hinge, natural, upper
37 241927 00 2 A - - Trim-door handle, black, bottom
37 241927 00 1 - B - Trim-door handle, white, bottom
68 241525101 A B C Chute-ice
72 240421701 A B - Button-handle mtg, dovetail
73 218396 70 0 A B - Block-handle mtg, dovetail
74 215503204 A B - Screw, cr pan hd, 10-16
79 218755402 - - C Screw-set, 10-32 x 0.375
80 218755504 - - C Screw-shoulder, #10 AB, handle mounting
* 240552102 A B C Harness-wiring, door
* 240451503 A B C Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 241806601 A B C Connector-water, straight
* 5303918256 A B C Dispenser heater kit
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
3 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
REFRIGERATOR DOOR
22B
12
15
21C
49
49
2
74
73
21
7
72
74
18
73
21
73
74
72
21
21
21C
37
21C
4
13
22
Stainless Handle
80
79
18
21A
4
79
80
03/08 4
N58RCCBBB16
GLHS36EJ Publication No: 5995508206
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786007 A - C Gasket-refr door, black, magnetic
2 241786003 - B - Gasket-refr door, white, magnetic
4 240363702 A B C Bin-door, 2-liter
7 240338303 A B C Door, dairy, clear
12 241808601 A B C Label-nameplate
13 240581905 A - C Door Stop, black, ref
13 240581901 - B - Door Stop, white, refr
15 240451919 A - - Door-refr, black, complete assy
15 240451913 - B - Door-refr, white, complete assy
15 241534569 - - C Door-refr, stainless, complete assy
18 241934302 A - - Handle-door, black
18 241934301 - B - Handle-door, white
18 240536818 - - C Handle-door, stainless steel, with insert, & set screw
21 218781101 A B C Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B - Screw, #8-18 x 3/4
22 240328203 A - C Bearing-hinge, black, closer
22 240328201 - B - Bearing-hinge(ref), closer
22B 240328404 A - C Bearing-hinge, black, upper
22B 240328402 - B - Bearing-hinge, natural, up per
37 241927 00 2 A - - Trim-door handle, black, bottom
37 241927 00 1 - B - Trim-door handle, white, bottom
49 241808203 A B C Bin-door, gallon
49* 241780301 A B C Liner, bin
72 240421701 A B - Button-handle mtg, dovetail
73 218396 70 0 A B - Block-handle mtg, dovetail
74 215503204 A B - Screw, cr pan hd, 10-16
79 218755402 - - C Screw-set, 10-32 x 0.375
80 218755504 - - C Screw-shoulder, #10 AB, handle mounting
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
5 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
CABINET
58
40
66
92
58
92
41
40
38
37
14A
100
47
81
81
81
38
37
91
14
45
10
11
90
89
45
23
22
10A
42
30
21C
23
82
22
83
43
42
72
30A
03/08 6
21C
28
N58BAAAAB3
GLHS36EJ Publication No: 5995508206
CABINET
POS. NO PART NO. DESCRIPTION
10 240435911 A B C Cover-air duct
10A 240475910 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14 # 240505801 A B C Switch, light/lamp
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - C Plate-door closer
22 240457701 - B - Plate-door closer
23 240402702 A B C Screw-#10-32 x 1/4 flat hd
28 241708801 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B C Bracket-lower hinge, ref
30A 241603704 A B C Bracket-lower hinge
37 240337610 A - C Trim-cabinet corner, black, (2)
37 240337608 - B - Trim-cabinet corner, white, (2)
38 240327206 A - C Bracket-upper hinge
38 240327207 - B - Bracket-upper hinge
40 240327007 A - C Cover-upper hinge, black
40 240327005 - B - Cover-upper hinge, white
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578902 A B C Screw, hex head, 1/4-20 x 5/8
43 241882901 A B C Roller Assy, adjustable, front, (2)
45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500
47 240349402 A B C Channel-shelf mtg, side, (2)
58 218781101 A B C Screw, pan head, 8-18 x 0.625
66 5304424968 A B C Damper Cover Assy
66* 240518802 A B C Pin-push, push-in, plastic
72 240324405 A - C Grille/Kickplate, black
72 240324401 - B - Grille/Kickplate, white
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733901 A B C Cover-access, w/label
90 218249807 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes
* 5303321321 A - C Paint, touch-up, black
* 5303321319 - B - Paint, touch-up, white
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
7 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
SHELVES
120
81
126
81
126
140
24A
24A
101
11B
11A
39A
39A
51
109
11
39
97
16A
101
100
15A
123
21
42A
47
25
24
42
62
26A
26
26A
52
03/08 8
49
47A
25A
27
N58SJCBBB11
GLHS36EJ Publication No: 5995508206
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657601 A B C Shelf, flip up, wire
11A 241657501 A B C Shelf, fixed, freezer
11B 241657503 A B C Shelf, fixed upper, freezer
15A 241555401 A B C Light Bulb
16A 241513901 A B C Socket-light
16A* 241537603 A B C Harness-wiring
21 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625
24 240355201 A B C Shelf-"Spill-Safe", fixed, (1)
24A 240355204 A B C Shelf-"Spill-Safe", fixed, (3)
25 240354502 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240354602 A B C Cover-crisper pan, lower
26 240354705 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240351101 A B C Control-humidity
27 240354805 A B C Pan-crisper, lower
39 240430705 A B C Trim-shelf, front
39A 240430701 A B C Trim-shelf, front
42 240356501 A B C Track, meat pan hanger, RH
42A 240349701 A B C Hanger-meat pan, LH
42A* 240349901 A B C Block-meat pan rail, LH
42A* 240350001 A B C Spring-meat pan rail
47 240350613 A B C Insert-pan cover, glass
47A 240350614 A B C Insert-pan cover, glass
49 240564301 A B C Basket-sliding
51 240343002 A B C Hanger-basket, RH
52 240343102 A B C Hanger-basket, LH
62 240355505 A B C Pan-meat
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545307 A B C Water Tank
100 240 326 30 3 A B C Cover-water tank
101 218493101 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 240 351 30 1 A B C Base-crisper light socket
120 240 342901 A B C Shelf-ice cream
123 215 005 10 1 A B C Screw, hanger/rlr mtg, 8-10 x 7/16
126 241 674 401 A B C Channel, auger mtg, LH
126 241 674 40 2 A B C Channel, auger mtg, RH
140 240 430 50 1 A B C Channel, wtr tube cover
* 241868065 A B - Energy Guide
* 241868075 - - C Energy Guide
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
9 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
CONTROLS
154
155
151
81
205
206
21
21A
139
198
199
138
137
115
14
53
101
13
200
23
15
81
16
81
81
17
20
81
8
9
149
03/08 10
5
N58TCBAAB0
GLHS36EJ Publication No: 5995508206
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 215474201 A B C Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C Bushing-motor mtg, (2)
13 240369702 A B C Motor-evap fan
14 241517701 A B C Clip, evap fan motor
15 241555401 A B C Light Bulb
16 # 241513901 A B C Socket-light
17 241633401 A B C Box-control, front
17*# 241737801 A B C Harness-wiring, control box
20 241603921 A B C Label-control box
21 # 241608401 A B C Thermistor-refr
21A# 241608501 A B C Thermistor-frzr
23 # 241739703 A B C Control, electronic, w/housing
23* 5304455649 A B C Screw, pan hd, 6-20 x 0.438
53 241608901 A B C Box-control
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B C Screw, #8AB x 1 3/4"
115 241600905 A B C Damper Assy, w/seal
137 240396401 A B C Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B C Bypass, water filter, Optional Part
138 240 397 301 A B C Button-filter release
139 240 396 00 2 A B C Base-water filter
139* 240526901 A B C O-ring, wtr filter base
149 241 563 40 1 A B C Shroud-fan orfice
149* 241528305 A B C Seal, shroud
151 241 526001 A B C Filter housing
154 241 525 80 1 A B C Duct-air
155 241 526 10 2 A B C Motor-air filter
155* 241611901 A B C Harness-wiring, filter fan
198 240 397 40 1 A B C Retainer
199 240 397 50 1 A B C Rod
199* 240398401 A B C Spring-filter release rod
200 240 397 601 A B C Light Pipe
205 241 525 90 1 A B C Air Filter Door
206 241 504 90 2 A B C Filter-air
* 3205266 A B C Edge Protector, wiring harness
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
11 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
SYSTEM
70
45
62
21
3
15
14
16
86
61
6
60
59
59B
59A
1
34
59A
59B
34
25
41
58
25
59A
29
44
85
4
57
23
32
55
23
30
22
84
26
82
03/08 12
83
82
83
45
N58CAAAAC10
GLHS36EJ Publication No: 5995508206
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 A B C Condenser
3 218679606 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 # 241586801 A B C Harness-wiring, machine compt
6* # 241651601 A B C Harness-wiring, evaporator
6* # 241737801 A B C Harness-wiring, control box
6* 241611901 A B C Harness-wiring, filter fan
14 # 240316107 A B C Heater-defrost
15 # 5303918286 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 5303918214 A B C Thermostat-defrost, kit
22 240330010 A B C Base-compressor
22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491503 A B C Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B C Pan-defrost
29 # 5303918376 A B C Compressor Kit
30 # 241713502 A B C Starter
32 241715901 A B C Strap-cover
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555002 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B C Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 240433203 A B C Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359403 A B C Screw-fan shroud, (2)
59A 240346501 A B C Bracket-support, cond mtr, (3)
59B 240346601 A B C Grommet-bracket, (3)
60 241584301 A B C Motor-condenser fan
61 241639501 A B C Blade-condenser fan
62 240429401 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 240346201 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* 5303918222 A B C Hot Tube Repair Kit, service
* # 5303918328 A B C Heat Exchanger Kit, suction line, service
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
13 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ

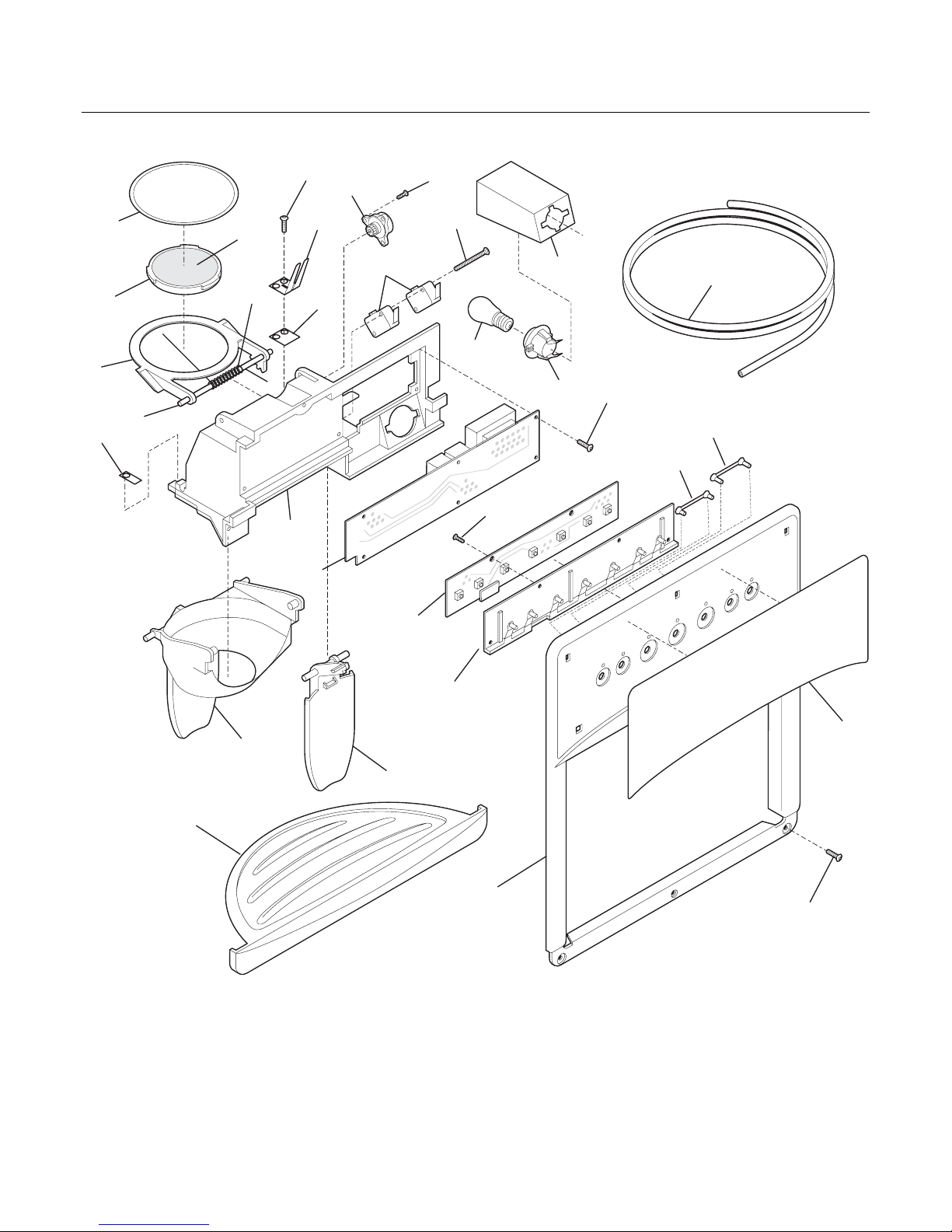

ICE & WATER DISPENSER
30C
30A
30
87A
39
30B
10
43
35
41
38A
17
56
88
1
87
15
16
17
90
91
17
8
38
23
38C
36
14
24A
24
4
82
N58XBAAAB1
03/08 14
GLHS36EJ Publication No: 5995508206
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976418 A B C Tube-water inlet, inlet valve, to filter
1* 218976419 A B C Tube-water inlet, valve to door
1* 218976915 A B C Tube-water inlet, inlet valve, to filter
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
4 241678703 A - C Cover-module, black
4 241678701 - B - Cover-module, white
8 241680507 A - C Module-dispenser
8 241680505 - B - Module-dispenser
10 241688901 A B C Spring-torsion
14 240323976 A - C Label-module cover, black
14 240323974 - B - Label-module cover, white
15 241689401 A B C Light Bulb
16 240548901 A B C Socket-light
17 241679801 A B C Screw
23 241649003 A - C Drip Tray, black
23 241649001 - B - Drip Tray, white
24 241682003 A - C Actuator-water, black
24 241682001 - B - Actuator-water, white
24A 241681903 A - C Actuator-ice, black
24A 241681901 - B - Actuator-ice, white
30 241688401 A B C Door Assy-ice chute
30A 241688501 A B C Door center
30B 241688601 A B C Insulation-door
30C 241688701 A B C Door seal
35 241689301 A B C Damper-rotary
36 241680301 A B C Carrier
38 # 241708202 A B C Board-power
38A# 241689101 A B C Switch-micro, single pole, double throw
38C# 241708309 A B C Board-control
38C* 241680001 A B C Harness-ribbon cable
39 241688801 A B C Pin-hinge
41 241689001 A B C Spring-actuator
43 215296301 A B C Screw, plask h/l, #6 x 3/8
56 241689201 A B C Screw-micro switch, pan head
82 240363402 A B C Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B C Bearing Plate
87A 241688301 A B C Bearing Plate
88 241686101 A B C Shield-light
90 241680201 A B C Light Pipe, reflector, long
91 241680101 A B C Light Pipe, reflector, short
* 241686201 A B C Insulator-electrical
* 5303918256 A B C Dispenser heater kit
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
15 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
ICE CONTAINER
6
26
37A
34
35A
33
17
26
52
37B
34
33
37C
54
41
25
45C
50
45
44
45D
45A
39
45B
44
48
23
4
39
39
47
51
3
26
46
35B
53
13
25
55
56
2
26
18
20
26
44
16
43
15
03/08 16
10
43
43
49
7
N58YAAAAA4
GLHS36EJ Publication No: 5995508206
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 A B C Auger-ice
3 241685201 A B C Cam-drive
4 241734001 A B C Container-ice, bucket only
6 241685101 A B C Drum-ice disp
7 241735301 A B C Front-ice container
10 241726501 A B C Bar-drive
13 241685301 A B C Gate
15 241555401 A B C Light Bulb
16 # 241559801 A B C Socket-light
17 241684501 A B C Drive Blade
18 241676201 A B C Motor-auger
18* 240352602 A B C Wiring Harness, internal, wiring harness
20 241734802 A B C Cover-motor
23 241684001 A B C Plate-front
25 241690701 A B C Screw, hex washer head, 8-32T x 0.375
26 215503205 A B C Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C Spacer
34 241689801 A B C Spacer
35A 241684301 A B C Fixed Blade, round
35B 241684201 A B C Fixed Blade, square
37A 241684101 A B C Blade, crusher #1
37B 241684102 A B C Blade, crusher #2
37C 241684103 A B C Blade, crusher #3
39 241690501 A B C Screw
41 241685601 A B C Housing-crusher
43 218359202 A B C Screw, pan head, 8-32 x 0.250
44 215005101 A B C Screw, hanger/rlr mtg, 8-10 x 7/16
45 241675701 A B C Solenoid Assy, 115V
45A 241675901 A B C Spring-solenoid
45B 241676001 A B C E-Ring-solenoid
45C 241676101 A B C Actuator-solenoid
45D 241675801 A B C Solenoid, 115V
46 241716002 A B C Control Rod
47 241731801 A B C Spring-control rod
48 241684602 A B C Bracket-control rod
49 241734401 A B C Rail Assy
50 241675601 A B C Guide-solenoid
51 241676301 A B C Rotation Stop
52 241684901 A B C Spacer-fixed blades
53 241690402 A B C Pin-spiral, fixed blades
54 241685001 A B C Nut-auger
55 241690306 A B C Washer
56 241690201 A B C E-ring
* 241860801 A B C Ice Container Assy, w/moving parts
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
17 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
ICE MAKER
03/08 18
GLHS36EJ Publication No: 5995508206
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976418 A B C Tube-water inlet, inlet valve, to filter
1* 218976419 A B C Tube-water inlet, valve to door
1* 218976915 A B C Tube-water inlet, inlet valve, to filter
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C Spring-shutoff arm, ice maker
3 5304456657 A B C Nameplate
4 5304456658 A B C Gear
5 5304456659 A B C Plate-mounting
6 5304456691 A B C Screw, M 3x20 #3, valve plate
7 # 5304445222 A B C Motor-ice maker Svo
7* 5304445223 A B C Spring Beam
8 5304456661 A B C Spacer-hold switch
9 5304456662 A B C Cam
10 5304456689 A B C Retainer, thermostat
11 # 5304456663 A B C Thermal Cutoff, ice maker, complete assy
12 5304456664 A B C Harness-wiring
13 5304456665 A B C Thermostat, ice maker
14 5304455676 A B C Screw, plask, 4x14x3/4
15 # 5304456667 A B C Switch-micro, (3)
16 5304456668 A B C Support
17 5304456669 A B C Mold-ice maker, w/therm cut off
18 5304456670 A B C Ejector-ice
18* 240352602 A B C Wiring Harness, internal, wiring harness
19 5304456671 A B C Bearing & Inlet, fill cup
20 5304455677 A B C Screw, 8-32 x 3/8
21 5304456672 A B C Ice Stripper
22 5304456673 A B C Shut-off Arm
23 5304456674 A B C Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B C Lever Arm
25 5304456676 A B C Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B C Screw, plask, 4-14 x 3/8
27 5304456677 A B C Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B C Screw, M 4x6 #2
29 5304456678 A B C Screw, M 3x12 #3, (2)
30 5304456679 A B C Screw-timing adj, M 4x25 #3
31 5304456680 A B C Insulator
32 5304456681 A B C Plate-valve switch
33 5304456682 A B C Spring, timing adjust
34 5304456683 A B C Screw, M 4x12 #2, (3)
35 5304456684 A B C Screw
36 5304456685 A B C Cover-ice maker
36* 5304456690 A B C Label, ID plate
42 218515403 A B C Clip-grille
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B C Tube-water fill, extension
55 # 241734301 A B C Valve-water, triple solenoid
55* 218709101 A B C Screw, hex head, 10-32 x 0.500
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
19 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
ICE MAKER
03/08 20
GLHS36EJ Publication No: 5995508206
ICE MAKER
POS. NO PART NO. DESCRIPTION
55* 240363602 A B C Screw-shoulder
55* 240542901 A B C Cap-water valve
60 5303207328 A B C Screw, hex washer head, 8-15A x 1.000, (2)
61 5304456686 A B C Bracket-leveling, ice maker
62 5304456687 A B C Screw-IM brkt mtg, pan hd phillips, 8-32T x 0.375
64 5303001549 A B C Clamp, 0.31 ID, steel, copper wtr line
* 241642501 A B C Ice Maker, radius cube, 115 V, Svce
* 241806601 A B C Connector-water, straight
* 5304456666 A B C Screw, M 3x20 #2, (6)
* 5304456688 A B C Terminal
* 5304456692 A B C Washer
* 5304456693 A B C Nut, M 3.5
* 5304456737 A B C Washer
Model Index: A GLHS36EJ (GLHS36EJB0)
B GLHS36EJ (GLHS36EJW0)
C GLHS36EJ (GLHS36EJSB0)
# Functional Parts
21 03/08
* Non-Illustrated Parts
Publication No: 5995508206 GLHS36EJ
WIRING SCHEMATIC
AIR FILTER
FAN
FF THERMISTOR
FRZ THERMISTOR
M
1
2
BETA
1
CONTROL
2
1
2
FAST
ICE/FRZ
03/08 22
GLHS36EJ Publication No: 5995508206
WIRING DIAGRAM
7 8 9 10 11 12
123456
WHITE
WHITE
GRAY
GRAY
12
BLACK
BARE
NATURAL
1
2
3
M
# Functional Parts
23 03/08
* Non-Illustrated Parts
Loading...
