Page 2

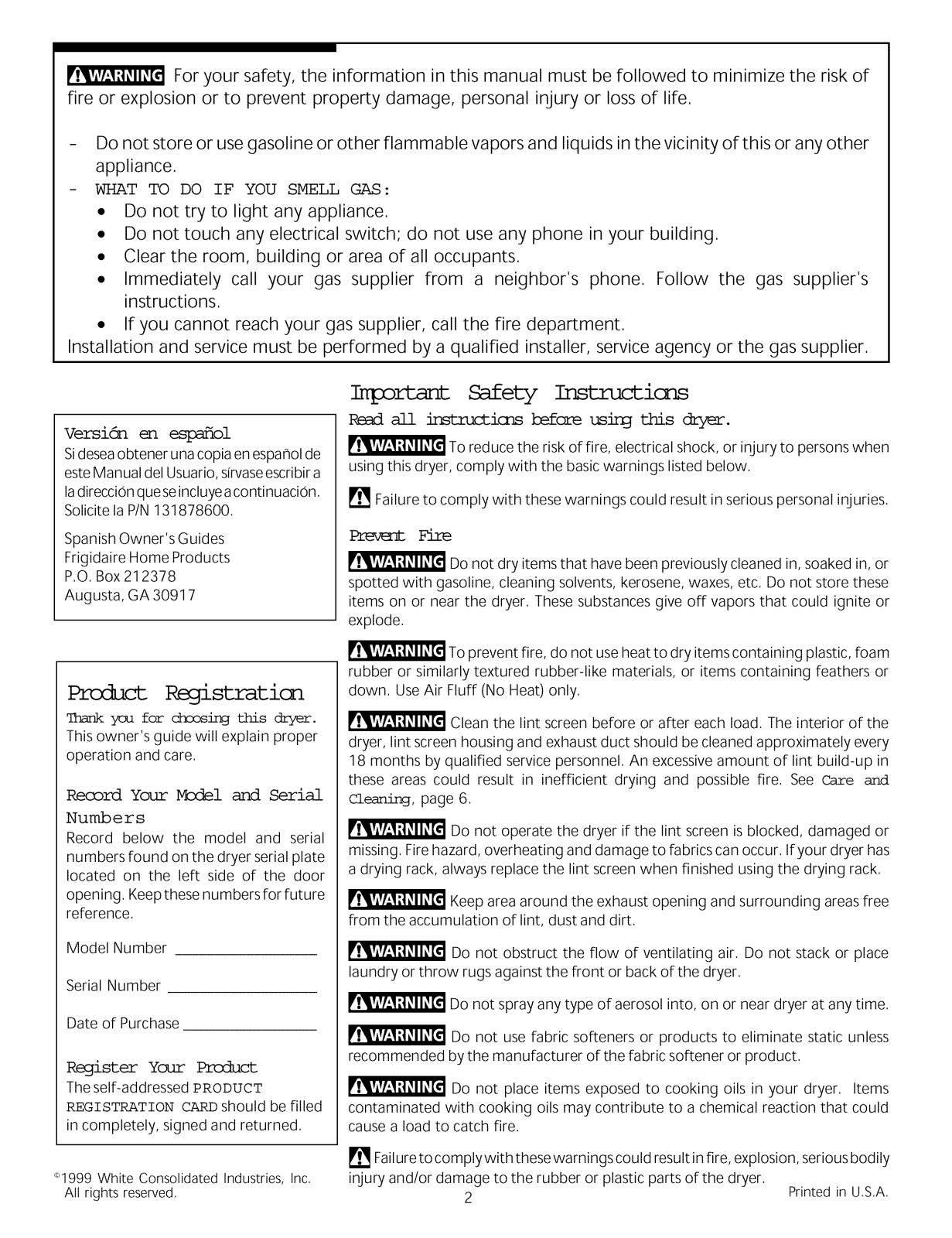

For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Inpgrtant ety Instructicns
Versidn en es_ol
Sideseaobtener unacopiaen espaholde
esteManual del Usuario,sirvaseescribira
ladireccion queseincluyeacontinuacion.
Solicite la PIN131878600.
Spanish Owner's Guides
Frigidaire Home Products
P.O. Box 212378
Augusta, GA 30917
Read all instructicnshefcmeusir_ this dryer.
To reduce the risk of fire, electrical shock, or injury to personswhen
using this dryer, comply with the basic warnings listed below,
_I_ Failure to comply with these warnings could result in serious personal injuries,
PZEVEr_ PJ_-=e
Do not dry items that have been previously cleaned in, soaked in, or
spotted with gasoline, cleaning solvents, kerosene, waxes, etc. Do not store these
items on or near the dryer. These substances give off vapors that could ignite or
explode.
Product Registraticn
Thankyou for _ing this dryer.
This owner's guide will explain proper
operation and care.
Record Your Model and Serial
Numbers
Record below the model and serial
numbers found on the dryer serial plate
located on the left side of the door
opening. Keepthese numbers for future
reference.
Model Number
Serial Number
Date of Purchase
Register Ycmr Product
Theself-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned.
To prevent fire, do not use heat to dry items containing plastic, foam
rubber or similarly textured rubber-like materials, or items containing feathers or
down. Use Air Fluff (No Heat) only.
Clean the lint screen before or after each load. The interior of the
dryer, lint screen housing and exhaust duct should becleaned approximately every
18 months by qualified service personnel. An excessive amount of lint build-up in
these areas could result in inefficient drying and possible fire. See Care a_Qd
Cleaning,page 6.
Do not operate the dryer if the lint screen is blocked, damaged or
missing. Firehazard, overheating and damage to fabrics can occur. If your dryer has
a drying rack, always replace the lint screen when finished using the drying rack.
Keep area around the exhaust opening and surrounding areasfree
from the accumulation of lint, dust and dirt.
Do not obstruct the flow of ventilating air. Do not stack or place
laundry or throw rugs against the front or back of the dryer.
Do not spray any type of aerosol into, on or near dryer at any time.
Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical reaction that could
cause a load to catch fire.
<°1999 White Consolidated Industries, Inc.
All rights reserved.
[] Failuretocomplywiththese warnings could result infire, explosion, serious bodily
injury and/or damage to the rubber or plastic parts of the dryer.
2 Printedin U.S.A.
Page 3

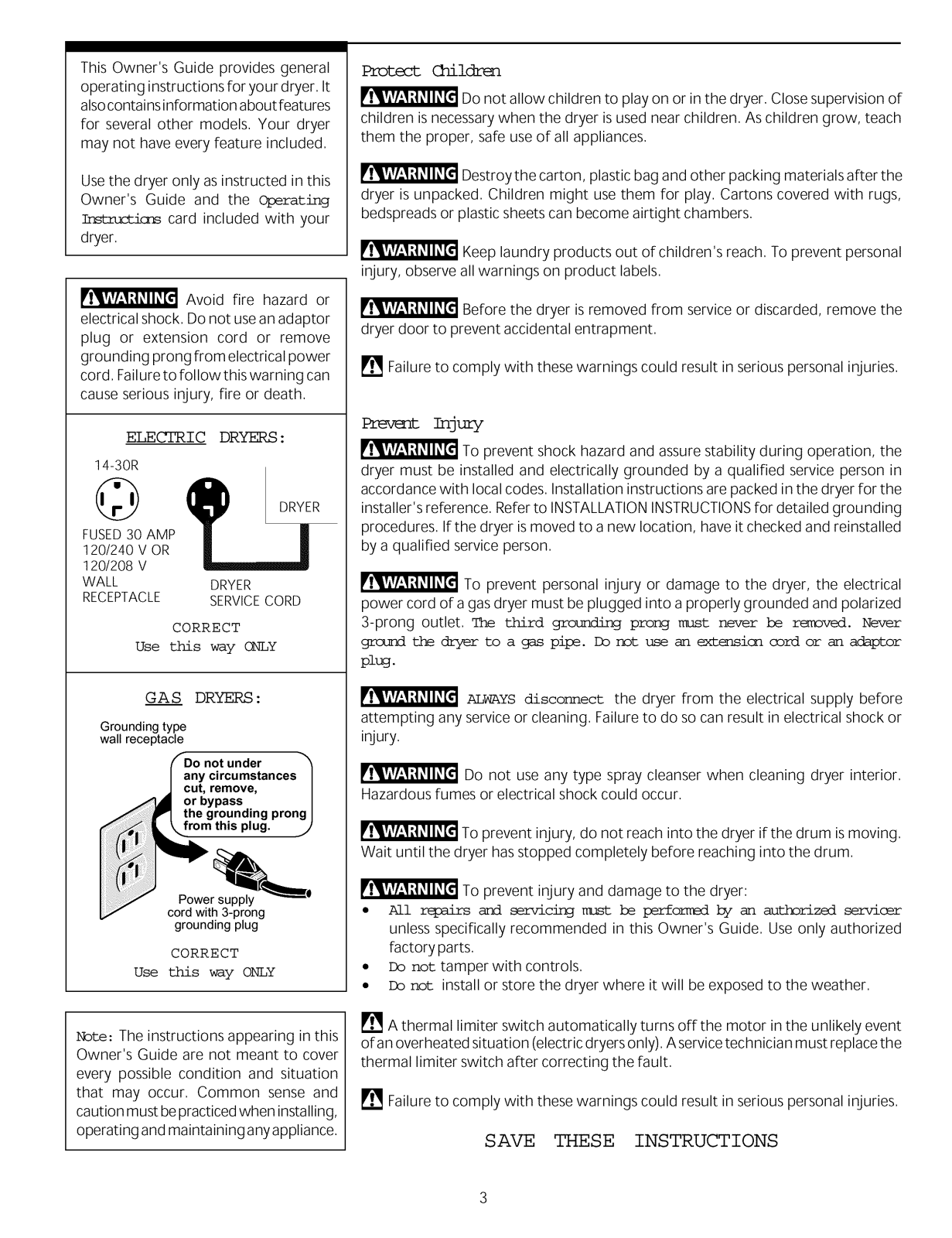

ThisOwner'sGuideprovidesgeneral
operatinginstructionsforyourdryer,It
alsocontainsinformationaboutfeatures
forseveralothermodels,Yourdryer
maynothaveeveryfeatureincluded,
Protect Ch_i_ldDan
Do not allow children to play on or in the dryer, Close supervision of
children isnecessary when the dryer is used near children, As children grow, teach
them the proper, safe use of all appliances,
Usethedryeronlyasinstructedinthis
Owner'sGuideandthe Operating
znstructi_card included with your
dryer,
Avoid fire hazard or
electrical shock, Donot usean adaptor
plug or extension cord or remove
grounding prong from electrical power
cord, Failure to follow this warning can
cause serious injury, fire or death,
ELECTRIC DRYER_ :
14-30R
©
FUSED30 AMP
120/240 V OR
120/208 V
WALL
RECEPTACLE
Use this way ONLY
DRYER
SERVICECORD
CORRECT
DRYER
Destroy the carton, plastic bag and other packing materials after the
dryer is unpacked, Children might use them for play, Cartons covered with rugs,
bedspreads or plastic sheets can become airtight chambers,
Keep laundry products out of children's reach, To prevent personal
injury, observe all warnings on product labels,
Before the dryer isremoved from service or discarded, remove the
dryer door to prevent accidental entrapment,
l_ Failureto comply with these warnings could result inserious personal injuries,
To prevent shock hazard and assure stability during operation, the
dryer must be installed and electrically grounded by a qualified service person in
accordance with local codes, Installation instructions are packed in the dryer for the
installer's reference, Referto INSTALLATIONINSTRUCTIONSfor detailed grounding
procedures, If the dryer ismoved to anew location, have it checked and reinstalled
by a qualified service person,
To prevent personal injury or damage to the dryer, the electrical
power cord of a gas dryer must be plugged into a properly grounded and polarized
3-prong outlet, The LhJ_rd 9roun_-z9 pzon 9 rAtst never be z_mgvecl. Never
groundthe dryerto a gas pipe.Do not use an extensicncord or an adaptor
plug.
GAS DRYERS :
Grounding type
wall receptacle
Do not under
any circumstances
cut, remove,
or bypass
the grounding prong
from this plug. j
Power supply
cord with 3-prong
grounding plug
CORRECT
Use this way ONLY
Note:The instructions appearing inthis
Owner's Guide are not meant to cover
every possible condition and situation
that may occur, Common sense and
caution mustbe practicedwhen installing,
operatingand maintaining anyappliance,
ALWAYS c]J-scorznect the dryer from the electrical supply before
attempting any service or cleaning, Failure to do so can result in electrical shock or
injury,
Do not use any type spray cleanser when cleaning dryer interior,
Hazardous fumes or electrical shock could occur,
To prevent injury, do not reach into the dryer if the drum ismoving,
Wait until the dryer hasstopped completely before reaching into the drum,
To prevent injury and damage to the dryer:
• All re_mirs and servicing rm_st be performed by an authorized sez-v-ioer
unless specifically recommended in this Owner's Guide, Use only authorized
factory parts,
• Donot tamperwith controls,
• Donot install or store the dryer where it will be exposed to the weather,
[] A thermal limiter switch automatically turns off the motor inthe unlikely event
of an overheated situation (electric dryers only), Aservicetechnician must replace the
thermal limiter switch after correcting the fault,
Failureto comply with these warnings could result inserious personal injuries,
SAVE THESE INSTRUCTIONS
Page 4

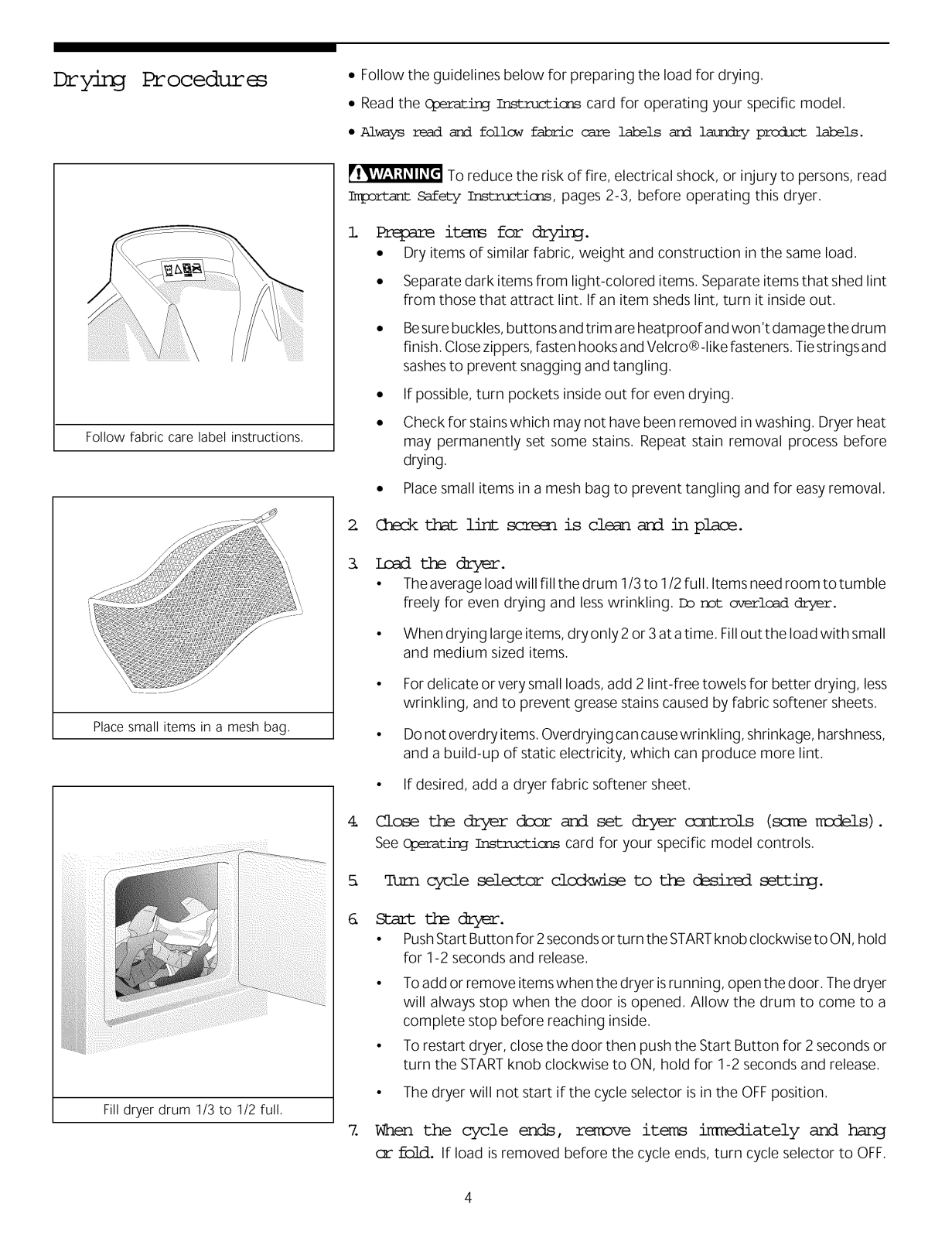

Dryir_ Procedures
• Follow the guidelines below for preparing the load for drying.
• Read the Qpezating znstzuctiG]s card for operating your specific model.
• Alw_ys readand followfabriccarelabelsand laundryprcchctlabels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Ir_ztant Safety Ins_ions, pages 2-3, before operating this dryer,
Follow fabric care label instructions.
j J-- ,
Place small items in a mesh bag.
l
items for dryir_.
• Dry items of similar fabric, weight and construction in the same load.
• Separatedark items from light-colored items. Separate items that shed lint
from those that attract lint. If an item sheds lint, turn it inside out.
Besurebuckles, buttons andtrim are heatproofand won't damage the drum
finish. Closezippers, fasten hooks and Velcro®-Iike fasteners. Tiestringsand
sashesto prevent snagging and tangling.
Ifpossible, turn pockets inside out foreven drying.
Check for stains which may not have been removed inwashing. Dryerheat
may permanently set some stains. Repeat stain removal process before
drying.
Placesmall items in a mesh bag to prevent tangling and for easyremoval.
Z Checkthatlint_ iscleanand in place.
&
U_ad the d_yer.
• Theaverageloadwillfillthedruml/3tol/2full. ltemsneedroomtotumble
freely for even drying and lesswrinkling. Do not overload dryer.
• When drying large items, dryonly 2 or 3at atime, Fillout the loadwith small
and medium sized items,
Fordelicate or very small loads, add 2lint-free towels for better drying, less
wrinkling, and to prevent grease stains caused by fabric softener sheets,
Donot overdry items. Overdrying can causewrinkling, shrinkage, harshness,
and abuild-up of static electricity, which can produce more lint.
Fill dryer drum 1/3 to 1/2 full.
If desired, add a dryer fabric softener sheet,
&
Close the dryer door and set dryer controls (sane models).
See Operating Instructicnscard for your specific model controls,
5 _ cycle selectcr clockwise to the des_ settir_.
6
mar_ t_e 4rim.
• PushStartButton for 2seconds orturn the STARTknobclockwise to ON, hold
for 1-2 seconds and release.
• Toadd or remove itemswhen the dryer isrunning, open the door. Thedryer
will always stop when the door isopened. Allow the drum to come to a
complete stop before reaching inside.
• Torestart dryer, close the door then push the Start Button for 2 seconds or
turn the STARTknob clockwise to ON, hold for 1-2 seconds and release.
• Thedryer will not start if the cycle selector is in the OFFposition,
7. When the cycle ends, rem3ve items im_=Jiately and hang
cr fold.If load is removed before the cycle ends, turn cycle selector to OFF,
Page 5
Features

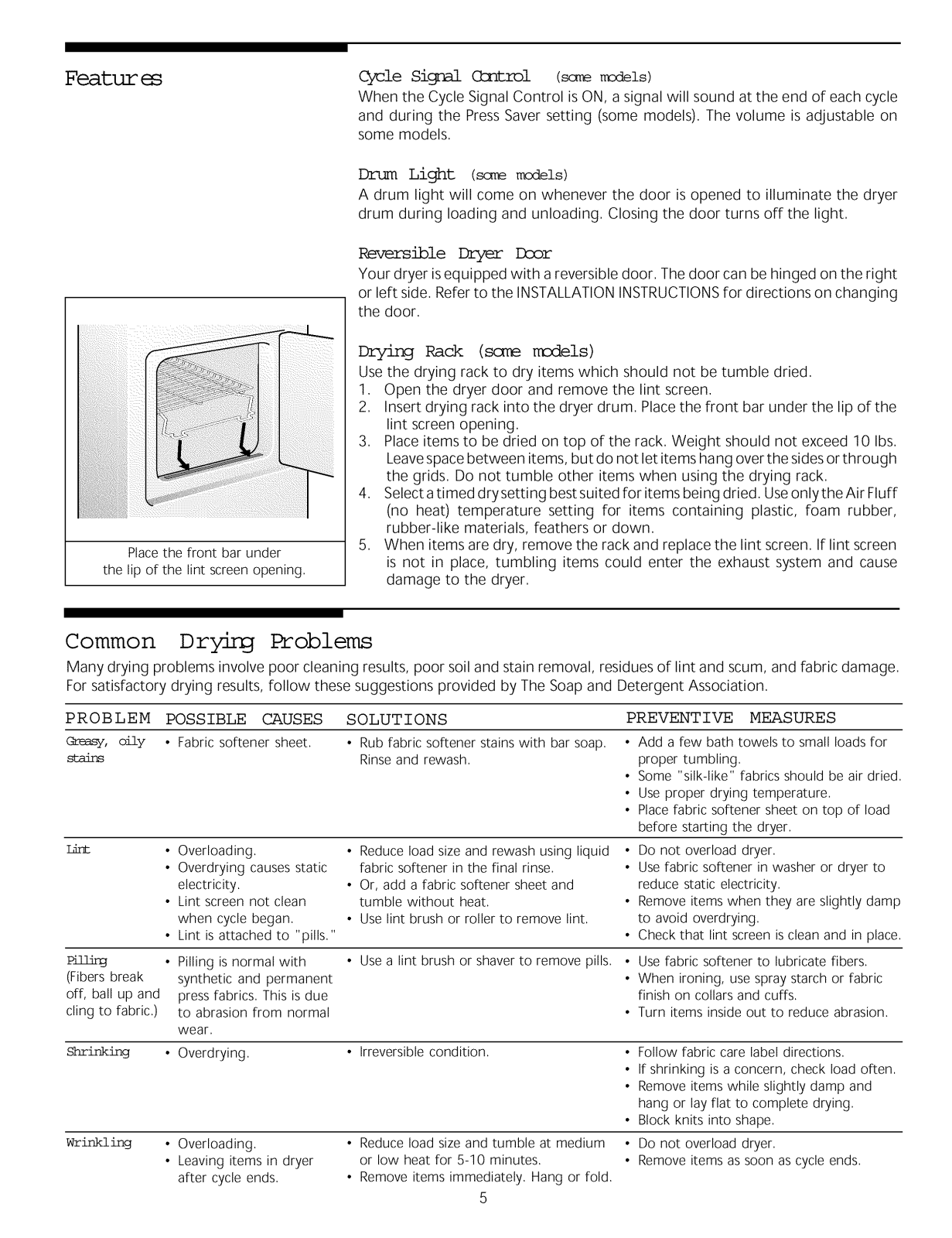

Placethe front bar under
the lip of the lint screen opening.
Cycle Signal Gtntrol (_me models)
When the Cycle Signal Control is ON, a signal will sound at the end ofeach cycle
and during the Press Saver setting (some models), The volume is adjustable on
some models,
Dzlm_ Light (scme models)
A drum light will come on whenever the door is opened to illuminate the dryer
drum during loading and unloading, Closing the door turns off the light,
Reversible Dryer Door
Your dryer isequipped with areversible door, The door can be hinged on the right
or left side, Refer to the INSTALLATIONINSTRUCTIONSfor directions on changing
the door,
Drying Rack (sane models)
Use the drying rack to dry items which should not be tumble dried,
1, Open the dryer door and remove the lint screen,
2, Insert drying rack into the dryer drum, Placethe front bar under the lip of the
lint screen opening,
3, Place items to be dried on top of the rack, Weight should not exceed 10 Ibs,
Leavespace between items, but do not let items hang over the sides or through
the grids, Do not tumble other items when using the drying rack,
4, Select atimed drysetting best suited for items being dried, Useonly the Air Fluff
(no heat) temperature setting for items containing plastic, foam rubber,
rubber-like materials, feathers or down,
5, When items are dry, remove the rack and replace the lint screen, If lint screen
is not in place, tumbling items could enter the exhaust system and cause
damage to the dryer,
Common Dryirg Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage,
For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association,
PROBLEM
Greasy, oily
stains
Lf_
(Fibers break
off, ball up and
cling to fabric.)
Shrinking
Wrinkling
POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES
• Fabricsoftener sheet. • Rubfabric softener stainswith bar soap. • Add a few bath towels to smallloads for
Rinseand rewash, proper tumbling.
• Some "silk-like" fabrics should be air dried.
• Use proper drying temperature.
• Place fabric softener sheet on top of load
before starting the dryer.
Overload ing.
Overdrying causes static
electricity.
Lint screen not clean
when cycle began.
Lint is attached to "pills."
Pilling is normal with
synthetic and permanent
press fabrics. This is due
to abrasion from normal
wear.
• Overdrying.
• Overloading.
• Leaving items in dryer
after cycle ends.
• Reduce load size and rewash using liquid
fabric softener in the final rinse.
• Or, add a fabric softener sheet and
tumble without heat.
• Uselint brush or roller to remove lint.
• Usea lint brush or shaver to remove pills.
• Irreversible condition.
• Reduce load sizeand tumble at medium
or low heat for 5-10 minutes.
• Remove items immediately. Hang or fold.
5
• Do not overload dryer.
• Use fabric softener in washer or dryer to
reduce static electricity.
• Remove items when they are slightly damp
to avoid overdrying.
• Check that lint screen is clean and in place.
• Use fabric softener to lubricate fibers.
• When ironing, use spray starch or fabric
finish on collars and cuffs.
• Turn items inside out to reduce abrasion.
• Follow fabric care label directions.
• If shrinking is a concern, check load often.
• Remove items while slightly damp and
hang or lay flat to complete drying.
• Block knits into shape.
• Do not overload dryer.
• Remove items as soon as cycle ends.
Page 6

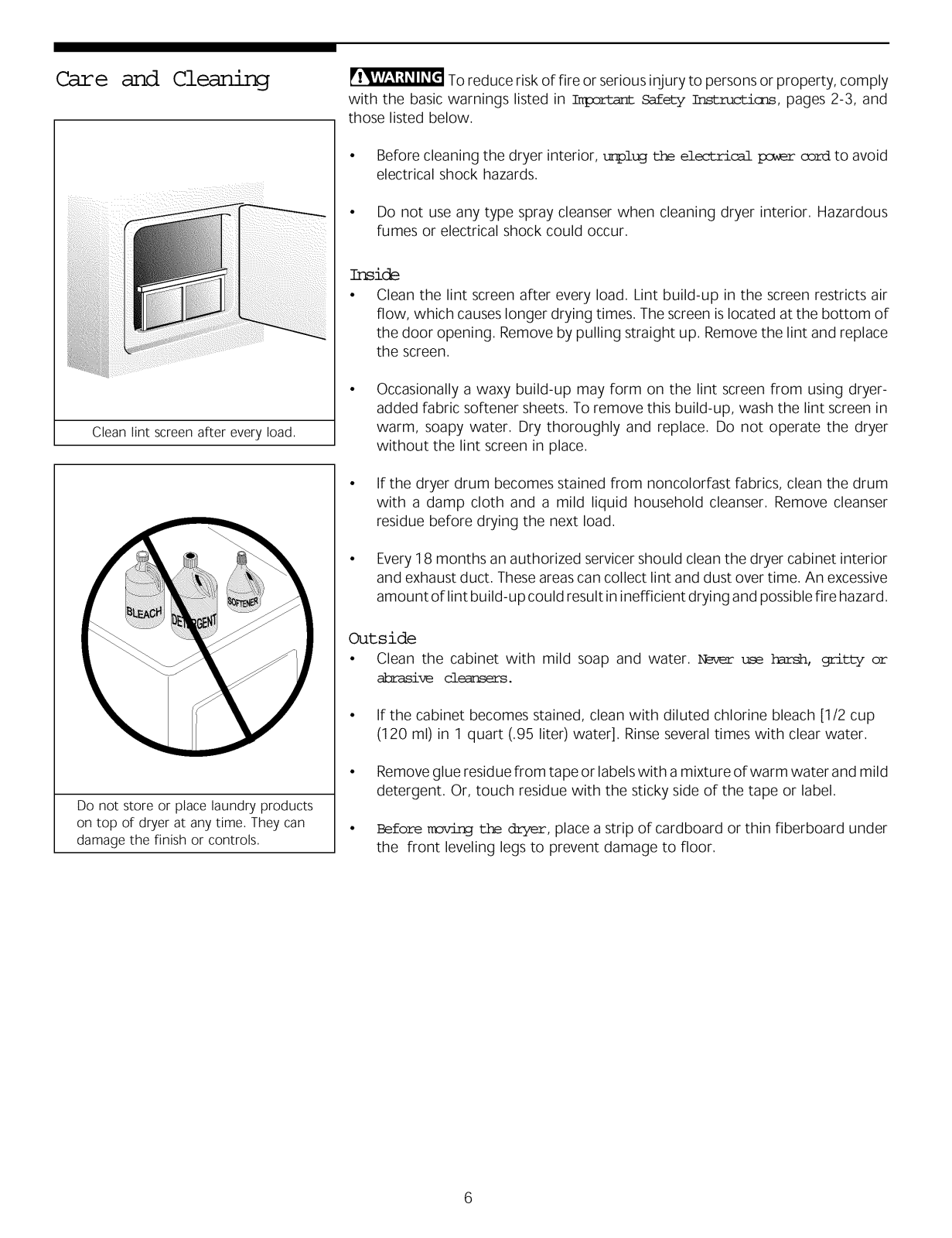

Care and Cleaning
Clean lint screen after every load.
Toreduce riskof fire or serious injury to persons or property, comply
with the basic warnings listed in m[:xm-tantSafety Instructims, pages 2-3, and
those listed below,
• Before cleaning the dryer interior, tmplug the electrical li3m_r cord tO avoid
electrical shock hazards,
• Do not use any type spray cleanser when cleaning dryer interior Hazardous
fumes or electrical shock could occur
Inside
• Clean the lint screen after every load Lint buildup in the screen restricts air
flow which causeslonger drying times The screen islocated at the bottom of
the door opening Remove by pulling straight up Removethe lint and replace
the screen
Occasionally a waxy buildup may form on the lint screen from using dryer
added fabric softener sheets To remove this buildup wash the lint screen in
warm soapy water Dry thoroughly and replace Do not operate the dryer
without the lint screen in place
• If the dryer drum becomes stained from noncolorfast fabrics clean the drum
with a damp cloth and a mild liquid household cleanser Remove cleanser
residue before drying the next load
Do not store or place laundry products
on top of dryer at any time. They can
damage the finish or controls.
• Every 18 months an authorized servicer should clean the dryer cabinet interior
and exhaust duct Theseareascan collect lint and dust over time An excessive
amount of lint buildup could result in inefficient drying and possible fire hazard
Outside
• Clean the cabinet with mild soap and water Never use l'mrsh, gritty or
ahrasivecleansers.
• If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup
(120 ml) in 1 quart (,95 liter) water], Rinseseveral times with clear water,
• Remove glue residue from tape orlabels with a mixture of warm water and mild
detergent, Or, touch residue with the sticky side of the tape or label,
• Before moving the dryer, place a strip of cardboard or thin fiberboard under
the front leveling legs to prevent damage to floor,
Page 7

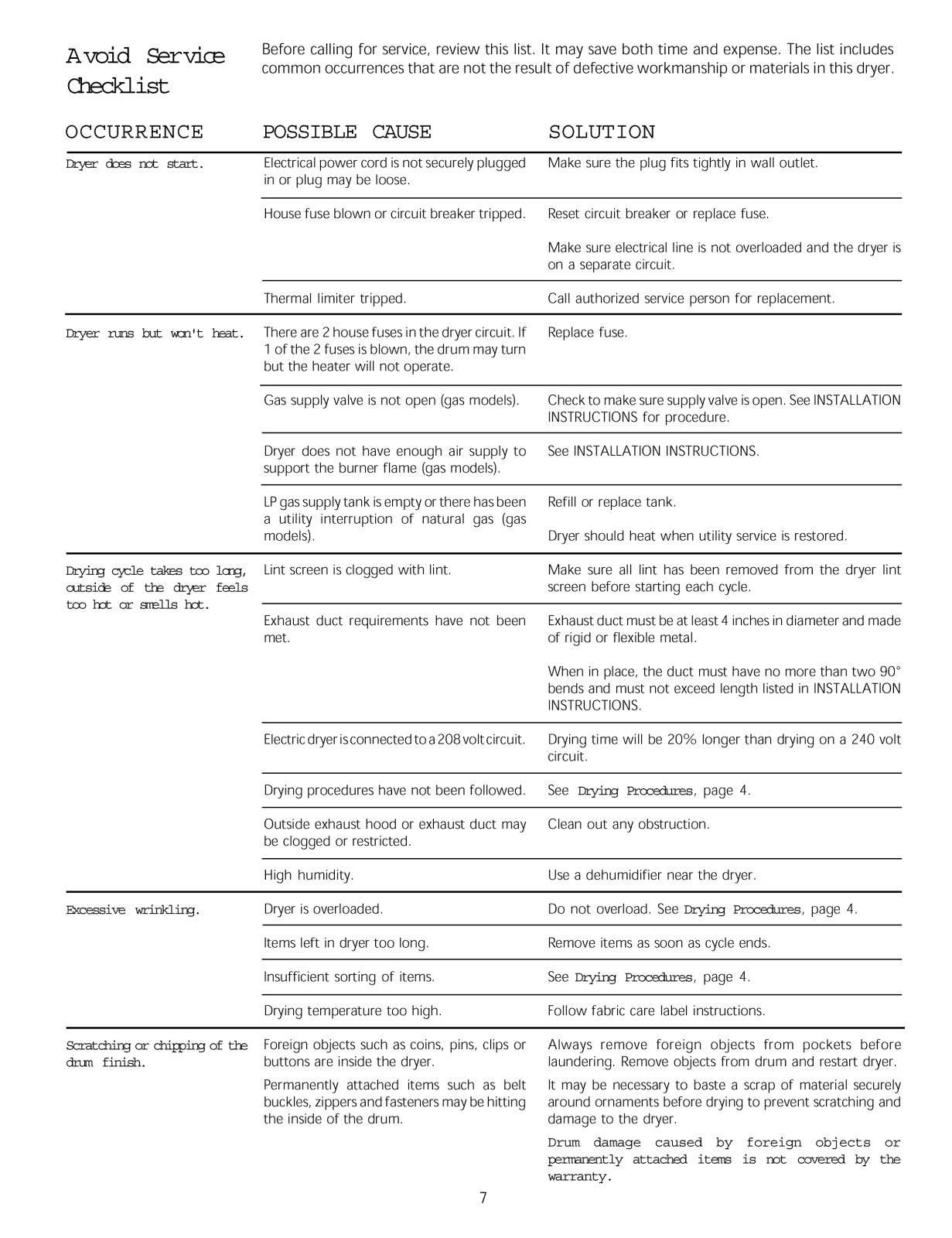

Avoid Servioe
Before calling for service, review this list, It may save both time and expense, The list includes
common occurrences that are not the result of defective workmanship or materials in this dryer,
Checklist
OCCURRENCE POSSIBLE CAUSE SOLUTION
_ nat start. Electrical power cord is not securely plugged Make sure the plug fits tightly in wall outlet.
in or plug may be loose.
House fuse blown or circuit breaker tripped. Resetcircuit breaker or replace fuse.
Make sure electrical line is not overloaded and the dryer is
on a separate circuit.
Thermal limiter tripped. Call authorized service person for replacement.
Dzyer _ but won't heat. Thereare 2house fuses in the dryer circuit, lf Replace fuse.
1 of the 2 fuses is blown, the drum may turn
but the heater will not operate.
Gas supply valve is not open (gas models). Check to make suresupply valve is open. SeeINSTALLATION
INSTRUCTIONSfor procedure.
Dryer does not have enough air supply to See INSTALLATION INSTRUCTIONS.
support the burner flame (gas models).
LPgas supply tank isempty or there hasbeen Refill or replace tank.
a utility interruption of natural gas (gas
models). Dryer should heat when utility service is restored.
cycle takes too lcr_, Lint screen is clogged with lint. Make sure all lint has been removed from the dryer lint
cutside of the dryer feels screen before starting each cycle.
too _dc or arel:Ls hat.
Exhaust duct requirements have not been Exhaustduct must be at least 4 inches in diameter and made
met. of rigid or flexible metal.
When in place, the duct must have no more than two 90°
bends and must not exceed length listed in INSTALLATION
INSTRUCTIONS.
Electricdryerisconnectedtoa 208voltcircuit. Drying time will be 20% longer than drying on a 240 volt
Drying procedures have not been followed. See _J_cj z:_ec_s, page 4.
Outside exhaust hood or exhaust duct may Clean out any obstruction.
be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wzizb,ZJr_j. Dryer isoverloaded. Do not overload. See Drying R_ocedures, page 4.
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. See Drying _es, page 4.
Drying temperature too high. Follow fabric care label instructions.
circuit.
Scratching or chipping of the
drun finish.
Foreign objects such as coins, pins, clips or
buttons are inside the dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be hitting
the inside of the drum.
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart dryer.
It may be necessary to baste a scrap of material securely
around ornaments before drying to prevent scratching and
damage to the dryer.
Drum damage caused by foreign objects or
pertly attac/qeditems is not covered by the
warranty.
Page 8

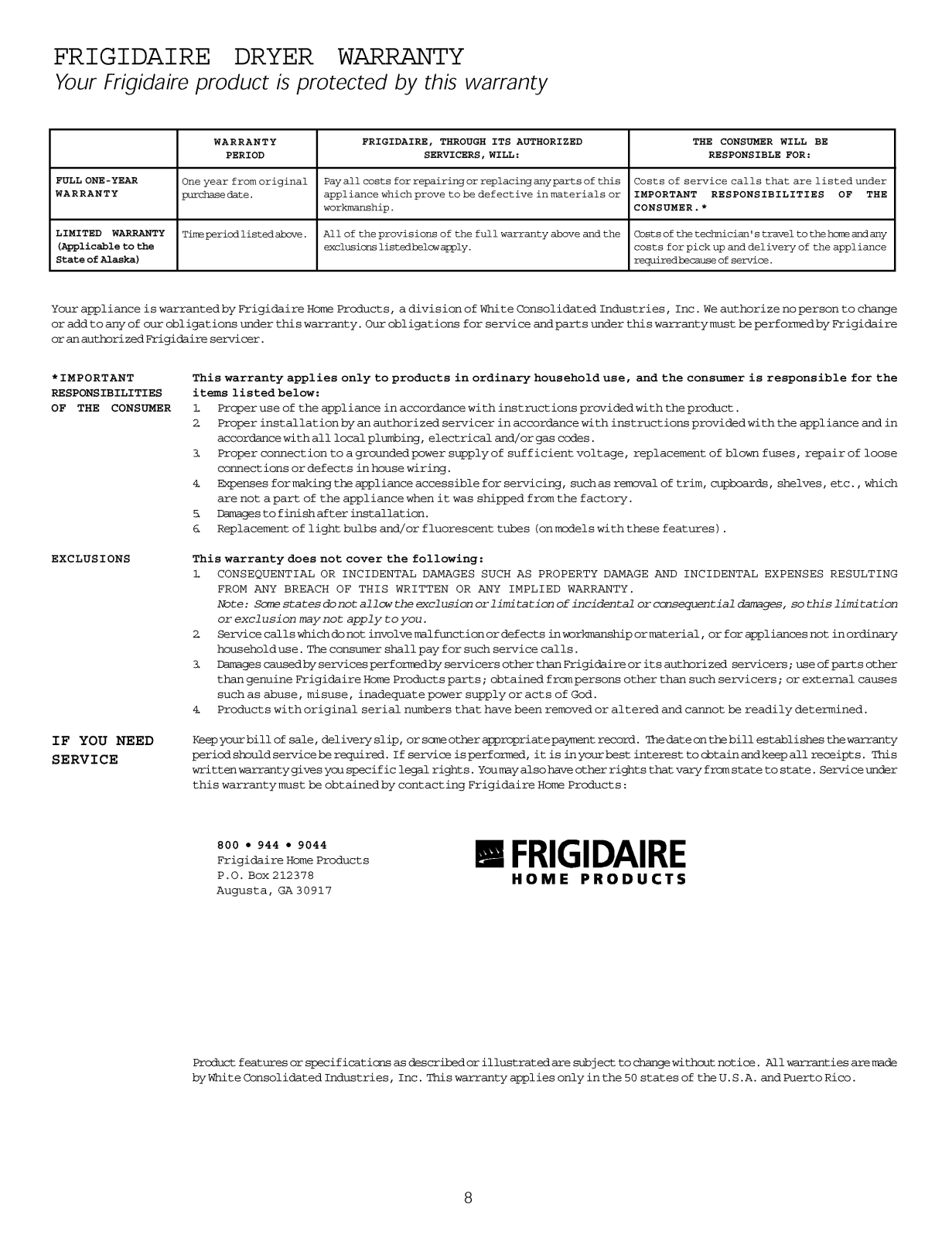

FRIGIDAIRE DRYER WARRANTY
YourFrigidaireproductisprotectedby thiswarranty
WARRANTY FRIGIDAIRE, THROUGH ITS AUTHORIZED THE CONSUMER WILL BE
PERIOD SERVICERS, WILL: RESPONSIBLE FOR:
FULL ONE-YEAR One year from original Payall costs forrepairingorreplacinganypartsofthis Costs of service calls that are listed under
WARRANTY purchasedate. appliancewhichprovetobedefectiveinmaterialsor IMPORTANT RESPONSIBILITIES OF THE
LIMITED WARRANTY Tim_pericdlistedabove. All of the provisions of the full warranty above and the Costsof the technician's traveltothehome andany
(Applicable to the exclusionslistedbelowapply, costs for pick up and delivery of the appliance
Stateof Alaska) requiredbecauseofservice.
Your appliance is warranted by Frigidaire Home Products,a division of White Consolidated Industries, Inc.We authorize no person to change
or add toany of our obligations under thiswarranty. Our obligations for service andparts underthiswarrantymust be performedby Frigidaire
or an authorizedFrigidaireservicer.
workmanship. CONSUMER. *
* IMPORTANT
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1 Properuse of the appliance in accordancewith instructionsprovidedwiththeproduct.
2 Proper installationbyanauthorized servicer in accordancewith instructionsprovidedwiththe appliance and in
accordancewithall localplumbing, electricaland/orgas codes.
1 Proper connection to agroundedpower supplyof sufficientvoltage, replacement of blown fuses, repairof loose
connections ordefects inhousewiring.
Expenses formaking theapplianceaccessiblefor servicing, suchas removmlof trim, cupboards, shelves,etc.,which
are not a part of the appliance when it was shipped from the factory.
5 Damagesto finishafterinstallation.
Replacement of lightbulbs and/or fluorescent tubes (onmodels withthese features).
This warranty does not cover the following:
1 CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Somestatesdonot allowthe exclusionorlimitationofincidentalor c_nsequentialdamages,so thislimitation
or exclusion maynot apply to you.
2 Servicecallswhichdonot involvemalfunctionordefectsinworkmanshipormaterial, or forappliancesnot inordinary
householduse. The consumer shallpay for such service calls.
DamagescausedbyservicesperformedbyservicersotherthanFrigidaireorits authorized servicers;useofpartsother
than genuineFrigidaire Home Productsparts; obtained frcmpersons other than such servicers;or external causes
such as abuse, misuse, inadequate power supplyor acts of God.
Products withoriginal serial numbers that have been removedor altered and cannot bereadilydetermined.
Keepyourbillofsale, deliveryslip,orsomeotherappropriatepaymentrecord.Thedateonthebill establishesthewarranty
periodshouldserviceberequired. Ifserviceisperformed,it isinyourbest interesttoobtainandkeepallreceipts. This
writtenwarrantygivesyouspecific legalrights.Youmayalsohaveotherrights thatvaryfromstatetostate. Serviceunder
thiswarrantymustbeobtainedbycontacting Frigidaire Home Products:
800 • 944 • 9044
Frigidaire Home Products
P.O. Box 212378
Augusta, GA 30917
Productfeaturesorspecificaticnsasdescribedor illustratedaresubjecttochangewithoutnotice. Allwarrantiesaremade
by White Consolidated Industries,Inc. Thiswarrantyappliesonly in the 50statesof the U.S.A. and Puerto Rico.
m FRIGIDAIRE
HOME PRODUCTS
Loading...
