Frigidaire GL36WC4IES, PL30WC4IEC, GL30WC4IES, GL36WC4IEB, GL30WC4IEB User Manual

Patent No.: US D450, 829 S

READ AND SAVE THESE INSTRUCTIONS

PROFESSIONAL SERIES MODELS

PL30WC4IEC
PL36WC4IEC

GALLERY SERIES MODELS

GL30WC4IES

GL36WC4IES
GL30WC4IEB
GL36WC4IEB

!!

FOR DOMESTIC COOKING ONLY

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means can­not be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards, in­cluding fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire Pro­tection Association (NFPA), and the American Society of Heating, Re­frigeration and Air Conditioning Engineers (ASHRAE), and the local code
authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.

6. To reduce the risk of fire or electric shock, do not use this range hood
with an additional speed control device.

7. Ducted fans must always be vented to the outdoors.

8. To reduce the risk of fire, use only metal ductwork.

9. Use with approved cord-connection kit only.

10. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Never leave surface units unattended at high settings. Boilovers cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings.

2. Always turn hood ON when cooking at high heat or when cooking flaming
foods.

3. Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.

4. Use proper pan size. Always use cookware appropriate for the size of
the surface element.

TO REDUCE THE RISK OF INJURY T O PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray,
then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the
flames do not go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam
explosion will result.

4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already

know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

!!

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or unbalanced impel­lers, keep drywall spray, construction dust, etc. off power unit.

3. For best capture of cooking impurities, your range hood should be
mounted so that the top of the hood is 24-30” above the cooking sur­face.

4. Please read specification label on product for further information and
requirements.

Installer: Leave this manual with
the homeowner.

Homeowner: Operating and
Cleaning information on page 6.

NOTE If hood is to be installed Non-Ducted:

• Purchase a set of (2) non-ducted filters from your
local distributor or retailer and attach them to the
aluminum mesh filters.

TABLE OF CONTENTS

This manual is divided into sections as follows:

• “PREPARE HOOD LOCATION”

Run ductwork from roof or wall cap, and electrical wiring from service
panel - to installation location

• “PREPARE THE HOOD”

Get your hood ready for installation

• “CONNECT WIRING”

Make electrical wiring connections to hood

• “INSTALL HOOD”

Secure hood to cabinet and ductwork - install bulbs and filters

• “OPERATION”

How to use the hood controls

• “CLEANING”

Keep your hood in top working condition

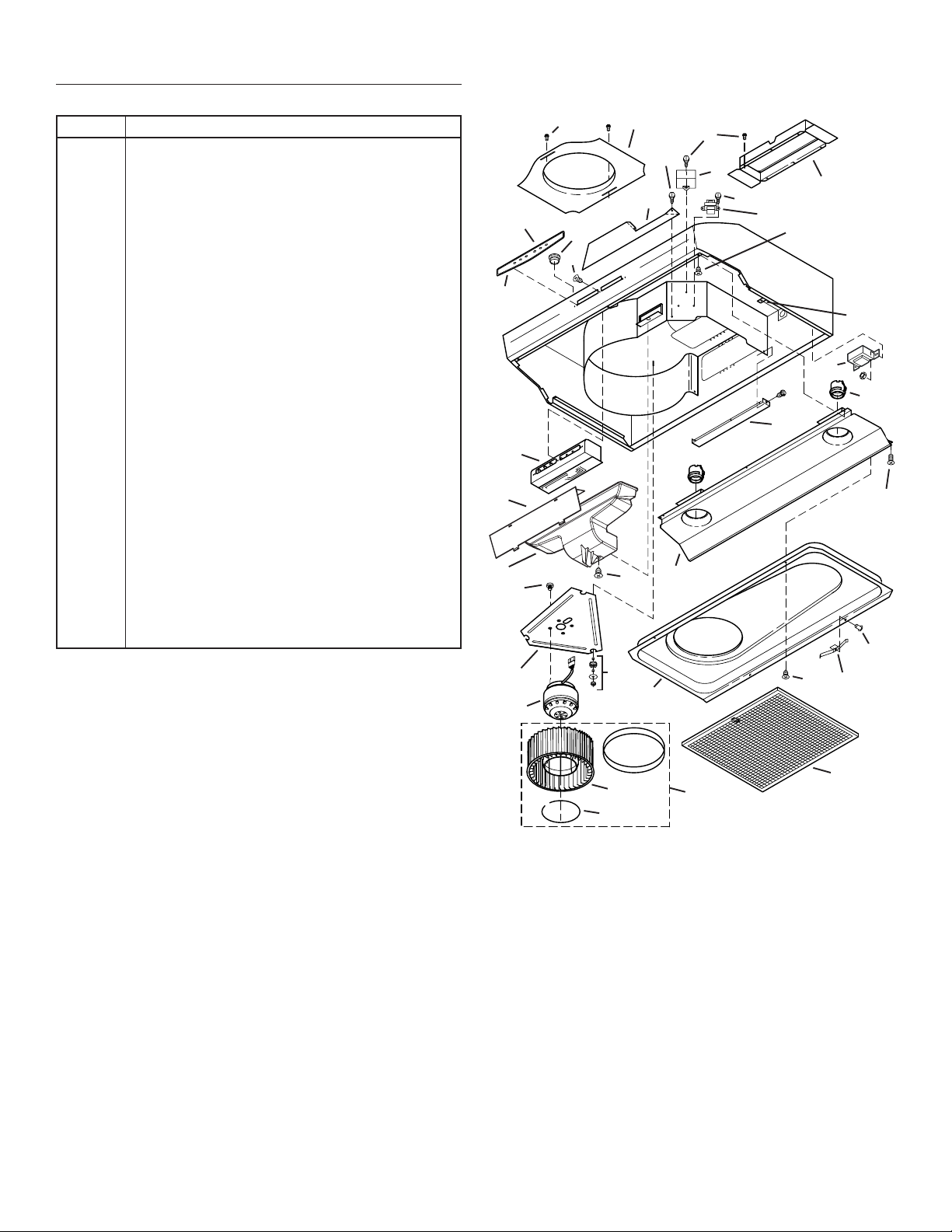

• “SERVICE PARTS”

Key numbers and exploded view of hood components

• “WARRANTY”

One-year limited warranty and how to contact us

1

!

HOOD

PREPARE HOOD LOCATION

PREPARE HOOD LOCATION

ROOF CAP

SOFFIT

CABINET

24" - 30" ABOVE
COOKING SURFACE

HOOD

HOOD

3¼" X 10" or

7" ROUND DUCT

(For vertical

discharge)

HOUSE WIRING
(Top or Back of hood)

WALL CAP

3¼" X 10" DUCT
(For horizontal discharge)

1 Determine whether hood will discharge vertically (3¼” x 10”

or 7” Round), or horizontally (3¼” x 10” only). For vertical or
horizontal discharge, run ductwork between the hood loca­tion and a roof cap or wall cap. For best results, use a mini­mum number of transitons and elbows.

2 Use diagrams, below, for proper placement of ductwork and

electrical cutout in cabinet or wall. For a non-ducted installa­tion, DO NOT cut a duct access hole.

HOOD MOUNTING SCREWS (4)

15

/

13

" (30" hood)

16

15

/

16

" (36" hood)

16

15

/

19

" (42" hood)

16

CABINET FRONT

13
16
19

15

/

16

15

/

16

15

/

16

3¼” X 10”

VERTICAL DUCTING

" (30" hood)
" (36" hood)
" (42" hood)

7” ROUND

VERTICAL DUCTING

3 Run house wiring between service panel and hood

location.

PREPARE THE HOOD

7” ROUND

DUCT PLATE

5"

1¼"

WOOD SHIMS

(recessed-bottom

cabinets only)

WOOD SHIMS

(recessed-bottom

cabinets only)

3¾"

CABINET
BOTTOM

15

13

/

16

15

16

/

16

15

19

/

16

HOOD

MOUNTING

SCREWS (4)

7½"

CABINET BOTTOM

5¼"

VERTICAL DUCT

ACCESS HOLE

5¼"

CENTER

LINE

HORIZONT AL DUCTING

CABINET FRONT

HORIZONTAL DUCT

ACCESS HOLE

5¼"

" (30" hood)
" (36" hood)
" (42" hood)

CENTER

5¼"

13
16
19

LINE

2"

ELECTRICAL

ACCESS HOLE

(in cabinet bottom)

3¼” X 10”

1

"

/

¾"

8

7½"

15

" (30" hood)

/

16

15

" (36" hood)

/

16

15

" (42" hood)

/

16

ELECTRICAL

ACCESS HOLE

(in wall)

1½"

10½"

1 Remove 7” Round Duct Plate from top of hood. Set duct

plate aside - with mounting screws.

FILTERS

2 Remove tape holding Filters in place. Pull down on filter

tabs or finger holes and lift filters out. Set filters aside.

2

PREPARE THE HOOD PREPARE THE HOOD

3 Remove

Teflon®-coated
bottom cover

from hood. Set
cover and
mounting screws
aside.

Teflon® is a registered
trademark of DuPont.

4 Remove

Damper/Duct
Connector

from inside
the hood. Set
connector
aside - with
mounting
screws and
parts bag.

DAMPER/

DUCT

CONNECTOR

TEFLON®-COATED BOTTOM COVER

(Held in place with 2 screws)

7 Remove Air

Chute

- held in

place with one
(1) screw.

NOTE: Be
careful not to
disconnect any
wires.

8 Remove Baffle

from air chute.

AIR CHUTE

➠

BAFFLE

BAFFLE

5 Remove

either top or
back wiring
knockout and
install
approved

Electrical
Cable Clamp

.

ELECTRICAL CABLE CLAMP

Non-Ducted Installation - Skip to Step 15.

(3) #8 SCREWS

The following
Steps (6 thru

14) are for

(2) #8 SCREWS

DUCTED
INST ALLATION
ONLY.

LIGHT

PANEL

9 Rotate baffle.

Reinsert baffle into
air chute (as
shown) so that
baffle

tabs fit all the
way into
chute. An audible
“click” will be heard
when fully installed.
This will close off
the air flow through
the non-ducted
slots on top of
hood.

slots in air

➠

SLOTS

➠

TABS

➠

➠

6 Remove Light Panel - held in place with (3) #8 screws and

(2) #8 screws. Disconnect light assembly wire harness
(white connector).

10

Re-install air chute, re-connect wire
harness, and replace light panel.

NOTE: Be careful not to trap wires
between

3

support fin and light panel.

SUPPORT FIN

PREPARE THE HOOD

PREPARE THE HOOD

TOP RECTANGULAR

DUCT KNOCKOUT

(Remove for 3¼” x 10”
Vertical & for 7” Round

Discharge)

REAR

RECTANGULAR

DUCT KNOCKOUT

(Remove for 3¼” x 10”

Horizontal Discharge)

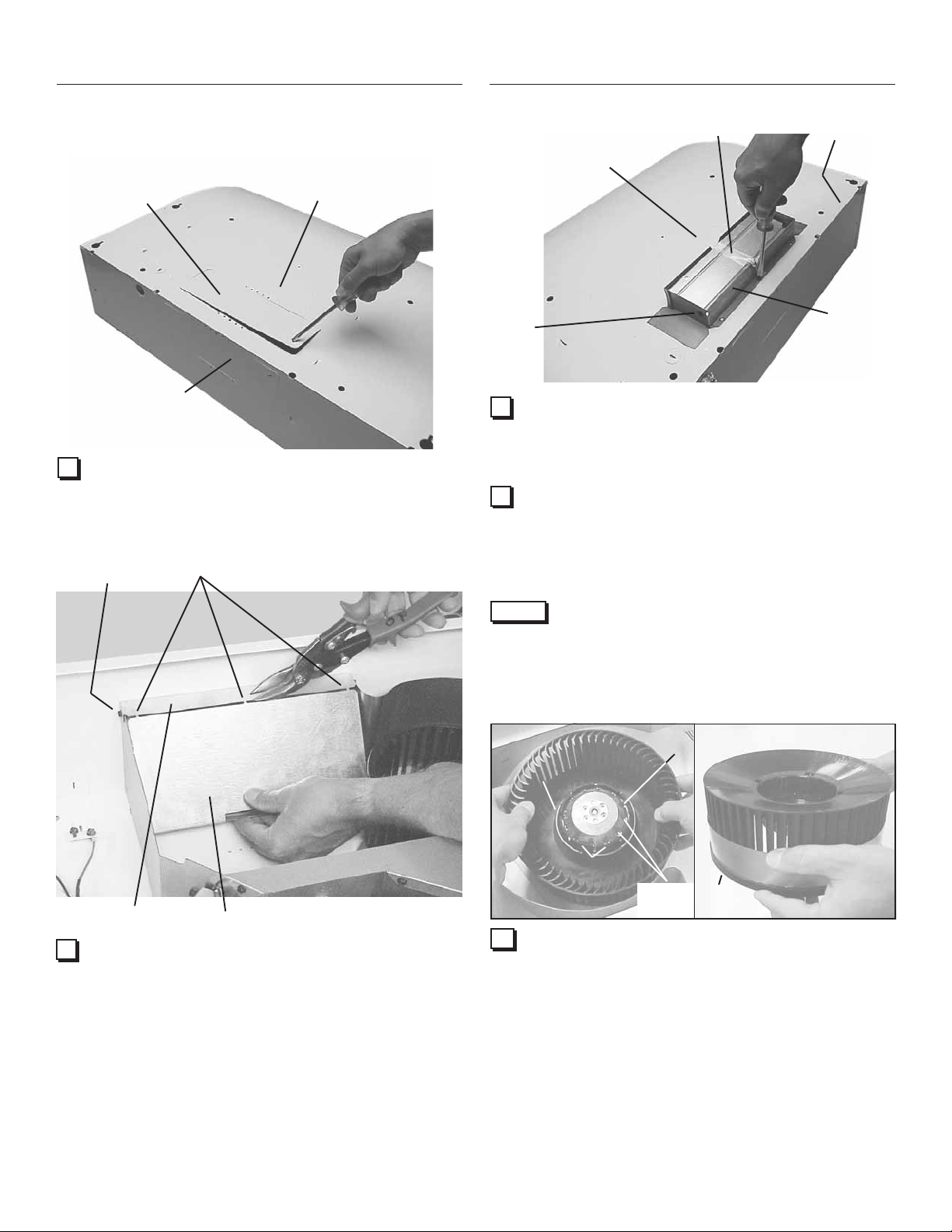

11 Remove appropriate Duct Knockout(s) from top or back of

hood.

SCREW

TIES

SEMI-CIRCULAR

DUCT KNOCKOUT

(Remove for 7” Round

Discharge)

TAPE

UP TO 1”
SIDE-TO-SIDE
ADJUSTMENT

TOP/BACK

EDGE

➙

➙

DAMPER/

PIVOT

13 3¼” x 10” Ducted Discharge Only: Remove Tape from

damper flap and attach
knockout opening with screws removed in Step 4 under
“PREPARE THE HOOD”. Make sure damper
to

Top/Back Edge of hood.

14 7” Round Ducted Discharge Only: Re-install 7” Round Duct

Plate

removed in Step #1 under “PREPARE THE HOOD”.
Install a 7” round damper (purchase separately). Damper flap
must open freely in direction of airflow (away from range
hood).

Damper/Duct Connector over

CONNECTOR

(Vertical discharge

position shown)

Pivot is nearest

DUCT

METAL STRIP

12 Horizontal Discharge Only: Remove the Plate in front of the

horizontal discharge knockout. Cut the
and discard plate. DO NOT REMOVE the
place with two

PLATE

Ties, lift plate out,

Metal Strip held in

Screws.

NOTE

hood center or the 7” Round Duct Plate can be installed up to ½”
on either side of hood center. In extreme off-center installations,
one end of the duct connector may need to be trimmed to clear the
electrical cable clamp.

RETAINING

15 Non-Ducted Installations Only: Require a Performance Ring

To accomodate off-center ductwork, the Damper/Duct
Connector can be installed up to 1-inch on either side of

BLOWER

RING

to be attached to the blower wheel.
To install ring:

1. Remove the

2. Slide the ring onto the

3. Reassemble wheel to motor. Make sure

4. Push wheel down until it is locked in place.

5. Check that wheel is properly positioned as shown. Press

WHEEL

SECTIONS

applying a slight force to pull wheel from motor. Remove
Retaining Ring if necessary.

and down to the
into one of the

Sections into place if necessary. Make sure wheel turns freely.

TAB

SMALL DIAMETER

MOTOR

SLOTS

Blower Wheel by rocking it side to side and

Stop Edge of the wheel.

Motor Slots.

STOP
EDGE

Small Diameter End of the wheel

END

RING

Tab on wheel fits

4

CONNECT WIRING

WARNING: To reduce the risk of electric shock,
make sure power is switched off at the service
panel. Lock or tag service p anel to prevent power
from being switched on accidentally.

INSTALL HOOD

HOUSE

WIRING

(120 VAC)

CARDBOARD

(Use to protect

cooktop)

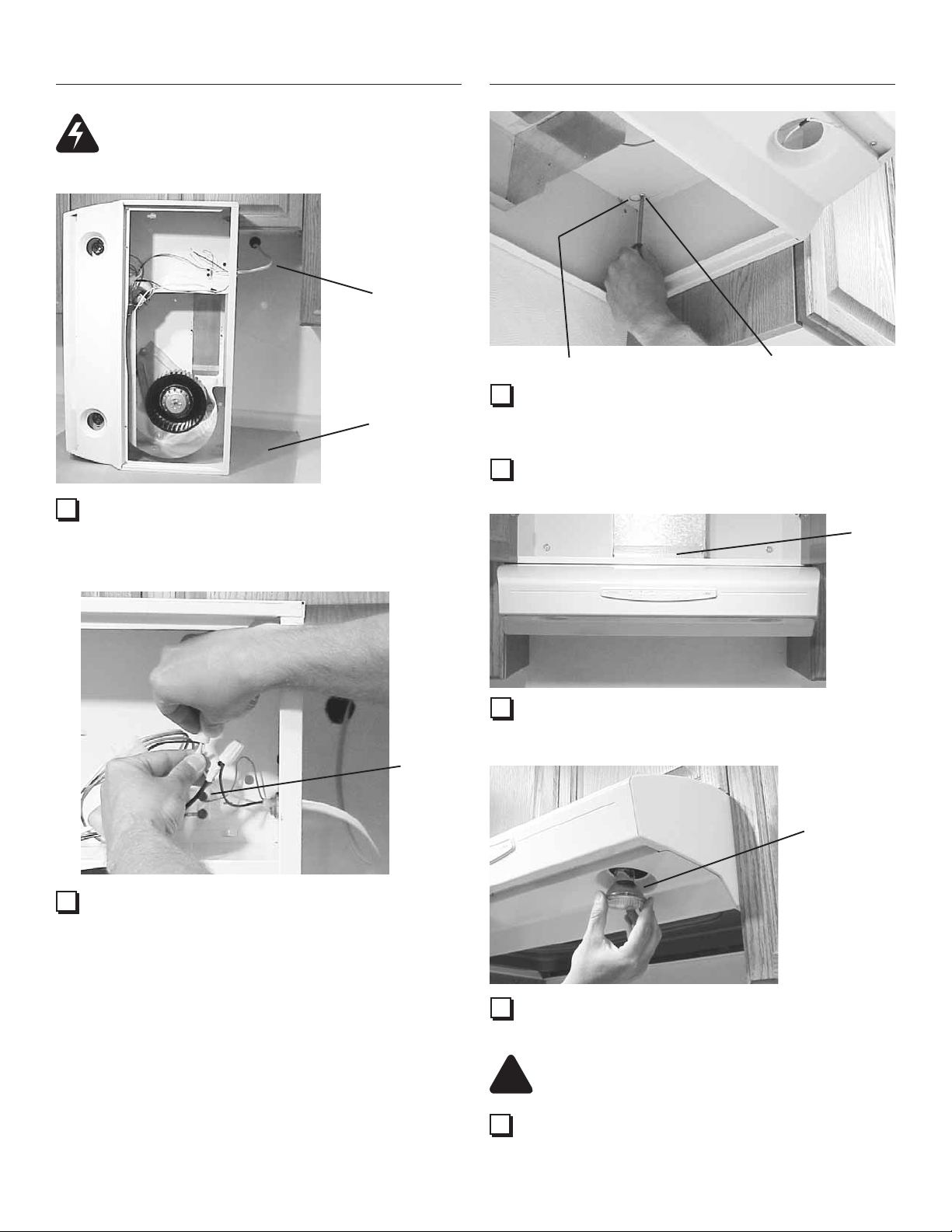

1 Connect House Wiring (120 VAC) to hood. Use a piece of

Cardboard to protect the cooktop, if necessary.

GREEN

GROUND

SCREW

2 Connect house black to hood black wire, house white to hood

white wire, and house ground under
Securely tighten cable clamp onto house wiring.

Green Ground Screw.

KEYHOLE (4)

1 Hang hood from (4) Mounting Screws. Slide hood towards

wall until mounting screws are engaged in narrow end of (4)
Keyholes. Tighten mounting screws securely. A long
screwdriver works best.

2 Replace bottom cover.

3 Connect ductwork to hood. Use Duct Tape to make joints

secure and air tight.

MOUNTING SCREW (4)

DUCT

TAPE

PAR20,
50W MAX.
HALOGEN

BULB (2)

- or ­R16,

40W MAX.

INCANDESCENT

BULB (2)

4 Install (2) PAR20, 50 W Maximum Halogen Bulbs or (2) R16,

40 W Maximum
separately.

Incandescent Bulbs. Purchase bulbs

CAUTION: Bulbs may be hot! Refer to bulb packag-

!

ing for further information.

5 Replace filters, turn on power at service panel, and test for

proper operation.

5

NON-DUCTED FILTERS

If hood is to be installed Non-Ducted:
Purchase a set of (2) Non-Ducted Filters from your local

distributor or retailer and attach them to the aluminum mesh
filters.

NOTE: For models that are installed in the non-ducted mode, the

most effective operation is achieved at speeds 1 and 2.
These speeds provide the most efficient and quiet
operation during cooking, while maximizing the benefits
of the recirculating filtration system.

OPERATION

Fan and Lights: 3 push button switches for each. Push any button

to select one of 3 fan speeds or one of 3 light levels. Push the
same button to turn fan or light off. Press another button to change
fan speed or light level. A light above each fan button indicates the
fan speed.

Heat Sentry: Your range hood is equipped with the Heat Sentry
feature, which monitors temperature. The Heat Sentry will auto­matically turn the fan on at its highest speed when the temperature
is above normal.

1) If a fan setting is selected when the Heat Sentry in on, the light
above the fan button will flash on and off.

2) If the fan setting is off when the Heat Sentry is on, the light
above fan button 3 will flash on and off rapidly.

After the temperature has lowered to normal, the fan will change to
the setting prior to the Heat Sentry turning on.

Fuse: The hood control contains a fuse to protect it from power
surges. If the fuse has opened (blown), the green fan-level indica­tors will operate properly when the fan buttons/switches are pressed

- but the fan and lights will not turn on.
The fuse is a 5 x 20 mm, 10 Amp, Fast-Acting, 125V (min.). Com-

mon manufacturer and part numbers are: Littlefuse, 217010;
Bussmann, GMA10A; Wickmann, 1942100. Radio Shack, Digikey
(1-800-344-4539), and most electronic supply stores have them in
stock.

To replace the fuse:

1. Disconnect power at service entrance.

2. Remove filters, bottom panel, light wire harness, and air chute.

3. Remove and inspect fuse. If it is
diagnostics need to be done.

4. Install new fuse.

5. Re-assemble air chute, light wire harness, bottom panel, and
filters.

6. Turn on power and check hood/control operation.

not open (blown), additional

CLEANING

WARNING: To reduce the risk of electric shock, dis­connect from power supply before cleaning.

Aluminum mesh filters: Clean frequently using hot water and a

mild detergent. Filters are dishwasher safe.
Charcoal filters: Clean filter surfaces frequently with a damp cloth

and a mild detergent. DO NOT immerse filters in water or put in
dishwasher. The special “Clean Sense” feature indicates when the
filter is to be replaced. The blue and yellow strips will blend to
green when it is time to change the filter. The “Clean Sense” fea­ture works best when facing toward the cooking surface.

To clean hood: Remove filters. Use a damp cloth and a mild de­tergent to wipe all grease-laden surfaces. Do not use abrasive cloth,
steel wool pads, or scouring powder on the Teflon
cover or on any painted surface. Use care when cleaning blower
wheel - it must not become bent or misaligned. DO NOT ALLOW
WATER TO ENTER MOTOR. Make sure all surfaces are com­pletely dry before re-installing filters and restoring power.

Motor is permanently lubricated. Do not oil or disassemble motor.

®

Teflon

is a registered trademark of DuPont.

6

®

-coated bottom

SERVICE PARTS

KEY NO. DESCRIPTION

1 7” Round Duct Plate (includes hardware)
2 Damper/Duct Connector (includes hardware)
3 Screw, #8-18 x ¼ Hex* (2 in package)
4 Motor Capacitor (includes wire nuts & hardware)
5 Isolation Transformer
6 Nameplate
7 Control Panel (includes Key No. 6 & hardware)
8 Screw for Plastic, #6 x ½ Flat Hd. (3 in package)

9 Screw, #8-18 x 3/8 (2 in package)
10 Ground Screw
11 Scroll Cover, Outlet (includes hardware)
12 Scroll Cover, Front (includes hardware)
13
14
15 Baffle
16 Screw, Metric M4 x 6mm (4 in package)
17 Motor Plate (Includes Key No. 18)
18 Motor Plate Mounting Kit (3 of each part)
19 Motor (includes Key No. 16)
20 Blower Wheel (Includes Key No. 21)
21 Retaining Ring
22 Lamp Socket Assembly
23 Light Panel
24 Hole Plug (1 req.)
25 Pop Rivet, .125D (3 req.)
26 Filter Spring Kit
27 Bottom Cover (includes Key Nos. 9, 25, & 26)
28 Autotransformer (includes hardware)
29 Aluminum Mesh Filter (2 in package)
30 Non-Ducted Blower Wheel Assembly

** Non-ducted Filter Kit
** Wire Harness
** Control Fuse, 10-Amp

Order replacement parts by KEY NO.
* Standard hardware - may be purchased locally.
** Not illustrated - purchase separately.

Control Assembly (includes Key Nos. 6, 7 & hardware)
Air Chute Assembly (includes Key No. 15 & hardware)

(includes Key Nos. 20 & 21)

15

14

7

13

16

17

19

18

1

12

9

27

3

3

23

4

3

5

11

2

9

10

28

22

9

9

9

26

3

6

24

8

29

20

21

7

30

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.

If You Need
Service

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.

Canada

Electrolux Canada Corp.

Mississauga, Ontario, Canada

8

1.800.668.4606

5855 Terry Fox Way

L5V 3E4

628015A
