TO REDUCE THE RiSK OF FIRE, ELECTRIC SHOCK, OR iNJURY TO
PERSONS, OBSERVE THE FOLLOWING:
I. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means can-
not be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards, in-
cluding fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer's guideline
and safety standards such as those published by the National Fire Pro-
tection Association (NFPA), and the American Society of Heating, Re-
frigeration and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. When cutting or drilling into watt or ceiling, do net damage electrical
wiring and other hidden utilities.
6. To reduce the risk of fire or electric shock, do not use this range hood
with an additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. Use with approved cord-connection kit only.
I0. This unit must be grounded.
TO REDUCE THE RiSK OF A RANGE TOP GREASE FIRE:
I. Never leave surface units unattended at high settings. Boilovers cause
smoking and greasy spitlovers that may ignite. Heat oils slowly on tow or
medium settings.
2. Always turn hood ON when cooking at high heat or when cooking flaming
foods.
3. Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of
the surface element.
TO REDUCE THE RISK OF iNJURY TO PERSONS iN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray,
then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the
flames do not go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN -- You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam
explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already
know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on "Kitchen Fire Safety Tips" published by NFPA.
1. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impel-
lers, keep drywall spray, construction dust, etc. off power unit.
3. For best capture of cooking impurities, your range hood should be
mounted so that the top of the hood is 24-30" above the cooking sur-
face.
4. Please read specification label on product for further information and
requirements.
Installer: Leave this manual with
the homeowner.
Homeowner: Operating and
Cleaning information on page 6.
If hood is to be installed Non-Ducted:
• Purchase a set of (2) non-ducted filters from your
local distributor or retailer and attach them to the
aluminum mesh filters.
TABLE OF CONTENTS
This manual is divided into sections as follows:
"PREPARE HOOD LOCATION"
Run ductwork from roof or wall cap, and electrical wiring from service
panel - to installation location
"PREPARE THE HOOD"
Get your hood ready for installation
"CONNECT WIRING"
Make electrical wiring connections to hood
"iNSTALL HOOD"
Secure hood to cabinet and ductwork - install bulbs and filters

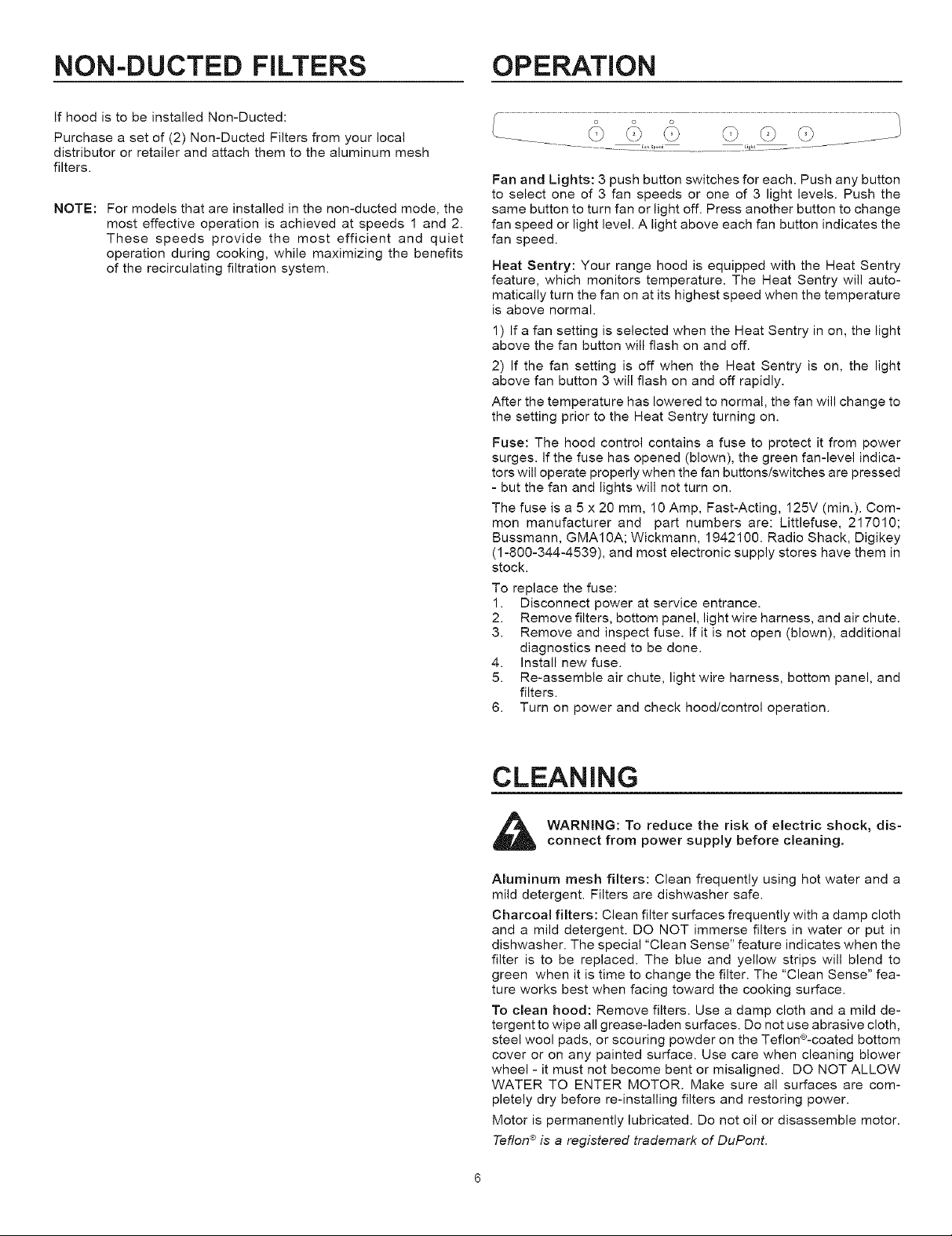

"OPERATION"
How to use the hood controls
"CLEANING"
Keep your hood in top working condition
"SERVICE PARTS"
Key numbers and exploded view of hood components
"WARRANTY"
One-year limited warranty and how to contact us
PREPARE HOOD LOCATION PREPARE HOOD LOCATION
ROOF CAP 31A''X 10" or
7" ROUND DUCT
(For vertical
HOUSE WIRING
or Back of hood)
CAP
t
24" - 30" ABOVE
COOKING SURFACE 3¼"X 10" DUCT
r_ Determine whether hood will discharge vertically (3¼" x 10"
or 7" Round), or horizontally (3%" x 10" only). For vertical or
horizontal discharge, run ductwork between the hood loca-
tion and a roof cap or wall cap. For best results, use a mini-
mum number of transitons and elbows.
r_ Use diagrams, below, for placement of ductwork and
electrical cutout in cabinet or wall. For a non-ducted installa-
tion, DO NOT cut a duct access hole.
HOOD MOUNTING SCREWS (4) |VERT CAL DUCT NG I
1315/16" (3o" hood)
1615/16'' (36" hood) 1315/16'' (30" hood)
- 15 (36. hood))1
proper
(For horizontal discharge)
31/4"X 10" I
7" ROUND
HOOD MOUNTING SCREWS (4) I
1315/16'' (30" hood) _VERTICAL DUCTING
16t5/t6" (36" hood) | 1315/16" (30" hood) ----_
-,t----- 1615/16 '' (36" hood)
CABINET __-_ 7½""-"_ _)__
BOTTOM ,lJb, I I I
ACCESS HOLE L8" ! alA'_ _ ,.,, _Jl_ _ I
WOOD SHIMS t ELECTR CAL /
(recessed-bottom CENTER (in cabinet bottom)
cabinets only) LiNE
[_ un house wiring between service panel and hood
location.
PREPARE THE HOOD
7" ROUND
DUCT PLATE
ACCESS HOLE
CABINET BOTTOM
VERTICALDUCTACCESS HOLE
t ELECTRICAL
WOOD SHIMS CENTER
(recessed-bottom LINE (in cabinet bottom)
cabinets only)
WOOD SHIMS
(recessed-bottom
cabinets only)
CABINET. ,, I X
CABINET FRONT
ACCESS HOLE
I 3%" X 10" I
HORIZONTAL DUCTING
IBOTTOMI_- 5½'-t-5v,--I I
15 .... 7½'_
13 /16 (30 hood) ,,
L_ .............. -_11315/16 (30"hood)._,
I AOOESS OLE
/1b_O/16 (rib nooa) [ 1615/16" (36" hood)
HOOD t' I
MOUNTING CENTER
SCREWS (4) LINE
ELECTRICAL
ACCESS HOLE
(in wall)
7
10½"
Remove 7" Round Duct Plate from of hood. Set duct
plate aside - with mounting screws.
FILTERS,
r_ Remove holding Filters in place. Pull down on filter
tabs or finger holes and lift filters out. Set filters aside.
tape
top
PREPARE THE HOOD PREPARE THE HOOD
7 Remove
Teflon<_-coated
bottom cover
from hood. Set
cover and
mounting
aside.
Teflon ® is a registerec
trademark of DuPont.
r-_ Remove
Damper/Duct
Connector
from inside
the hood. Set
connector
aside - with
mounting
screws and
parts bag.
DAMPER/
DUCT
CONNECTOR
[_ Remove
either top or
back wiring
knockout and
install
approved
Electrical
Cable Clamp.
TEFLON°-COATED BOTTOM COVER
(Held in place with 2 screws)
71 Remove Air
Chute - held in
place with one
(1) screw.
NOTE: Be
careful not to
disconnect any
wires.
r_ Remove Baffle
from air chute.
AIR CHUTE
BAFFLE
BAFFLE
\
ELECTRICAL CABLE CLAMP
Non-Ducted installation - Skip to Step 15.
(3) #8 SCREWS LIGHT
PANEL
The following
Steps (6 thru
14) are for
DUCTED
INSTALLATION
ONLY.
[-_ Remove Light Panel - held in place with (3) #8 screws and
(2) #8 screws. Disconnect light assembly wire harness
(white connector).
Rotate baffle.
rq
Reinsert baffle into
air chute (as
shown) so that
baffle tabs fit all the
way into slots in air
chute. An audible
"click" will be heard
when fully installed.
This will close off
the air flow through
the non-ducted
slots on top of
hood.
Re-install air chute, re-connect wire
n
harness, and replace light panel.
NOTE: Be careful not to trap wires
between support fin and light panel.
SLOTS
TABS
SUPPORT FIN
PREPARE THE HOOD PREPARE THE HOOD
TOP RECTANGULAR
DUCT KNOCKOUT
(Remove for 3_" x 10"
Vertical & for 7" Round
Discharge)
REAR
RECTANGULAR
DUCT KNOCKOUT
(Remove for 3_" x 10"
Horizontal Discharge)
r_ Remove Duct from back of
hood.
SCREW
appropriate Knockout(s) top
TIES
SEMI-CIRCULAR
DUCT KNOCKOUT
(Remove for 7" Round
ge)
or
TAPE TOP/BACK
UP TO 1"
SIDE-TO-SIDE
(Vertical discharge
3%" x 10" Ducted Discharge Only: Remove Tape from
damper flap and attach Damper/Duct Connector over
knockout opening with screws removed in Step 4 under
"PREPARE THE HOOD". Make sure damper Pivot is nearest
to Top/Back Edge of hood.
7" Round Ducted Discharge Only: Re-install 7" Round Duct
Plate removed in Step #1 under "PREPARE THE HOOD".
Install a 7" round damper (purchase separately). Damper flap
must open freely in direction of airflow (away from range
hood).
EDGE
DAMPER/
CONNECTOR
position shown)
DUCT
METAL STRIP PLATE
Horizontal Discharge Only: Remove the Plate in front of the
horizontal discharge knockout. Cut the Ties, lift plate out,
and discard plate. DO NOT REMOVE the Metal Strip held in
place with two Screws.
r.-_-_ To accomodate off-center ductwork the Damper/Duct
hood center or the 7" Round Duct Plate can be installed up to ½"
on either side of hood center. In extreme off-center installations,
one end of the duct connector may need to be trimmed to clear the
electrical cable clamp.
[_ Non-Ducted Installations Only: Require a Performance Ring
Connector can be installed up to 1-inch on either side of
EDGE
to be attached to the blower wheel.
To install ring:
1. Remove the Blower Wheel by rocking it side to side and
applying a slight force to pull wheel from motor. Remove
Retaining Ring if necessary.
2. Slide the ring onto the Small Diameter End of the wheel
and down to the Stop Edge of the wheel.
3. Reassemble wheel to motor. Make sure Tab on wheel fits
into one of the Motor Slots.
4. Push wheel down until it is locked in place.
5. Check that wheel is properly positioned as shown. Press
Sections into place if necessary. Make sure wheel turns freely.
CONNECT WIRING INSTALL HOOD
WARNING: To reduce the risk of electric shock,
make sure power is switched off at the service
panel. Lock ortag service panel to prevent power
from being switched on accidentally.
HOUSE
WIRING
(120 VAC)
KEYHOLE (4) MOUNTING SCREW (4)
[_ Hang hood from (4) Mounting Screws. Slide hood towards
CARDBOARD
protect
cooktop)
wall until mounting screws are engaged in narrow end of (4)
Keyholes. Tighten mounting screws securely. A long
screwdriver works best.
[_ Replace bottom cover.
r_ Connect House to hood. Use of
Cardboard to protect the cooktop, if necessary.
[_ Connect house black to hood black wire, house white to hood
white wire, and house ground under Green Ground Screw.
Securely tighten cable clamp onto house wiring.
Wiring (120 VAC)
a
piece
GREEN
GROUND
SCREW
DUCT
TAPE
[-_ Connect ductwork to hood. Use Duct Tape to make joints
secure and air tight.
PAR20,
50W MAX.
HALOGEN
BULB (2)
- or-
R16,
40W MAX.
INCANDESCENT
BULB (2)
r_ install PAR20, 50 W Maximum Bulbs R16,
(2) Halogen
40 W Maximum Incandescent Bulbs. Purchase bulbs
separately.
or
(2)
CAUTION: Bulbs may be hot! Refer to bulb packag-
ing for further information.
Replace
r_ filters, turn at service and test for
proper operation.
on
power panel,
NON-DUCTED FILTERS OPERATION
If hood is to be installed Non-Ducted:
Purchase a set of (2) Non-Ducted Filters from your local
distributor or retailer and attach them to the aluminum mesh
filters.
NOTE: For models that are installed in the non-ducted mode, the
most effective operation is achieved at speeds 1 and 2.
These speeds provide the most efficient and quiet
operation during cooking, while maximizing the benefits
of the recirculating filtration system.
Fan and Lights: 3 push button switches for each. Push any button
to select one of 3 fan speeds or one of 3 light levels. Push the
same button to turn fan or light off. Press another button to change
fan speed or light level. A light above each fan button indicates the
fan speed.
Neat Sentry: Your range hood is equipped with the Heat Sentry
feature, which monitors temperature. The Heat Sentry will auto-
matically turn the fan on at its highest speed when the temperature
is above normal.
1) If a fan setting is selected when the Heat Sentry in on, the light
above the fan button will flash on and off.
2) If the fan setting is off when the Heat Sentry is on, the light
above fan button 3 will flash on and off rapidly.
After the temperature has lowered to normal, the fan will change to
the setting prior to the Heat Sentry turning on.
Fuse: The hood control contains a fuse to protect it from power
surges. If the fuse has opened (blown), the green fan-level indica-
tors will operate properly when the fan buttons/switches are pressed
- but the fan and lights will not turn on.
The fuse is a 5 x 20 mm, 10 Amp, Fast-Acting, 125V (min.). Com-
mon manufacturer and part numbers are: Littlefuse, 217010;
Bussmann, GMA10A; Wickmann, 1942100. Radio Shack, Digikey
(1-800-344-4539), and most electronic supply stores have them in
stock.
To replace the fuse:
1. Disconnect power at service entrance.
2. Remove filters, bottom panel, light wire harness, and air chute.
3. Remove and inspect fuse. If it is not open (blown), additional
diagnostics need to be done.
4. Install new fuse.
5. Re-assemble air chute, light wire harness, bottom panel, and
filters.
6. Turn on power and check hood/control operation.
CLEANING
_ib WARNING: To reduce the risk of electric shock, dis-
Aluminum mesh filters: Clean frequently using hot water and a
mild detergent. Filters are dishwasher safe.
Charcoal filters: Clean filter surfaces frequently with a damp cloth
and a mild detergent. DO NOT immerse filters in water or put in
dishwasher. The special "Clean Sense" feature indicates when the
filter is to be replaced. The blue and yellow strips will blend to
green when it is time to change the filter. The "Clean Sense" fea-
ture works best when facing toward the cooking surface.
To clean hood: Remove filters. Use a damp cloth and a mild de-
tergent to wipe all grease-laden surfaces. Do not use abrasive cloth,
steel wool pads, or scouring powder on the Teflon<_-coated bottom
cover or on any painted surface. Use care when cleaning blower
wheel - it must not become bent or misaligned. DO NOT ALLOW
WATER TO ENTER MOTOR. Make sure all surfaces are com-
pletely dry before re-installing filters and restoring power.
Motor is permanently lubricated. Do not oil or disassemble motor.
Teflon ®is a registered trademark of DuPont.
connect from power supply before cleaning.
SERVICE PARTS
KEY NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
17
18
19
20
21
22
23
24
25
26
27
28
29
3O
Order replacement parts by KEY NO.
* Standard hardware - may be purchased locally.
** Not illustrated - purchase separately.
7" Round Duct Plate (includes hardware)
Damper/Duct Connector (includes hardware)
Screw, #8-18 x % Hex* (2 in package)
Motor Capacitor (includes wire nuts & hardware)
Isolation Transformer
Nameplate
Control Panel (includes Key No. 6 & hardware)
Screw for Plastic, #6 x ½ Flat Hd. (3 in package)
Screw, #8-18 x 3/8 (2 in package)
Ground Screw
Scroll Cover, Outlet (includes hardware)
Scroll Cover, Front (includes hardware)
Control Assembly (includes Key Nos. 6, 7 & hardware)
Air Chute Assembly (includes Key No. 15 & hardware)
Baffle
Screw, Metric M4 x 6mm (4 in package)
Motor Plate (Includes Key No. 18)
Motor Plate Mounting Kit (3 of each part)
Motor (includes Key No. 16)
Blower Wheel (Includes Key No. 21)
Retaining Ring
Lamp Socket Assembly
Light Panel
Hole Plug (1 req.)
Pop Rivet, .125D (3 req.)
Filter Spring Kit
Bottom Cover (includes Key Nos. 9, 25, & 26)
Autotransformer (includes hardware)
Aluminum Mesh Filter (2 in package)
Non-Ducted Blower Wheel Assembly
(includes Key Nos. 20 & 21 )
Non-ducted Filter Kit
Wire Harness
Control Fuse, 10-Amp
DESCRiPTiON
14
1
°/
6
\
27
5
9
\
9
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
p.o. Box 212378
Augusta, GA 30907
[] Electrolux
8
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
Canada
1.800.668.4606
L5V 3E4
628015A
Loading...
