READ AND SAVE THESE INSTRUCTIONS PN:241857500(April2007)

important Safety instructions ............. 2

installation ............................................ 3

Connecting Water Supply .................... 4

Door Removal instructions .................. 5

Temperature Controls ......................... 6

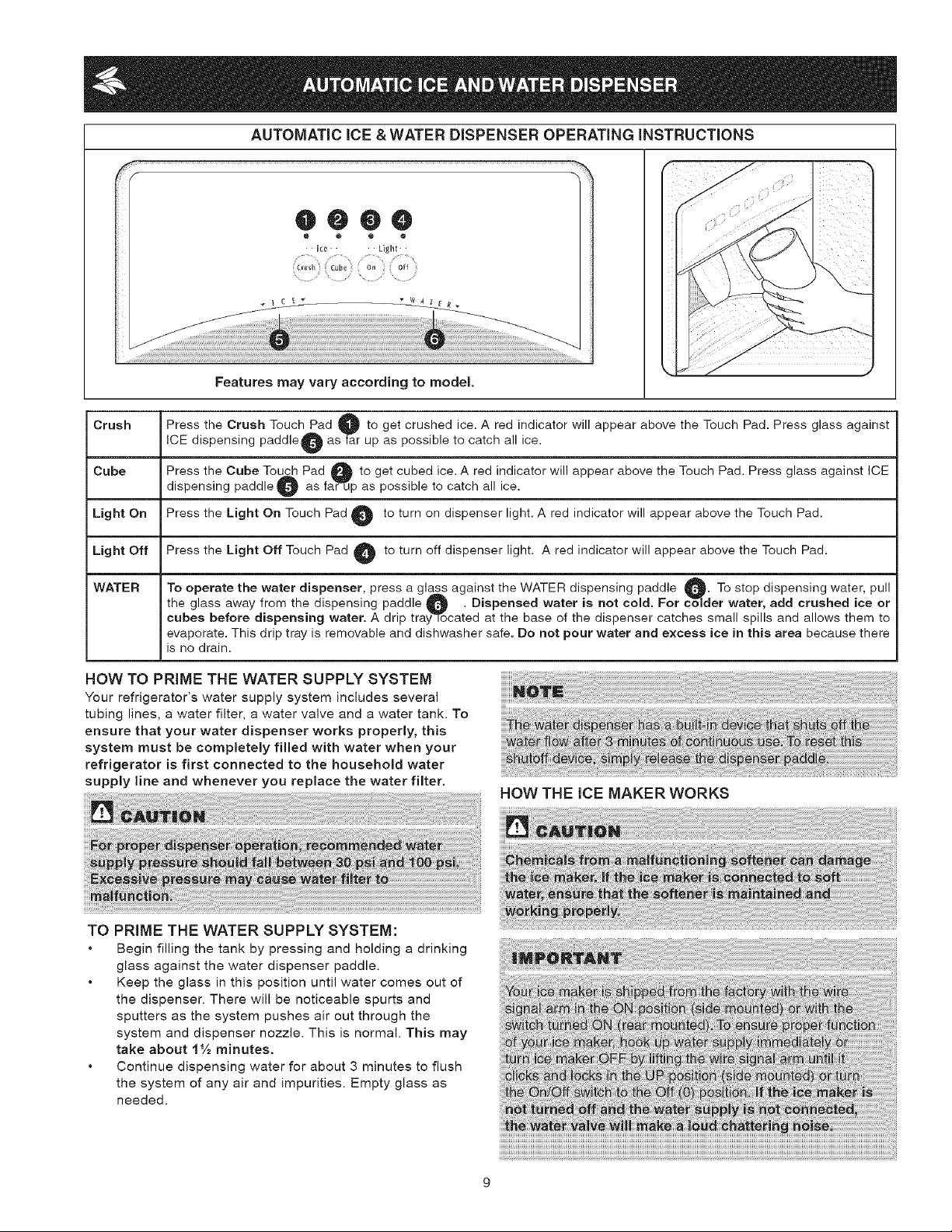

Automatic ice & Water Dispenser ....... 8

Replacing Air Filter .............................. 13

Normal Operating Sounds & Sights ... 14

Care and Cleaning ................................ 15

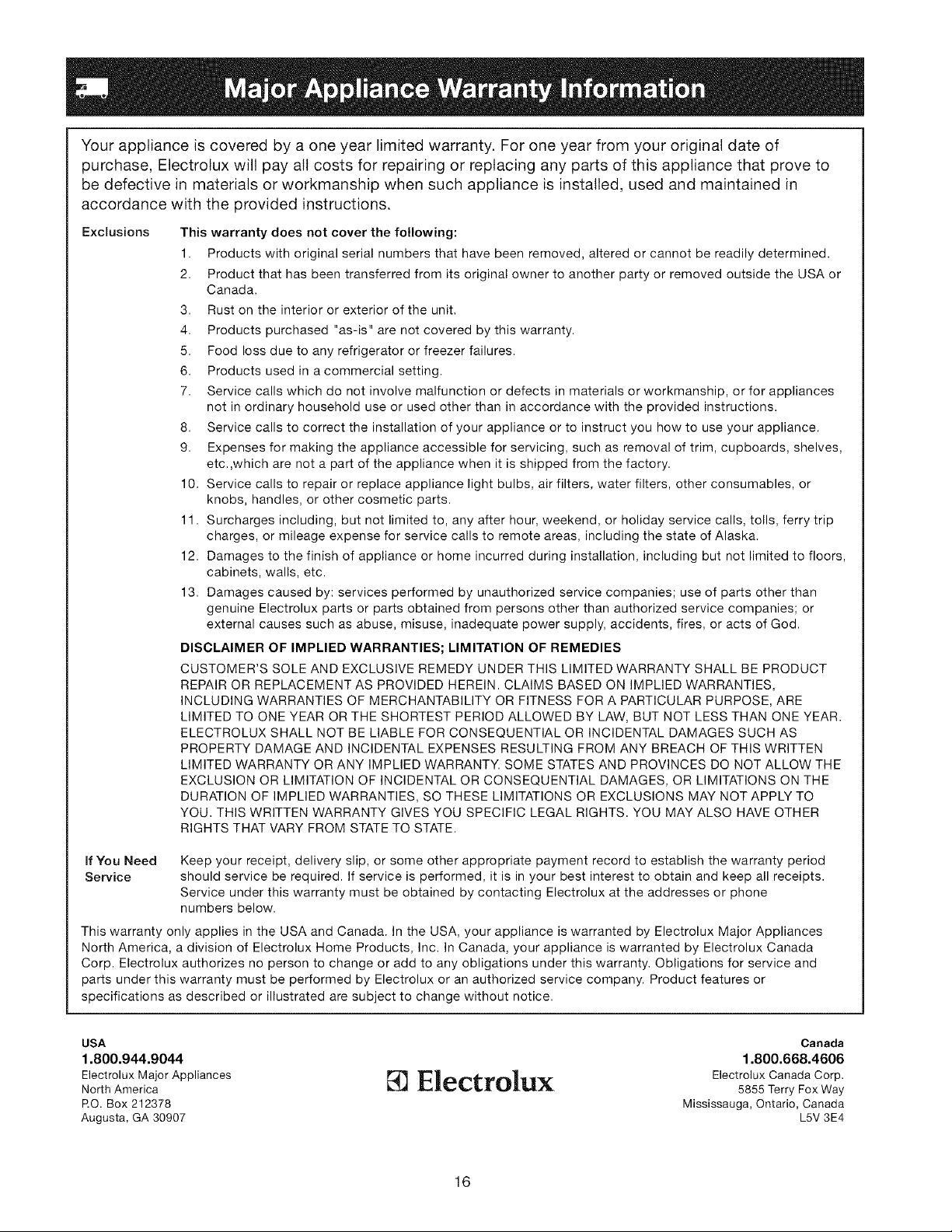

Warranty ................................................ 16

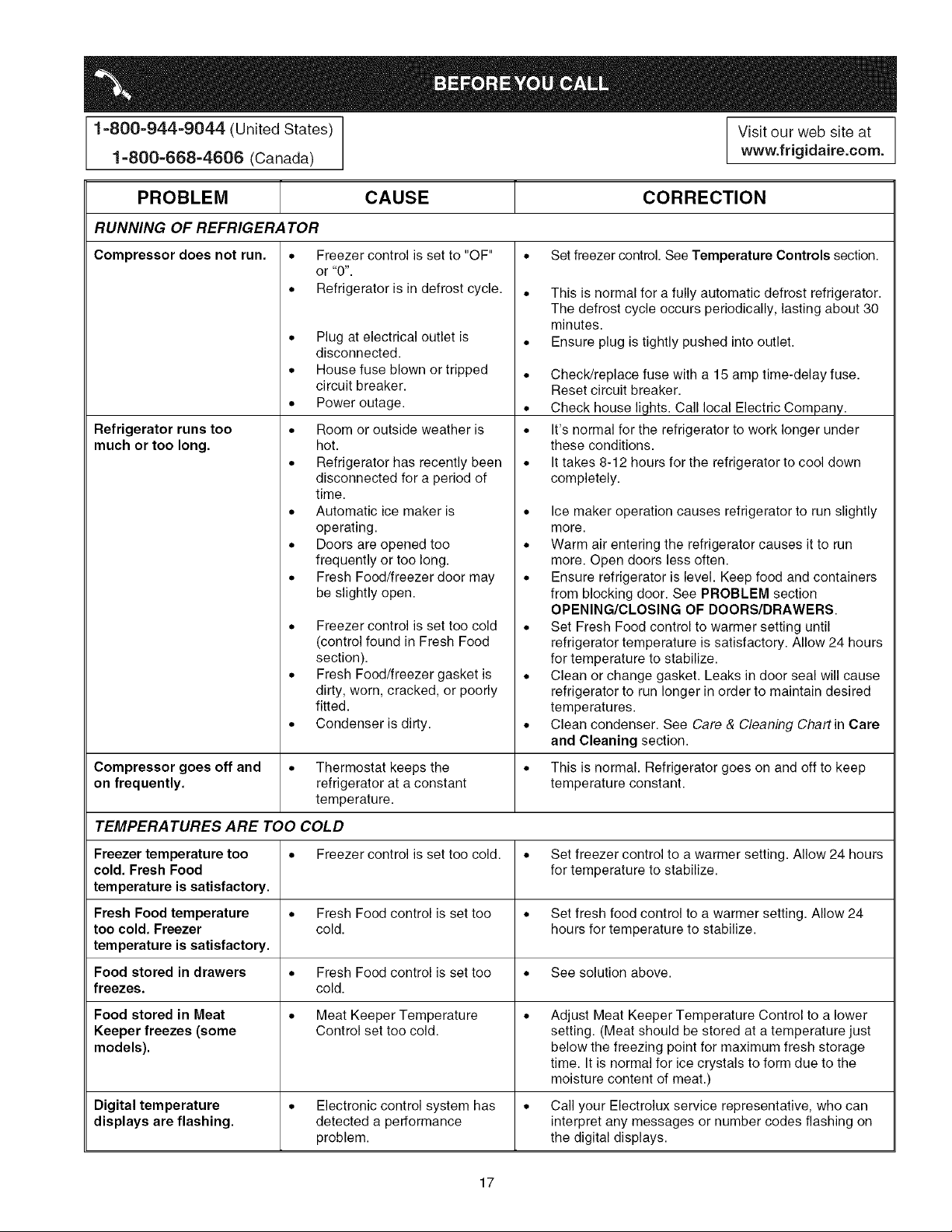

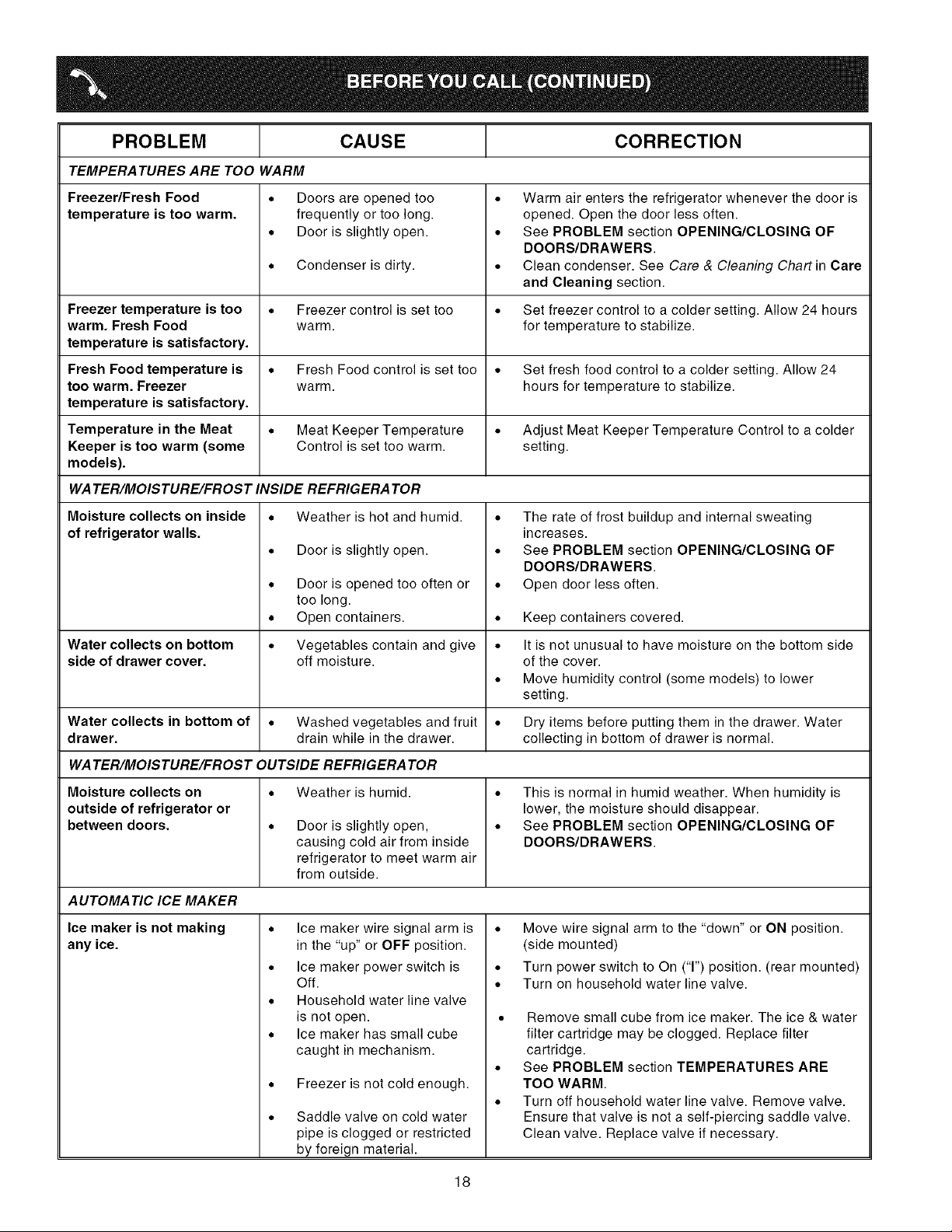

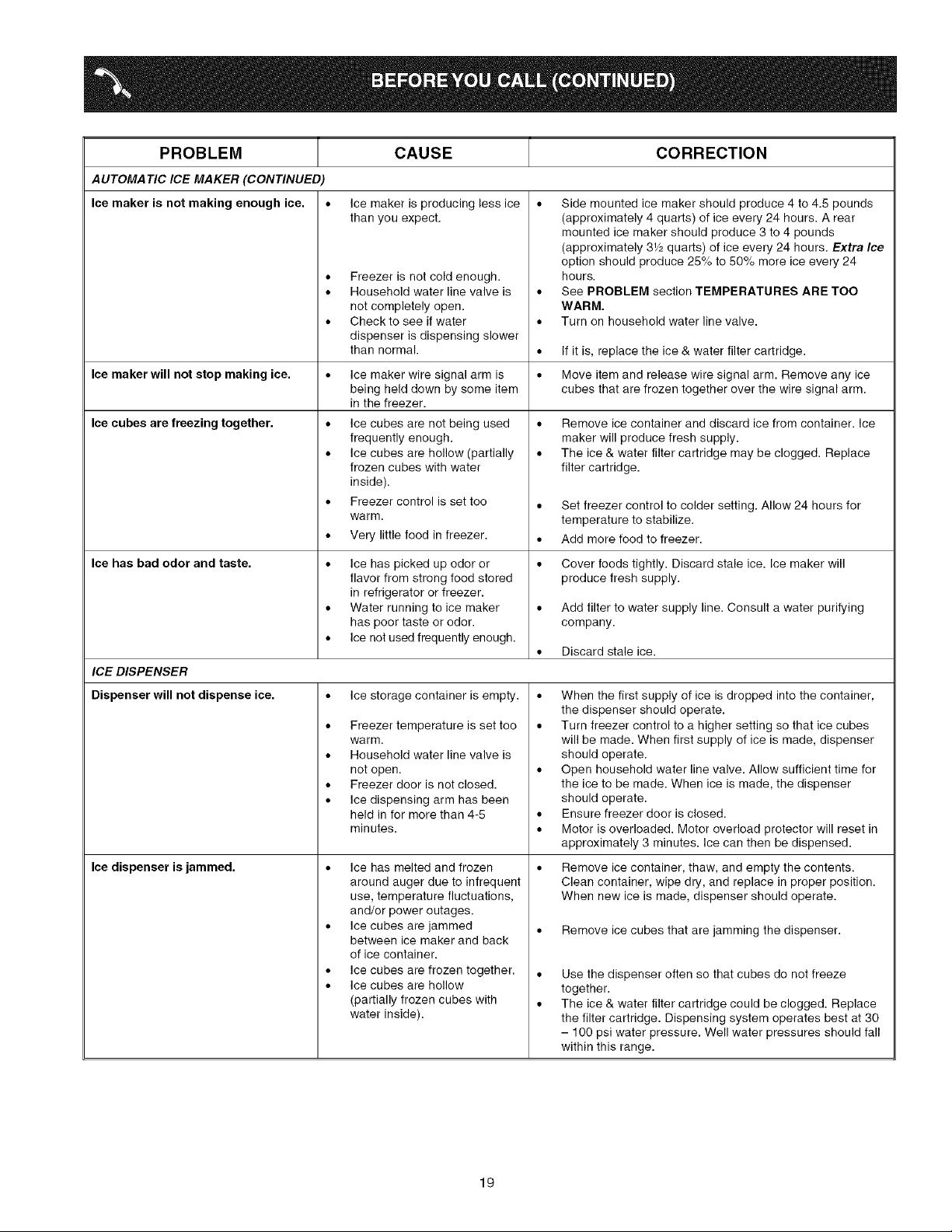

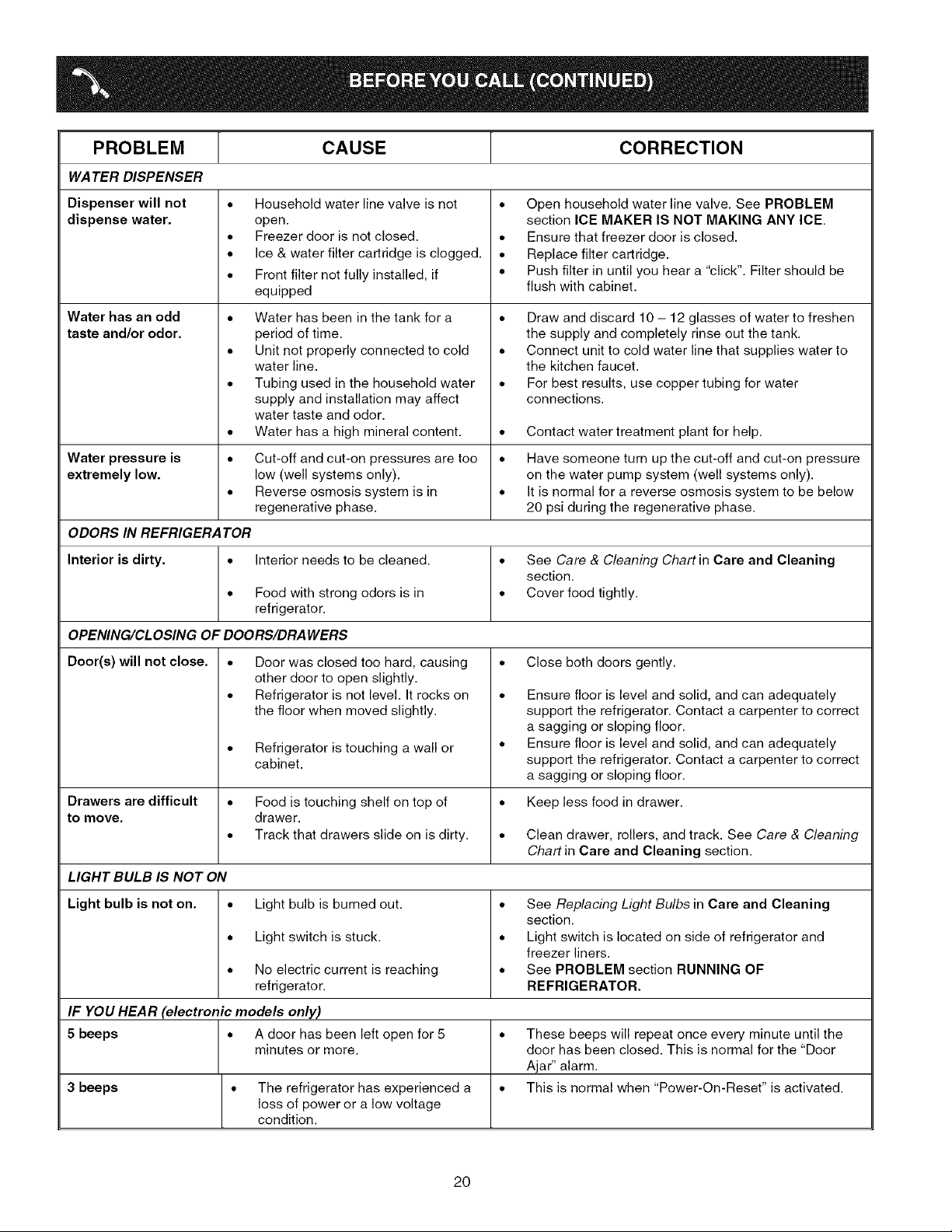

Before you Call ..................................... 17

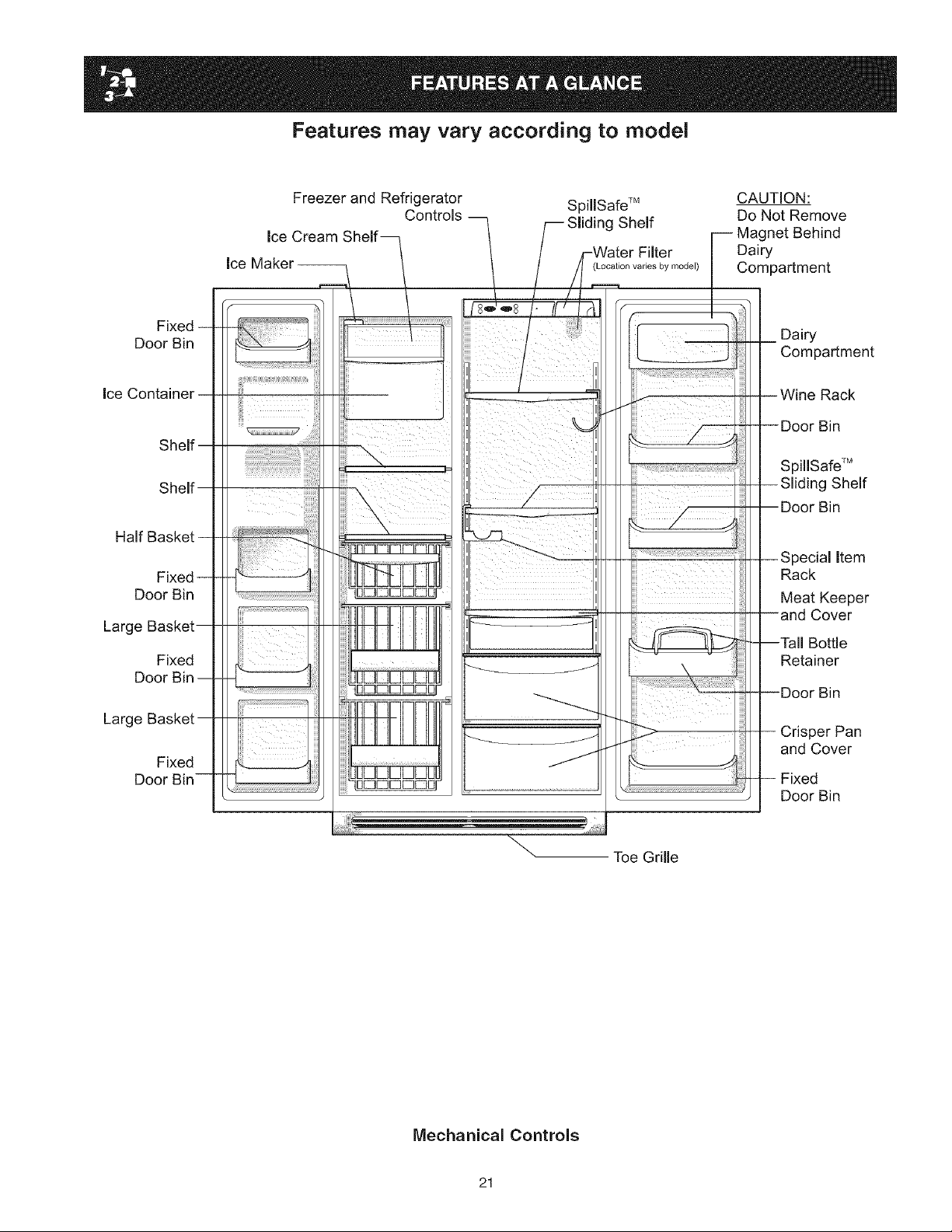

Features at a Glance ............................ 21

FOR YOUR SAFETY
,, Do not store or use gasoline, or other flammable liquids in

the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other

hazards.

,, Do not operate the refrigerator in the presence of

explosive fumes.

,, Avoid contact with any moving parts of automatic ice

maker.

,, Remove all staples from the carton. Staples can cause

severe cuts, and also destroy finishes if they come in

contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior

wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly

cause suffocation.

electrical shock hazards. It must be plugged directly into a
properly grounded three prong receptacle. The receptacle

must be installed in accordance with local codes and
ordinances. Consult a qualified electrician. Avoid

connecting refrigerator to a Ground Fault Interruptor (GFI)
circuit. Do not use an extension cord or adapter plug.

,, If the power cord is damaged, it should be replaced by an

authorized service technician to prevent any risk.

,, Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.

,, Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

,, Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.

,, Do not plug the unit into an electrical outlet controlled by a

wall switch or pull cord to prevent the refrigerator from
being turned off accidentally.

PROPER DISPOSAL OFYOUR REFRIGERATOR OR
FREEZER

Risk of child entrapment

Child entrapment and suffocation
are not problems of the past.

Junked or abandoned refrigerators
or freezers are still dangerous -
even if they will sit for "just a few
days." If you are getting rid of your
old refrigerator or freezer, please

follow the instructions below to
help prevent accidents.

Before you throw away your old refrigerator/freezer:

,, Remove doors.
,, Leave shelves in place so children may not easily climb

inside.

,, Have refrigerant removed by a qualified service

technician.

ELECTRICAL iNFORMATION

,, The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical

outlet, The power cord of the appliance is equipped with a

three-prong grounding plug for your protection against

ThisUse&CareManualprovidesgeneraloperating

instructionsforyourmodel.Usetherefrigeratoronlyas

instructedinthisUse&CareManual.Beforestartingthe

refrigerator, follow these important first steps.

LOCATION

o Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

o If possible, place the refrigerator out of direct sunlight

and away from the range, dishwasher or other heat
sources.

o The refrigerator must be installed on a floor that is level

and strong enough to support a fully loaded refrigerator.
Consider water supply availability for models equipped

with an automatic ice maker.

iNSTALLATiON

LEVELING

All four corners of your refrigerator must rest firmly on a solid floor.
Your refrigerator is equipped with adjustable front rollers to help level

your unit. Toensure proper door seal and assist door closing, the
refrigerator should be tilted 1/4" (6mm), front to back.

ToLevel YourRefrigerator:

1. Remove toe grille. (See 'To Remove Toe Grille".)

2. Use flat-blade screwdriver or 3/8" socket wrench to adjust

front rollers.

Raise

F

i

Installation Clearances

o Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical
connections:

Sides & Top 3/8"
Back 1"

DOOR OPENING

Your refrigerator should be positioned to allow easy access to a

counter when removing food. For best use of drawers and freezer

baskets, the refrigerator should be in a position where both the

refrigerator and freezer doors can be fully opened.

3, Check both doors to be sure seals touch cabinet on all four

sides.

i i

iii i

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON
water supply and flush supply line until water is clear. Turn
OFF water supply at shutoff valve.

3. Unscrew plastic cap from water valve inlet and discard
cap.

4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.

5. Push water supply line into water valve inlet as far as it will
go (¼ inch). Slide ferrule (sleeve) into valve inlet and

finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to
rear panel of refrigerator as shown.

7. Coil excess water supply line (about 2Y2turns) behind
refrigerator as shown and arrange coils so they do not

vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any
connections that leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (side mounted)
or set the ice maker's On/Off power switch to the "r'
position _rear mounted).

Plastic Water Tubing

to Ice Makel

Fill Tube

Clamp

Brass

ComF "ess_en

J[

Before Installing The Water Supply Line, You Will Need:

, Basic Tools: adjustable wrench, flat-blade screwdriver,

and Phillips TM screwdriver

,, Access to a household cold water line with water pressure

between 30 and 100 psi.

,, A water supply line made of ¼ inch (6.4 ram) OD, copper

tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker

inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as shown).

,, A shutoff valve to connect the water supply line to your

household water system. DO NOT use a self-piercing type
shutoff valve.

,, A compression nut and ferrule (sleeve) for connecting the

water supply line to the ice maker inlet valve.

water line

\ Valve Inlet

falve

Copper water line

from nousenola water supply

Include enougn tUeleg In loop to allO_

moving refrigerator out for cleaningj

OR

---D0or

Lower

Hinge

f

TootsNecessary:

DOOR REMOVAL iNSTRUCTiONS:

if it is necessary to move the refrigerator through narrow doorways, follow these
steps to remove the doors.

Before you start:

1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Remove any food from the door shelves.

3 Close the doors.

To remove the hinge cover: (some models)

1 Remove the three screws from the cover over the top door hinges.
2 Pull the cover forward about a half inch and lift it off.

To remove the refrigerator door:

1 Remove top hinge cover screw on refrigerator door and remove cover. (some models)
2 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.

3 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it

aside.

4 Remove the three bottom hinge screws and hinge, if necessary.

To remove the freezer door:

1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides of

the connector firmly and pull apart.

2 Remove top hinge cover screw on freezer door and remove cover. (some models)
3 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.

4 Detach the water tube from the connector located below the freezer door. The connector

releases when you press its outer sleeve inward.

5 Remove the screws from the top hinge and pull the multi-wire cable through it.
6 Lift the door off of the bottom hinge. Lay the door on its side to avoid damage to the

Remove the three bottom hinge screws and hinge, if necessary.

r ,,

"toD SCO..ECT

1. Press outer rir_g against face

push until mark touches face of fitting

To reinstall the refrigerator and freezer doors, reverse the above steps.

Mu t -W re

Hinge

= Top

ALLOWING COOLINGTIME BEFORE USE

Toensure safe food storage, allow your refrigerator to operate with
the doors closed for at least 8 to 12 hours before placing food inside.

During this cooling period, you do not need to adjust the controls,

which are preset at the factory.

SETTING COOLINGTEMPERATURES

Your refrigerator comes with a state-of-the-art electronic digital
control system. The system's control panel is located at the top of the

the fresh food compartment.
The two digital displays on the left half of the control panel indicate

the current settings or temperatures of your freezer and fresh food
compartments. The models with a 2-digit temperature display are for

reference only, and do not display the current accurate compartment
temperature. Should you desire to see what the current accurate
temperature is, place a separate thermometer inside thefreezer or
fresh food compartment in the desired location.

TEMPERATURE ADJUSTMENT

After 24 hours, adjust the controls as needed. Make your
adjustments small and gradual; allowing time for temperatures

to change and stabilize. Refer to the adjacent guidelines for
temperature settings.

To adjust the temperature to a higher or lower setting, press the

Up or Down button closest to the display. The first time you

press the button, the display shows the last setting you entered.

Each press of the button after that increments the setting by

one degree.
The display shows your new setting momentarily, then changes

back to the current temperature.

Temperature Adjustment Guide

If Fresh Food

If Fresh Food compartment is too cold /

Freeze!-compa_ent is too warm [ Adjust Freezer control one degree colder

If

If Freezer

compartment

compartment

Warm / Adjust Fresh Food control one degree

is too

is too cold

colder by pressing Down (Colder) button.

h

Fresh Food control

Adjust
warmer by pressing the Up (Cold) button

L

by pressing Down (Colder) button.

[

[ Adjust Freezer control one degree warmer

by pressing the Up (Cold) button

L

one degree

IFTEMPERATURE DISPLAYS FLASH...

if ever you see both temperature displays continously flashing,

it may indicate that the control system has detected a
performance problem. Call your service representative, who
can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator
and freezer compartments. For good circulation, do not block
cold air vents with food items.

iii

Temperature Display (2-Digit)

Freezer Fresh Food

AIR FILTER iNDiCATOR & STATUS LIGHTS
Your refrigerator's air filter needs to be replaced from time to

time. You can monitor the need for replacement by referring to
the status light while the air filter is "ON". To turn on the air filter,

press the "Air Filter" button. Toturn off the air filter, press the
"Air Filter" button. To RESET the air filter, press the "Air Filter"

button and hold for 3 seconds.

Air Filter Status Light (not available on all models)

Green Filter OK.

Yellow Air filter is about 80 percent used. Please order new one.

Red Air filter is 100 percent used. Please change now.

Cooling System On/Off Button Alarm Reset Button Indicator Lights

TURNING THE COOLING SYSTEM ON AND OFF
You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature

control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and
hold it for three seconds. Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops.
To turn the cooling system back on, you must again press and holdthe On/Off button for three more seconds.

SYSTEM MONITORING ALARMS (Select Models)
The electronic control system continuously monitors your
refrigerator/freezer for temperature consistency, doors
left ajar, and power failures, Variances from normal
operating conditions are communicated by audible tones
and a set of four status indicator lights,

USING THE ALARM RESET BUTTON

You can disable or activate the alarm system by pressing
and holding the Reset button for three seconds. Use it,
for example, to turn off audible tones and/or flashing

indicator lights.

Once you disable the alarm system, you must again
press and hold the Alarm Reset button for three more
seconds to reset (activate) the alarm system.

The On indicator light remains off while the freezer and
refrigerator compartments cool toward the current
cooling settings, When temperature settings are reached,
the On light displays green to indicate an active alarm
system,

RESPONDING TO ALARMS (AudibleTones & indicator
Lights)

Your refrigerator's control system can convey the
following information through audible tones and the alarm
indicator lights.

Alarm Light

On (light is

Steady Alarm system is No response required.

Door Flashing _ Freezer or Close door to disable and reset

Ajar Green refrigerator alarm.

High Flashing _ Freezer or Press Alarm Reset button to

Temp Amber refrigerator turn off alarm. If

Power Flashing

Failure Amber

Tone

off)

Condition How To Respond

Alarm system is Iffreezer and refrigerator

notactivewhile
freezerand

refrigerator
compartments

arecooling
towardthe

current
temperature
settings.

Green active.

door has been
open for over

five minutes.

compartment temperatures do not
has been too improve, call for assistance,

warm (7.2 ° C using the phone number on
or higher) for the back page of this Use &
over an hour. Care Guide.

A power outage Press Alarm Reset button to

was detected, turn off alarm and press

compartments do not match
your temperature settings in

three hours, expect the
control system to signal other

conditions. If cooling does
not stabilize toward your

current settings call for
assistance, using the phone

number on the back page of
this Use & Care Guide.

again to reset. Check ifthe
power failure lasted tong

enough to affect stored food
temperatures.

AUTOMATIC iCE & WATER DISPENSER OPERATING iNSTRUCTiONS

Oeeee e

E_,_mol..... _oi_ Cube Crush [ighf F,i__,_i lo_k

EXTREME
FREEZE

EXTRA

ICE

CUBE

CRUSH

LIGHT

FILTER

STATUS

LOCK

WATE R

To freeze food at a faster rate to preserve freshness, push the Touch Pad O for 3-5 seconds to
activate this feature. A green light will appear above the Touch Pad. Push the Touch Pad I_again

for 3-5 seconds to deactivate.
To increase ice production for special occasions, such as parties, push the Touch Pad Oor

3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the
Touch Pad O again for 3-5 seconds to deactivate. Extra Ice should produce 25% to 50% more ice

every 24 hours.

Press the CUBE Touch Pad O to get cubed ice. A green light will appear above the Touch Pad.
Press glass against ICE dispensing paddle O as far up as possible to catch all ice.

Press the CRUSH Touch Pad O to get crushed ice. A green light will appear above the Touch Pad.
Press glass against ICE dispensing paddle Oas far up as possible to catch all ice.

Press the LIGHT Touch Pad O to turn on dispenser light. Press O again to turn the light off.
The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with
an appliance bulb of the same wattage.

The FILTER STATUS indicator light above the Touch Pad _vill light up each time the dispenser
is used. The following filter light indications are:

Green The filter is still operating within its specified life cycle.
Amber The filter has reached approximately 80% of its useful life. This is the recommended time

to purchase a replacement filter.

Red The filter is 100% used up. Change the filter as soon as possible.
After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad Qfor

10-15 seconds.
NOTE: The Green, Red and Amber lights Will flash When reset is completed.

The Ice & Water Dispenser can be locked out to prevent unwanted use.
To Lock Out Press the LOCK Touch Pad _ for 3-5 seconds. A Red light will appear above

the Touch Pad.

To Unlock Press the LOCK Touch Pad O for 3-5 seconds until the Red light above the

Touch Pad qoes out.

To operate the water dispenser, press a glass against the WATER disp_nsing paddle 0. To
stop dispensing water, pull the glass away from the dispensing paddle _. Dispensed water is not

cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at
the base of the dispenser catches small spills and allows them to evaporate. This drip tray is

removable and dishwasher safe. Do not pour water and excess ice in this area because there
is no drain.

AUTOMATIC ICE &WATER DISPENSER OPERATING iNSTRUCTiONS

0000

o o ® _ !

UC_ L_ht " •

Features may vary according to model.

Crush Press the Crush Touch Pad O to get crushed ice. A red indicator will appear above the Touch Pad. Press glass against

ICE dispensing paddle O asTar up as possible to catch all ice.

Cube Press the Cube Tou£ch Pad O to get cubed ice. A red indicator will appear above the Touch Pad. Press glass against ICE

Light On Press the Light On Touch Pad O to turn on dispenser light. A red indicator will appear above the Touch Pad.

Light Oft Press the Light Off Touch Pad O to turn off dispenser light. A red indicator will appear above the Touch Pad.

WATER To operate the water dispenser, press a glass against the WATER dispensing paddle _l_. To stop dispensing water, pull

HOW TO PRIME THE WATER SUPPLY SYSTEM

Your refrigerator's water supply system includes several
tubing lines, a water filter, a water valve and a water tank. To
ensure that your water dispenser works properly, this

system must be completely filled with water when your

refrigerator is first connected to the household water

supply line and whenever you replace the water filter.

dispensing paddle Q as far up as possible to catch all ice.

the glass away from the dispensing paddle O . Dispensed water is not cold. For c_der water, add crushed ice or
cubes before dispensing water. A drip trayq-ocated at the base of the dispenser catches small spills and allows them to

evaporate. This drip tray is removable and dishwasher safe. Do not pour water and excess ice in this area because there
is no drain.

HOW THE ICE MAKER WORKS

TO PRIME THE WATER SUPPLY SYSTEM:

Begin filling the tank by pressing and holding a drinking
glass against the water dispenser paddle.

Keep the glass in this position until water comes out of

the dispenser. There will be noticeable spurts and

sputters as the system pushes air out through the
system and dispenser nozzle. This is normal. This may

take about 1'/2 minutes.

Continue dispensing water for about 3 minutes to flush

the system of any air and impurities. Empty glass as

needed.

The ice maker and container are located in the top of the
freezer compartment. After the refrigerator is installed properly
and has cooled for several hours, the ice maker can begin
making ice within 24 hours. Air in new plumbing lines may

cause the ice maker to cycle two or three times before making
a full tray of ice. With no usage, it will take approximately two

days to fill the ice container.
Because of new plumbing connections, the first production of

ice cubes may be discolored or have an odd flavor. Discard
ice made during the first 24 hours.

TURNING YOUR SIDE MOUNTED ICE MAKER ON/OFF

To begin ice production, lower the wire signal arm to the

DOWN or ON position. The ice maker turns off automatically
when the ice container becomes full. To stop the ice maker,
raise the wire signal arm until it clicks and locks in the UP or

OFF position (see Figure 1).
TURNING YOUR REAR MOUNTED ICE MAKER ON/OFF

Ice production is controlled by the ice maker's ON/OFF power
switch. To gain access to the ice maker, pull the ice cream

shelf out. Press the switch to the "O" position to turn it Off and
press it to the 'T' position to turn it On (see Figure 2). The ice
maker also has a built-in wire signal arm, which automatically

stops ice production when the ice bin is full. DO NOT use this
signal arm to manually stop the ice maker.

ICE PRODUCTION: WHAT TO EXPECT
How Much Ice Will a Side Mounted Ice Maker

Produce in 24 Hours?

A side mounted ice maker will produce 4 to 4.5 pounds of

ice every 24 hours, depending on usage conditions. Ice is
produced at a rate of 8 cubes every 75 to 90 minutes.

How Much ice Will a Rear Mounted ice Maker

Produce in 24 Hours?

A rear mounted ice maker will produce 3 to 4 pounds of ice

every 24 hours, depending on usage conditions. Ice is
produced at a rate of 8 cubes every 75 to 90 minutes.

Figure 1

Figure 2

10

PURESOURCE TM* ICE ANDWATER FILTER (SOME
MODELS)

Order new filter cartridges through the dealer where

you bought the refrigerator, contact the Electrolux

Solutions Hotline at 1-800-944-9044, or go to our
web site at www.frigidaire.com, it might be good to
order some filter cartridges when you first install
your refrigerator. Be sure to ask for the RG-100

PureSource TM*replacement cartridge.

System Startup:

Water supply does not need to be turned off, however, do not use
ice and water dispenser while installing filter. The filter cartridge

has already been installed in the filter housing at the factory.

Refer to the How to Prime the Water Supply System section to

properly fill the system with water.

Small O-tin,

Large O-ring

Filter Cup ---"_

Twist to Rernow

Filter System with the RG-100 cartridge is tested

and certified by NSF International, the nationally
The PureSoume TM * NGRG-2000 Ice and Water

recognized and respected, not for profit,

certification organization for public health safety.
The PureSource TM*system is tested and certified to ANSI/
NSF Standard 42. See performance data sheet for
specifications. This system should not be used on water that is

microbiologically unsafe or with water of unknown quality
unless the water has been adequately disinfected before or
after traveling through the filtration system.

moving for example), change the filter before reinstalling the
refrigerator. The dispenser system will also operate without

filtration (with filter cartridge removed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1. Open freezer door and leave open until filterchange is
complete.

2. Turn OFF side mounted ice maker by raising wire signal
arm to the UP position. Turn OFF rear mounted ice maker

by pressing ON/OFF power switch to the "O" position.

& Hold filter cup firmly,and unscrew towards left (Some water

could leak out as you remove cup.This is normal.). Filter
cartridge should come down with cup. If cartridge remains in

housing, pull down gently, while twisting filter back and forth.

4. Rinse out cup under running water.

5. The large o-ring that seals the filtersystem fitsin the o-ring
groove inside the cup. Should the o-ring fall out during filter
cartridge replacement, simply place it back inthe groove

prior to screwing the cup back in place. If the o-ring becomes

damaged, you will need to order one from the Electrolux

Solutions Hotline.

6. Discard old filter cartridge.

7. Remove new filter cartridge from packaging. Place in cup. The
end with the small o-ring should be up, out of the cup.

& Screw cup, with filter, back onto housing. Do Not UseWrench

To Reinstall Cup. Filter cartridge will self-align as cup is
tightened. Be sure cup is completely tightened with

PureSourceTMIogo facing outward. Do Not Tighten Past Stop.

9. Turn ON side mounted ice maker by lowering wire signal
arm to the DOWN position. Turn ON rear mounted ice

maker by pressing ON/OFF power switch to the "1" position.

10. Check for leaks. Open refrigeratordoor.Wipe any water droplets
from the filter cup. Fill a glass with water. Ifthere is a leak,

unscrew filter cup, and reinsert the filter cartridge. Check
placement of large O-ring. Reinstall filter cup, making certain itis

tightened completely.

11. To prime filter system and purge air from water line,
continue flushing the system for approximately 3 minutes
to assure that the purest water possible is stored in the
water tank. There will be noticeable spurts and sputters
as the system pushes air out through the system and

out the dispenser nozzle.This is normal.

,,Rated Capacity - 400 gallons
,,Rated service flow - .5 GPM

,,Maximum Rated Pressure - 100 PSi
,,Maximum Operating Temp. - 100° F

Changing the Filter:

Water conditions vary throughout the world, but changing the
water filter every 6 - 9 months normally will ensure the highest

possible water quality, ice jams in the ice maker and/or hollow
ice cubes (partially frozen cubes with water inside), may
also be a sign that your water filter needs changing. The

Filter Status light will turn red after 400 gallons of water has
flowed through the ice and water dispenser. Also, if the filter has
been in a refrigerator that has not been in use for awhile (during

* White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter.

11

PURESOURCE2 TM* iCE AND WATER FRONT FILTER

'SOME MODELS)

Order new filter cartridges through the dealer where
you bought the refrigerator, contact the Electrolux

Solutions Hotline at 1-800-944-9044, or go to our

web site at www.frigidaire.com, it might be good to
order some filter cartridges when you first install

your refrigerator. Be sure to ask for the FC-IO0

PureSource TM*replacement cartridge.

System Startup:

Water supply does not need to be turned off, however, do not

use ice and water dispenser while installing filter.

The filter cartridge has already been installed in the filter

housing at the factory. Refer to the How to Prime the Water
Supply System section to properly fill the system with water.

Also, if the filter has been in a refrigerator that has not been in
use for awhile (during moving for example), change the filter
before reinstalling the refrigerator. The dispenser system will also
operate without filtration (with filter cartridge removed and bypass
installed).

To change filter:

It is not necessary to turn the water supply off to change the
filter.

1. Turn OFF side mounted ice maker by raising wire signal
arm to the UP position. Turn OFF rear mounted ice maker
by pressing ON/OFF power switch to the "0" position.

2. Push the Filter Release Button, located to the right of the
filter cartridge, to release the filter from the housing. To

minimize the possibility of the filter falling out of the
housing during removal, it would be best to hold the

filter as it moves out toward you.

and Click Pu_

ToInstall To Release

System NGFC 2000 with the PureSource2 TM
cartridge FC 100 is tested and certified by

The PureSource2 TM Ice and Water Filter
NSF International, the nationally recognized

and respected, not for profit, certification

organization for public health safety. The PureSource2 TM
Filter system is tested and certified to ANSI/NSF Standards

42 and 53. See performance data sheet for specifications.
This system should not be used on water that is

microbiologically unsafe or with water of unknown quality
unless the water has been adequately disinfected before or

after traveling through the filtration system.
,,Rated Capacity - 400 gallons

,,Rated service flow - .5 GPM
,,Maximum Rated Pressure - 100 PSI

,,Maximum Operating Temp. - 100° F

Changing the Filter:

Water conditions vary throughout the world, but changing the
water filter every 6 - 9 months normally will ensure the highest
possible water quality. Ice jams in the ice maker and/or

hollow ice cubes (partially frozen cubes with water inside),

may also be a sign that your water filter needs changing.
The Filter Status light will turn red after approximately 400
gallons of water has flowed through the ice and water dispenser.

3. Pull the old filter cartridge straight out of the housing.

4. Discard the old filter.

5. Remove the new filter cartridge from the packaging and
insert into the filter housing the same way the old one

came out.

6. When the cartridge is almost in, you will feel it stop against
the clip assembly in the back of the housing. The clip
assembly holds the filter cartridge firmly in place. At this
point, you will need to push firmly until the cartridge
snaps fully in place. When completely in place, the front of
the filter cartridge will be flush with the front of the housing.

7. Turn ON side mounted ice maker by lowering wire signal
arm to the DOWN position. Turn ON rear mounted ice
maker by pressing ON/OFF power switch to the 'T'

position.

8. Fill a glass with water. As you are doing this, check for
leaks at the filter housing.

9. To prime filter system and purge air from water line,
continue flushing the system for approximately 3 minutes
to assure that the purest water possible is stored in the
water tank. There will be noticeable spurts and sputters
as the system pushes air out through the system and

out the dis nozzle.This is normal.

* White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter.

12

Replacing The Air Filter

In general, you should change the air filter every six months to
ensure optimal filtering of refrigerator odors. You may want to

adjust this time period depending on the types and amounts of
food you typically store in your refrigerator.

To replace your air filter:

1 Push the plastic bubble tab located on the side of the air

filter housing. This releases the hinged bottom half to drop
open.

2 Remove the old filter and discard it.
3 Unpackage the new filter and place it inside the hinged

bottom half of the housing.

4 Push the hinged bottom half upward until the tab snaps into

closed position.

5 Press and hold the Filter Reset button on the electronic

control panel for 3 seconds. When the Filter OK light comes
on, the status has been reset.

6 Press and hold the Filter Reset button for 3 seconds again

to turn off the filter status system.

to Release

Filter Cover.

/

/

/

Air Filter

To order new air filter cartridges, contact the dealer
where you bought your refrigerator, contact Electrolux
Solutions Hotline at 1-800-944-9044, or go to our web

site at www.frigidaire.com. It would be beneficial to order
some cartridges when you first install your refrigerator.

Be sure and ask for air filter replacement cartridge, part

# 241504902.

13

UNDERSTANDING THE SOUNDSYOU MAY HEAR

Your new high-efficiency refrigerator may make unfamiliar
sounds. These are all normal sounds and soon will become

familiar to you. They also indicate your refrigerator is operating
as designed. Hard surfaces, such as vinyl or wood floors, walls,
and kitchen cabinets may make sounds more noticeable. Listed
below are descriptions of some of the most common sounds
you may hear, and what is causing them.

D. Automatic Ice Maker

If your refrigerator is equipped with an automatic ice

maker, you will hear ice cubes falling into the ice bin.

E. Cold Control & Automatic Defrost Control

These parts can produce a snapping or clicking sound
when turning the refrigerator on and off.

E Condenser Fan

You may hear air being forced through the condenser
by the condenser fan.

G. Compressor

Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.

H. Water Valve

If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the ice maker during each cycle.

A. Evaporator

The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.

B. Evaporator Fan

You may hear air being forced through the refrigerator
by the evaporator fan.

C. Defrost Heater

During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.

L Drain Pan (not removable)

You may hear water running into the drain pan during

the defrost cycle.

J. Condenser

May create minimal sounds from forced air.

K. Motorized Damper

May produce a light humming during operation.

CHANGING THE LIGHT BULB

REPLACING LIGHT BULBS

1. Unplug refrigerator.

2. Wear gloves as protection against possible broken glass.

3. Remove light cover, if necessary.

4. Unscrew and replace old bulb with an appliance bulb of
the same wattage.

5. Replace light cover, if necessary.

6. Remember to plug the refrigerator back in.

14

Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least
twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not
wash any removable parts in a dishwasher. Always unplug the power cord from the electrical outlet before cleaning.

Care & Cleaning Chart

Part

Interior/Door
Liner

Door Gaskets
Drawers/Bins

Glass Shelves

Toe Grille

Exterior and
Handles

Exterior and CAUTION: Never use CHLORIDE to clean stainless steel.
Handles

(Stainless Steel
Models Only)

Exterior • Soap and water
(Easy Care Care Stainless Steel Models. It will remove the protective finish.

Stainless Steel Use warm soapy water to clean Easy Care surfaces. Mild liquid sprays may
Models) be used on stubborn spots.

• Soap and water

• Baking soda and water

• Soap and water

• Soap and water

• Soap and water

• Glass cleaner

• Mild liquid sprays

• Soap and water

• Mild liquid sprays

• Vacuum attachment

• Soap and water

• Non Abrasive Glass

• Soap and water

• Ammonia

• Stainless Steel Cleaners

• Mild liquid sprays

What To Use

Cleaner

Tips and Precautions

Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring

excess water out of sponge or cloth before cleaning around controls,
light bulb or any electrical part.

Wipe gaskets with a clean soft cloth.
Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Allow glass to warm to room temperature before immersing in warm water.

Vacuum dust from front of toe grille. Remove toe grille. Vacuum backside and
wipe with sudsy cloth or sponge. Rinse and dry.

Do not use commercial household cleaners, ammonia, or alcohol to clean
handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to

clean smooth doors.

Clean stainless steel front and handles with soapy water and a dishcloth.
Rinse with clean water and a soft cloth. Wipe stubborn spots with an

ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or

major department stores. Always follow manufacturer's instructions.

NOTE: Always clean, wipe and dry with the grain to prevent cross-grain

scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.

CAUTION: DO HOT use abrasive or stainless steel cleaners on Easy

15

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to

be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN

LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE

DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER

RIGHTS THAT VARY FROM STATE TO STATE.

mfYou Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and

parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances
North America

RO. Box 212378
Augusta, GA 30907

[] Electrolux

Mississauga, Ontario, Canada

1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way

16

Canada

L5V 3E4

1=800=944=9044(UnitedStates) Visitourwebsiteat

1=800=668=4606(Canada) www.frigidaire.com.

PROBLEM

RUNNING OF REFRIGERA TOR

Compressor does not run.

Refrigerator runs too
much or too long.

Compressor goes off and • Thermostat keeps the • This is normal. Refrigerator goes on and off to keep
on frequently, refrigerator at a constant temperature constant.

TEMPERATURES ARE TOO COLD

• Freezer control is set to "OF"
or "0".

• Refrigerator is in defrost cycle.

Plug at electrical outlet is
disconnected.

House fuse blown or tripped
circuit breaker.

Power outage.
Room or outside weather is

hot.
Refrigerator has recently been

disconnected for a period of
time.

Automatic ice maker is
operating.
Doors are opened too

frequently or too long.
Fresh Food/freezer door may

be slightly open.

Freezer control is set too cold
(control found in Fresh Food

section).
Fresh Food/freezer gasket is

dirty, worn, cracked, or poorly
fitted.

Condenser is dirty.

temperature.

CAUSE

]

• Set freezer control. See Temperature Controls section.

• This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30

minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.

• Check house lights. Call local Electric Company.

• It's normal for the refrigerator to work longer under

these conditions.

• It takes 8-12 hours for the refrigerator to cool down
completely.

• Ice maker operation causes refrigerator to run slightly
more.

• Warm air entering the refrigerator causes it to run
more. Open doors less often.

• Ensure refrigerator is level. Keep food and containers

from blocking door. See PROBLEM section

OPENING/CLOSING OF DOORS/DRAWERS.

• Set Fresh Food control to warmer setting until
refrigerator temperature is satisfactory. Allow 24 hours

for temperature to stabilize.

• Clean or change gasket. Leaks in door seal will cause
refrigerator to run longer in order to maintain desired

temperatures.

Clean condenser. See Care & Cleaning Chart in Care
and Cleaning section.

CORRECTION

Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours
cold. Fresh Food for temperature to stabilize.

temperature is satisfactory.
Fresh Food temperature • Fresh Food control is set too • Set fresh food control to a warmer setting. Allow 24

too cold. Freezer cold. hours for temperature to stabilize.
temperature is satisfactory.

Food stored in drawers • Fresh Food control is set too • See solution above.
freezes, cold.

Food stored in Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a lower
Keeper freezes (some Control set too cold. setting. (Meat should be stored at a temperature just
models), below the freezing point for maximum fresh storage

time. It is normal for ice crystals to form due to the

moisture content of meat.)

Digital temperature • Electronic control system has • Call your Electrolux service representative, who can
displays are flashing, detected a performance interpret any messages or number codes flashing on

problem, the digital displays.

17

PROBLEM [ CAUSE 1 CORRECTION

TEMPERA TUllES ARE TOO WARM

Freezer/Fresh Food
temperature is too warm.

Freezer temperature is too • • Set freezer control to a colder setting. Allow 24 hours

warm. Fresh Food for temperature to stabilize.
temperature is satisfactory.

Fresh Food temperature is • • Set fresh food control to a colder setting. Allow 24
too warm. Freezer hours for temperature to stabilize.

temperature is satisfactory.

Doors are opened too

frequently or too long.

Door is slightly open.

Condenser is dirty.

Freezer control is set too

warm.

Fresh Food control is set too

warm.

• Warm air enters the refrigerator whenever the door is
opened. Open the door less often.

• See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.

• Clean condenser. See Care & Cleaning Chart in Care
and Cleaning section.

Temperature in the Meat • • Adjust Meat Keeper Temperature Control to a colder

Keeper is too warm (some setting.

models).

WA TER/MOISTURE/FROST INSIDE REFRIGERA TOR

Moisture collects on inside
of refrigerator walls.

Water collects on bottom It is not unusual to have moisture on the bottom side
side of drawer cover, of the cover.

Water collects in bottom of • Washed vegetables and fruit Dry items before putting them in the drawer. Water
drawer, drain while in the drawer, collecting in bottom of drawer is normal.

WA TEll/MOISTUllE/FllOST OUTSIDE llEFlllGEllA TOll

outside of refrigerator or
between doors.

AUTOMA TIC ICE MAKER

Meat Keeper Temperature

Control is set too warm.

• Weather is hot and humid.

• Door is slightly open.

• Door is opened too often or
too long.

,, Open containers.

• Vegetables contain and give
off moisture.

• Weather is humid.Moisture collects on

Door is slightly open,

causing cold air from inside

refrigerator to meet warm air

from outside.

The rate of frost buildup and internal sweating
increases.

See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.

Open door less often.

Keep containers covered.

Move humidity control (some models) to lower
setting.

• This is normal in humid weather. When humidity is
lower, the moisture should disappear.

• See PROBLEM section OPENING/CLOSING OF
DOORS/DRAWERS.

Ice maker is not making
any ice.

• Ice maker wire signal arm is
in the "up" or OFF position.

• Ice maker power switch is
Off.

• Household water line valve
is not open.

• Ice maker has small cube
caught in mechanism.

Freezer is not cold enough.

Saddle valve on cold water
pipe is clogged or restricted
by foreign material.

18

Move wire signal arm to the "down" or ON position.
(side mounted)

Turn power switch to On ("r') position. (rear mounted)
Turn on household water line valve.

Remove small cube from ice maker. The ice & water

filter cartridge may be clogged. Replace filter
cartridge.

See PROBLEM section TEMPERATURES ARE
TOO WARM.
Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.

PROBLEM l

AUTOMATIC ICE MAKER (CONTINUED)

Ice maker is not making enough ice. •

Ice maker will not stop making ice. •

Ice cubes are freezing together. •

Ice has bad odor and taste. •

ICE DISPENSER

Dispenser will not dispense ice.

Ice dispenser is jammed.

CAUSE CORRECTION

Ice maker is producing less ice
than you expect.

Freezer is not cold enough.
Household water line valve is

not completely open.
Check to see if water

dispenser is dispensing slower
than normal.

Ice maker wire signal arm is • Move item and release wire signal arm. Remove any ice
being held down by some item cubes that are frozen together over the wire signal arm.

in the freezer.
Ice cubes are not being used

frequently enough.
Ice cubes are hollow (partially

frozen cubes with water
inside).
Freezer control is set too

warm.
Very little food in freezer.

Ice has picked up odor or
flavor from strong food stored

in refrigerator or freezer.
Water running to ice maker

has poor taste or odor.
Ice not used frequently enough.

• Ice storage container is empty.

• Freezer temperature is set too
warm.

• Household water line valve is
not open.

• Freezer door is not closed.

• Ice dispensing arm has been
held in for more than 4-5

minutes.

• Ice has melted and frozen
around auger due to infrequent

use, temperature fluctuations,
and/or power outages.

• Ice cubes are jammed
between ice maker and back

of ice container.

• Ice cubes are frozen together.

• Ice cubes are hollow
(partially frozen cubes with

water inside).

• Side mounted ice maker should produce 4 to 4.5 pounds
(approximately 4 quarts) of ice every 24 hours. A rear
mounted ice maker should produce 3 to 4 pounds

(approximately 3K2quarts) of ice every 24 hours. Extra Ice
option should produce 25% to 50% more ice every 24

hours.

• See PROBLEM section TEMPERATURES ARE TOO

WARM.

• Turn on household water line valve.

• If it is, replace the ice & water filter cartridge.

• Remove ice container and discard ice from container. Ice
maker will produce fresh supply.

• The ice & water filter cartridge may be clogged. Replace

filter cartridge.

• Set freezer control to colder setting. Allow 24 hours for

temperature to stabilize.

• Add more food to freezer.

• Cover foods tightly. Discard stale ice. Ice maker will
produce fresh supply.

• Add filter to water supply line. Consult a water purifying
company.

• Discard stale ice.

• When the first supply of ice is dropped into the container,

the dispenser should operate.

• Turn freezer control to a higher setting so that ice cubes

will be made. When first supply of ice is made, dispenser

should operate.

• Open household water line valve. Allow sufficient time for

the ice to be made. When ice is made, the dispenser

should operate.

• Ensure freezer door is closed.

• Motor is overloaded. Motor overload protector will reset in
approximately 3 minutes. Ice can then be dispensed.

Remove ice container, thaw, and empty the contents.
Clean container, wipe dry, and replace in proper position.

When new ice is made, dispenser should operate.

Remove ice cubes that are jamming the dispenser.

Use the dispenser often so that cubes do not freeze

together.
The ice & water filter cartridge could be clogged. Replace

the filter cartridge. Dispensing system operates best at 30

- 100 psi water pressure. Well water pressures should fall
within this range.

19

PROBLEM [ CAUSE [ CORRECTION

WATER DISPENSER

Dispenser will not
dispense water.

Water has an odd

taste and/or odor.

Water pressure is • Cut-off and cut-on pressures are too • Have someone turn up the cut-off and cut-on pressure
extremely low. low (well systems only), on the water pump system (well systems only).

ODORS IN REFRIGERA TOR

• Household water line valve is not
open.

• Freezer door is not closed.

• Ice & water filter cartridge is clogged.

• Front filter not fully installed, if
equipped

• Water has been in the tank for a

period of time.

• Unit not properly connected to cold
water line.

• Tubing used in the household water
supply and installation may affect
water taste and odor.

Water has a high mineral content.

• • Contact water treatment plant for help.

• Reverse osmosis system is in • It is normal for a reverse osmosis system to be below

regenerative phase. 20 psi during the regenerative phase.

• Open household water line valve. See PROBLEM
section ICE MAKER IS NOT MAKING ANY ICE.

• Ensure that freezer door is closed.

• Replace filter cartridge.

• Push filter in until you hear a "click". Filter should be
flush with cabinet.

• Draw and discard 10 - 12 glasses of water to freshen
the supply and completely rinse out the tank.

• Connect unit to cold water line that supplies water to
the kitchen faucet.

• For best results, use copper tubing for water
connections.

Interior is dirty. • Interior needs to be cleaned. • See Care & Cleaning Chart in Care and Cleaning

• Food with strong odors is in • Cover food tightly.
refrigerator.

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not close. Close both doors gently.• Door was closed too hard, causing

section.

other door to open slightly.

• Refrigerator is not level. It rocks on

the floor when moved slightly.

Refrigerator is touching a wall or

cabinet.

Drawers are difficult • Food is touching shelf on top of • Keep less food in drawer.
to move. drawer.

• Track that drawers slide on is dirty. • Clean drawer, rollers, and track. See Care & Cleaning

LIGHT BULB IS NOT ON

Light bulb is not on. • Light bulb is burned out.

Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.

Ensure floor is level and solid, and can adequately
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.

Chart in Care and Cleaning section.

• See Replacing Light Bulbs in Care and Cleaning
section.

• Light switch is stuck.

• Light switch is located on side of refrigerator and
freezer liners.

• No electric current is reaching
refrigerator.

IF YOU HEAR (electronic models only)

5 beeps • A door has been left open for 5

minutes or more.

3 beeps • The refrigerator has experienced a

loss of power or a low voltage

condition.

• See PROBLEM section RUNNING OF
REFRIGERATOR.

• These beeps will repeat once every minute until the

door has been closed. This is normal for the "Door
Ajar" alarm.

• This is normal when "Power-On-Reset" is activated.

2O

Features may vary according to model

Freezer and Refrigerator SpiliSafeTM CAUTION:

ice Cream net Behind

ice Maker -- (Locationvariesby model) Compartment

Controls g Shelf Do Not Remove

Filter Dairy

Ice

Half

Large

Large

Fixed

Door Bin

Door Bin

Fixed

Door Bin

Fixed

Door

Dairy

Compartment

Rack

_rBin

SpillSafe TM

g Shelf

_rBin

)ecial item

Rack
Meat Keeper

Cover

Bottle

Retainer

Pan

and Cover

Fixed
Door Bin

Mechanical Controls

21

Toe Grille
