Frigidaire GHSC39EJPB - 22.6 Cu. Ft. 8, GHSC39EJP, GHSC39EJPB0, GHSC39EJPW0 Service Data Sheet
Product No. GHSC39EJPB0 GHSC39EJPW0
Series counter depth counter depth
Color black white
Volts 115 115

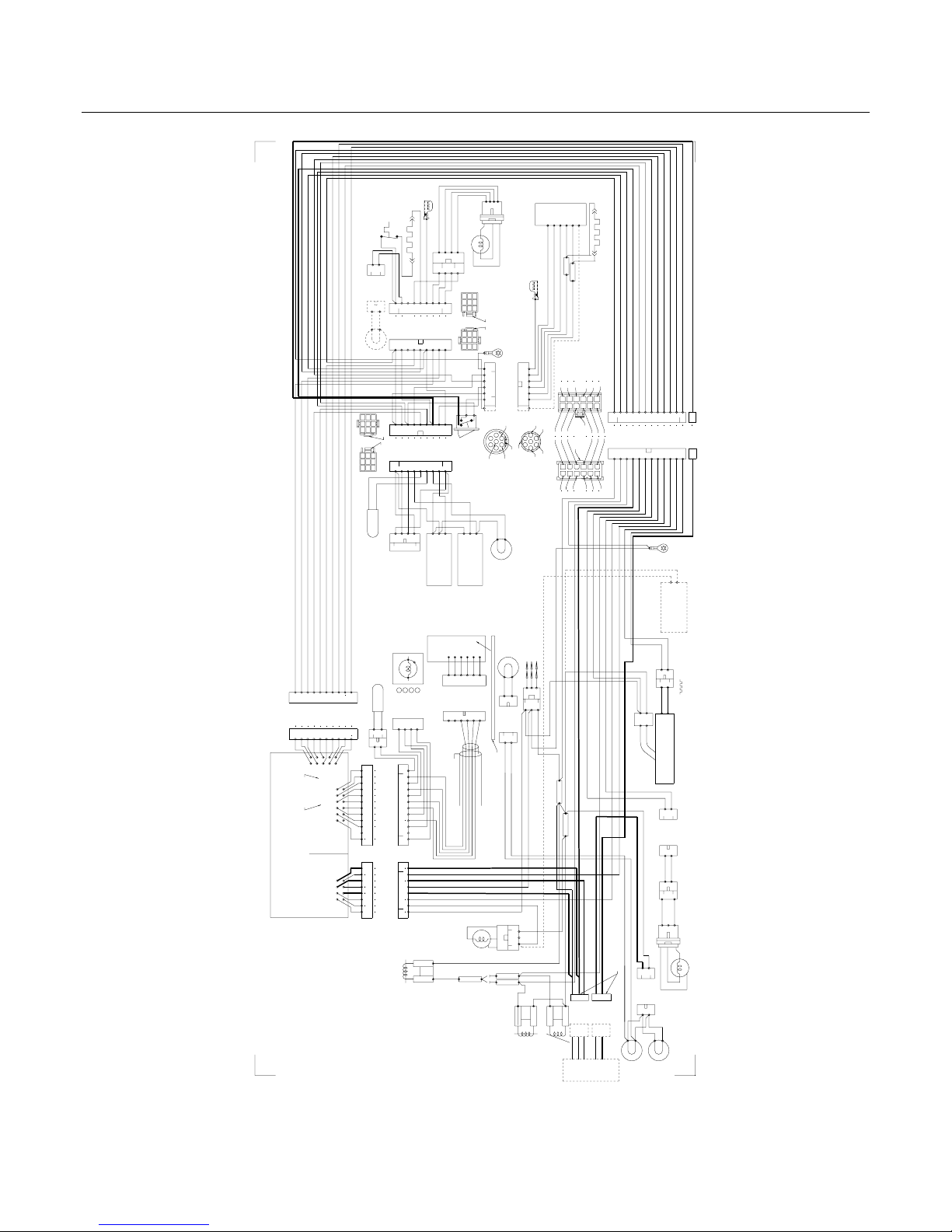

Wiring Diagram 241638600 241638600
Owner's Guide 241857500 241857500
Market North America North America
Energy Guide 241868030 241868030
Service Data Sheet 241639000 241639000
N58L00002.eps N58FFDBGA1.eps N58RFDCHA3.eps N58BABAAC2.eps
N58SDDLEE1.eps N58TBBAAB5.eps N58CACBAA3.eps N58XEAAAA1.eps
N58YDAAAC5.eps N58I115TServo.eps W241638600.eps S241638600.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995511598
08/04/11
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GHSC39EJP
Copyright © 2008 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995511598 GHSC39EJP
FREEZER DOOR
22C
11
1
79
18
79
80
4B
68
80
4B
13A
04/08 2
21A
22A
5
55
N58FFDBGA1
GHSC39EJP Publication No: 5995511598
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241510204 A - Gasket-frzr door, black, magnetic
1 # 241510202 - B Gasket-frzr door, white, magnetic
4B 241808216 A B Bin-door, pseudo, frzr
5 241545001 A B Bin-tilt out, tilt-out
11 241526790 A - Door-frzr, black, complete assy
11 241526789 - B Door-frzr, white, complete assy
13A 240581906 A - Door Stop, black, frzr
13A 240581902 - B Door Stop, white, frzr
18 240536810 A - Handle-door, black
18 240536809 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
22A 240328204 A - Bearing-hinge(frz), black, closer
22A 240328202 - B Bearing-hinge(frz), closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-h ing e, nat ural, up per
68 241525101 A B Chute-ice
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting
* 240552102 A B Harness-wiring, door
* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 241806601 A B Connector-water, straight
* 5303918256 A B Dispenser heater kit
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
3 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
REFRIGERATOR DOOR
2
22B
12
15
50
80
79
70
18
6
7
49
80
79
49A
5
48
04/08 4
13
22
21A
N58RFDCHA3
GHSC39EJP Publication No: 5995511598
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510203 A - Gasket-refr door, black, magnetic
2 # 241510201 - B Gasket-refr door, white, magnetic
5 241516102 A B Rack-can
6 241515901 A B Lug-dairy compartment
7 241515601 A B Door-dairy
12 241808601 A B Label-nameplate
13 240581905 A - Door Stop, black, ref
13 240581901 - B Door Stop, white, refr
15 241534585 A - Door-refr, black, complete assy
15 241534584 - B Door-refr, white, complete assy
18 240536810 A - Handle-door, black
18 240536809 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
22 240328203 A - Bearing-hinge, black, closer
22 240328201 - B Bearing-hinge(ref), closer
22B 240328404 A - Bearing-hinge, black, upper
22B 240328402 - B Bearing-hinge, nat ural, up per
48 241808207 A B Bin-door, gallon, ref, w/trim
49 241808213 A B Bin-door, 2 liter
49* 241779901 A B Liner, bin, 2 liter
49A 241808210 A B Bin-door, gallon, w/trim
49A* 241780001 A B Liner, bin, gallon
50 241508401 A B Cover-magnet
70 241515801 A B Compartment-dairy, removable
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
5 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
CABINET
58
92
38
37
14A
41
58
81
47
81
40
92
38
66
37
45
45
45
10
45
45
100
11
90
45
89
45
23
22
30
10A
42
21C
23
83
82
43
42
22
72
54
30A
28
N58BABAAC2
21C
50
04/08 6
GHSC39EJP Publication No: 5995511598
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 A B Cover-air duct
10A 241719711 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - Plate-door closer
22 240457701 - B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337610 A - Trim-cabinet corner, black, (2)
37 240337608 - B Trim-cabinet corner, white, (2)
38 240327207 A B Bracket-upper hinge
40 241555103 A - Cover-hinge, black
40 241555101 - B Cover-hinge
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw, hex head, 1/4-20 x 5/8
43 240335005 A B Roller Assy, adjustable, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B Channel-shelf mtg, side, (2)
50 241511102 A B Board-main power
50* 241524802 A B Seal, housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
58 215503204 A B Screw, cr pan hd, 10-16
66 241513601 A B Damper Assy
72 240324411 A - Grille/Kickplate, black
72 240324409 - B Grille/Kickplate, white
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B Cover-access, w/label
90 218249808 A B Seal-coil cover
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
* 241591701 A B Louver
* 5303321321 A - Paint, touch-up, black
* 5303321319 - B Paint, touch-up, white
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
7 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP

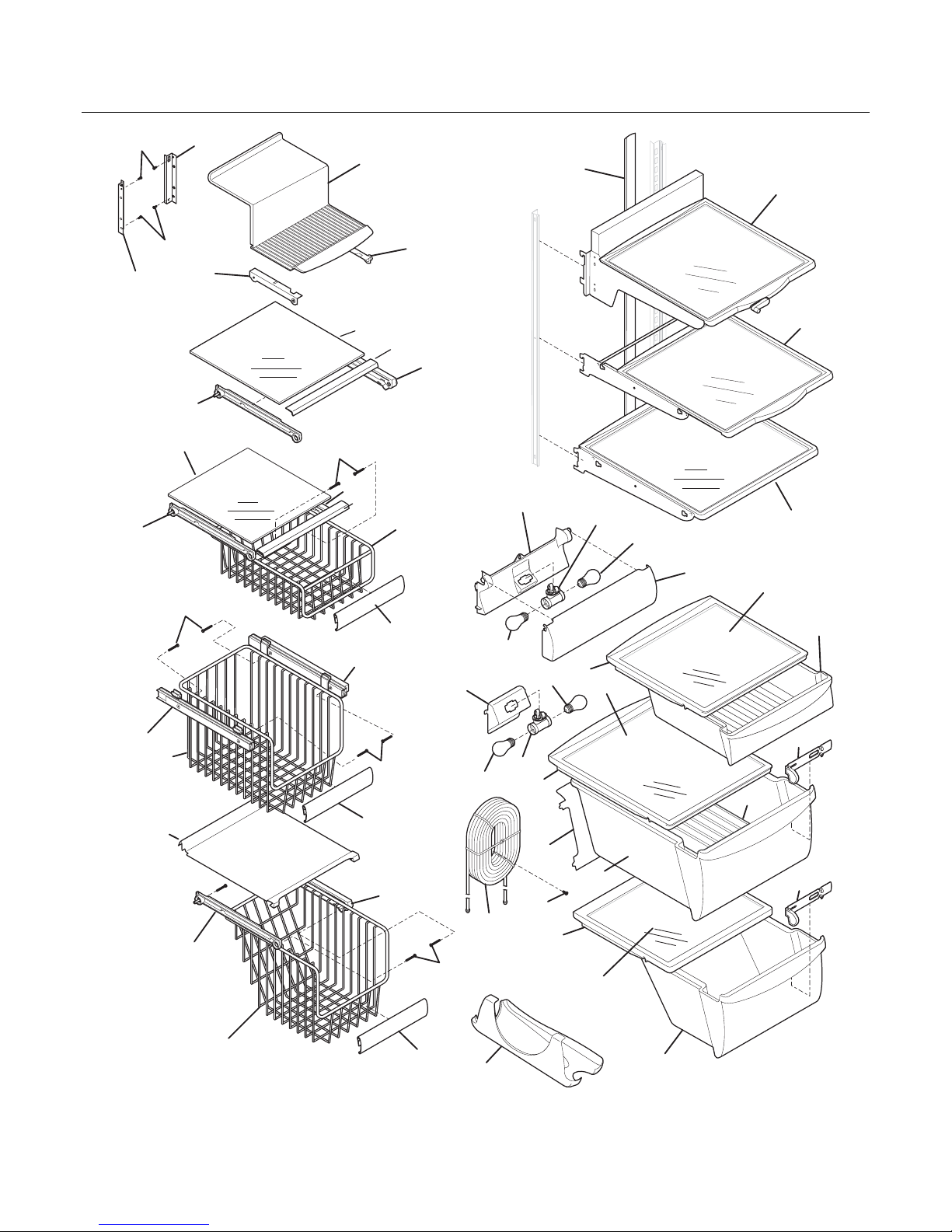

SHELVES
81
126
120
140
24C
126
52
81
52A
11
81
121
101
51
39
51B
11A
39
49A
2
122
51A
109
15
108
15
25B
16
47
24B
24
15
107
47B
62
52B
49B
60
15
16
25
143
26A
2
41
100
51
26
21
27A
97
25A
52
101
47A
49
04/08 8
2
136
27
N58SDDLEE1
GHSC39EJP Publication No: 5995511598
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510605 A B Trim-basket
11 241711213 A B Shelf-freezer, glass, lower
11A 241711214 A B Shelf-freezer, glass, upper
15 241552801 A B Light Bulb
16 241622802 A B Socket-light
16* 241513102 A B Harness-wiring
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625
24 240355239 A B Shelf-"Spill-Safe", fixed
24B 240350126 A B Shelf-"Spill-Safe", cantilever, sliding
24C 240424611 A B Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240599302 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
25B 240599801 A B Cover-meat pan
26 240351041 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26* 241595202 A B Clip-slide, pan-crisper
26A 241638201 A B Control-humidity
26A* 241638101 A B Frame-humidity control
27 240351218 A B Pan-crisper, lower
27A 240362201 A B Control-humidity
39 240367603 A B Trim-shelf, 11.65", front
41 241637601 A B Baffle-air
47 240350602 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
47B 240443352 A B Insert-pan cover, glass
49 241515001 A B Basket-sliding
49A 241528001 A B Basket-sliding, upper, half
49B 241514901 A B Basket-sliding, upper, full
51 241514501 A B Hanger-basket, RH
51A 241514701 A B Hanger-shelf glass, RH
51B 240579803 A B Hanger-basket, RH
52 241514601 A B Hanger-basket, LH
52A 241514801 A B Hanger-shelf glass, LH
52B 240579804 A B Hanger-basket, LH
60 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599704 A B Pan-meat
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 241532005 A B Water Tank
100 240 326 30 4 A B Cover-water tank
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
107 241 513402 A B Shield-light, meat pan
108 241513301 A B Cover-wiring, meat pan light
109 241 513 202 A B Base-crisper light socket
120 241 691701 A B Shelf-ice cream
121 241504701 A B Rail-ice cream shelf, LH
122 241504702 A B Rail-ice cream shelf, RH
126 241 674401 A B Channel, auger mtg, LH
126 241 674 402 A B Channel, auger mtg, RH
136 241 657 70 2 A B Dispenser-can, clear
140 240 430 50 5 A B Channel, wtr tube cover
143 240 423 30 1 A B Divider-crisper pan
* 241868030 A B Energy Guide
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
9 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
CONTROLS
139
198
199
138
155
116
115
154
206
205
81
60
13
22
151
21
23
137
17
81
15
16
81
201
15
14
9
149
04/08 10
8
5
75A
75
54
50
N58TBBAAB5
GHSC39EJP Publication No: 5995511598
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241518301 A B Bushing, motor mounting
13 241509402 A B Motor, evaporator fan
13* 241510501 A B Seal-diffuser
14 241517701 A B Clip, evap fan motor
15 241552801 A B Light Bulb
16 241622802 A B Socket-light
17 241516201 A B Box-control, front
17*# 241510802 A B Harness-wiring, control box
21 # 240596703 A B Control, electronic
22 240597203 A B Sensor
23 241512901 A B Cover-sensor
50 241511102 A B Board-main power
50* 241524802 A B Seal, housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
60 241510301 A B Diffuser-air
75 241517802 A B Shield-light
75A 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625
115 241 518501 A B Damper, motorized
116 241 518601 A B Seal-damper, foam
137 240396401 A B Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B Bypass, water filter, Optional Part
138 240 397301 A B Button-filter release
139 240 396 002 A B Base-water filter
139* 240526901 A B O-ring, wtr filter base
149 241 517601 A B Shroud-evap fan mtg
149* 241528304 A B Seal, foam, evap fan assy
151 241 526001 A B Filter housing
154 241 525 801 A B Duct-air
155 241 526 102 A B Motor-air filter
155* 241527202 A B Harness-wiring, filter fan
198 240 397401 A B Retainer
199 240 397501 A B Rod
199* 240398401 A B Spring-filter release rod
201 241 816 70 2 A B Switch-membrane
205 241 525 90 1 A B Air Filter Door
206 241 504 902 A B Filter-air
* 3205266 A B Edge Protector, wiring harness
* 241537401 A B Shield
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
11 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
SYSTEM
70
45
62
21
3
15
14
16
86
61
6
60
59
59B
59A
1
34
59A
59B
34
25
41
58
25
59A
29
44
85
4
23
30
57
23
22
84
82
26
50
04/08 12
83
82
83
45
N58CACBAA3
GHSC39EJP Publication No: 5995511598
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 240333605 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 # 241516901 A B Cord-service
6* # 241510802 A B Harness-wiring, control box
6* # 241519902 A B Harness-wiring
6* # 241527202 A B Harness-wiring, filter fan
6* # 241636203 A B Harness-wiring, machine compt
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 A B Pan-defrost drain
29 # 241547601 A B Compressor, w/electricals
30 # 241577501 A B Invertor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 A B Housing-control, apollo lighting
50* 241641501 A B Screw
57 240542601 A B Clip-wiring harness
58 240433203 A B Screw, hex washer head, 8-18 x 3/8
59 240315502 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 # 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 241856901 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 5303918222 A B Hot Tube Repair Kit, service
* # 5303918327 A B Heat Exchanger Kit, suction line
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
13 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
ICE & WATER DISPENSER
30C
30A
30
87A
39
30B
10
43
35
41
38A
17
56
1
87
17
90
91
17
8
38
38C
36
14
24A
24
23
4
82
N58XEAAAA1
04/08 14
GHSC39EJP Publication No: 5995511598
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976418 A B Tube-water inlet, inlet valve, to filter
1* 218976421 A B Tube-water inlet, valve to door
1* 218976915 A B Tube-water inlet, inlet valve, to filter
1* 240561702 A B Seal-water inlet, inlet valve, to ice maker
4 241678703 A - Cover-module, black
4 241678701 - B Cover-module, white
8 241680503 A - Module-dispenser, black
8 241680501 - B Module-dispenser, white
10 241688901 A B Spring-torsion
14 240323969 A - Label-module cover, black
14 240323967 - B Label-module cover, white
17 241679801 A B Screw
23 241649003 A - Drip Tray, black
23 241649001 - B Drip Tray, white
24 241685703 A - Actuator-water, black
24 241685701 - B Actuator-water, white
24A 241682303 A - Actuator-ice, black
24A 241682301 - B Actuator-ice, white
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
36 241680301 A B Carrier
38 # 241708102 A B Board-power
38A# 241689101 A B Switch-micro, single pole, double throw
38C# 241708307 A B Board-control
38C* 241680001 A B Harness-ribbon cable
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296301 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
90 241680201 A B Light Pipe, reflector, long
91 241680101 A B Light Pipe, reflector, short
* 241686201 A B Insulator-electrical
* 5303918256 A B Dispenser heater kit
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
15 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
ICE CONTAINER
17
45C
45
26
70
6
45D
39
45B
22
26
37A
34
35A
33
37B
34
33
37C
54
41
25
52
39
23
35B
53
13
3
25
55
56
4
2
26
26
18
50
20
15
44
16
44
43
45A
58
26
48
39
10
47
51
46
43
7
49
43
04/08 16
N58YDAAAC5
GHSC39EJP Publication No: 5995511598
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 A B Auger-ice
3 241685201 A B Cam-drive
4 241515202 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241515301 A B Front-ice container
10 241726501 A B Bar-drive
13 241685301 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676201 A B Motor-auger
18* 241522901 A B Harness-wiring, icmkr/container
20 241675502 A B Cover-motor
22 240597203 A B Sensor
22* 241519401 A B Clip, sensor
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503203 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
35A 241684301 A B Fixed Blade, round
35B 241684201 A B Fixed Blade, square
37A 241684101 A B Blade, crusher #1
37B 241684102 A B Blade, crusher #2
37C 241684103 A B Blade, crusher #3
39 241690501 A B Screw
41 241685601 A B Housing-crusher
43 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
44 241842101 A B Screw, 8-32 x 1/4
45 # 241675701 A B Solenoid Assy, 115V
45A 241675901 A B Spring-solenoid
45B 241676001 A B E-Ring-solenoid
45C 241676101 A B Actuator-solenoid
45D# 241675801 A B Solenoid, 115V
46 241684402 A B Control Rod
47 241731801 A B Spring-control rod
48 241684602 A B Bracket-control rod
49 241676501 A B Rail Assy
50 241675601 A B Guide-solenoid
51 241676301 A B Rotation Stop
52 241684901 A B Spacer-fixed blades
53 241690402 A B Pin-spiral, fixed blades
54 241685001 A B Nut-auger
55 241690306 A B Washer
56 241690201 A B E-ring
58 218359202 A B Screw, pan head, 8-32 x 0.250
70 241504601 A B Plate-mounting
70* 241551602 A B Screw, hex head, 8-18B x 0.875
70* 241716801 A B Clip
* 240562101 A B Insulator
* 241914702 A B Ice Container Assy
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
17 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP

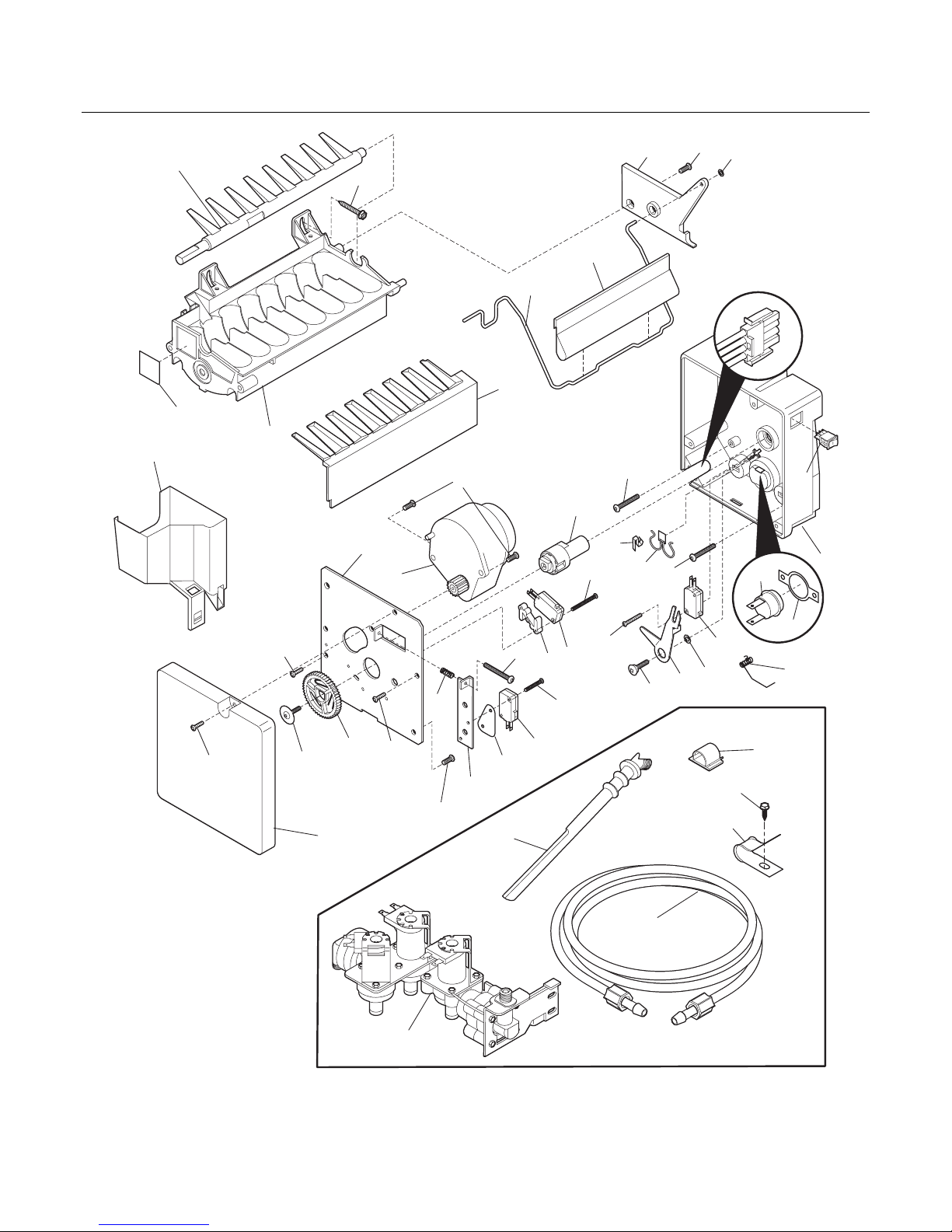

ICE MAKER
18
60
21
39
17
19
6
22
66
6
40
43
12
23
67
9
34
34
35
36
27
38
11
23
13
16
5
7
33
29
14
15
25
30
8
37
4
34
15
24
41
15
2
42
31
32
6
45
64
51
1
04/08 18
55
INSTALLATION PARTS
N58I115TServo
GHSC39EJP Publication No: 5995511598
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976418 A B Tube-water inlet, inlet valve, to filter
1* 218976421 A B Tube-water inlet, valve to door
1* 218976915 A B Tube-water inlet, inlet valve, to filter
1* 240561702 A B Seal-water inlet, inlet valve, to ice maker
2 5304459922 A B Spring, shut-off arm
4 5304458380 A B Gear
5 5304458383 A B Plate-mounting
6 5304458386 A B Screw
7 # 5304458382 A B Motor-ice maker Svo
8 5304458388 A B Spacer-hold switch
9 5304456662 A B Cam
11 # 5304458400 A B Thermal Cutoff, ice maker
12 5304458379 A B Harness-wiring
13 5304456665 A B Thermostat, ice maker
14 5304458384 A B Screw
15 # 5304456667 A B Switch-micro, (3)
16 5304458395 A B Housing, control
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304458377 A B Ejector-ice
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304458378 A B Cup-water inlet
21 5304458390 A B Ice Stripper
22 5304458375 A B Shut-off Arm
23 5304458394 A B Screw
24 5304458391 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 A B Screw
29 5304458393 A B Screw
30 5304458387 A B Screw
31 5304458381 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304458403 A B Retainer-thermostat
34 5304456678 A B Screw, M 3x12 #3, (2)
35 5304456684 A B Screw
36 5304458376 A B Cover-ice maker
37 5304456682 A B Spring, timing adjust
38 5304458398 A B Clip
39 5304458399 A B Conductor-heat
40 5304458401 A B Clip-retainer
41 5304458389 A B Screw
42 218515403 A B Clip-grille
43 241720601 A B Extension
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241796402 A B Tube-water fill, extension
55 # 241734301 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500
55* 240363602 A B Screw-shoulder
55* 240542901 A B Cap-water valve
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
19 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
ICE MAKER
18
60
21
39
17
19
6
22
66
6
40
43
12
23
67
9
34
34
35
36
27
38
11
23
13
16
5
7
33
29
14
15
25
30
8
37
4
34
15
24
41
15
2
42
31
32
6
45
64
51
1
04/08 20
55
INSTALLATION PARTS
N58I115TServo
GHSC39EJP Publication No: 5995511598
ICE MAKER
POS. NO PART NO. DESCRIPTION
60 5304455651 A B Screw, hex washer head, 8-15A x 0.500
64 5304455846 A B Clamp, .31 ID, steel, water tube
66 5304458374 A B Bracket-ice maker
67 5304458392 A B Switch-on/off
* 241583301 A B Deflector-air, ice maker
* 241806601 A B Connector-water, straight
* 5304456660 A B Screw, M 4x6 #2
* 5304456689 A B Washer, nylon
* # 241709801 A B Ice Maker, radius cube, 115 V, no instl parts
Model Index: A GHSC39EJ (GHSC39EJPB0)
B GHSC39EJ (GHSC39EJPW0)
# Functional Parts
21 04/08
* Non-Illustrated Parts
Publication No: 5995511598 GHSC39EJP
WIRING SCHEMATIC
FZ LIGHTS
FF LIGHTS
YEL/RED
YEL/BLK
APOLLO
LIGHTING
CONTROL
J2-3
J2-2
J2-1
J1-3
J1-2
J1-1
J1
2
1
3
YEL/RED
YEL/BLK
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
OPEN
FROM IWD. FAST ICE/FREEZE
ORG/WHT
J2
CONNECT THESE TOGETHER
1
2
3
YEL/GRY
YEL/PNK
LT. BLU
N
FREEZER LIGHT SENSE
DEFROST HEATER
L1
YEL/GRY
LT. BLU
YEL/PNK
BRN
BLK
WHEN APOLLO NOT PRESENT
HI-VOLT AC
DTT
VCC
COMPRESSOR
VARIBLE SPEED
DC CONTROLLEDLO-VOLT DC
BLK
BLK
(L) PUR
INPUT
BLK
RED
COM
RED/BLK
BRN/WHT
(N) WHT
A/C
LT.BLU
EVAPORATOR FAN
M
FG
VCC+12V
VS
DK. BLU/WHT
RED/WHT
YEL/WHT
AIR FILTER FAN
M
BLK
RED
BLK/RED
WHT/RED
NTC-FREEZER
GRY
GRY
+5
J1-4
NATURAL
BARE
GRAY CABLE
U.I
DISPLAY
RD1
COM
J1-1
J1-3
GRN
BLK
TDO
J1-2
RED
NTC-FF
GRY
GRY
4
3
WHT/YEL
BRN/YEL
DC DAMPER MOTOR
A
M
1
2
A
A
RED/YEL
BLK/YEL
J1-5
3
LATCH
3
CATCH
4
J1-4
J1-3
J1-6
J1
DEFROST JUMPER
OPEN=ADC
SHORT-TIMER
6
5
4
10
12
11
6
5
J1-2
J1-1
ALARM
J1-12
J1-8
J1-9
J1-11
J1-10
+5
TDO
COM
7
J1-7
RD1
NTC-AMBIENT
1
2
9
8
2
1
J3-4
J3-2
STANDARD
COMPRESSOR
ONLY
4
J3-1
VCC
COMPRESSOR
ONLY
7
8
LATCH
3
8
J3
7
J3-3
J3-5
6
CATCH
6
J3-6
J3-7
J3-8
3A
5
1
2
5
J2-3
J2-1
J2-4
J2-2
HI-VOLT AC
+5
DEFROST CURRENT SENSE
LO-VOLT DC
1
2
6
7
2
1
J2-5
J2
LATCH
J2-10
3
CATCH
3
4
J2-6
4
8
J2-7
5
J2-8
J2-9
SHEILD
5
10
9
04/08 22
GHSC39EJP Publication No: 5995511598
WIRING DIAGRAM
DRAIN
TROUGH
DEFROST
FRZR MID MOUNT
LIGHT
6
3
3
6
9
THERMISTOR
5
2
2
5
8
LT. BLU
789
4
1
1
4
7
GRY
YEL/RED
LATCH
GRY
THERM.
DEFROST HEATER
YEL
RED
BRN
BLU
BLU
9
7
8
4
5
RED/WHT
7
YEL/RED
YEL/WHT
8
BLU/WHT
DK.BLU/WHT
9
YEL/PNK
987
GRN/YEL
1
1
456
7
(FRZR)
6
2
3
2
3
8
9
LIGHT SWITCH
LATCH
CATCH
7
4
6
5
GRN/YEL
BRN
BRN/WHT
YEL/RED
LT. BLU
2
3
1
CATCH
1
3
2
GRY
LT. BLU
GRY
BLK
PUR
YEL
6
5
4
(DC)
TO PORKCHOP
GRN/YEL
PUR
TAN
BLU/WHT
LT. BLU
RED/BLK
ORG/WHT
6
1
FRZR
FAN
FROM DOOR
CATCH
LATCH
GROUND
FRZR DOOR
5
2
SEE
DISPENSER ASSY
WIRING
4
12
3
DISPENSER HOUSING HEATER
SPLICE
SPLICE
1
456
2
3
4
6
1
5
2
3
LATCH
10
11
CATCH
4
5
6
YEL/PNK
LT. BLU
GRN/YEL
YEL
789
12
10
11
9
1
3
2
BLK/RED
8
RED/BLK
ORG/WHT
YEL/RED
WHT/RED
BRN
TAN
BLK
BLK
7
COMPRESSOR
LINE VAC
BLK
LT. BLU
YEL/BLK
LT. BLU
RED/BLK
RED
SPEED
COMPRESSOR/ INV.
BLK/RED
BLK
GROUND
WIRING
BLK
BLK
VARIABLE
COMPRESSOR
WHT/RED
(DC)
LIGHT
SEE
5 VDC
RED
FILTER
FAN
MID MOUNT
AIR
AUGER MTOR
SOLENDIDO
2416386
RED/WHT
5
MOTHER BOARD
10
9
DK.BLU/WHT
YEL/WHT
GRY
4
10
9
4
5
5 OR 12 VDC
AC LINE VOLTAGE
8
BRN/WHT
GRY
3
3
J2
J1 J3
(2x6)
(2x4)
7
6
RED/BLK
WHT/RED
BLK/RED
2
678
1
2
(2x5)
MARKED BY "o" SYMBOL.
THERMISTOR
GRY
BLK
1
6
GRY
BARE
5
GRY
NATURAL
4
WHT/YEL
BLK
TDO
RED
3
BRN/YEL
RD1
GRN
2
BLK/YEL
1
RED/YEL
YEL/PNK
1
ORG/WHT
YEL/GRY
2
GRN/YEL
3
LT. BLU
BRN
4
RED
BLK
ALL WIRE CONNECTIONS
ICE MAKER
DAMPER
MOTOR
A
A
A
A
BLK/YEL
BRN/YEL
WHT/YEL
RED/YEL
GRY
4
3
12
11
10
9
78
5
6
7
8
WATER
VALVE
ONE
ENDS AT
SLEEVE
1
2
GREY JACKETED
SHEILDED CABLE
TAN/YEL
5 VDC
NATURAL
BLK
COND. FAN
SPLICE
U1
TDO
RD1
GRN
RED
DIODE
DIODE
DIODES MUST BE
POLARIZED IN
SAME DIRECTION
TO U.I. (SHEILDS LIGHT WIRES)
LIGHT
FOAM BACKED MYLAR SHEILD ATTACHED
SPLICE
SPLICE
FRZR
CONTROL BOX
LIGHT
LT. BLU
NON-RIBBED
RIBBED
YEL/BLK
SPLICE
SPLICE
WHEN APOLLO NOT PRESENT
CONNECT THESE TOGETHER
TAN
YEL
VALVE
TWO
I/M
WATER
VALVE
WATER
DISPENSER
SUPPLY
J2
1
LT. BLU
J2-1
2
YEL/PNK
J2-2
3
YEL/GRY
J2-3
CONTROL
1
YEL/BLK
J1-1
APOLLO
LIGHTING
2
YEL/RED
J1-2
LIGHTS
3
OPEN
J1-3
J1
CRISPER
LIGHT
# Functional Parts
23 04/08
* Non-Illustrated Parts
Loading...
