Frigidaire Gallery Premier FGEF3077K, Gallery Premier FGEF3077KW, Gallery Premier FGEF3077KB Specifications
Page 1
Freestanding Ranges
FGEF3077K W/ B
Signature Features
30" Electric
Eortless Performance
Auto Shut-O
Power Broil ( 3,900W )
Quick Clean Option
Eortless™ Convection Conversion
Performance-Driven Style
Express-Select™ Controls
Eortless™ Oven Rack
Even Baking Technology
Smoothtop Ceramic Glass Cooking Surface
SpaceWise™ Design
SpaceWise™ Half Rack
Keep Warm Zone ( 100W )
SpaceWise™ Expandable Element –
6" to 9" ( 1,200W / 3,000W )
SpaceWise™ Expandable Element –
6" to 9" to 12" ( 1,000W / 2,000W / 2,700W )
Fits-More™ Cooktop
One-Touch Options
Chicken Nuggets
Pizza
Keep Warm
Add-a-Minute
One-Touch Self Clean
More Easy-To-Use Features
Keep Warm Drawer with
SpaceWise™ Half Rack
Delay Start
Hidden Bake Element
Wide-View Window
Fits-More™ Oven
A unique rack configuration creates
more cooking space.
True Convection
With True Convection, you can easily
and evenly bake 200 chicken nuggets
in 10 minutes.
2
Quick Preheat
Preheat in less than six minutes.1
Quick Boil
Boil water faster with our
3,000-watt element.
Sabbath Mode (Star-K® Certified)
Capacities
6.0 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 47"
Width 29-7/8"
Depth 28-1/4"
Available in:
White
(W)
1
Based on single rack cooking performance,
not set temperature, using Quick Preheat.
2
With convection bake at 400 degrees
excluding preheat time.
Black
(B)
frigidaire.com

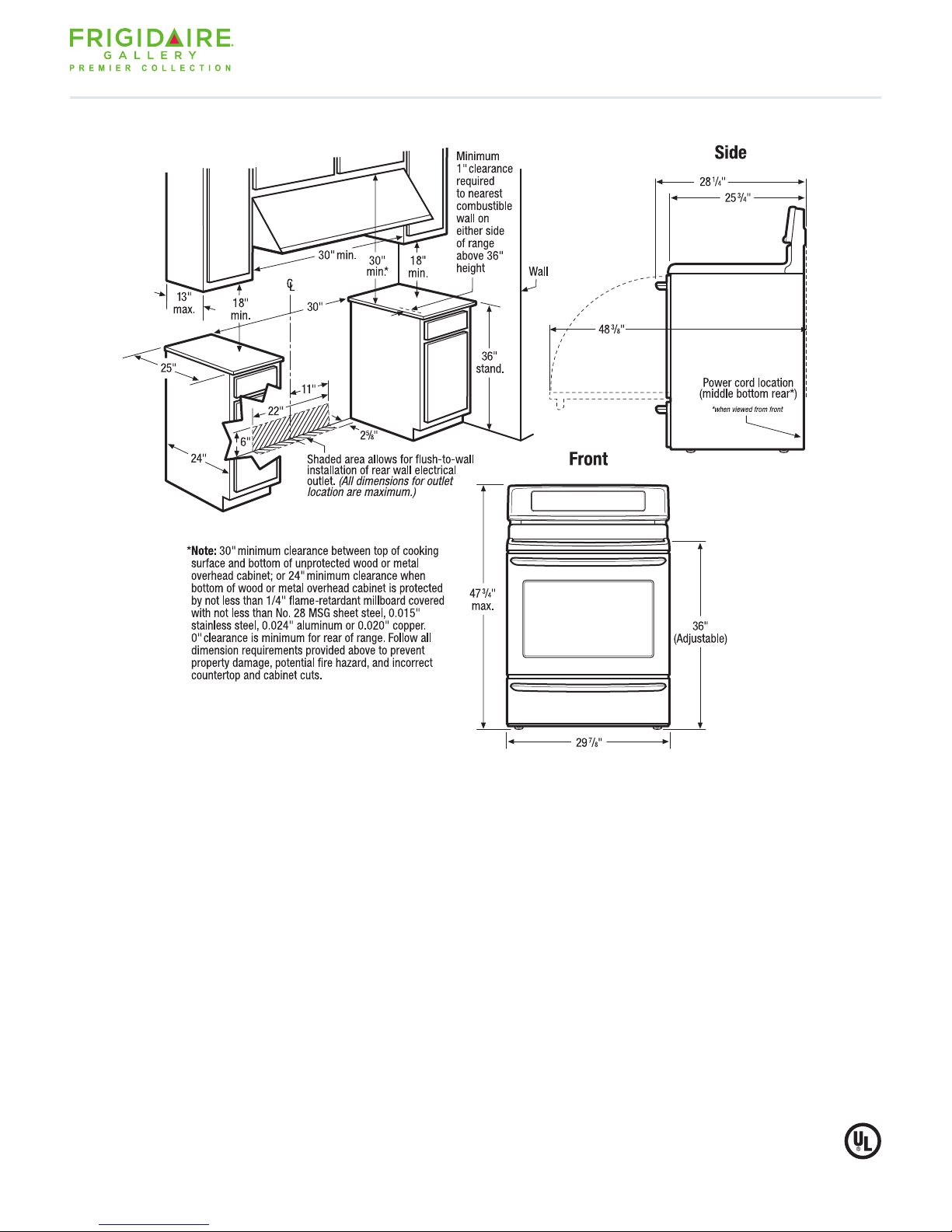

Page 2
Freestanding Ranges
FGEF3077K W/ B 30" Electric
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 210 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 13.5 / 10.0 kW
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGEF3077K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
