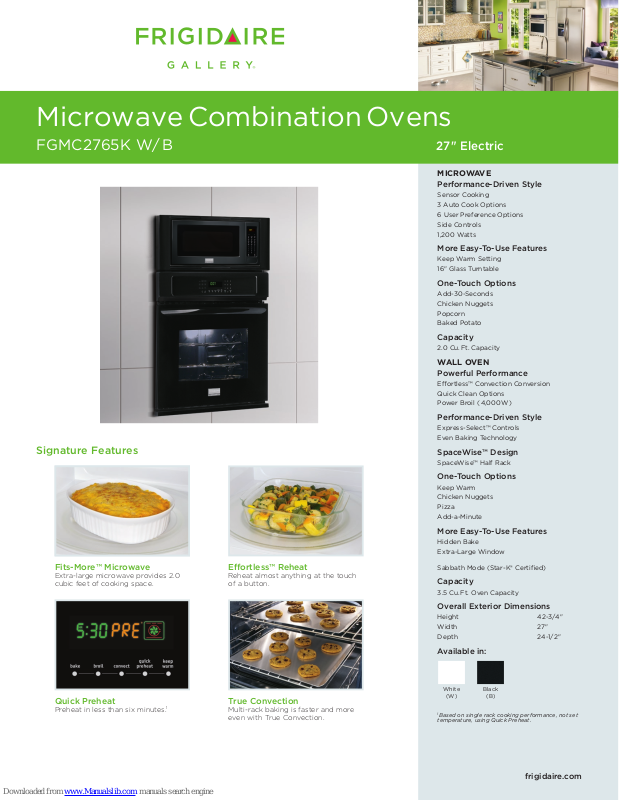

Page 1
Microwave Combination Ovens
FGMC2765K W/ B
Signature Features
Fits-More™ Microwave
Extra-large microwave provides 2.0
cubic feet of cooking space.
Quick Preheat
Preheat in less than six minutes.
27" Electric
MICROWAVE
Performance-Driven Style
Sensor Cooking
3 Auto Cook Options
6 User Preference Options
Side Controls
1,200 Watts
More Easy-To-Use Features
Keep Warm Setting
16" Glass Turntable
One-Touch Options
Add-30-Seconds
Chicken Nuggets
Popcorn
Baked Potato
Capacity
2.0 Cu. Ft. Capacity
WALL OVEN
Powerful Performance
Eortless™ Convection Conversion
Quick Clean Options
Power Broil ( 4,000W )
Performance-Driven Style
Express-Select™ Controls
Even Baking Technology
SpaceWise™ Design
SpaceWise™ Half Rack
One-Touch Options
Keep Warm
Chicken Nuggets
Pizza
Add-a-Minute
More Easy-To-Use Features
Hidden Bake
Extra-Large Window
Eortless™ Reheat
Reheat almost anything at the touch
of a button.
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Sabbath Mode (Star-K® Certified)
Capacity
3.5 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 42-3/4"
Width 27"
Depth 24-1/2"
Available in:
White
(W)
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
Black
(B)
frigidaire.com
Page 2
Microwave Combination Ovens
27" Microwave / Wall Oven Combination
Gallery
FGMC2765K W/B 27" Electric
Microwave Combination Oven Specifications
•
Product Shipping Weight (approx.) – 220 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 6.8 / 5.1 kW
•
Amps @ 240 / 208 Volts = 28 / 25 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric codes.
•

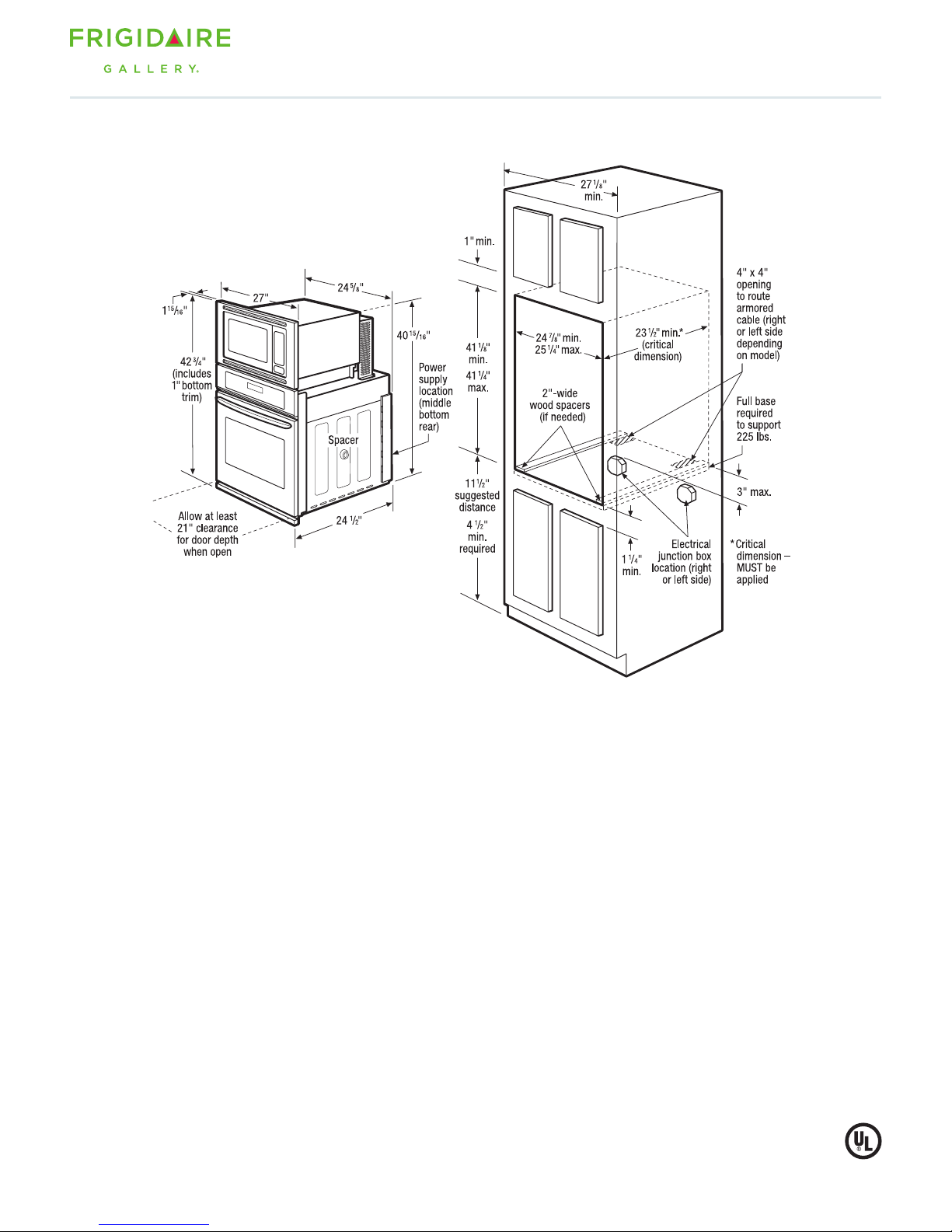

Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGMC2765K 04/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Full oven base of solid plywood or similar material required,
capable of supporting 225 Lbs.
•
Base must be level and cabinet front must be square.
•
Microwave Combination Ovens are NOT approved to be used
in stackable or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
