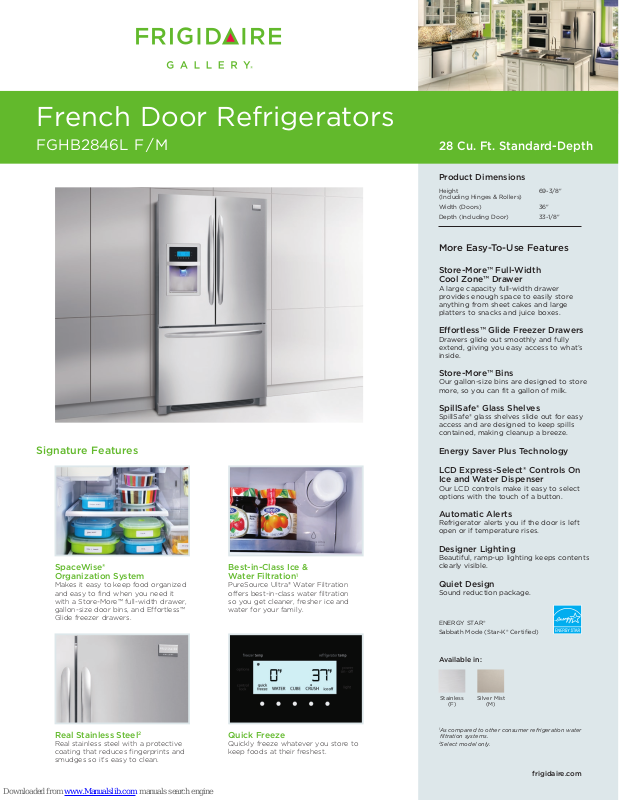

French Door Refrigerators
FGHB2846L F / M
28 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 33-1/8"
More Easy-To-Use Features
Store-More™ Full-Width
Cool Zone™ Drawer
A large capacity full-width drawer
provides enough space to easily store
anything from sheet cakes and large
platters to snacks and juice boxes.
Eortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully
extend, giving you easy access to what’s
inside.
Store-More™ Bins
Our gallon-size bins are designed to store
more, so you can fit a gallon of milk.
SpillSafe® Glass Shelves
SpillSafe® glass shelves slide out for easy
access and are designed to keep spills
contained, making cleanup a breeze.
Signature Features
SpaceWise®
Organization System
Makes it easy to keep food organized
and easy to find when you need it
with a Store-More™ full-width drawer,
gallon-size door bins, and Effortless™
Glide freezer drawers.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
2
Best-in-Class Ice &
Water Filtration
PureSource Ultra® Water Filtration
offers best-in-class water filtration
so you get cleaner, fresher ice and
water for your family.
1
Quick Freeze
Quickly freeze whatever you store to
keep foods at their freshest.
Energy Saver Plus Technology
LCD Express-Select® Controls On
Ice and Water Dispenser
Our LCD controls make it easy to select
options with the touch of a button.
Automatic Alerts
Refrigerator alerts you if the door is left
open or if temperature rises.
Designer Lighting
Beautiful, ramp-up lighting keeps contents
clearly visible.
Quiet Design
Sound reduction package.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
(F)
Silver Mist
(M)
frigidaire.com
Stainless
1
As compared to other consumer refrigeration water
filtration systems.
2
Select model only.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Soft-Arc Doors
Stainless Steel
Grey (F), Black (M)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top-Right Fresh
Food Section
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Express-Select®
Tall, Single-Paddle
12
Yes / Yes / Yes
No / Quick Freeze
Yes
Yes / Yes
Yes / Yes / Yes
Yes
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack
Hanging Can Dispenser
Crisper Drawer
Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
Fixed Door Bins
Adjustable Door Bins / Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Designer
PureSource Ultra®
1 SpillSafe®
3 SpillSafe®
Yes
1 Cool Zone™
2 Clear
2
1 Clear
2 White (1 per door)
1 Half-Gallon / 2-Liter Clear
2 Two-Gallon Clear / 1
No / 1
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Yes
2 Eortless™ Glide
1 (Bottom Basket)
Yes
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
27.8
19.04
8.76
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
365 Lbs.
French Door Refrigerators
FGHB2846L F / M 28 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. hinges and rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
Depth with Drawer Fully Extended (Incl. Handle)
69-3/8"
35-5/8" / 36"
33-1/8"
47-1/2"
54-3/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGHB2846L 03/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Standard Depth
Standard
Refrigerator Depth
vs. Counter Depth
235/8"
Counter Depth
281/2"
French Door Refrigerators
FGHB2846L F / M 28 Cu. Ft. Standard-Depth
French Door Refrigerator Specifications
•
Product Shipping Weight (approx.) – 365 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.

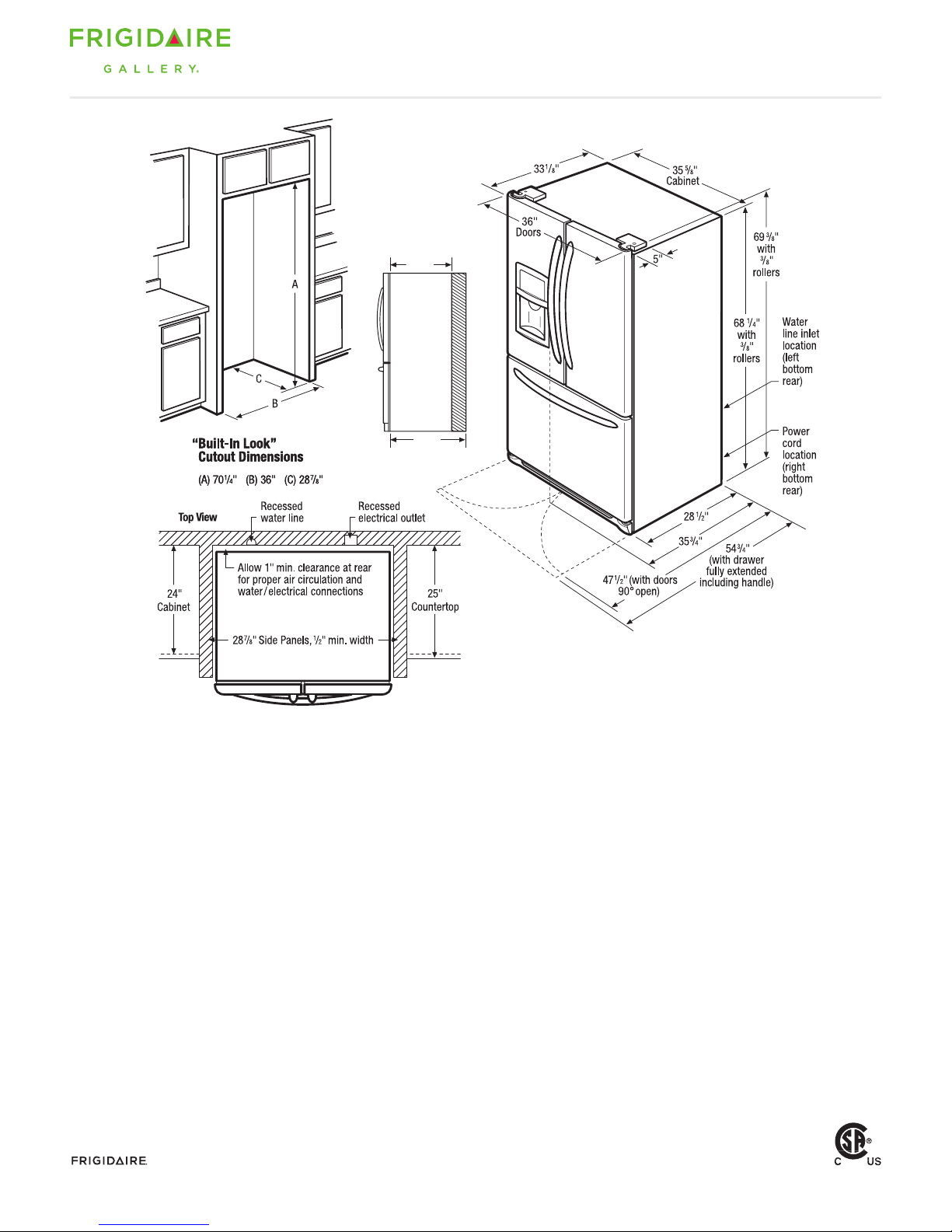

“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FGHB2846L 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
