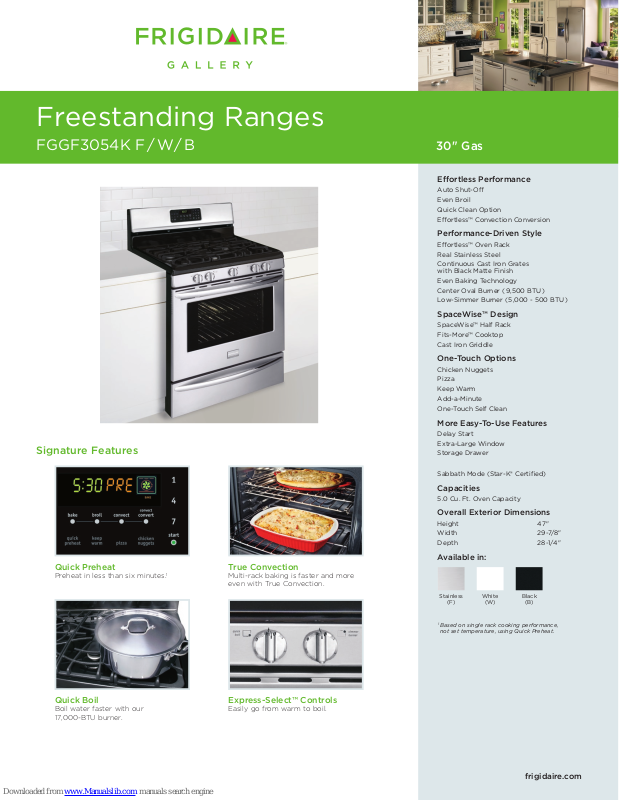

Frigidaire Gallery FGGF3054K, Gallery FGGF3054KF, Gallery FGGF3054KW, Gallery FGGF3054KB Specifications
Page 1
Freestanding Ranges
FGGF3054K F / W/ B
Signature Features
30" Gas
Eortless Performance
Auto Shut-O
Even Broil
Quick Clean Option
Eortless™ Convection Conversion
Performance-Driven Style
Eortless™ Oven Rack
Real Stainless Steel
Continuous Cast Iron Grates
with Black Matte Finish
Even Baking Technology
Center Oval Burner ( 9,500 BTU )
Low-Simmer Burner ( 5,000 - 500 BTU )
SpaceWise™ Design
SpaceWise™ Half Rack
Fits-More™ Cooktop
Cast Iron Griddle
One-Touch Options
Chicken Nuggets
Pizza
Keep Warm
Add-a-Minute
One-Touch Self Clean
More Easy-To-Use Features
Delay Start
Extra-Large Window
Storage Drawer
Quick Preheat
Preheat in less than six minutes.
Quick Boil
Boil water faster with our
17,000-BTU burner.
Sabbath Mode (Star-K® Certified)
Capacities
5.0 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 47"
Width 29-7/8"
Depth 28-1/4"
Available in:
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Stainless
(F)
1
Based on single rack cooking performance,
not set temperature, using Quick Preheat.
White
(W)
Black
(B)
Express-Select™ Controls
Easily go from warm to boil.
frigidaire.com
Page 2
Freestanding Ranges
FGGF3054K F/ W/ B 30" Gas
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 220 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.8 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 15 Amps
•
Always consult local and national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
Range is LP Gas convertible. (Optional LP Gas conversion
kit available.)
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGGF3054K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
LP Gas Conversion Kit – (PN # GRLP3)
Specifications
subject to change.
