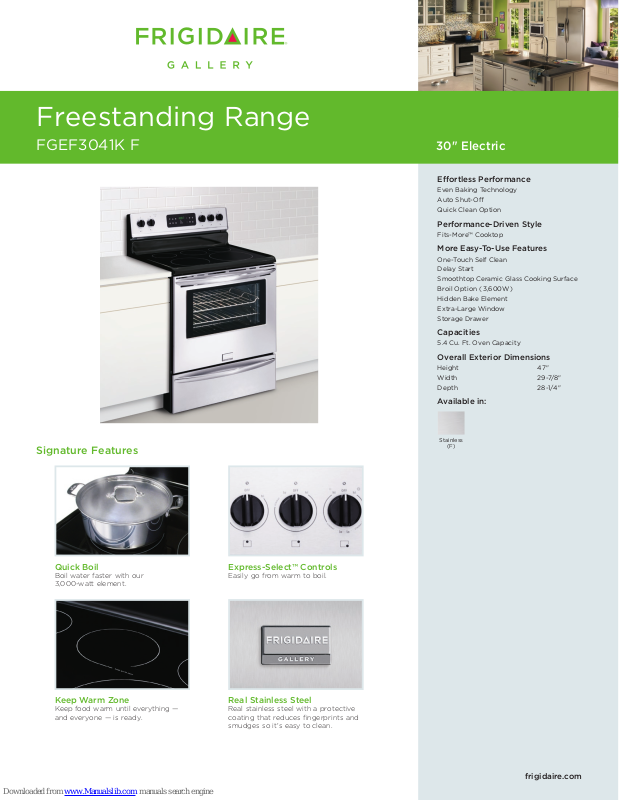

Page 1
Freestanding Range
FGEF3041K F
Signature Features
30" Electric
Eortless Performance
Even Baking Technology
Auto Shut-O
Quick Clean Option
Performance-Driven Style
Fits-More™ Cooktop
More Easy-To-Use Features
One-Touch Self Clean
Delay Start
Smoothtop Ceramic Glass Cooking Surface
Broil Option ( 3,600W )
Hidden Bake Element
Extra-Large Window
Storage Drawer
Capacities
5.4 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 47"
Width 29-7/8"
Depth 28-1/4"
Available in:
Stainless
(F)
Quick Boil
Boil water faster with our
3,000-watt element.
To Come
Keep Warm Zone
Keep food warm until everything —
and everyone — is ready.
Express-Select™ Controls
Easily go from warm to boil.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it's easy to clean.
frigidaire.com
Page 2
Freestanding Range
FGEF3041K F 30" Electric

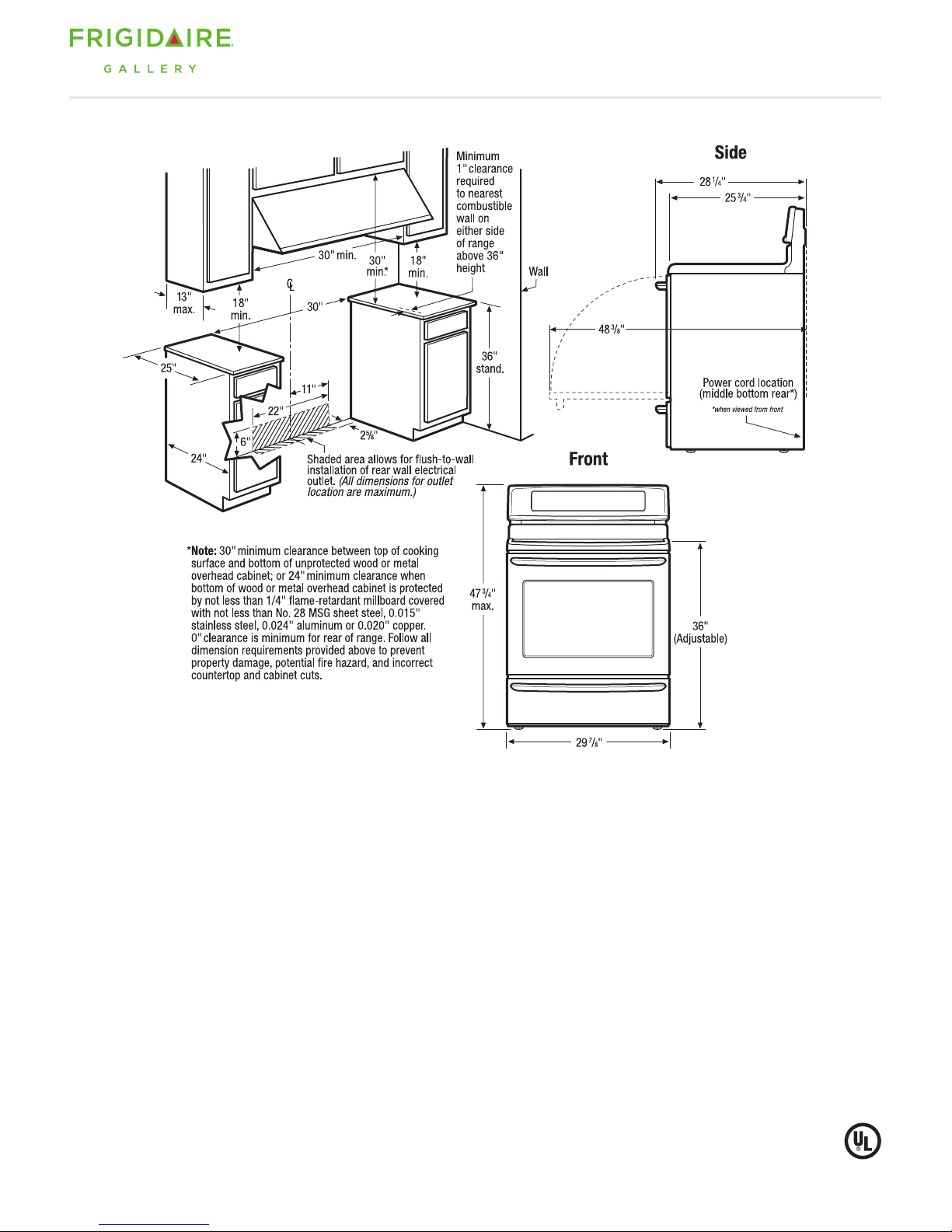

Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 205 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 12.5 / 9.5 kW
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGEF3041K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
