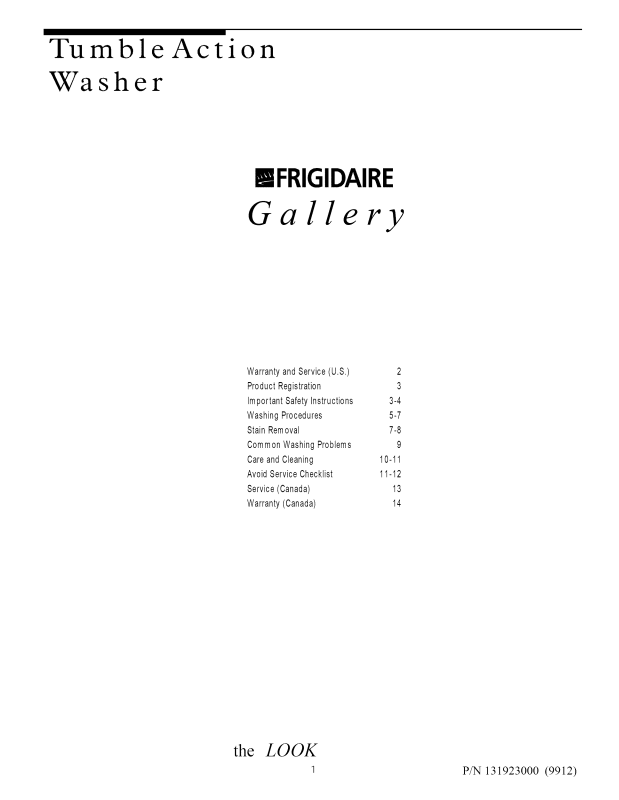

Frigidaire FWTR647GHS0, FWT647GHS1, FWT647GHS0 Owner’s Manual

Tumble
Washer

Action

mFRIGIDAIRE

Gallery

WarrantyandService(U,S,) 2

ProductRegistration 3
ImportantSafetyInstructions 3-4

WashingProcedures 5-7

StainRemoval 7-8
CommonWashingProblems 9

CareandCleaning 10-II

AvoidServiceChecklist 1I-I2

Service(Canada) 13

Warranty(Canada) 14

the LOOK

]

P/N 131923000 (9912)

FRIGIDAIRE

Tumble Action Washer

Keep your sales receipt!

Warranty

FULL ONE-YE?dl
WARRANTY

From Date of Purchase

LIMITED 2nd-5th YEAR

WARRANTY

From Date of Purchase

LIMITED 2nd-25th YEAR
WARRANTY

From Date of Purchase

II,'l[ellDY.,ll,'la |V&llllllIO[ell/I'O'-'\'dIDIc_

1. Service calls where the problem is not thefault of the washer. Below are some, but not every example
of issues where you must pay the service call cost.

Setwice calls to:

• remove shipping devices or to level your washer

• correct leaks at water inlet hose connections

• correct improper placement of drain hose in your drain

• advise you on proper setting of controls or to instruct you how to use the washer

Setwice calls where the problem is glue to:

• house wiring faults, improper electrical voltage, blown house fuse, tripped circuit breaker

• slow or backed-up drain, weak (spongy) floor, insects or rodents causing the problem

• frozen water lines in the washer or house

• washer installed outside, exposed to the elements

Labor and replacement parts which prove to be defective in materials or workananship.

Any warranty service must be provided by Frigidaire o1"an authorized Fr(_idaire

service company.

Replacement part for the motor, driven pulley or motor controller
which prove to be defective.

Replacement part for an inner wash basket that breaks due to a defect in materials or
workmanship. (Excludes Alaska)

2. Repairs for washer used in a commercial application or more than single-Pamily household use.

3. Repairs for delivery damage to your washer or damage caused by misuse, fire, flood, acts of God, or use of parts or
servicers not authorized by Frigidaire.

4. Any labor costs during the limited warranties.

5. Travel costs of servicer to your home in the state of Alaska.

6. Pickup, delivery or installation of your washer.

7. Repairs on products with serial plates that have been altered, removed, or cannot be read.

8. Consequential or incidental damages such as property damage and incidental expenses resulting from any breach
of this written or any implied warranty. Some states do not allow the exclusion o1"limitation of incidental o1"
consequential damages, so this limitation or exclusion may not apply to you.

Keep your sales receipt. The date on the receipt establishes the warranty period should service be required. This written

warranty gives you specific rights. You may also have other rights which vary from state to state. If you need service, first
read "Avoid Service Checklist" section of this booklet. If service is still needed, contact Frigidaire Home Products Con-
sumer Service or an authorized Frigidaire servicer. For information on where to obtain service, contact our Consumer

Assistance Center at 1-800-944-9044.

Product features or specifications as described or illustrated are subject to change without notice. This warranty made
by White Consolidated Industries, Inc. applies only in the 50 states ofl the U.S.A. and Puerto Rico.

Important Safety Instructions

Product Registration

Thank you for choosing this
washer. This owner's guide will
explain proper operation and care,

Record Your Model and Serial

Numbers

Record below the model and serial
numbers found on the washer serial

plate located at the top, inside of the
door opening, Keepthese numbers
and the dated sales receipt for future

reference,
Model Number

Serial Number

Date of Purchase

Register Your Product

The self-addressed PRODUCT
REGISTRATIONCARD should be

filled in completely, signed and
returned,

Instructional Video

An instructional video has been

included with your washer, It

highlights features unique to this
tumble action washer and will help
you operate your washer correctly,
This video is especially helpful if your

previous washer was a vertical-axis

model,

This Owner's Guide provides general
operating instructions for your washer,

It also contains information about
features for several other models, Your

washer may not have every feature
included here,

Use the washer only as instructed in
this Owner's Guide and the Operating
Instructions card included with your

washer,

Read all instructions before using this washer.

Toreduce the risk of fire, electrical shock, or injury to persons when

using this washer, comply with the basic warnings listed below,
[] Failure to comply with these warnings could result in serious personal injuries,

Prevent Fire

Do not wash items that have been previously cleaned in, soaked in,

or spotted with gasoline, cleaning solvents, kerosene, cooking oils, waxes, etc, Do
not store these items on or near the washer, These substances give off vapors or
chemical reactions that could ignite or explode,

Do not put oily or greasy rags or clothing on top of the washer,

These substances give off vapors that could ignite the materials,

Do not add gasoline, cleaning solvents, or other flammable or

explosive substances to the wash water, These substances give off vapors that
could ignite or explode,

Under certain conditions, hydrogen gas may be produced in a hot

water system that has not been used for 2 weeks or more, HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been used for such a period, before
using the washer, turn on all hot water faucets and let the water flow from each
for several minutes, This will release any accumulated hydrogen gas, Hydrogen
gas is flammable; do not smoke or use an open flame during this time,

_r_ Failure to comply with these warnings could result in fire, explosion, serious
bodily injury and/or damage to the rubber or plastic parts of the washer,

Protect Children

Do not allow children to play on or in the washer, Close supervision

of children is necessary when the washer is used near children, As children grow,
teach them the proper, safe use of all appliances,

Destroy the carton, plastic bag and other packing materials after
the washer is unpacked, Children might use them for play, Cartons covered with
rugs, bedspreads or plastic sheets can become airtight chambers,

Keep laundry products out of children's reach, Toprevent personal

injury, observe all warnings on product labels,

Before the washer isremoved from service or discarded, remove the

washer door to prevent accidental entrapment,

FOR YOUR SAFETY

Do not store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance,

"1998 White Consolidated Industries, Inc,

All rights reserved,

Failure to comply with these warnings could result inserious personal injuries,

Printed in U,S,A,

Important Safety
Instructions (continued)

Avoid fire hazard or

electrical shock. Do not use an
adaptor plug or extension cord or

remove grounding prong from
electrical power cord. Failure to
follow this warning can cause
serious injury, fire or death.

Grounding type
wall receptacle

Power supply cord with 3-prong

grounding plug

CORRECT

Use this way ONLY

Prevent Injury

To prevent shock hazard and assure stability during operation, the

washer must be installed and electrically grounded by a qualified service person in
accordance with local codes, Installation instructions are packed in the washer for
installer's reference, Referto INSTALLATIONINSTRUCTIONSfor detailed grounding
procedures, If the washer is moved to a new location, have it checked and
reinstalled by a qualified service person,

To prevent personal injury or damage to the washer, the electrical

power cord of the washer must be plugged into aproperly grounded and polarized
3-prong outlet, The third grounding prong must never be removed. Never
ground the washer to a gas pipe. Do not use an extension cord or an
adaptor plug.

Follow package directions when using laundry products, Incorrect

usage can produce poisonous gas--resulting in serious injury or death,

• Do not combine laundry products for use in 1 load unless specified on the
label,

• Do not mix chlorine bleach with ammonia or acids such as vinegar,

To prevent serious personal injury and damage to the washer:

• All repairs and servicing must be performed by an authorized servicer
unless specifically recommended in this Owner's Guide, Use only authorized
factory parts,

• Do not tamper with controls,

• Do not install or store the washer where it will be exposed to the weather,

• Do not install on carpet, Install washer on a solid floor, It may be necessary

to reinforce the floor to prevent vibration or movement,

Do not use or mix

liquid chlorine bleach with other
household chemicals such as toilet

cleaners, rust removers, acid or

products containing ammonia.
These mixtures can produce
dangerous fumes which can cause
serious injury or death.

Note: The instructions appearing in

this Owner's Guide are not meant to

cover every possible condition and

situation that may occur, Common

sense and caution must be practiced

when installing, operating and

maintaining any appliance,

To reduce the risk of electric shock, disconnect this appliance from
the power supply before attempting any user maintenance, Turning the controls
to the OFFposition does not disconnect this appliance from the power supply,

To prevent injury, do not reach into the washer while parts are
moving, Before loading, unloading or adding items, push in the cycleselector knob
and allow the drum to coast to a complete stop before reaching inside,

[] Failure to comply with these warnings could result in serious personal injuries,

This washer isequipped with an electrical overload protector, The motor will

stop if it becomes overheated, The washer will automatically restart after a cool
down period of up to 30 minutes, if the washer has not been manually turned off
during this time,

SAVE THESE INSTRUCTIONS

As an ENERGY STAR ®Partner,

Frigidaire Home Products has determined
that this product meets the ENERGY STAR ®
guidelines for energy efficiency.

Washing Procedures

• Follow the guidelines below for preparing the wash load,

J

Sort laundry into loads that can be

washed together,

Empty pockets,

• Read the Operating Instructions card for operating your specific model,

• Always read and follow fabric care and laundry product labels.

To reduce the risk of fire, electrical shock, or injury to persons, read

Important Safety Instructions, pages 3-4, before operating this washer,

.

Sort laundry into loads that can be washed together.

Sort items by recommended water temperatures and wash time,

• Separate white, light, and colorfast items from dark and noncolorfast
items,

• Separate items which shed lint from items which attract lint, Permanent
press,synthetic, knit and corduroy items will pick up lint from towels, rugs
and chenille bedspreads,

• Separate heavily soiled items from lightly soiled items,

• Separate lacy, sheer and loosely knit items from sturdy items,

• Do not machine wash items containing fiberglass, Small particles of

fiberglass left in the drum may stick to fabrics in other loadsand causeskin

irritation,

.

Prepare items for washing.

• Empty pockets,

• Brush off lint and dirt, Shake out rugs and beach towels,

• Closezippers,fasten hooks, tie strings and sashes,and remove nonwashable

trims and ornaments,

• Remove pins, decorative buttons, belt buckles, and other objects which

could be damaged, This also helps protect other items inthe wash load,

• Mend rips and tears to prevent further damage during washing,

• Place delicate items such as bras, shoulder pads, hosiery, and belts in a
mesh bag to prevent tangling during the wash cycle,

• Turn knit items inside out to prevent pilling,

Place delicate items in a mesh bag,

Add laundry load to washer,

3. Pretreat stains and heavy soil.

See Stain Removal, pages 7-8, for details,

.

Add laundry load to washer.

• Combine large and small items in a load, Load large items first, Large items

should not be more than half the total wash load,

• Washing single items such as a sweater, towel or jeans may cause an out-
of-balance load, Add 1 or 2 similar items to help balance the load,

• Single heavy items such asa bedspread can be washed separately,

• The washer can be fully loaded, but the items should not be tightly packed,

The door should close easily,

5. Add detergent, bleach and fabric softener to automatic dispenser following these steps:

A. OPENING AND CLOSING THE DISPENSERDRAWER B.

• Slowly open the dispenser drawer by first sliding the
safety latch to the right, then pulling the drawer out

until it stops,

After adding laundry products, slowly close the

dispenser drawer, Closing the drawer too quickly

could result in early dispensing of the bleach and
fabric softener,

Laundry products used with powder or liquid
detergent, such as color-safe bleach, water
conditioner, detergent booster, and enzyme products
should be added to the empty tub before loading,

Note: From time to time you may see water in the
bleach and fabric softener compartments, This isa result
of the siphoning action and is part of the normal
operation of the washer,

DETERGENT

• Add measured detergent to the detergent
compartment of the dispenser drawer,

• Detergent is flushed from the dispenser at the

beginning of the cycle, Either powdered or liquid

detergent can be used, Note: Liquid detergent will
drain into the washer drum as it is added,

• Low sudsing detergent is recommended for this
washer, Use the manufacturer's recommended

amount,

• If low sudsing detergent is not available, a reduced
amount of regular detergent may be used, Because
reducing the amount of detergent may reduce
cleaning, it isimportant to pretreat stains,sort carefully

by color and soil level, and avoid overloading,

• Detergent usage may need to be adjusted for water
temperature, water hardness, sizeand soil levelof the

load,

• For best results, avoid oversudsing,

C.

LIQUID BLEACH

• Ifdesired, measure out the recommended amount of
liquid chlorine bleach (not to exceed 1/3 cup (80 mL))

and pour it into the center compartment labeled

"Liquid Bleach" and marked with this symbol _,

• Do not exceed the maximum fill line, Overfilling can

cause early dispensing of the bleach which could

result in damaged clothes,

• Do not pour undiluted liquid chlorine bleach directly
onto the load or into the drum, Fabric damage can

occur,

• Do not use powdered bleach in the dispenser.

D, FABRIC SOFTENER

• If desired, pour the recommended amount of fabric
softener into the compartment labeled "Fabric

Softener" and marked with this symbol

• Dilute concentrated softeners with warm watertothe

Fill Line,

• Do not exceed the maximum fill line, Overfilling can
cause early dispensing of the fabric softener which

could result in stained clothes,

• Do not pour fabric softener directly on the wash

load.

• Use of a fabric softener dispensing ball is not

recommended in tumble action washers,

Washing Procedures

continued)

Safety

Door Lock

.

Set cycle selector knob and washer controls according

type, size, and soil level of each load.

(See Operating Instructions card for your specific model controls,)

.

Start the washer.

Close the washer door and pull out the cycle selector knob, Foryour safety, the
door will automatically lock during the entire wash cycle, The Door Lock indicator

light will remain lit until the cycle ends,

• Washer will fill and tumble,

• To stop the washer, push inthe cycle selector knob,

• To open the door during tumbling, push in the cycle selector knob, Wait for
the water to run off of the door,

• To change a cycle, push in the cycle selector knob and turn it clockwise to
the desired setting, Pull out the knob to restart the washer,

• To open the door during a spin cycle, push in the cycle selector knob, The

Door Lock indicator light will turn off, Wait 1-2 minutes for the lock to

release, The door can then be opened, Do not force open the locked door,

.

Remove items when the cycle is completed.

Placewashed items in automatic dryer, line dry, or dry flat as directed by fabric
care label, Excesswrinkling, color transfer or odors may develop in items left in
the washer after the cycle has ended,

tO

Do not store or place laundry products
on top of washer at any time. They can
damage the finish or controls.

Stain Removal

Do not use or mix

liquid chlorine bleach with other
household chemicals such as toilet

cleaners, rust removers, acid or
products containing ammonia.

These mixtures can produce
dangerous fumes which can cause
serious inJury or death.

9. General Precautions

• If the dispenser drawer is pulled out more than 1-1/2" when the

washer is in operation, the washer will shut off. The Door Lock indicator
light will turn oft and the door will be unlocked, Slowly close the drawer, and
the washer will automatically resume operation,

• Do not slam the washer door closed or try to force the door open when

locked (Door Lock light ON), This could result in damage to the washer,

• DO NOT leave the washer door open. An open door could entice children

to hang on the door or crawl inside the washer,

• To avoid damaging the washer and personal injury, DO NOT hang on or lean

against the washer door,

• Do not place detergent, bleach or fabric softener containers on top of the

washer, They can damage the finish or controls,

Safe Stain Removal Procedures

To red uce the risk of fire or serious injury to persons or property,

comply with the basic warnings listed below:

• Read and comply with all instructions on stain removal products,

• Keep stain removal products in their original labeled containers and out of
children's reach,

• Thoroughly wash any utensil used,

• Do not combine stain removal products, especially ammonia and chlorine

bleach, Dangerous fumes may result,

• Neverwash itemswhich have been previouslycleaned in, washed in, soaked

in or spotted with gasoline, dry cleaning solvents or other flammable or
explosive substances because they give off vapors that could ignite or
explode,

• Never use highly flammable solvents, such as gasoline, inside the home,
Vapors can explode on contact with flames or sparks,

For successful stain removal:

• Remove stains promptly,

• Determine the kind of stain, then follow the recommended treatment in
the stain removal chart below,

• To pretreat stains, usea prewash product, liquid detergent, or a paste made

from granular detergent and water,

• Use cold water on unknown stains because hot water can set stains,

• Check care label instructions for treatments to avoid on specific fabrics,

• Check for colorfastness by testing stain remover on an inside seam,

• Rinse and wash items after stain removal,

Follow fabric care label instructions,

Stain Removal

STAIN TREATMENT

Adhesive tape, chewing gum, Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
rubber cement nonflammable dry cleaning fluid.

Babyformula, dairy products, Useproduct containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.

egg

Beverages (coffee, tea, soda, Pretreat stain. Wash using cold water and bleach safe for fabric.

juice, alcoholic beverages)

Blood Rinsewith cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using bleach

Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed.

Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.

Dye transfer on white fabric Use packaged color remover. Wash using bleach safe for fabric.

Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Grease, oil, tar (butter, fats, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
salad dressing, cooking oils, nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinsethoroughly. Wash using
car grease, motor oils) hottest water safe for fabric.

Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol

Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly mildewed

Mud Brush off dry mud. Pretreat or soak with product containing enzymes.

Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.

Nail polish May be impossible to remove. Placestain face down on paper towels. Apply nail polish remover to back of stain.

safe for fabric.

Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning

fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.

or nonflammable dry cleaning fluid.

fabrics may be permanently damaged.

Repeat, replacing paper towels frequently. Do not use on acetate fabrics.

Paint, varnish WATER BASED: Rinse fabric in cool water while stain iswet. Wash. Once paint is dry, it cannot be removed. OIL BASED

AND VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.

Perspiration Use prewash stain remover or rub with bar soap. Rinse.Wash using nonchlorine bleach in hottest water safe for fabric.

Rust, brown or yellow For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate detergent and

discoloration nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.

Shoe polish LIQUID: Pretreat with a paste of granular detergent and water. PASTE: Scrape residue from fabric. Pretreat with

Urine, vomit, mucus, feces Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.

prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area. Wash using
bleach safe for fabric.

8

Common Washing Problems

Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage, For satisfactory
washing results, follow these suggestions provided by The Soap and Detergent Association,

PROBLEM POSSIBLE CAUSES SOLUTIONS

Blue stains • Undiluted liquid detergent or fabric

softener dispensed directly onto
fabric.

Discoloration,
graying

• Not enough detergent.

•Wash water temperature too low.

• Incorrect sorting.

Greasy, oily stains

• Not enough detergent.

• Undiluted liquid fabric softener
poured directly on fabric.

Holes, tears, or
snags

• Incorrect use of chlorine bleach.

• Unfastened zippers, hooks, buckles.

• Rips,tears and broken threads.

• Overloading the washer.

• Degradation of fabric.

Lint

• Incorrect sorting.

•Tissues left in pocket.

• Overloading the washer.

• Not enough detergent.

• Undissolved detergent has left a
residue resembling lint.

• Static cling is attracting lint.

• Load washed too long.

• It caused by detergent, mix 1 cup (240 ml)
white vinegar with 1 quart (.95 L)water in a

plastic container. Soak item 1 hour. Rinse.

• It caused by fabric softener, rub stains with

bar soap. Wash.

• Rewash with correct amount of detergent
and hottest water safe for fabric. Add

bleach safe for fabric.

•Treat with prewash stain remover or liquid

detergent.

• Increase detergent and water temperature.

Rewash.

• Rub fabric softener stains with bar soap.

• May be irreversible if rips, tears and seams
cannot be mended.

• Reduce load size. Rewash using correct
water temperature, water level, and

amount of detergent.

•Add nonprecipitating water conditioner to
wash water to remove detergent residue.

• Add liquid fabric softener to final rinse.

• Dry load in dryer.

• Remove lint with lint brush or roller.

PREVENTIVE MEASURES

•Avoid overfilling detergent and fabric softener
compartments of dispenser.

• Sort items bysoil level and color.

• Use correct amount of detergent, hottest
water and bleach safe for fabric.

• Use correct amount of detergent and hottest
water safe for fabric.

• Do not pour liquid fabric softener directly
on fabric. See Washing Procedures for

directions on adding softener.

• Never pour chlorine bleach directly on fabric.

• Check condition of items before washing. See
Washing Procedures for preparing and

loading the wash load and adding chlorine
bleach.

• See Washing Procedures for sorting and

preparing the wash load.

• Do not overload washer.

• Use correct temperature and amount of

detergent, water and wash time.

Pilling
(Fibers break off, ball

up and cling to
fabric.)

Residue or powder
on dark items;
Stiff, harsh fabrics.

Wrinkling

Yellow buildup of
body soil on

synthetic fabrics

Yellow or brown
rust stains

• Pilling isnormal with synthetic and
permanent press fabrics. This is due

to abrasion from normal wear.

• Undissolved detergent.

•Some nonphosphate granular
detergents can combine with hard

water minerals to form a residue.

• Overloading the washer.

• Overloading the washer.

• Incorrect wash cycle for wash load.

•Agitation time too short.

•Wash water temperature too low.

• Not enough detergent.

• Iron or manganese in water supply,

water pipes, or water heater.

• Use a lint brush or shaver to remove pills.

• Rewash load.

• Reduce load size.

• Rinse in cold water with liquid fabric
softener using the Perm Press or Delicate

cycle.

• Soak in detergent booster or product
containing enzymes.

•Wash in hot water (120°F/49°C) using full

permanent press cycle. Increase detergent.

Add bleach safe for fabric.

• Or, treat with color remover,

•To restore discolored load of whites, use

rust remover safe for fabric.

• Do not use chlorine bleach to remove

rust stains. It may intensify

discoloration.

• Use fabric softener in the washer to lubricate
fibers.

•When ironing, use spray starch or fabric finish

on collars and cuffs.

•Turn items inside out to reduce abrasion.

• Increase water temperature using hottest
water safe for fabric.

• Do not overload washer.

• Use liquid detergent or use nonprecipitating
water conditioner with nonphosphate

granular detergent.

• Do not overload washer.

• Remove items from washer as soon as cycle is
completed.

• Use liquid fabric softener.

• Select correct wash cycle.

• Use correct amount of detergent.

•Wash synthetics frequently using hot or warm
water.

• Use nonprecipitating water softener.

• Before washing, run hot water for a few

minutes to clear lines.

• Drain water heater occasionally.

• For an ongoing problem, install an iron filter in
your water supply system.

Care and Cleaning

Outside

• When washing is completed, wipe top and sidesor washer with a damp cloth,
Turn water faucets off to prevent pressure build-up in the hoses,

As needed, clean the cabinet with mild soap and water, Never use harsh,

gritty or abrasive cleansers. If door or console becomes stained, clean with
diluted chlorine bleach [1/2 cup (120 ml) in 1 quart (,95 L)water], Rinseseveral

times with clear water,

• Removeglue residue from tape or labelswith a mixture of warm water and mild
detergent, Or, touch residue with the sticky side of the tape or label,

Figure 1

(Lock tab is visible only afterdrawer has
been pulled out)

J

r--.

Figure 2

• Before moving the washer, place a strip of cardboard or thin fiberboard

under the front leveling legs to prevent floor damage,

Cleaning the Dispenser Drawer Area

Detergent and fabric softener may build up in the dispenser drawer, Residueshould
be removed once or twice a month,

Removethe drawer byfirst sliding the safety latch to the right, then pulling

the drawer out until it stops, (Figure 1)

Reach back into the left rear corner of the drawer cavity and press down

firmly on the lock tab (left rear portion of the drawer), Pullout the drawer,

(Figure 2)

Remove the inserts from the bleach and fabric softener compartments,
(Figure 3)

Rinse the drawer and inserts with hot tap water to remove traces of
accumulated powders and liquids, Large amounts of fabric softener
residue may indicate improper dilution or more frequent cleaning is
required,

Toclean the drawer opening, usea small brushto clean the recess,Remove
all residue from the upper and lower parts of the recess, (Figure 4)

Figure 3

Figure 4

Return the bleach and fabric softener insertstotheir proper compartments,

Replacethe dispenser drawer and run the Prewash cycle without anywash

load in the drum,

Inside

• Remove items from the washer as soon as the cycle ends, Excesswrinkling,
color transfer, and odors may develop in items left in the washer,

• Before cleaning the washer interior, unplug the electrical power cord to
avoid electrical shock hazards,

Dry around the washer door opening, flexible gasket, and door glass, These

areas should always be clean to ensure awater tight seal,

When extremely soiled items have been washed, a dirty residue may remain on
the drum, Remove this by wiping the drum with a nonabrasive household
cleanser, Rinsethoroughly with water,

The plastic drum vanes may become stained from fabric dye, Clean these parts
with a nonabrasive household cleanser, This prevents dye transfer to future

loads,

10

Care and Cleaning

(continued)

Winterizing Instructions
If the washer is stored in an area where freezing can occur or moved in freezing

temperatures, follow these winterizing instructions to prevent damage to the
washer:

1, Turn off water supply faucets,

2, Disconnect hoses from water supply and drain water from hoses,

Follow Winterizing

3, Plug electrical cord into a properly grounded electrical outlet,

Instructions for cold
weather care.

4, Add 1 gallon (3,8 L) nontoxic recreational vehicle (RV) antifreeze to empty

wash drum, Close door,

5, Setcycle selector knob at a spin setting, Pull out knob and let washer spin for

1 minute to drain out all water, Not all of the RV antifreeze will be expelled,

6, Pushin knob, unplug electrical power cord, dry drum interior, and close door,

7, Remove dispenser drawer, Drain any water in compartments and dry

compartments, Replace drawer,
8, Store washer in an upright position,
9, To remove antifreeze from washer after storage, run empty washer through

a complete cycle using detergent, Do not add wash load.

Avoid Service Checklist

Before calling for service, review this list, It may save both time and expense, The list includes common concerns that are not

the result of defective workmanship or materials in this washer,

OCCURRENCE

POSSIBLE CAUSE / SOLUTION

NOISE

"Clicking" noise. • A normal sound made bythe timer,

High pitch "jet engine" noise. • A certain amount of motor whine is normal during the spin cycle,
Rattling and clanking noise.

Squealing sound or hot rubber odor. • Washer is overloaded, Do not overload washer, Stop washer and reduce load,
Thumping sound. • Heavywash loads may produce athumping sound, This isusually normal, Ifsound

Vibrating noise. • Washer is not resting firmly onfloor, Move washer soit rests firmly on floor, Adjust

• Foreign objects suchascoins or safety pins may be in drum or pump, Stop washer
and check drum, If noise continues after washer is restarted, objects may be in

pump, Call your authorized servicer,

• Belt buckles and metal fasteners are hitting wash drum, To prevent unnecessary
noise and damage to drum, fasten fasteners and turn items inside out,

continues, washer isprobably out of balance, Stop washer and redistribute wash

load,

leveling legs, See INSTALLATIONINSTRUCTIONSfor details,

• Shipping bolts and foam block have not been removed during installation, See
INSTALLATIONINSTRUCTIONSfor removing shipping bolts and foam block,

• Wash load unevenly distributed in drum, Stop washer and rearrange wash load,

11

OCCURRENCE POSSIBLE CAUSE / SOLUTION

OPERATING

Washer does not start.

Washer won't spin. • Washer door isnot completely closed. Close door completely.

Residue left in drum.

• Electrical power cord may not be plugged in or connection may be loose. Make
sure plug fits tightly in wall outlet.

• Housefuse blown, circuit breaker tripped, or a power outage hasoccurred. Reset
circuit breaker or replace fuse. Do not increasefuse capacity. If problem isacircuit

overload, haveit corrected by aqualified electrician. Ifproblem isapower outage,

call local electric company.

• Water supply faucets are not turned on. Turn on water supply faucets.

• Cycleselector isnot incorrect position. Move indicator clockwise slightly. Pullout

knob.

• Motor is overheated. Washer motor will stop if it becomes overheated. It will

automatically restart after a cool down period of upto 30 minutes (if washer has
not been manually turned off).

• Dispenser drawer is not completely closed. Close dispenser drawer.

• Dispenser drawer is not completely closed. Close dispenser drawer.

• Load is too small. Add 1 or 2 similar items to help balance the load.

• Heavilysoiled items. Wipe drum with anonabrasive household cleanser,then rinse.

Shake or brush excessdirt and sand from items before washing.

WATER

Water collects in bleach and fabric
softener compartments.

• This is a result of the siphoning action and ispart of the normal operation of the
washer. Water may be removed by removing the dispenser drawer (see Page9,

Figures 1 and 2) and draining water into the empty drum or sink.

Wash

load too wet after spin.

Water does not enter washer or it
enters slowly.

Warm or
enough.

Water in washer does not drain or • Drain hose iskinked or clogged. Clean and straighten the drain hose.

drains slowly.

Water leaks. • Fill hose connection is loose at faucet or washer. Check and tighten hose

hot water is not hot

• Washer is overloaded. Do not overload washer. See Washing Procedures.

• Load is too small. Add 1 or 2 similar items to help balance the load.

• Load is out of balance. Rearrange load to allow proper spinning.

• Drain hose iskinked. Straighten drain hose.

• Water supplyisnot adequate in area. Check another faucet in the house. Wait until
water supply and pressure increase.

• Water supply faucets are not completely open. Fully open hot and cold faucets.

• Water is being used elsewhere in the house. Water pressure must be at least 30

psi (260 kPa). Avoid running water elsewhere while washer isfilling.

• Water inlet hoses are kinked. Straighten hoses.

Hot water heater is set too low or is a distance from washer. Measure hot water

temperature at nearby faucet with candyor meat thermometer. Water temperature
should be at least 130°F (70°C). Adjust water heater asnecessary.

Hot water isbeing used elsewhere inthe house. Avoid using hot water elsewhere
before or during washer use. There may not be enough hot water available for
proper cleaning. If problem persists, your hot water system may be unable to

support more than 1 use at a time.

connections. Install rubber sealing washers provided.

• Housedrain pipesare clogged. Unclog drain pipes. Contact plumber if necessary.

• Oversudsing. Uselessdetergent.

Incorrect wash and rinse • Hot and cold water hoses are connected to wrong supply faucets. Connect hot

temperatures, water hoseto hot water faucet and cold water hose to cold water faucet.
Water is entering washer but tub

does not fill.

• Drain hose standpipe isincorrect height. Standpipe must bea minimum of 23.6"

(60 cm) high to prevent siphoning. See INSTALLATIONINSTRUCTIONS.

12

Service Information
(Canada)

To avoid unnecessary cost and inconvenience, make a few simple checks before
calling for service, Common occurrences and their solutions can be found in the
Avoid Service Checklist, Besure you havefollowed the instructions in this manual,

If you are unable to locate the cause of aproblem, call for service, Insist on factory

service by an authorized FRIGIDAIREHOME PRODUCTS PARTSAND SERVICE

depot,

FRIGIDAIRE HOME PRODUCTS PARTS AND SERVICE

All Frigidaire appliances are backed by FRIGIDAIREHOME PRODUCTSPARTSAND

SERVICE,one of Canada's largest parts and service networks,

The Frigidaire reputation means you can enjoy complete professional service from

one of our hundreds of trained technicians acrossthe country, Ask your Frigidaire
dealer for details about the Extended Service Plan offered by FRIGIDAIREHOME
PRODUCTSPARTS AND SERVICEto all purchasers of Frigidaire appliances in

Canada,

FRIGIDAIRE HOME PRODUCTS PARTS AND SERVICE
7075 Ordan Drive

Mississauga, Ontario
L5T 1K6

Place the name, address and telephone number of your service depot in the

spaces below,

Product and feature specifications as described or illustrated are subject
to change without notice.

13

mFRIGIDAIRE

WARRANTY (CANADA)

FRIGIDAIRE TUMBLE ACTION WASHERS

WARRANTOR:

Frigidaire Home Products Canada
7075 Ordan Drive

Mississauga, Ontario
L5T 1K6

WARRANTY PERIOD:

For the first year after purchase by the original

consumer/owner:

Forthe second through fifth year after purchase bythe
original consumer/owner:

Forthe second through twenty-fifth yearafter purchase
by the original consumer/owner:

For service under this warranty, contact your local
dealer/retailer, authorized FRIGIDAIREHOME PRODUCTS
PARTSAND SERVICE depot, or:

FRIGIDAIRE HOME PRODUCTS PARTS & SERVICE
7075 Ordan Drive

Mississauga, Ontario
L5T 1K6

Tel, : [phone]

Fax: [phone]

WARRANTOR WILL THROUGH ITS AUTHORIZED
SERVICE DEPOT:

Pay all costs to repair or replace any defective parts,

Payall costs (excluding labour to install) to replace any
defective motor, driven pulley, or motor controller,

Pay all costs (excluding labour to install) of an inner

wash basket,

WARRANTY APPLIES TO:

a) Products purchased and installed in Canada for personal single family household use,
b) Defects resulting or arising out of the manufacturing process,

c) Products bearing legible manufacturer's model and serial numbers,

d) Replacement parts only for the remainder of the original warranty,

WARRANTY DOES NOT APPLY TO:

a) Transportation damage,
b) Supply and replacement of porcelain, fuses, glass and light bulbs,

c) Parts and service supplied or obtained from other than FRIGIDAIREHOMEPRODUCTSPARTSAND

FRIGIDAIREHOME PRODUCTSPARTSAND SERVICEauthorized depots,

d) Damage or failure as the result of abuse, improper or commercial use,

CONSUMER/OWNER RESPONSIBILITY:

a) To provide proof of the original date of purchase by means of a bill of sale or payment record verifying purchase

date,

b) To pay all costs to make the appliance readily accessible for service,

c) To ensure proper power supply and connection of the appliance to same,

d) Proper installation, control setting and care of finish,

This warranty is in addition to any statutory warranties contained in any applicable legislation, The terms and
conditions of this warranty are not intended to exclude or limit your rights under those statutes, The warrantor

however reserves the right to charge transportation and travelling costs for distances in excess of 48 kilometres
(30 miles) from the nearest FRIGIDAIREHOMEPRODUCTSPARTSAND SERVICEauthorized service depot,

This warranty plus the statutory warranties mentioned are the only warranties given to the consumer/owner for this

product,

SERVICEor

14
