Frigidaire FWS1233AS2, FWS1339AC0, FWS1339AC1, FWS1339EC0 Installation Guide

Installation
Instructions
Full Size Automatic Washer
Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the washer is installed correctly and safely. Leave these instructions
near the washer after installation for future reference. NOTE: The electrical service to the washer must conform with local codes and ordinances
and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, CSA
Contents
SUBJECT PAGE

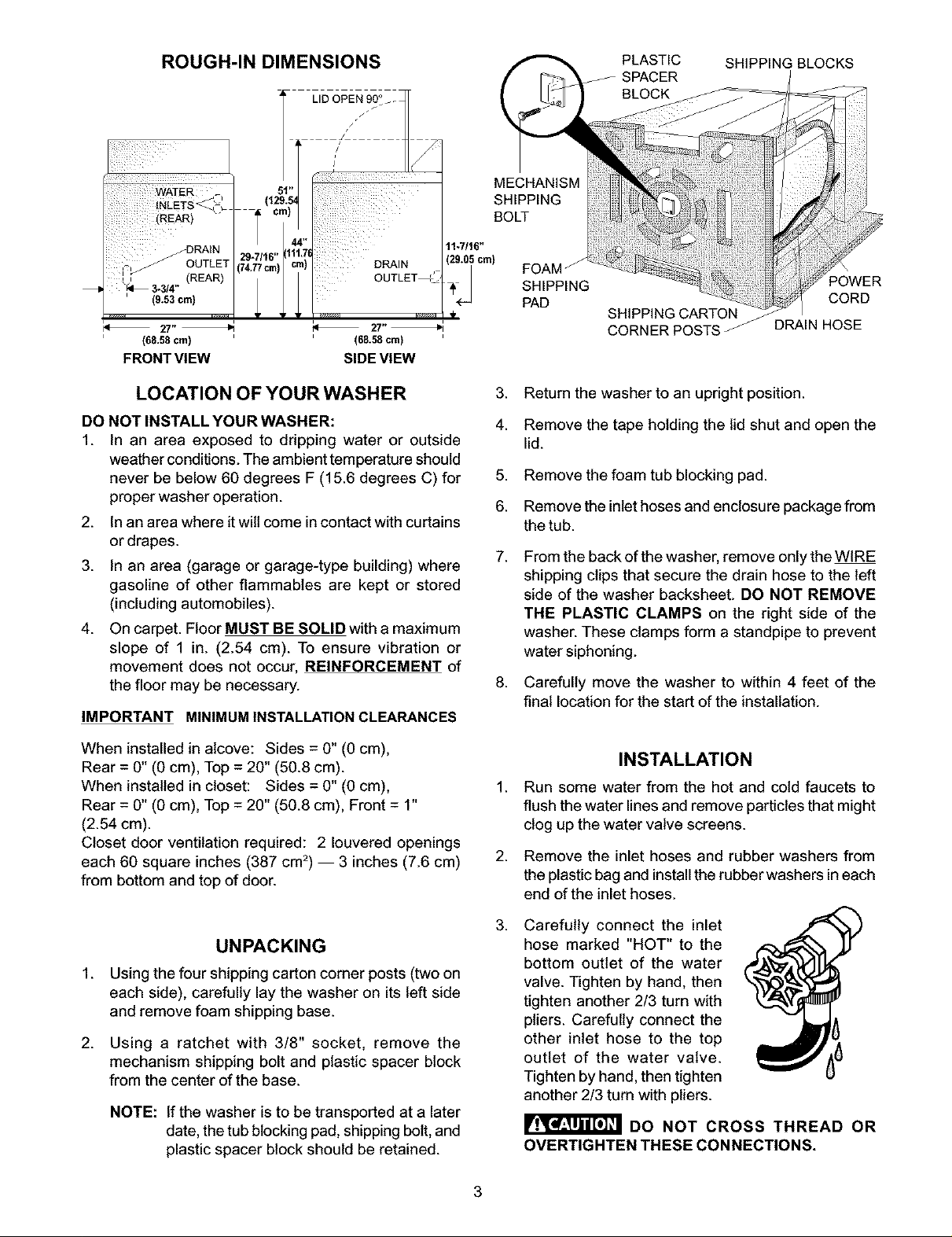

Pre-lnstallation Requirements 2 Electrical Requirements 2 Grounding Requirements 2 Water Supply Requirements 2 Drain Requirements 2 Rough-In Dimensions 3
Location 3 Unpacking 3

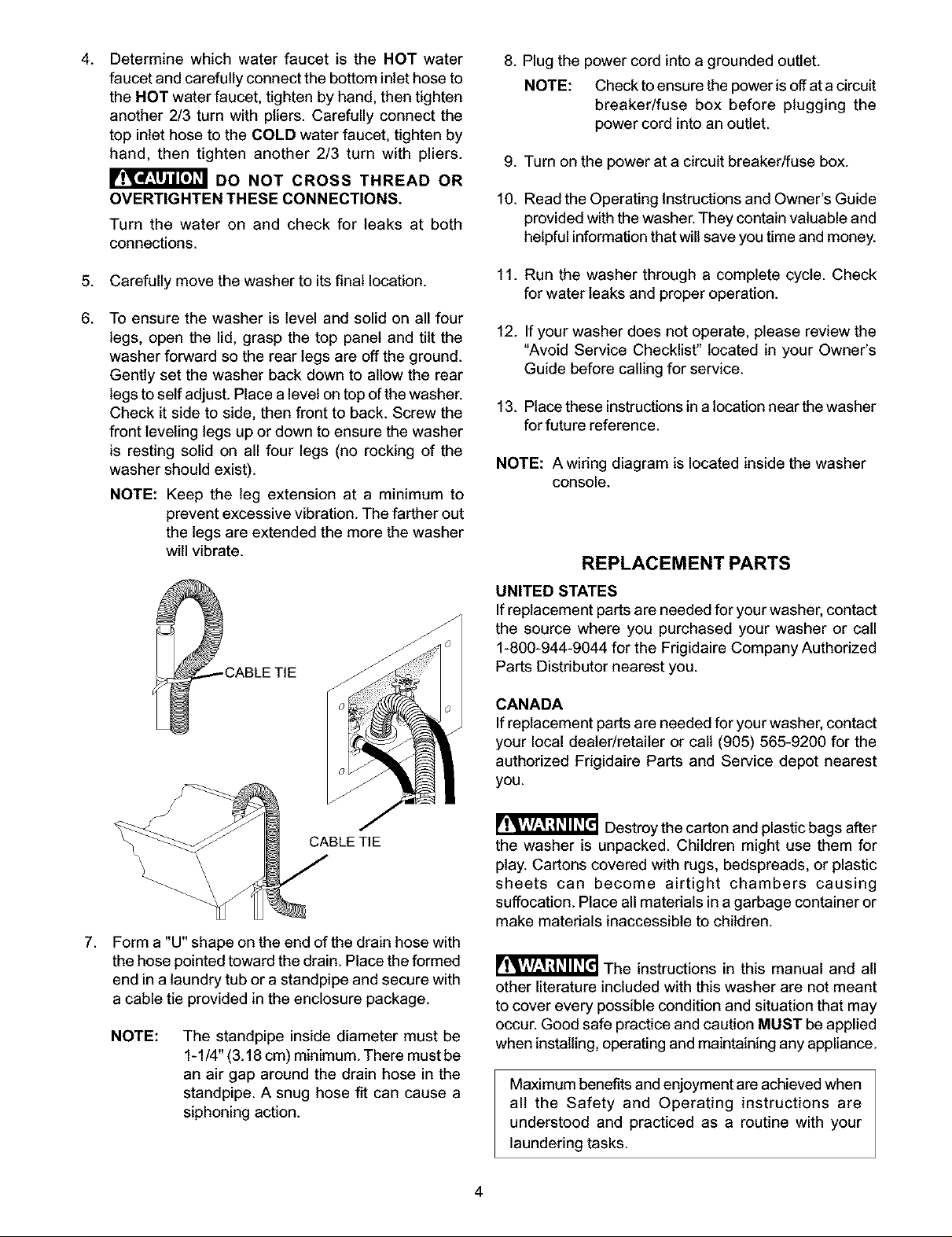

Installation 3-4
Replacement Parts 4
Printed in U.S.A. P/N 131964000 (0004)
PRE-INSTALLATION REQUIREMENTS
Tools Required for Installation:
1. 3/8 in. socket with ratchet.
2. Channel-lock adjustable pliers.
3. Carpenter's level.
ELECTRICAL REQUIREMENTS
CIRCUIT - Individual, properly polarized and grounded 15 amp. branch circuit fused with 15 amp. time delay
fuse or circuitbreaker.
POWER SUPPLY - 2 wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
OUTLET RECEPTACLE - Properly grounded 3-prong
receptacle to be located so the power supply cord is
accessible when the washer is in an installed position.
GROUNDING REQUIREMENTS
Improper connection of the equipment
grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in
doubt as to whether the appliance is properly grounded.
1.
The washer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the
risk of electrical shock by a path of least resistance for electrical current.
4. Grounded cold water pipe MUST have metal continuity to electrical ground and MUST register no
more than 25 ohms resistance. It MUST not be interrupted by plastic, rubber, or other electrical
insulating connectors such as hoses, fittings, washers, gaskets (including water meter or pump). Any electrically insulated connector should be
jumped with a length of No. 4 copper wire securely
clamped to bare metal at both ends with a UL approved ground clamp.
5. If a grounded water pipe is not available, a ground rod MUST be used and register no more than 25 ohms resistance when in the ground. Drive the rod into the ground outside the dwelling and connect a grounding wire (12 AWG or heavier) between the grounding screw and the grounding rod. It may take more than one ground rod to not exceed 25 ohms resistance to ground.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within 42
inches (107 cm) of your washer's water inlet.The faucets
MUST be 3/4 inch (1.9 cm) garden hose type so inlet
hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch (maximum
unbalance pressure, hot vs. cold, 10 psi.) Your water department can advise you of your water pressure. The
hot water temperature should be about 140 degrees F (60 degrees C).
2.
Since your washer is equipped with a power supply cord having an equipment-grounding conductor and
a grounding plug, the plug MUST be plugged into an appropriate, copper wired receptacle that is
properly installed and grounded in accordance with all local codes and ordinances or in the absence of
local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest
edition). If in doubt, call a licensed electrician. DO
NOT cut off or alter the
any circurNstances,
cut* remove m
_ Do not, under ;,_
orbypassth@
grounding prong. S
grounding prong on the power supply cord. In
situations where a two- slot receptacle ispresent,
it is the owner's responsi-
Powersupply cordwith 3- rong grounding pl_urg
bility to have a licensed electrician replace itwith a
properly grounded three prong grounding type
receptacle.
3.
For added personal safety, connect a separate
ground wire (No. 18 minimum) from a top panel hinge screw on the rear of the washer to a grounded cold
water pipe. DO NOT ground to a gas supply pipe or hot water pipe.
DRAIN REQUIREMENTS
1. Drain capable of eliminating 17 gallons (64.3 L) per minute.
2. Astandpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3. The standpipe height above the floor should be: Minimum height: 33in. (83.82 cm) Maximum height: 96 in. (244 cm)
-f
1" 96" Max.
33" Min. (244 cm) (83.82 cm)
$ $
NOTE:
For installations requiring a longer drain hose, have a qualified technician install a longer drain
hose, P/N 131461201. For drain systems in the floor, install a syphon break kit, P/N
5377678100. Both parts are available from an authorized parts distributor.
2
