User Manual
FWF 81663W
CONTENTS
Safety information.......................................2
Safety instructions...................................... 4
Product description.....................................6
Control panel.............................................. 7
Programme Chart....................................... 9
Consumption values................................. 11
Options..................................................... 13
Settings.....................................................15
Before first use......................................... 15
Daily use...................................................16
Hints and tips............................................21
Care and Cleaning....................................23
Troubleshooting........................................26
Technical Data..........................................29
Page 2
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety- Gulf Market
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
• Do not change the specification of this appliance.
• Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
• The operating water pressure at the water entry point from
the outlet connection must be between 0.5 bar (0.05 MPa)
and 8 bar (0.8 MPa).
• The ventilation opening in the base must not be covered by a
carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using
the new supplied hose sets, or other new hose sets supplied
by the Authorised Service Centre.
• Old hose sets must not be reused.
2
Page 3
SAFETY INFORMATION
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean
the appliance.
• Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Only for use in air-conditioned environments.
3
Page 4
SAFETY INSTRUCTIONS
Installation
The installation must comply with
relevant national regulations.
• Remove all the packaging and the transit
bolts including rubber bush with plastic
spacer.
• Keep the transit bolts in a safe place. If
the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install or use the appliance where
the temperature can be less than 0°C or
where it is exposed to the weather.
• The floor area on which the appliance is
to be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance and
do not expose it to excessive humidity.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Do not put a closed container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
Electrical connection
WARNING!
Risk of fire and electric shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the Authorised
Service Centre for the replacement of
the inlet hose.
• It is possible to see water flowing from
the drain hose. This is due to the testing
4
Page 5
of the appliance with the use of water in
the factory.
• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the other
drain hose and the extension.
Use
WARNING!
Risk of injury, electric shock, fire,
burns or damage to the appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber parts
of the washing machine. Prewash such
fabrics by hand before loading them into
the washing machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
SAFETY INSTRUCTIONS
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the drum.
• Dispose of the appliance in accordance
with local requirements for the disposal
of Waste Electrical and Electronic
Equipment (WEEE).
5
Page 6
1 2 3
5
6
7
4
PRODUCT DESCRIPTION
Appliance overview
Fixing plate kit (4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
Worktop
1
Detergent dispenser
2
Control panel
3
Door handle
4
Rating plate
5
Quick Reminder sticker
6
Feet for levelling the appliance
7
6
Page 7
987621 3 4 5
CONTROL PANEL
Special features
Your new washing machine meets all
modern requirements for an effective
treatment of laundry with low water, energy
and detergent consumption and will care
for fabrics.
This appliance is designed with a self
cleaning draining system, allowing light
fluff fibers that fall off the clothes to be
Control panel description
drained out with the water, in such a way
that there is no need to access this area for
regular maintenance and cleaning. Refer to
chapter 'Care and Cleaning' for best
maintenance and care of the appliance.
The AutoSense System automatically
adjusts the programme duration to the
laundry in the drum to achieve perfect
washing results in the minimum possible
time.
on/off button
1
2
Programme selection touchpad
3
temperature selection touchpad
4
spin selection touchpad
5
options selection touchpad
6
start/pause touchpad
7
finish in touchpad
Display
8
9
door locked indicator
7
Page 8
A
DB
C
CONTROL PANEL
Display
A. The time area:
• : the programme duration
• : the "finish in" time
• : the alarm codes
• : the message of error
• : the programme is completed.
B. The child lock indicator:
• The indicator comes on when you
activate this device.
C. The extra rinse indicator:
• The indicator comes on when you
activate this option.
D. The finish in touchpad.
8
Page 9
PROGRAMME CHART
PROGRAMME
TEMPERATURE
RANGE
30'@30°
30°C
cotton
90°C - Cold
cotton eco
60°C - 40°C
MAXIMUM
LOAD
REFERENCE
SPIN SPEED
1 kg
800 rpm
8 kg
1600 rpm
8 kg
1600 rpm
PROGRAMME DESCRIPTION
(TYPE OF LOAD AND SOIL LEVEL)
A short cycle for synthetic and delicate items with
light soil level or for items to freshen up.
White cotton and coloured cotton. Normal, heavy
and light soil.
White cotton and fast-coloured cotton. Normal
soil. The energy consumption decreases and the
time of the washing programme is extended, ensuring good washing results.
This programme at 60 °C with a load of 8 kg is the
reference programme for energy label data, in compliance with UAE. S 5010 2:2013.
synthetics
60°C - Cold
delicates
40°C - Cold
3 kg
1200 rpm
3 kg
1200 rpm
Synthetic items or mixed fabric items. Normal
soil.
Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Normal
soil.
wool
40°C - Cold
1,5 kg
1200 rpm
Machine washable wool, hand washable wool
and other fabrics with «hand washing» care sym-
bol1).
duvet
60°C - Cold
mixed
20°C
3 kg
800 rpm
2 kg
1200 rpm
Special programme for one synthetic blanket, du‐
vet, bedspread and so on.
Special programme for cotton, synthetic and mixed
fabrics with light soil. Set this programme to decrease the energy consumption. Make sure that the
detergent is for low temperature in order to have
good washing results2).
1)
During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate proper-
ly, but this is normal for this programme.
2)
No temperature indicator is on .
9
Page 10
PROGRAMME CHART
Programme options compatibility
PROGRAMME
1)
RAPID
INTENSIVE
ANTICREASE
RINSE
SPIN/DRAIN
30'@30° ■ ■ ■ ■
cotton ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
cotton eco ■ ■ ■ ■ ■ ■ ■ ■
synthetics ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
delicates ■ ■ ■ ■ ■ ■ ■ ■ ■
wool ■ ■ ■ ■ ■ ■
duvet ■ ■ ■ ■ ■ ■
mixed ■ ■ ■ ■ ■ ■ ■
1)
When you set this option, we recommend that you decrease the quantity of the laundry. It is possible to keep the full load but the
washing results can be unsatisfactory. Recommended load: cotton: 4 kg, synthetics and delicates: 1,5 kg.
10
Page 11
CONSUMPTION VALUES
Stated values are obtained in laboratory conditions with relevant standards. Different
causes can change the data: the quantity and type of laundry and ambient tempera‐
ture. Water pressure, the supply voltage and the temperature of inlet water may also
affect the washing programme duration.
Technical specifications may be changed without prior notice to improve the quality
of product.
At the start of the programme, the display shows the programme duration for the
maximum load capacity.
During the washing phase the programme duration is automatically calculated and
can be greatly reduced if the laundry load is lower than the maximum load capacity
(e.g. Cotton 60°C, maximum load capacity 8 kg, the programme duration exceeds 2
hours; actual load 1 kg, the programme duration will be less than 1 hour).
When the appliance is calculating the real programme duration a dot flashes in the
display.
PROGRAMMES
cotton
60°C
cotton eco
1)
60°C
cotton
40°C
synthetics
40°C
delicates
40°C
LOAD
(KG)
ENERGY
CONSUMPTION (KWH)
8 1,35 70 159
8 0,96 52 244
8 0,87 69 158
3 0,60 56 103
3 0,55 59 81
WATER CONSUMPTION
(LITRE)
APPROXIMATE PROGRAMME
DURATION
(MINUTES)
11
Page 12
CONSUMPTION VALUES
APPROXI-
PROGRAMMES
LOAD
(KG)
wool
30°C
1)
This programme at 60 °C with a load of 8 kg is the reference programme for energy label data, in compliance with UAE. S 5010
2:2013.
ENERGY
CONSUMPTION (KWH)
1,5 0,45 62 75
OFF MODE (W) LEFT ON MODE (W)
0.30 0.30
The data in this chart are measured according to IEC 62301.
WATER CONSUMPTION
(LITRE)
MATE PROGRAMME
DURATION
(MINUTES)
12
Page 13
OPTIONS
temperature
With this option you can change the default
temperature.
Indicator = cold water.
The indicator of the set temperature comes
on.
spin
With this option you can change the default
spin speed.
The indicator of the set speed comes on.
Additional spin options:
no spin
• Set this option to deactivate all spin
phases. Only the drain phase is
available.
• The related indicator comes on.
• Set this option for very delicate fabrics.
• The rinses phase uses more water for
some washing programmes.
rinse hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the
laundry creases.
• The door stays locked. You must drain
the water to unlock the door.
To drain the water refer to ‘At the end
of the programme’.
rapid
With this option you can decrease the
programme duration.
Use this option for items with light soil or
items to refresh.
The related indicator comes on.
intensive
With this option you can wash very soiled
laundry.
The washing cycle lasts longer with this
option.
The related indicator comes on.
anticrease
The appliance carefully washes and spins
the laundry to prevent the creases.
The appliance decreases the spin speed,
uses more water and adapts the
programme duration to the type of laundry.
The related indicator comes on.
rinse
With this option you can perform only a last
rinse of a selected washing programme.
If you set also the Extra Rinse function ( )
the appliance adds two or more rinses.
The related indicator comes on.
spin/drain
With this option you can perform the spin
and drain cycle.
The spin phase is suitable to the washing
programme you set.
If you set also the No Spin option (no
spin) , the appliance only drains.
finish in
With this option you can set the number of
hours in which you would like your washing
programme to be completed.
You can set from minimum 3 hours to
maximum 20 hours.
The display shows the number of hours
and the indicator above the button
is on.
13
Page 14
OPTIONS
extra rinse
With this option you can add some rinses to
a washing programme.
Use this option for persons allergic to
detergents and in areas where the water is
soft.
The related indicator comes on.
1)
1)
See in "Settings" how to activate this option.
14
Page 15
SETTINGS
Permanent Extra Rinse
With this option you can permanently have
an extra rinse when you set a new
programme.
• To activate/deactivate this option touch
the buttons and at the same time
until the indicator comes on/goes
off.
Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
touch the buttons and at the same
time until the indicator comes on/
goes off.
Activate this option after you touch the
button : the buttons are locked (except
for the button ) .
This option stays active even when
you switch off the appliance.
Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, touch the buttons and at the
same time for 4 seconds.
During installation or before first use
you may observe some water in the
appliance. This is residual water left in
the appliance after a full functional test
in the factory to ensure the appliance
is delivered to customers in perfect
working order and is no cause for
concern.
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Put a small quantity of detergent in the
compartment for washing phase.
4. Set and start a programme for cotton at
the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
If you deactivate the acoustic signals,
they continue operate when the
appliance has a malfunction.
15
Page 16
DAILY USE
WARNING!
Refer to Safety chapters.
Loading the laundry
Open the water tap. Connect the mains
plug to the mains socket.
1. Pull the door handle to open the
appliance door.
2. Put the laundry in the drum, one item at
a time.
3. Empty the pockets and unfold the items
before you put them in the appliance.
Make sure not to put too much laundry in
the drum. Refer to max. loads indicated in
"Programme chart".
4. Close the door.
CAUTION!
Make sure that no laundry stays
between the seal and the door. There
is a risk of water leakage or damage to
the laundry.
Washing heavily oiled, greasy stains
could cause damage rubber parts of
the washing machine.
Using detergent and additives
1. Measure out the detergent and the
fabric conditioner.
2. Put the detergent and the fabric
conditioner into the compartments.
3. Carefully close the detergent drawer.

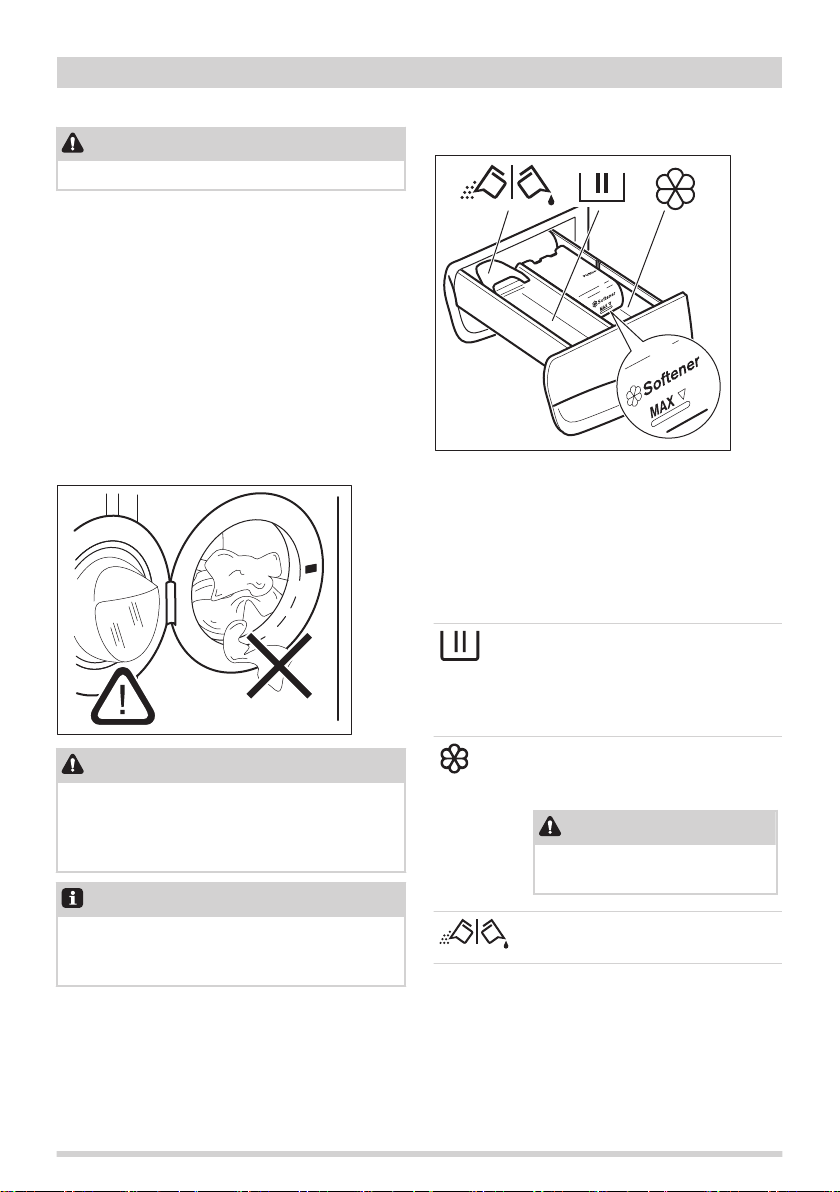

Detergent compartments
Detergent compartment for
washing phase.
If you use liquid detergent,
put it immediately before you
start the programme.
Compartment for liquid additives (fabric conditioner,
starch).
CAUTION!
Do not exceed the MAX
level.
Flap for powder or liquid detergent.
16
Page 17

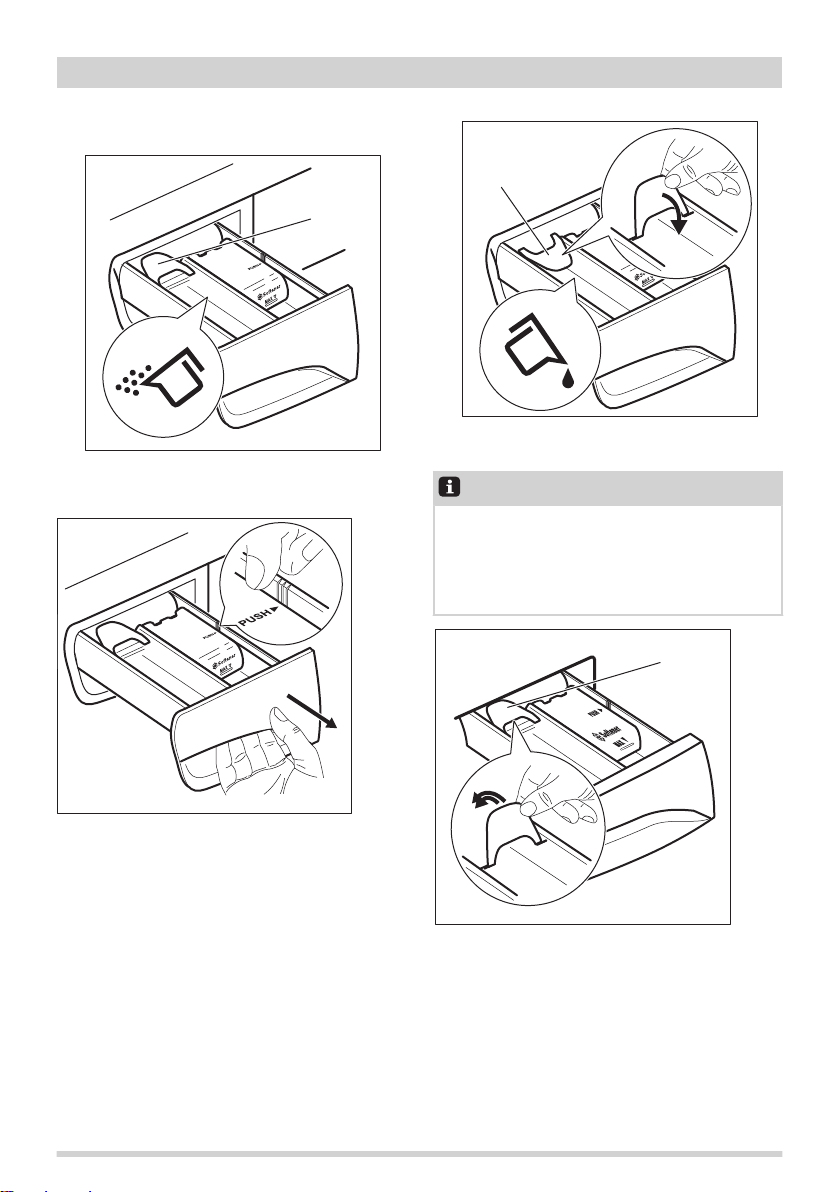

Liquid or powder detergent
A
B
A
1.
The default position of the flap is A
(powder detergent).
2.
DAILY USE
3.
2. Adjust the flap in position B.
3. Put back the drawer in the recess.
When you use the liquid detergent:
• Do not use gelatinous or thick liquid
detergents.
• Do not put more liquid then 120 ml.
• Do not set the delay start.
To use liquid detergent:
1. Remove the drawer. Push the drawer
edge in the place with the arrow
(PUSH) to remove the drawer easily.
When the flap is in position B and you want
to use powder detergent:
1. Remove the drawer.
2. Adjust the flap in position A.
3. Put back the drawer in the recess.
• Measure out the detergent and the fabric
conditioner.
17
Page 18
DAILY USE
• Put the detergent and the fabric
conditioner into the compartments.
• Carefully close the detergent drawer.
Activating the appliance
Press and hold the on/off button to activate
or deactivate the appliance.
A tune sounds when the appliance is
activated.
Setting a programme
1. Touch the programme button and set
the programme:
• The indicator of the button
flashes.
• The display shows the programme
duration.
2. If necessary, change the temperature
and the spin speed or add available
options. When you activate an option,
the indicator of the set option comes on.
If you set something incorrect, the
display shows the message .
Starting a programme without
the finish in option
Touch the button .
• The indicator of the button stops
to flash and stays on.
• The programme starts, the door
locks, the indicator is on.
• The drain pump can operate for a
short time at the beginning of the
washing cycle.
After approximately 15 minutes from
the start of the programme:
• The appliance adjusts automatically
the programme duration agree with
the laundry load.
• The display shows the new value.
Starting a programme with the
finish in option
1. Touch the button again and again to
choose the number of hours in which
you want the washing cycle to be
finished.
The display shows the number of hours you
set (e.g. ) and the indicator above the
button
active.
2. Touch the button :
is on to show that his option is
• The door is locked.
• The appliance starts the countdown.
• When the countdown is completed,
the programme starts automatically.
You can cancel or change the set of
the finish in option before you touch
the button . After touching the
button you can only cancel the
finish in option.
To cancel the the finish in option:
a. Touch the button to set the
appliance to pause. The indicator of
button flashes.
b. Touch the button until the
indicator above this button goes off.
Touch the button again to start
the programme immediately.
Interrupting a programme and
changing the options
You can change only some options before
they operate.
1. Touch .
The indicator of this button flashes.
2. Change the options. If you change any
option the finish in option (if set) will be
disabled.
3. Touch again.
18
Page 19
DAILY USE
The programme continues.
Cancelling a programme
1. Press the button for some seconds
to cancel the programme and to
deactivate the appliance.
2. Press the same button again to activate
the appliance. Now, you can set a new
washing programme.
Before starting the new programme
the appliance could drain the water. In
this case, make sure that the
detergent is still in the detergent
compartment, if not fill the detergent
again.
Opening the door
While a programme (or the ) operates,
the appliance door is locked. The indicator
is on.
CAUTION!
If the temperature and level of the
water in the drum are too high, you
cannot open the door.
To open the door during the first
minutes of the cycle (or when the
operates) :
1. Touch the button to pause the
appliance.
2. Wait until the indicator goes off.
3. You can open the door.
4. Close the door and touch the button
again. The programme (or the )
continues.
• In the display comes on.
• The indicator of the button goes off.
• The door lock indicator goes off.
• You can open the door.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Press the button for some seconds to
deactivate the appliance.
• Close the water tap.
• Keep the door and the detergent drawer
ajar, to prevent the mildew and odours.
The washing programme is completed,
but there is water in the drum:
• The drum turns regularly to prevent the
creases in the laundry.
• The indicator flashes to remind you
to drain the water.
• The door lock indicator
indicator of button flashes. The door
stays locked.
• You must drain the water to open the
door.
Draining the water:
1. To drain the water.
• Touch the button
drains the water and spins with the
maximum spin speed for selected
washing programme.
• Alternatively, touch the button
change the spin speed and then
touch the button . The appliance
drains the water and spins. If you set
, the appliance only drains.
2. When the programme is completed and
the door lock indicator goes off, you
can open the door.
3. Press the button for some seconds
to deactivate the appliance.
is on. The
. The appliance
to
At the end of the programme
• The appliance stops automatically.
• The acoustic signal operates (if it is
activated).
The appliance drains and spins
automatically after approximately 18
hours (except for Wool programme).
19
Page 20
DAILY USE
AUTO-OFF option
The AUTO-OFF stand-by option
automatically deactivates the appliance to
decrease the energy consumption. All the
indicators and the display go off when :
• You do not use the appliance for 5
minutes before you touch the .
Press the button on/off to activate the
appliance again.
• After 5 minutes from the end of the
washing programme.
Press the button on/off to activate the
appliance again.
The display shows the end of the last set
programme.
Touch the buttonprogramme if you want
to set a new cycle.
20
Page 21
HINTS AND TIPS
The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.

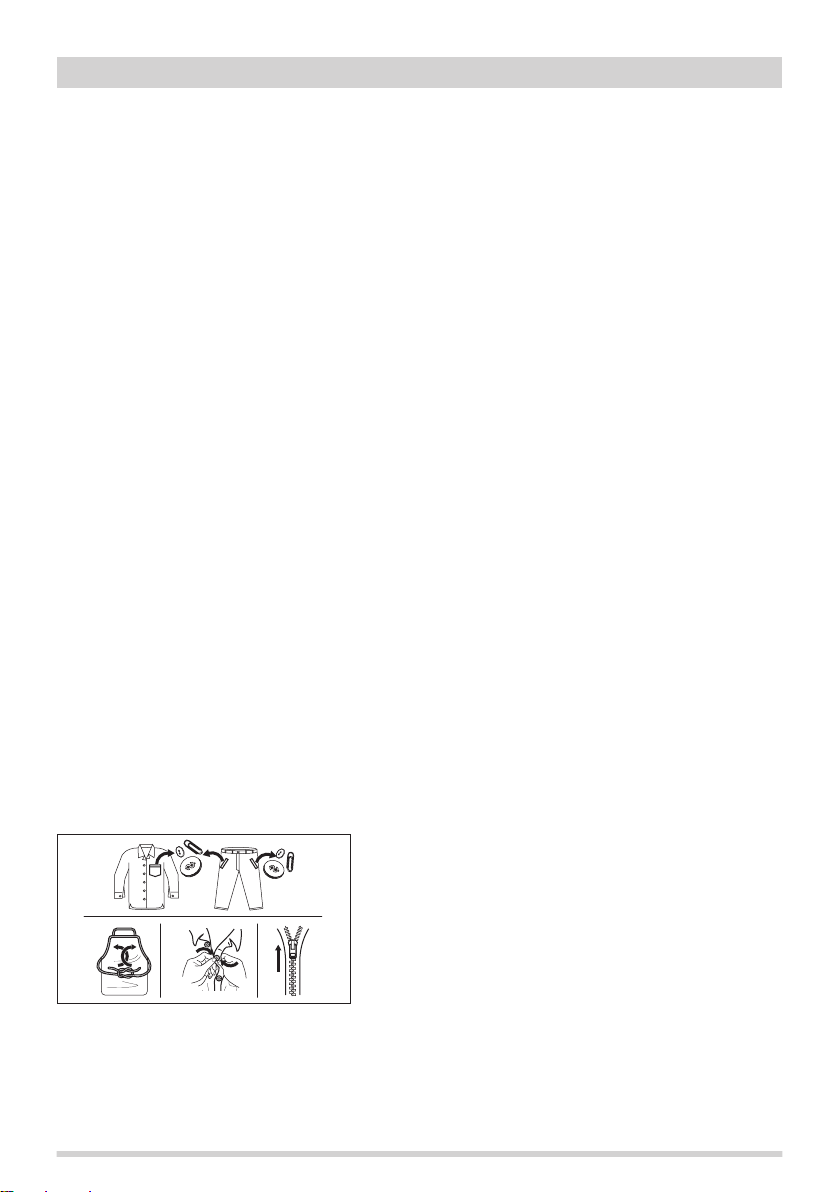

• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Turn multilayered fabrics, wool and
items with painted illustrations inside out.
• Remove hard stains with a special
detergent.
• Wash and pre-treat heavy soil stains
before putting items in drum
• Be careful with the curtains. Remove the
hooks and put the curtains in a washing
bag or pillowcase.
• Do not wash laundry without hems or
with cuts. Use a washing bag to wash
small and/or delicate items (e.g.
underwired bras, belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in the
tub and start the spin phase again.
• Avoid washing garments full of long
animal hair or poor quality garments
releasing lots of fluff that could block the
drain circuit and therefore requiring the
Service assistance.
• Empty the pockets and unfold the items.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
Detergents and additives
• Only use detergents and additives
specially made for washing machines:
– powder detergents for all types of
fabric,
– powder detergents for delicate
fabrics (40 °C max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60
°C max) for all types of fabric, or
special for woollens only.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of
detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme
temperature and the level of soil.
• If your appliance does not have the
detergent dispenser with the flap device,
add the liquid detergents with a dosing
ball (supplied by the detergent's
manufacturer).
Ecological hints
• Always start a washing programme with
the maximum load of laundry allowed.
• If necessary, use a stain remover when
you set a programme with a low
temperature.
• To use the correct quantity of detergent,
check the water hardness of your
domestic system. Refer to "Water
hardness".
Stubborn stains
For some stains, water and detergent is not
sufficient.
21
Page 22
HINTS AND TIPS
Water hardness
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water
softener. Obey the instructions that you find
on the packaging of the product.
22
Page 23

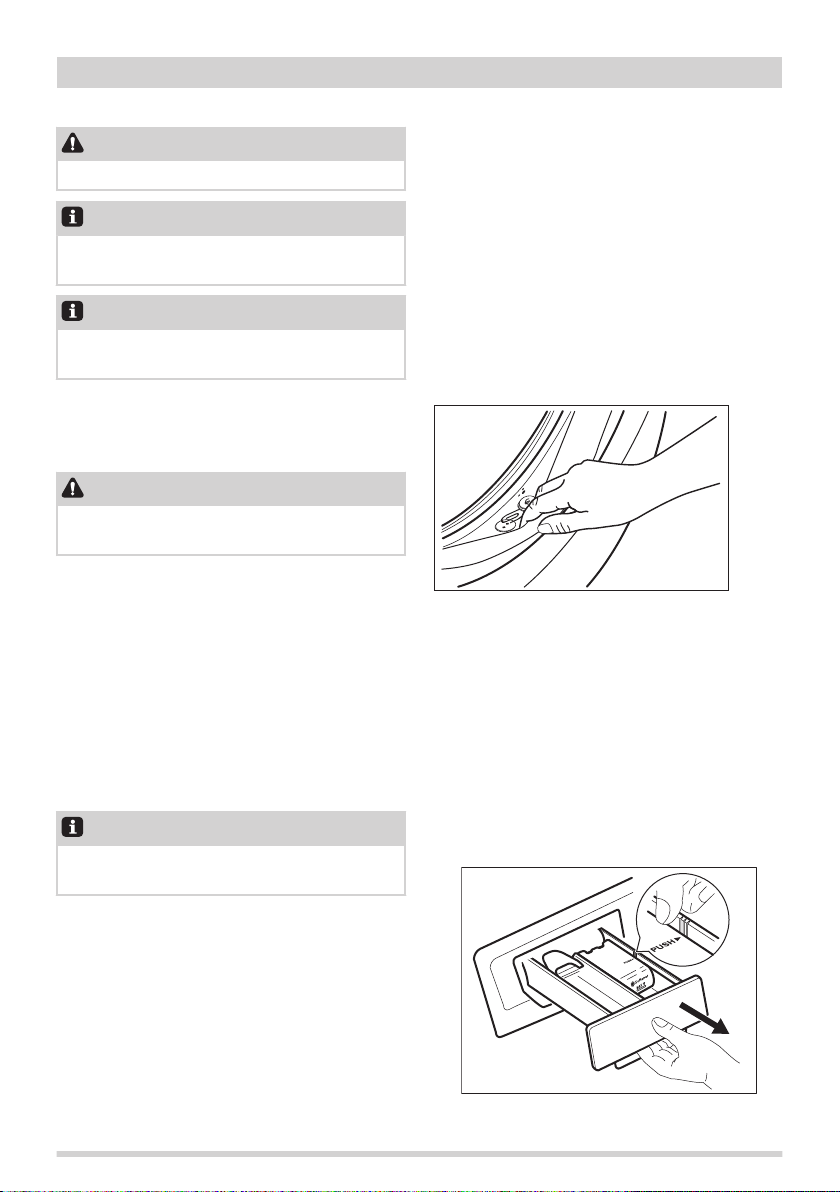

CARE AND CLEANING
WARNING!
Refer to Safety chapters.
The appliance is intended for normal
household use only.
Read the chapter carefully for best
maintenance and care.
External cleaning
Clean the appliance with soap and warm
water only. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
Descaling
If the water hardness in your area is high or
moderate, we recommend that you use a
water descaling product for washing
machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machines. Do this
separately from the laundry wash.
Always obey the instructions that you
find on the packaging of the product.
• Select the cotton programme with the
highest temperature with a small
quantity of detergent.
Door seal
This appliance is designed with a self
cleaning draining system, allowing light
fluff fibers that fall off the clothes to be
drained out with the water, in such a way
that there is no need by the customer to
access this area for regular maintenance
and cleaning.
Regularly examine the seal and remove all
objects from the inner part. Coins, buttons,
other small items forgotten in the pockets of
your clothes are deposited during the
washing cycle in the special double lip trap
in the porthole seal, where they can be
conveniently recovered at the end of the
cycle.

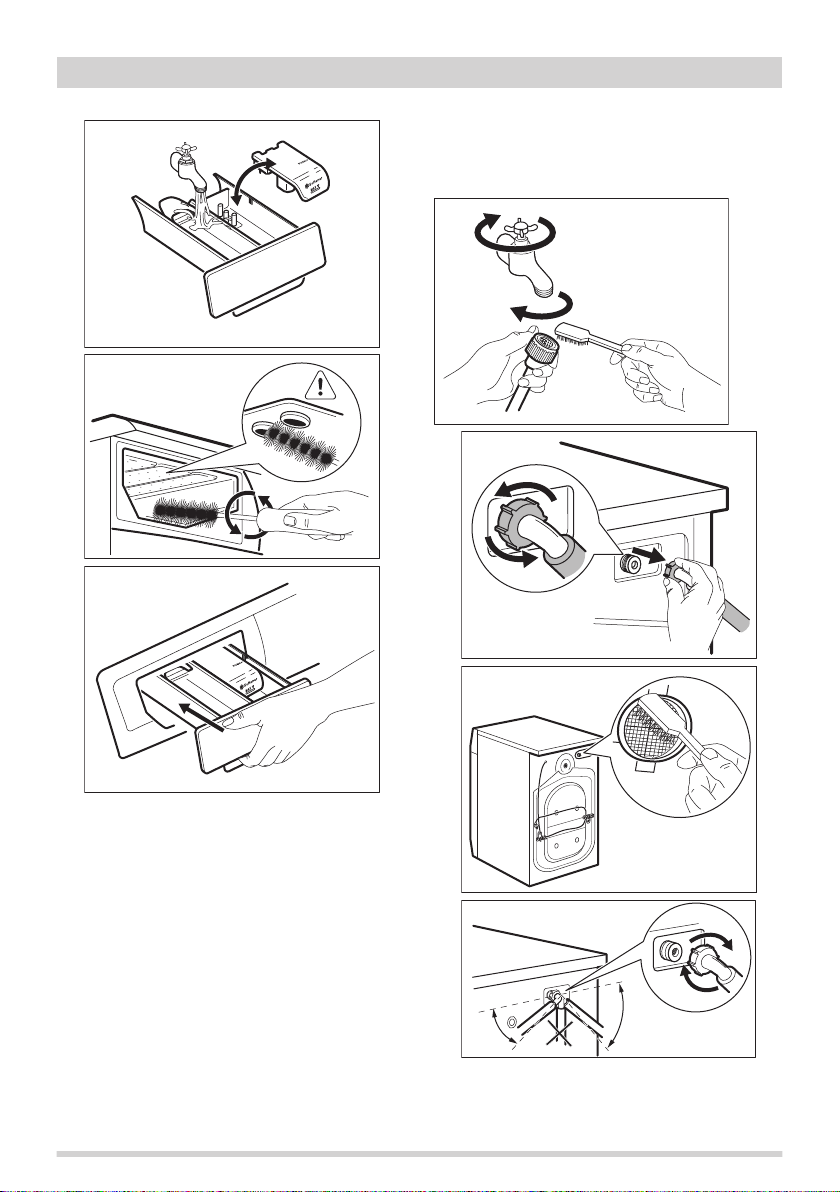

Cleaning the detergent
dispenser
Maintenance wash
With the low temperature programmes it is
possible that some detergent stays in the
drum. Perform a maintenance wash
regularly. To do this:
• Remove all laundry from the drum.
1.
23
Page 24
1
2
3
45°
20°
CARE AND CLEANING
2.
3.
Cleaning the inlet hose and the
valve filter
1.
2.
4.
3.
4.
24
Page 25
Frost precautions
If the appliance is installed in an area
where the temperature can be less than 0
°C, remove the remaining water from the
inlet hose and the drain pump.
Do this procedure also when you want
to do the emergency drain.
1. Disconnect the mains plug from the
mains socket.
2. Remove the water inlet hose.
3. Remove the drain hose from the rear
support and unhook it from sink or
spigot.
4. Put the ends of the drain and inlet hose
in a container. Let the water flow out of
the hoses.
5. Set any selected programme with
option spin/drain and let it operate until
the end of the cycle.
6. When no more water flows, install the
inlet hose and the drain hose again.
7. Press the on/off button to deactivate the
appliance.
CARE AND CLEANING
WARNING!
Make sure that the temperature is
more than 0°C before you use the
appliance again. The manufacturer is
not responsible for damages caused
by low temperatures.
25
Page 26
TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
Introduction
The appliance does not start or it stops
during operation.
First try to find a solution to the problem
(refer to the table). If the problem persists,
contact the Authorised Service Centre.

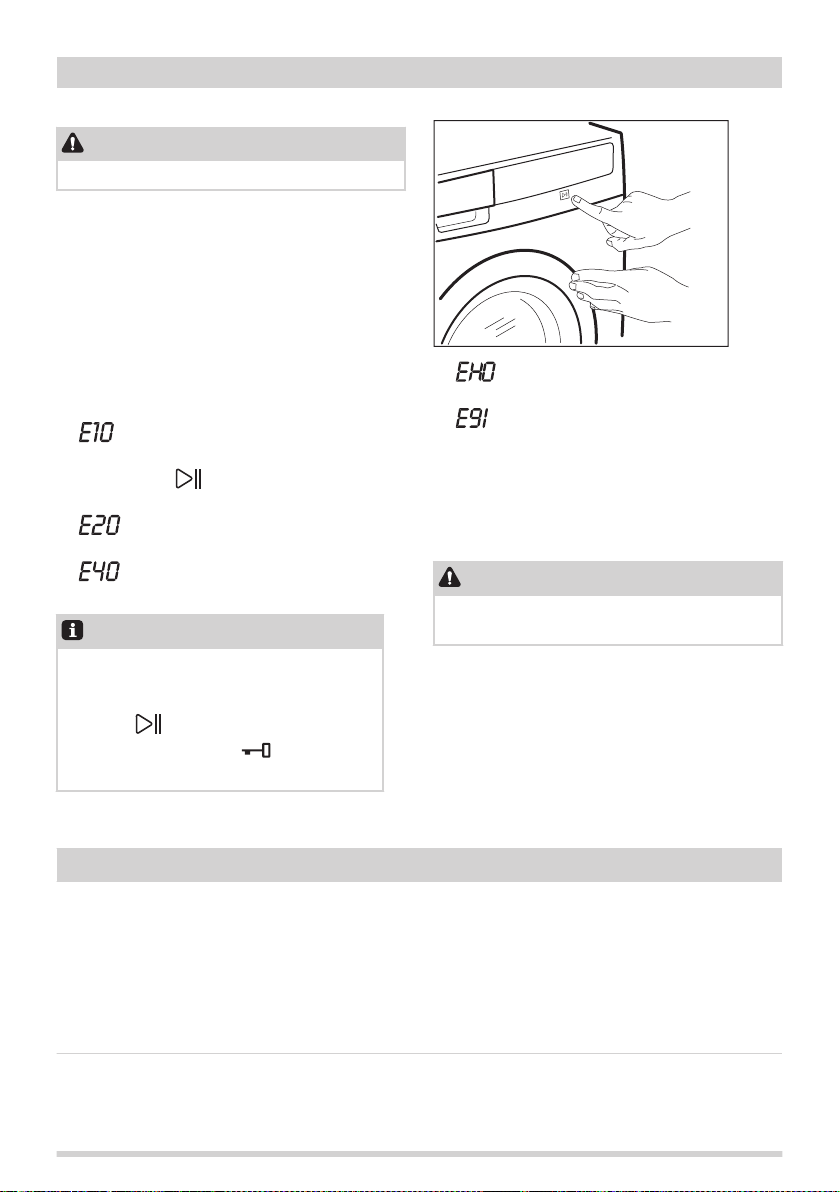

With some problems, the acoustic
signals operate and the display shows
an alarm code:
• - The appliance does not fill with
water properly. Start the appliance again
by pressing button. After 10 seconds
the door will be unlocked.
• - The appliance does not drain the
water.
• - The appliance door is open or not
closed correctly. Please check the door!
If the appliance is overloaded,
remove some items from the drum
and/or keep pressed the door and
push the button at the same
time until the indicator stops
flashing (see the picture below).
• - The mains supply is unstable.
Wait until the mains supply is stable.
• - No communication between
electronic elements of the appliance.
Switch off and switch on again. The
programme was not finished properly or
the appliance stopped too early. If the
alarm code appears again, contact the
Authorised Service Centre.
WARNING!
Deactivate the appliance before you
do the checks.
Possible failures
PROBLEM POSSIBLE SOLUTION
The programme does not
start.
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that the appliance door is closed.
• Make sure that there is not a damaged fuse in the fuse box.
• Make sure that the Start/Pause has been pressed.
• If the delay start is set, cancel the setting or wait for the end
of countdown.
• Deactivate the Child Lock function if it is on.
26
Page 27
PROBLEM POSSIBLE SOLUTION
The appliance does not
fill with water properly.
The appliance does not
drain the water.
The spin phase does not
operate or the washing
cycle lasts longer than
usually.
There is water on the
floor.
You cannot open the appliance door.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too
low. For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• This problem may be caused by the filter of the inlet hose or
the valve drain filter which may be clogged. Refer to “Care
and cleaning”. If problem remains please contact the Au‐
thorised Service Centre.
• Make sure that the inlet hose has no kinks or bends.
• Make sure that the connection of the water inlet hose is cor‐
rect.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the connection of the drain hose is correct.
• Set the drain option if you set a programme without drain
phase.
• Set the drain option if you set an option which ends with
water in the drum.
• This problem may be caused by the clogged drain filter.
Please contact the Authorised Service Centre.
• Adjust manually the items in the tub and start the spin
phase again. This problem may be caused by balance
problems.
• Set the spin option.
• Set the drain option if you set an option which ends with
water in the drum.
• This problem may be caused by the clogged drain filter.
Please contact the Authorised Service Centre.
• Make sure that the couplings of the water hoses are tight
and there is not water leakages.
• Make sure that the water inlet hose and the drain hose
have no damages.
• Make sure you use the correct detergent and the correct
quantity of it.
• Make sure that the washing programme is finished.
• Set the drain or the spin option if there is water in the drum.
• Do the emergency drain procedure. See "Frost precautions"
(in "Care and Cleaning" chapter).
TROUBLESHOOTING
27
Page 28
TROUBLESHOOTING
PROBLEM POSSIBLE SOLUTION
The appliance makes an
unusual noise.
The appliance fills with
water and drain immediately.
The cycle is shorter than
the time displayed.
The cycle is longer than
the time displayed.
The washing results are
not satisfactory.
You cannot set an option.
After the check, activate the appliance. The
programme continues from the point of
interruption.
If the problem occurs again, contact the
Authorised Service Centre.
If the display shows other alarm codes.
Deactivate and activate the appliance. If
the problem continues, contact the
Authorised Service Centre.
• Make sure the levelling of the appliance is correct. Refer to
'Installation instruction'.
• Make sure that the packaging and/or the transit bolts are re‐
moved. Refer to 'Installation instruction'.
• Add more laundry in the drum. The load may be too small.
• Make sure that the drain hose is in the correct position. The
end of the hose may be too low. Refer to 'Installation in‐
struction'.
• The appliance calculates a new time according to the laun‐
dry load. See the ‘Consumption Values’ chapter.
• An unbalanced laundry load increases the duration time.
This is a normal behaviour of the appliance.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before
you wash the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
• Make sure that you press only the wanted touch button(s).
Service
We recommend the use of original spare
parts.
When contacting the Authorised Service
Centre, make sure that these data are
available. You can find the information on
the rating plate: model, PNC and Serial
Number. (Mod., Prod. No., Ser. No.)
28
Page 29
TECHNICAL DATA
Dimension Width/ Height/ Depth/
Total depth
Electrical connection Voltage
Overall power
Fuse
Frequency
Level of protection against ingress of solid particles
600 mm/ 850 mm/ 520 mm/ 576
mm
220 - 240 V
2000 W
13 A
50 Hz
IPX4
and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture
Water supply pressure Minimum
Maximum
Water supply
1)
0.5 bar (0.05 MPa)
8 bar (0.8 MPa)
Cold water
Maximum Load Cotton 8 kg
Energy Efficiency Class A+++
Spin Speed Maximum 1600 rpm
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
29
Page 30
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of
electrical and electronic appliances. Do not
dispose of appliances marked with the
symbol with the household waste. Return
the product to your local recycling facility or
contact your municipal office.
30
*
Page 31
31
Page 32
192930960-A-402018
Loading...
