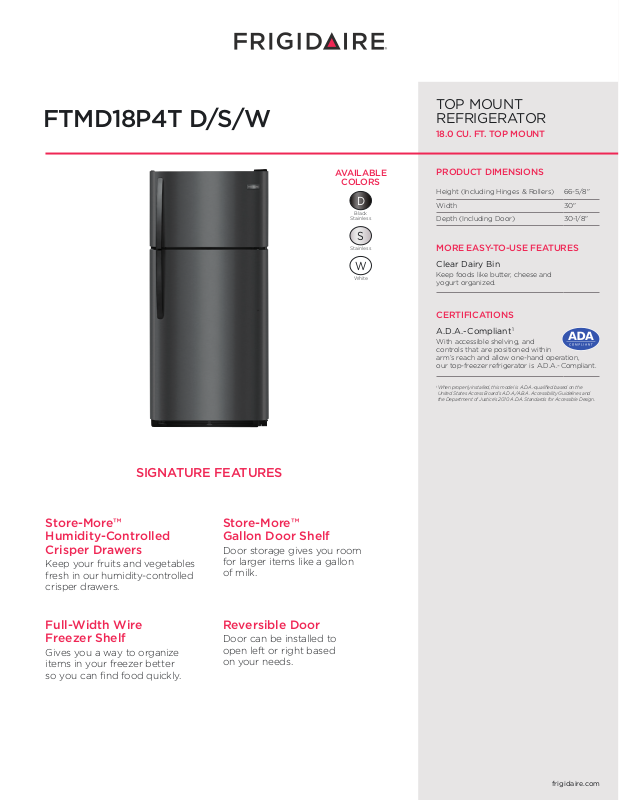

Frigidaire FTMD18P4TW Specification Sheet
FTMD18P4T D/S/W
D
S
W
TOP MOUNT
REFRIGERATOR
18.0 CU. FT. TOP MOUNT
AVAILABLE
COLORS
Black
Stainless
Stainless
White
PRODUCT DIMENSIONS
Height (Including Hinges & Rollers) 66-5/8"
Width 30"
Depth (Including Door) 30-1/8"
MORE EASY-TO-USE FEATURES
Clear Dairy Bin
Keep foods like butter, cheese and
yogurt organized.
CERTIFICATIONS
A.D.A.- Compliant
With accessible shelving, and
controls that are positioned within
arm’s reach and allow one-hand operation,
our top-freezer refrigerator is A.D.A.- Compliant.
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
1
SIGNATURE FEATURES
Store-More™
Humidity-Controlled
Crisper Drawers
Keep your fruits and vegetables
fresh in our humidity-controlled
crisper drawers.
Full-Width Wire
Freezer Shelf
Gives you a way to organize
items in your freezer better
so you can find food quickly.
Store-More™
Gallon Door Shelf
Door storage gives you room
for larger items like a gallon
of milk.
Reversible Door
Door can be installed to
open left or right based
on your needs.
frigidaire.com
B
A
C
Recessed
electrical outlet
FTMD18P4T D/S/W
TOP MOUNT REFRIGERATOR
18.0 CU. FT.
FEATURES
Door Design UltraSoft™
Door Handle Design
Cabinet Finish (Textured)
Door Stops Yes
Door Hinge Covers
Door Reverse Option Yes
Rollers – Front / Rear Fixed / Yes
Sound Package
Toe Grille
Black Stainless (D),
Stainless Steel (S),
Color-Coordinated (W)
Black (D/S),
Color-Coordinated (W)
Black (D/S),
Color-Coordinated (W)
Black (D/S),
Color-Coordinated (W)
REFRIGERATOR FEATURES
Interior Lighting Standard
Refrigerator Shelves 2 Full-Width Glass
Deli Drawer
Wine / Can Rack
Store-More™ Crisper Drawers 2 Clear
Humidity Controls 2
Dairy Compartment Clear Dairy Door
Door Bins
Door Racks 3 Full-Width White
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage 1
FREEZER FEATURES
Door Bins
Door Racks 2 Full-Width White
Freezer Shelves 1 Full-Width Wire
Factory Ice Maker w/ Large Ice Bin Optional (PN # IM116)
Lighting
CERTIFICATIONS
A.D.A. Compliant
1
Yes
SPECIFICATIONS
Total Capacity (Cu. Ft.) 18.0
Refrigerator Capacity (Cu. Ft.) 14.1
Freezer Capacity (Cu. Ft.) 3.9
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Bottom Right
Voltage Rating 120V / 60Hz
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts 6.0
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 205 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010
A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
2
0.72
PRODUCT DIMENSIONS
A - Height (Including Hinges & Rollers) 66-1/8"
B - Width 30"
C - Depth (Including Door) 30-1/8"
Depth with Door Open 90° 58-1/2"
•
USA
10200 David Taylor Drive
CANADA
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FTMD18P4T 09/17
