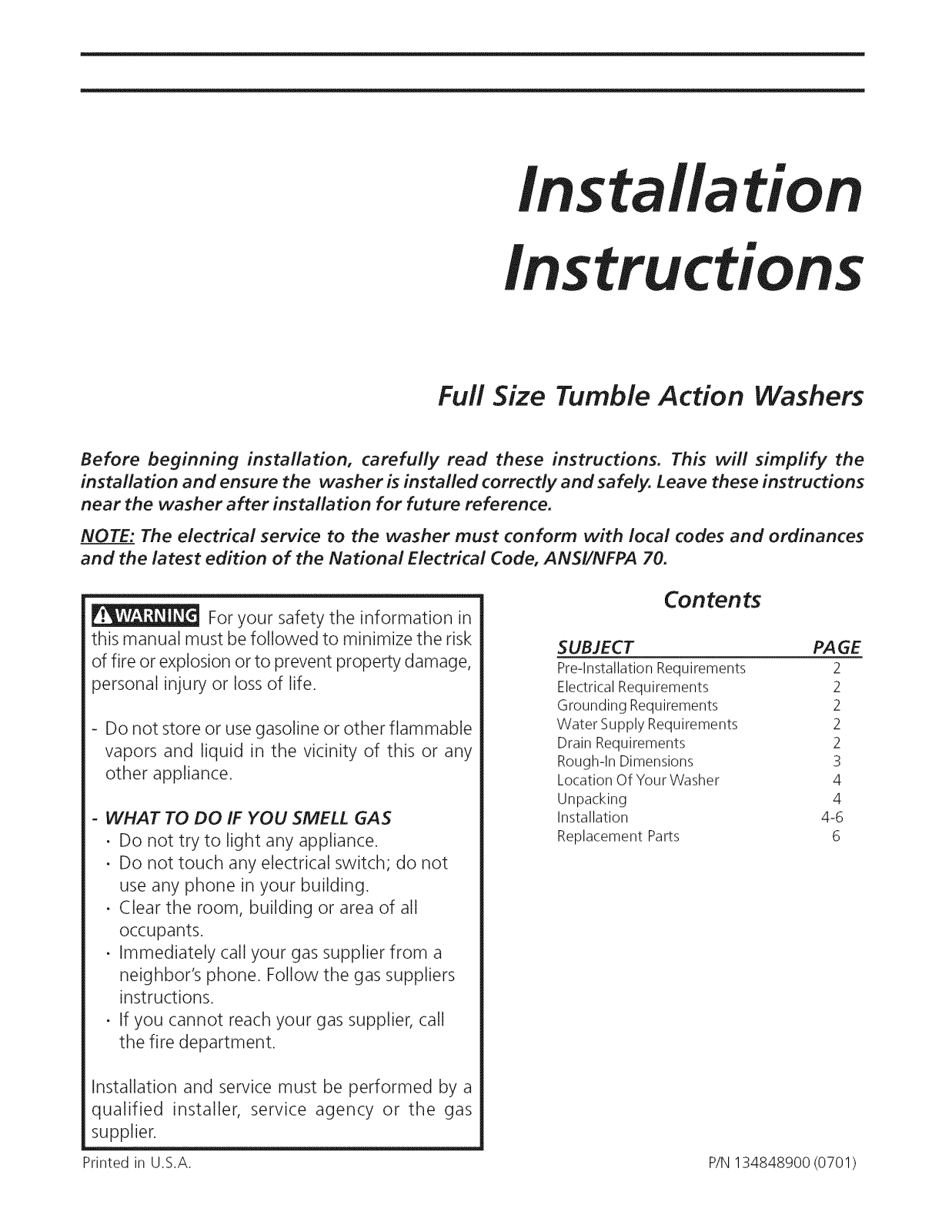

Frigidaire FTF2140FS0, GLTF2940FS0 Installation Guide

Full Size Tumble Action Washers
Before beginning installation, carefully read these instructions. This will simpfify the installation and ensure the washer is installed correctly and safely. Leave these instructions
near the washer after installation for future reference. NOTE: The electrical service to the washer must conform with local codes and ordinances
and the latest edition of the National Electrical Code, ANS!/NFPA 70.
Contents
For your safety the information in
this manual must be followed to minimize the risk of fire or explosion or to prevent property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone. Follow the gas suppliers
instructions.
If you cannot reach your gas supplier, call
the fire department.
S UBJECT PAGE
Pre-lnstallation Requirements 2
Electrical Requirements 2 Grounding Requirements 2 Water Supply Requirements 2
Drain Requirements 2
Rough-In Dimensions 3
Location Of Your Washer 4
Unpacking 4
Installation 4-6
Replacement Parts 6
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
Printed in U.S.A.
P/N 134848900 (0701)

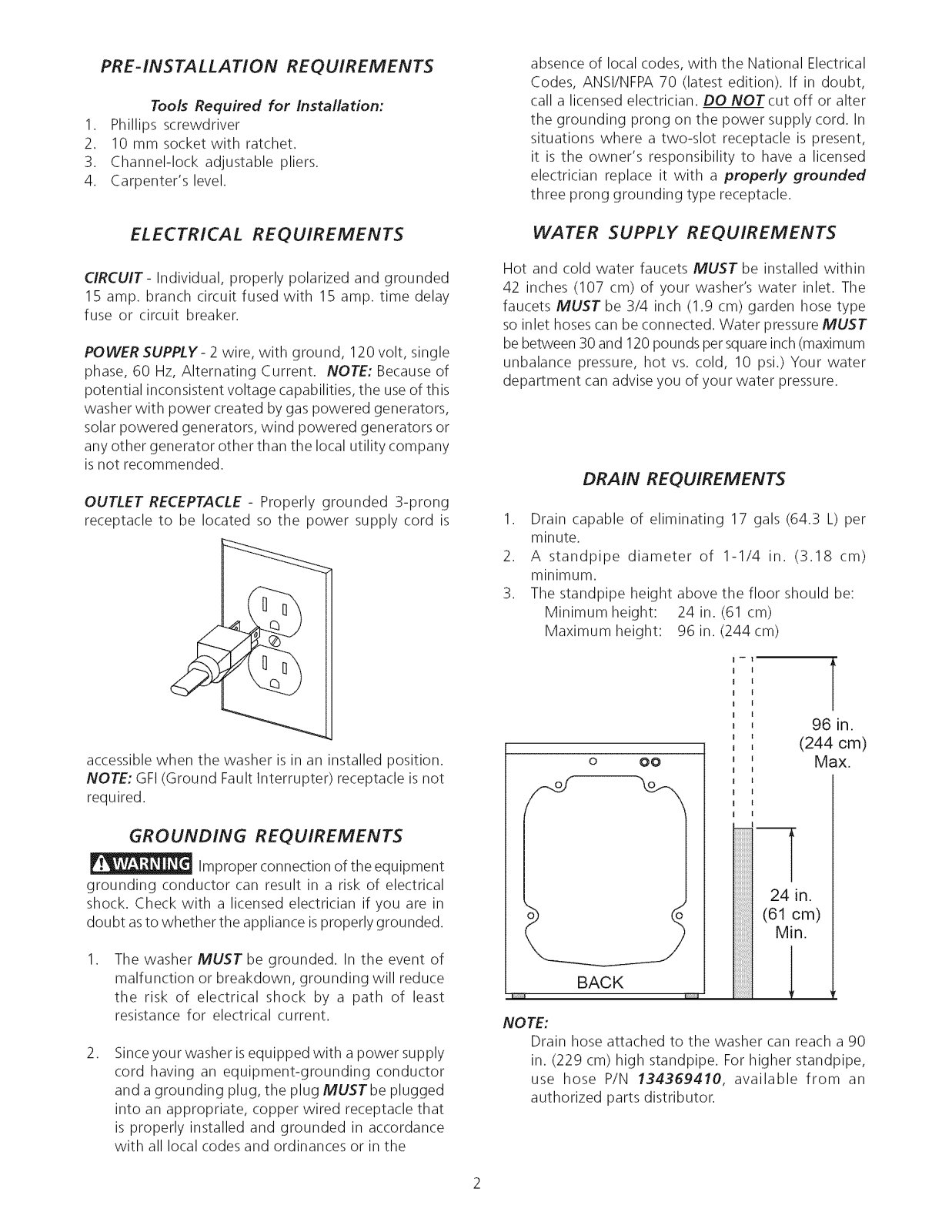

PRE-INSTALLAT!ON REQUIREMENTS
Tools Required for Installation:
I. Phillips screwdriver
2. 10 mm socketwith ratchet.
3. Channel-lock adjustable pliers.
4. Carpenter's level.
absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt,
call a licensed electrician. DO NOTcut off or alter the grounding prong on the power supply cord. In
situations where a two-slot receptacle is present,
it is the owner's responsibility to have a licensed electrician replace it with a properly grounded three prong grounding type receptacle.
ELECTRICAL REQUIREMENTS
CIRCUIT- Individual, properly polarized and grounded
15 amp. branch circuit fused with 15 amp. time delay
fuse or circuit breaker.
POWER SUPPLY- 2 wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current. NOTE: Becauseof
potential inconsistent voltage capabilities, the useof this washer with power created by gas powered generators, solar powered generators, wind powered generators or any other generator other than the local utility company
isnot recommended.
OUTLET RECEPTACLE - Properly grounded 3-prong
receptacle to be located so the power supply cord is
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within
42 inches (107 cm) of your washer's water inlet. The faucets MUST be 3/4 inch (1.9 cm) garden hose type
so inlet hoses can be connected. Water pressure MUST be between 30 and 120 pounds persquareinch (maximum unbalance pressure, hot vs. cold, 10 psi.) Your water department can advise you of your water pressure.
DRAIN REQUIREMENTS
I. Drain capable of eliminating 17 gals (64.3 L) per
minute.
2. A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3. The standpipe height above the floor should be:
Minimum height: 24 in. (61 cm) Maximum height: 96 in. (244cm)
accessible when the washer is in an installed position.
NOTE: GFI(Ground Fault Interrupter) receptacle is not
required.
GROUNDING REQUIREMENTS
Improper connection of the equipment
grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt asto whether the appliance isproperly grounded.
.
The washer MUST be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least
resistance for electrical current.
.
Sinceyour washer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug MUSTbe plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance
with all local codes and ordinances or in the
iiiiiiiiii
iiiiiiiiii
..........24 in.
(61 cm)
_ MJn.
BACK
II
NOTE:
Drain hose attached to the washer can reach a 90 in. (229 cm) high standpipe. For higher standpipe,
use hose P/N 134359410, available from an
authorized parts distributor.
!!!!!!!!!!i 1
r
96 in.
(244 cm)
Max.

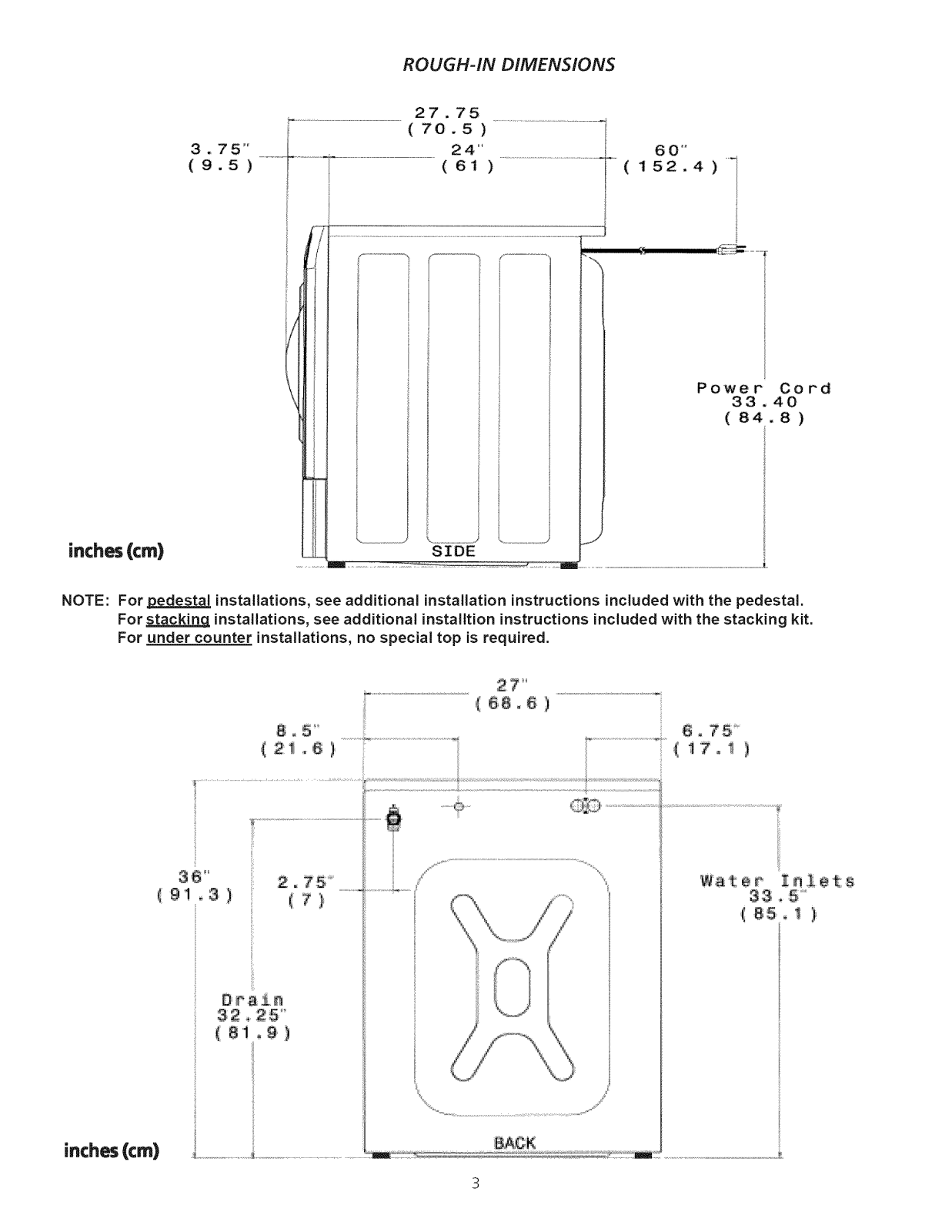

ROUGH-IN DIMENSIONS
Power" Cord
33 . 40
(84 8)
inches(cm)
NOTE: For pedestal installations, see additional installation instructions included with the pedestal.
For stacking installations, see additional installtion instructions included with the stacking kit. For under counter installations, no special top is required.
{18.8)
8 ° 5'
L_iO.....................................;
ware# Za ! e t s
33,5
9 ! 3 )
................................._- i
=(85, _ )
inches(cm)

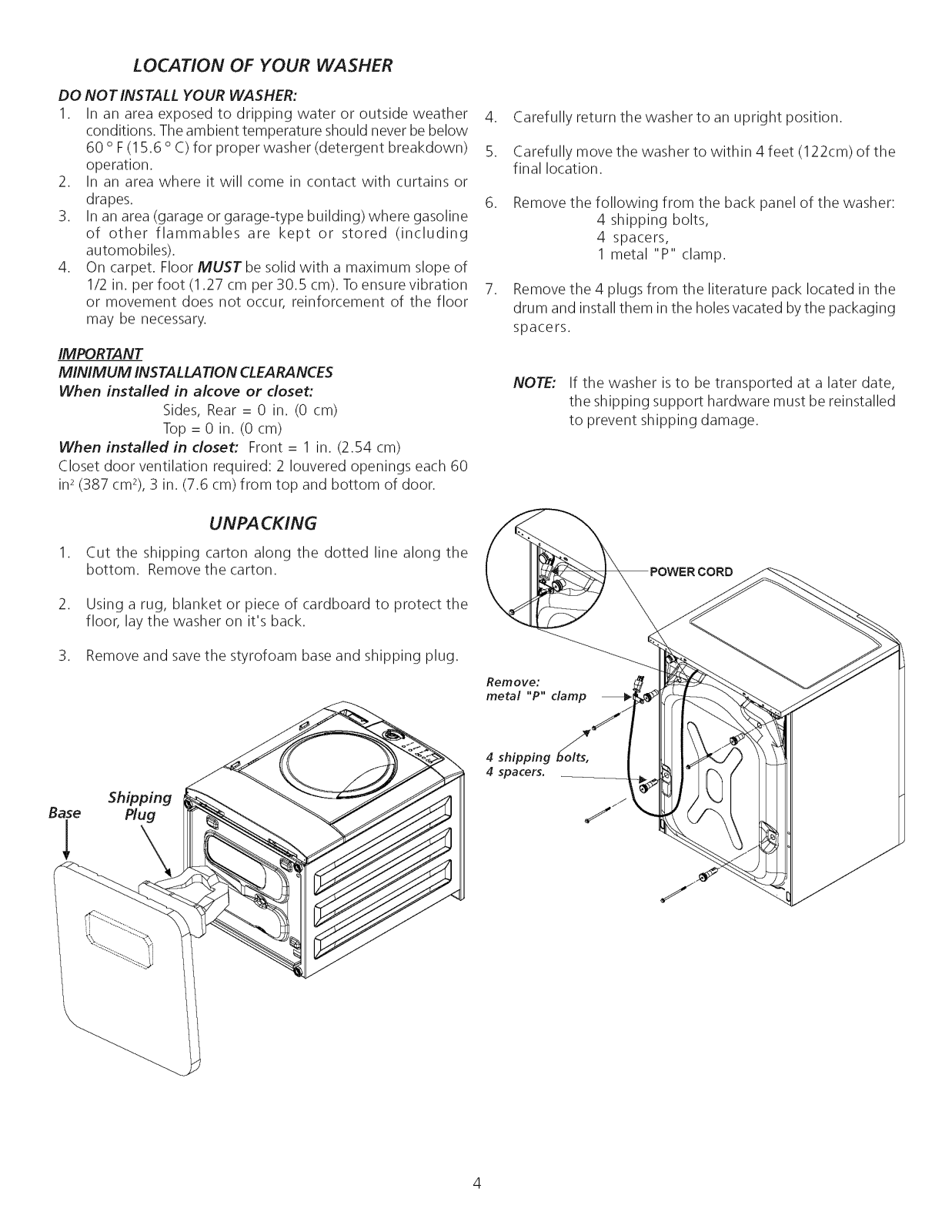

LOCATION OF YOUR WASHER
DO NOTINSTALL YOUR WASHER:
1. In an area exposed to dripping water or outside weather 4. conditions. The ambient temperature should never be below
60 ° F(15.6 ° C) for proper washer (detergent breakdown) 5. operation.
2. In an area where it will come in contact with curtains or drapes. 6.
3. Inan area (garage or garage-type building) where gasoline of other flammables are kept or stored (including automobiles).
4. On carpet. Floor MUST be solid with a maximum slope of 1/2 in. per foot (I .27 cm per 30.5 cm). To ensure vibration 7.
or movement does not occur, reinforcement of the floor
may be necessary.
IMPORTANT MINIMUM INSTALLATION CLEARANCES
When installed in alcove or closet:
Sides, Rear = 0 in. (0 cm)
Top = 0 in. (0 cm) When installed in closet: Front = I in. (2.54 cm) Closet door ventilation required: 2 Iouvered openings each 60 in2(387 cm2),3 in. (7.6 cm)from top and bottom of door.
Carefully return the washer to an upright position. Carefully move the washer to within 4 feet (122cm) of the
final location.
Remove the following from the back panel of the washer:
4 shipping bolts, 4 spacers,
1 metal "P" clamp.
Remove the 4 plugs from the literature pack located in the drum and install them inthe holes vacated by the packaging
spacers.
NOTE: If the washer isto be transported at a later date,
the shipping support hardware must be reinstalled to prevent shipping damage.
UNPACKING
1. Cut the shipping carton along the dotted line along the
bottom. Remove the carton.
2. Using a rug, blanket or piece of cardboard to protect the
floor, lay the washer on it's back.
3. Remove and savethe styrofoam base and shipping plug.
Shoping
Base Plug
Remove: metal "P" clamp
4 shipping _olts, 4 spacers.

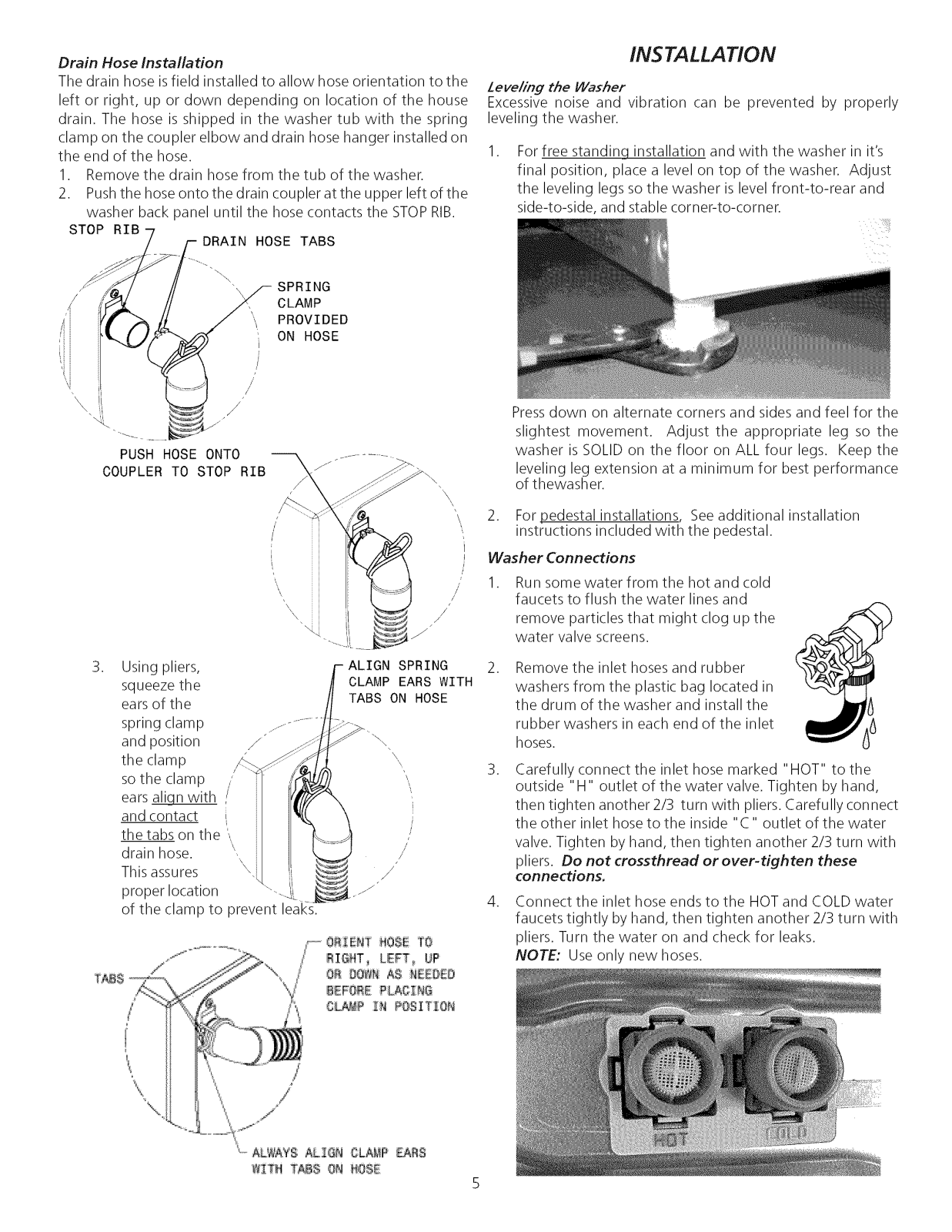

Drain Hose Installation
The drain hose isfield installed to allow hose orientation to the
left or right, up or down depending on location of the house drain• The hose is shipped in the washer tub with the spring clamp on the coupler elbow and drain hose hanger installed on
the end of the hose.
I. Remove the drain hose from the tub of the washer•
2. Pushthe hose onto the drain coupler at the upper left of the
washer back panel until the hose contacts the STOPRIB.
STOP RIB
DRAIN HOSE TABS
INSTALLATION
Zevel/ng the I/Ya_her
Excessive noise and vibration can be prevented by properly leveling the washer.
.
Forfree standinq installation and with the washer in it's
final position, place a level on top of the washer• Adjust the leveling legs so the washer is level front-to-rear and
side-to-side, and stable corner-to-corner.
/
\\ /'
jr
4
PUSH HOSEONTO
COUPLERTO STOP RIB
3. Using pliers, squeeze the
ears of the spring clamp
and position the clamp so the clamp /
ears_ / and contact I
the tabs on the 1,, drain hose.
This assures \ proper location
of the clamp to
T_S
\\\
SPRING CLAMP
PROVIDED
ON HOSE
i
/
Pressdown on alternate corners and sides and feel for the
slightest movement. Adjust the appropriate leg so the
washer is SOLID on the floor on ALL four legs. Keep the
leveling leg extension at a minimum for best performance
X\
of thewasher.
2. For pedestal installations, See additional installation instructions included with the pedestal.
Washer Connections
I. Run some water from the hot and cold
/
/
/"
/
faucets to flush the water lines and
remove particles that might clog upthe
water valve screens.
ALIGN SPRING CLAMP EARS WITH
TABS ON HOSE
.
Remove the inlet hosesand rubber
washers from the plastic bag located in the drum of the washer and install the
rubber washers in each end of the inlet hoses•
\
x
\
.
Carefully connect the inlet hose marked "HOT" to the outside "H" outlet of the water valve• Tighten by hand,
then tighten another 2/3 turn with pliers. Carefully connect the other inlet hose to the inside "C" outlet of the water
/'
/
/
valve•Tighten by hand, then tighten another 2/3 turn with
pliers, Do not crossthread or over-tighten these
connections.
.
Connect the inlet hose ends to the HOTand COLD water
faucets tightly by hand, then tighten another 2/3 turn with
pliers• Turn the water on and check for leaks•
NOTE: Use only new hoses.
%%
INSTALLATION (CON'T)
.

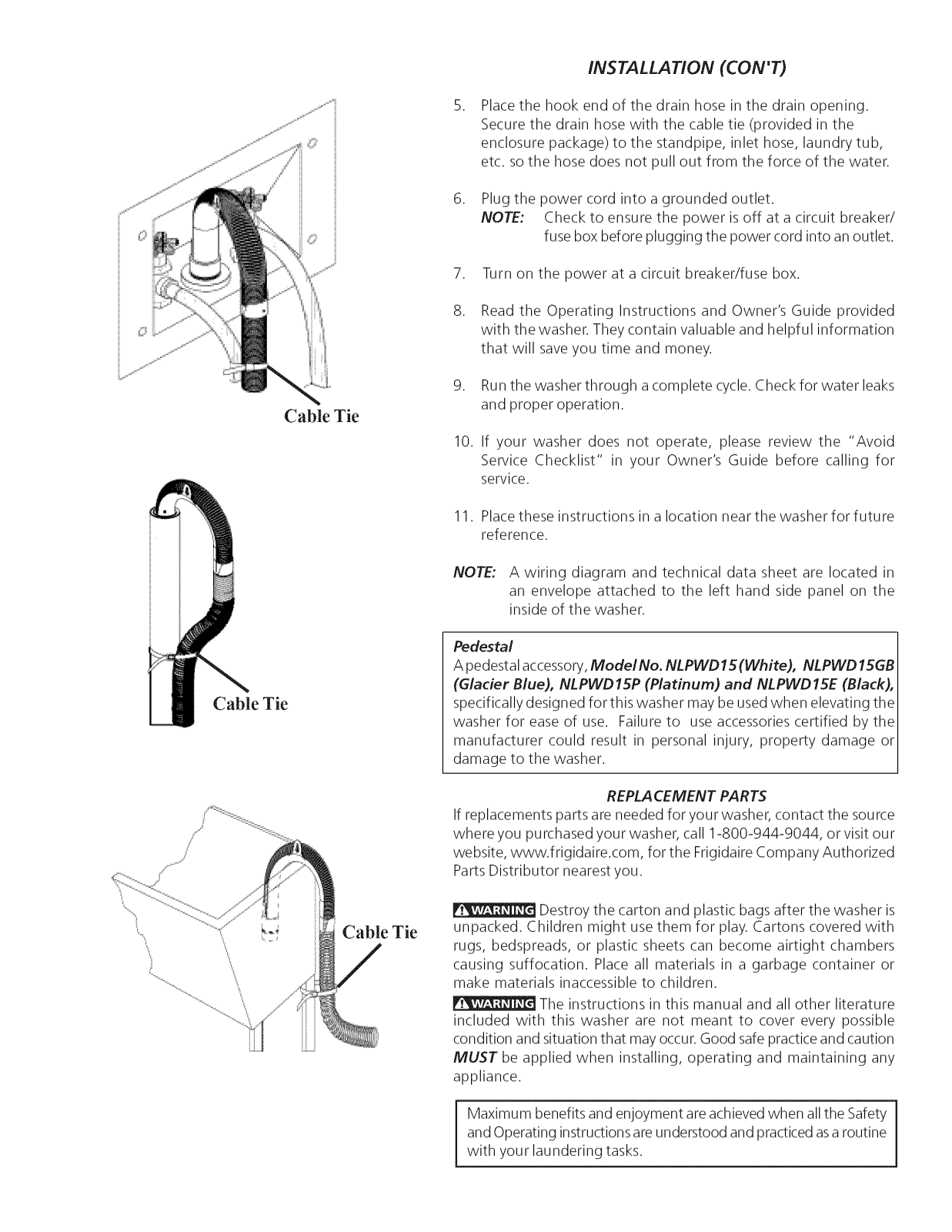

Placethe hook end of the drain hose in the drain opening. Secure the drain hose with the cable tie (provided in the enclosure package) to the standpipe, inlet hose, laundry tub, etc. sothe hose does not pull out from the force of the water.
6. Plug the power cord into a grounded outlet. NOTE: Check to ensure the power is off at a circuit breaker/
fuse box before plugging the power cord into an outlet.
7. Turn on the power at a circuit breaker/fuse box.
8. Read the Operating Instructions and Owner's Guide provided with the washer. They contain valuable and helpful information that will save you time and money.
9. Runthe washer through acomplete cycle. Check for water leaks
Cable Tie
l
and proper operation.
10. If your washer does not operate, please review the "Avoid Service Checklist" in your Owner's Guide before calling for
service.
1I. Placethese instructions in alocation near the washer for future
reference.
Cable Tie
Cable Tie
NOTE: A wiring diagram and technical data sheet are located in
an envelope attached to the left hand side panel on the inside of the washer.
Pedestal
A pedestal accessory,ModelNo. NLPWD15(White), NLPWD 15GB
(Glacier Blue), NLPWD15P (Platinum) and NLPWD15E (Black),
specifically designed for this washer may be used when elevating the
washer for ease of use. Failure to use accessories certified by the
manufacturer could result in personal injury, property damage or damage to the washer.
REPLACEMENT PARTS
If replacements parts are needed for your washer, contact the souroe where you purchased your washer, call 1-800-944-9044, or visit our website, www.frigidaire.com, for the Frigidaire Company Authorized
PartsDistributor nearest you.
Destroy the carton and plastic bags after the washer is
unpacked. Children might usethem for play.Cartons covered with
rugs, bedspreads, or plastic sheets can become airtight chambers
causing suffocation. Place all materials in a garbage container or
make materials inaccessible to children. _The instructions in this manual and all other literature
included with this washer are not meant to cover every possible
condition and situation that may occur. Good safe practiceand caution MUST be applied when installing, operating and maintaining any
appliance.
Maximum benefits and enjoyment are achieved when all the Safety and Operating instructions are understood and practicedasa routine with your laundering tasks.
